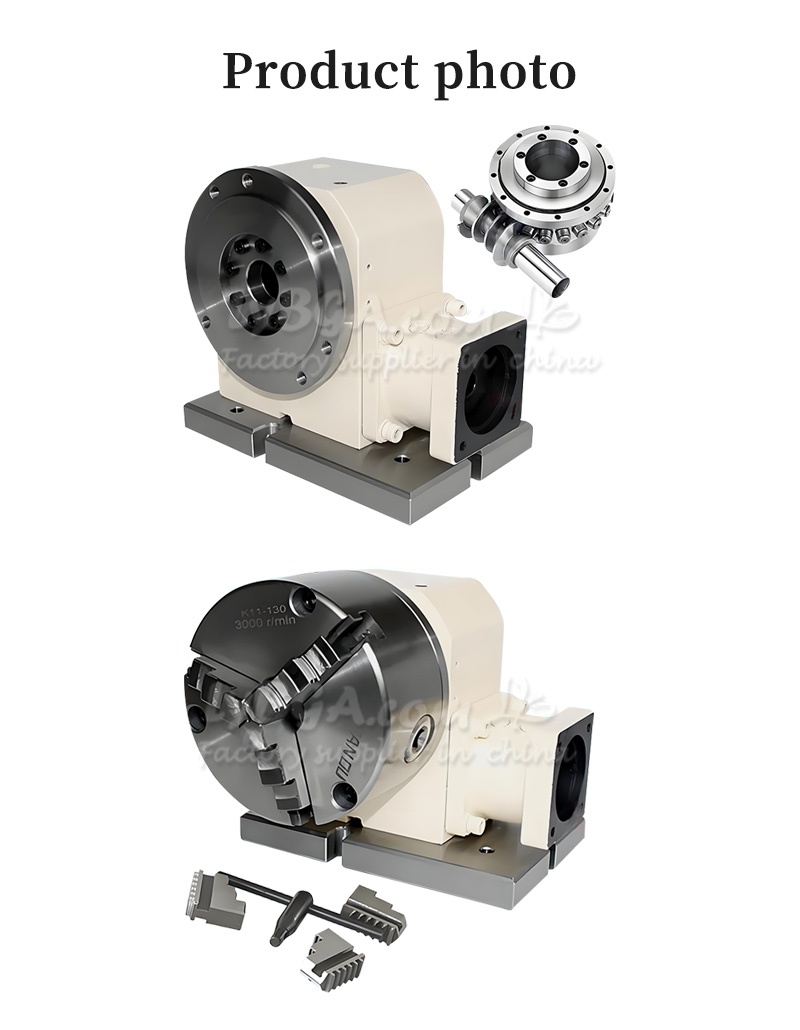

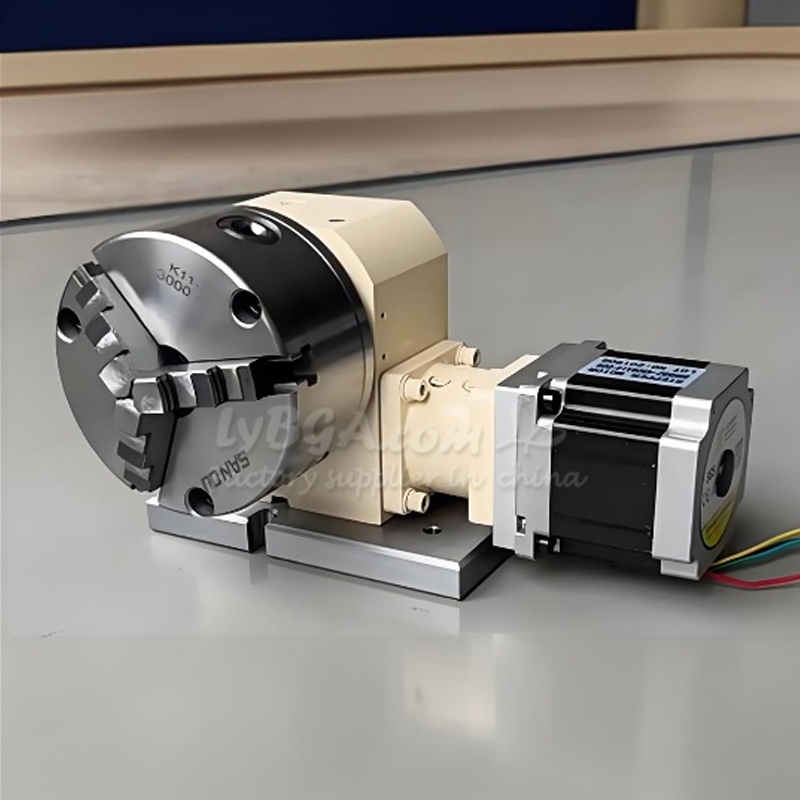

Vertical and Horizontal Dual-purpose CNC Dividing Head TL110-15-130A CNC Rotary A-axis High Precision Roller Cam Gearbox With Chuck 130mm 3-jaws For CNC Milling Machines

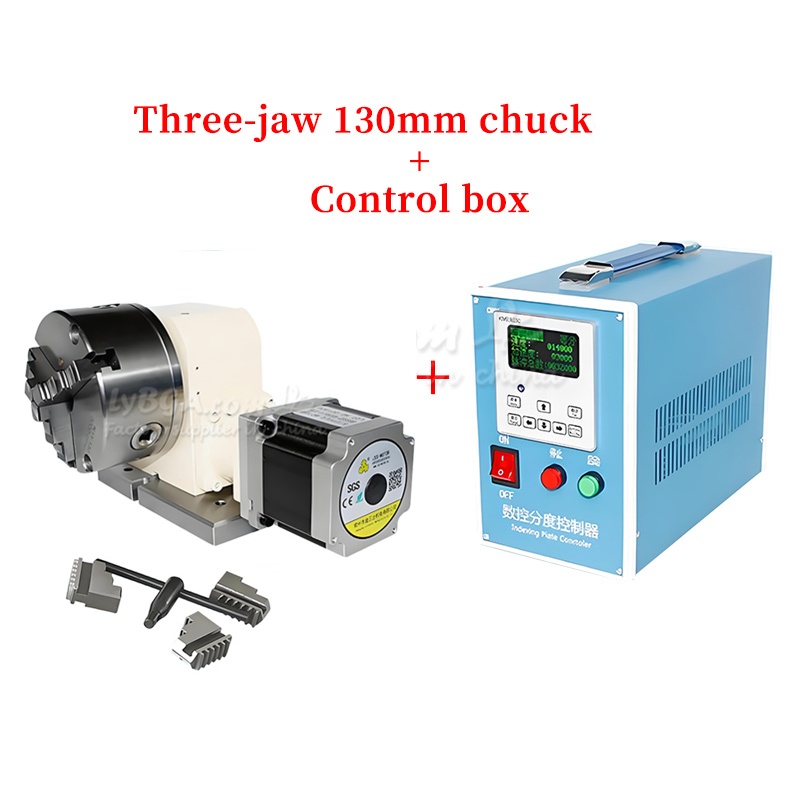

Vertical and Horizontal Dual-purpose Dividing Head 4th Axis Rotary A-axis High Precision Roller Cam Gearbox TL110-15-130A 130mm Chuck 3 jaws 15:1 Indexing Head Control Box For CNC Engraving Machines

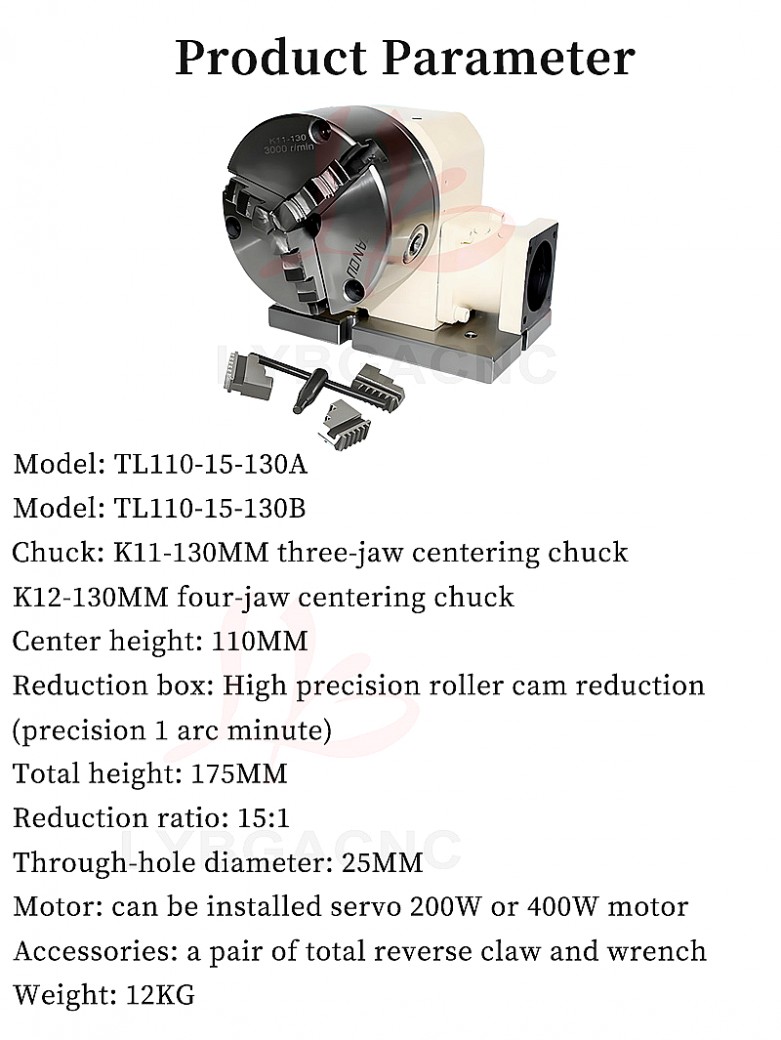

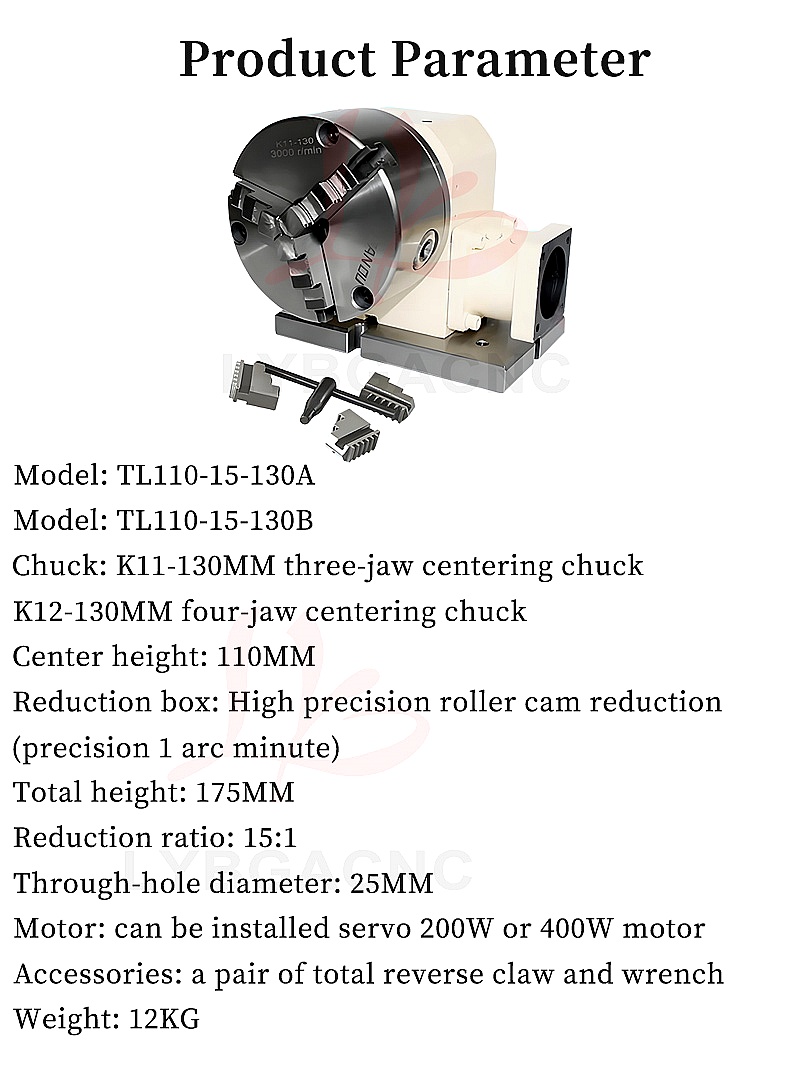

l  Specification:

Model: TL110-15-130 A (B)

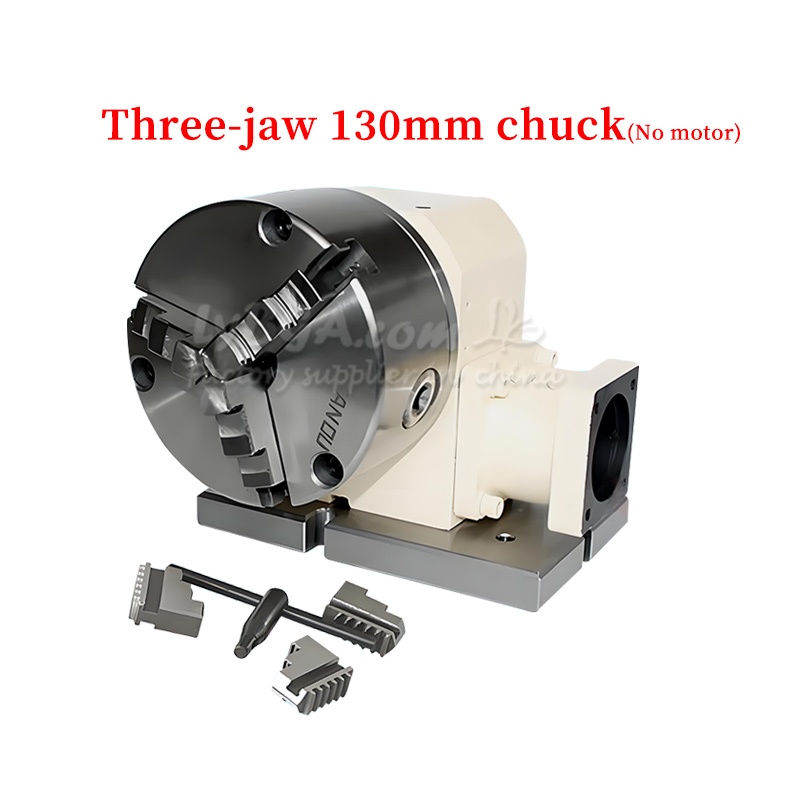

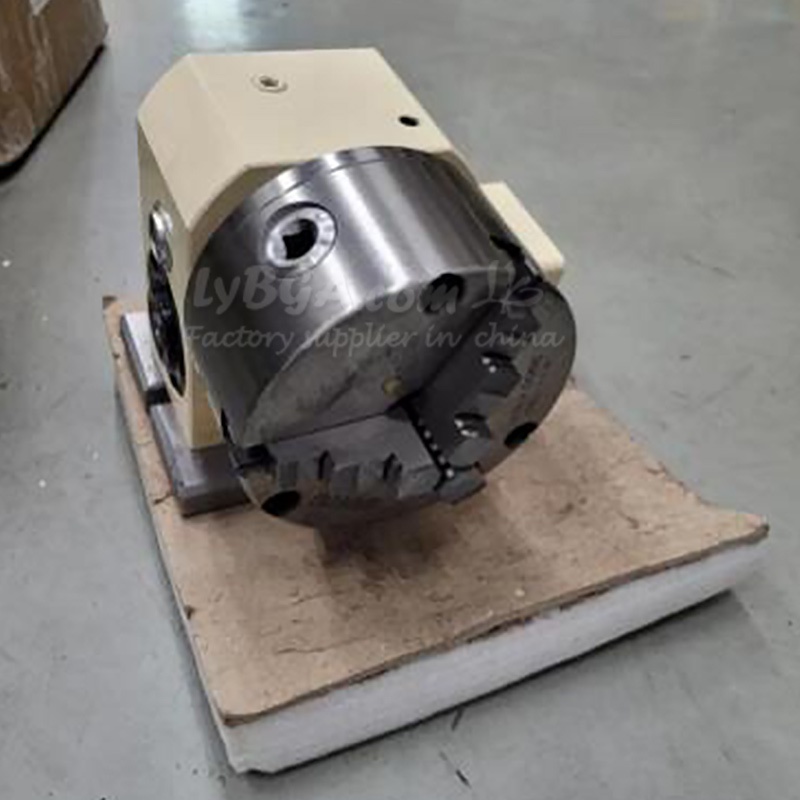

Chuck: K11-130MM three-jaw centering chuck

Center height: 110MM

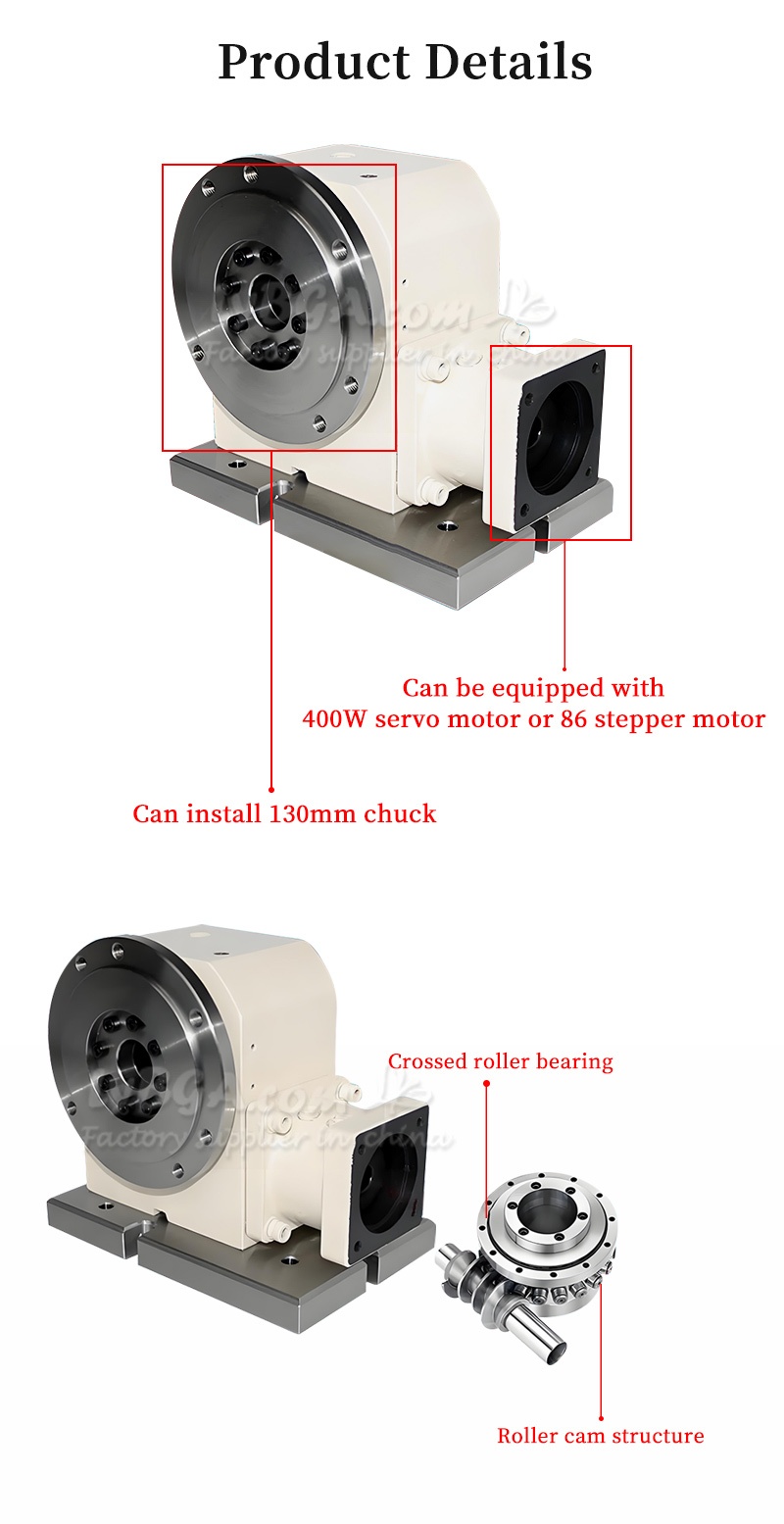

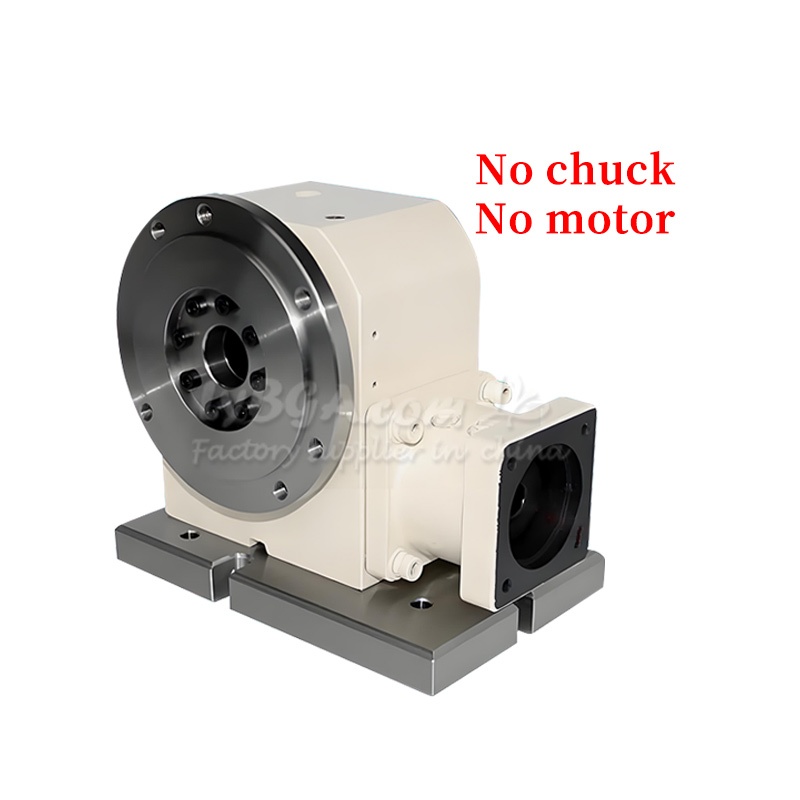

Reduction box: High precision roller cam reduction (precision 1 arc minute)

Total height: 175MM

Speed reduction ratio: 15:1

Through-hole diameter: 25MM

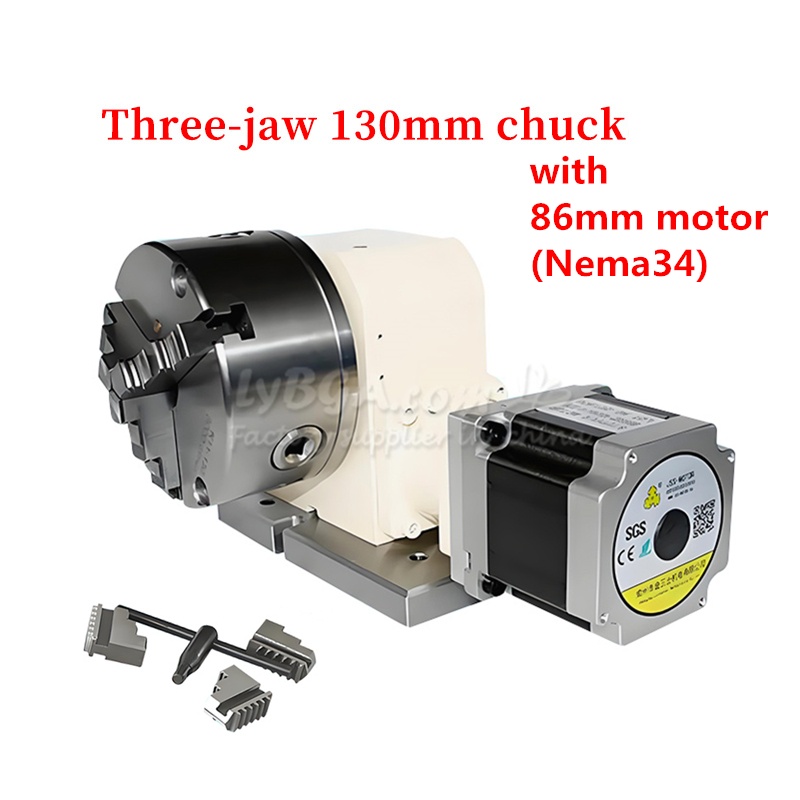

Motor: can be installed servo 200W or 400W motor

Accessories: one pair of total counterclaw and wrench

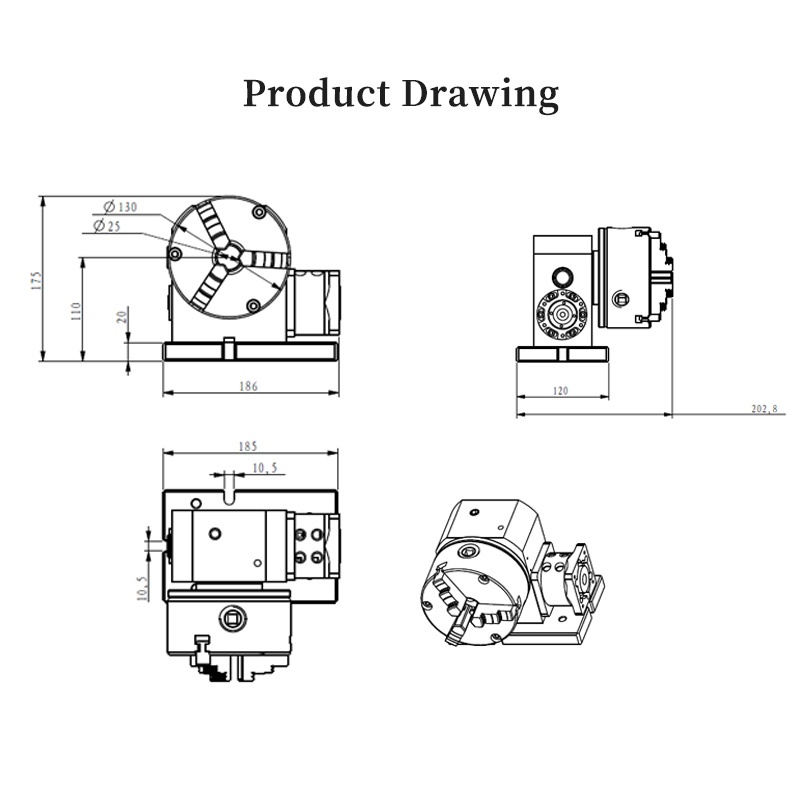

Size: length 260MM*width 130*height 175MM

Weight: 12KG

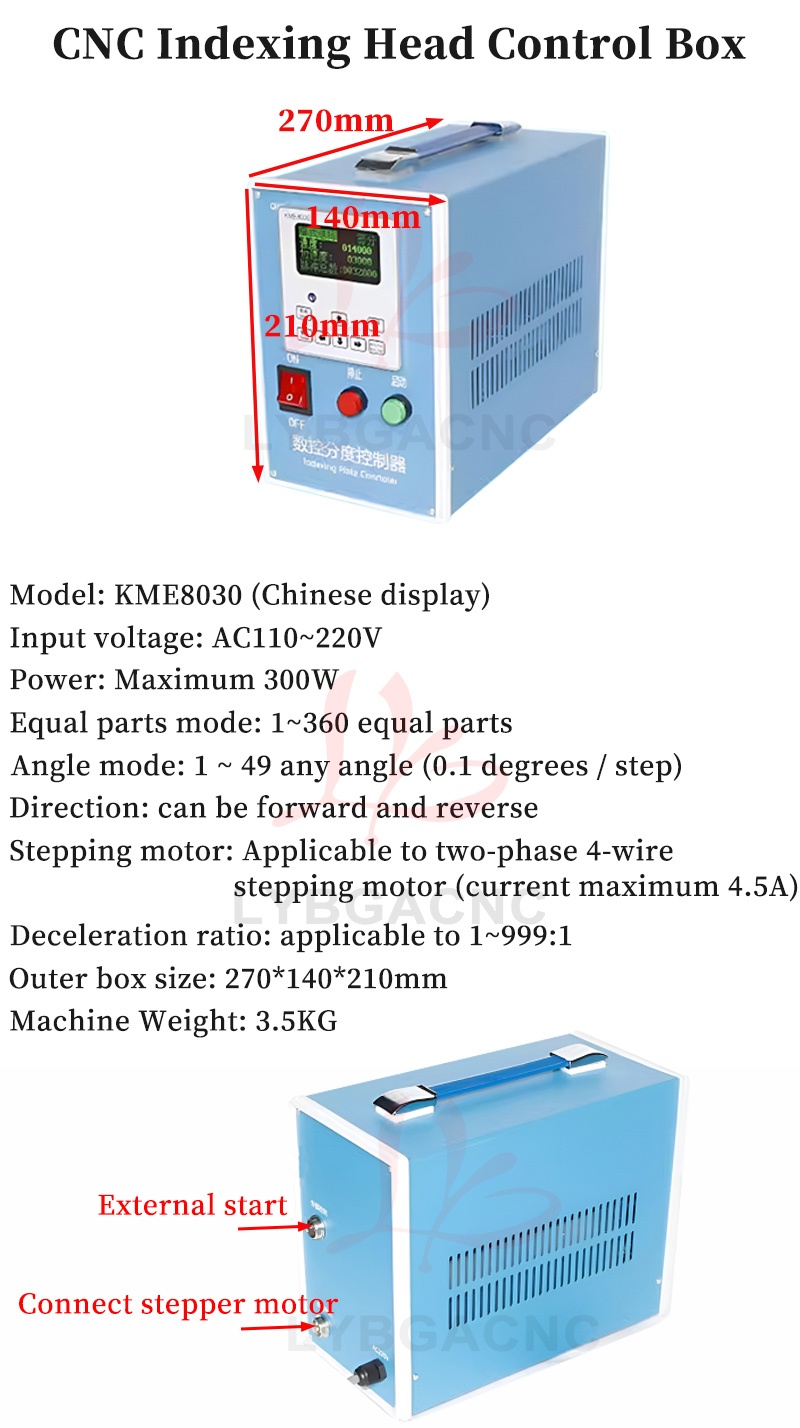

l  CNC Indexing Head Control Box Specifications:

1. Model: KME8030

2. Input voltage: AC110~220V

3. Power: Maximum 300W

4. Equal parts mode: 1~360 equal parts

5. Angle mode: 1 ~ 49 any angle (0.1 degrees / step)

6. Orientation: can be forward and reverse

7. Stepping motor: applicable to two-phase 4-wire stepping motor (current maximum 4.5A)

8. Reduction ratio: applicable to 1~999:1

9. Outer box size: 270*140*210MM

10. Weight: 3.5KG
