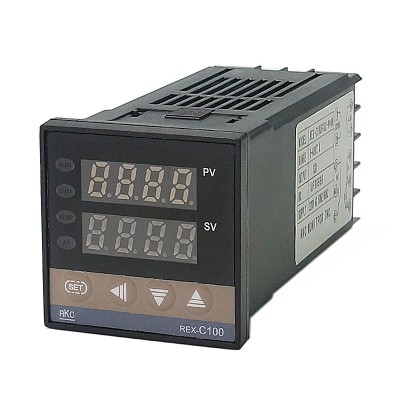

RKC REX-C100 Digital PID Temperature Controller relay output 48*48 k type with Range 0-400 Degrees Celsius 50Hz
This is a bid for a dual display universal digital programmable temperature controller that supports many type of thermocouple sensor.
it powered by 100V~240V AC.
Display: Dual display for Celsius (C)
Range: -0-400C (Only when with the factory K type thermocouple)
Thermocouple: K,J,S,E,R,Wre3 ~ Wre25
Thermo Resistor: PT100, Cu50
Main Output: RELAY
PID cooling/heating control
1 RELAY alarm: Normal open, capacity 250V/3A AC or 30V/3A DC
7 different Dual Output combinations with: high / low / high deviation / low deviation /interval / out of interval / breakage alarm
Dimension: DIN: 1/16 (48mm x 48mm x 110mm)
Individually programmable PID control parameters.
P, I, d, controlling period, digital filter coefficient, and more
Relay control ready to connect
DIN 1/8 great form-factor to be included/build-in to your product.
Input: TC(K, J, S, E) / RTD (Pt100, CU50) universal input, or 0-20mA signal.
Control output: Relay
Alarm output: 1 line output, 7 kinds of alarm mode: high/low/high deviation/low deviation/interval/out of interval/breakage alarm.
1×REX-C100 PID Digital Temperature Controller
