CNC 3040 Frame Linear Guideway Rail 6040 Wood Router Engraver Metal Engraving PCB Milling Machine CNC Frame Kit with step Motor

CNC 3040 Frame Linear Guideway Rail 6040 Wood Router Engraver Metal Engraving PCB Milling Machine CNC Frame Kit with step Motor

item ID: 60781
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$1200 USD$908 (% off)
Payment

Product Detail

Product Tags

CNC Frame 3040 (11)

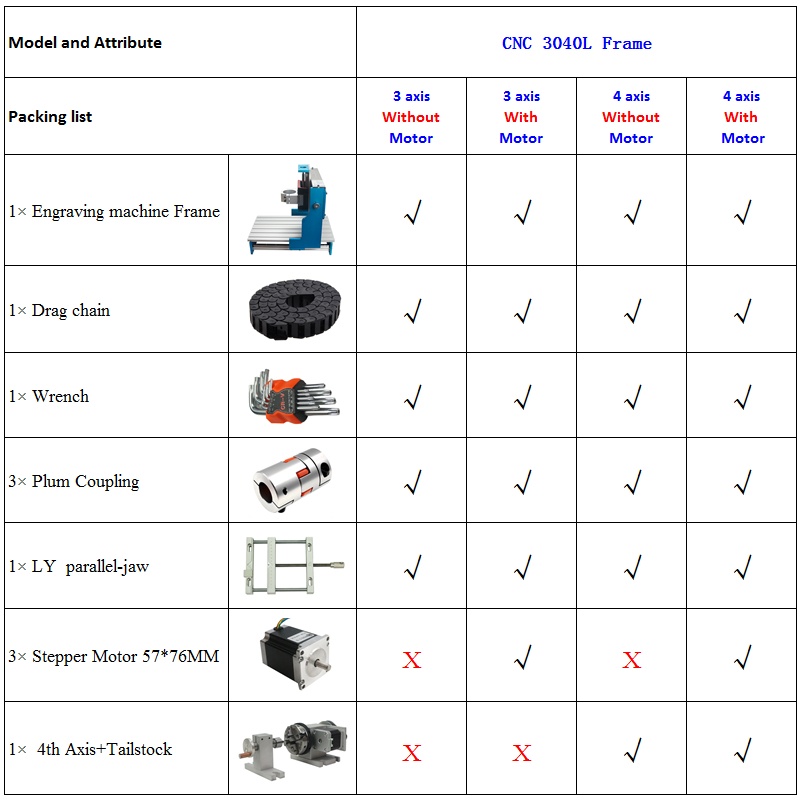

MODEL CNC Frame 3040L /6040L
Attribute

3 axis Without

Motor

3
axis With Motor

4
axis Without Motor

4
axis With Motor

Axis 3axis 3axis 4axis 4axis
Have motor? No Yes No Yes
Have 4th axis? No No Yes Yes
Weight 30/45 34/48 33/48 37/51
Rack material:

6061 and 6063 Hard aluminum alloy
(The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.)

Table material:

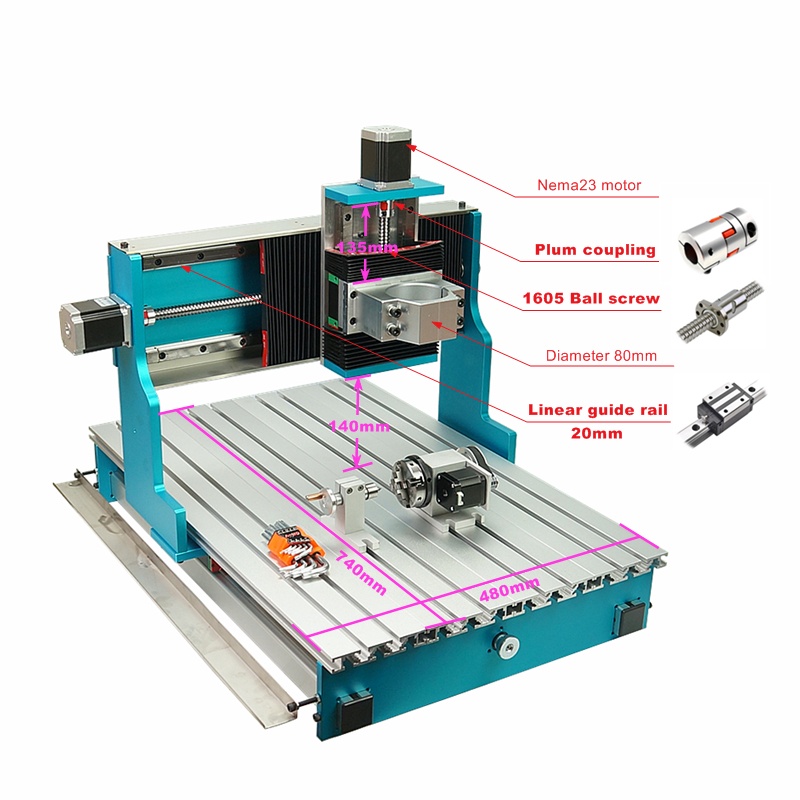

3040L :320 * 520mm (20mm aluminum alloy T table)

6040L: 740 * 480mm (20mm aluminum alloy T table)

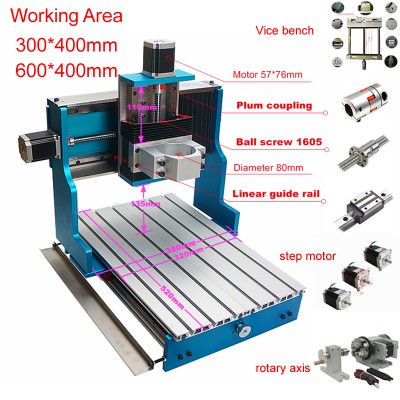

Engraving area:

3040L:260*380*110mm

6040L:360*570*120mm

Z-Axis Stroke:

3040L:110mm, Engraving depth depends on the length of the tool edge

6040L: 120mm

Acceptable material thickness:

3040L:≤ 135mm

6040L:≤ 140mm

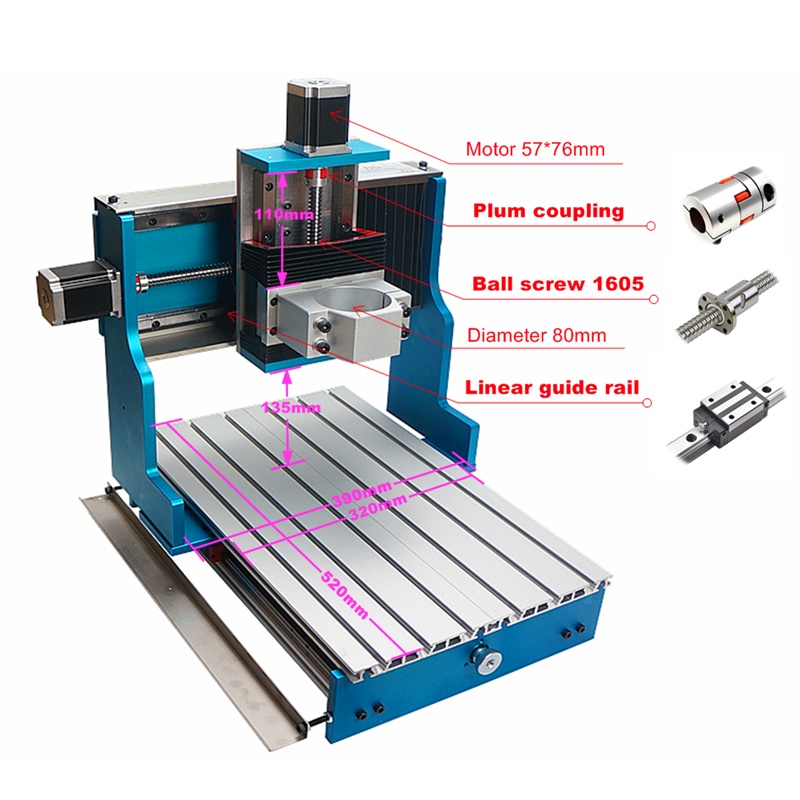

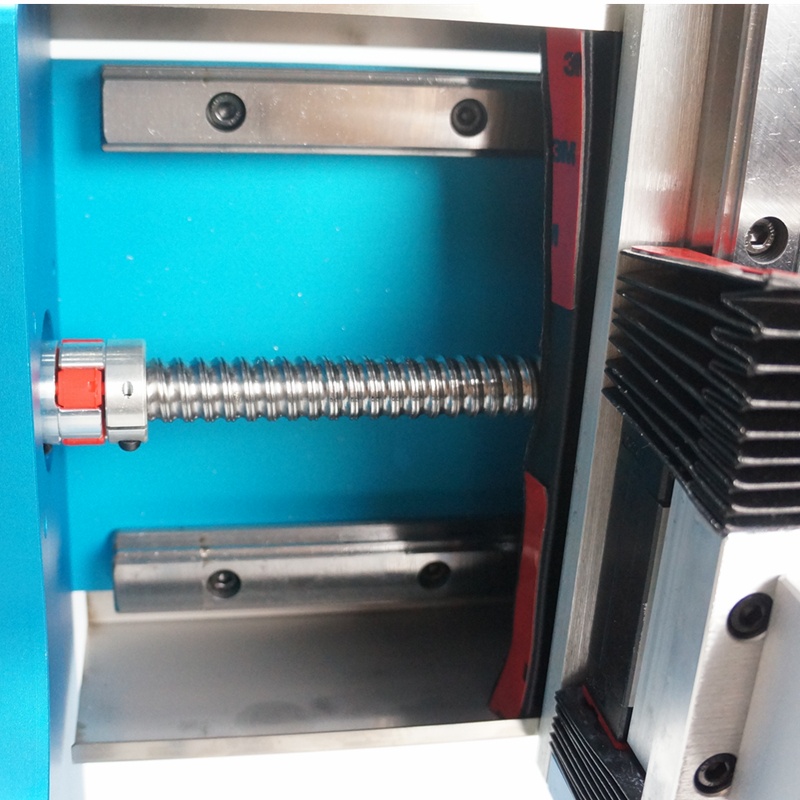

Rail type:

Square line rail track, three-axis is 20 mm square wire track, high precision, high strength, top configuration.

Type of screw:

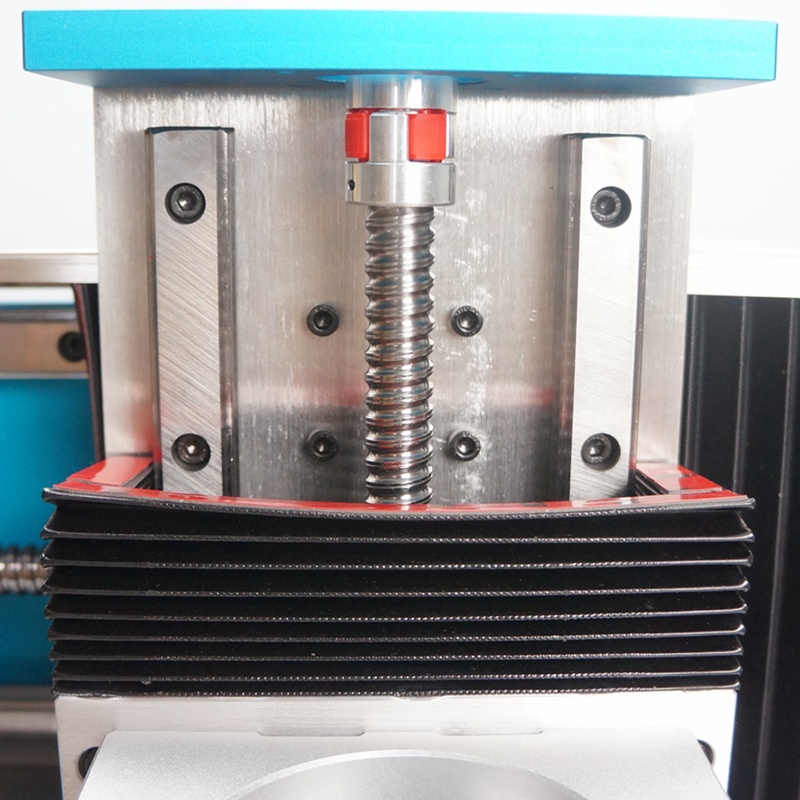

Ball screw 1605

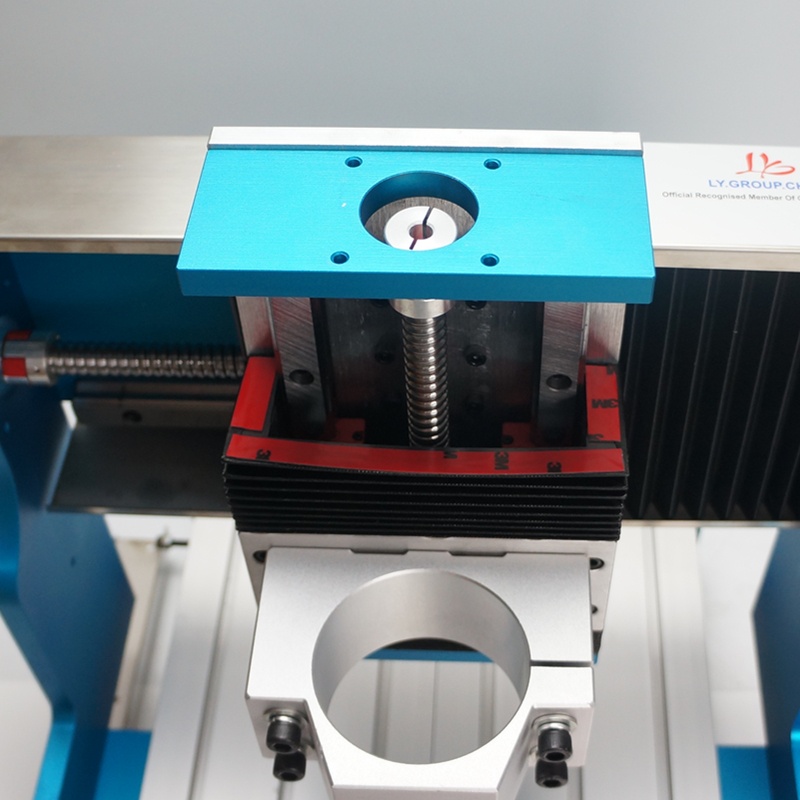

Diameter of Spindle motor: 80mm

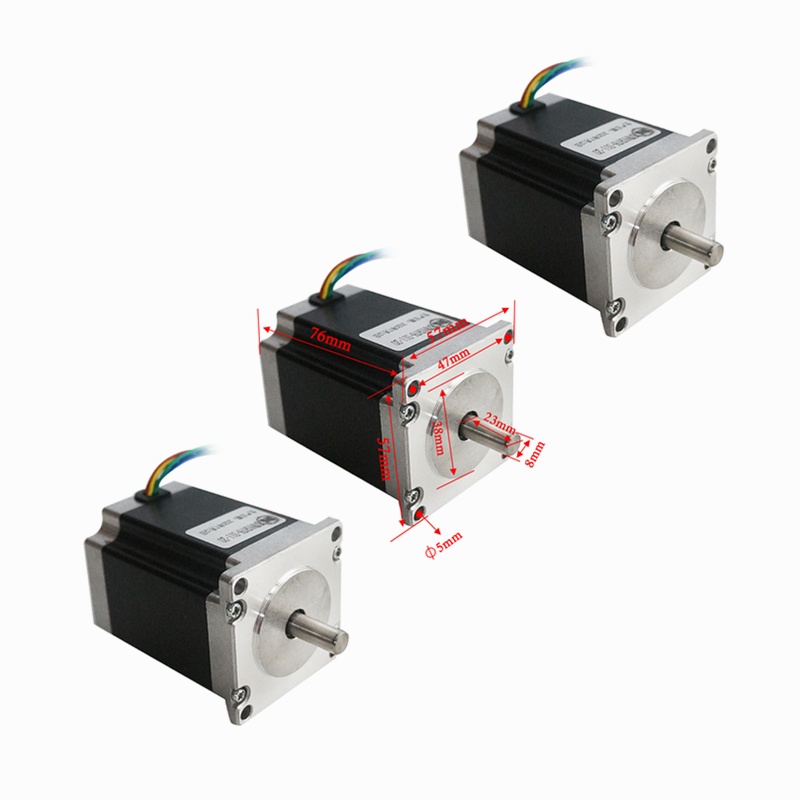

Motor Nema 23 (57*76mm)

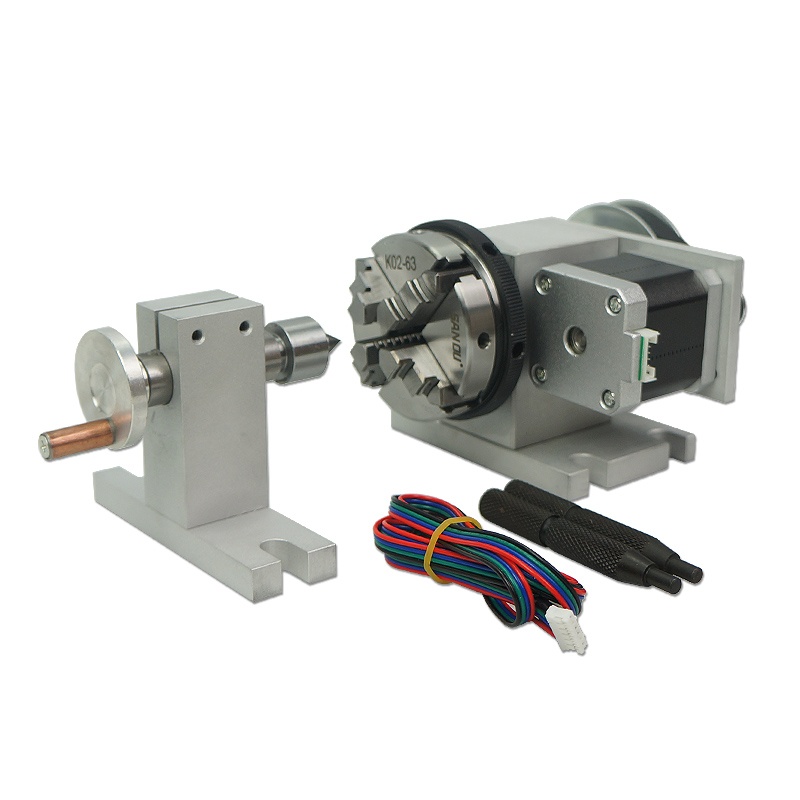

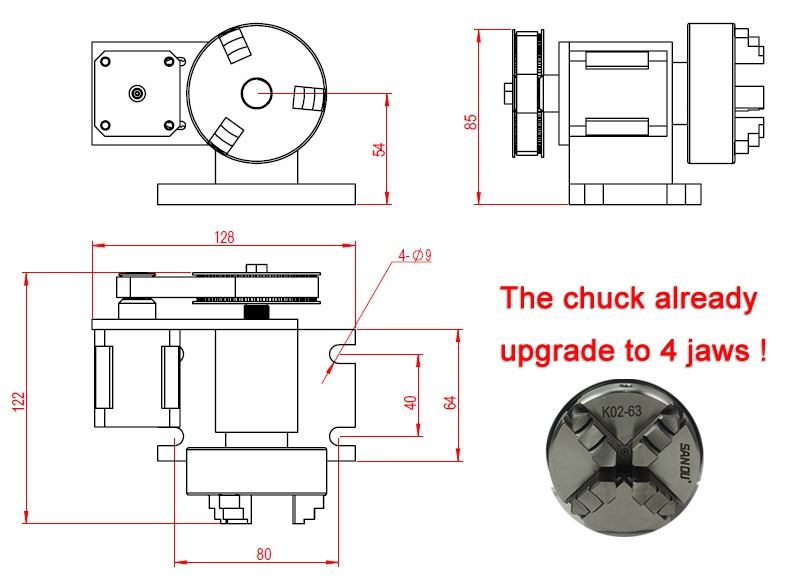

Rotation Axis (4th Axis)

Description:

Chuck: 65MM 4-jaw chuck

Center height: 54MM

Speed reducing ratio: 4:1

Stepper motor: Two phase 42 stepper motor

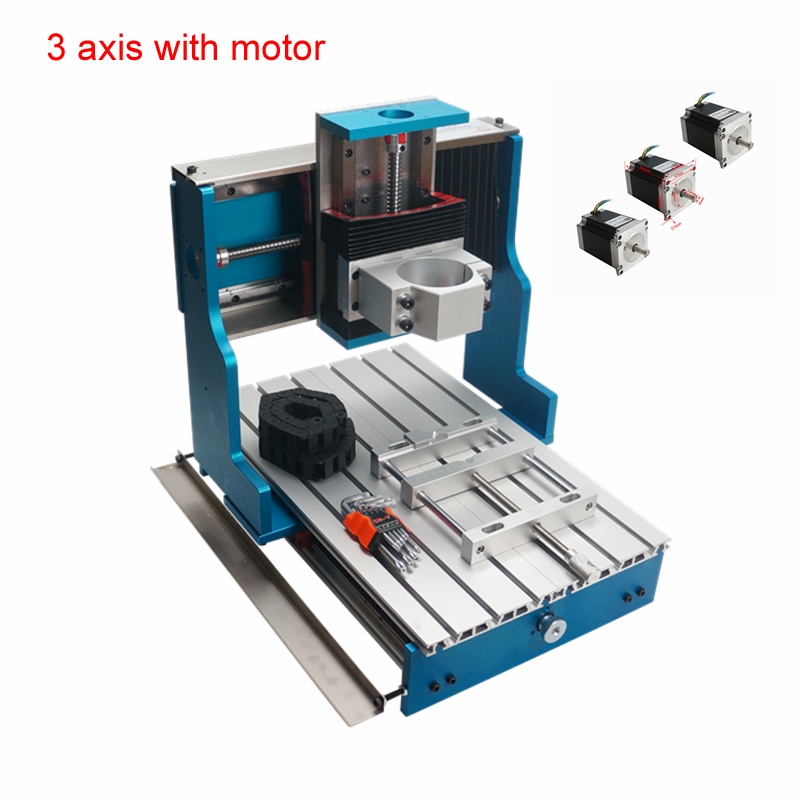

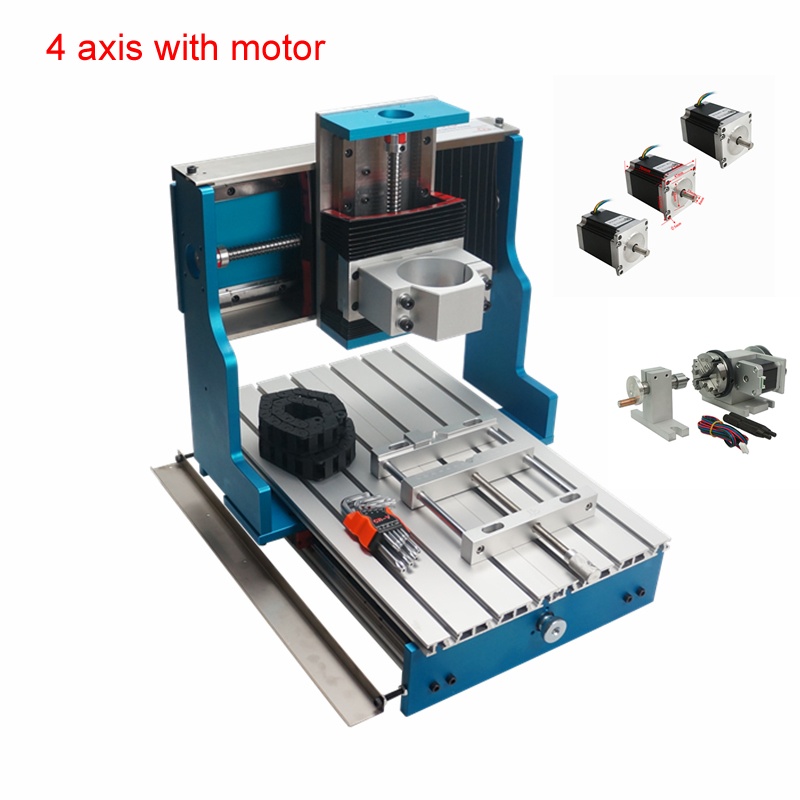

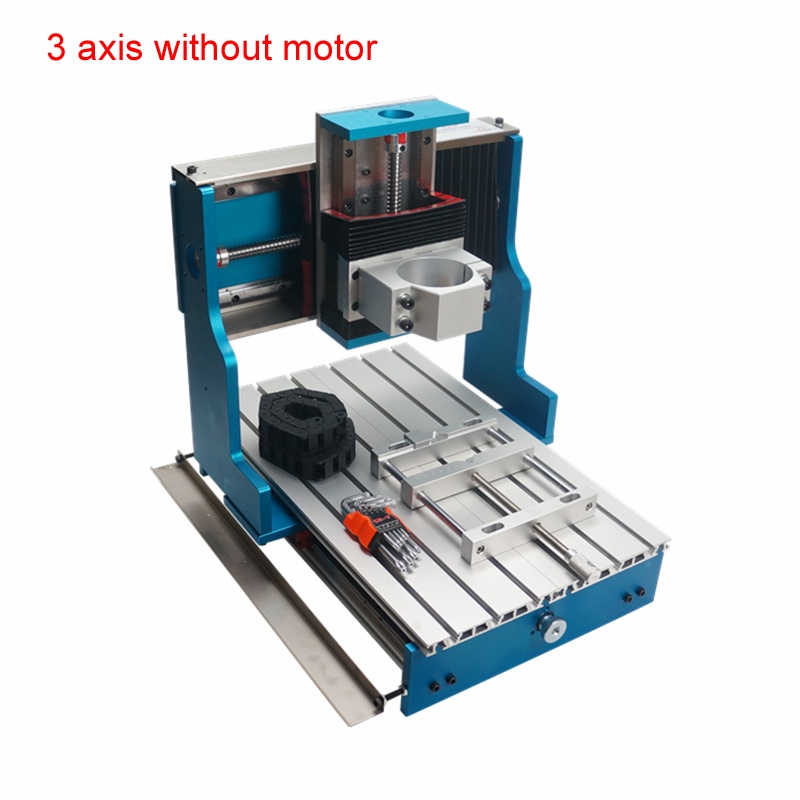

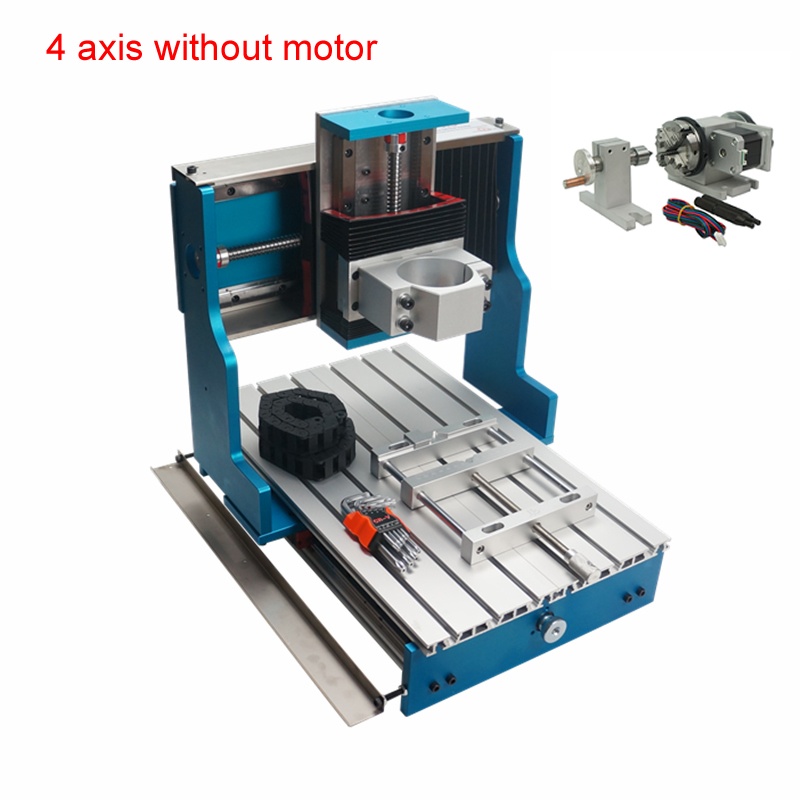

3 axis with motor 3 axis without motor 4 axis with motor 4 axis without motor

CNC Frame 3040 (1) CNC Frame 3040 (2) CNC Frame 3040 (3) CNC Frame 3040 (4) CNC Frame 3040 (5) CNC Frame 3040 (6) CNC Frame 3040 (8) CNC Frame 3040 (9) CNC Frame 3040 (10) CNC Frame 3040 (12) CNC Frame 3040 (13) CNC Frame 3040 (14) CNC Frame 3040 (15) CNC Frame 3040 (16) CNC Frame 3040 (17) CNC Frame 3040 (18)
