LY-331H Automatic Hot Melt Adhesive Dispenser 3 axis Compatible For Mobile Frame Glue Dispensing Works 220V 110V

LY-331H Automatic Hot Melt Adhesive Dispenser 3 axis Compatible For Mobile Frame Glue Dispensing Works 220V 110V

Introduction

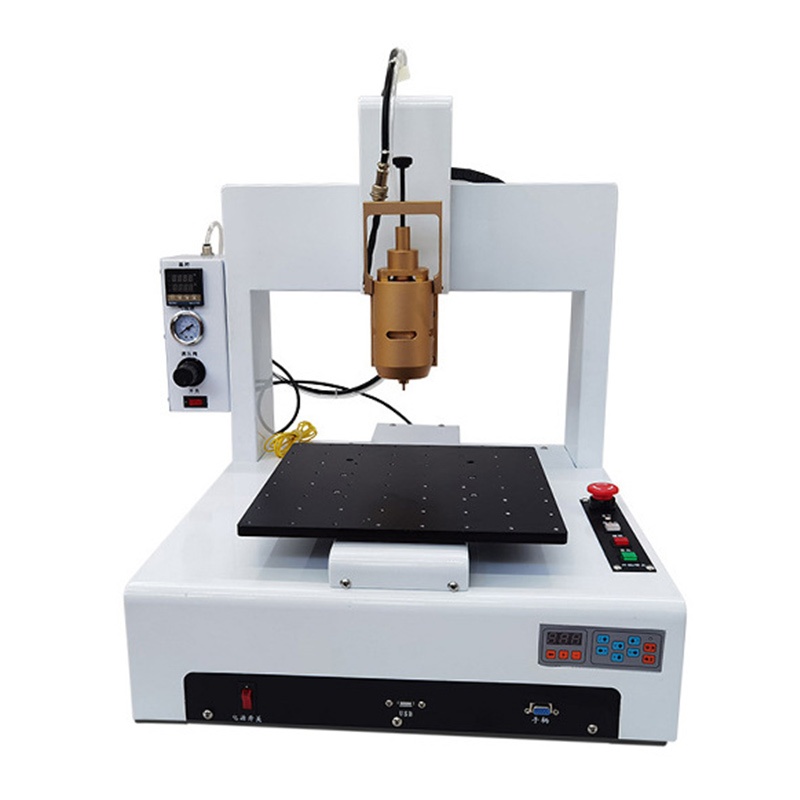

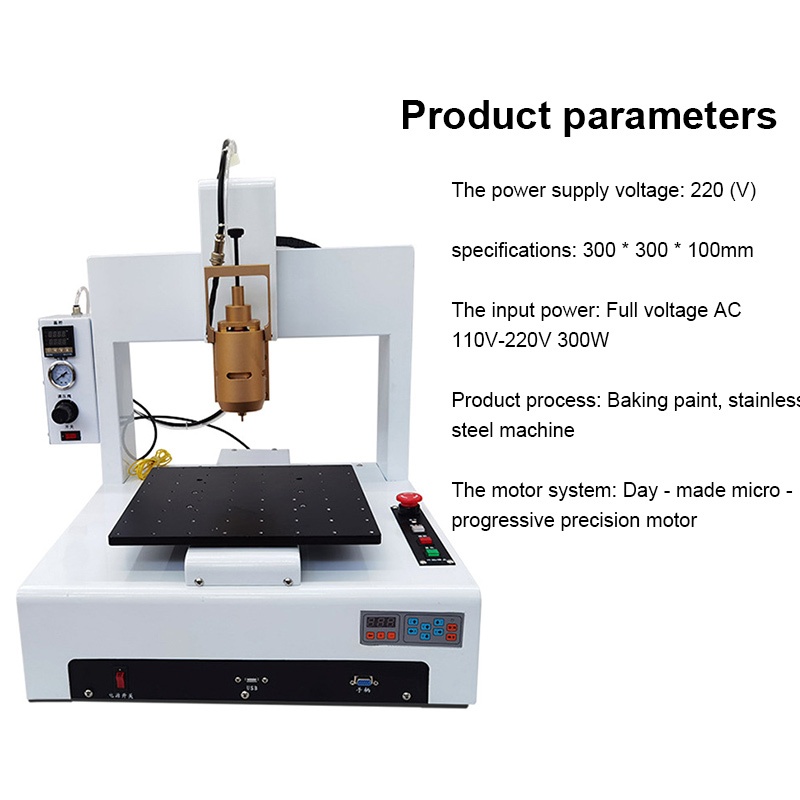

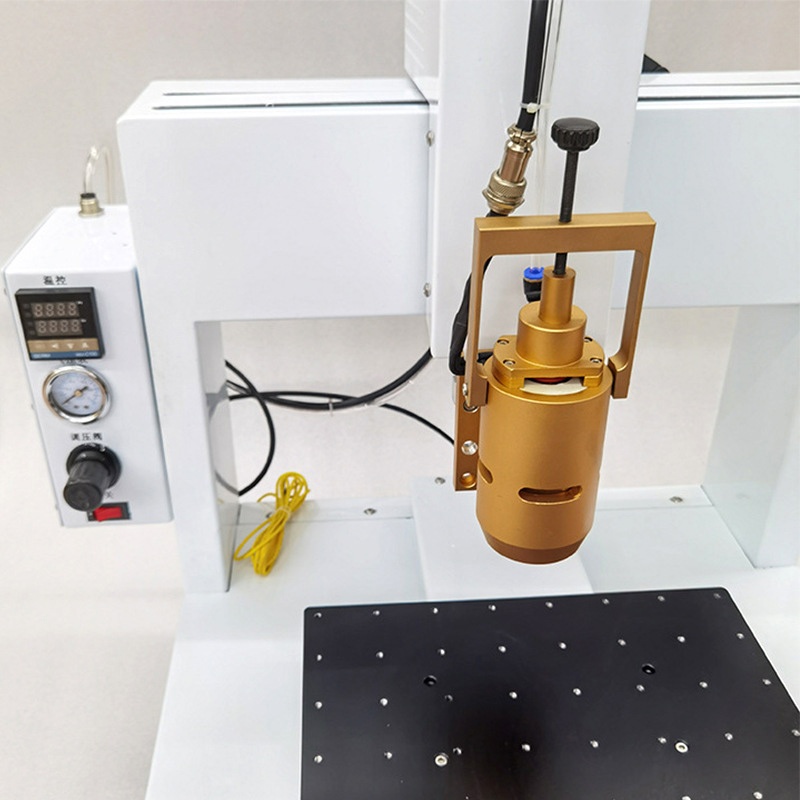

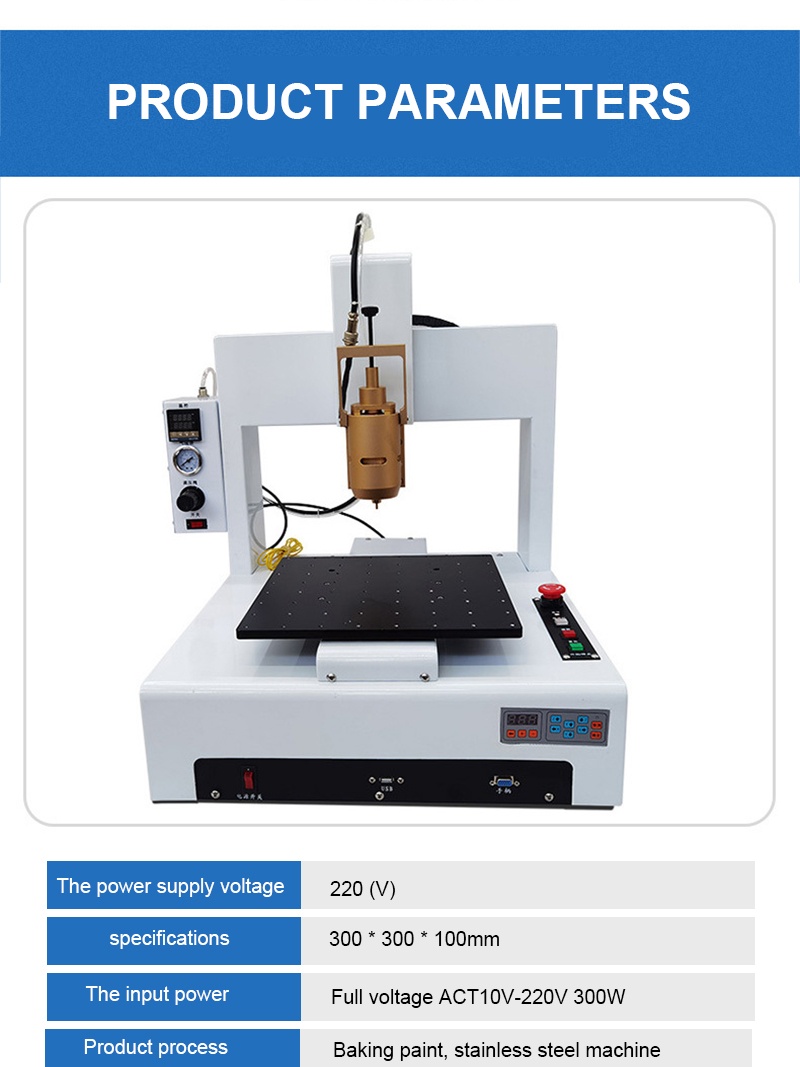

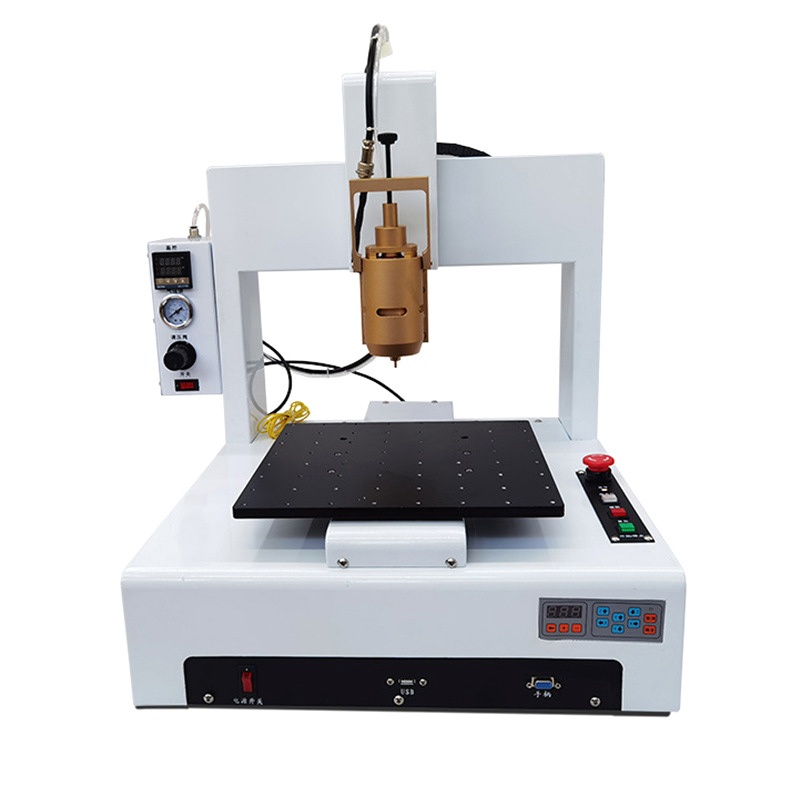

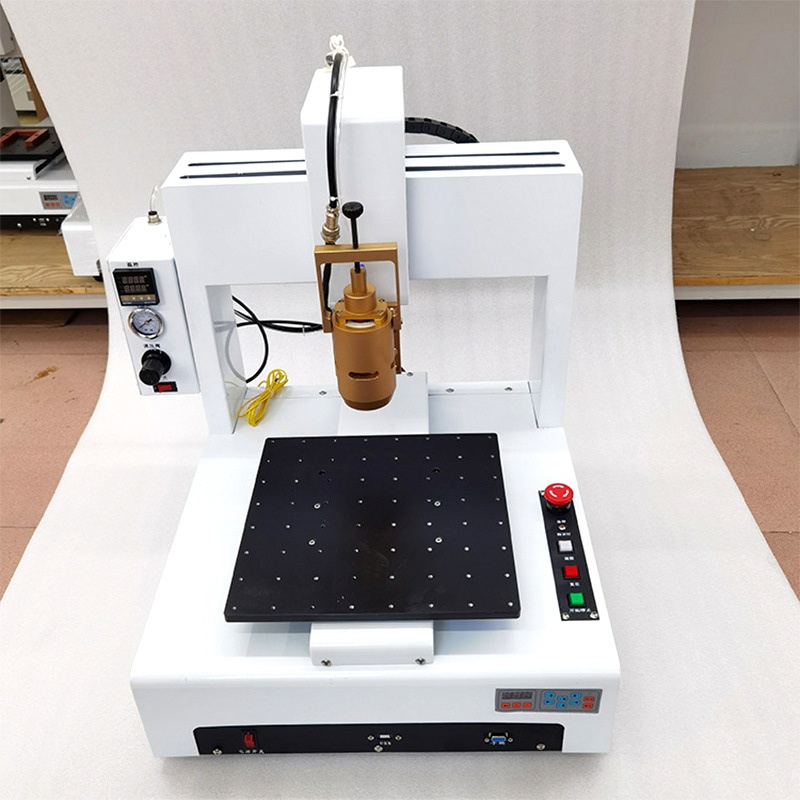

Product name: desktop type automatic Hot Melt Adhesive Dispenser
product model: LY-331H


Processing range: 300/300/100MM

Maximum load: Y:8 kg /Z:    4 kg

Movement speed: 0.1-500mm/sec

Ability to decompose: 0.01 mm/Axis

Repeat accuracy: + /- 0.01 mm/Axis

Guide rail:Hiwin (Japan)

Motor:Shinano (Japan)

Program recording mode

At least 100 in each group, each group of 100 points (can support to upload the computer)

Display mode

Teach Pendant LCD

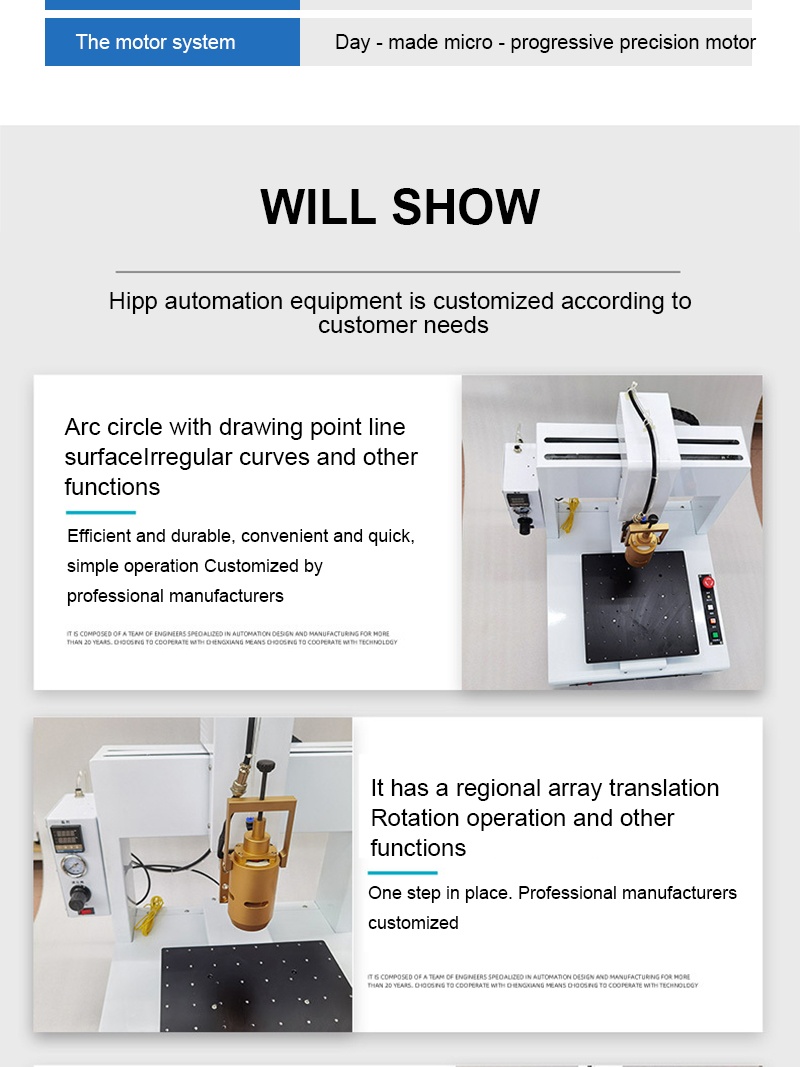

The motor system

Day progress of micro level precision motors

Operating mode

PTP&CP

The transmission way

Synchronous belt

Movement between function

Three axis (3 d space any routes are available)

Edit mode

Teach box/PC

The I/O signals: 8 inputs/outputs

External control interface: Rs232

The input power: Full voltage AC110V – 220 – v, 300 w

Working environment temperature: 5 to 40 ℃

Work environment humidity: 20-90%

Installation dimensions: 560 * 610 * 660 mm

Body weight: 68 kg

Thanks for your order!
