LY-ZJMY Separated Or All-In-One EN-LS23 EN-LS23P High-Energy OLED LCD circuit ITO Conductive Coating Restore Pulsed Laser Welding Repair Machine 220V 800W

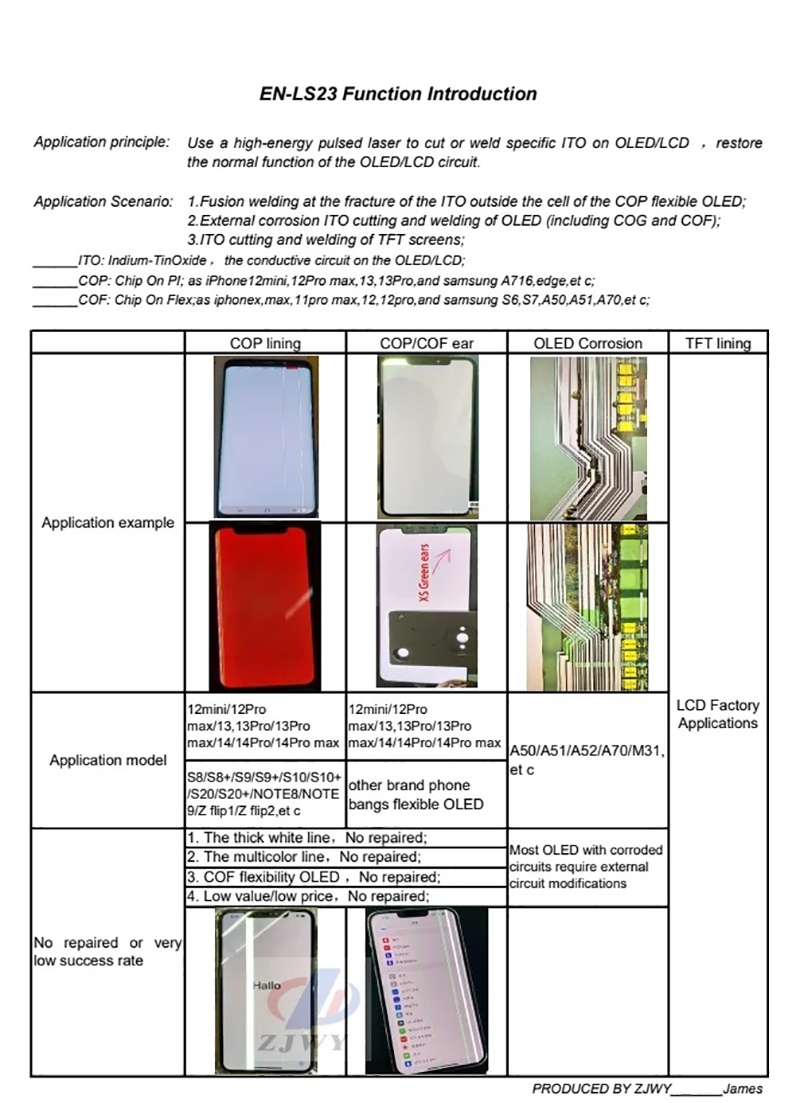

EN-LS23 EN-LS23P produces a high-energy pulsed laser. Through a specific optical path. Adjust the appropriate laser energy. Cut off or weld specific cracks in the ITO conductive coating of OLED/LCD. Modify and restore the normal function of OLED/LCD circuit.
Options:
EN-LS23 (Separated) /EN-LS23P ( All-In-One)
|

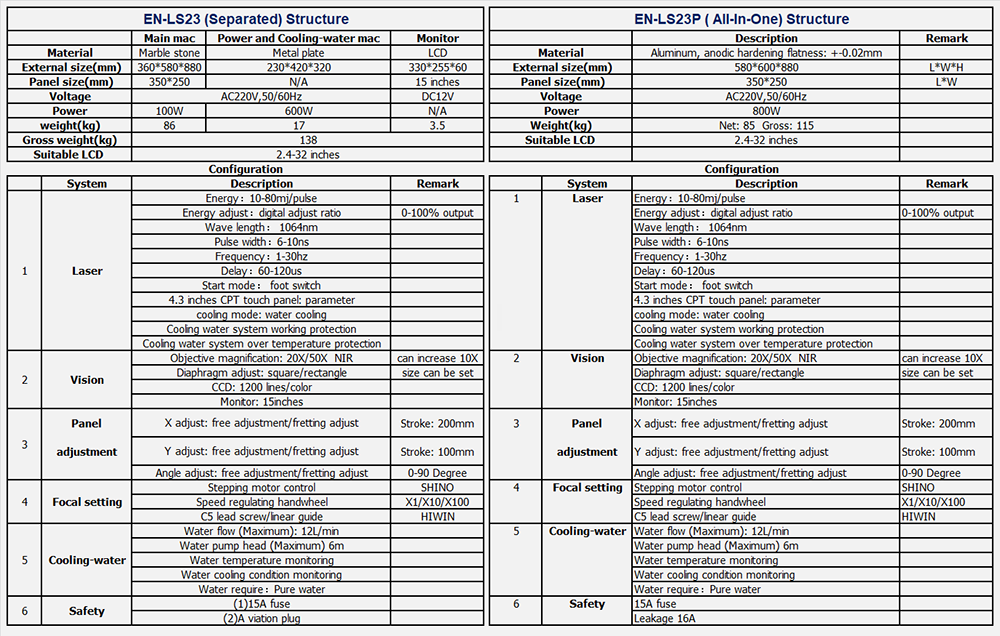

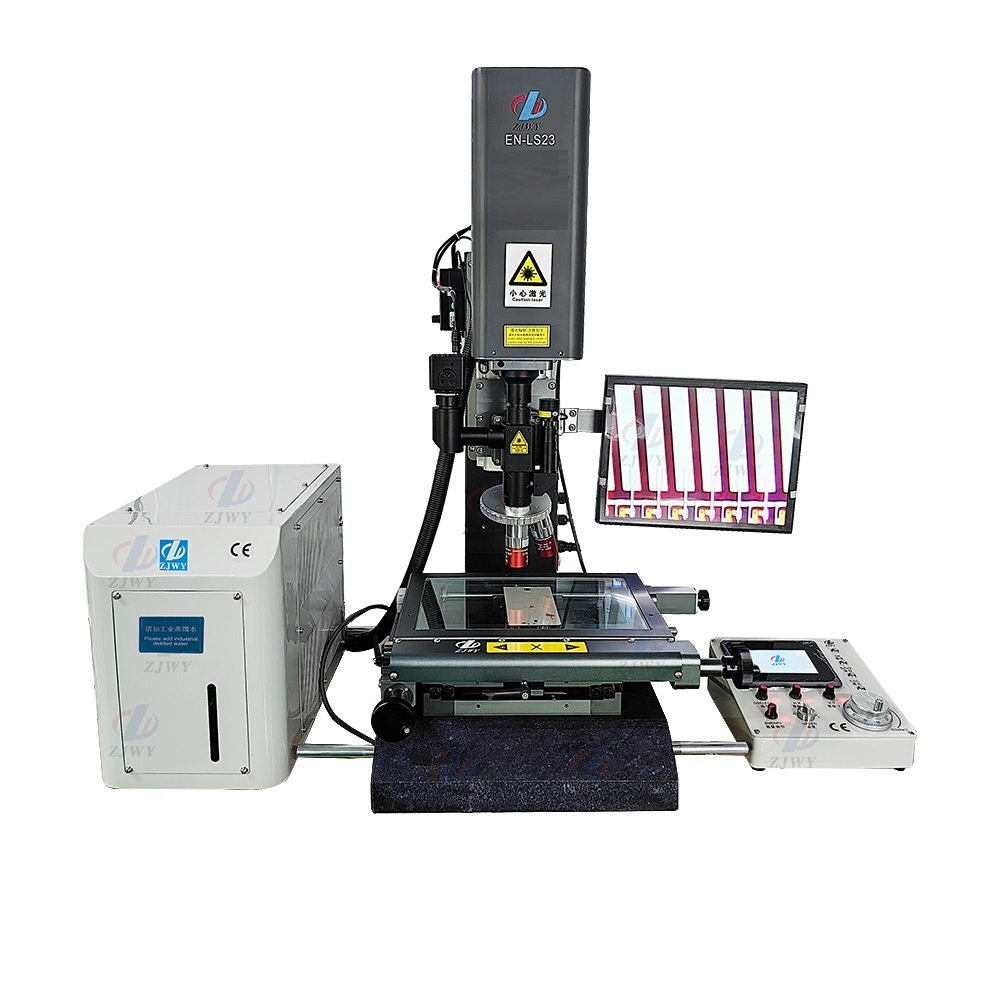

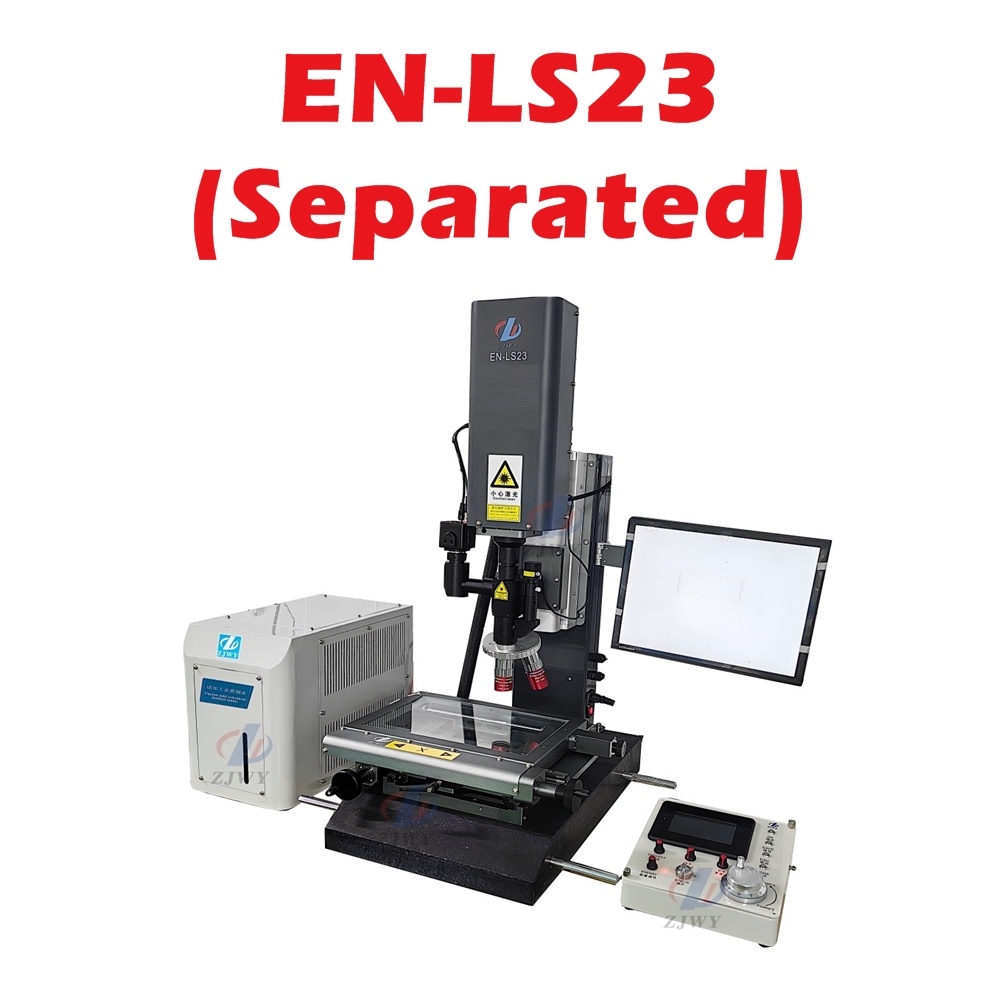

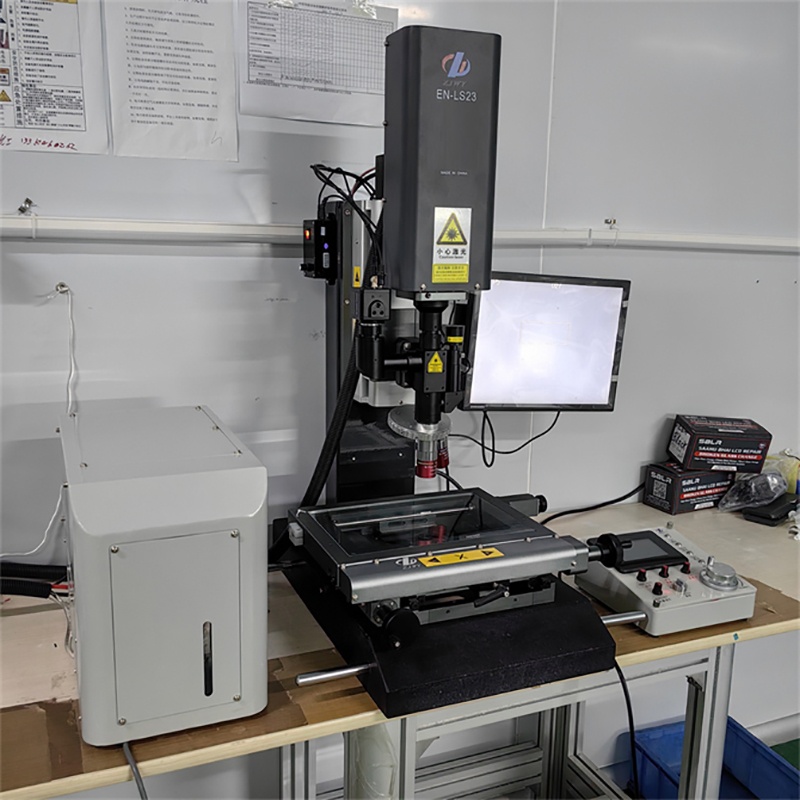

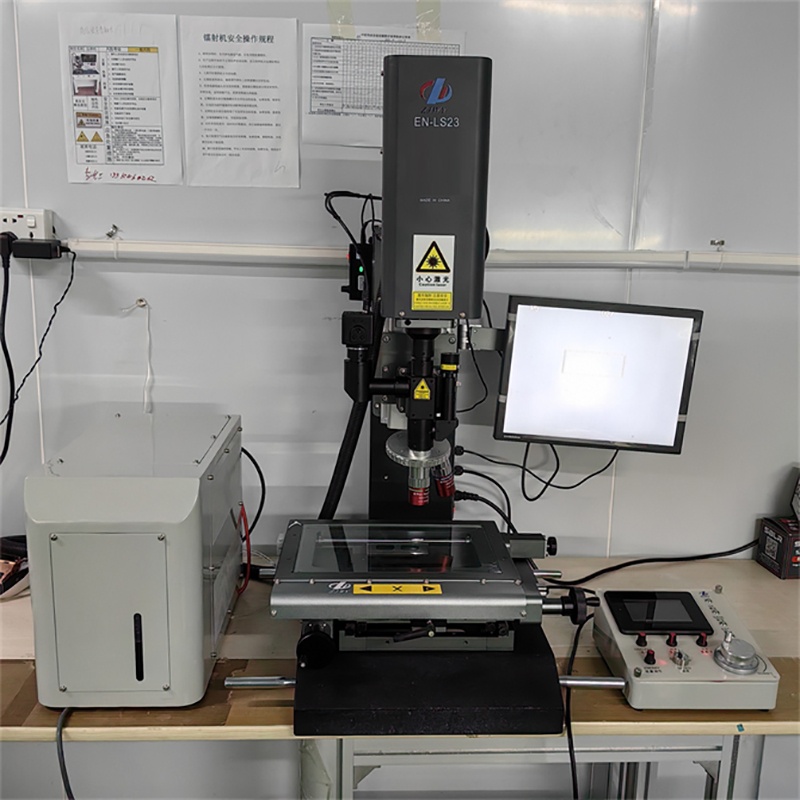

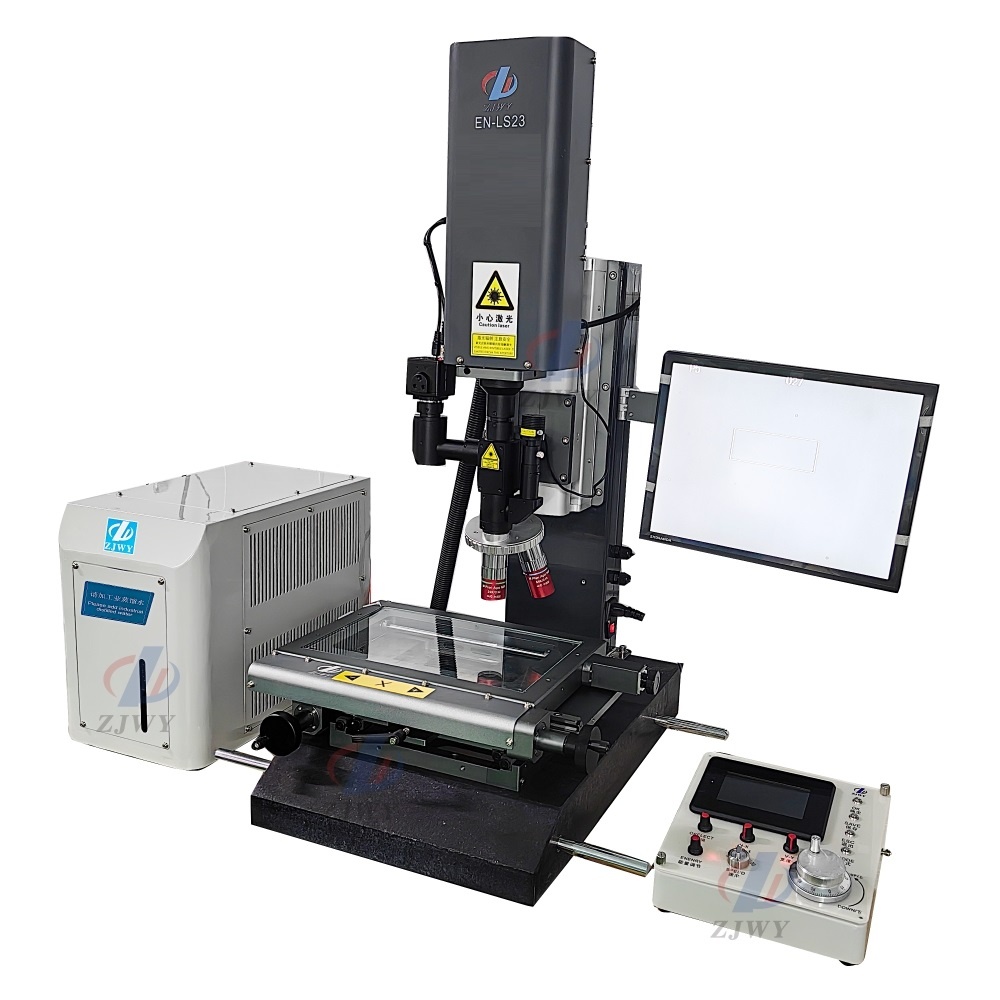

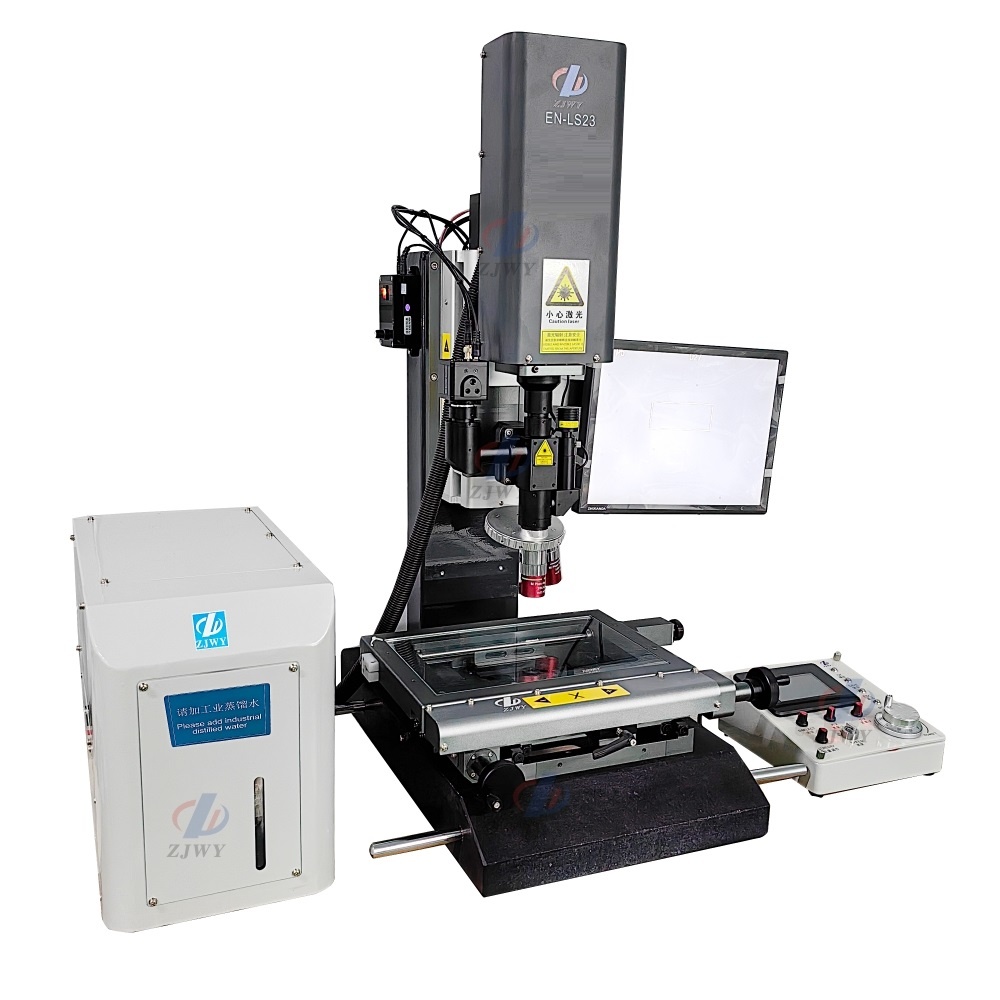

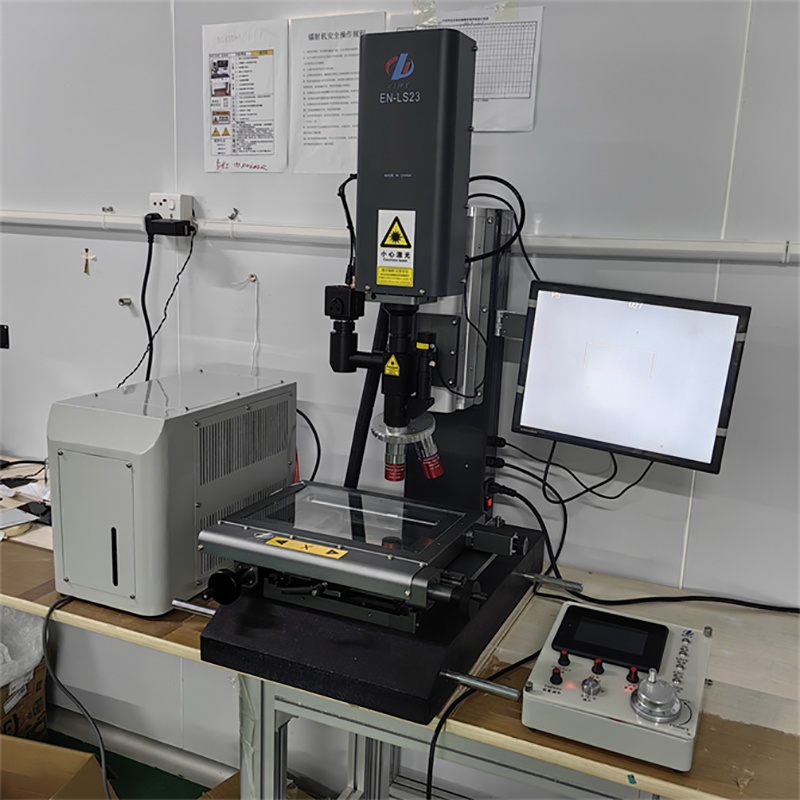

EN-LS23 Structure |
||||
|
|
Main mac |
Power and Cooling-water mac |
Monitor |
|
|
Material |
Marble stone |
Metal plate |
LCD |
|
|
External size(mm) |
360*580*880 |
230*420*320 |
330*255*60 |
|
|
Panel size(mm) |
350*250 |
N/A |
15 inches |
|
|
Voltage |
AC220V,50/60Hz |
DC12V |
||
|
Power |
100W |
600W |
N/A |
|
|
weight(kg) |
86 |
17 |
3.5 |
|
|
Gross weight(kg) |
138 |
|||
|
Suitable LCD |
2.4-32 inches |
|||
|
Configuration |
||||
|
|
System |
Description |
Remark |
|
|
1 |
Laser |
Energy：10-80mj/pulse |
|
|
|
Energy adjust：digital adjust ratio |
0-100% output |
|||
|
Wave length： 1064nm |
|
|||
|
Pulse width：6-10ns |
|
|||
|
Frequency：1-30hz |
|
|||
|
Delay：60-120us |
|
|||
|
Start mode： foot switch |
|
|||
|
4.3 inches CPT touch panel: parameter |
|
|||
|
cooling mode: water cooling |
|
|||
|
Cooling water system working protection |
|
|||
|
Cooling water system over temperature protection |
|
|||
|
2 |
Vision |
Objective magnification: 20X/50X NIR |
can increase 10X |
|
|
Diaphragm adjust: square/rectangle |
size can be set |
|||
|
CCD: 1200 lines/color |
|
|||
|
Monitor: 15inches |
|
|||
|
3 |
Panel |
X adjust: free adjustment/fretting adjust |
Stroke: 200mm |
|
|
Y adjust: free adjustment/fretting adjust |
Stroke: 100mm |
|||
|
Angle adjust: free adjustment/fretting adjust |
0-90 Degree |
|||
|
4 |
Focal setting |
Stepping motor control |
SHINO |
|
|
Speed regulating handwheel |
X1/X10/X100 |
|||
|
C5 lead screw/linear guide |
HIWIN |
|||
|
5 |
Cooling-water |
Water flow (Maximum): 12L/min |
|
|
|
Water pump head (Maximum) 6m |
|
|||
|
Water temperature monitoring |
|
|||
|
Water cooling condition monitoring |
|
|||
|
Water require：Pure water |
|
|||
|
6 |
Safety |
(1)15A fuse |
|
|
|
(2)A viation plug |
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|

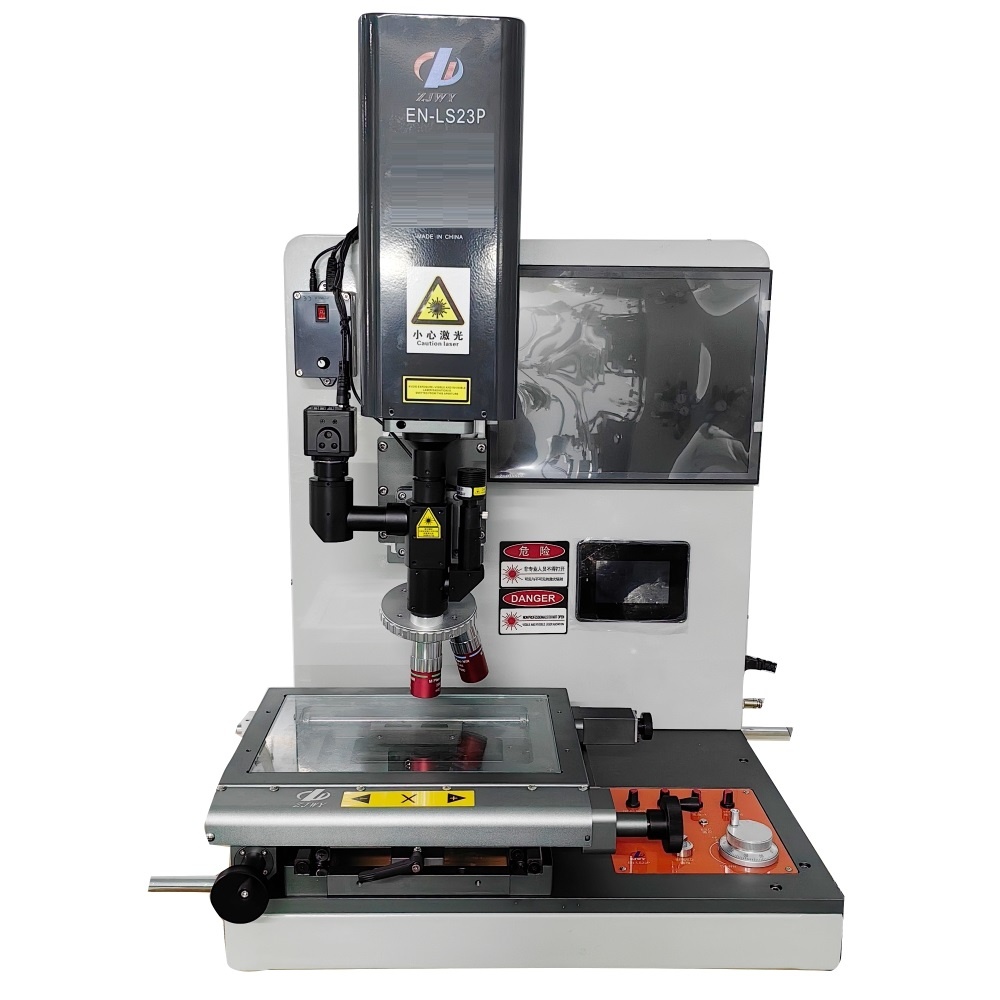

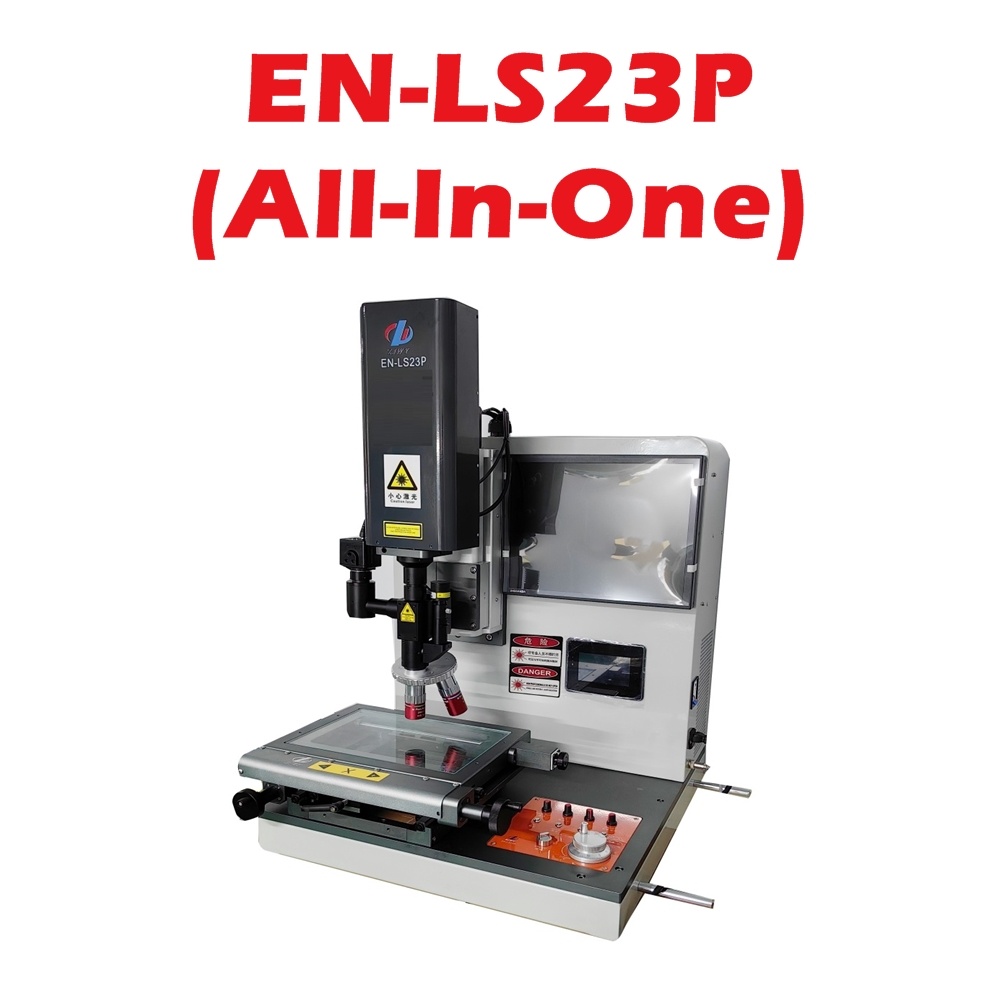

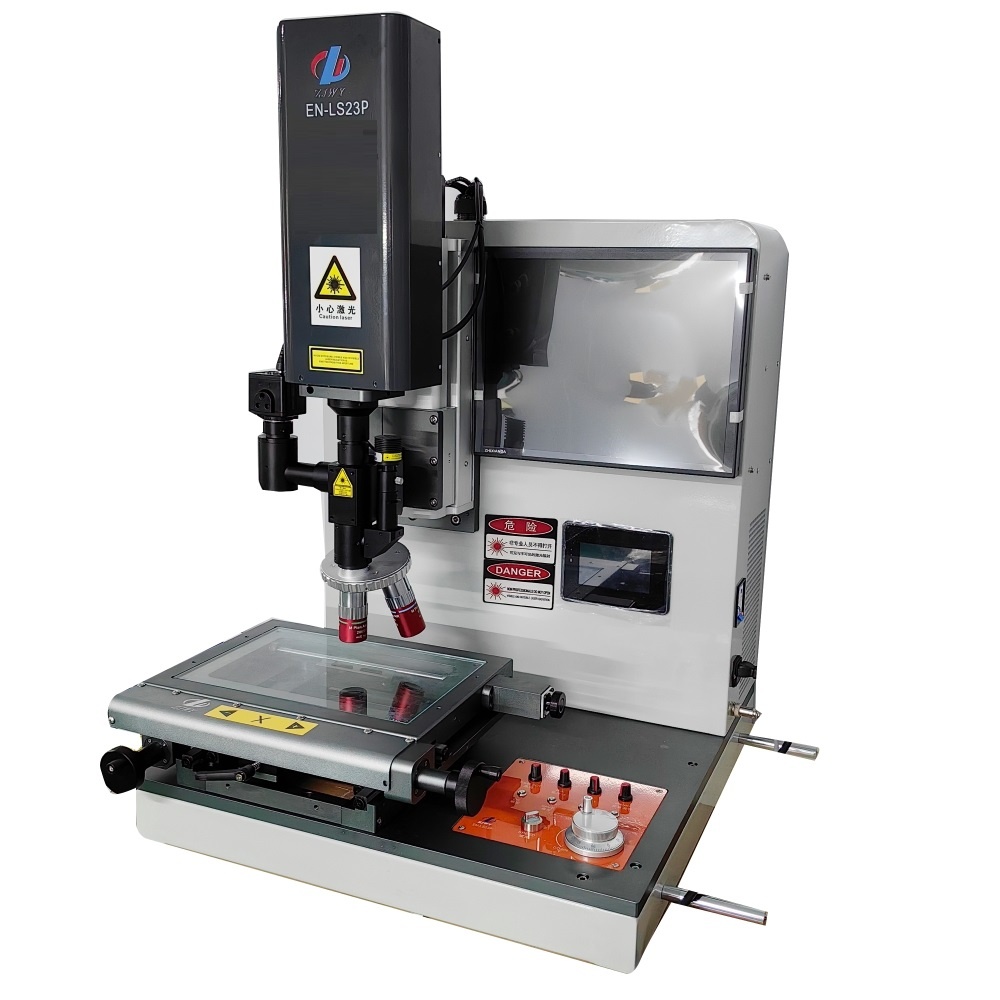

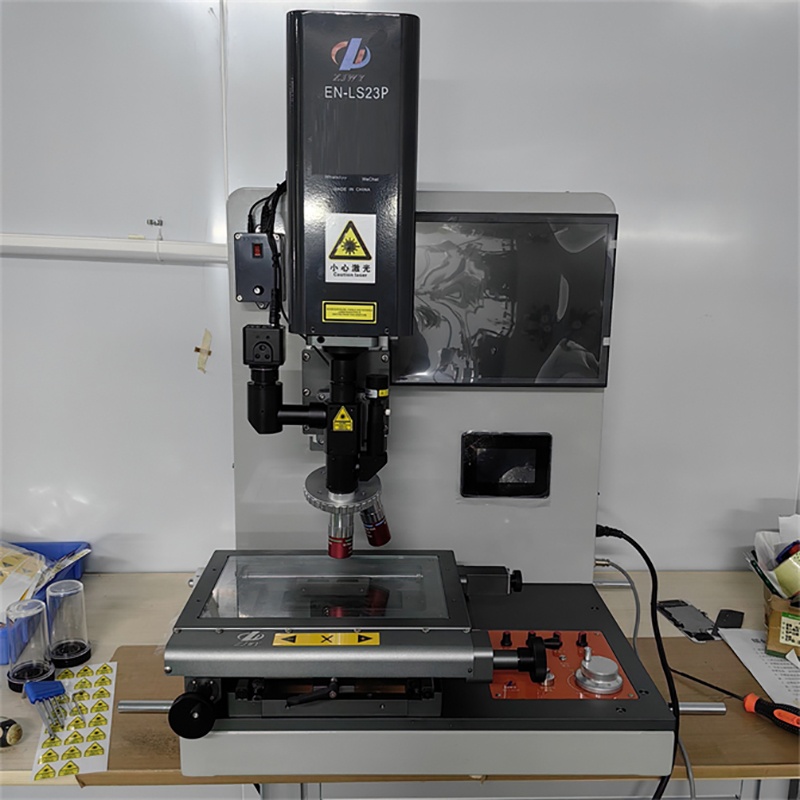

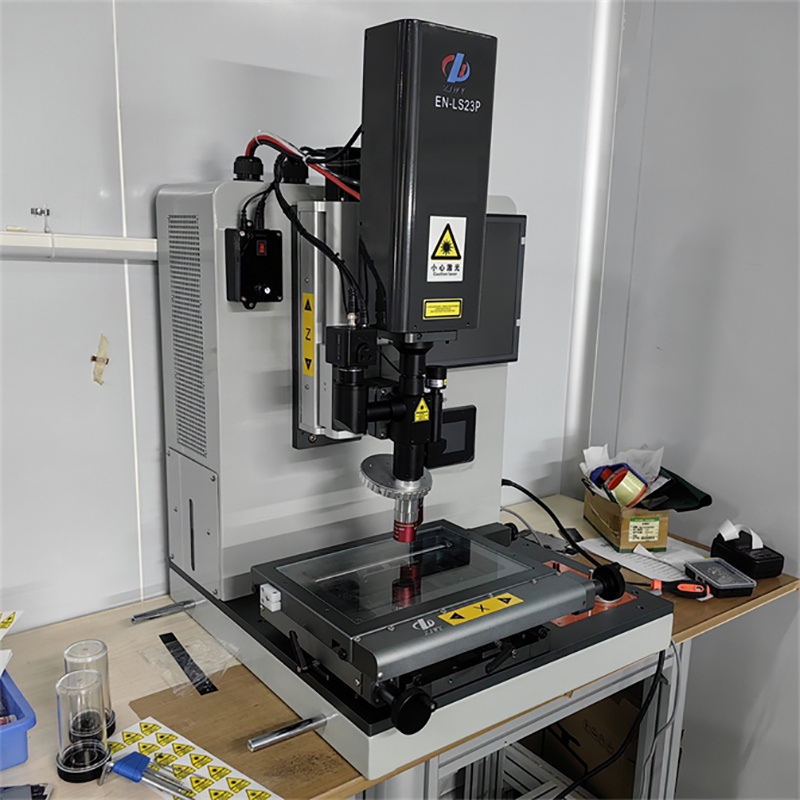

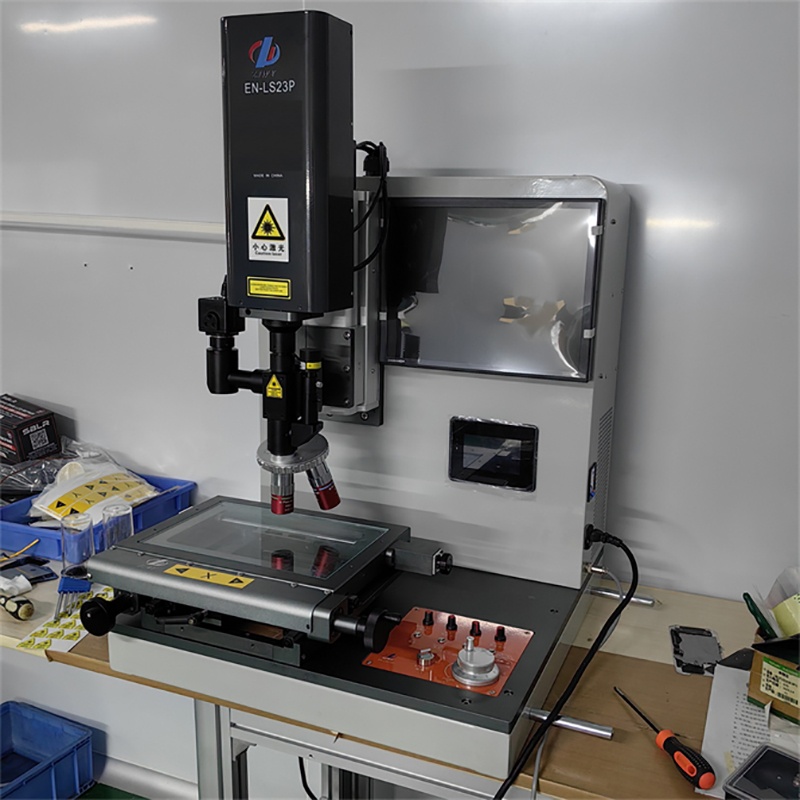

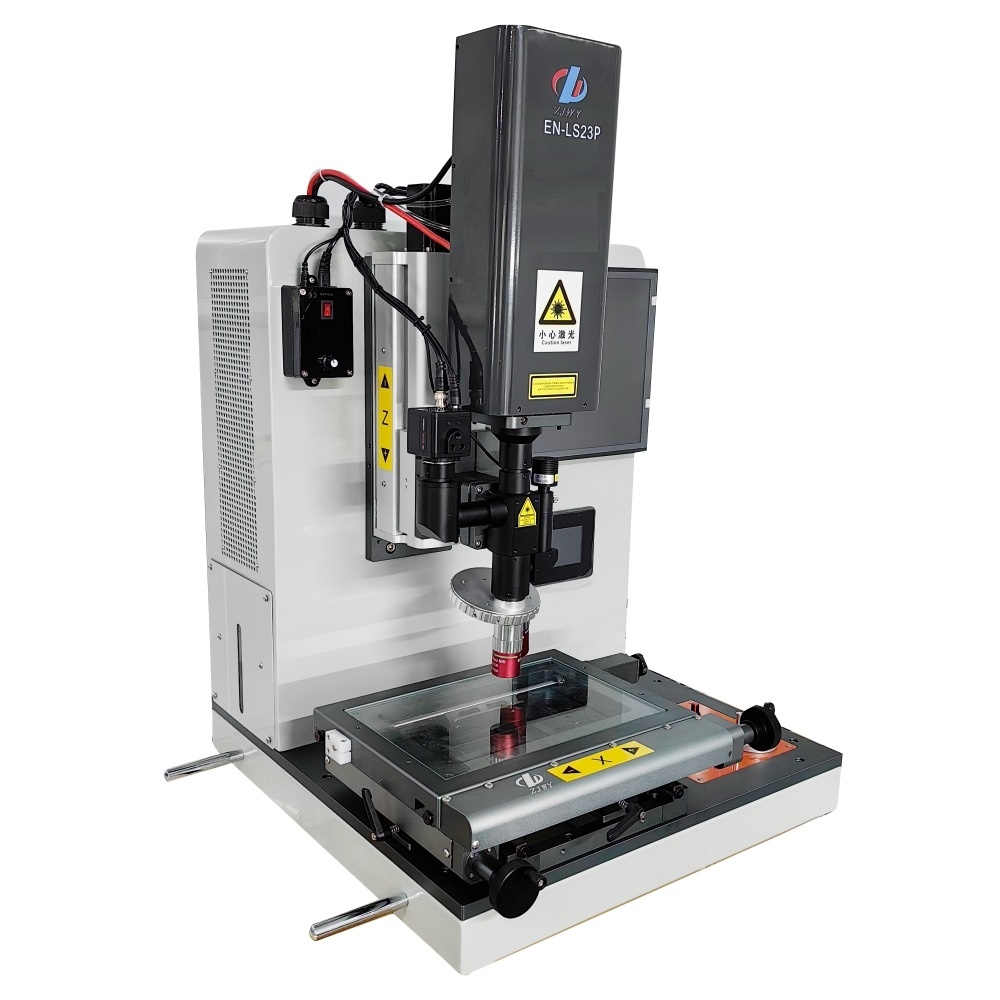

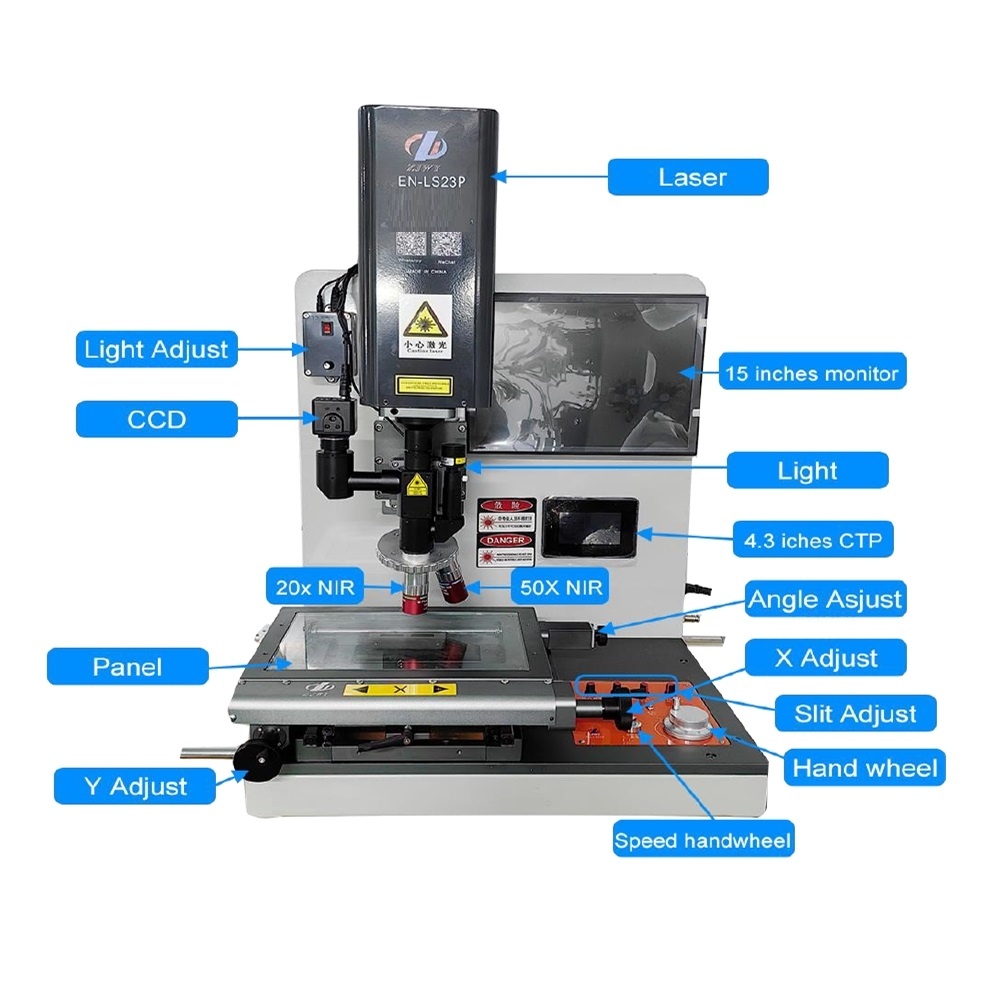

EN-LS23P Structure |
||||
|
|
Description |
Remark |
||
|
Material |
Aluminum, anodic hardening flatness: +-0.02mm |
|
||
|
External size(mm) |
580*600*880 |
L*W*H |
||
|
Panel size(mm) |
350*250 |
L*W |
||
|
Voltage |
AC220V,50/60Hz |
|
||
|
Power |
800W |
|
||
|
Weight(kg) |
Net: 85 Gross: 115 |
|
||
|
Suitable LCD |
2.4-32 inches |
|
||
|
Configuration |
||||
|
|
System |
Description |
Remark |
|
|
1 |
Laser |
Energy：10-80mj/pulse |
|
|
|
Energy adjust：digital adjust ratio |
0-100% output |
|||
|
Wave length： 1064nm |
|
|||
|
Pulse width：6-10ns |
|
|||
|
Frequency：1-30hz |
|
|||
|
Delay：60-120us |
|
|||
|
Start mode： foot switch |
|
|||
|
4.3 inches CPT touch panel: parameter |
|
|||
|
cooling mode: water cooling |
|
|||
|
Cooling water system working protection |
|
|||
|
Cooling water system over temperature protection |
|
|||
|
2 |
Vision |
Objective magnification: 20X/50X NIR |
can increase 10X |
|
|
Diaphragm adjust: square/rectangle |
size can be set |
|||
|
CCD: 1200 lines/color |
|
|||
|
Monitor: 15inches |
|
|||
|
3 |
Panel |
X adjust: free adjustment/fretting adjust |
Stroke: 200mm |
|
|
Y adjust: free adjustment/fretting adjust |
Stroke: 100mm |
|||
|
Angle adjust: free adjustment/fretting adjust |
0-90 Degree |
|||
|
4 |
Focal setting |
Stepping motor control |
SHINO |
|
|
Speed regulating handwheel |
X1/X10/X100 |
|||
|
C5 lead screw/linear guide |
HIWIN |
|||
|
5 |
Cooling-water |
Water flow (Maximum): 12L/min |
|
|
|
Water pump head (Maximum) 6m |
|
|||
|
Water temperature monitoring |
|
|||
|
Water cooling condition monitoring |
|
|||
|
Water require：Pure water |
|
|||
|
6 |
Safety |
15A fuse |
|
|
|
Leakage 16A |
|
|||
Lead-time: 30-35 days.
