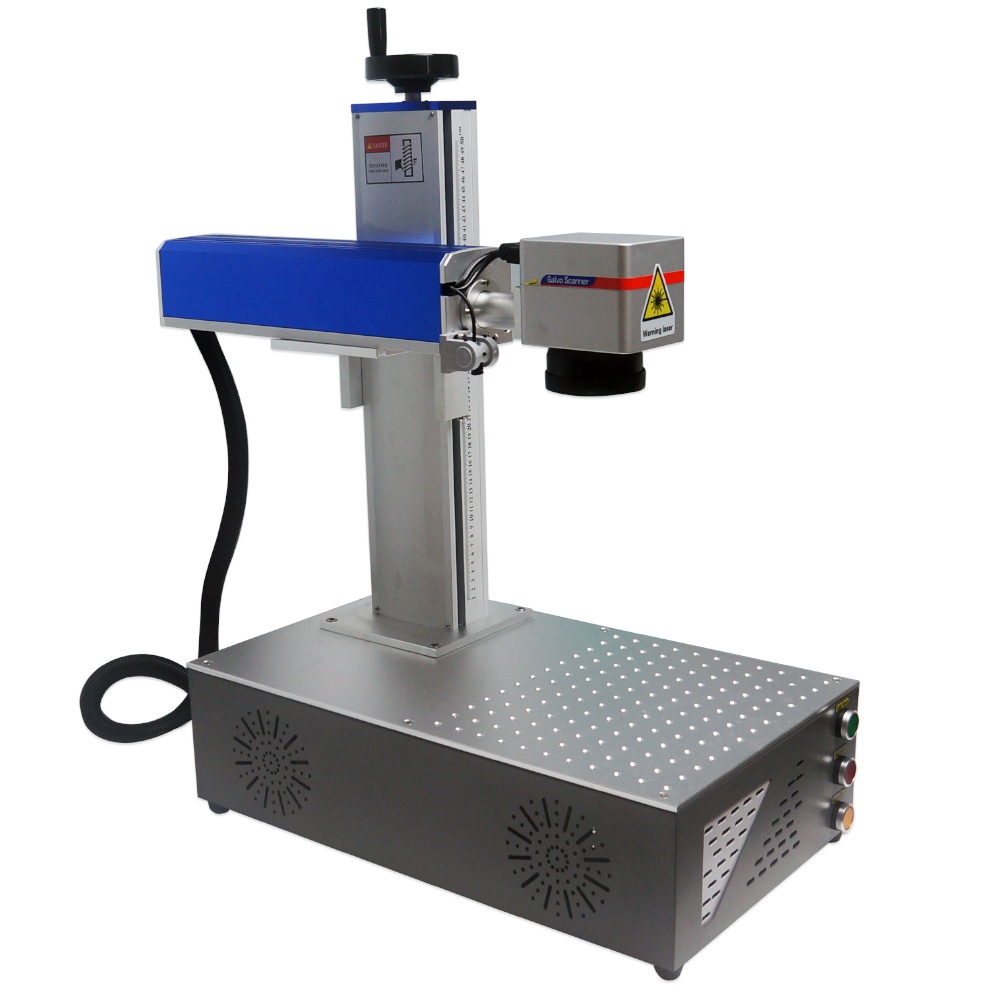

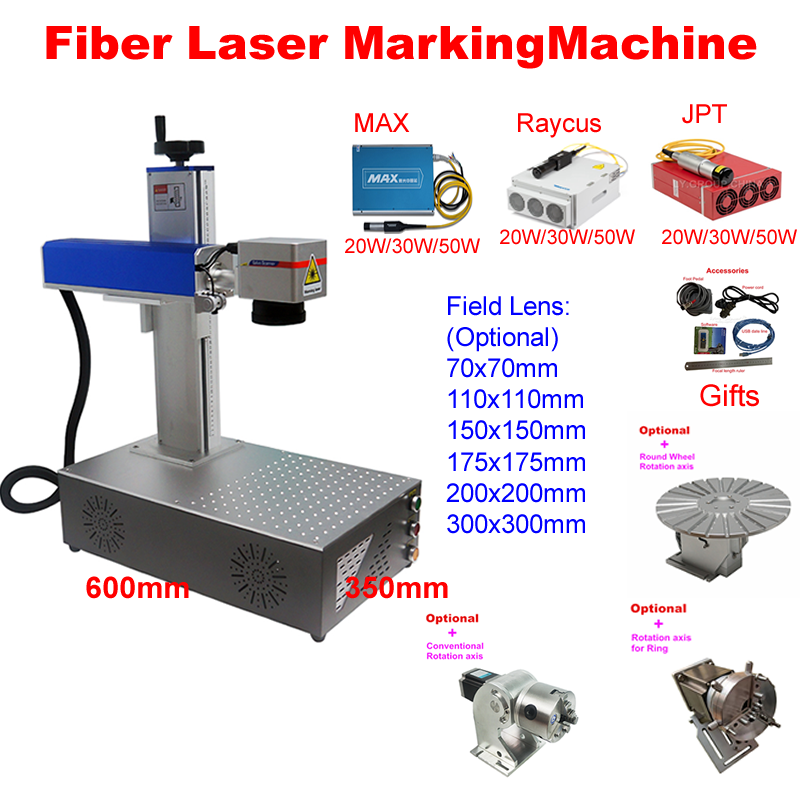

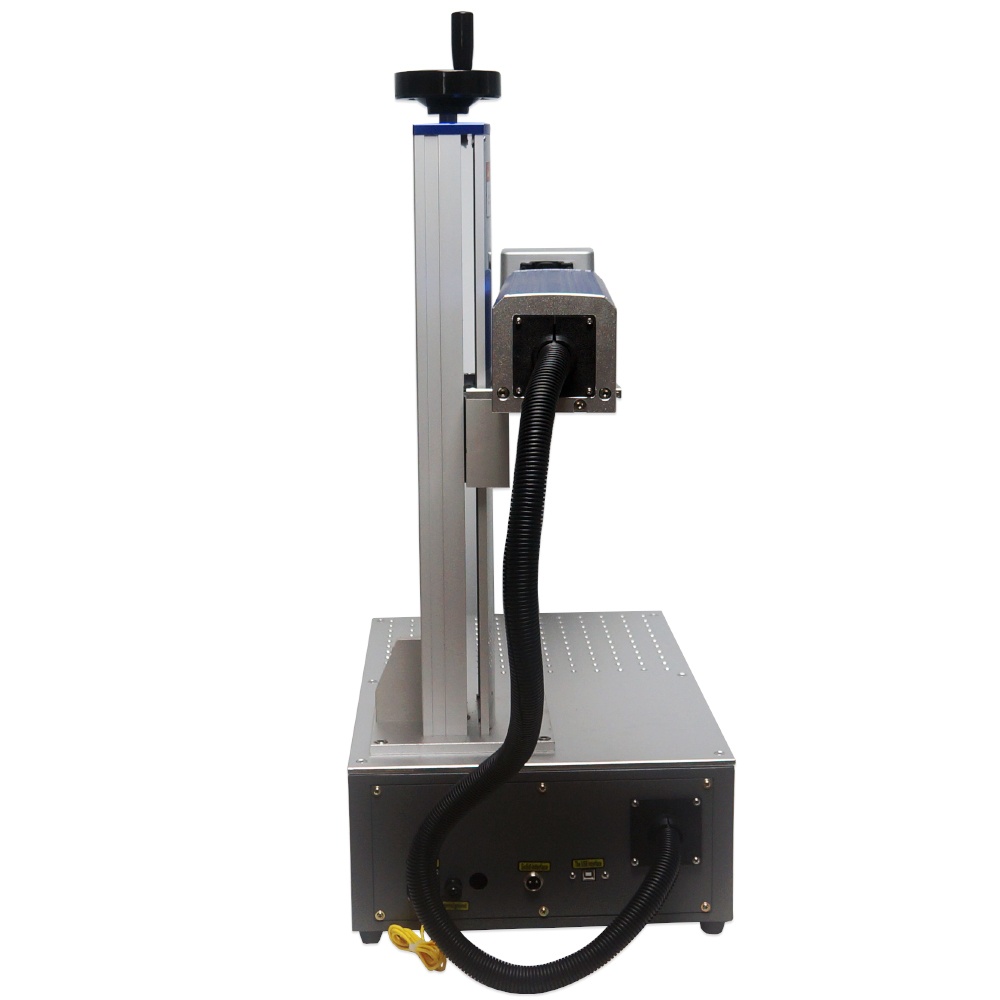

50W JPT Desktop Fiber Laser Marking Machine 20W 30W Raycus Metal Engraver With Rotary Axis For PVC Plastic Stainless Steel

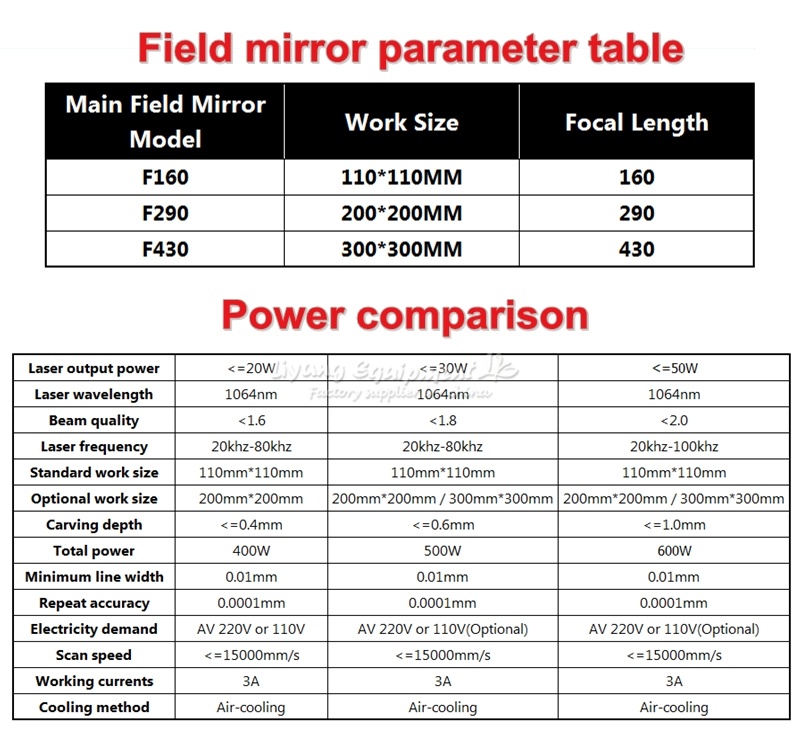

(its field lens has 50×50/70×70/110×110/150×150/200×200/220×220/300x300mm , we ship 150x150mm lens as default, buyer can also choose other size after place order,)

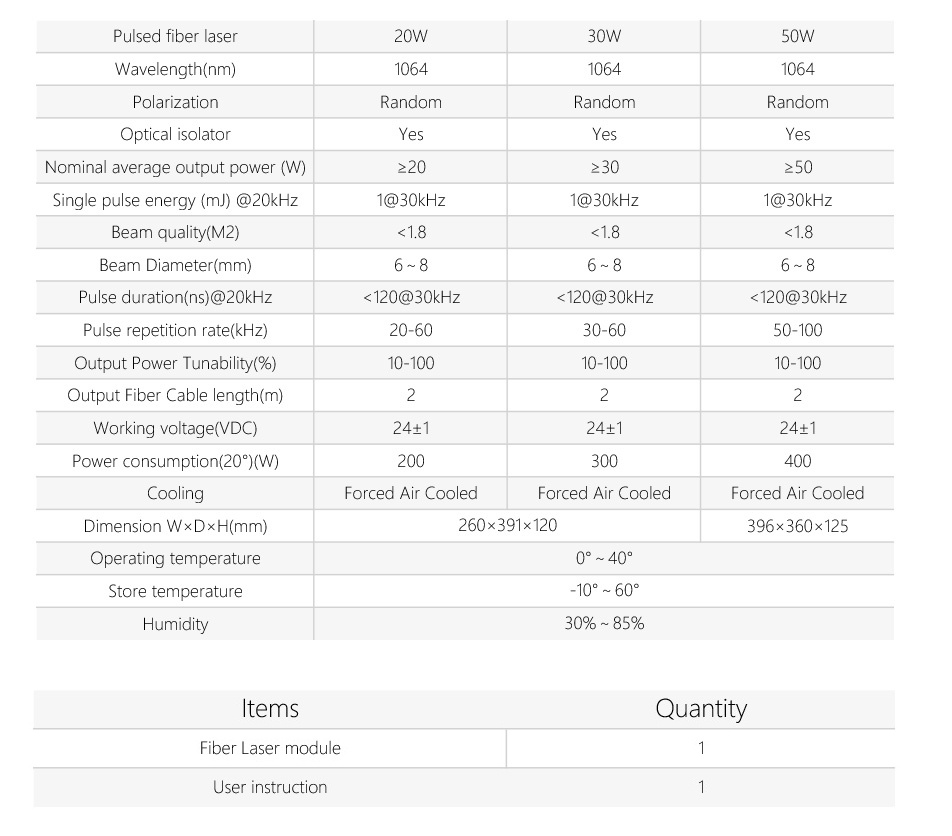

|Laser power||20W/30W/50W/60W Raycus /MAX/JPT (optional)|

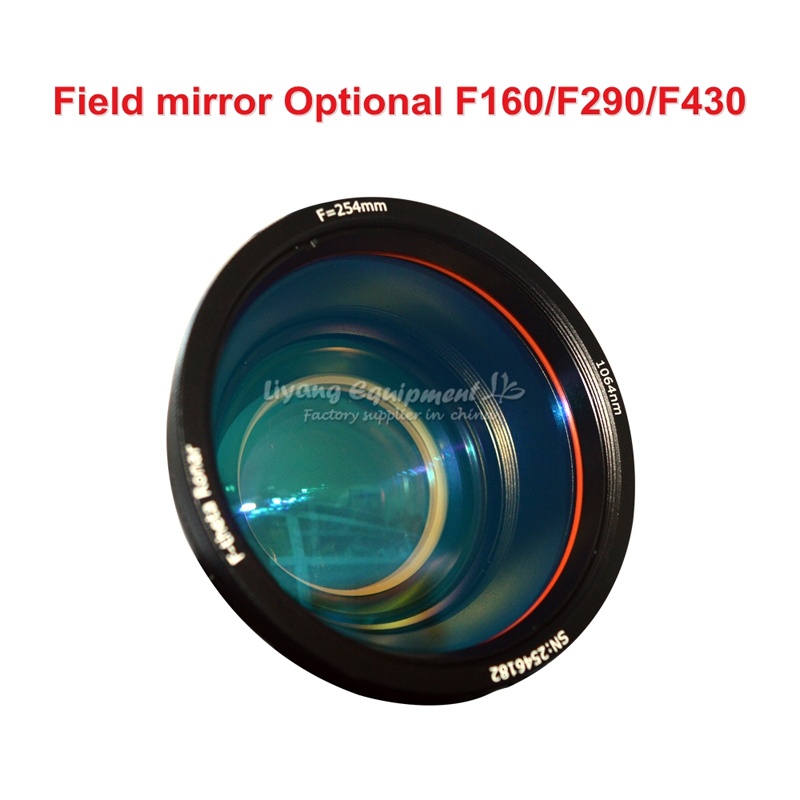

|Field Mirror (Work Area)||150*150mm ( 50*50mm / 70*70mm / 110*110mm / 200*200mm /300*300mm Optional. Support extra purchase.）|
|Cooling Mode||Air Cooling|
RAYCUS/MAX is 10.64 um
JPT is 1064 um
|Frequency of pulse||RAYCUS/MAX is 20-100 KHz
JPT LP is 1-600KHZ
JPT M7 is 1-4000KHZ
|Marking Depth||≤0.3 mm|
≤4000 mm/s(RC1001) (it can change to SG7110 , 8000mm/s ,price is higher US$150)
|Marking Lines||1-10 lines|
|Minimum Line Width||0.01 mm|
|Minimum Character||0.15 mm|
|Repeatability Accuracy||±0.002 mm|
|Resolution Ratio||0.1 mm|
|Marking Content||Text, pattern, date, bar code, etc|
|Operation System||Microsoft Windows XP or Windows 2000,WIN 7, WIN8, WIN 10|
|Control Software||EZCAD ENGLISH Control Software|
|Graphic Format Supported||BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc.|
|Unit Power||≤0.9 KW|
|Relative Moisture||≤ 90%, no fog|

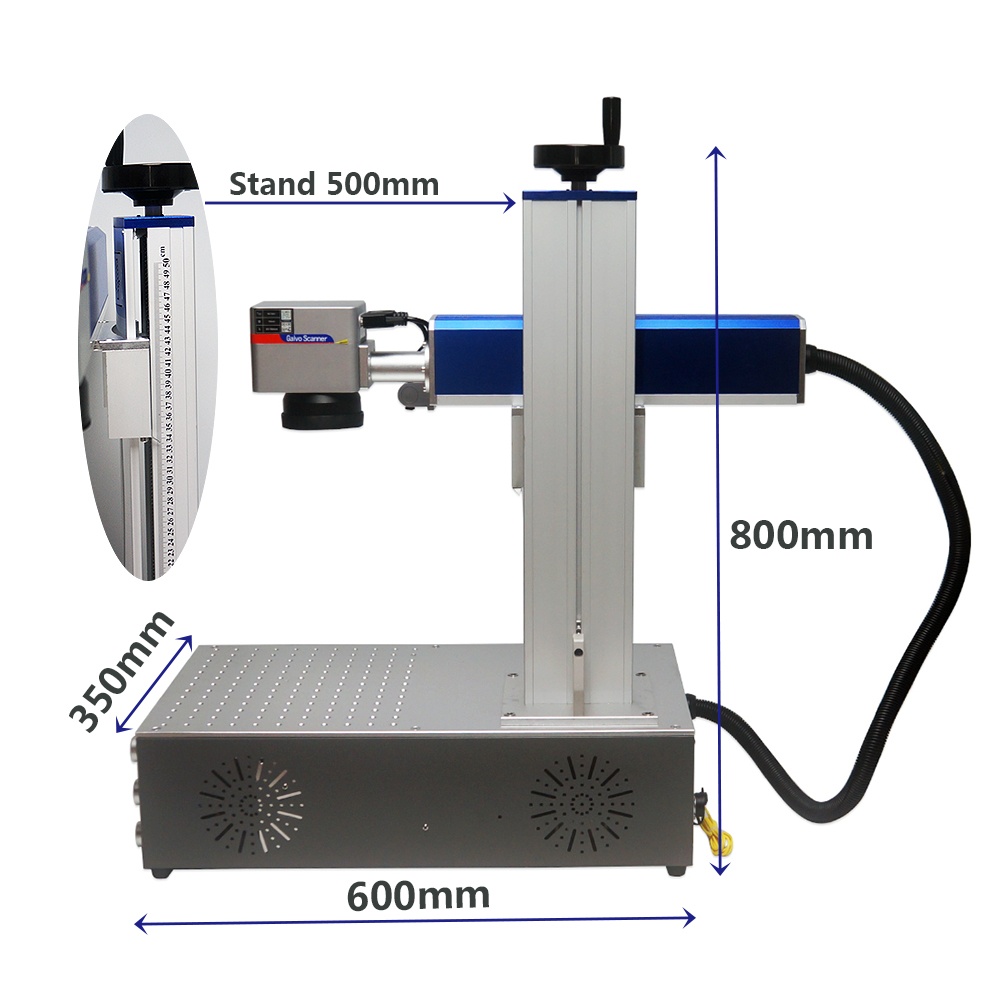

|Dimensions(L*W*H)||95 x 78 x 55 cm|
|Power supply requirements||220 V or 110V|
The motherboard supports win10 and supports 32-bit 64-bit.
1:Fully build the platform professional fiber laser marking machine shop, please customers to patronize, do not just look at the price. To look at the quality of the machine, use high-quality machine parts to give customers the best price and quality service! Provide S/N coding for our machines, machine lifetime service,
2: Machine configuration:

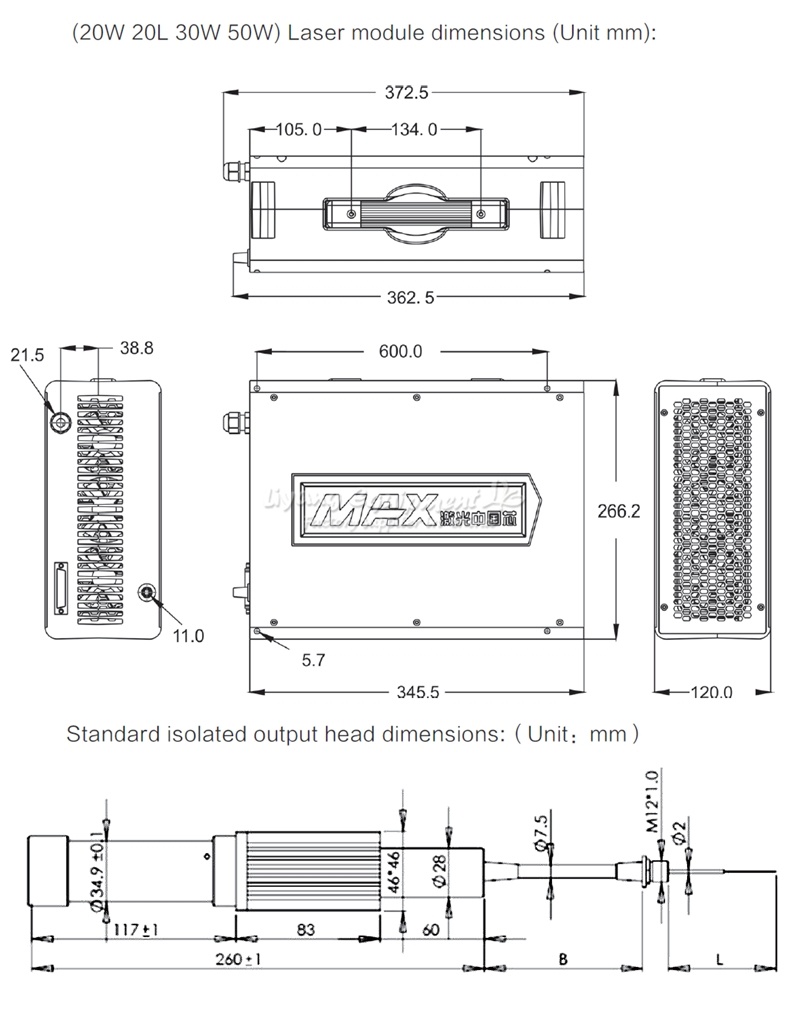

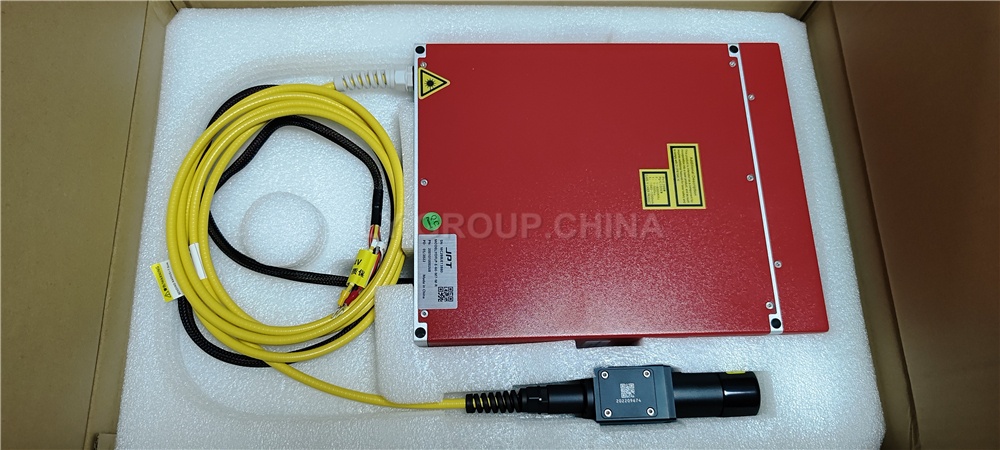

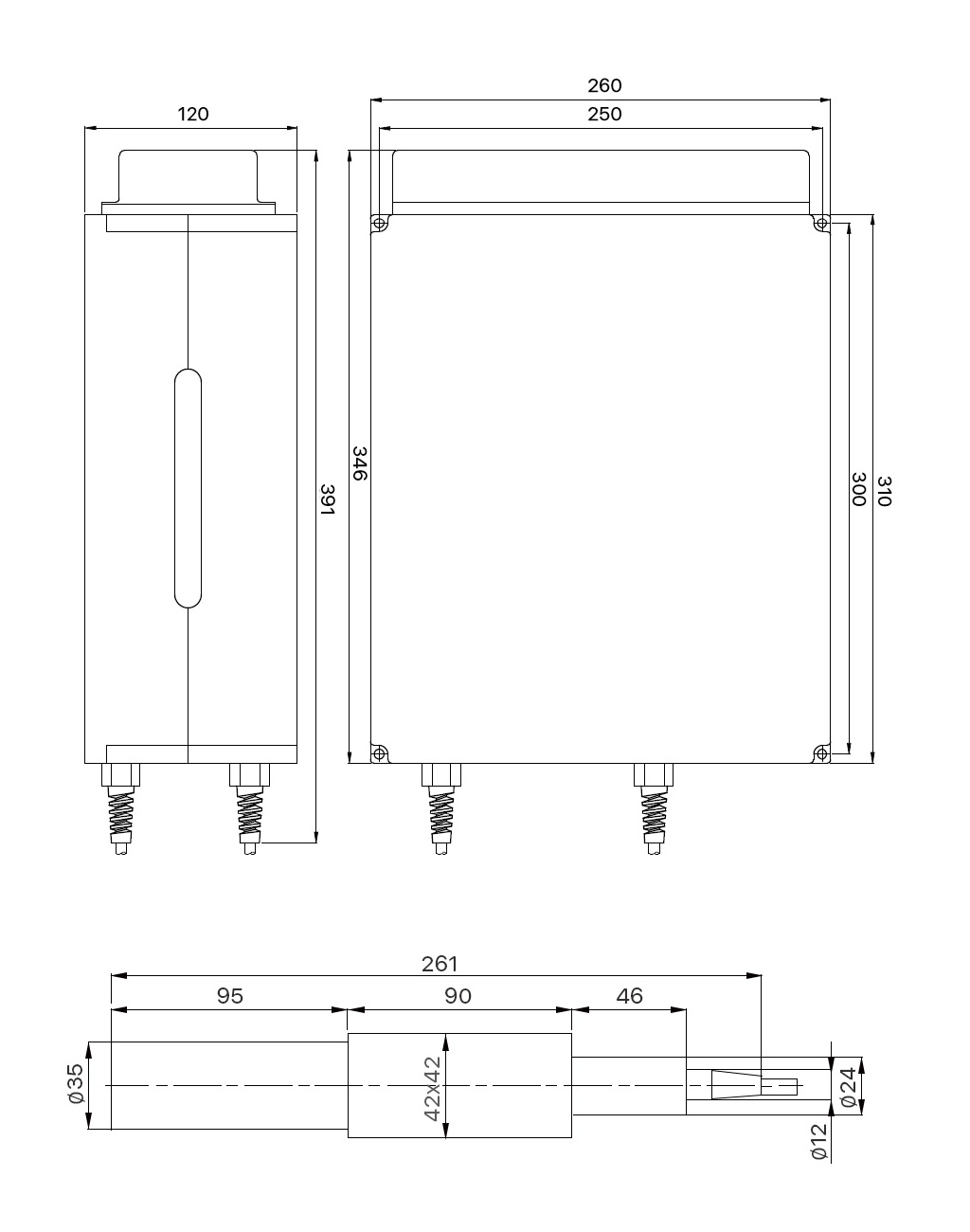

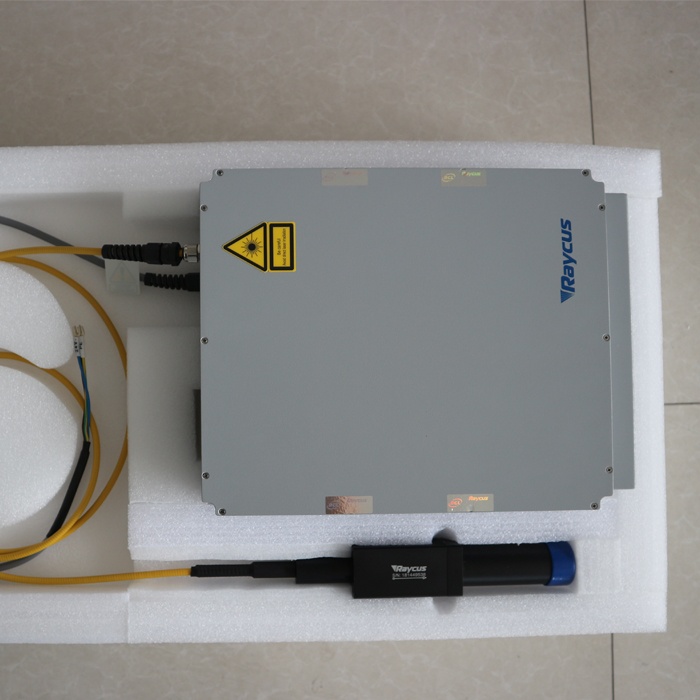

A;Fiber Laser brand: Raycus/MAX/JPT

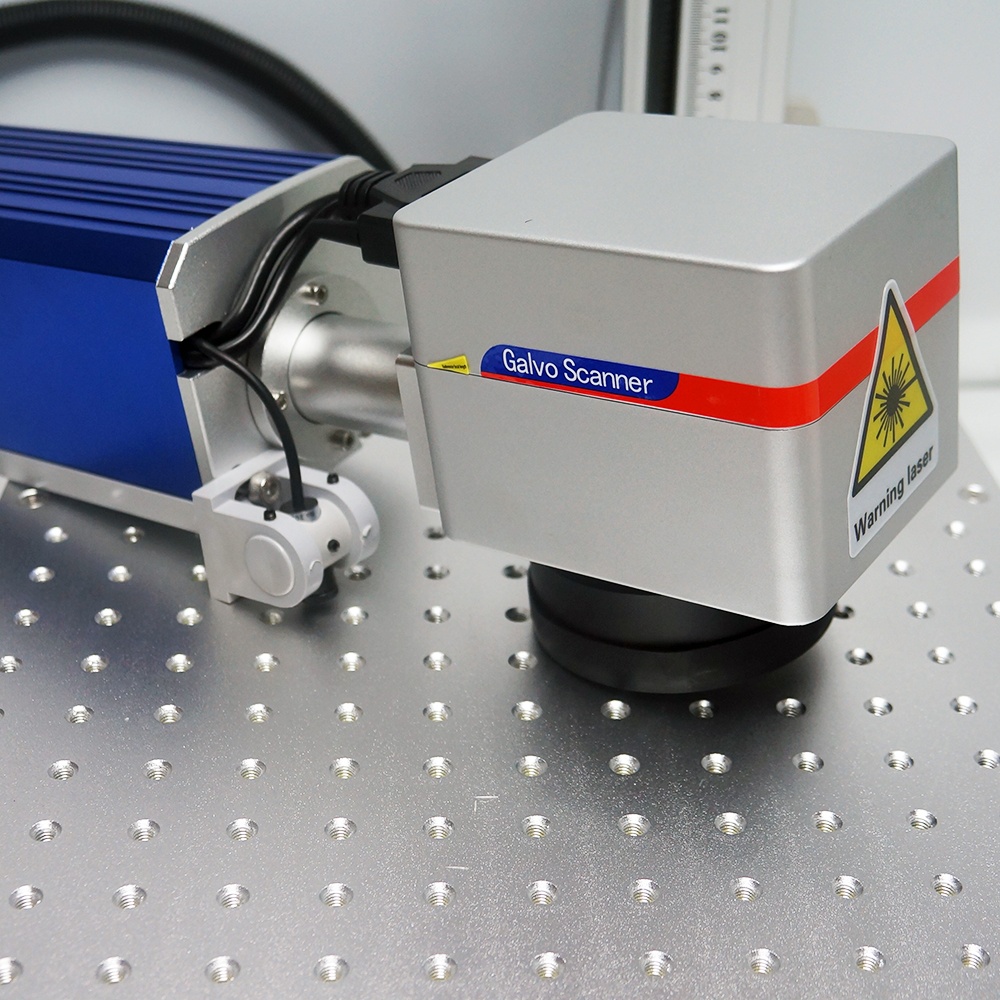

B; SINO-GALVO RC1001 galvanometer with

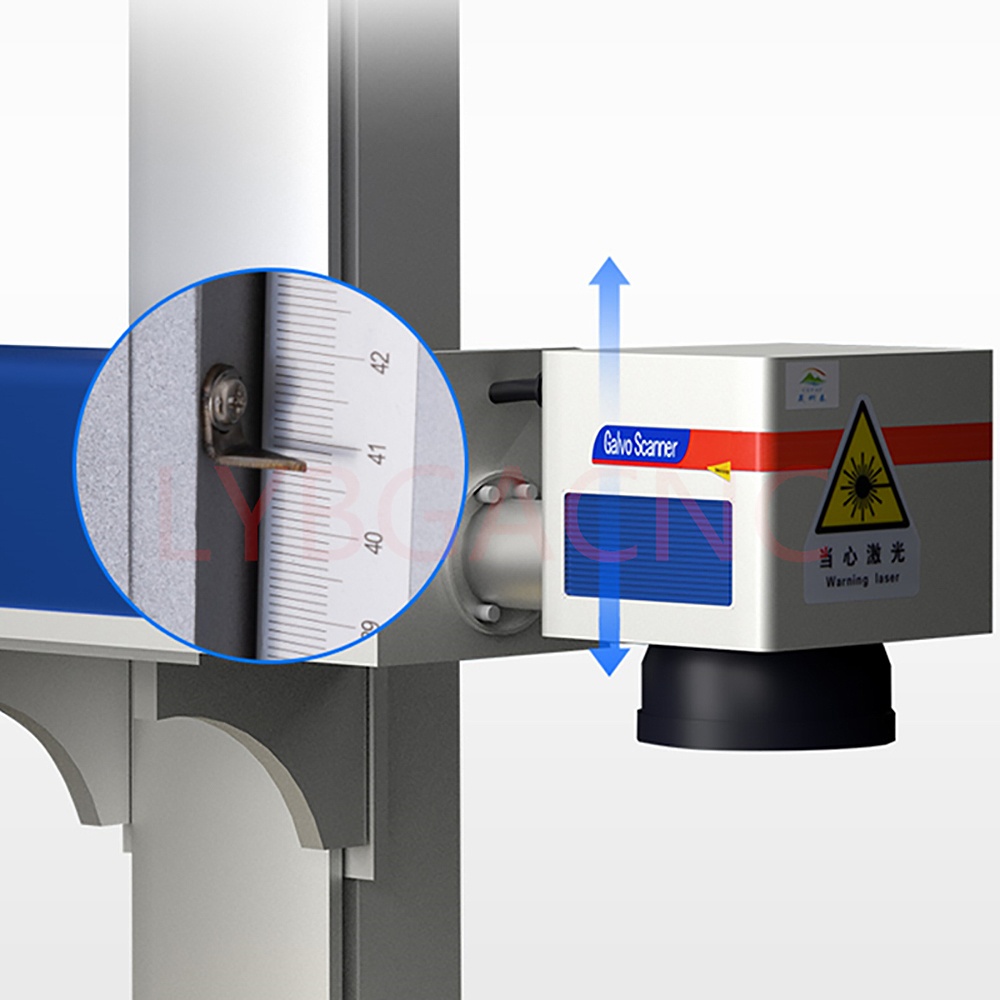

Red dots assistant focusing align.
C; Taiwan Meanwell (MW) power supply,
D; Motherboard with Rotary axis function, free built-in drive & rotary axis port.

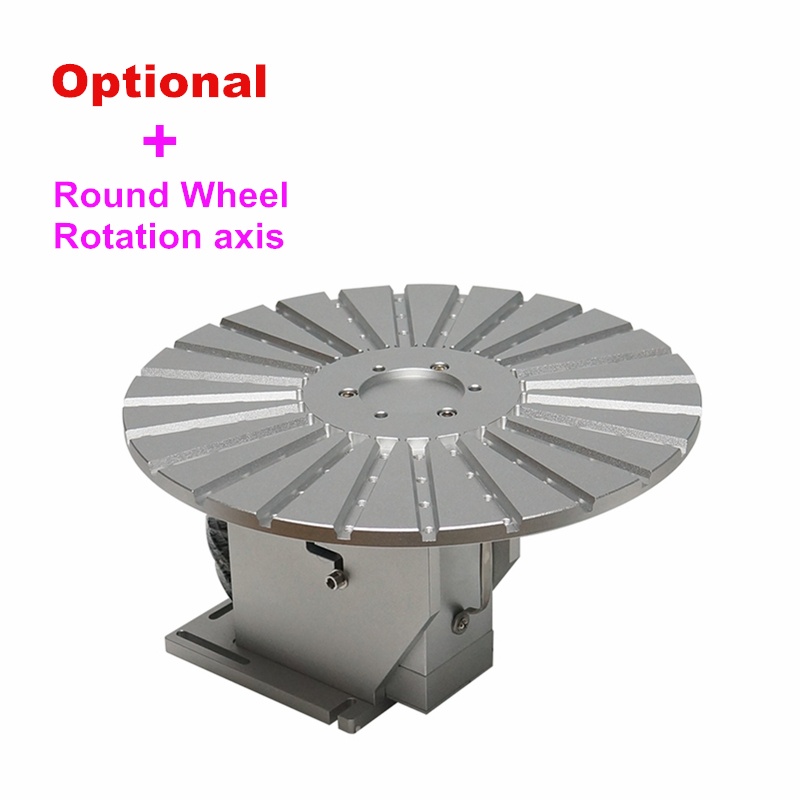

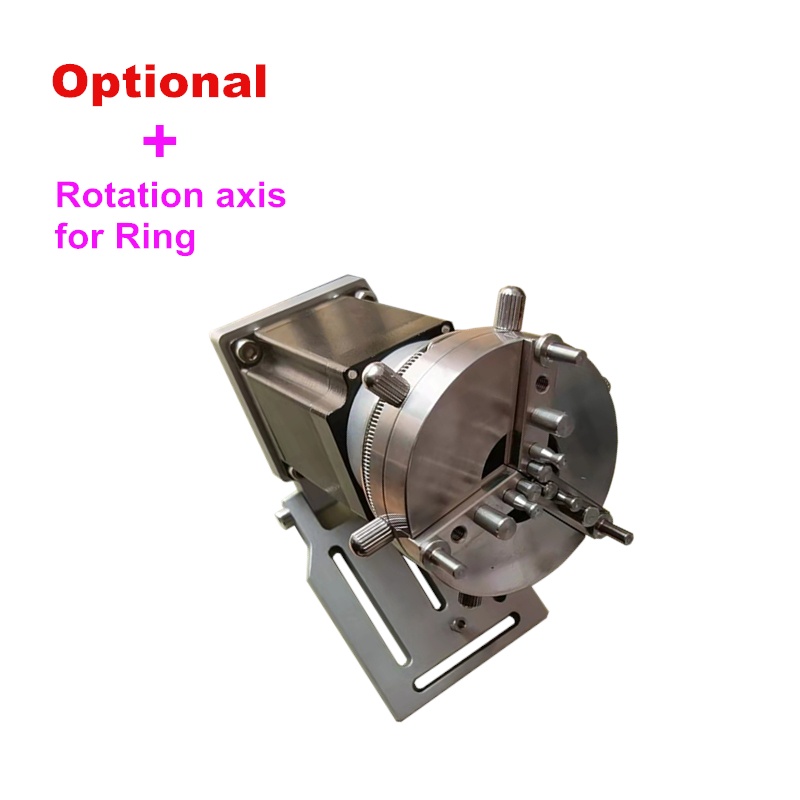

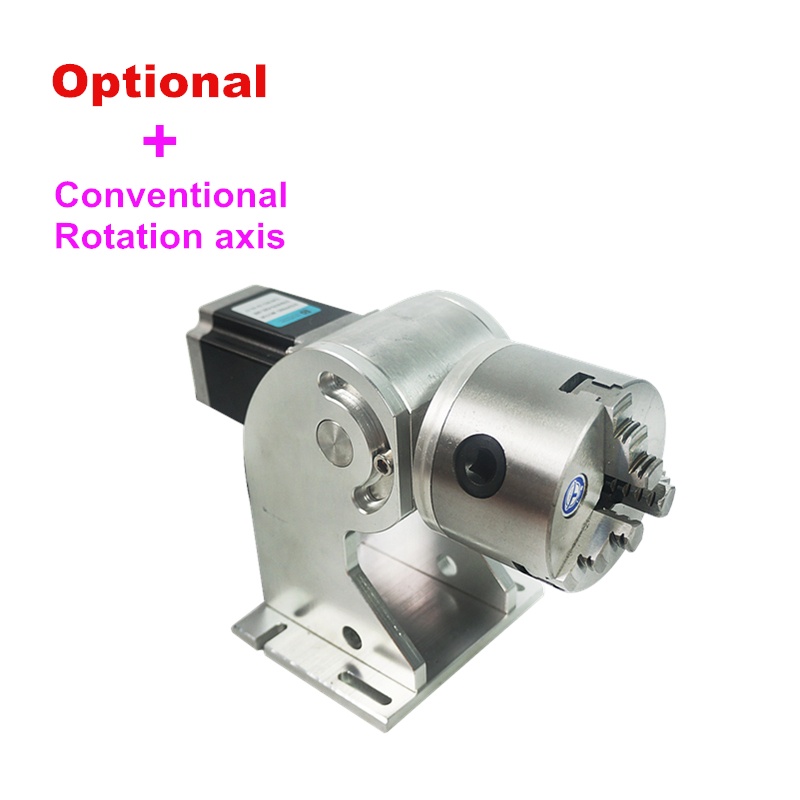

E: Rotary axis (Optional)
3: In addition to these main accessories, we can gain an in-depth understanding of the machine configuration of the accessories and technical debugging of the main quality of the machine. It only provides you with a machine that runs stably and has a low failure rate. Machine accessories are related to the long life of the machine. In the short term, it is impossible to compare the stability and failure rate of the machine.
