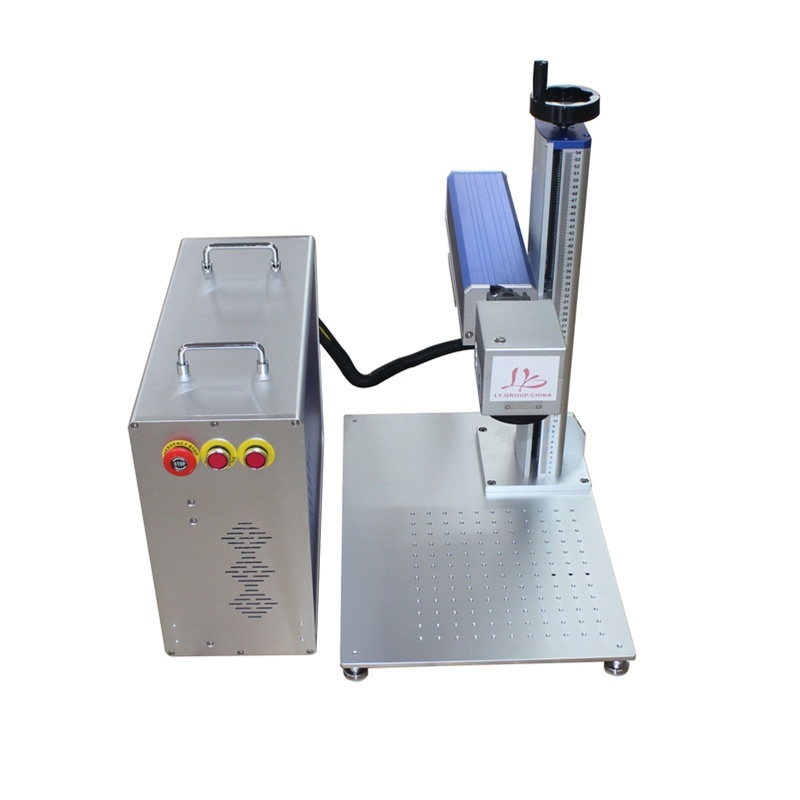

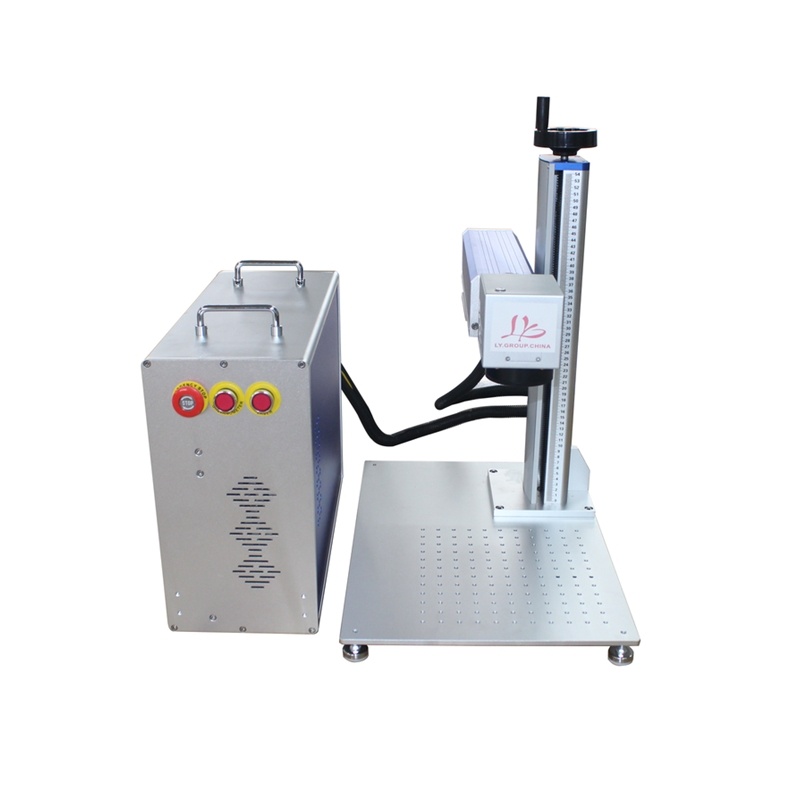

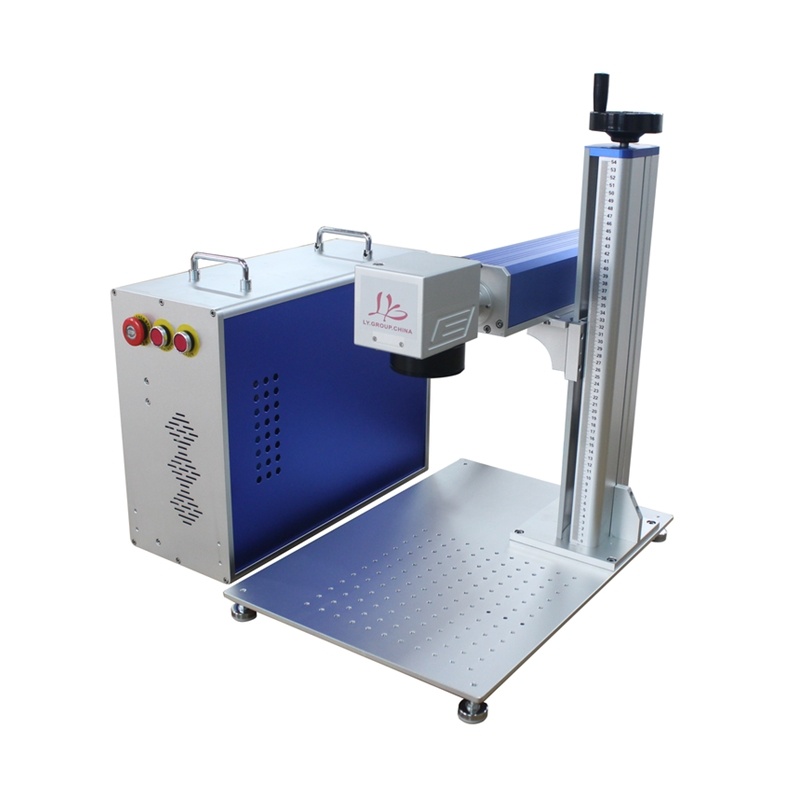

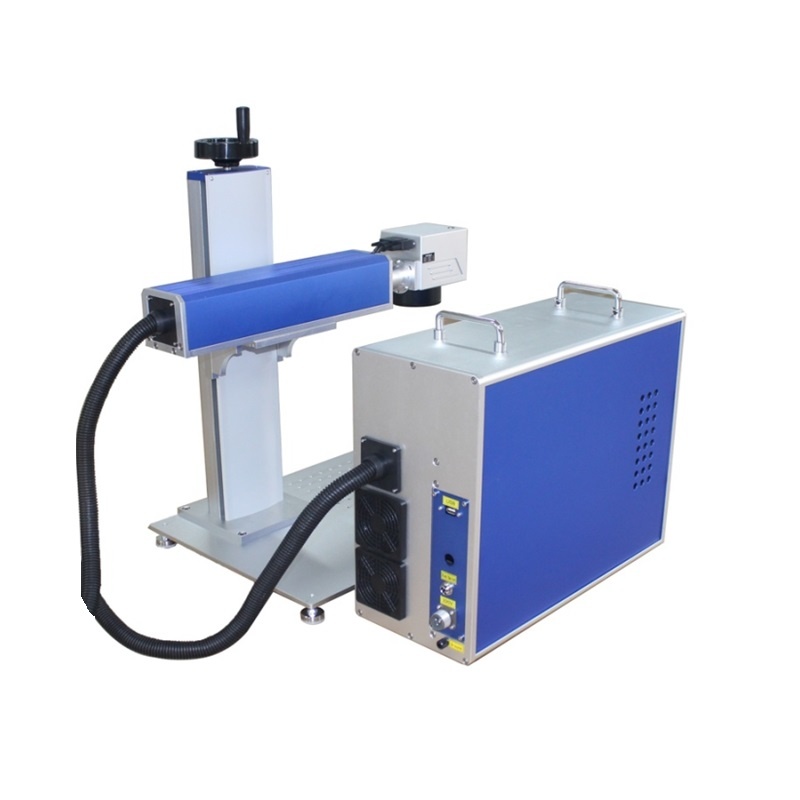

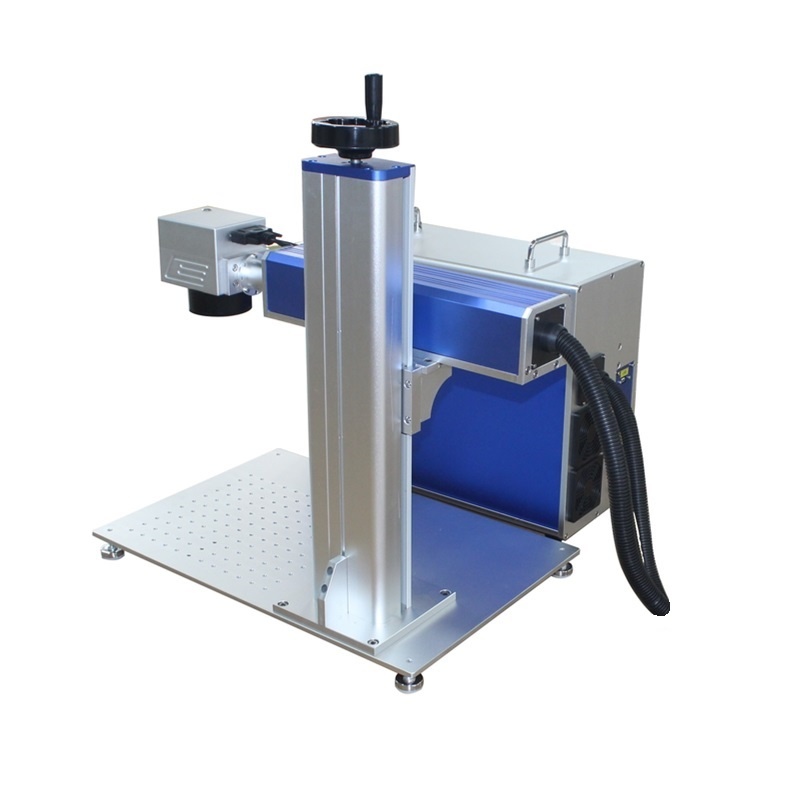

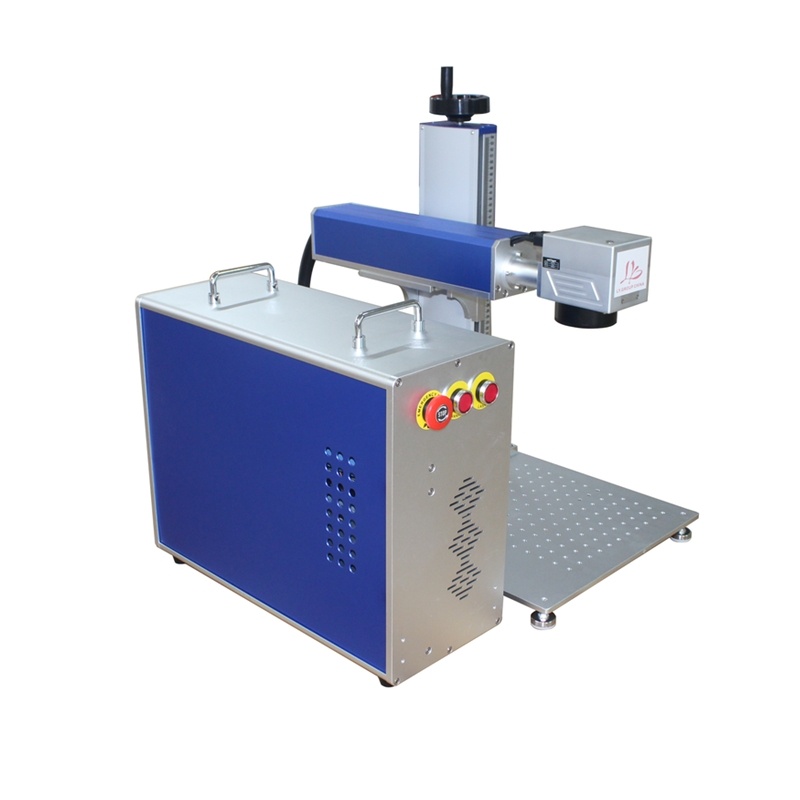

LY Master Oscillator Power-Amplifier MOPA separated Fiber Laser Nameplate Mark Machine 20W 30W Impulse Frequency 1-2000KHz for Color marking on Stainless Steel Electronics Semi-conductor ITO precision machining 220V 110V

LY Master Oscillator Power-Amplifier MOPA separated Fiber Laser Nameplate Mark Machine 20W 30W Impulse Frequency 1-2000KHz for Color marking on Stainless Steel Electronics Semi-conductor ITO precision machining 220V 110V

item ID: 62230
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$6000 USD$3854 (% off)
Payment

Product Detail

Product Tags

LY Master Oscillator Power-Amplifier MOPA separated Fiber Laser Nameplate Mark Machine 20W 30W Impulse Frequency 1-2000KHz for Color marking on Stainless Steel Electronics Semi-conductor ITO precision machining 220V 110V

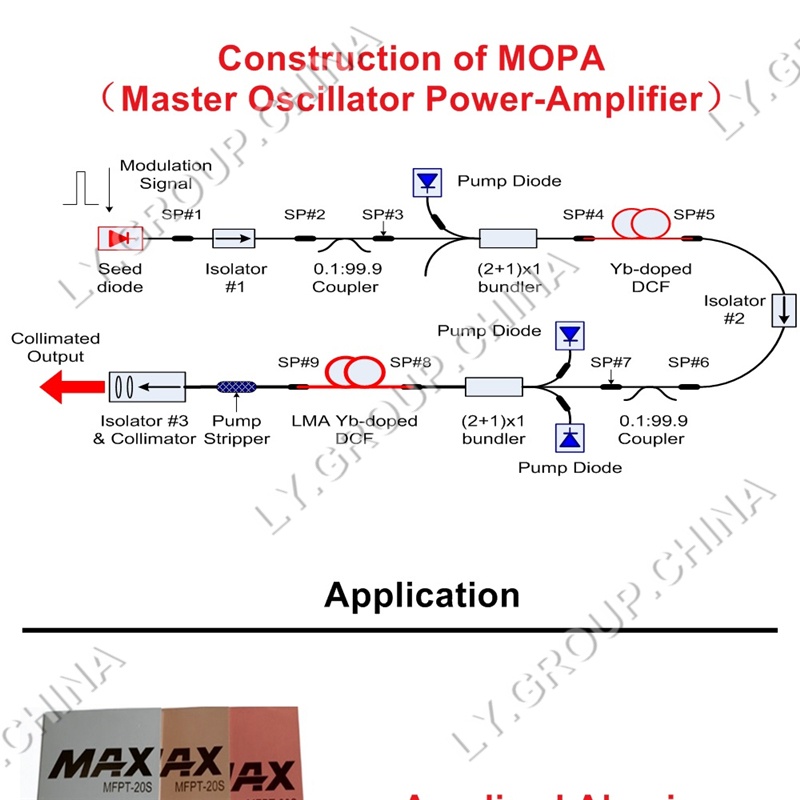

MOPA means “Master Oscillator Power-Amplifier”, why we say MOPA fiber laser marking machine is the nobility in fiber laser machine series?

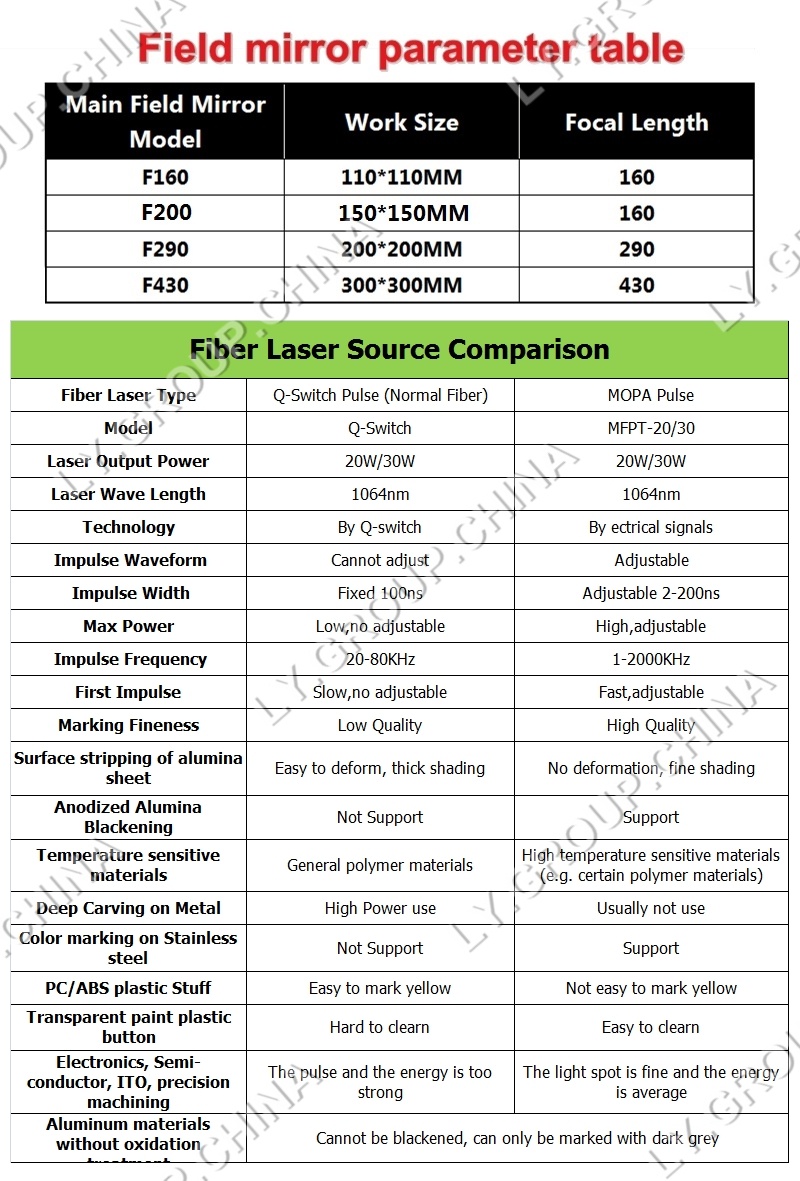

Fiber Laser Source Comparison




Fiber Laser Type

Q-Switch Pulse (Normal Fiber)

MOPA Pulse



Model

Q-Switch

MAX(MFPT-20/30)



Laser Output Power

20W/30W

20W/30W



Laser Wave Length

1064nm

1064nm



Technology

By Q-switch

By electrical signals



 Impulse Waveform

Cannot adjust

Adjustable



 Impulse Width

Fixed 100ns

Adjustable 2-200ns



Max Power

Low ,not adjustable

High ,adjustable



 Impulse Frequency

20-80KHz

1-2000KHz



First Impulse

Slow ,no adjustable

Fast ,adjustable



Marking Fineness

Low Quality

High Quality



Surface stripping of alumina sheet

Easy to deform, thick shading

No deformation, fine shading

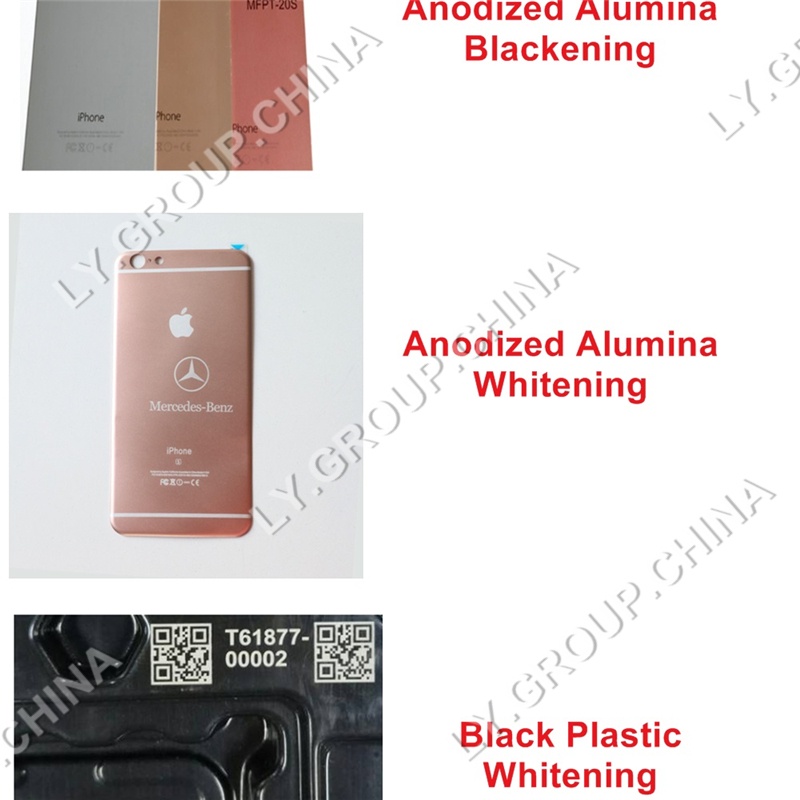

Anodized Alumina Blackening

Not Support

Support



Temperature sensitive materials

General polymer materials

High temperature sensitive materials (e.g. certain polymer materials)



Deep Carving on Metal

Rough shading

Fine shading

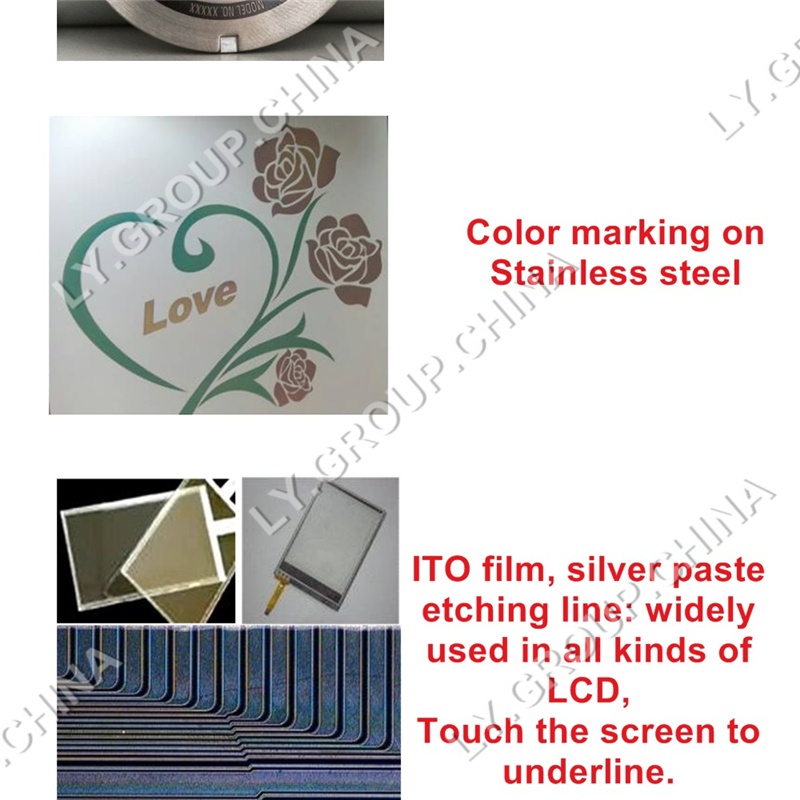

Color marking on Stainless steel

Not Support

Support



PC/ABS plastic Stuff

Easy to mark yellow

Not easy to mark yellow



Transparent paint plastic button

Hard to clean

Easy to clean



Electronics, Semi-conductor, ITO, precision machining

The pulse and the energy is too strong

The light spot is fine and the energy is average



Aluminum materials without oxidation treatment

Cannot be blackened, can only be marked with dark grey

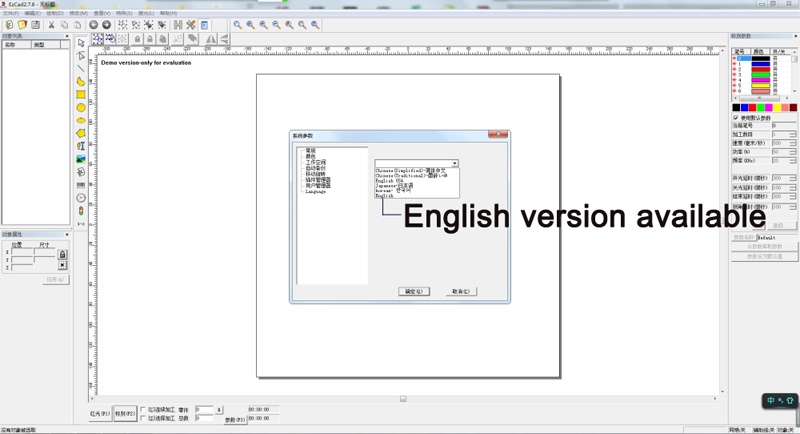

  The motherboard supports win10 and supports 32-bit 64-bit.



​1: Fully build the platform professional fiber laser marking machine shop, please customers to patronize, do not just look at the price. To look at the quality of the machine, use high-quality machine parts to give customers the best price and quality service! Provide S/N coding for our machines, machine lifetime service,

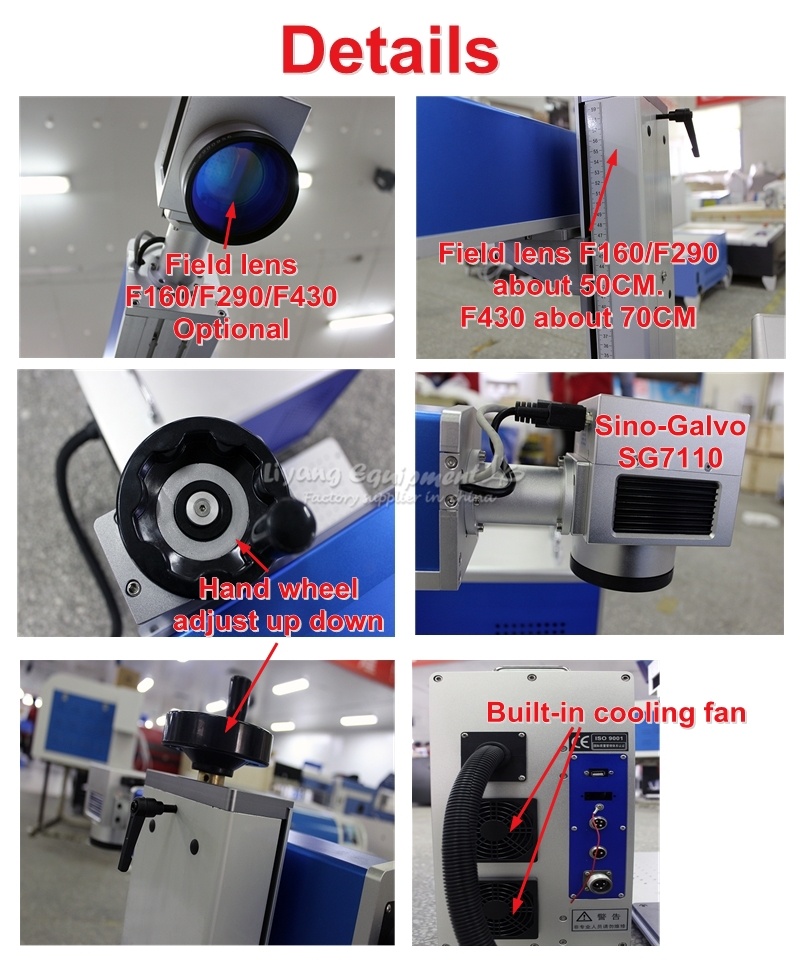

2: Machine configuration:

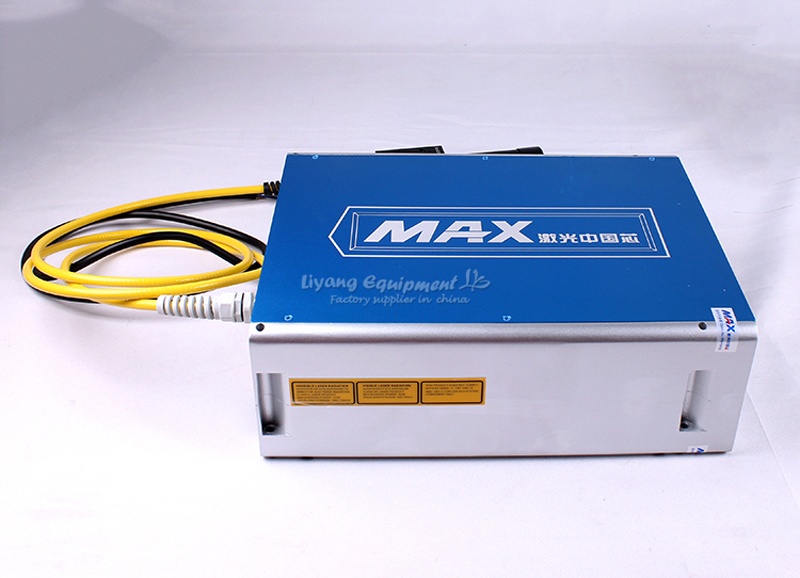

A;Fiber Laser brand: Max

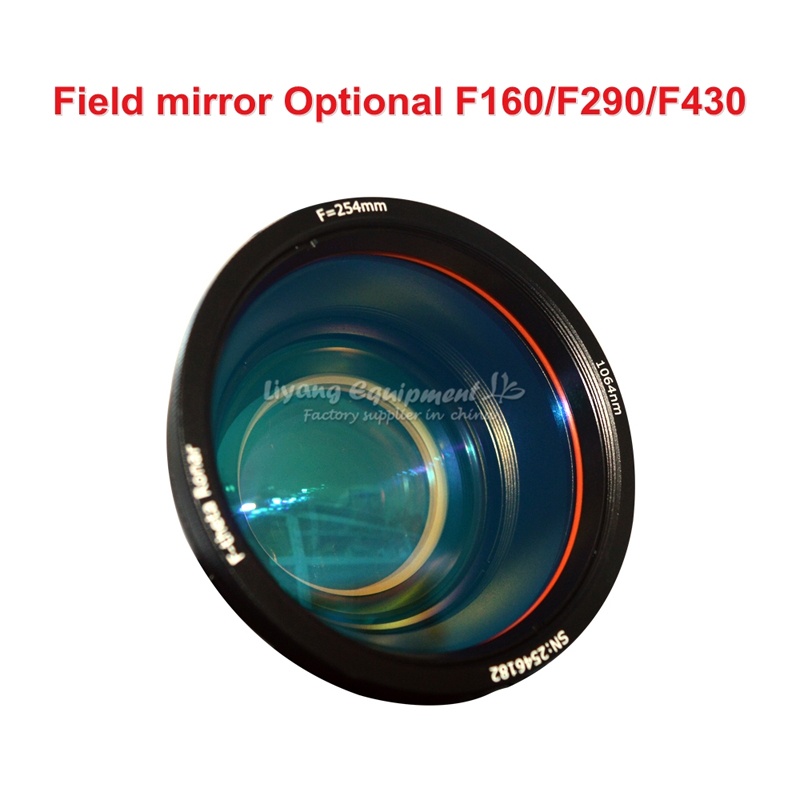

B; SINO-GALVO field mirror & galvanometer,

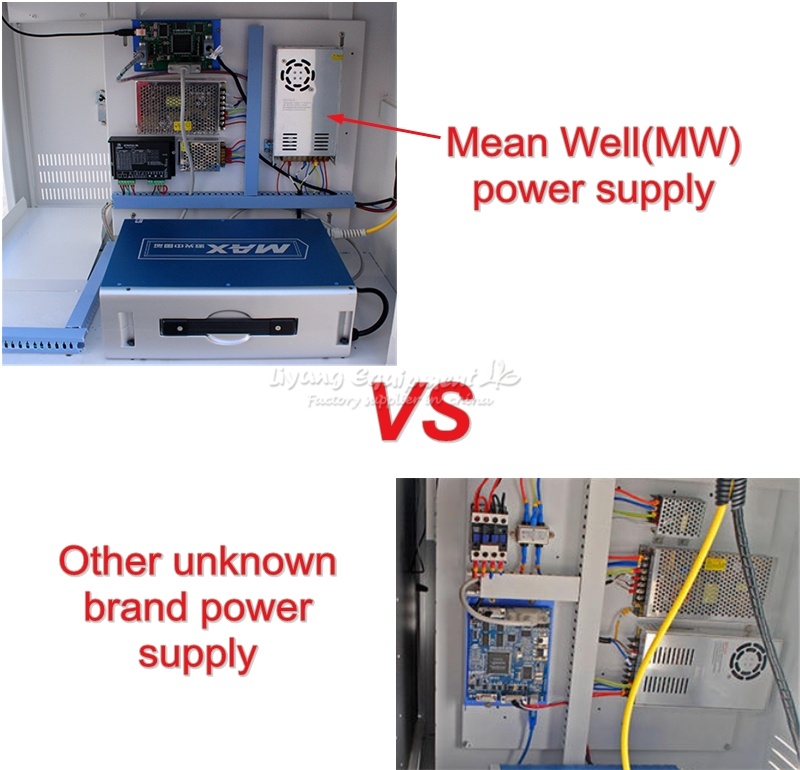

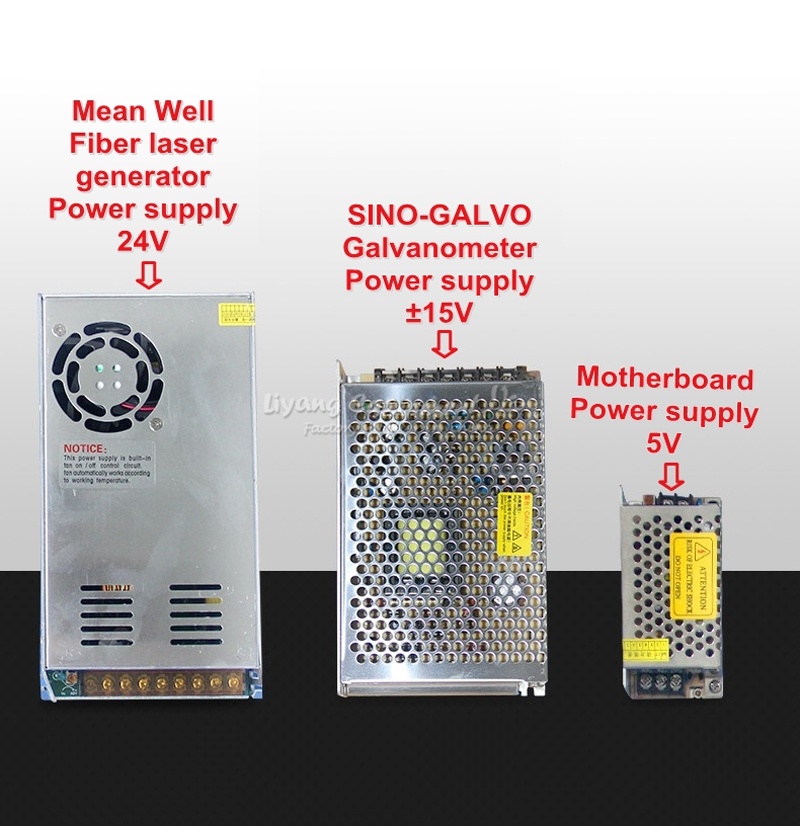

C; Taiwan Meanwell (MW) power supply,

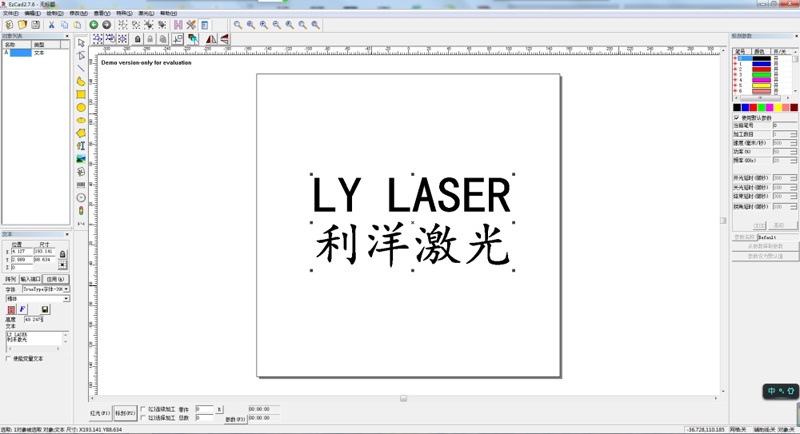

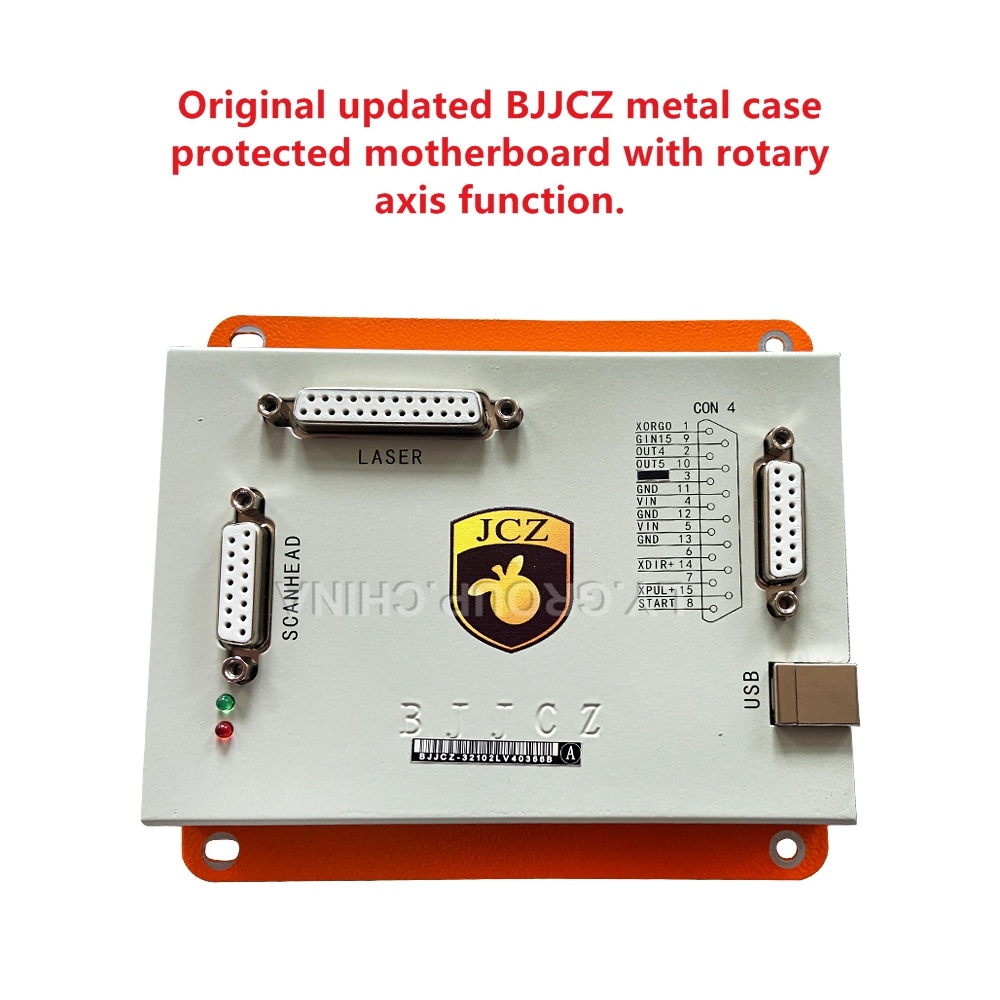

D;Original Golden Orange Board (supports genuine software, supports system-wide operation)

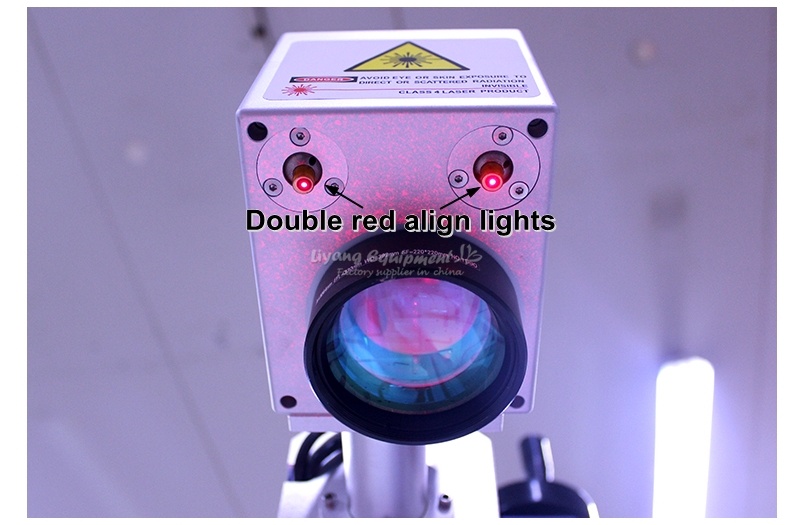

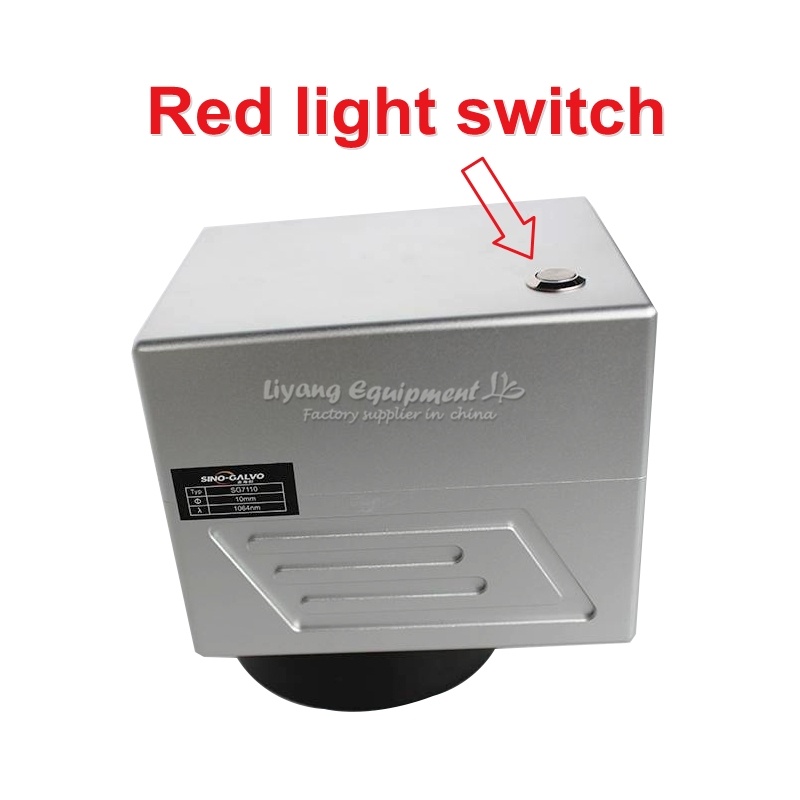

​E: Double red lights assisted focusing

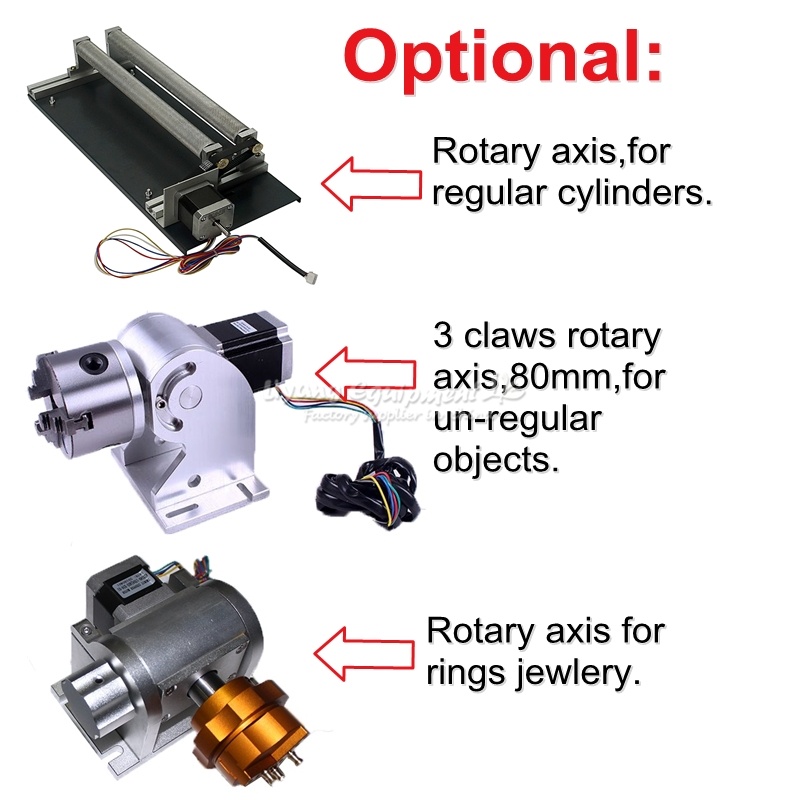

F:Rotary axis (Optoinal)



3: In addition to these main accessories, we can gain an in-depth understanding of the machine configuration of the accessories and technical debugging of the main quality of the machine. It only provides you with a machine that runs stably and has a low failure rate. Machine accessories are related to the long life of the machine. In the short term, it is impossible to compare the stability and failure rate of the machine!



4: Never let price become the only guiding factor for the company’s business marketing.

Expand your own marketing ideas and position high-quality markets.



5: Leopard and cat are similar, but different in quality. If you want a leopard or a cat, you have the final say, I can provide it. Just the price is different!
