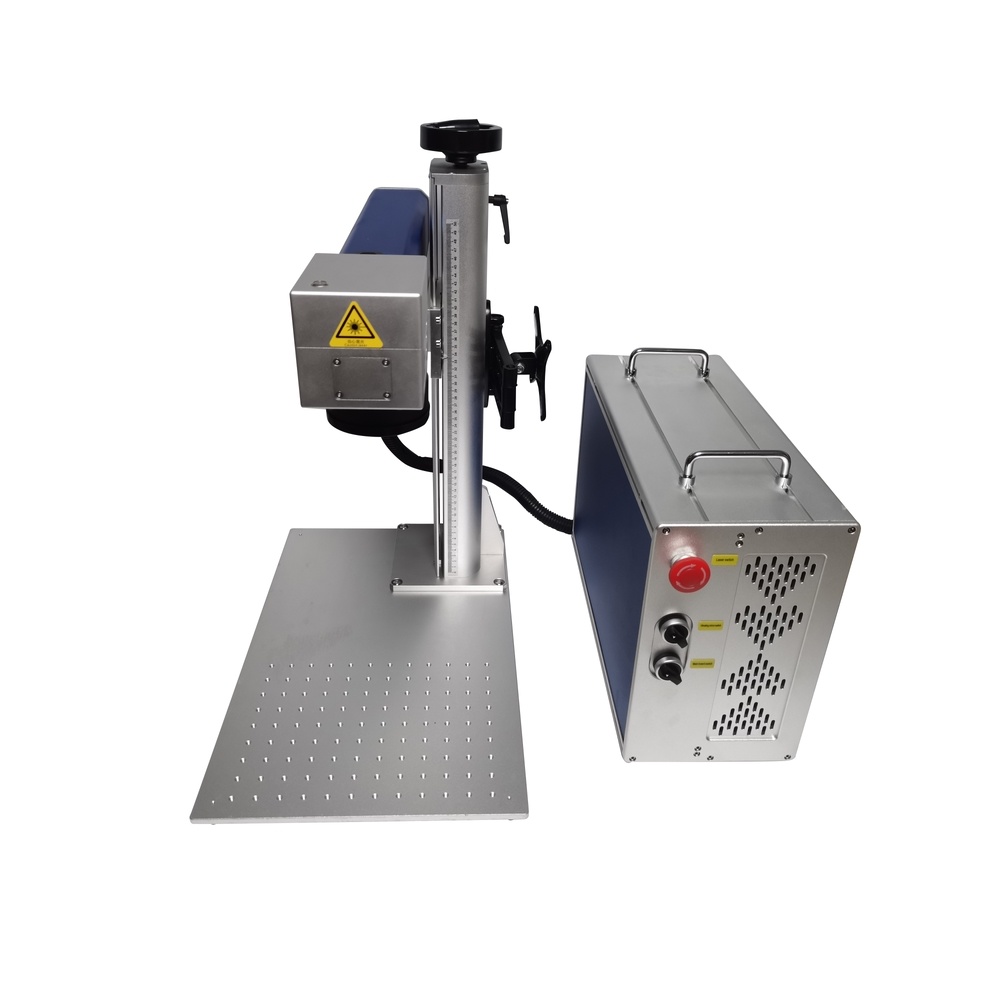

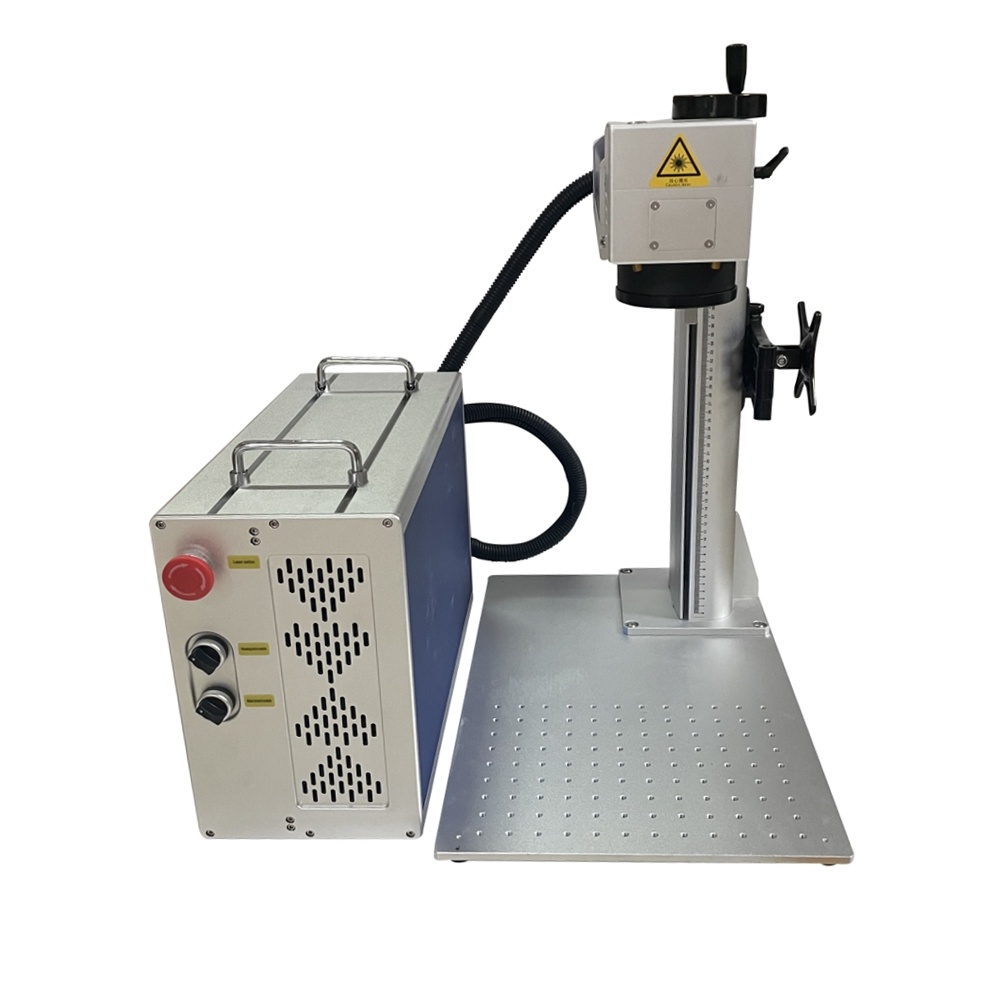

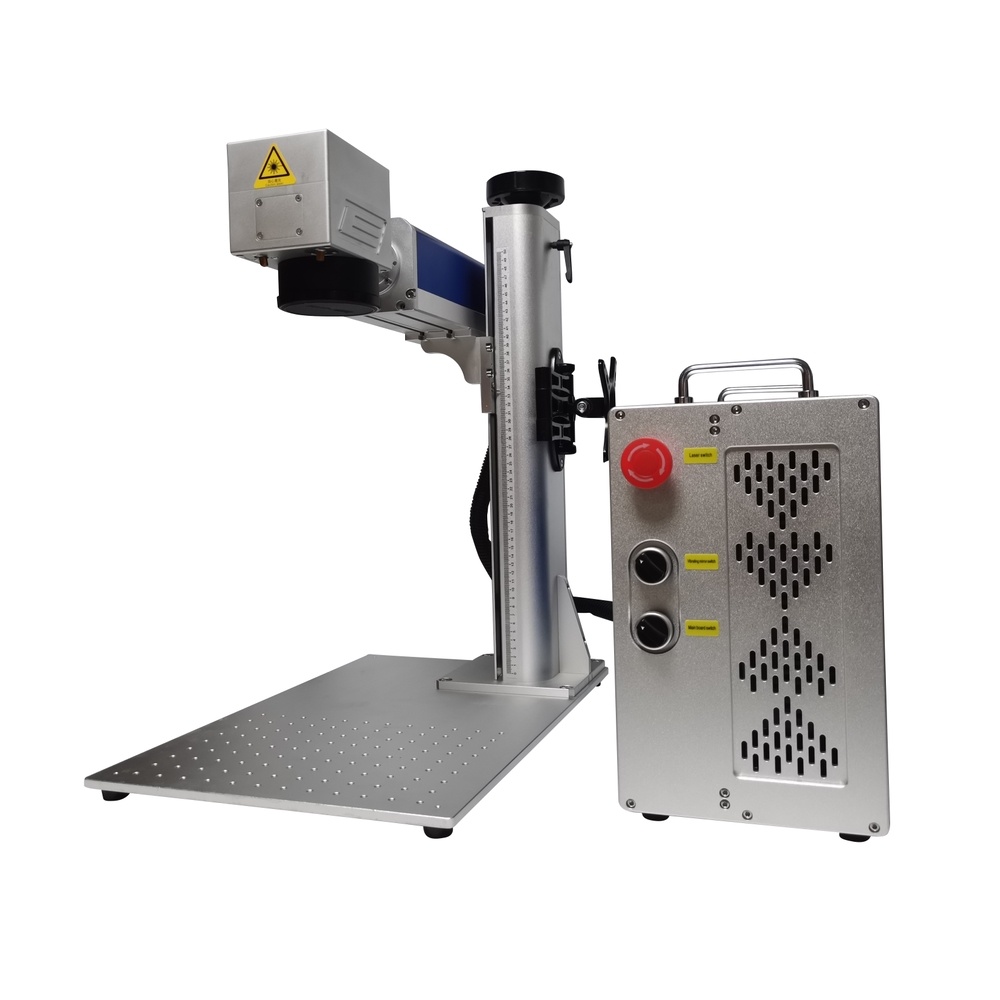

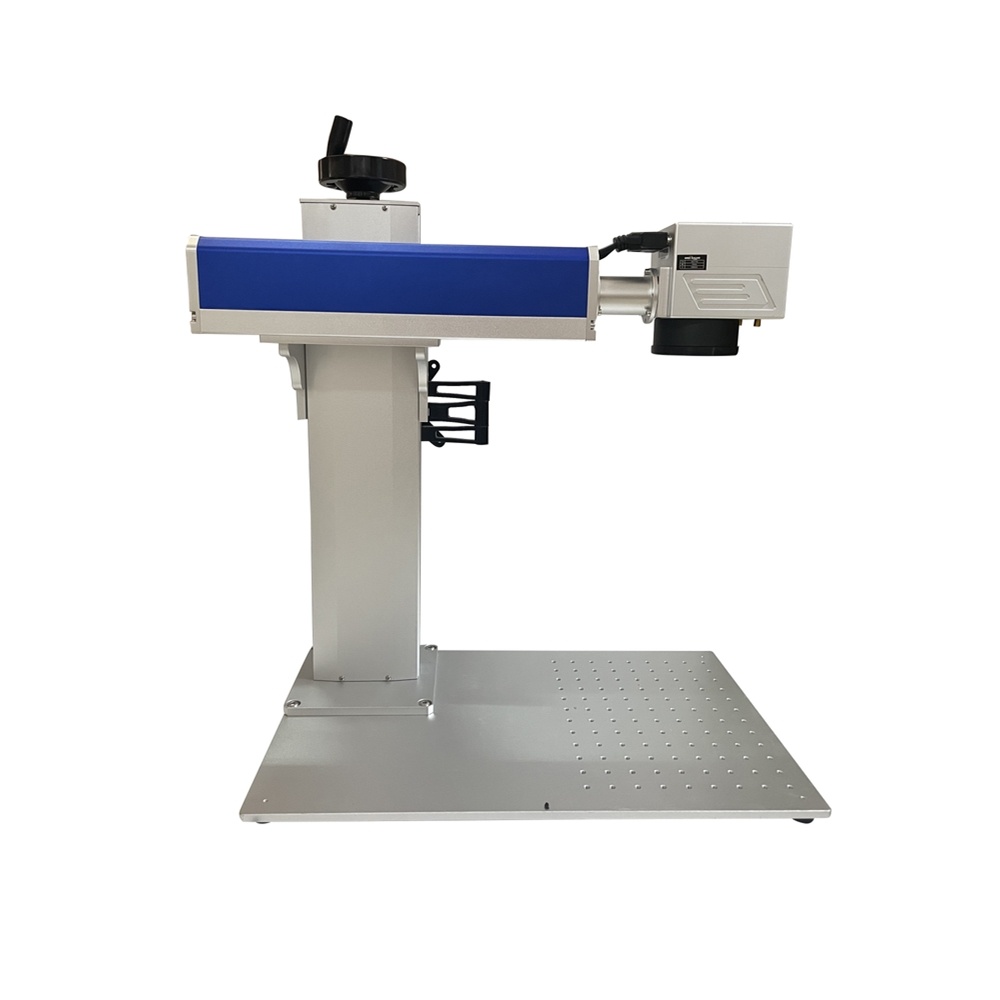

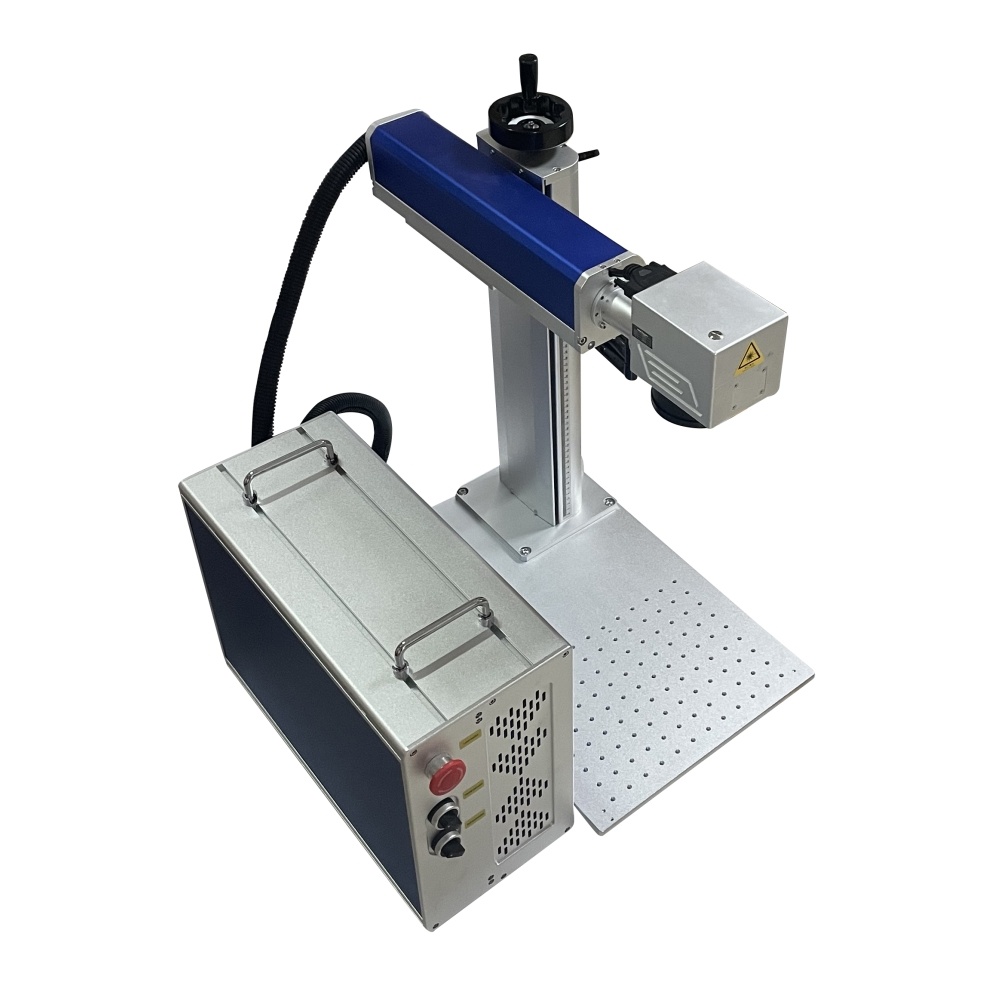

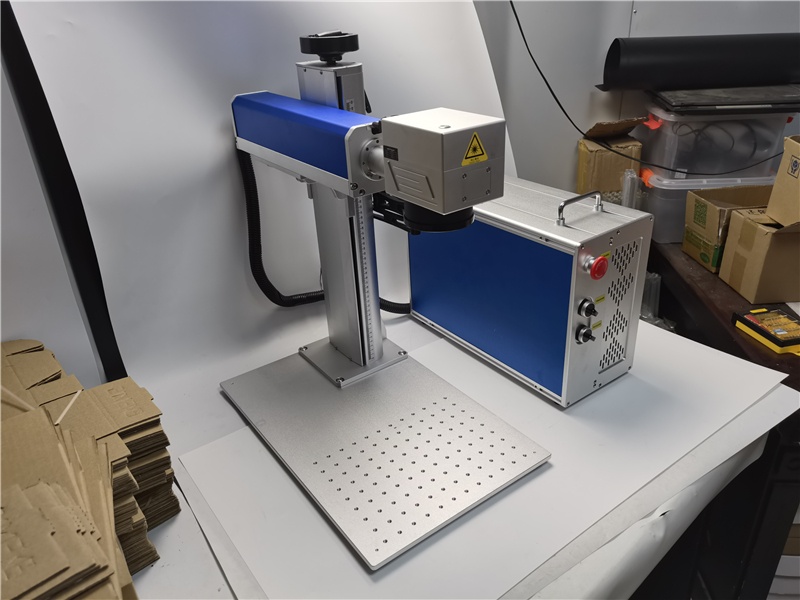

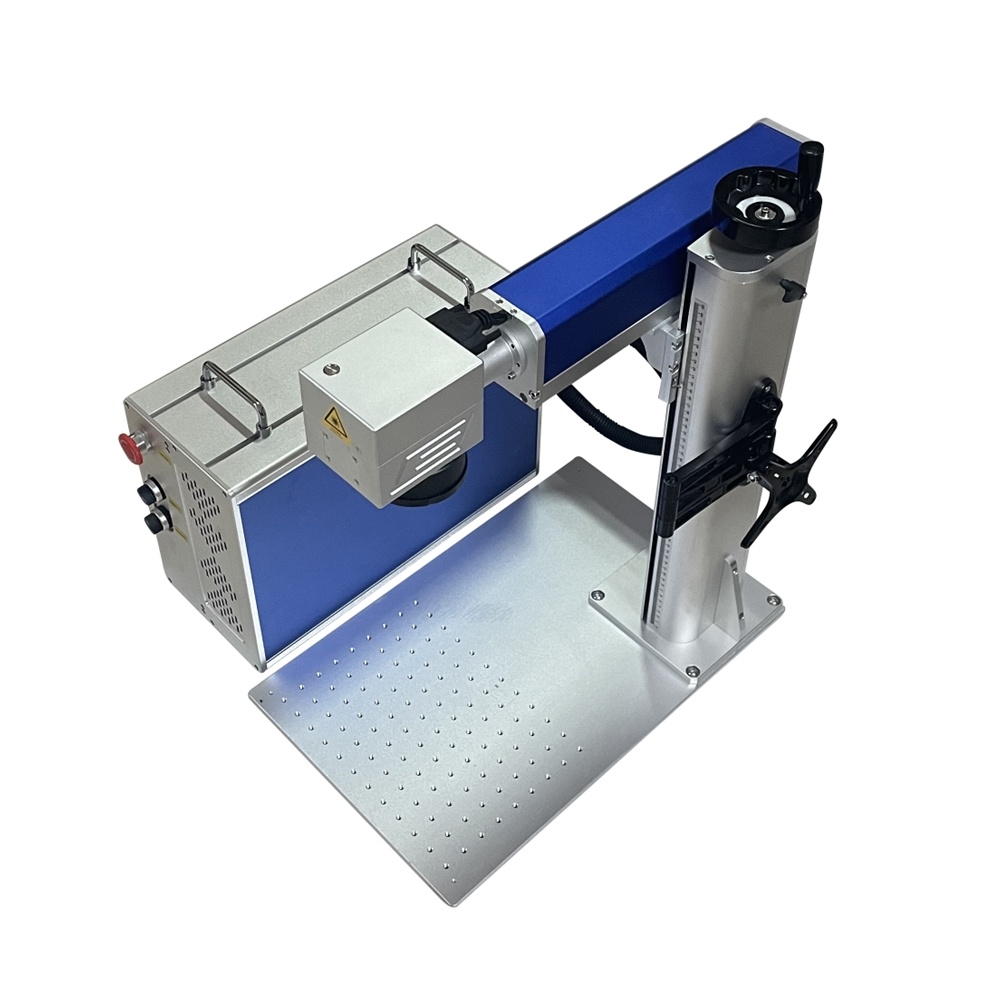

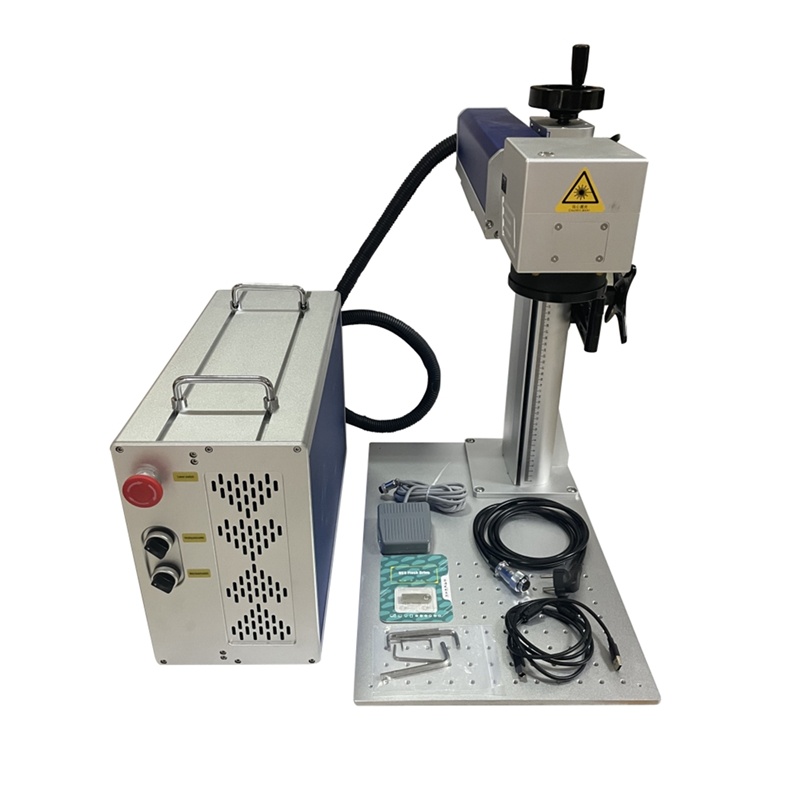

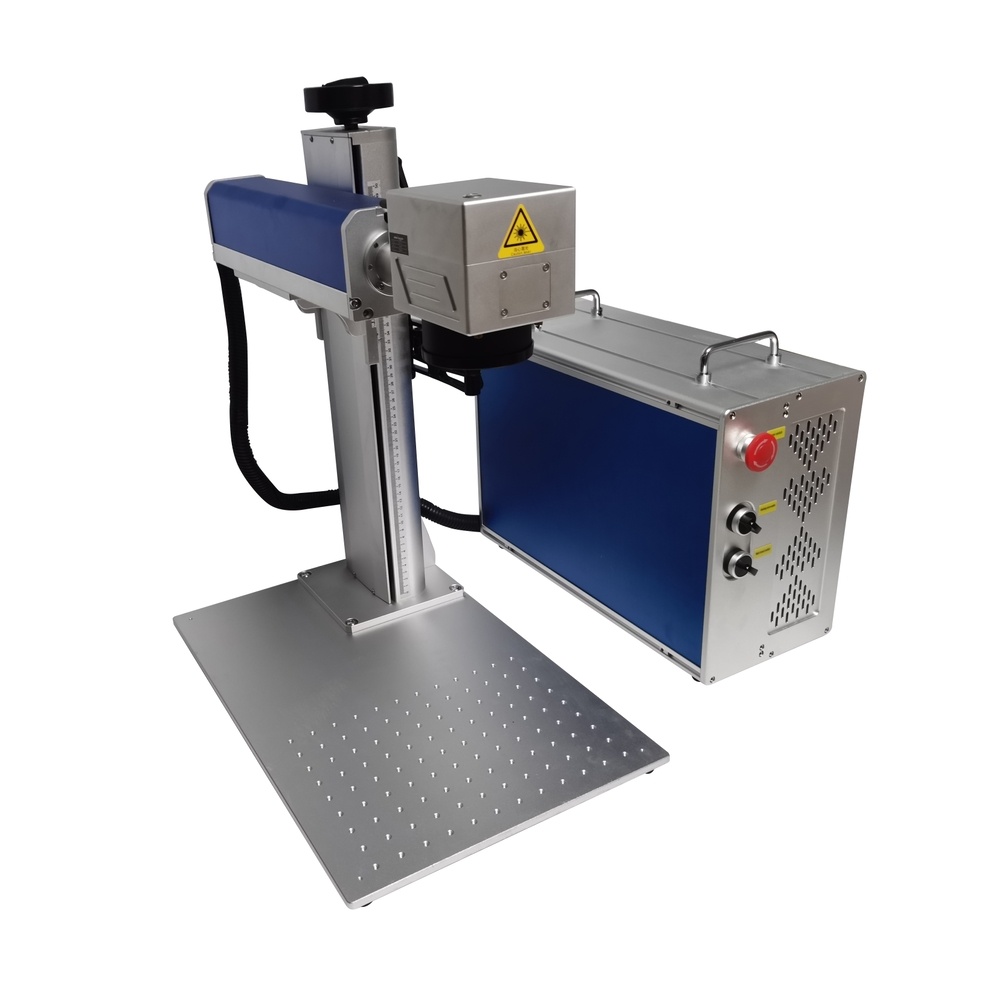

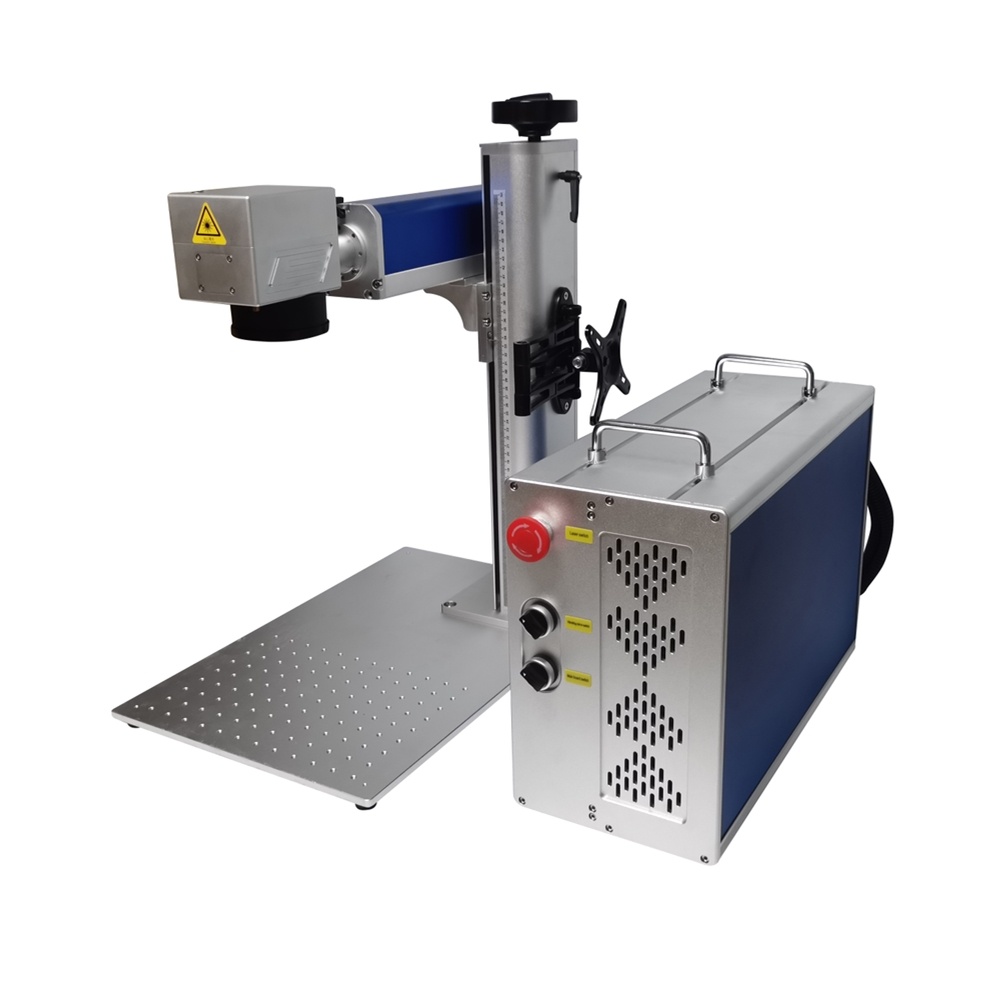

LY Separated Structure Mini Fiber Laser Nameplate Marking Machine 30W 50W Raycus Brand Source Metal Engraver Engraving Suitable For PVC Plastic Stainless Steel Cartoon Package Foreign Supply Specially

LY Separated Structure Mini Fiber Laser Nameplate Marking Machine 30W 50W Raycus Brand Source Metal Engraver Engraving Suitable For PVC Plastic Stainless Steel Cartoon Package Foreign Supply Specially

item ID: 62160
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$3500 USD$2229 (% off)
Payment

Product Detail

Product Tags

LY Separated Structure Mini Fiber Laser Nameplate Marking Machine 30W 50W Raycus Brand Source Metal Engraver Engraving Suitable For PVC Plastic Stainless Steel Cartoon Package Foreign Supply Specially

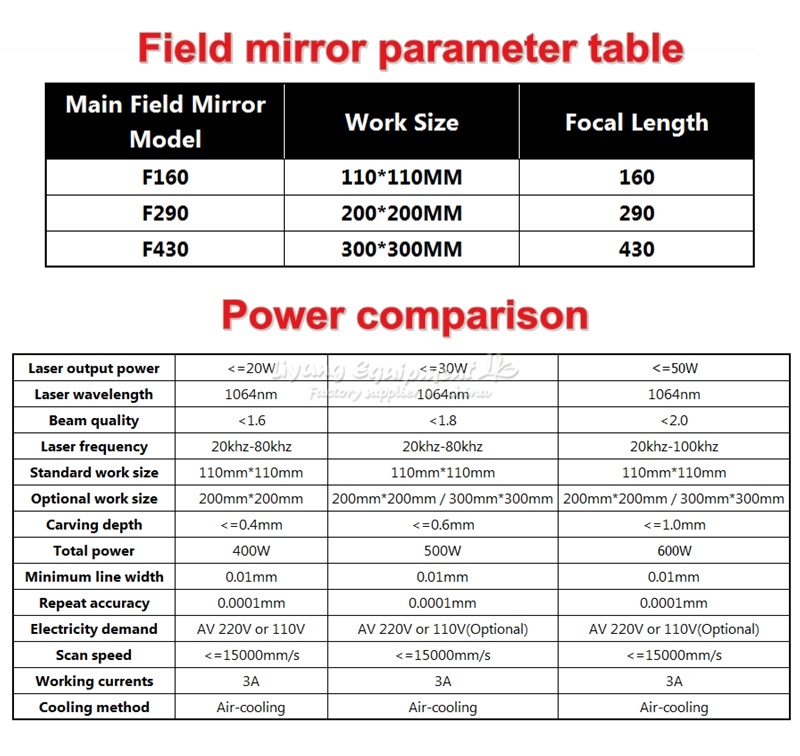

Technical Parameter

Model
Laser power 30W/50W
Working  Area 200*200mm  (Initial field lens specification.)
Cooling Mode Air Cooling
Laser Wavelength 10.64 um
Frequency of pulse 20-100 KHz
Marking Depth ≤0.3 mm
Marking Speed ≤8000 mm/s
Marking Lines 1-10 lines
Minimum Line Width 0.01 mm
Minimum Character 0.15 mm
Repeatability Accuracy ±0.002 mm
Resolution Ratio 0.1 mm

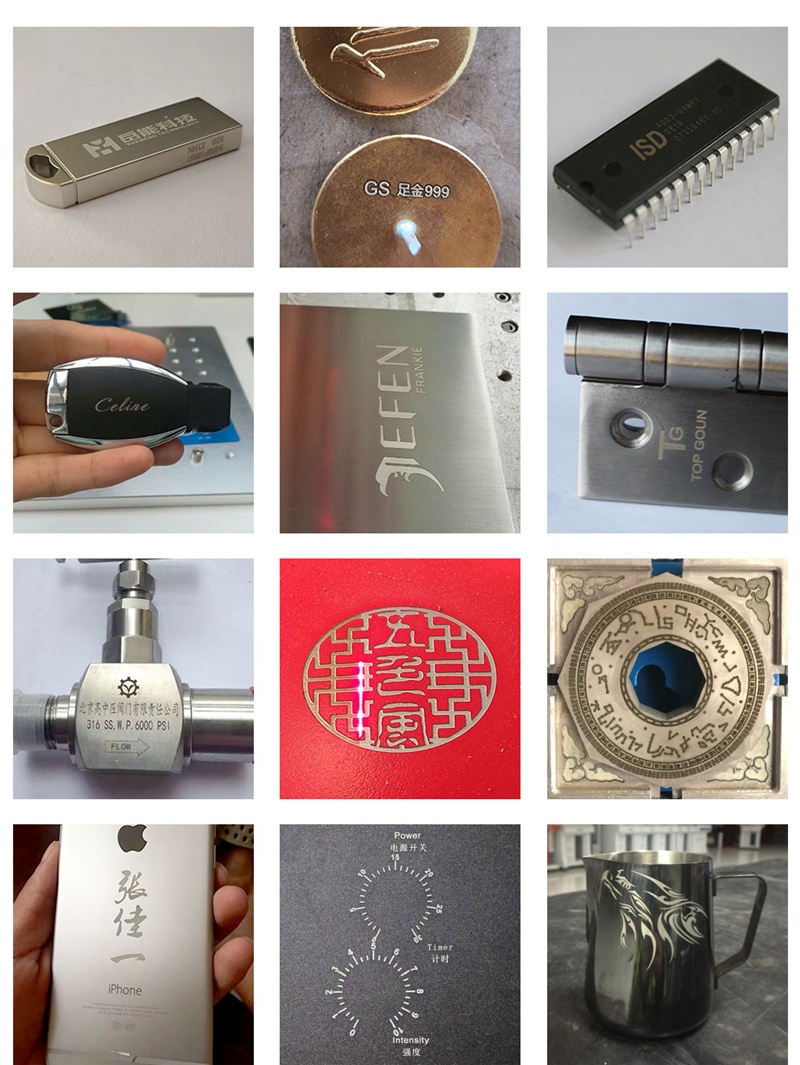

Marking Content Text, pattern, date, bar code, etc
Operation System Microsoft Windows XP or Windows 2000,WIN 7, WIN8, WIN 10

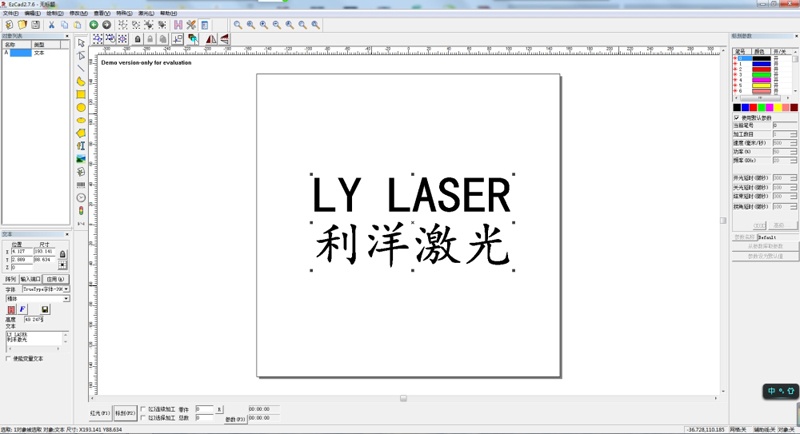

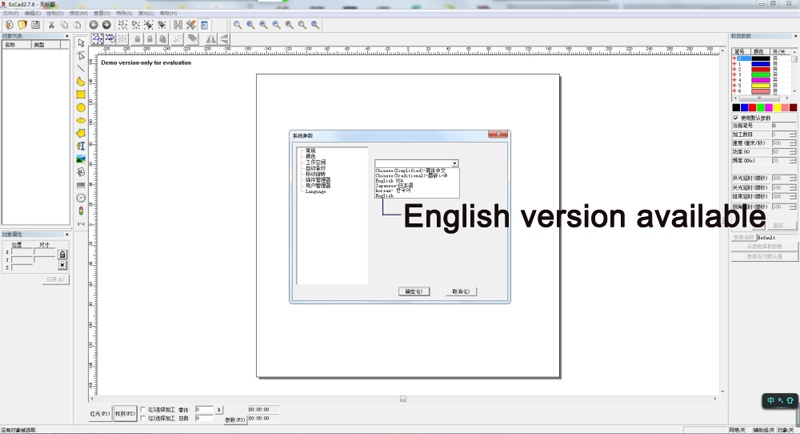

Control Software EZCAD ENGLISH Control Software
Graphic Format Supported BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc.
Unit Power ≤0.9 KW
Operation Temperature 5°C-40°C
Relative Moisture ≤ 90%, no fog
Dimensions(L*W*H) 780*780*450MM (Cartoon)
Power supply requirements 220V/110V(Optional)
Weight Gross Weight 38KG (Other factory wooden package 60KG+)
Warranty 24 months



The motherboard supports win10 and supports 32-bit 64-bit.



1: Fully build the platform professional fiber laser marking machine shop, please customers to patronize, do not just look at the price. To look at the quality of the machine, use high-quality machine parts to give customers the best price and quality service! Provide S/N coding for our machines, machine lifetime service,

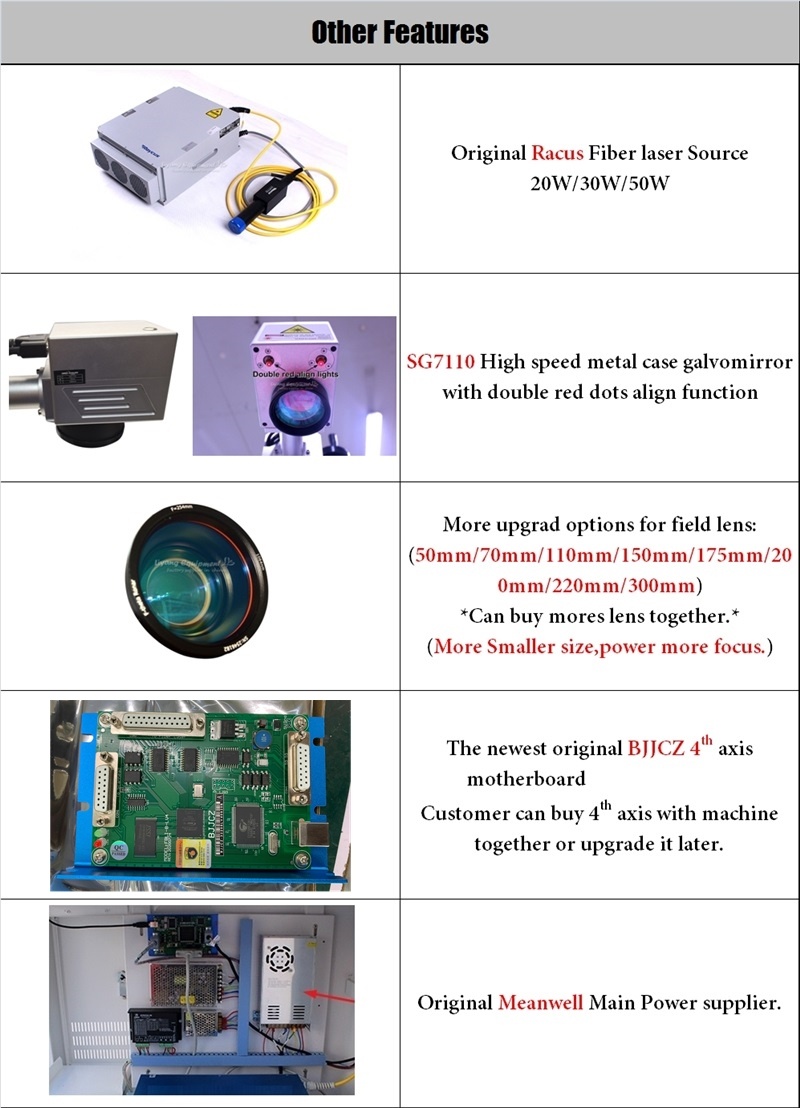

2: Machine configuration:

A;Fiber Laser brand: Raycus

B; SINO-GALVO galvanometer SG7110.

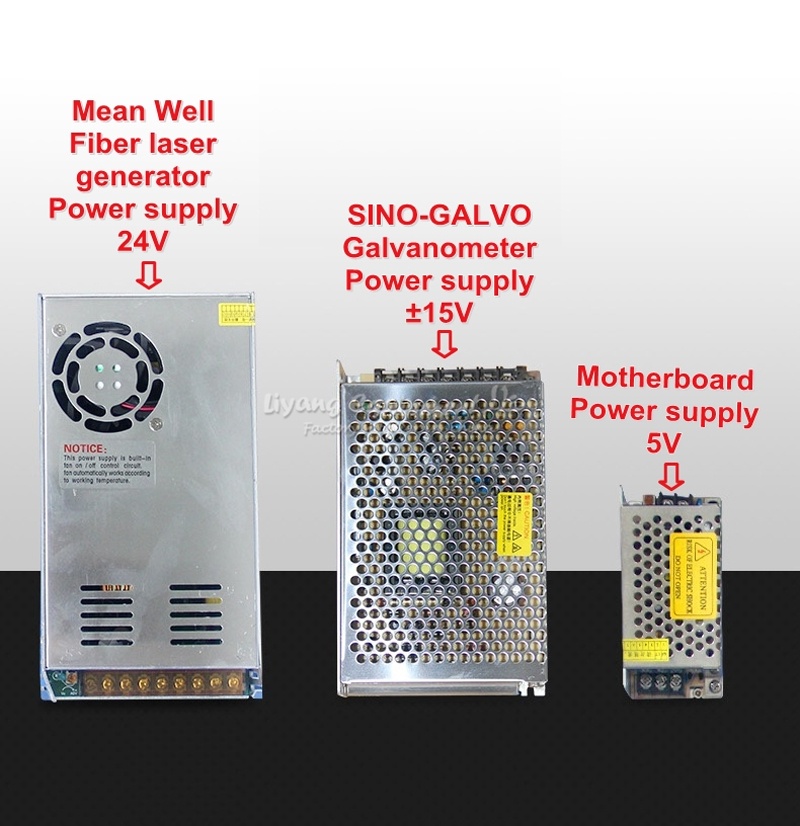

C; Taiwan Mingwell (MW) power supply,

D;Original Golden Orange Board (supports genuine software, supports system-wide operation)

E: Double red lights assisted focusing

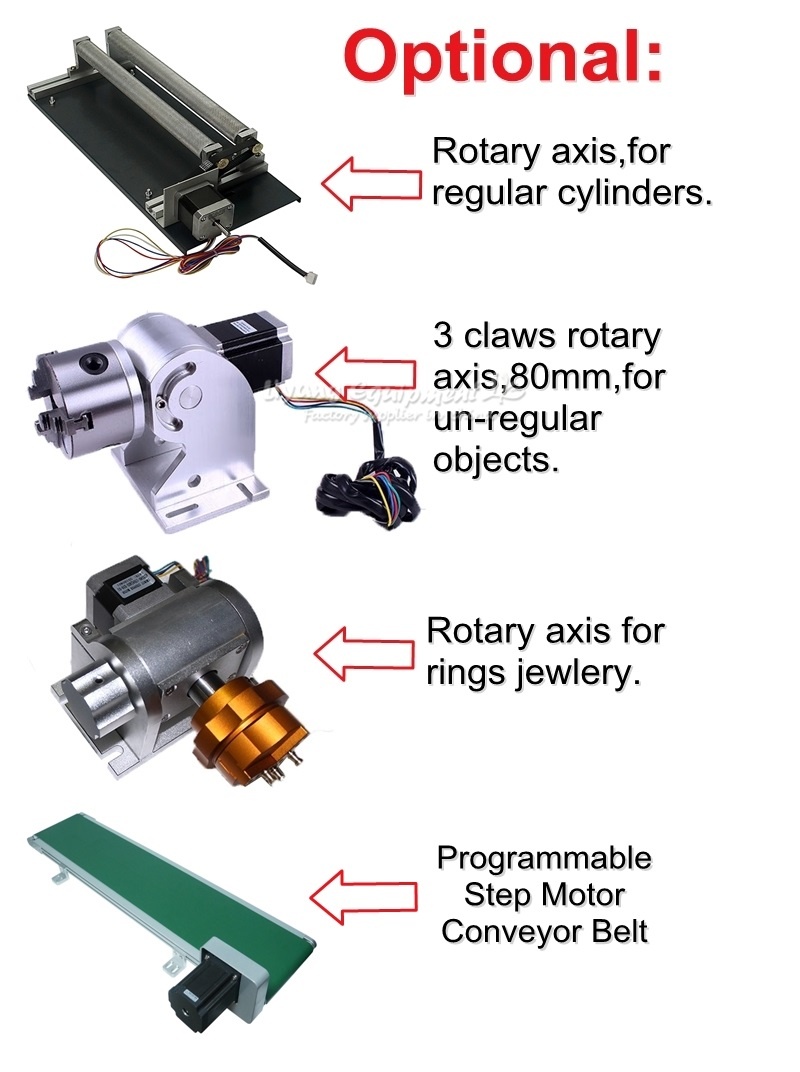

F:Rotary axis (Optoinal)

G:More Field lens can buy with machine (Optional)



3: In addition to these main accessories, we can gain an in-depth understanding of the machine configuration of the accessories and technical debugging of the main quality of the machine. It only provides you with a machine that runs stably and has a low failure rate. Machine accessories are related to the long life of the machine. In the short term, it is impossible to compare the stability and failure rate of the machine!



4: Never let price become the only guiding factor for the company’s business marketing.

Expand your own marketing ideas and position high-quality markets.



5: Leopard and cat are similar, but different in quality. If you want a leopard or a cat, you have the final say, I can provide it. Just the price is different!

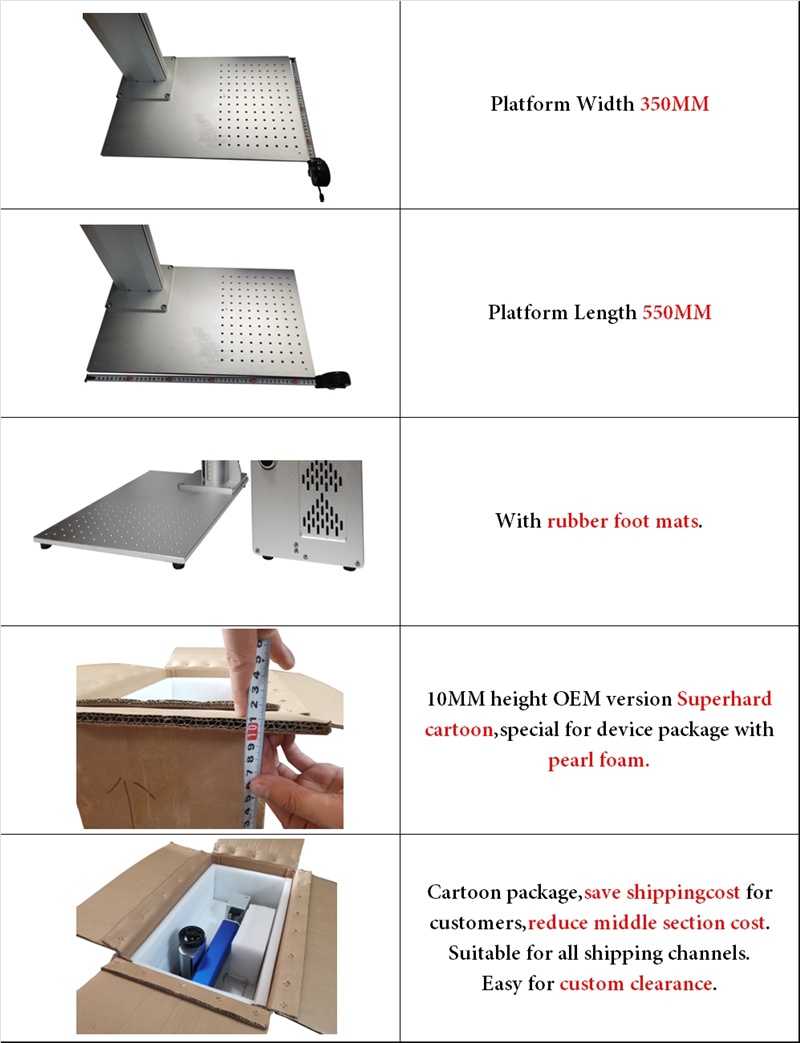

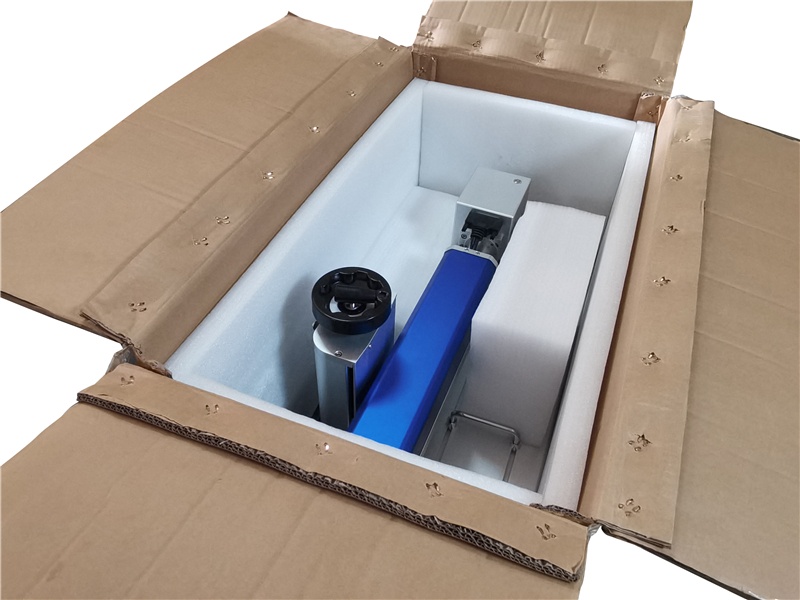

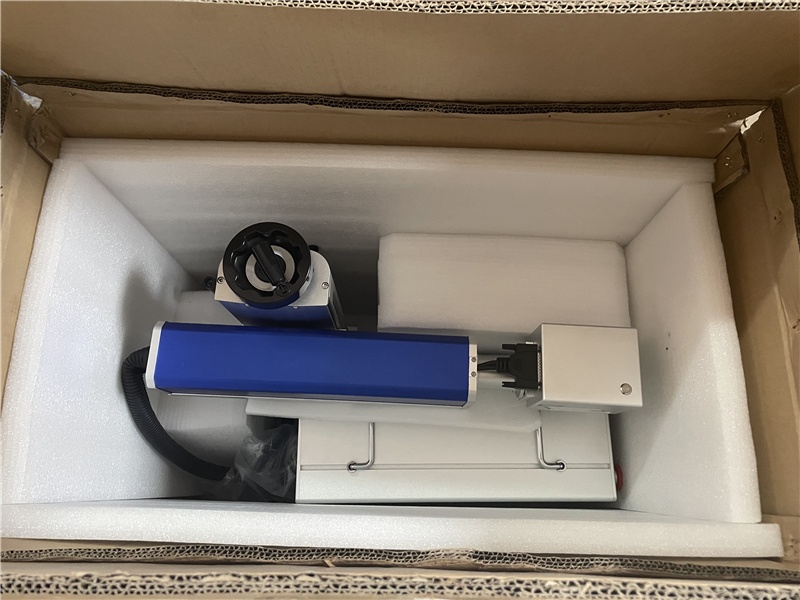

6:Special cartoon package with superhard stuff,save shippingcost for customers,reduce middle section costs,easy for custom clearance,seldom seller do like this,but we did it.

Thanks for your order!

power:
--- Please Select ---
Voltage:
--- Please Select ---
Tags:

Product Pictures
