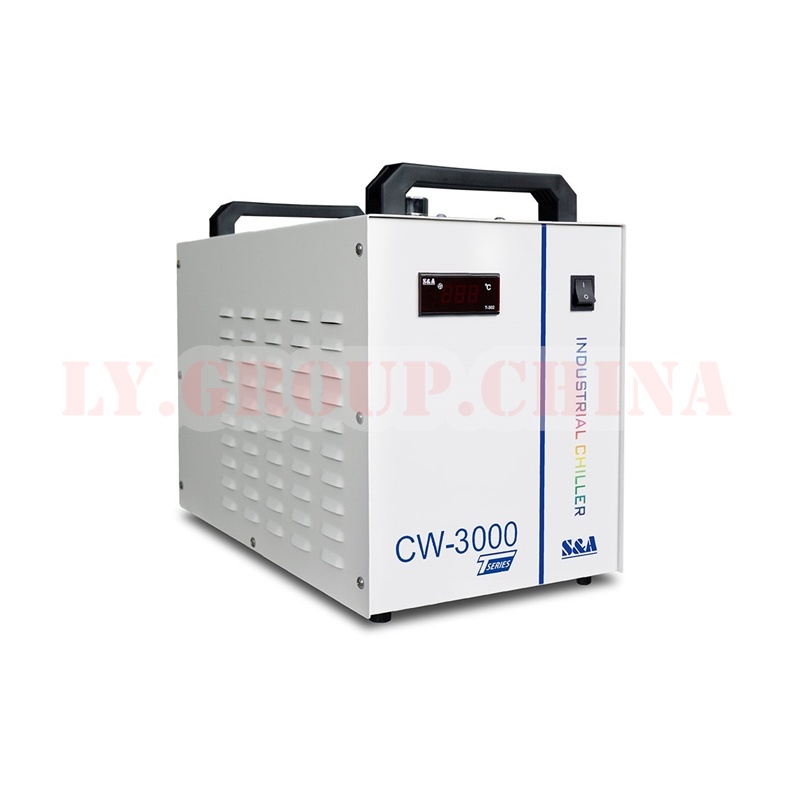

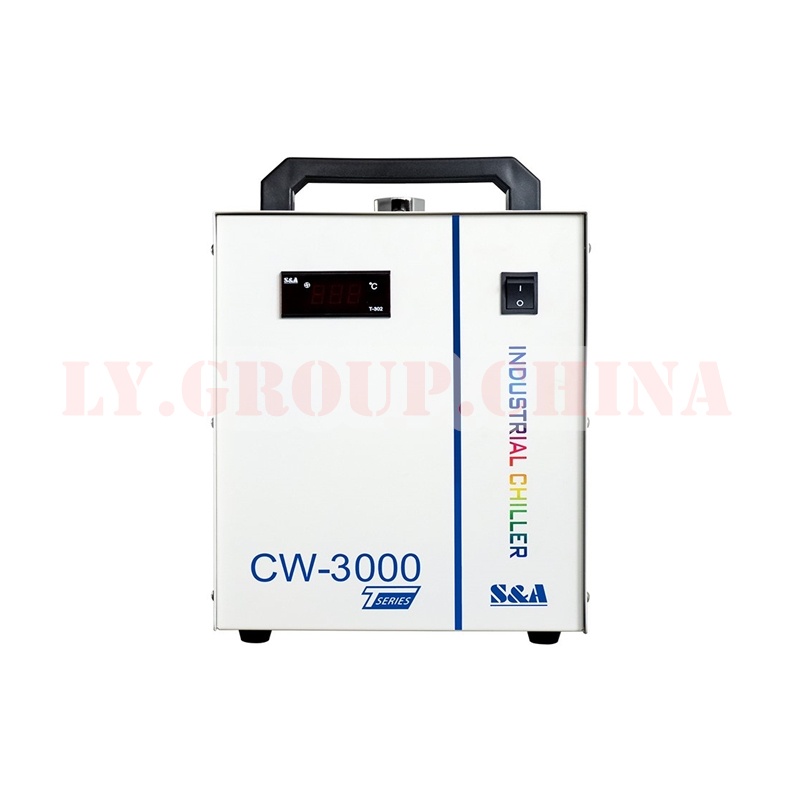

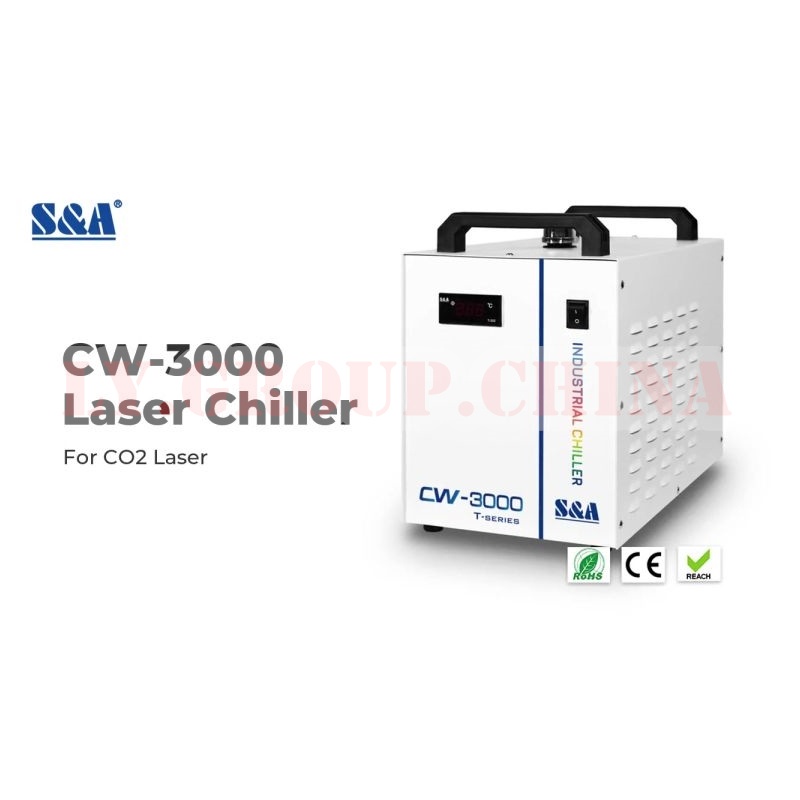

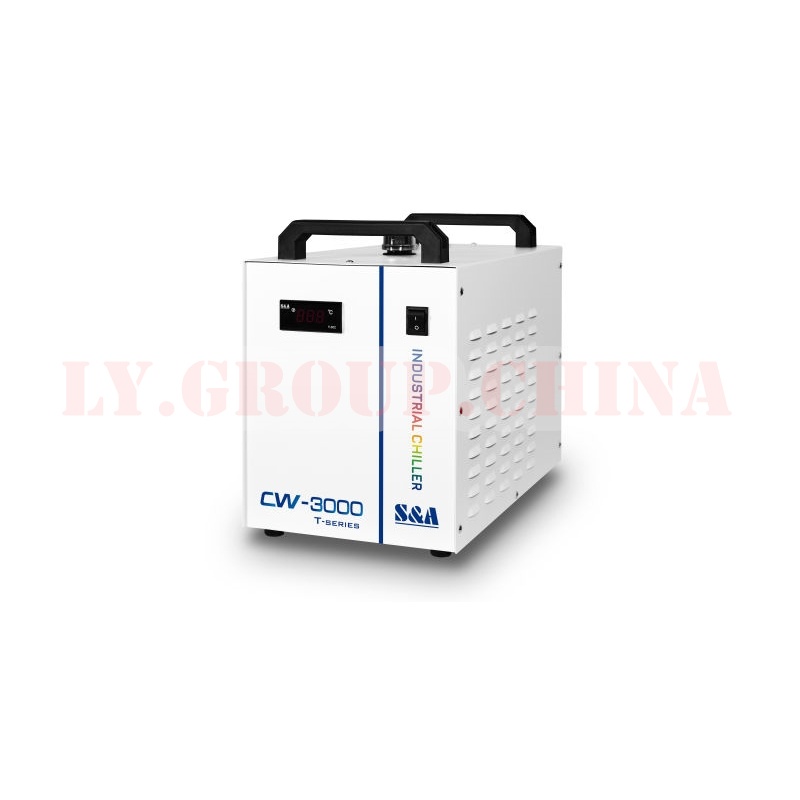

S&A CW-3000 Series Cool Chiller for CO2 Laser Engraving Machine Thermolysis Industrial Water Cooler 60W/80W CO2 Glass Tube CNC Spindle Cooling

S&A CW-3000 Series Cool Chiller for CO2 Laser Engraving Machine Thermolysis Industrial Water Cooler 60W/80W CO2 Glass Tube CNC Spindle Cooling

item ID: 62534
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$500 USD$287 (% off)
Payment

Product Detail

Product Tags

S&A CW-3000 Series Cool Chiller for CO2 Laser Engraving Machine Thermolysis Industrial Water Cooler 60W/80W CO2 Glass Tube CNC Spindle Cooling

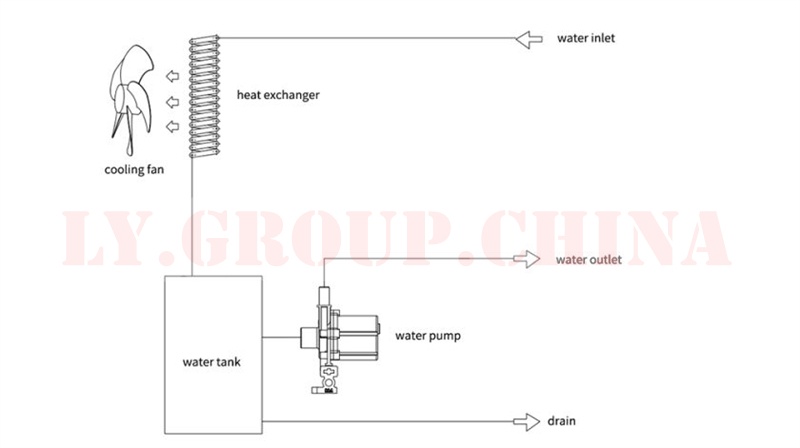

S&A CW 3000 chiller is a Basic passive cooling solution suitable for ≤80W CO2 laser engraving machine powered by DC glass tube. Featuring the heat dissipation capacity of 50W/°C and a 9L reservoir, this small recirculating chiller can radiate the heat from the laser tube very effectively. CW3000 water chiller is designed with high speed fan inside without compressor to reach heat exchange in a simple structure with high reliability.



Model: CW-3000

Machine Size: 49 X 27 X 38cm (L X W X H)

Warranty: 2 years

Standard: CE, REACH and RoHS



Product Parameters

Model

CW-3000TG

CW-3000DG

CW-3000TK

CW-3000DK

Voltage

AC 1P 220V

AC 1P 110V

AC 1P 220V

AC 1P 110V

Frequency

50/60Hz

Current

0.4~1A

0.4~0.9A

0.3~0.9A

0.3~0.8A

Machine power

0.10kW

0.11kW

Radiating capacity

50W/°C

Max. lift

10M

70M

Max. flow

10L/min

2L/min

N.W.

9Kgs

8.7Kgs

12Kgs

G.W.

11Kgs

11 Kgs

15Kgs

Protection

Flow alarm

Tank capacity

9L

Inlet and outlet

OD 10mm barbed connector

8mm fast connector

Dimension

49 X 27 X 38cm (L X W X H)

Package dimension

55 X 34 X 43cm (L X W X H)



The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.

Product Features

* Heat dissipation capacity: 50W/°C, meaning it can absorb 50W of heat by rising 1°C of water temperature;

* Passive cooling, no refrigerant

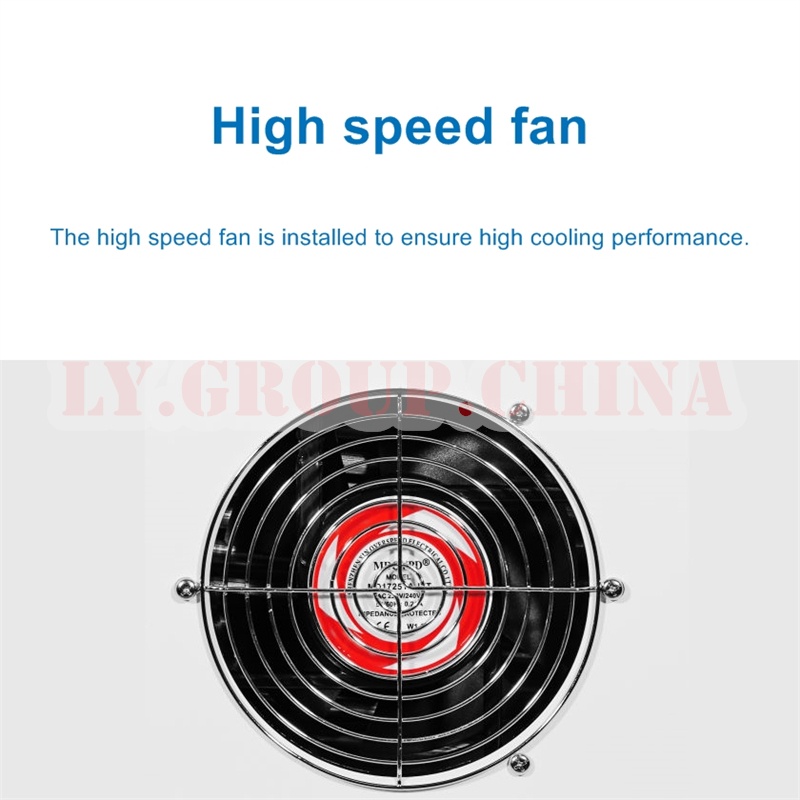

* High speed fan

* 9L reservoir

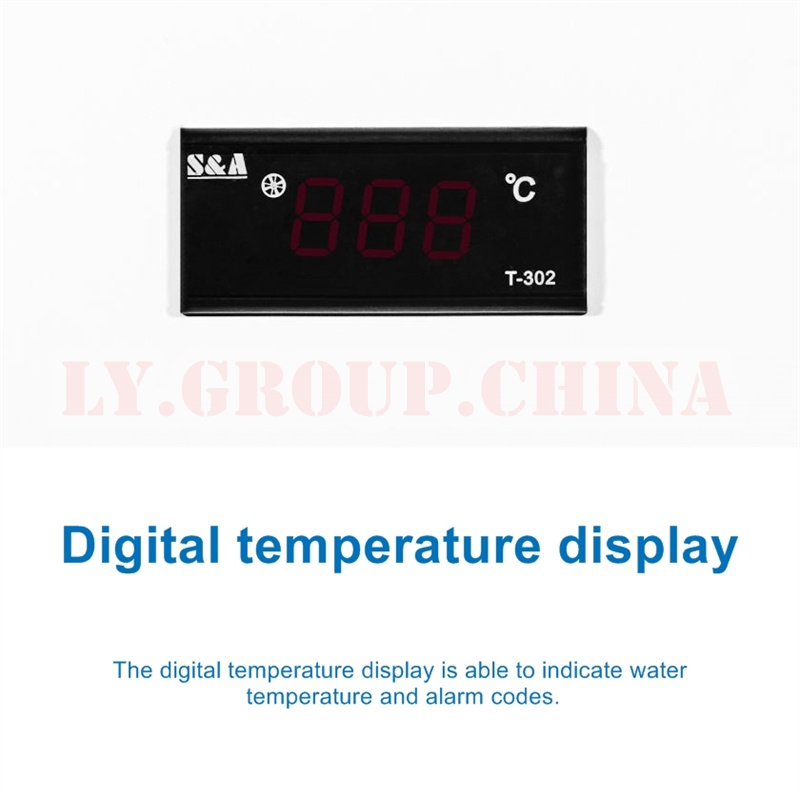

* Digital temperature display

* Built-in alarm functions

* Easy operation and space-saving

* Low energy and environmental



FAQ

Is S&A Chiller a trading company or a manufacturer?

We are professional industrial chiller manufacturer since 2002.

What is the recommended water used in the industrial water chiller?

The ideal water should be deionised water, distilled water or purified water.

How often should I change out the water?

Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.

What is the ideal room temperature for the chiller?

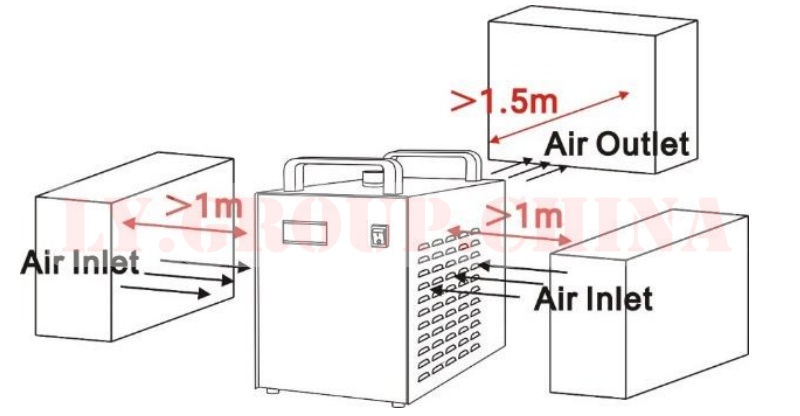

The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.

How to prevent my chiller from freezing?

For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller.
