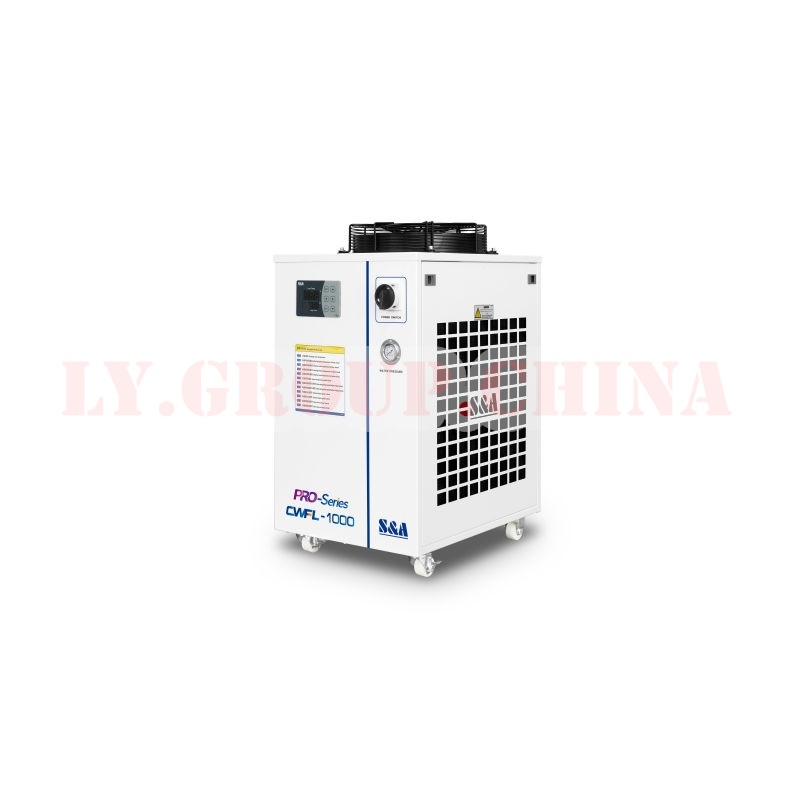

S&A Dual Circuit Process Water Cool Chiller CWFL 1000 Series Cooling Systems For 1KW Fiber Laser Engraving Cutting System

S&A Dual Circuit Process Water Cool Chiller CWFL 1000 Series Cooling Systems For 1KW Fiber Laser Engraving Cutting System

item ID: 62577
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$3000 USD$1996 (% off)
Payment

Product Detail

Product Tags

S&A Dual Circuit Process Water Cool Chiller CWFL 1000 Series Cooling Systems For 1KW Fiber Laser Engraving Cutting System

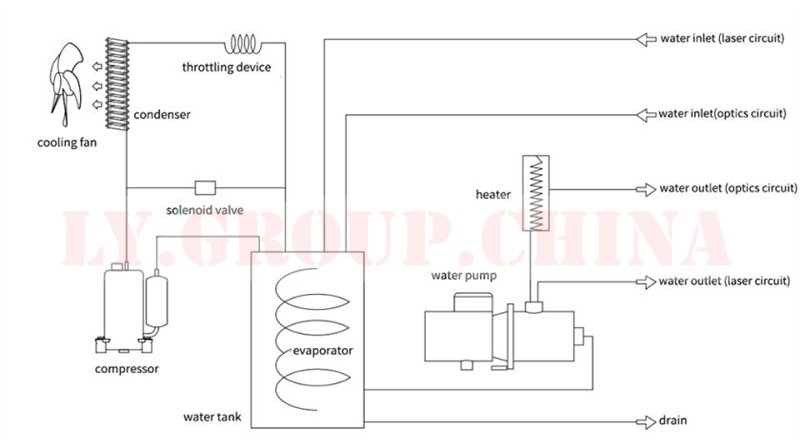

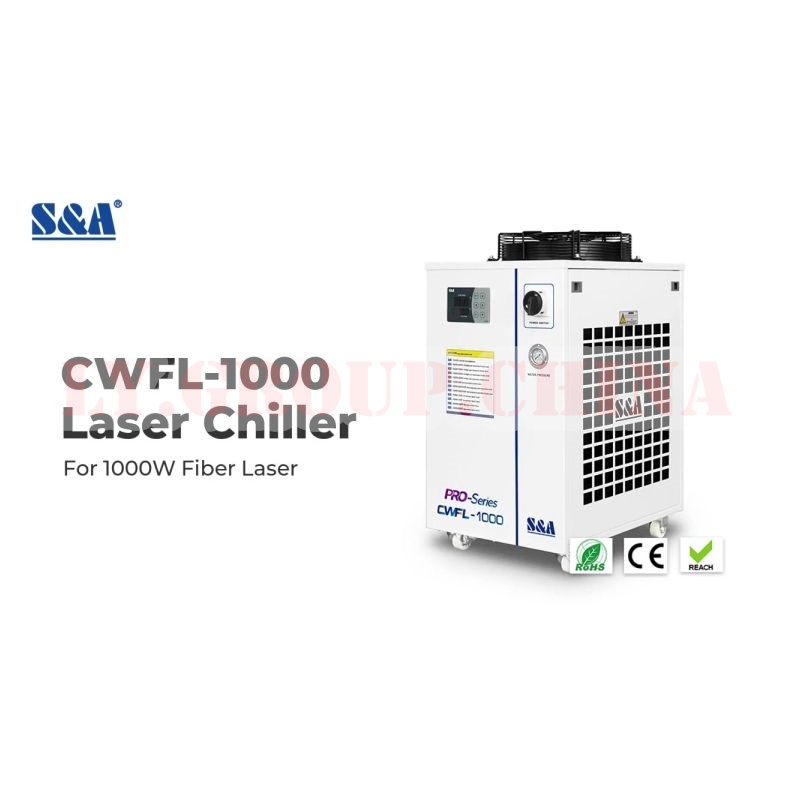

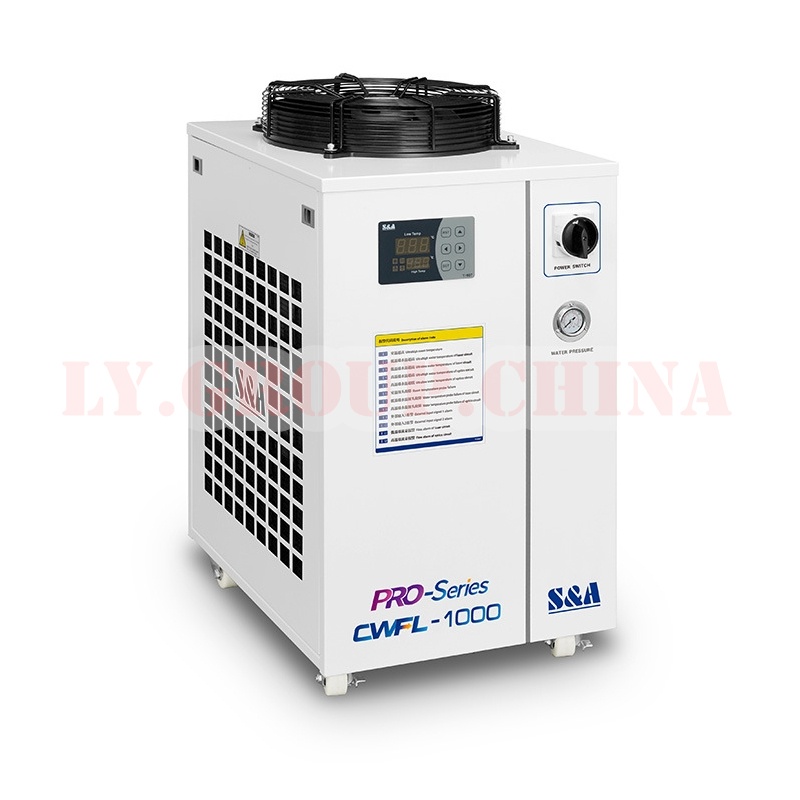

CWFL-1000 is a high efficiency dual circuit process water chiller ideally suited for cooling fiber laser system up to 1KW. Each of the cooling circuit is independently controlled and has its own mission - one serves for cooling the fiber laser and the other serves for cooling the optics. That means you don’t need to buy two separate chillers. This laser water chiller uses nothing but components that conform to CE, REACH and RoHS standards. Providing active cooling featuring ±0.5℃ stability, CWFL-1000 water chiller can increase the lifetime and improve the performance of your fiber laser system.



Product Parameters

Model

CWFL-1000AN

CWFL-1000BN

Voltage

AC 1P 220-240V

AC 1P 22-2400V

Frequency

50Hz

60Hz

Current

3.4~13.1 A

3.9~13 A

Machine power

2.21 kW

2.56 kW

Electric assisted power

600W+600W

Precision

±0.5℃

Reducer

Capillary

Pump power

0.37kW

0.75kW

Tank capacity

14L

Inlet and outlet

Rp1/2″+Rp1/2″

Lift

44M

53M

Rated flow

2L/min + >12L/min

N.W.

63 Kgs

66 Kgs

G.W.

75 Kgs

76 Kgs

Dimension

70 X 47 X 89 cm (LX W X H)

Package dimension

74 X 61 X 104 cm (LX W X H)

The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.

Product Features

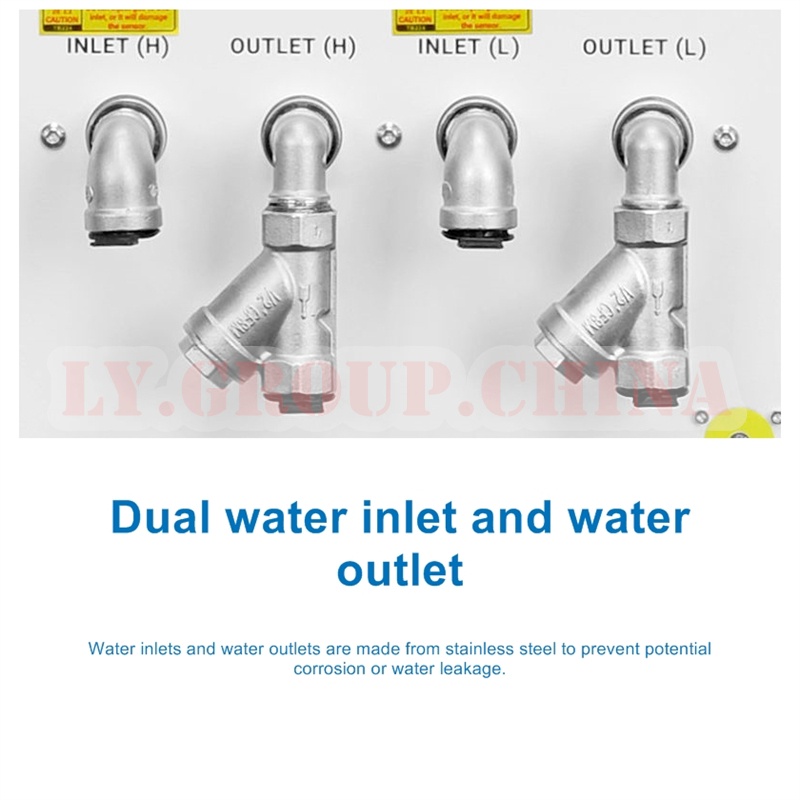

* Dual cooling circuit

* Active cooling

* Temperature stability: ±0.5°C

* Temperature control range: 5°C ~35°C

* Refrigerant: R-410a

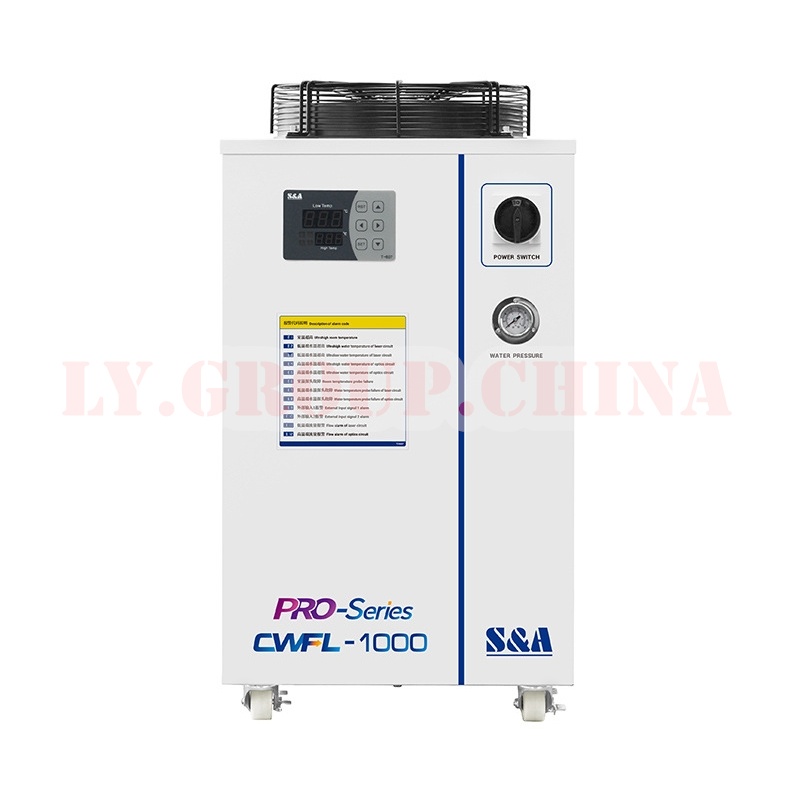

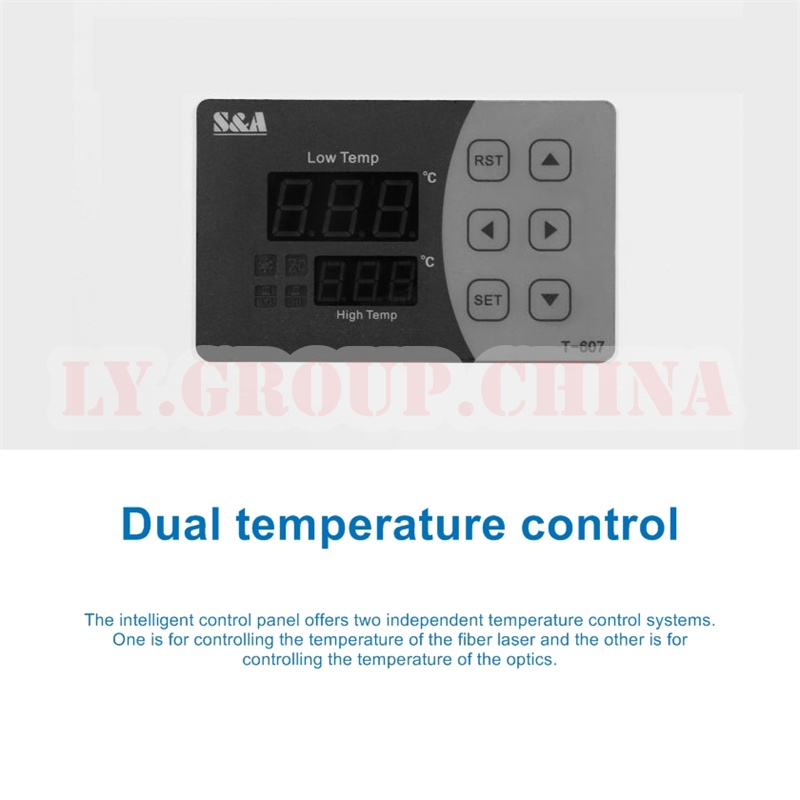

* User-friendly controller interface

* Integrated alarm functions

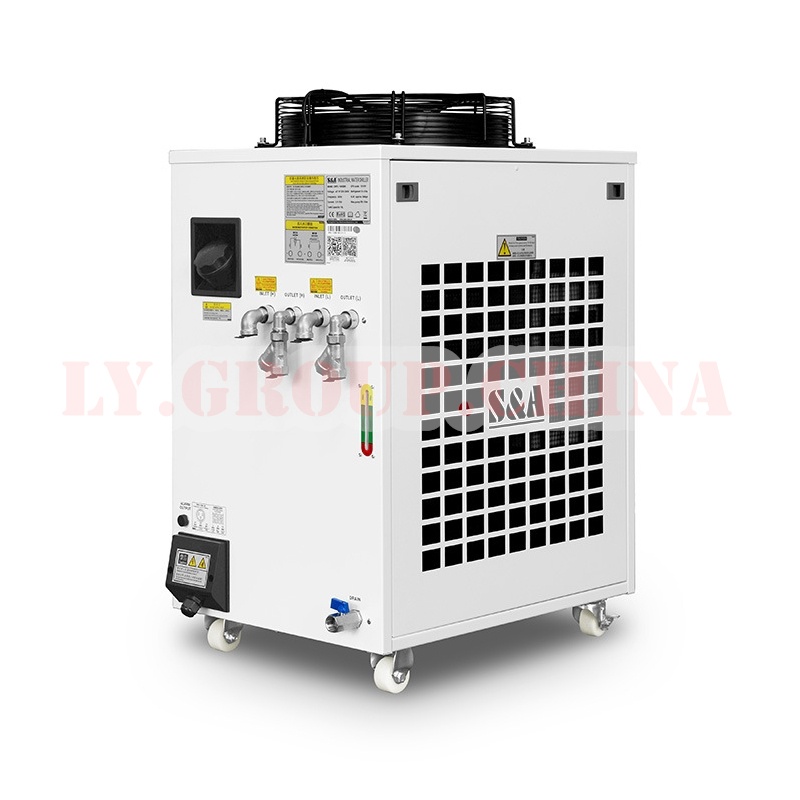

* Back mounted fill port and visual water level

* Optimized for high performance at low temperatures

* Ready for immediate use

FAQ

Is S&A Chiller a trading company or a manufacturer?

We are professional industrial chiller manufacturer since 2002.

What is the recommended water used in the industrial water chiller?

The ideal water should be deionised water, distilled water or purified water.

How often should I change out the water?

Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.

What is the ideal room temperature for the chiller?

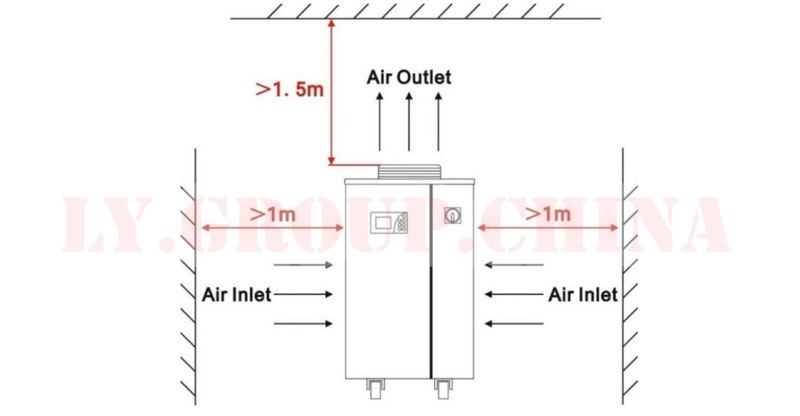

The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.

How to prevent my chiller from freezing?

For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller.
