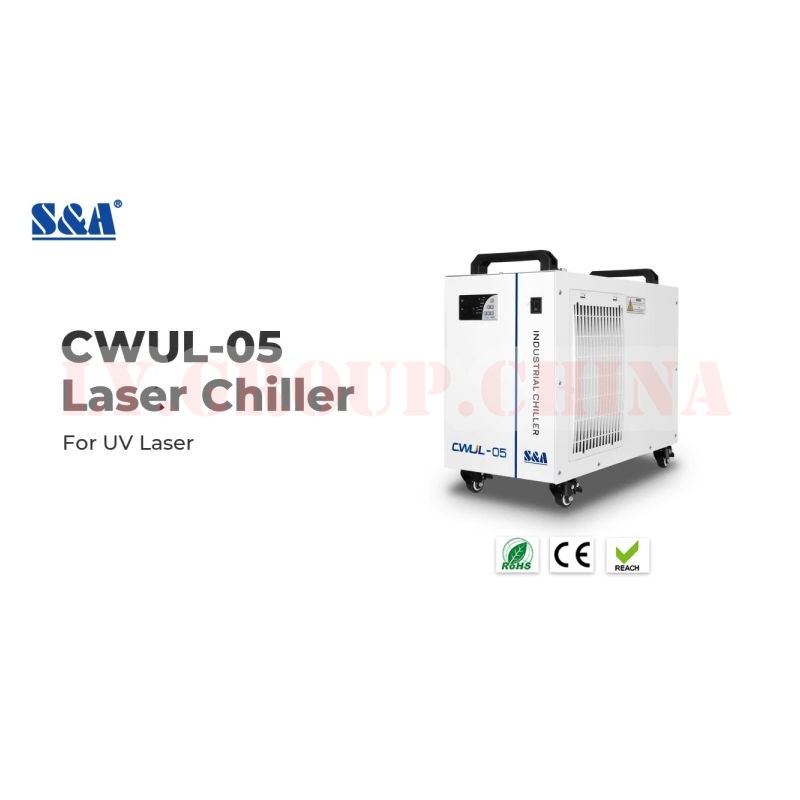

S&A High Precision Compact Recirculating Water Chiller CWUL-05 for UV Laser Marking Machine With Long Life Cycle

S&A High Precision Compact Recirculating Water Chiller CWUL-05 for UV Laser Marking Machine With Long Life Cycle

item ID: 62549
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$1300 USD$845 (% off)
Payment

Product Detail

Product Tags

S&A High Precision Compact Recirculating Water Chiller CWUL-05 for UV Laser Marking Machine With Long Life Cycle

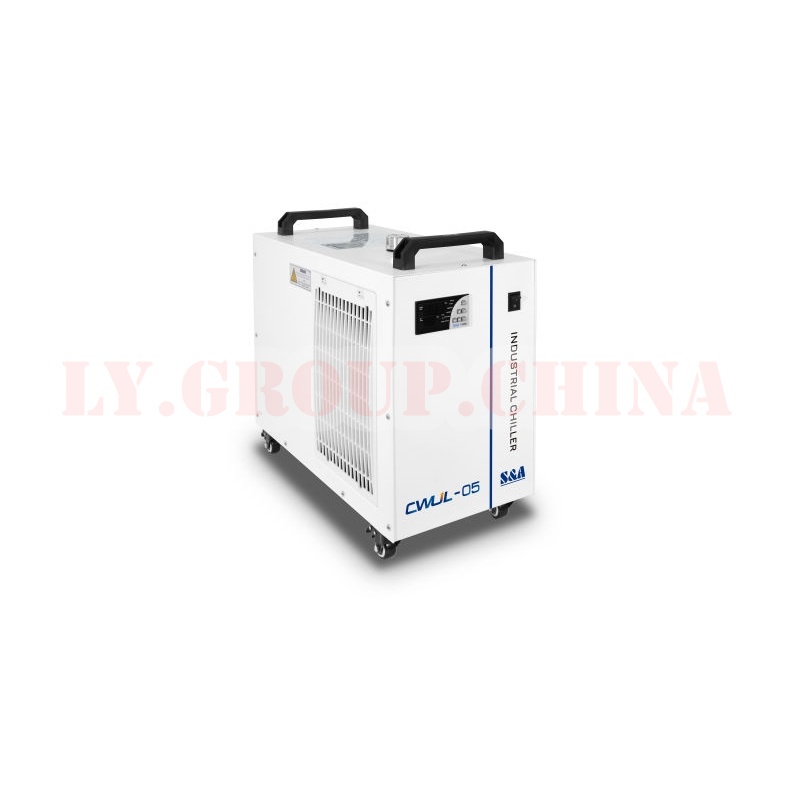

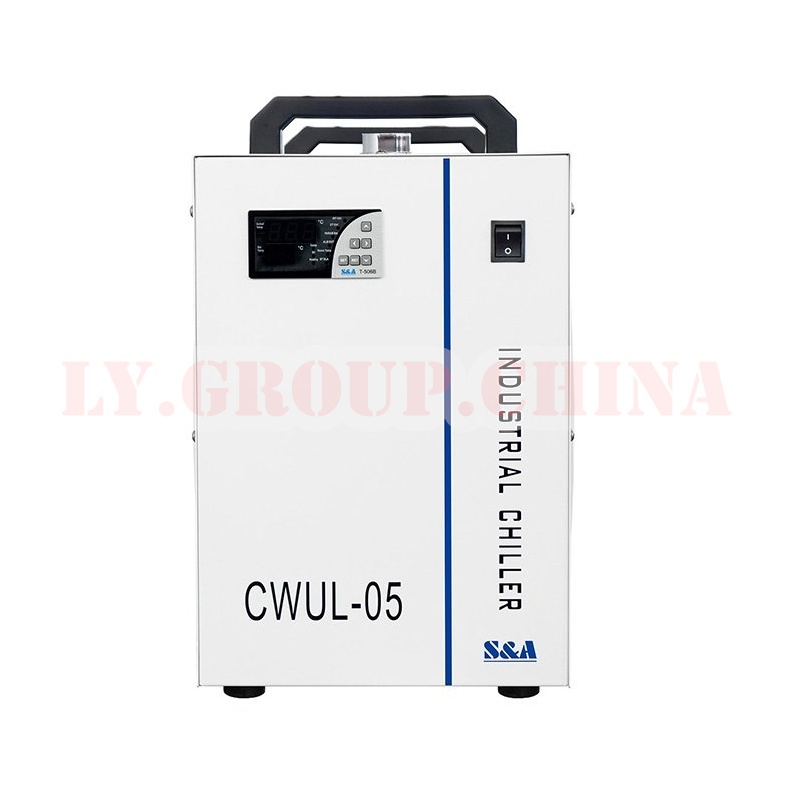

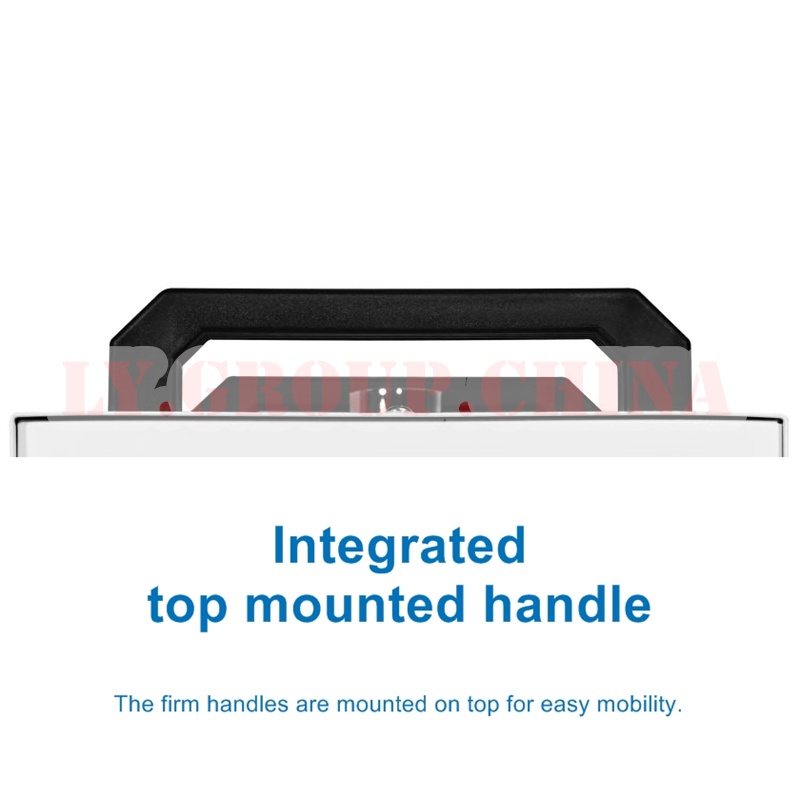

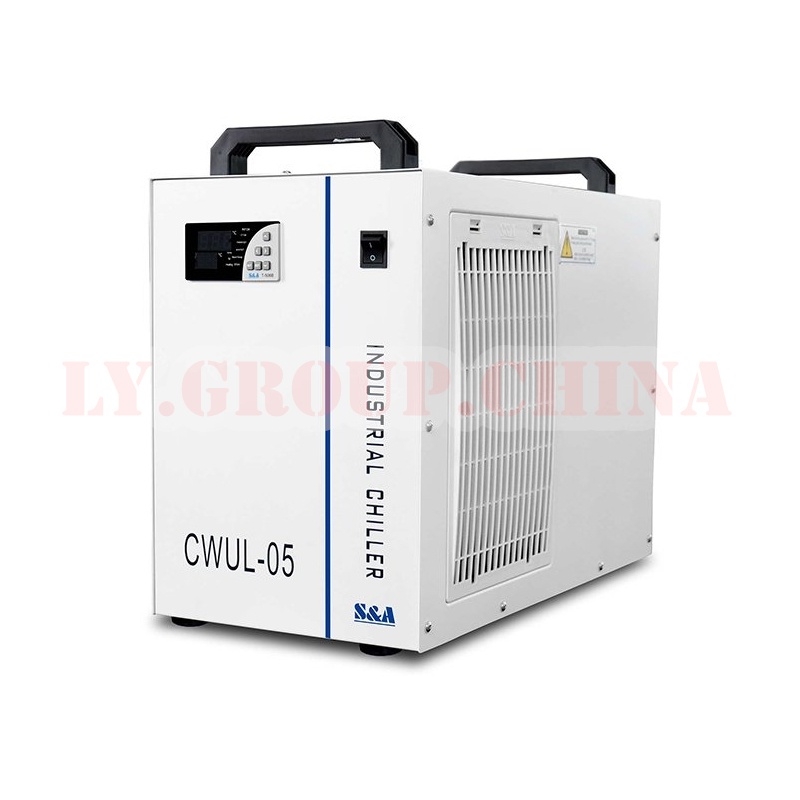

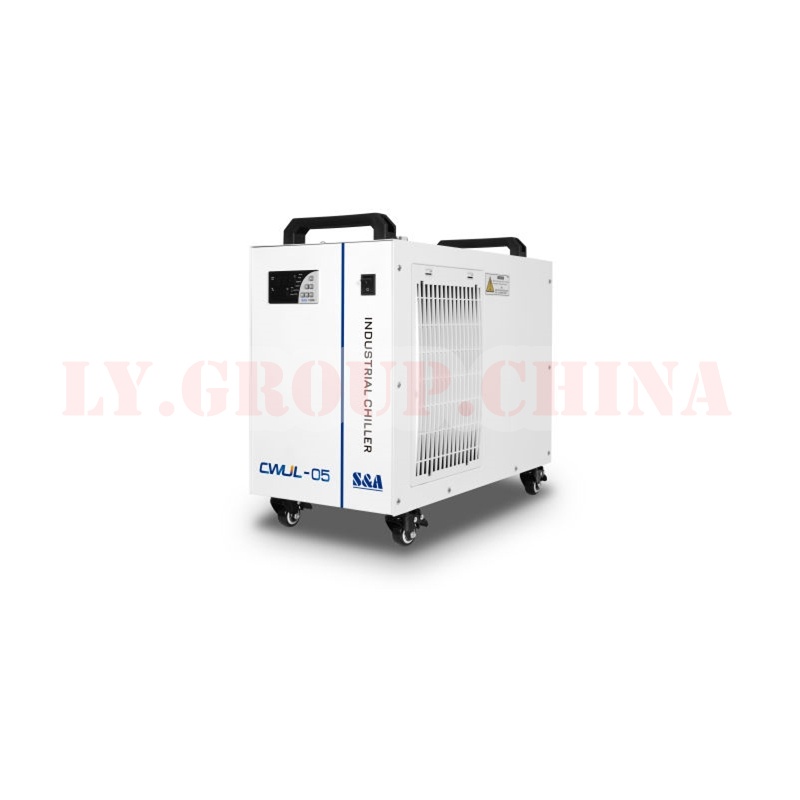

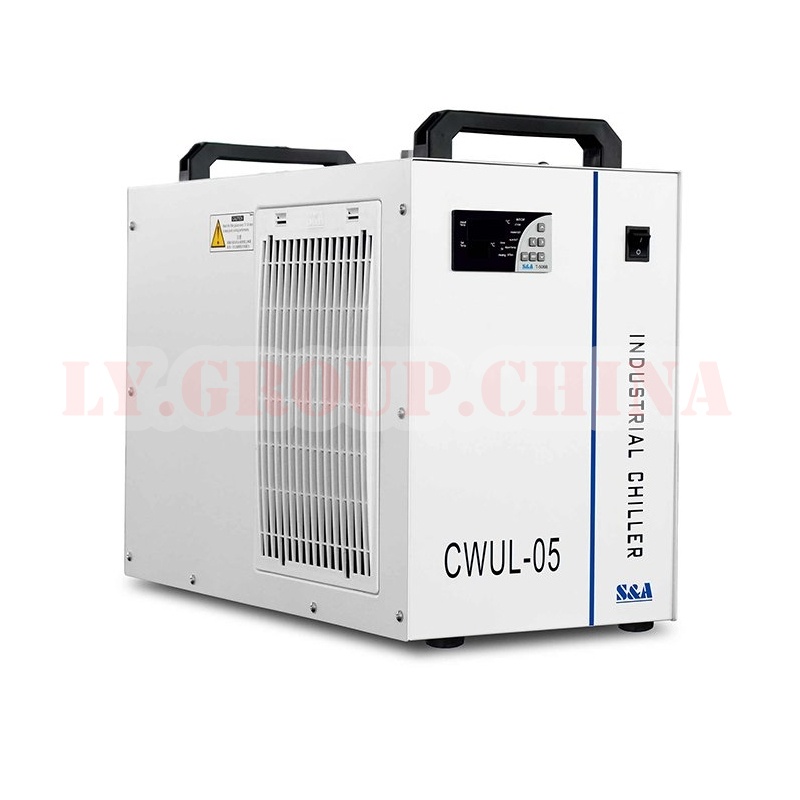

Compact recirculating chiller CWUL-05 is often installed to provide active cooling for UV laser marking machine up to 5W to ensure stable laser output. This portable air cooled chiller delivers high temperature stability of ±0.2℃ and a refrigeration capacity of up to 400W. Being in a compact and lightweight package, CWUL-05 UV laser chiller is built to last with low maintenance, ease of use, energy efficient operation and high reliability. Two firm handles are mounted on top to ensure easy mobility while the chiller system is monitored with integrated alarms for full protection.



Model: CWUL-05

Machine Size: 58 X 29 X 48cm  (L X W X H)

Warranty: 2 years

Standard: CE, REACH and RoHS





Product Parameters

Model

CWUL-05



Voltage

AC 1P 220-240V



Frequency

50Hz



Current

0.5~3.4A



Machine power

0.8kW



Compressor power

0.21kW



0.28HP





Nominal cooling capacity

1382Btu/h



400W



348Kcal/h



Refrigerant

R-134a



Refrigerant charge

170g



Precision

±0.2℃



Reducer

Capillary



Pump power

0.05kW



Tank capacity

6L



Inlet and outlet

OD 10mm barbed connector



Max. pump lift

12M



Max. pump flow

13L/min



N.W

22Kgs



G.W

25Kgs



Dimension

58 X 29 X 48cm (L X W X H)




Package dimension

65 X 39 X 62cm (L X W X H)

The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.

Product Features

* Cooling Capacity: 400W

* Active cooling

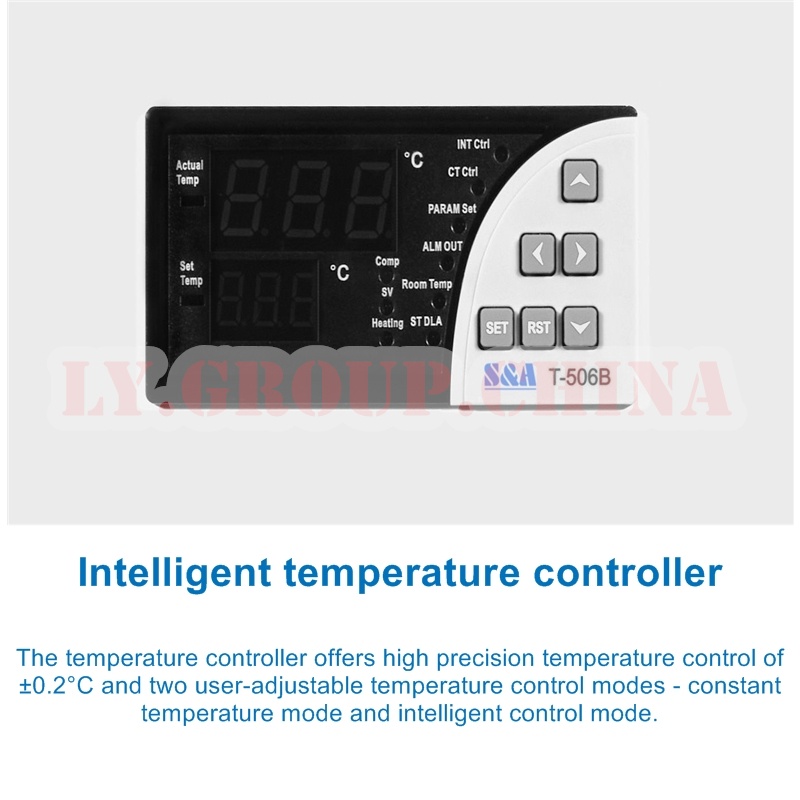

* Temperature stability: ±0.2°C

* Temperature control range: 5°C ~35°C

* Refrigerant: R-134a

* Compact and lightweight package

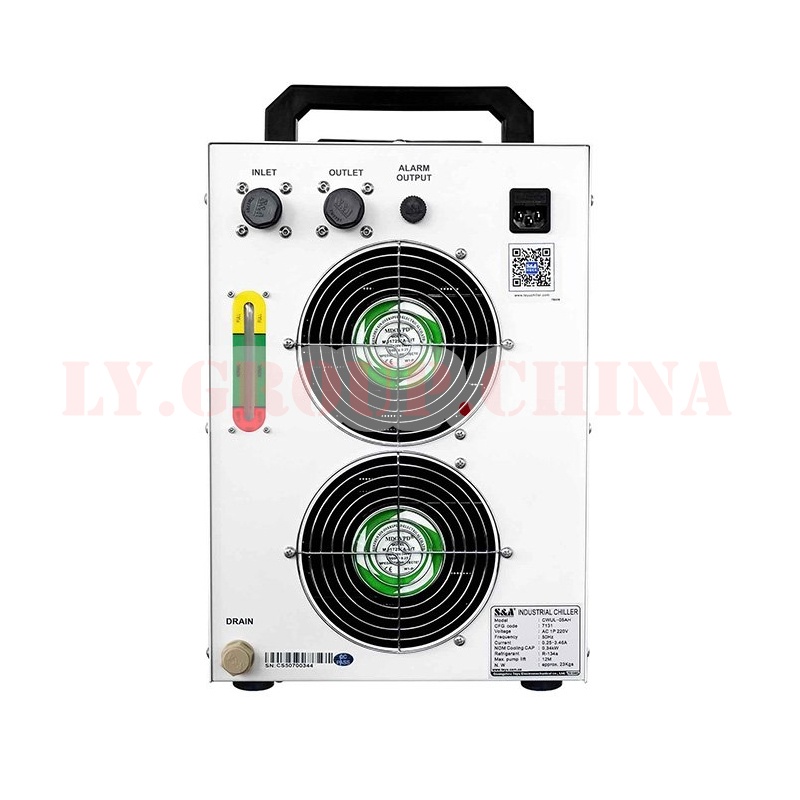

* Easy water fill port

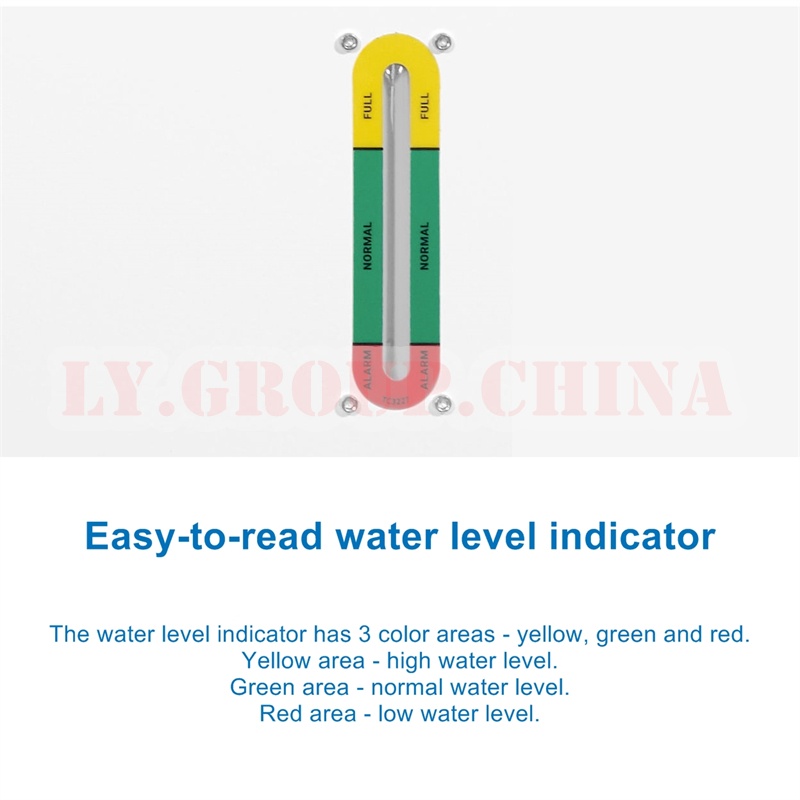

* Visual water level

* Integrated alarm functions

* Easy maintenance and mobility

FAQ

Is S&A Chiller a trading company or a manufacturer?

We are professional industrial chiller manufacturer since 2002.

What is the recommended water used in the industrial water chiller?

The ideal water should be deionised water, distilled water or purified water.

How often should I change out the water?

Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.

What is the ideal room temperature for the chiller?

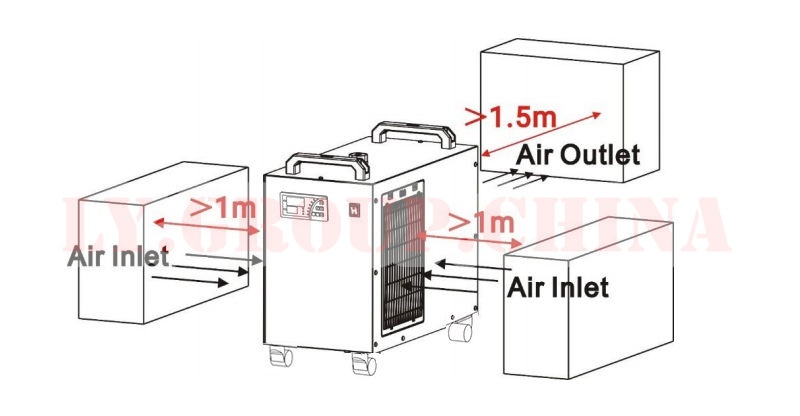

The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.

How to prevent my chiller from freezing?

For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller.
