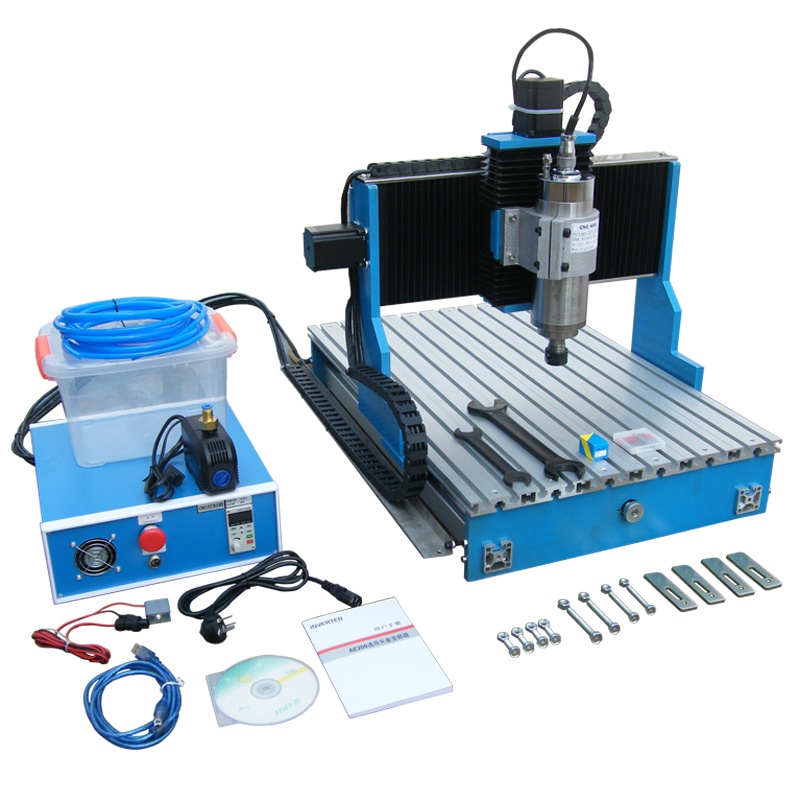

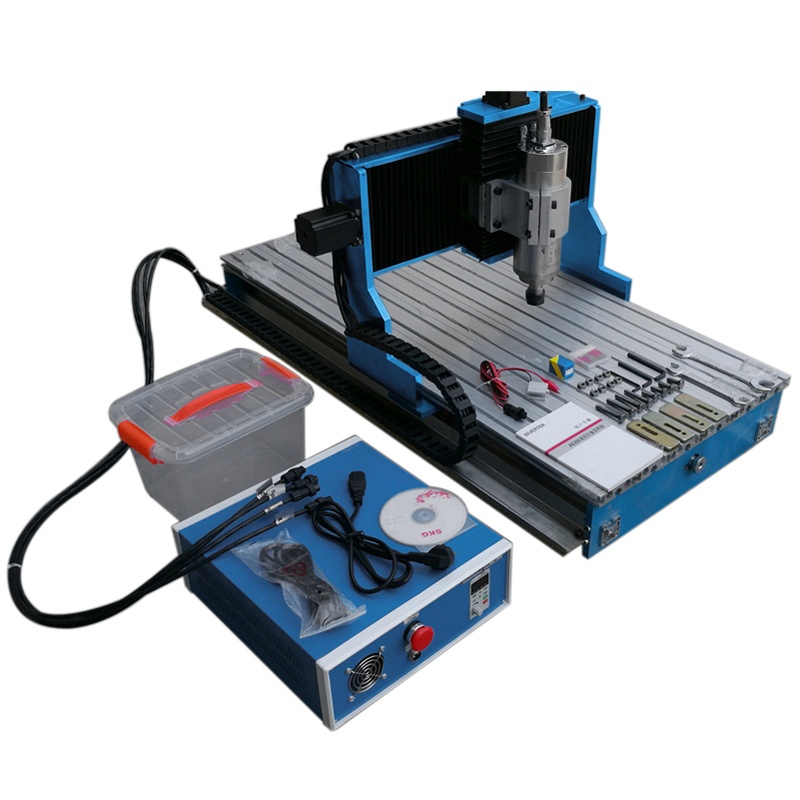

4 Axis CNC 6040 2.2KW Linear Guide Rail Metal Carving 1500W Mach3 CNC Router Engraving Milling Machine 3040

4 Axis CNC 6040 2.2KW Linear Guide Rail Metal Carving 1500W Mach3 CNC Router Engraving Milling Machine 3040

item ID: 60714
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(2)
USD$3000 USD$2161 (% off)
Payment

Product Detail

Product Tags

3040L 2200W (2)

Introduction

The CNC machine Easily produce name badges, equipment tags, small signs, plaques and awards, gift items, pet tags, ID tags, electrical tags, military name tags, desk plates, or mark industrial parts.

Whether you are a startup business, or a model enthusiasts, or looking to add a machine to supplement the capacity of an existing operation, the CNC machine is a great fit.

We look forward, CNC machine will become your good helper

In addition, it can be upgraded to be installed a rotational axis.

Technical Parameters:

MODEL 3040L/6040L/6090L
Attribute 3axis-LPT 3axis-USB 4axis-LPT 4axis-USB

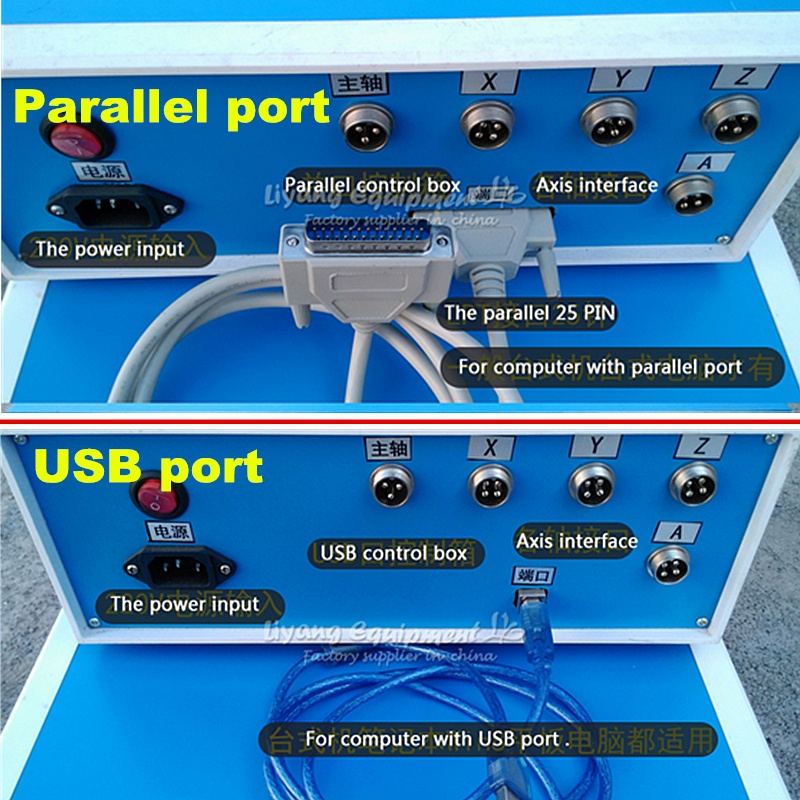

Interface LPT port USB port LPT port USB port
Toolauto-checking Yes Yes Yes Yes
Weigh 100~150KG 100~150KG 100~160KG 100~160KG
Rack material:

45# steel(14mm and 12mm)

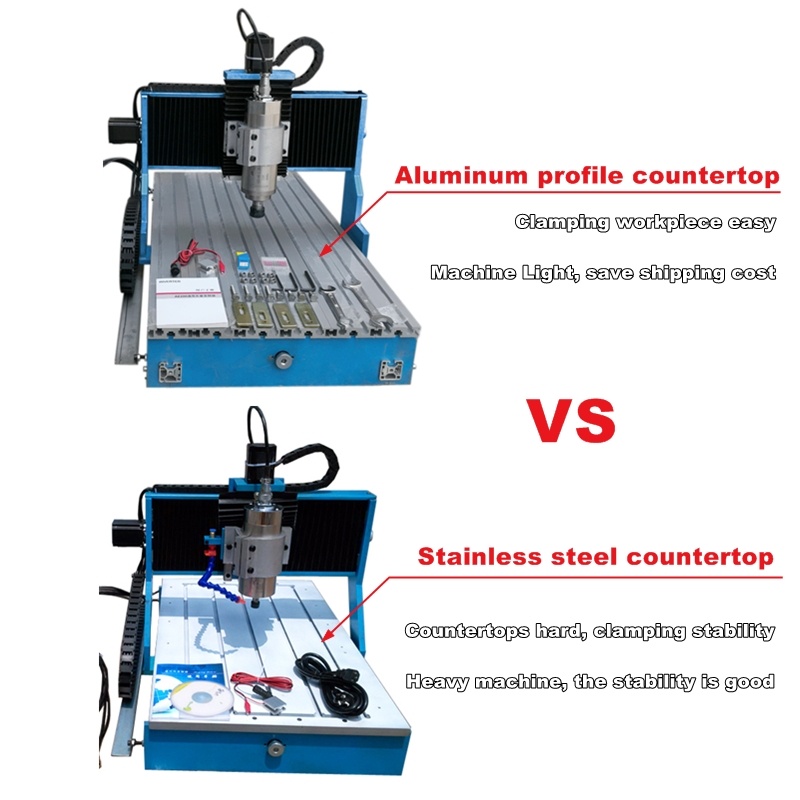

Table material:

20mm aluminum alloy T table(Can be upgraded to stainless steel).

Machine Dimensions:

3040

6040

6090

550*660*600mm

620*830*600mm

900* 1200 * 600mm

Engraving area:

3040

6040

6090

260*380*120mm

360*570*120mm

560*850*120mm

Z-Axis Stroke:

120mm, Engraving depth depends on the length of the tool edge

Acceptable material thickness:

3040

6040

6090

≤135mm

≤ 140mm

≤ 140mm

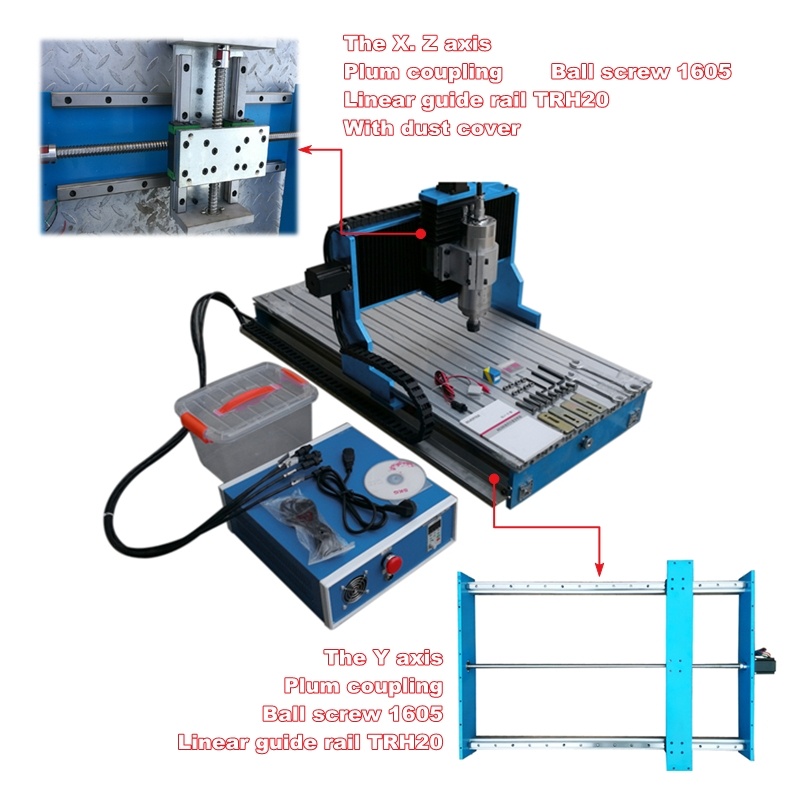

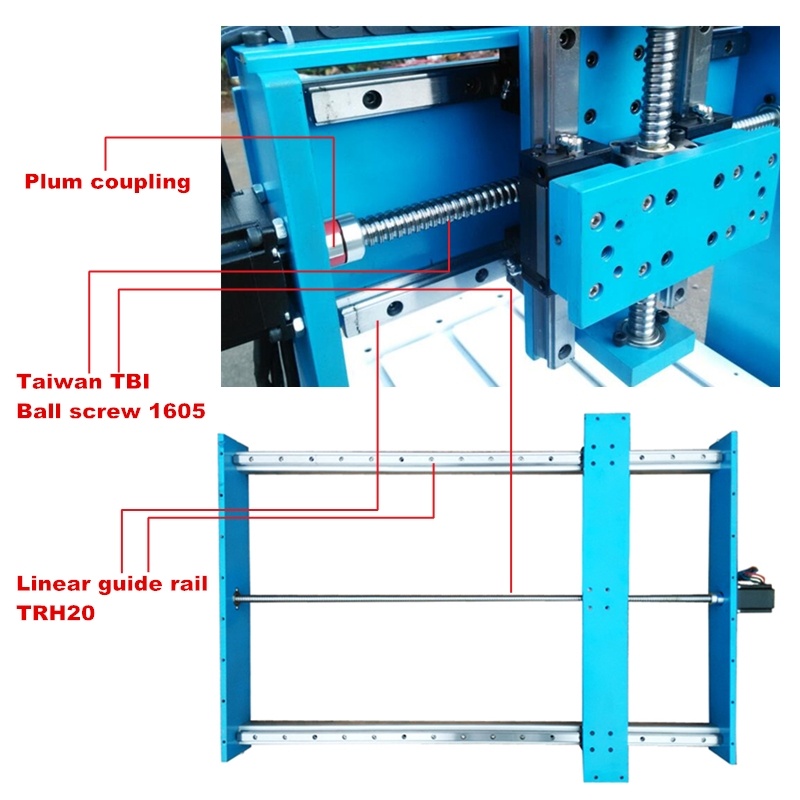

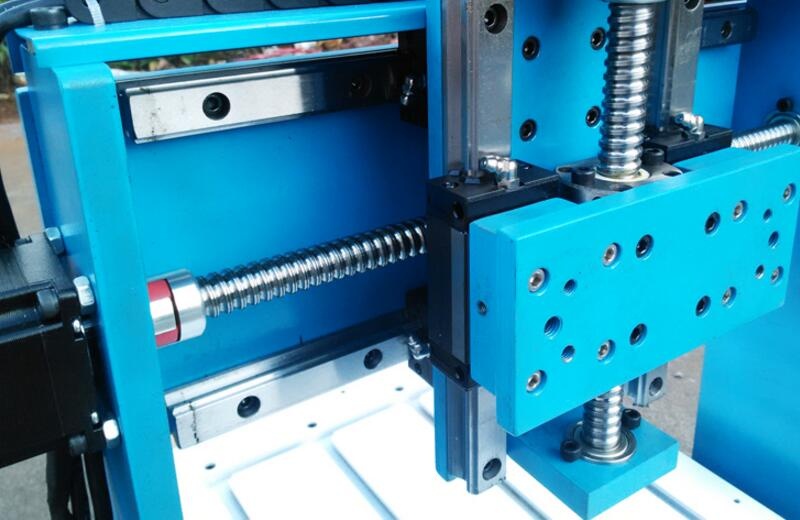

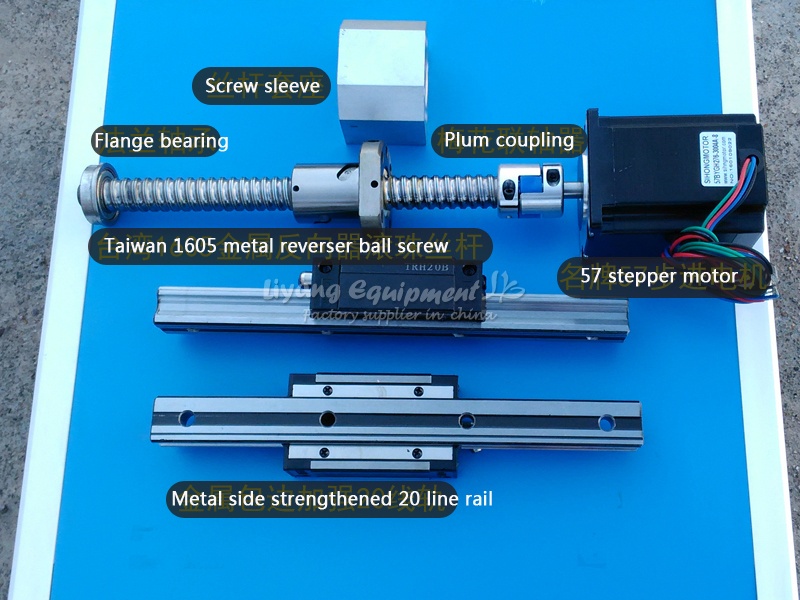

Rail type:

Square line rail track, three-axis is 20 mm square wire track, high precision, high strength, top configuration.

Type of screw:

Ball screw 1605

Spindle motor: 1.5/2.2KW VFD water cooling spindle ,0-24000r/min

Collet type:

ER11(1.5KW) & ER20(2.2KW) Collet

Stepper motor and drive:

two-phase 57/3A/M542

Maximum operating speed:

4000mm/min (Engraving speed: 300-3000mm/min)

Repeat positioning Accuracy:

0.03mm

Software Compatability:

Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM,coppercam)

Command code:

G code/.nc/.ncc/.tab/.txt

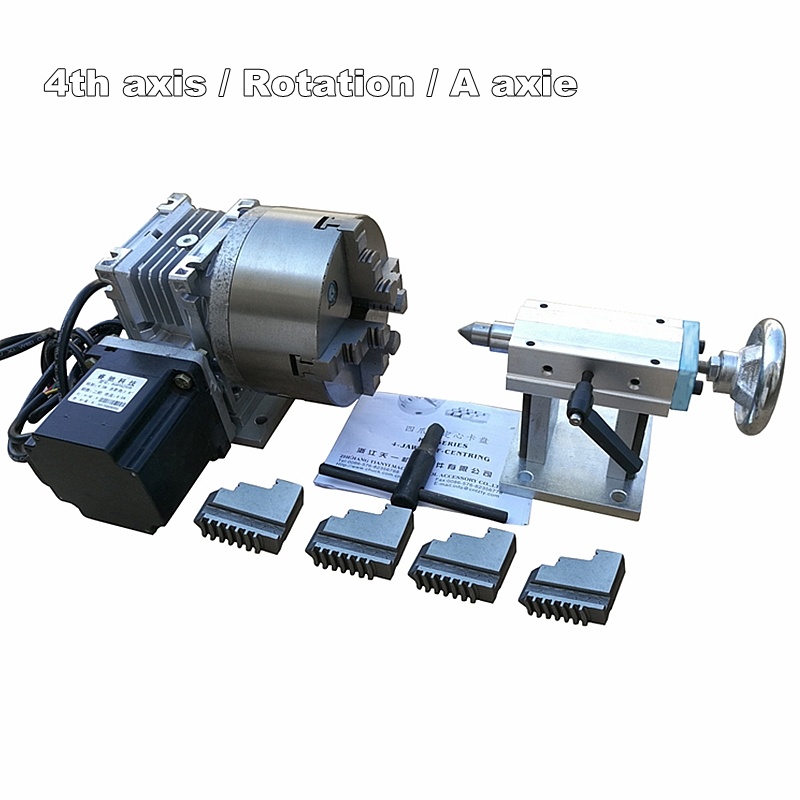

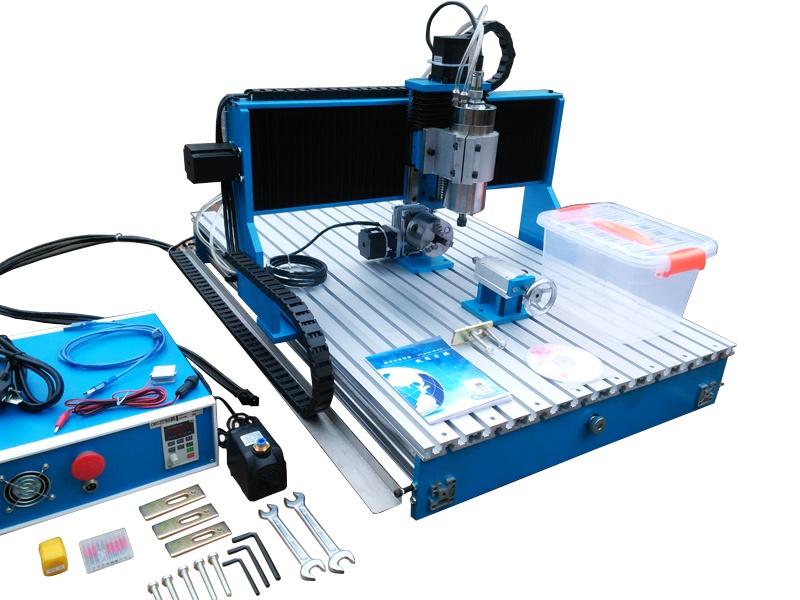

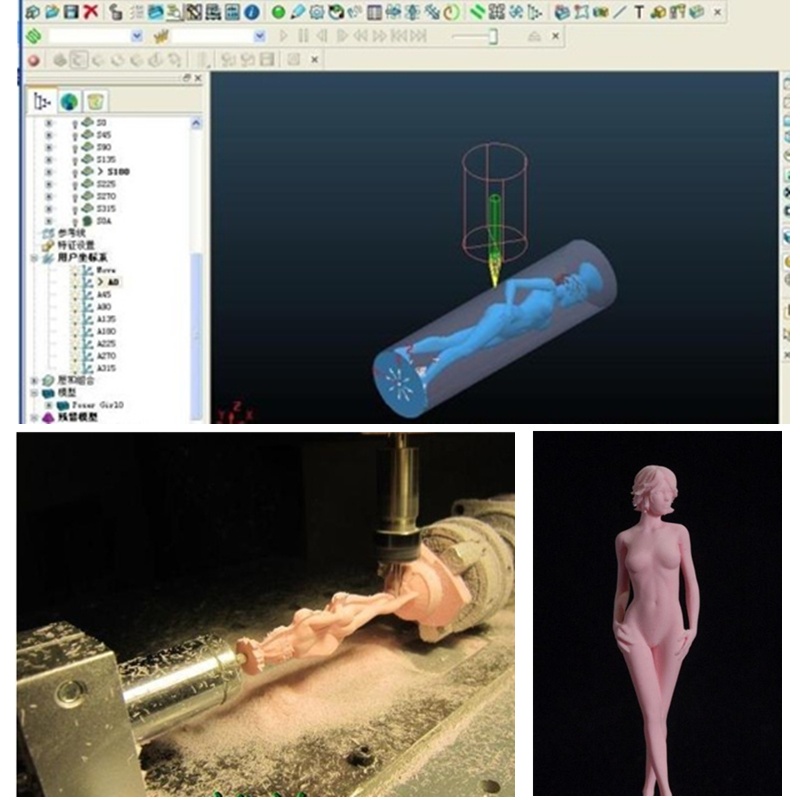

Rotation Axis (4th Axis)

Description:

Chuck Size: 80mm self-centering chuck

Center height: H = 70mm

Clamping diameter: 63mm or less

Deceleration mode: Gear box

Deceleration ratio: 20:1

Stepper motor: 57 type / 3A two phase 4 line

Positioning accuracy: 0.075 °
