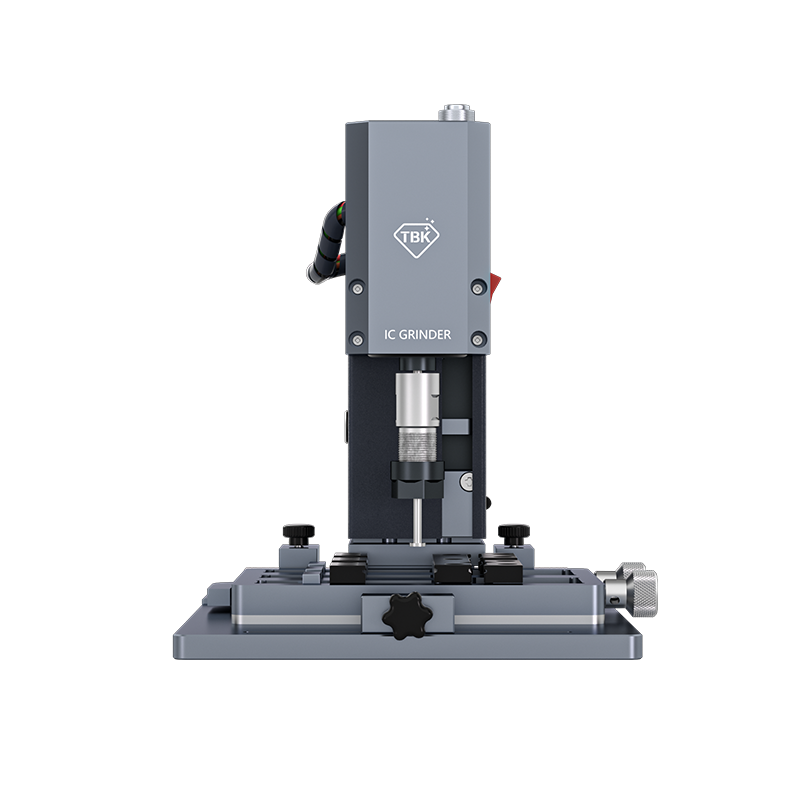

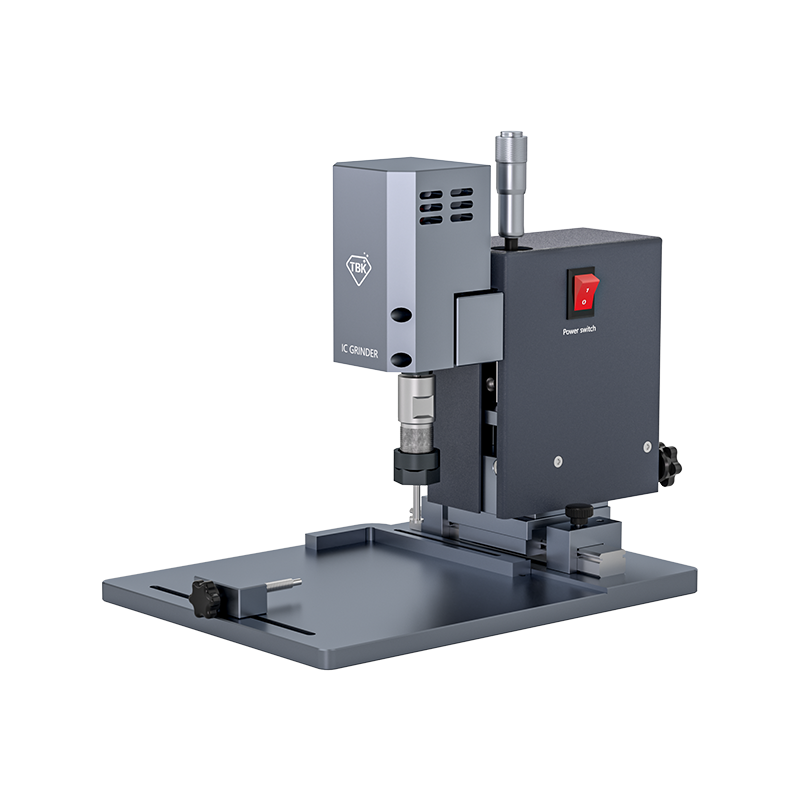

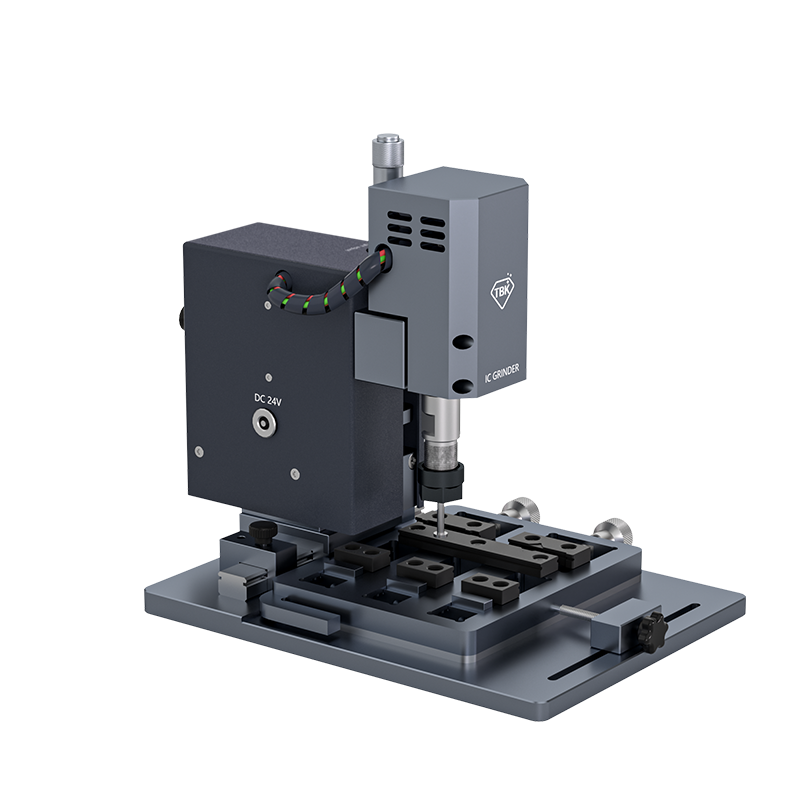

LY-TBK 918A Intelligent Cutting Grinding Machine For Mobile Phone Screen Cutting And Glass Polishing IC Chipset Polisher

LY-TBK 918A Intelligent Cutting Grinding Machine For Mobile Phone Screen Cutting And Glass Polishing IC Chipset Polisher

item ID: 73060
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$400 USD$258 (% off)
Payment

Product Detail

Product Tags

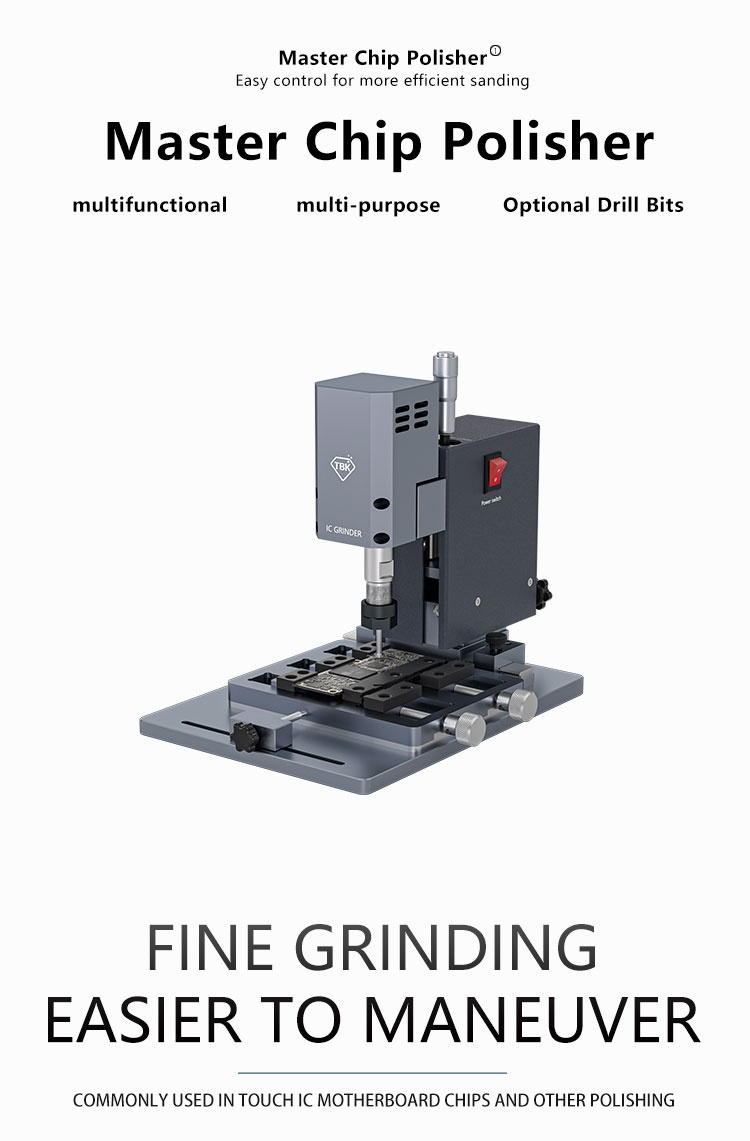

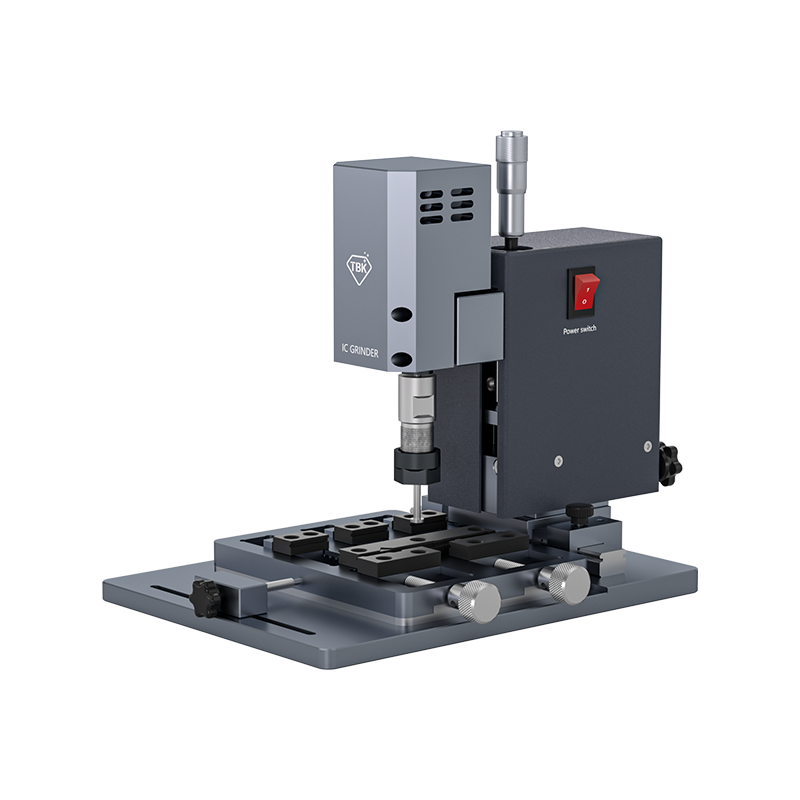

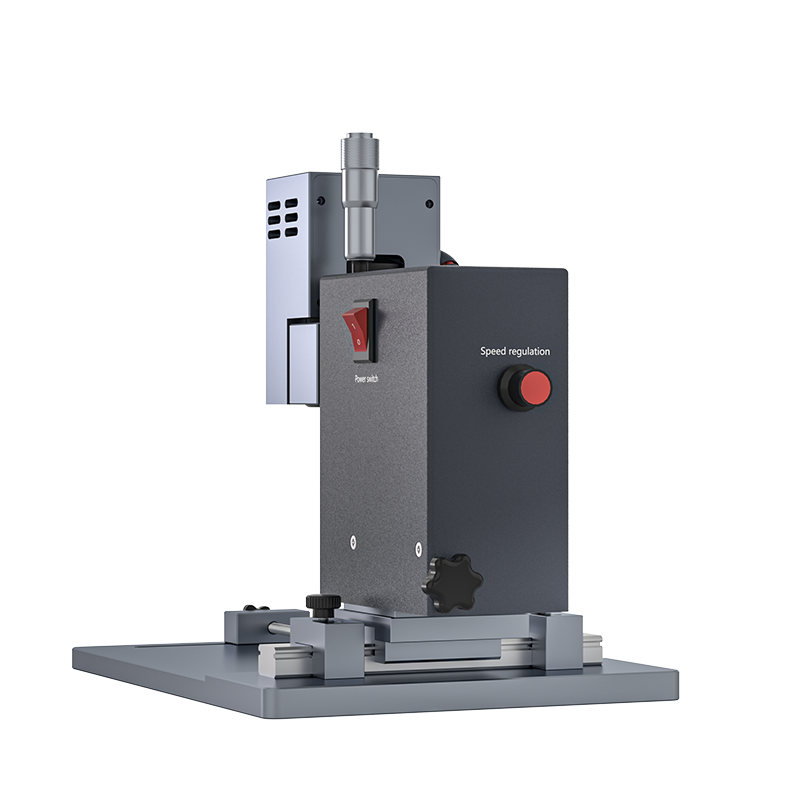

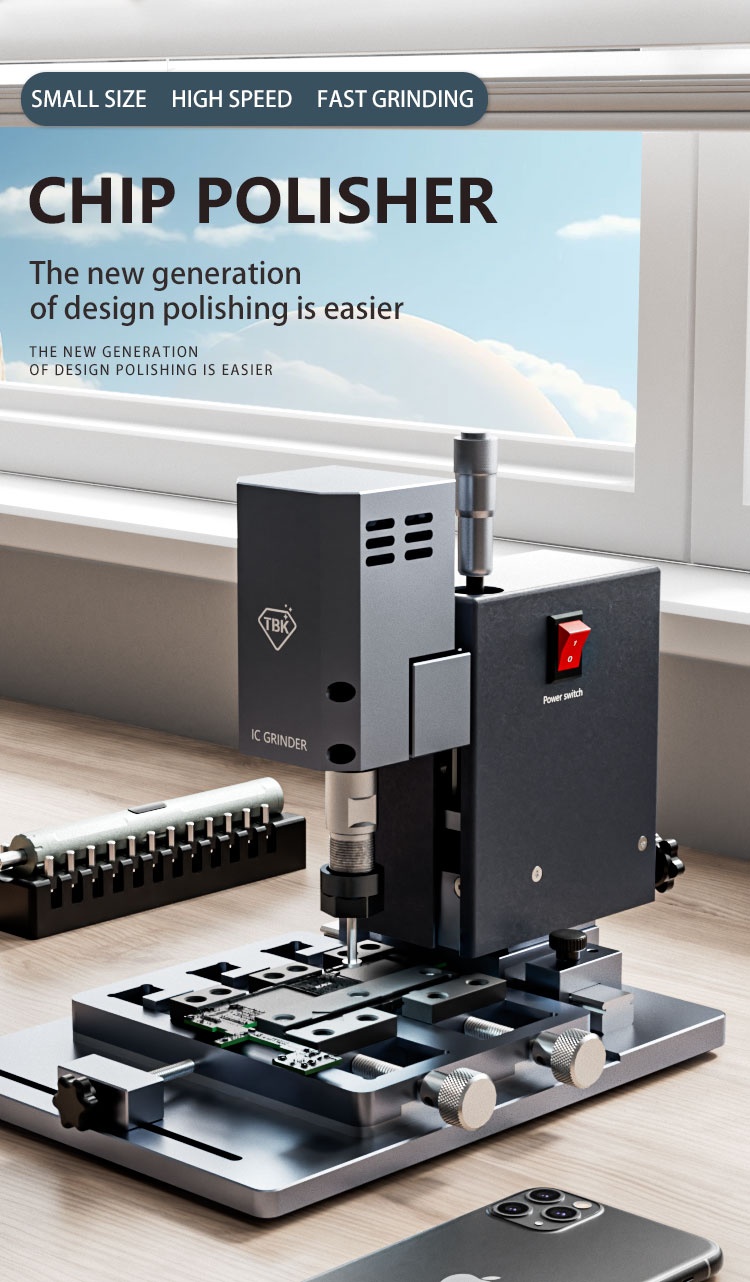

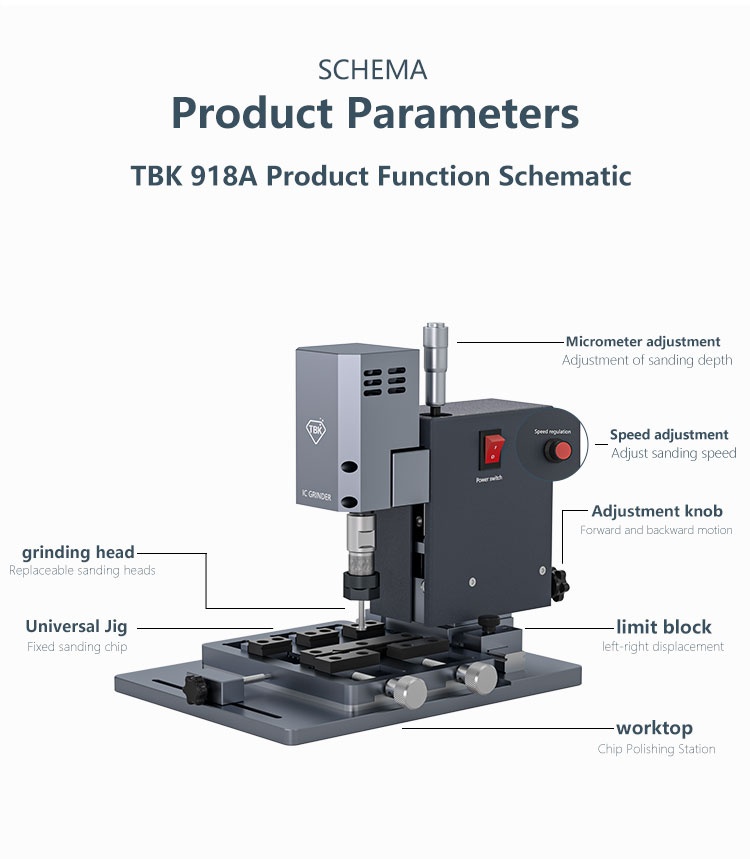

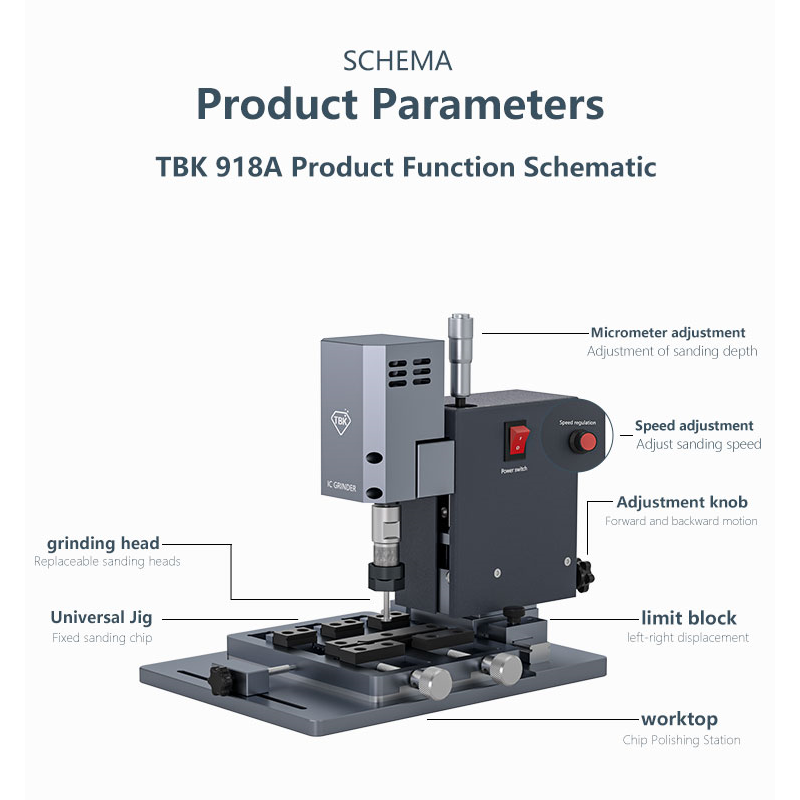

LY-TBK 918A Intelligent Cutting Grinding Machine For Mobile Phone Screen Cutting And Glass Polishing IC Chipset Polisher

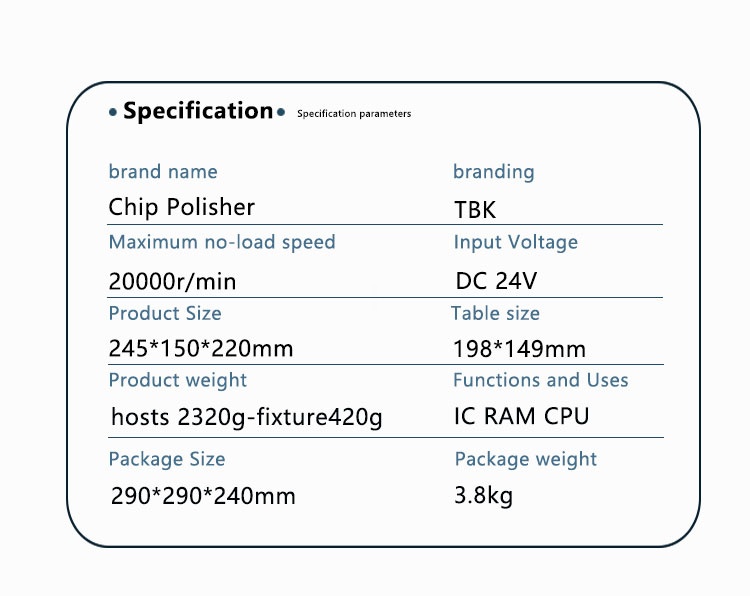

Specification.

Name:Chip Polisher

Brand:LY-TBK

Maximum no-load speed: 20000r/min

Input Voltage:DC 24V

Product Size: 245*1 50*220mm

Table size: 198*149mm

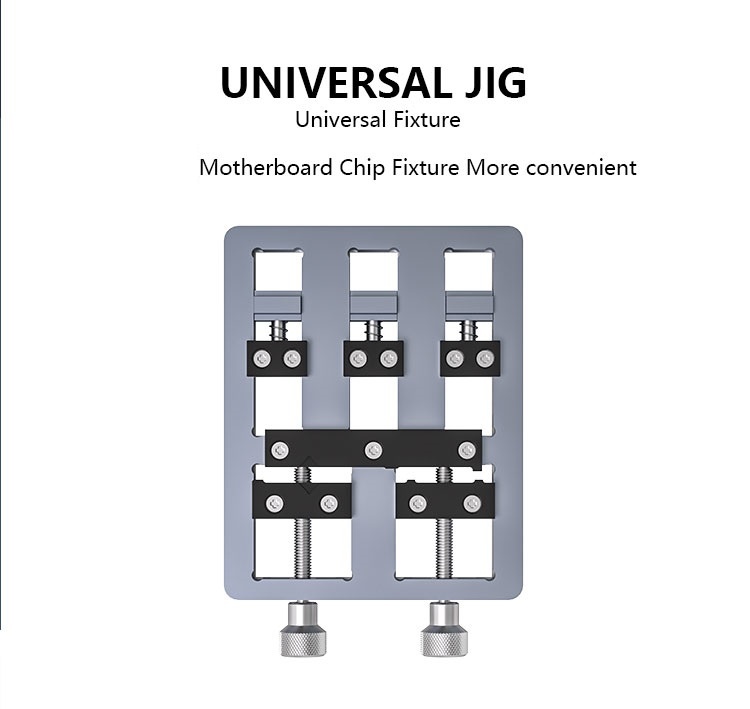

Product weight: hosts 2320g-fixture420g

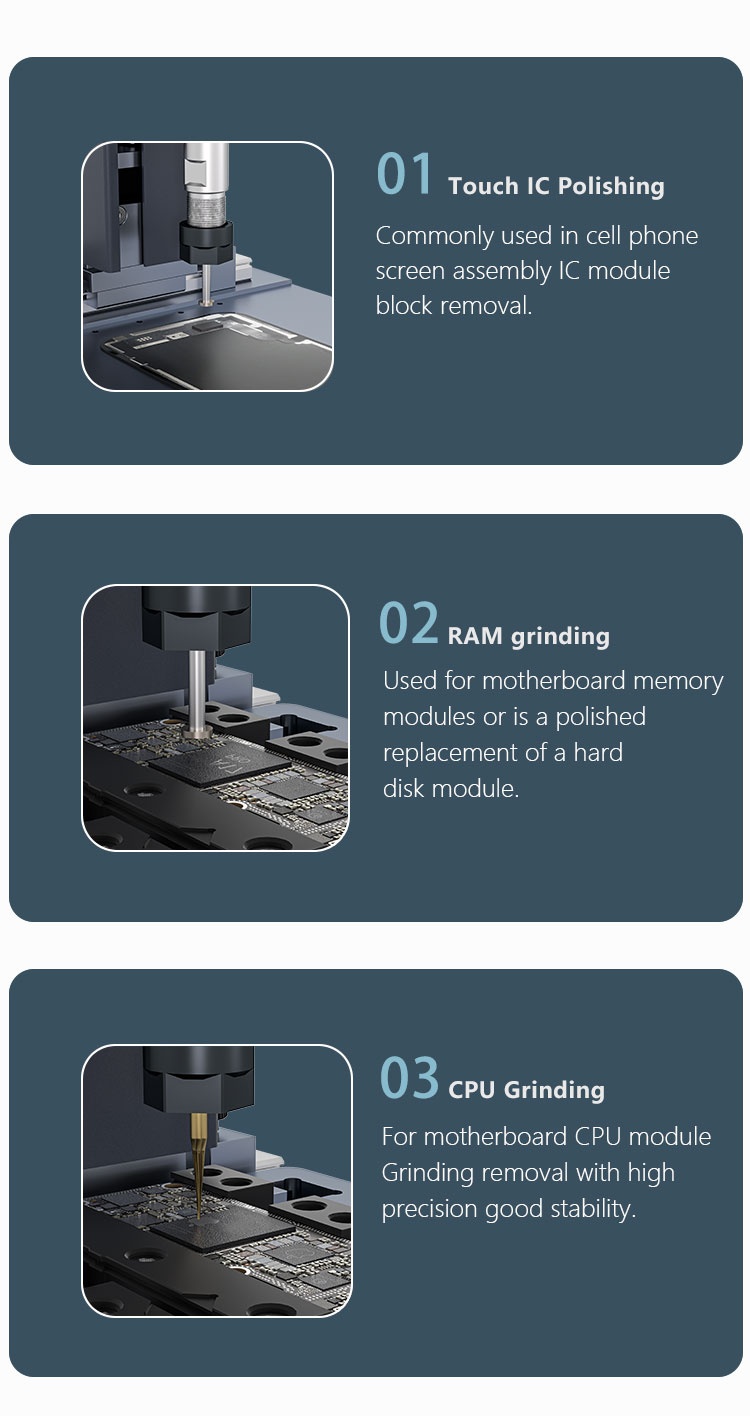

Functions and Uses: IC RAM CPU

Package Size: 290*290* 240mm

Package weight: 3.8kg



Operations:

Cutting

1. Connection (power line, motor line, water interface)

2. Install the cutting motor

3. Put the mobile phone into the working platform (adjust the tilt and fix the mobile phone)

4. Adjust the position of the mobile motor (adjust the motor downward and the x-axis to make the mobile motor reach the corresponding cutting position)

5. Adjust the bilateral limit block (limit the working range of the mobile motor according to the length of the mobile phone)

6. Put the mineral water bottle on the water bottle rack (connect three water volume corresponding interfaces)

7. Turn the water volume switch and motor switch

8. Move the motor to work (if you can’t see clearly, you can turn on the light switch)



Polish

1. Connection (power line, motor line)

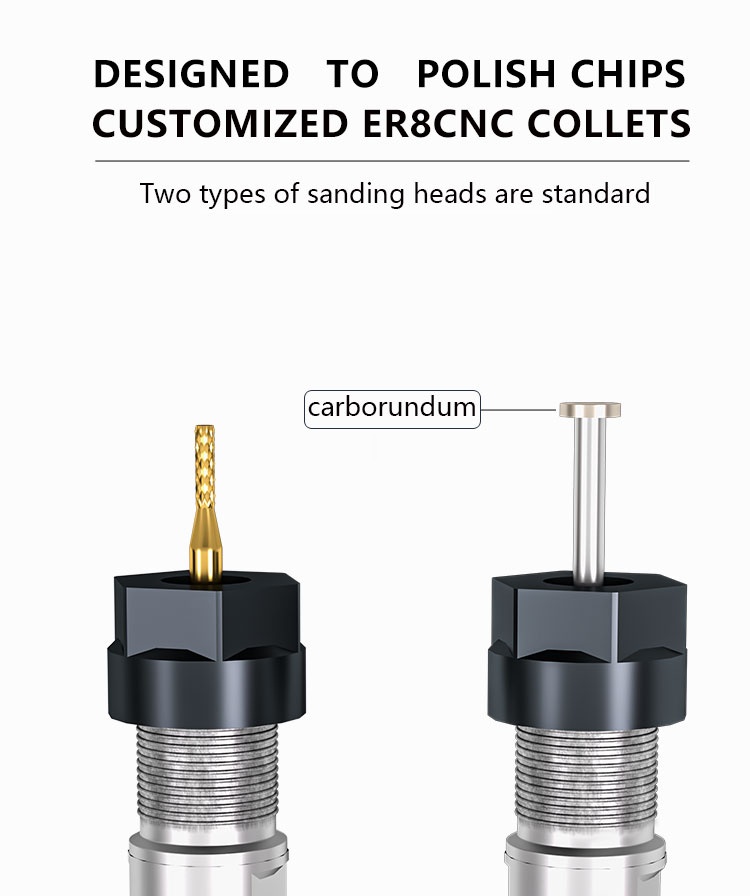

2. Install the grinding motor

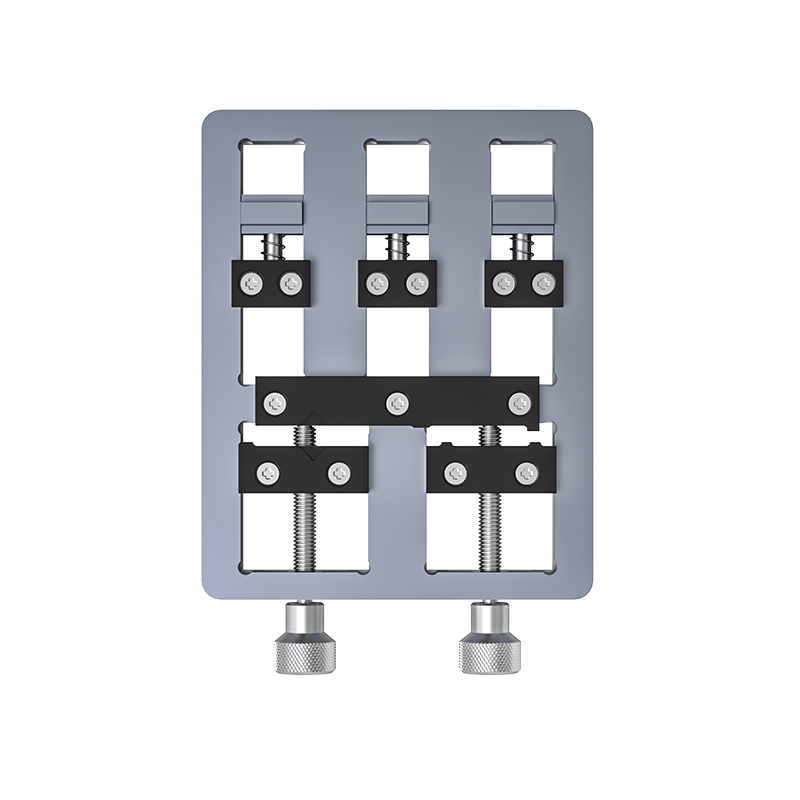

3. Put the mobile phone into the working platform (adjust and fix the mobile phone)

4. Measure the depth to be polished

5. Adjust the position of the mobile motor (adjust the motor downward and the x-axis to make the mobile motor reach the corresponding grinding position)

6. Adjust the bilateral stop block (limit the working range of the mobile motor according to the grinding length)

7. Adjust the grinding depth limit (for the depth measured in front, take the corresponding feeler gauge size limit)

8. Turn the motor switch

9. The mobile motor starts to work ( if you can’t see clearly, you can turn on the light switch)
