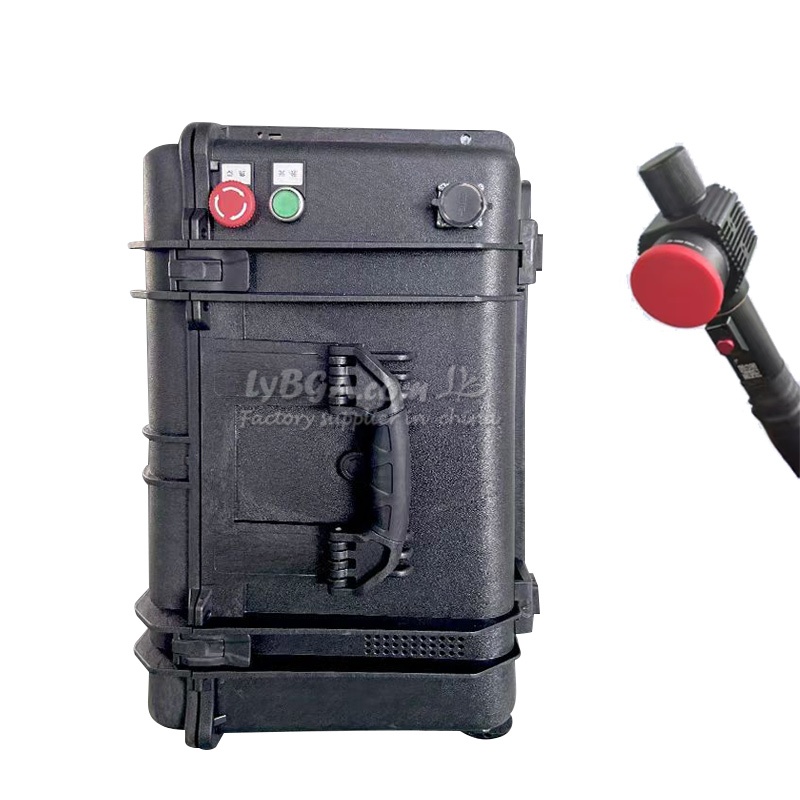

100W/200W/300W Pulsed Laser Cleaning Machine for High Efficiency Descaling Rust Removal Degreasing Deoxidizing and Mould Cleaning
Reviews(0)
Product Detail
Product Tags

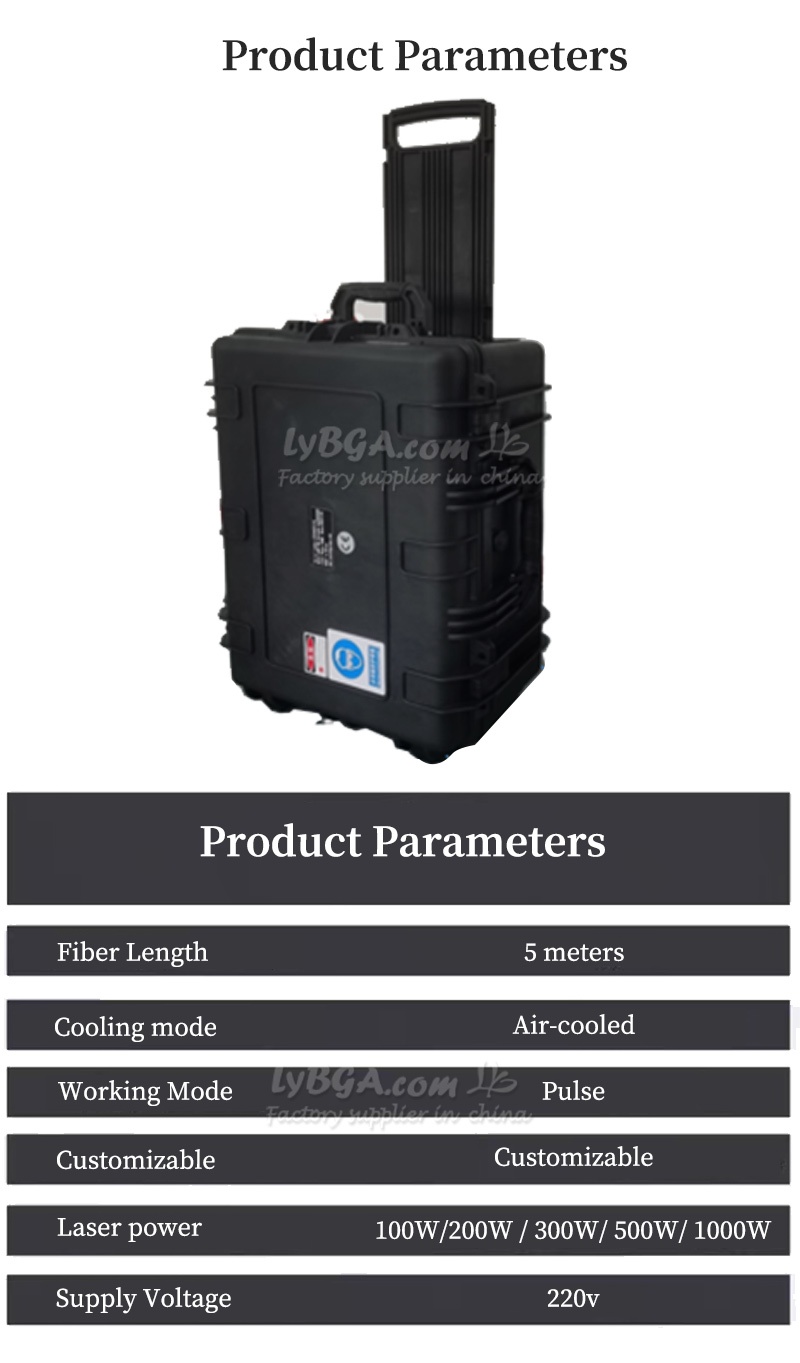

Product Parameters
|
Fiber Length |
5 meters |
|
Cooling mode |
Air-cooled |
|
Working Mode |
Pulse |
|
Customizable |
Customizable |
|
Laser power |
100W/200W / 300W/ 500W/ 1000W |
|
Supply Voltage |
220v |
|
Operating environment |
|
|
Contents |
GY-FLC200ML |
|
Power supply |
Single-phase 220V±10%, 50/60Hz AC power |
|
Power Consumption |
≤1500W |
|
Operating Temperature |
5℃～40℃ |
|
Humidity |
≤80% |
|
Optical parameters |
|
|
Average laser power |
≥200W |
|
Power instability |
＜5% |
|
Laser working mode |
Pulse |
|
Pulse width |
2-500ns |
|
Maximum single pulse energy |
5mJ |
|
Power adjustment range (%) |
0-100(Fading adjustable) |
|
Frequency adjustment range (kHz) |
1-4000(Fade adjustable) |
|
Fiber length |
5m |
|
Cooling mode |
Air cooling |
|
Cleaning head parameters |
|
|
Scanning range (L*W) |
0-145mm, continuously adjustable; |
|
Dual-axis support 9 scanning modes; |
|
|
Field lens focal length (mm) |
210mm (160mm/254mm/330mm/420mm optional) |
|
Mechanical parameters |
|
|

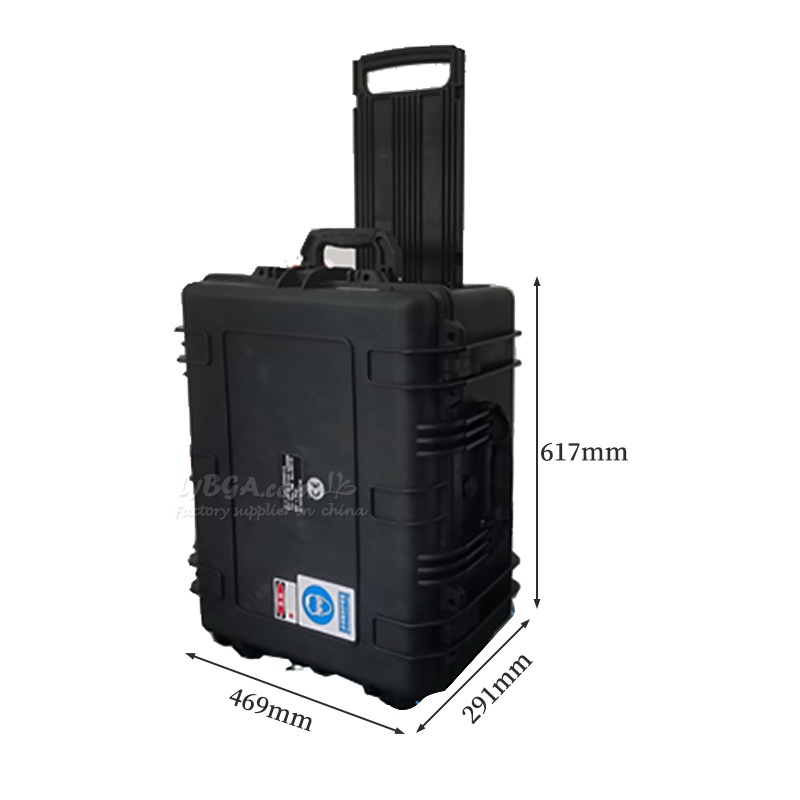

Dimensions of the whole machine (length*width*height) |
Approx. 617mm*469mm*291mm |
|
Dimension after packing (length, width and height) |
Approx. 760mm*560mm*480mm |
|
Weight of the whole machine |
Approx. 28Kg |
|
Weight after packing |
Approx. 48.2Kg |
|
Weight of cleaning head (without optical head) |
<0.9Kg |
|
Operation mode |
Handheld |
Configuration List
|
Name of the machine |
Model Specification |
unit (of measure) |
Quantity |
Remarks |
|
Laser cleaning main unit |
GY-FLC200ML |
Table |
1 |
|
|
Laser cleaning head |
GY-QCDXYP200 |
unit |
1 |
|
|
Process Database |
Built-in |
Sets |
1 |
|
|
Laser protective glasses |
SD-3 |
Sets |
1 |
|
|
Protective Lenses |
48*3 |
Piece |
5 |
|
|
Lens Cleaning Kits |
Zeiss |
Pieces |
10 |
|
Details page text
Advantages
Air-cooled self- cooling
Constant temperature
Simple operation
Easy to carry

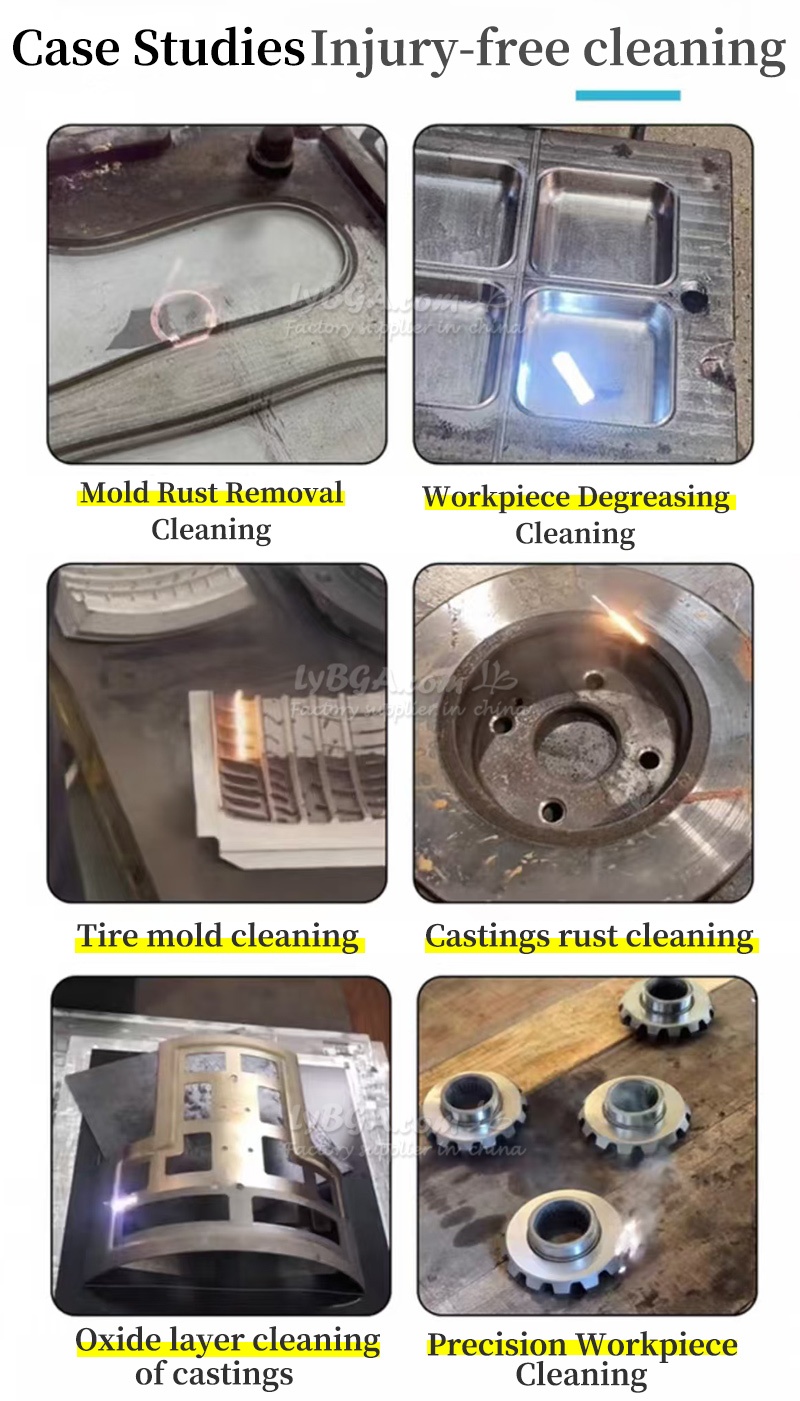

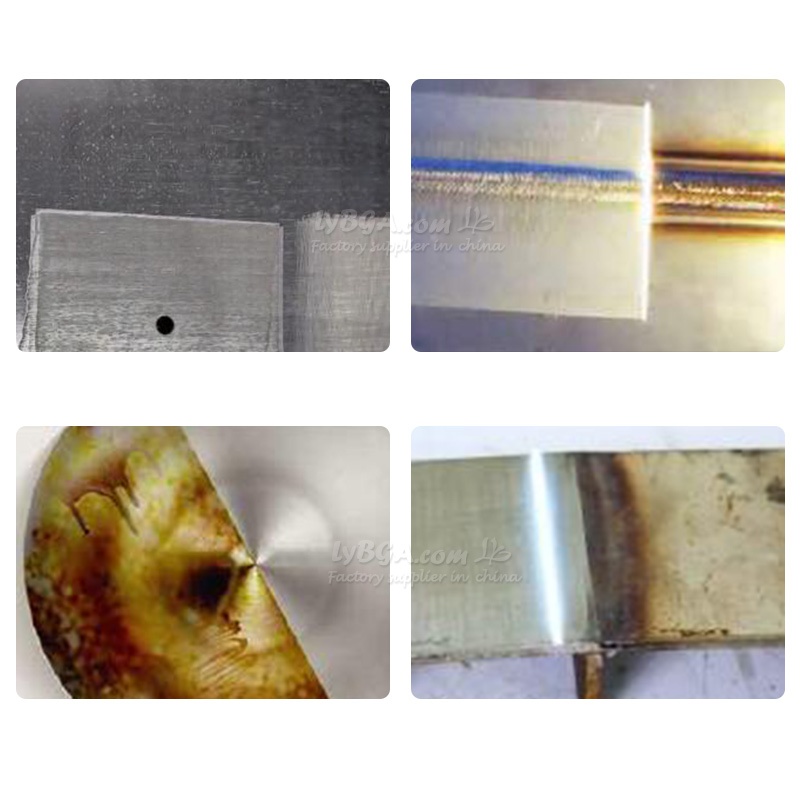

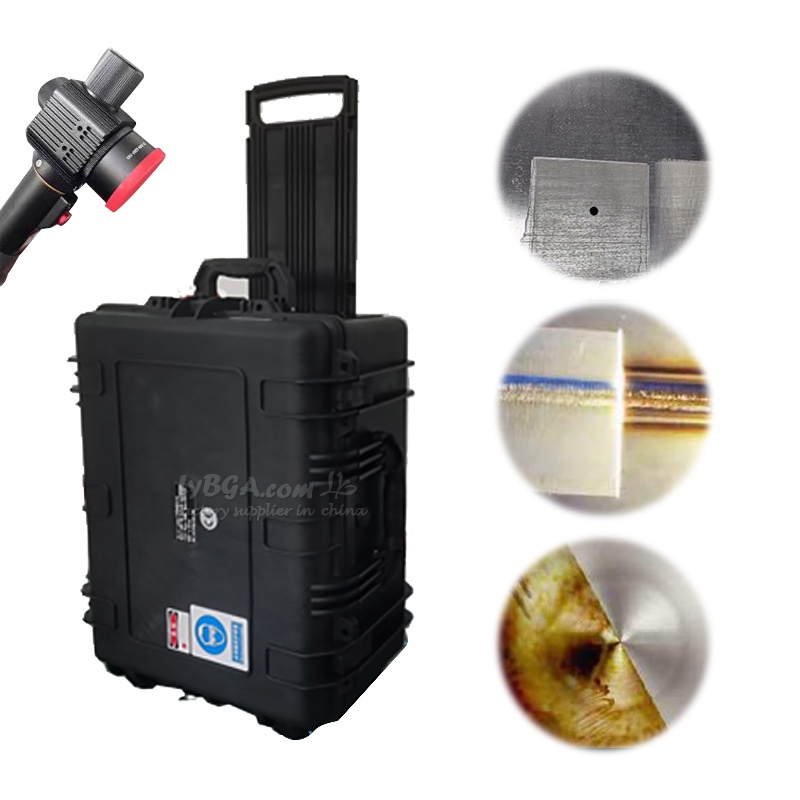

Case Studies Injury-free cleaning
Mold Rust Removal Cleaning
Workpiece Degreasing Cleaning
Tire mold cleaning
Castings rust cleaning
Oxide layer cleaning of castings
Precision Workpiece Cleaning

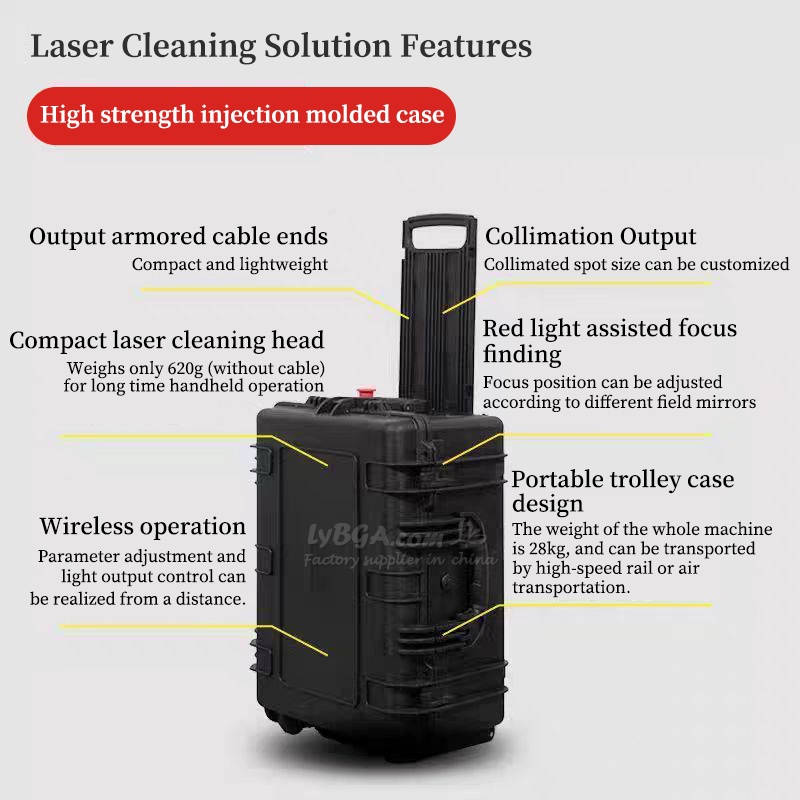

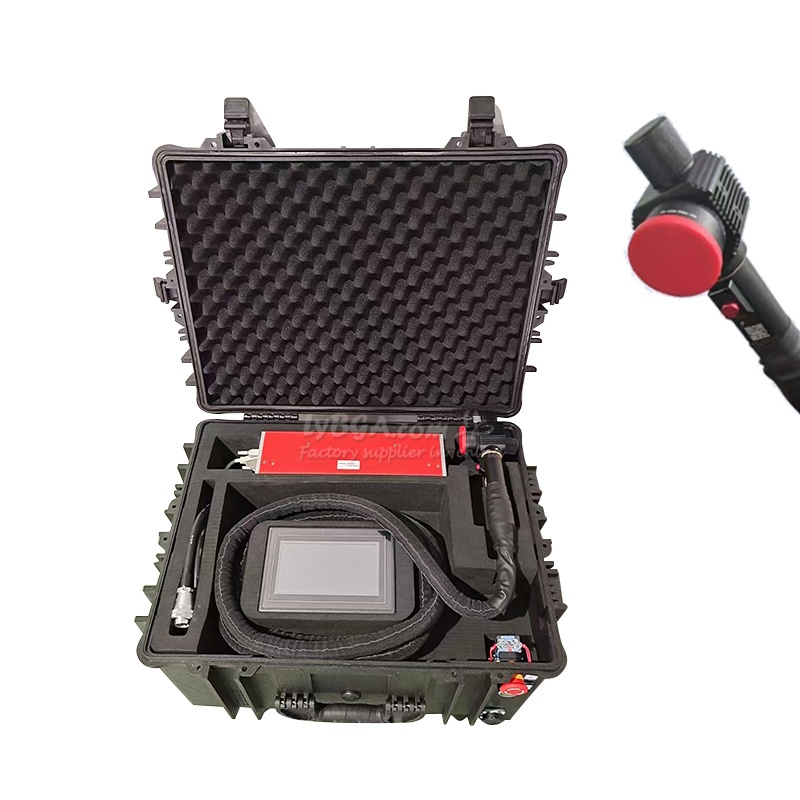

Laser Cleaning Solution Features
High strength injection molded case
Output armored cable ends
Compact and lightweight

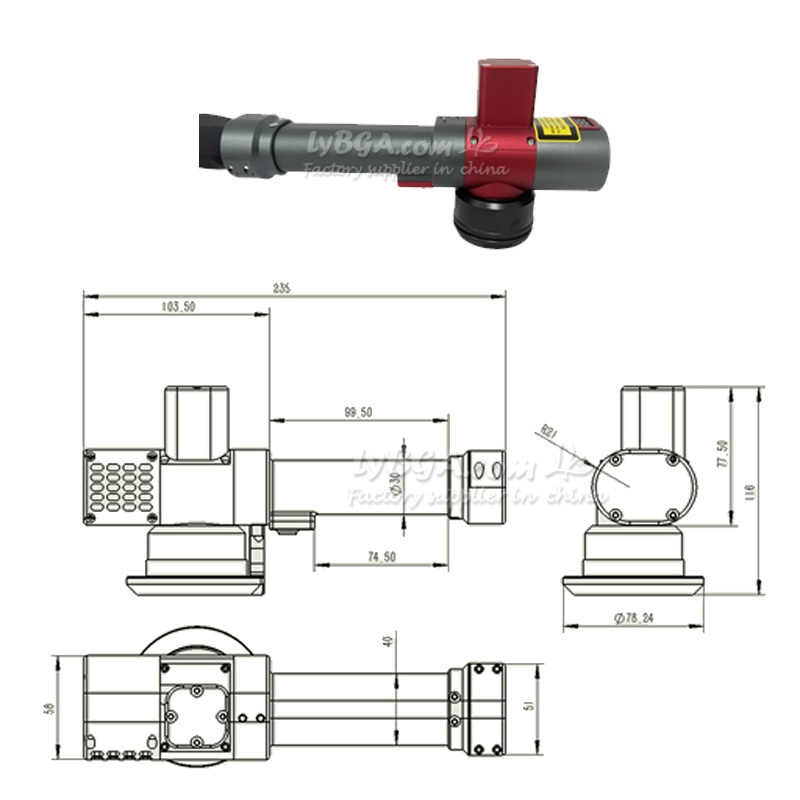

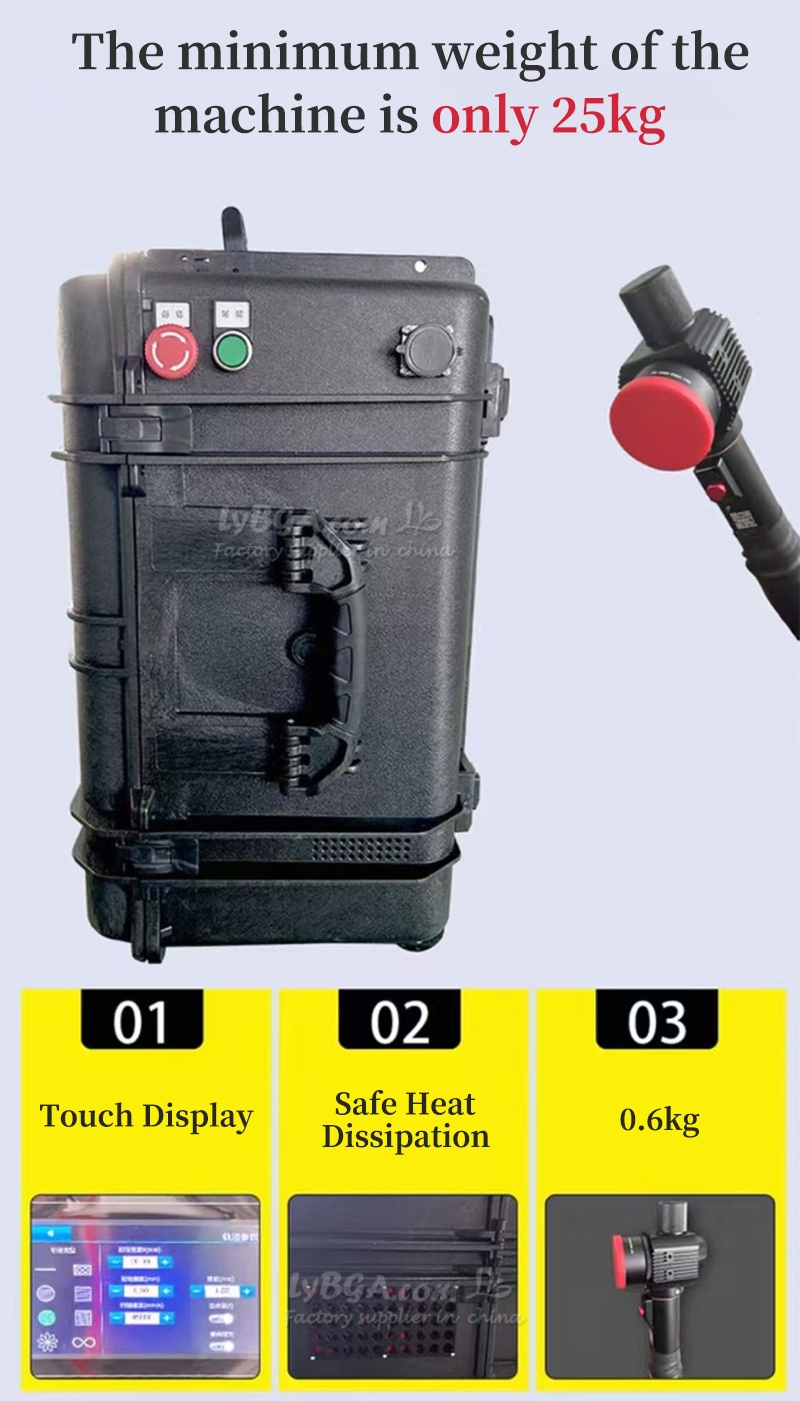

Compact laser cleaning head
Weighs only 620g (without cable) for long time handheld operation
Wireless operation
Parameter adjustment and light output control can be realized from a distance.
Collimated output
Customizable collimated spot size
Red light assisted focusing
Focusing position can be adjusted according to different field mirrors

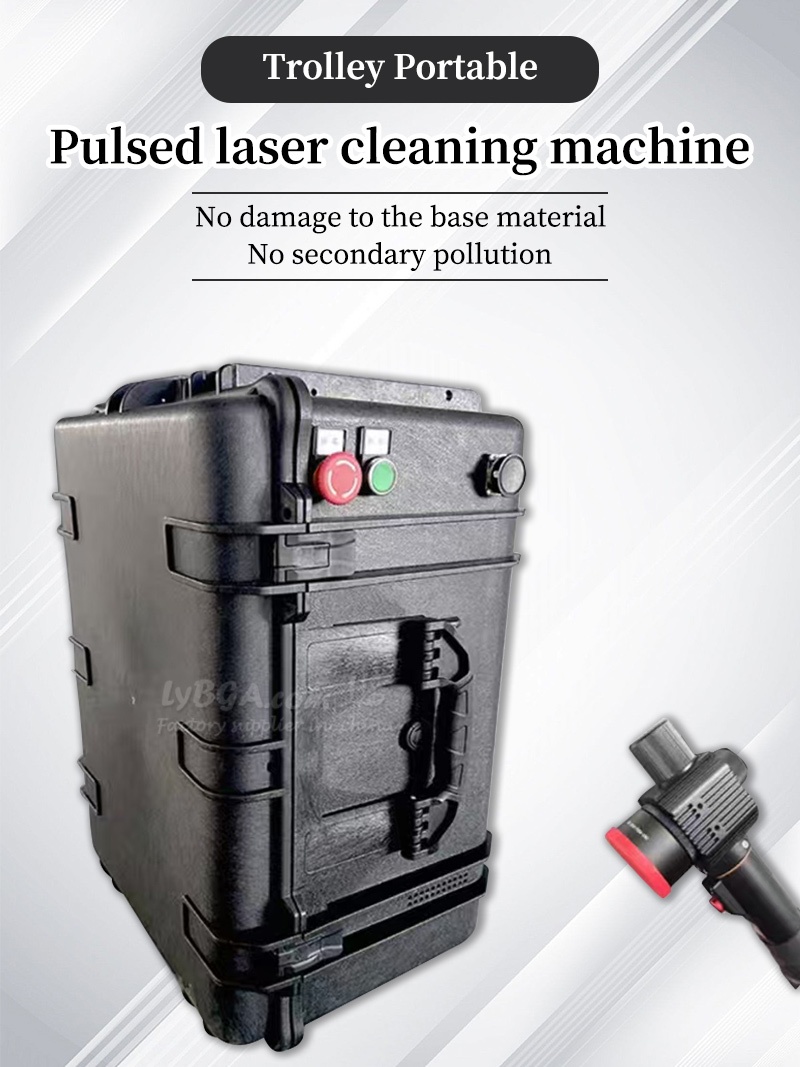

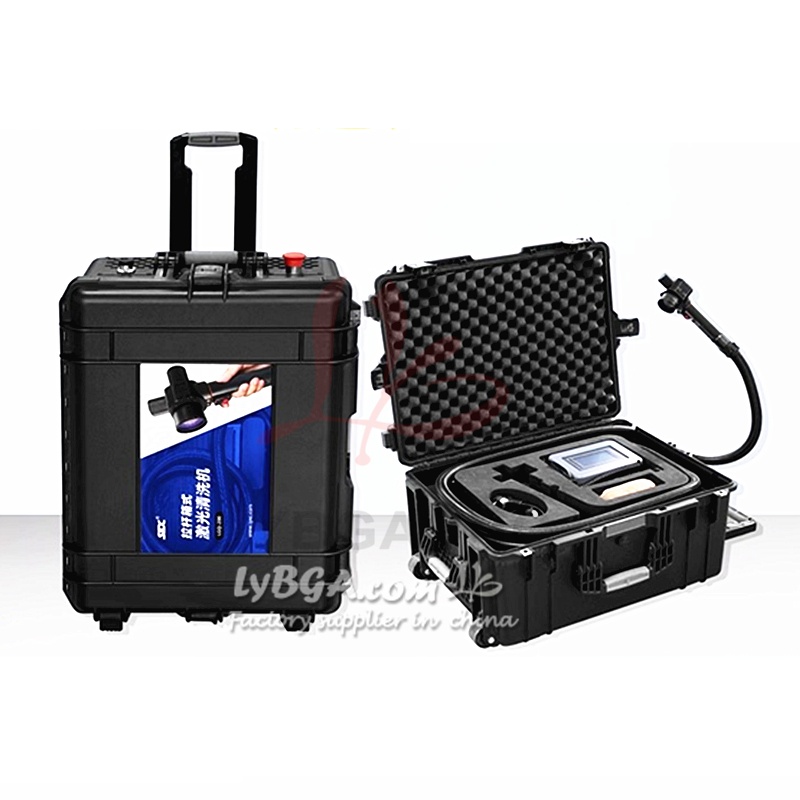

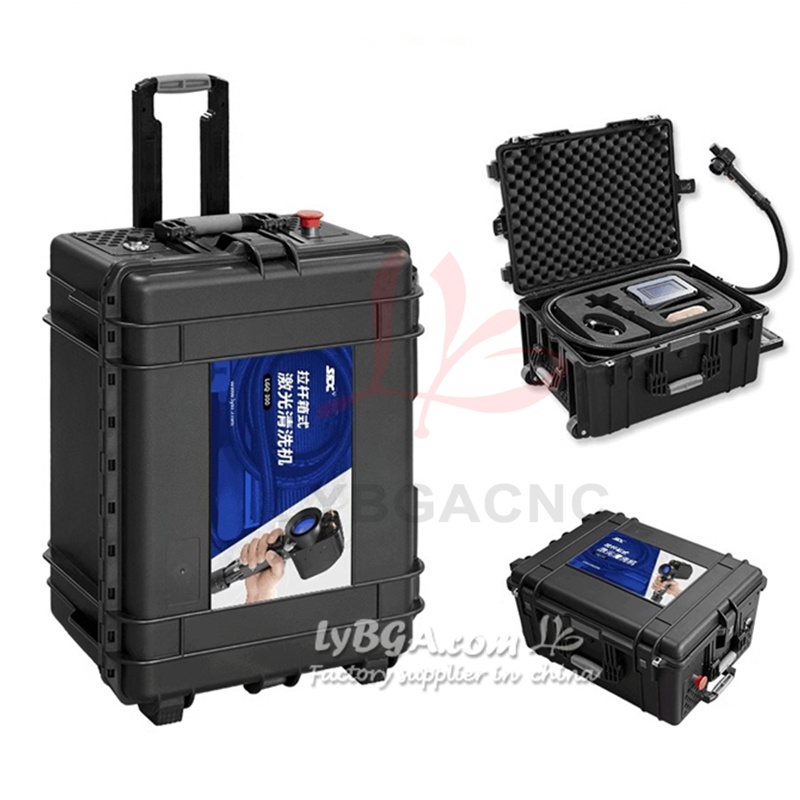

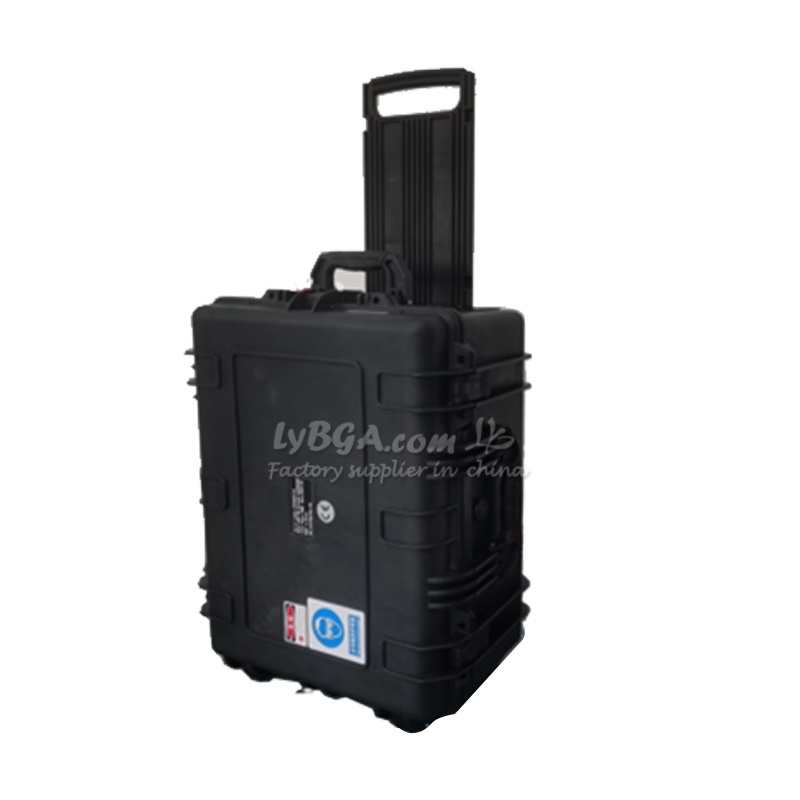

Portable trolley case design
The weight of the whole machine is 28kg, and can be transported by high-speed rail or air transportation.

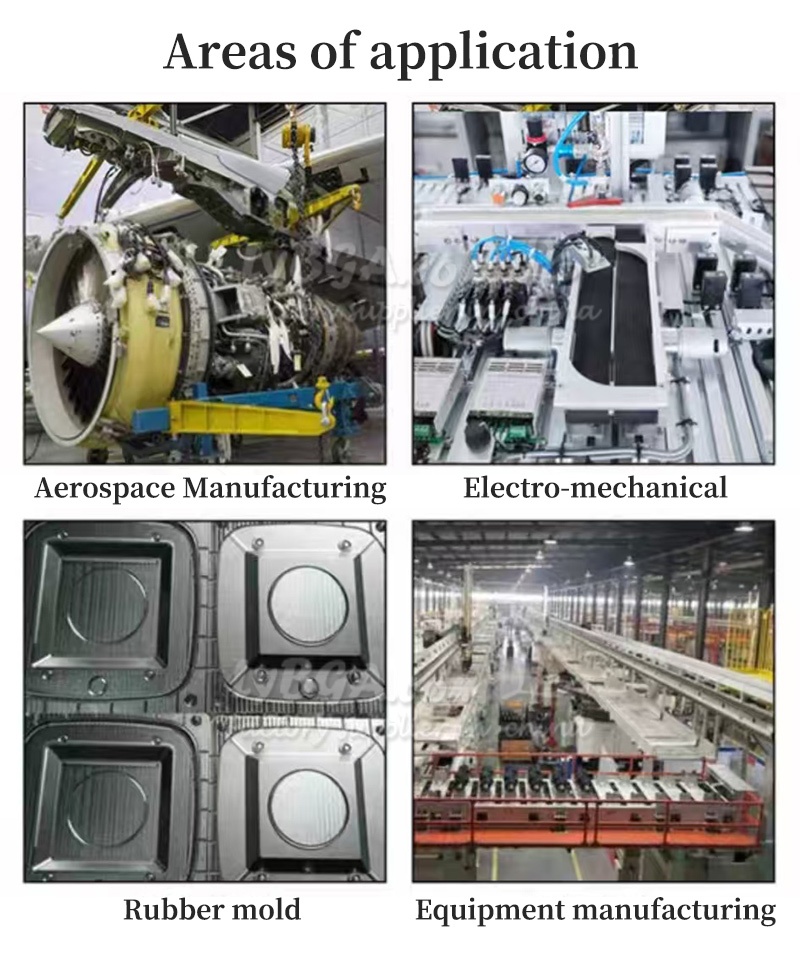

Fields of application
Aerospace Manufacturing
Electro-mechanical
Rubber mold
Equipment Manufacturing
Automobile parts
Food processing
Train tracks
Train wheels
