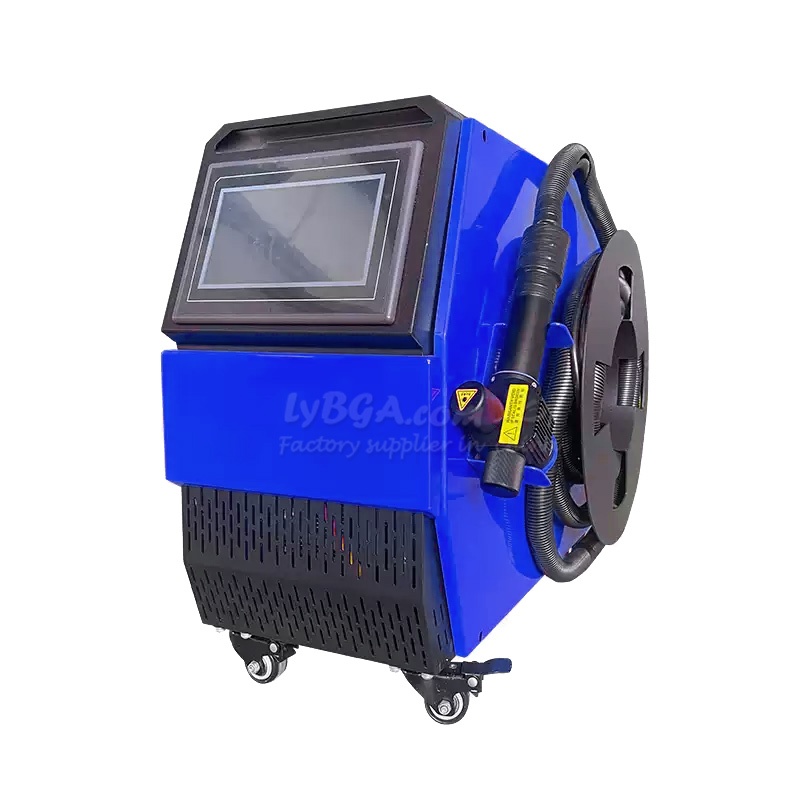

100W/200W/300W Small Portable Pulsed Laser Cleaning Machine HighPrecision No Material Injury Clean Stainless Steel Metal Degrease Rust Remove Oxidized Lacquer
Reviews(0)
Product Detail
Product Tags
Pulsed laser cleaning machine Equipment Parameters
|
Operating Environment |
|
|
Model |
XW-M series washing machine |
|
Input power |
Single-phase 220Vs 10550/60HZ AC power |
|
Overall power |
500W (related to power) |
|
Temperature |
5°C-40°C |
|
Humidity |
≤80% of the total capacity of the machine |
|
Machine Parameters |
|
|
Laser power |

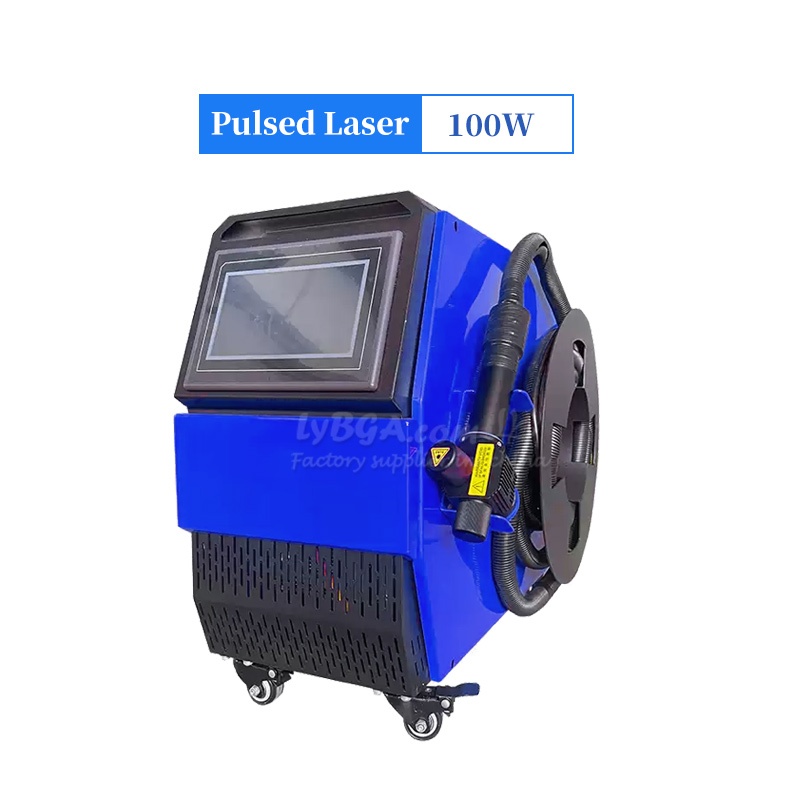

100/ 200/300W |
|
Laser working mode |
Pulse |
|
Pulse width |
10-500ns adjustable |
|
Beam quality |
M²<2.0 |
|
Power Adjustment Range |
10-100% (adjustable) |
|
Repetition Frequency |
1-3000HZ (Adjustable) |
|
Cable length |
3.8 meters |
|
Cooling method |
Air Cooled |
|
Cleaning head parameters |
|
|
Scanning range |
0-100MM continuously adjustable |
|
Scanning mode |
4 scanning modes |
|
Scanning frequency |
10-2000HZ continuously adjustable |
|
Focal length of field lens |
160MM can be customized |
|
Beam quality |
M²<2.0 |
|
Machine Information |
|
|
Dimensions |
580*330*520MM |
|
Weight |
<26KG |
|
Cleaning head cable length |
<3.8m |
|
Operation mode |
Handheld |
Detail page text

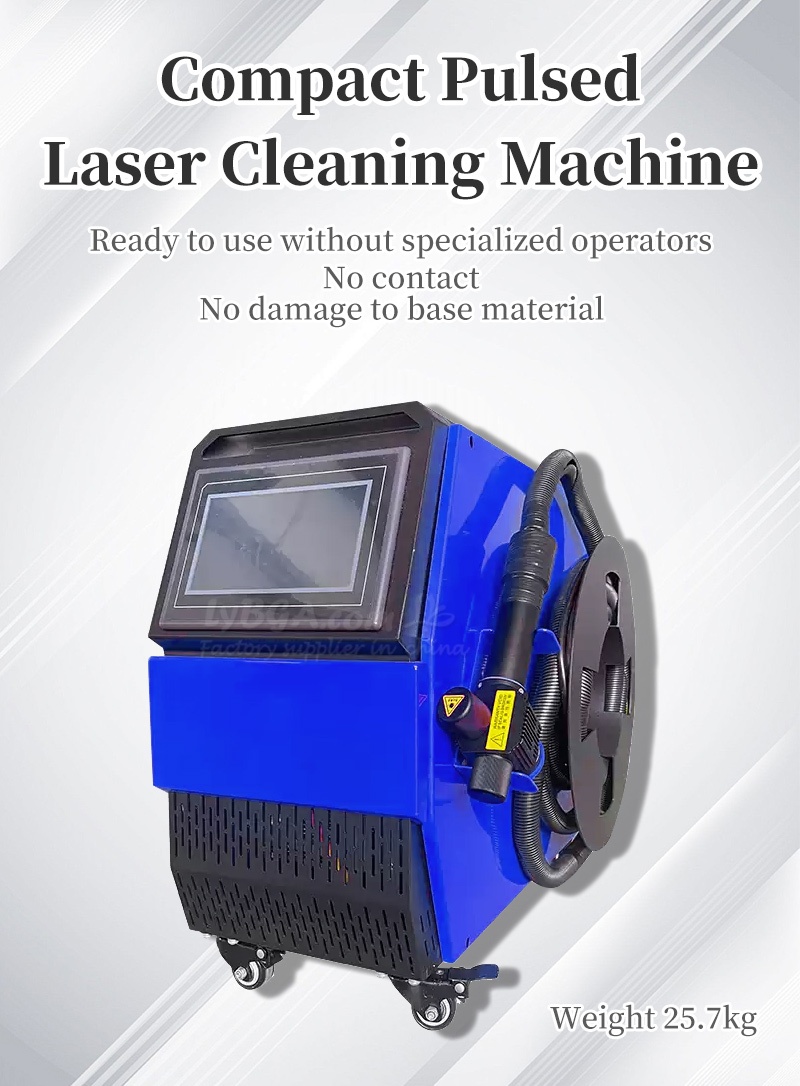

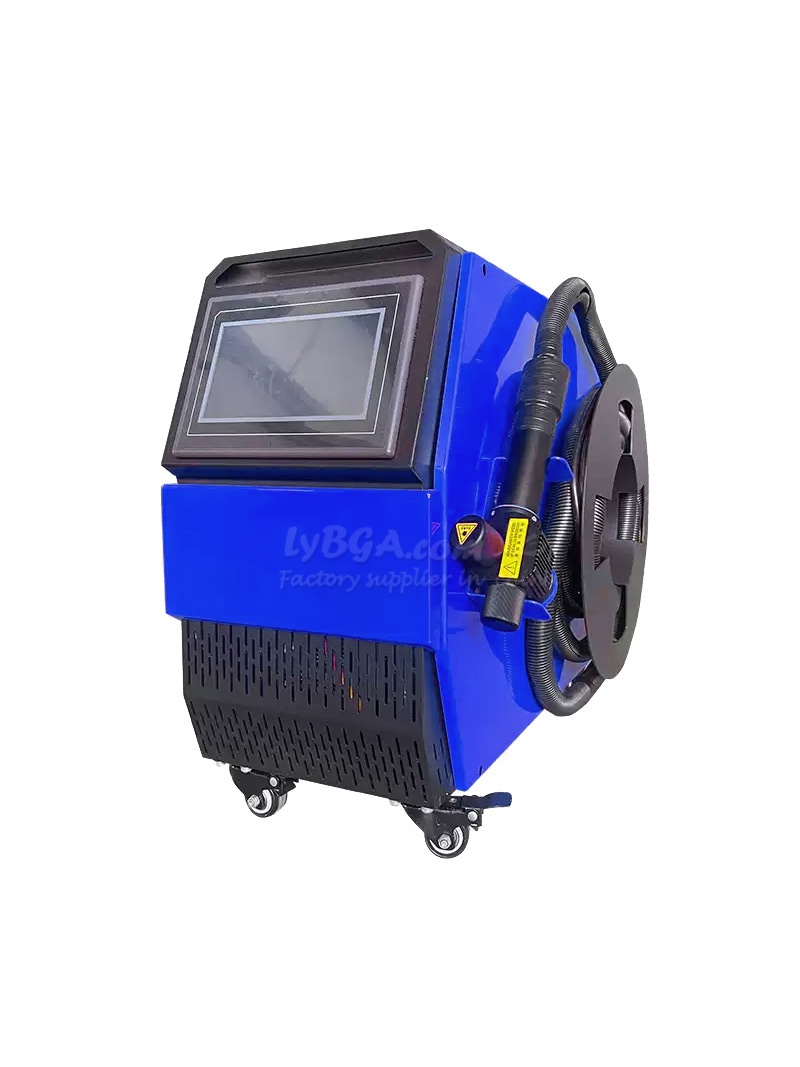

Compact Pulsed Laser Cleaning Machine
Ready to use without specialized operators
No contact, No damage to base material

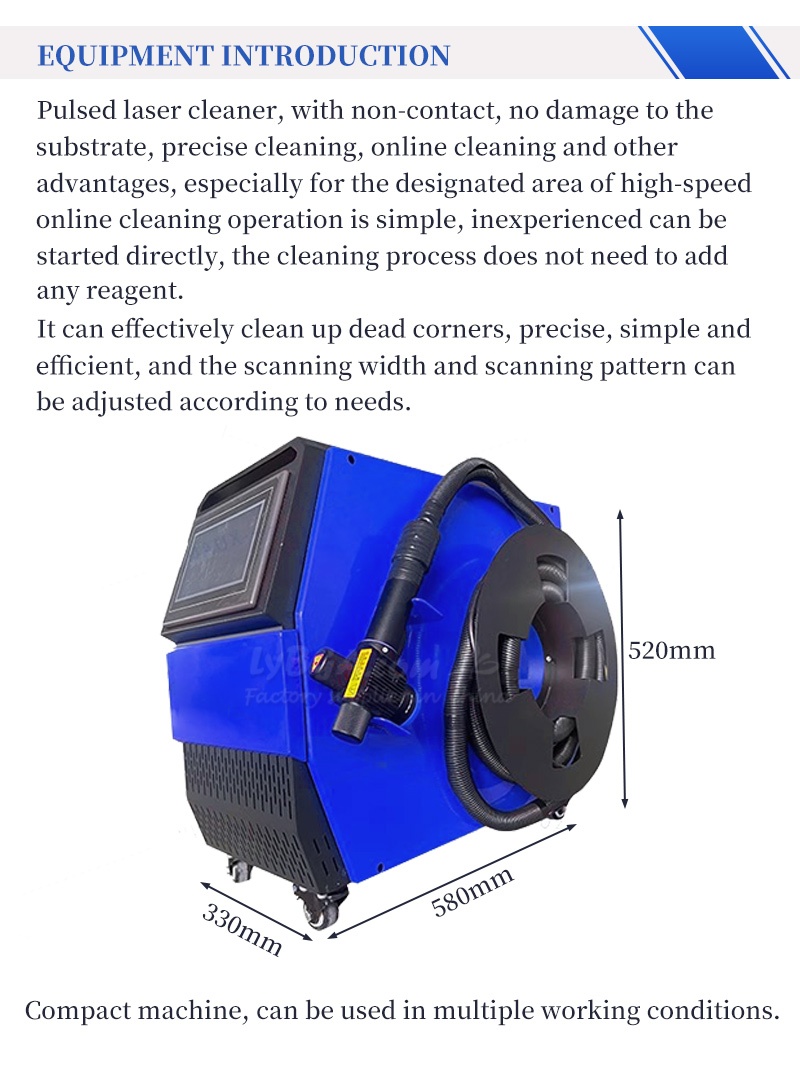

EQUIPMENT INTRODUCTION
Pulsed laser cleaner, with non-contact, no damage to the substrate, precise cleaning, online cleaning and other advantages, especially for the designated area of high-speed online cleaning operation is simple, inexperienced can be started directly, the cleaning process does not need to add any reagent.
It can effectively clean up dead corners, precise, simple and efficient, and the scanning width and scanning pattern can be adjusted according to needs.
Compact machine, can be used in multiple working conditions.
Application Industries
It is widely used in marine industry, automobile parts, rubber molds, high- end machine tools, tire molds, rail, environmental protection industry, weaponry industry and other industries.
2-in-1 Fiber Laser Cleaning Machine
360° laser cleaning without dead angle
Multi-power selection 1500/2000/3000W
Ultra- fast cleaning
Product Advantages
■Non- contact cleaning method, effectively protect the substrate from damage.
■New laser cleaning without the use of chemical reagents
■Wide range of material applicability, can be applied to a variety of industrial processing scenarios
■Handheld laser cleaning head, more lightweight and easy to use, can work continuously for 24 hours. .
■Chinese and English operation interface, intuitive and convenient parameter adjustment.

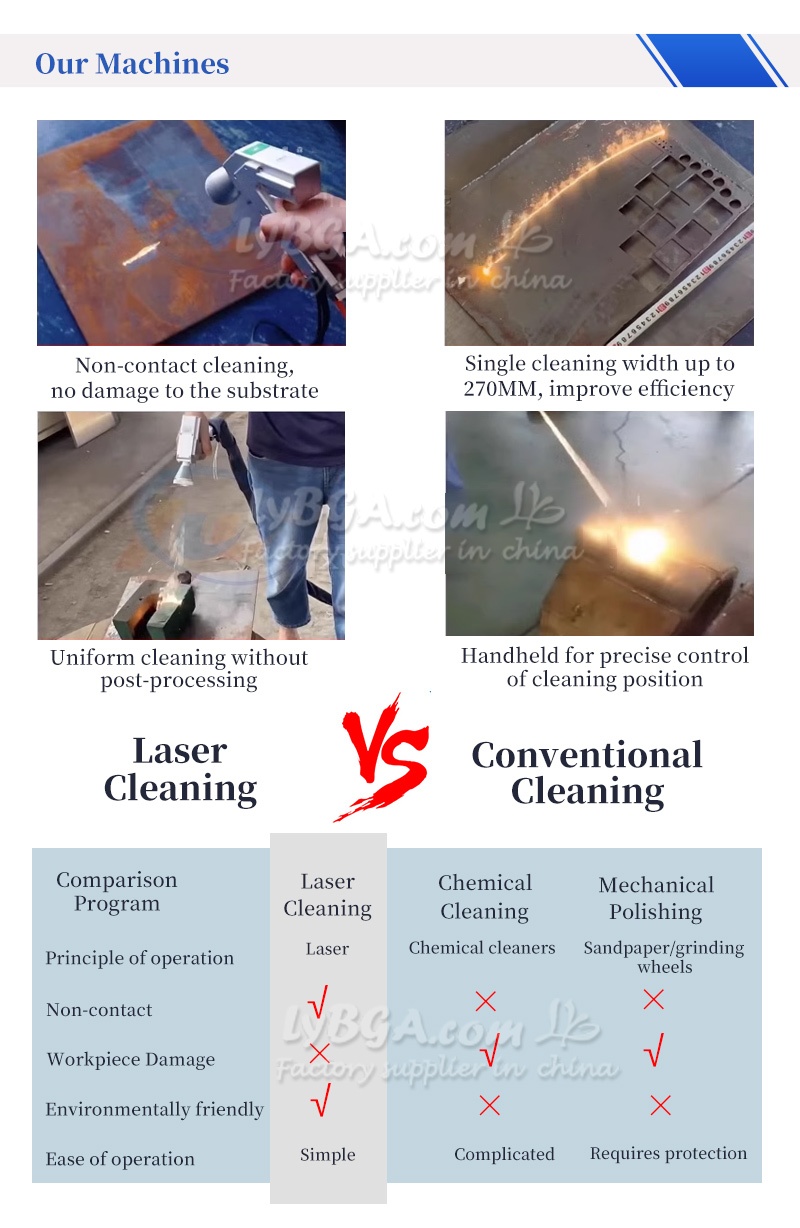

Our Machines
Non-contact cleaning, no damage to the substrate
Single cleaning width up to 270MM, improve efficiency
Uniform cleaning without post-processing
Handheld for precise control of cleaning position

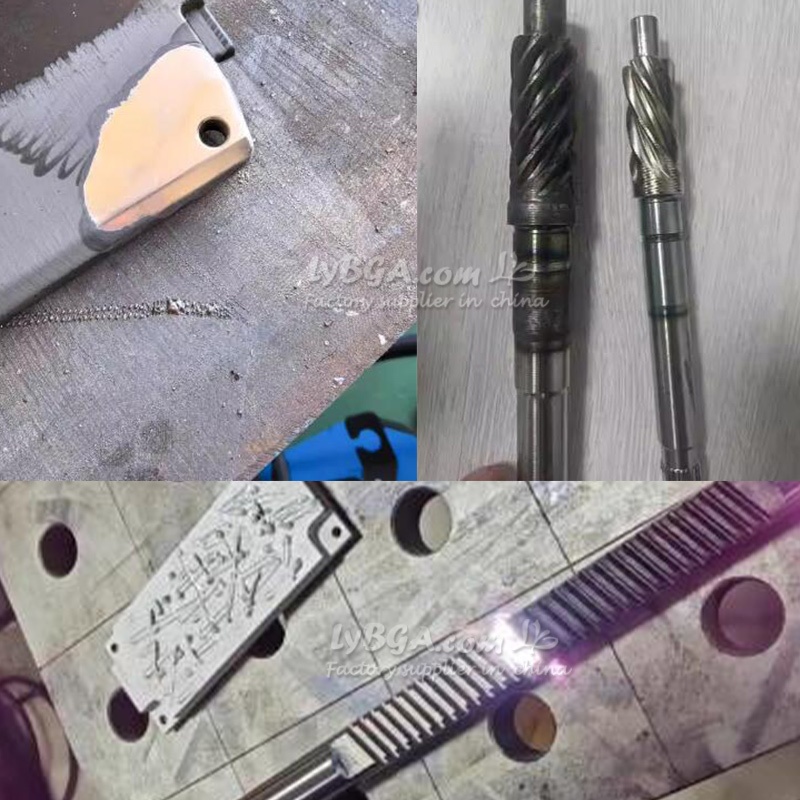

Supports a wide range of cleaning needs
Brake Pad Cleaning
Functional parts cleaning
Brake shoe mold cleaning
Before and after welding cleaning
Rust removal on train tracks
Paint Removal
Mold Cleaning
Descaling of axles
Grease Cleaning
