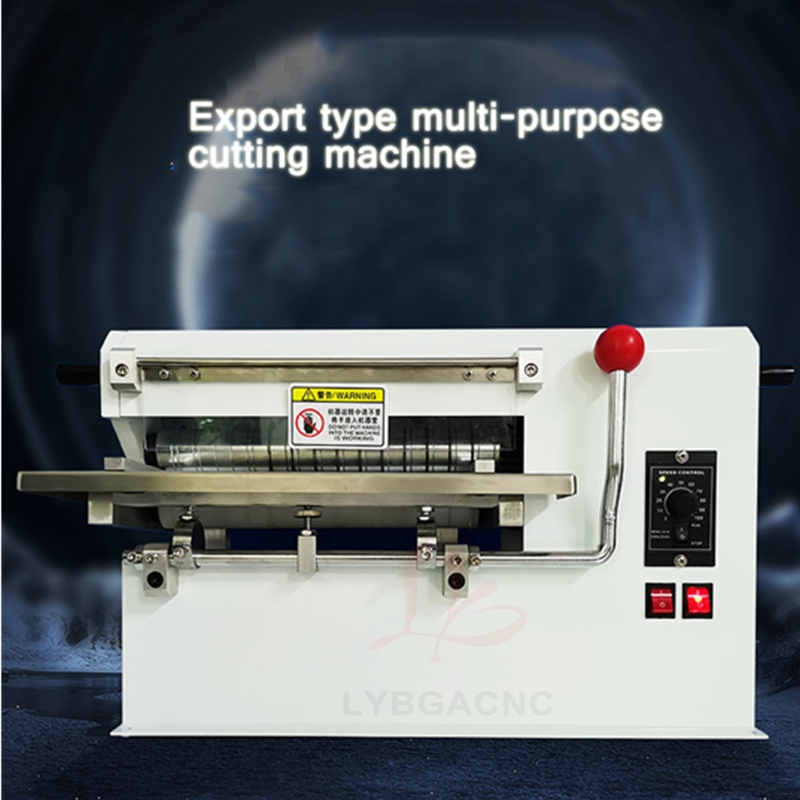

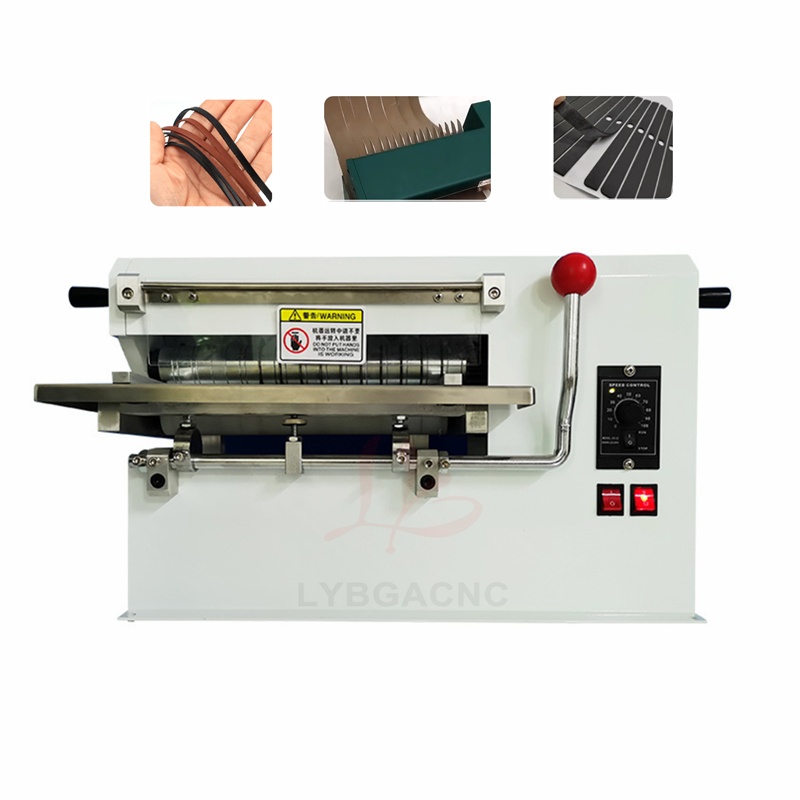

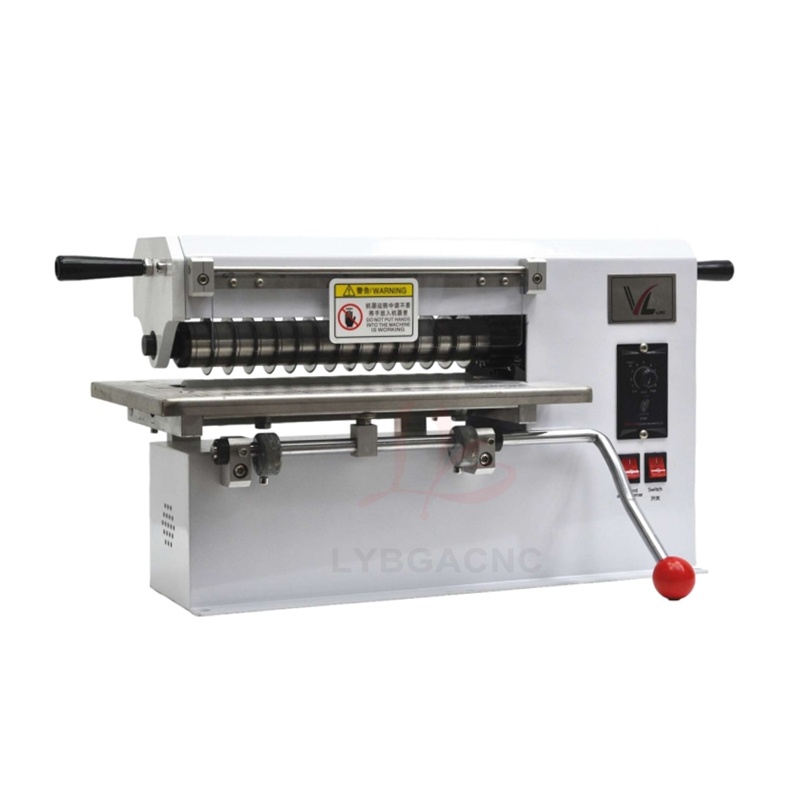

12 Inch Multi-Purpose Slitting Leather Slitter Machine Belt Cutter Strap Cutting Machine Leather craft Slicer 220V 110V Cutting width 4-300MM

12 Inch Multi-Purpose Slitting Leather Slitter Machine Belt Cutter Strap Cutting Machine Leather craft Slicer 220V 110V Cutting width 4-300MM

item ID: 69667
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$1800 USD$1136 (% off)
Payment

Product Detail

Product Tags

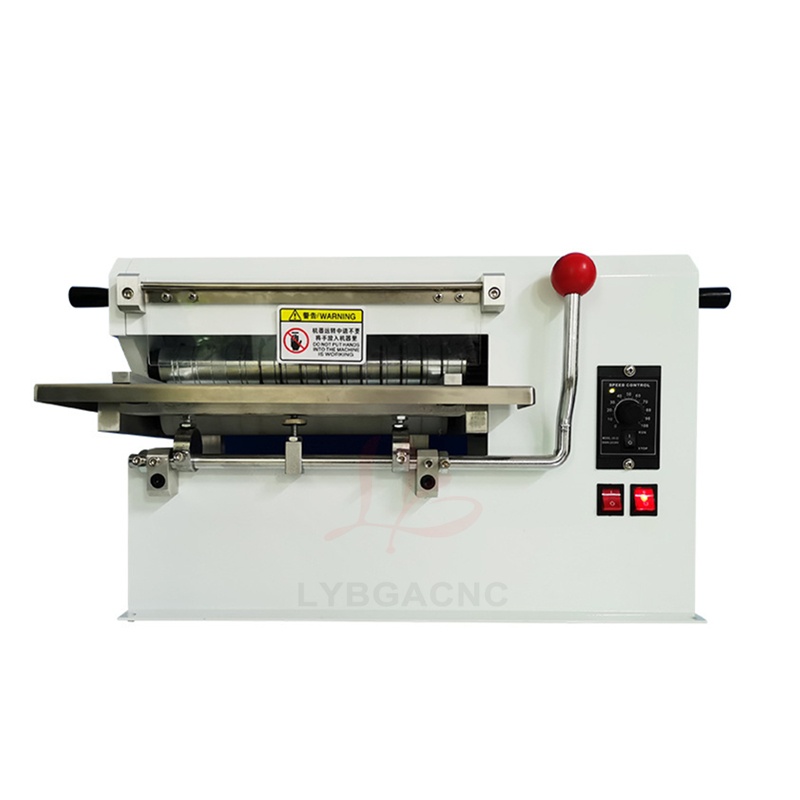

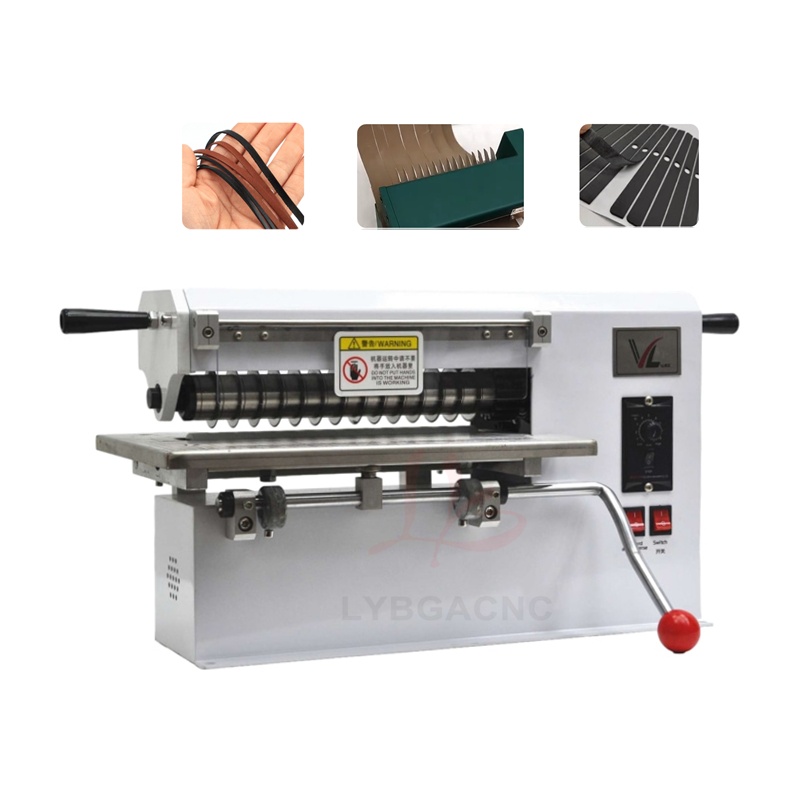

 12 Inch Multi-Purpose Slitting Leather Slitter Machine Belt Cutter Strap Cutting Machine Leather craft Slicer 220V 110V Cutting width 4-300MM

Application

This product is suitable for leather shoes, bags, handicrafts and other leather goods cut straight, It can also be cut paper products.

Cutting thickness: For soft leather, it can cut 6mm thick. For hard leather, it can cut 3mm thick.

Suitable for soft leather thickness less than 3mm, width between 2-200mm



Product parameters:

Product name: 12 inch multi-purpose cutting machine

Product model: LY-300-01

Mechanical size: 710*280*360mm

Rated voltage: 220V/ 110V

Power: 400W &1100W

Cutting shaft length: 12 inches (300mm)

Cutting width: between 4~300mm

Gross weight: 49kg

Net weight: 41kg

Speed ratio: 1:7.5

Motor speed: 1600 rpm

Cutting length: no limit

Blade specifications: 60*30*1mm

Blade standard: 5 pieces

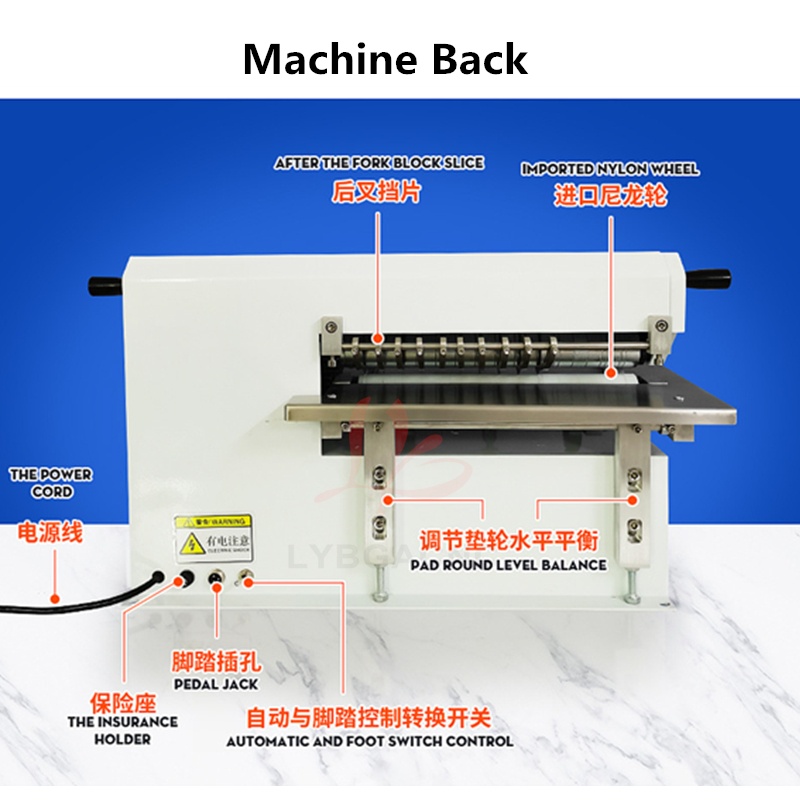

Rear fork stopper: 10 pieces

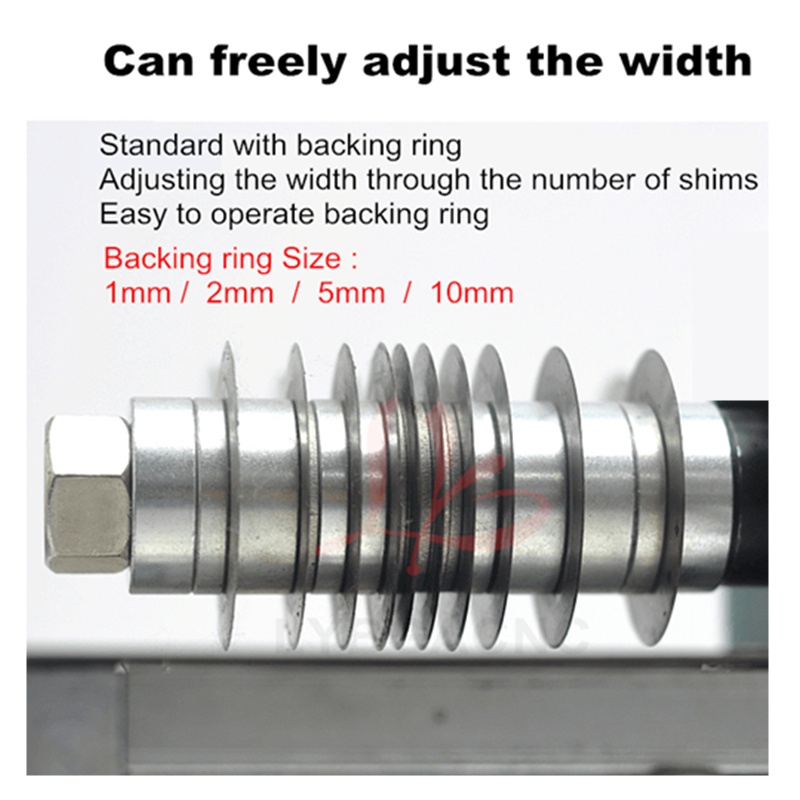

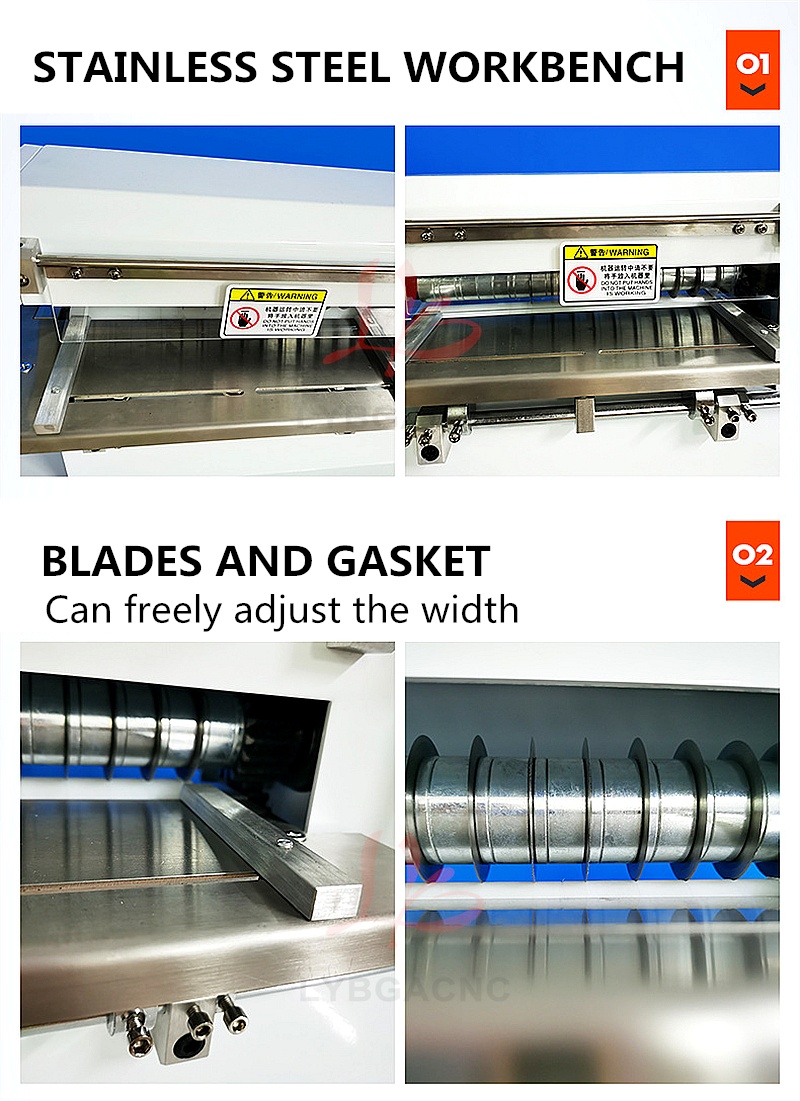

Standard gaskets: 15mm 15pcs, 5mm 15pcs, 2mm 10pcs, 1mm 10pcs



Packing list:

1 x leather Slitter Machine

1 x Accessories



Maintenance

1, the lubrication hole filling oil regularly, prevent the rotation axis of normal lubrication and wear or killed.

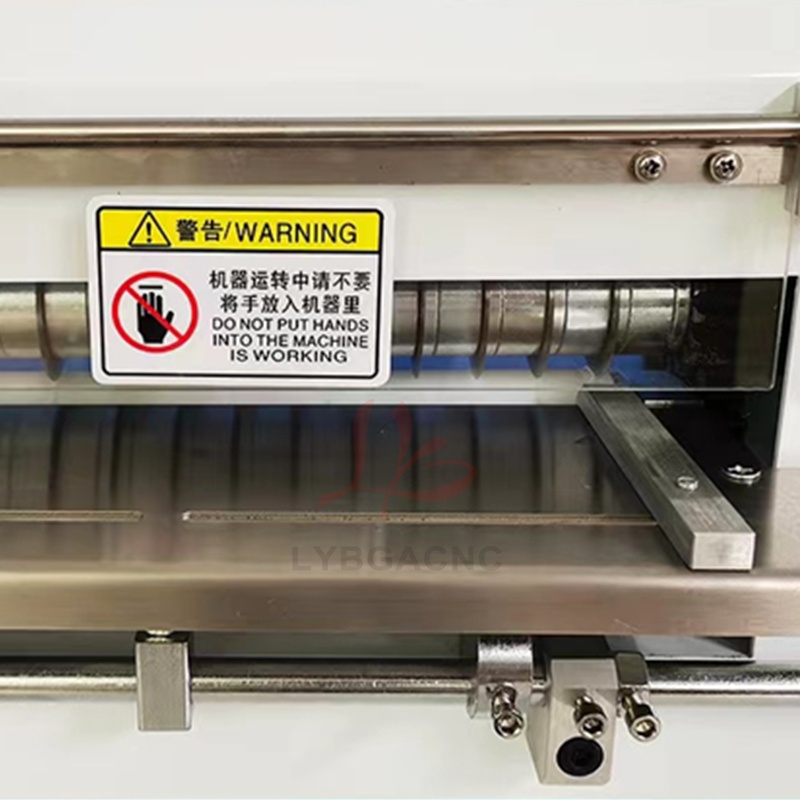

2, should pay attention to safety when using, do not reach out her hand to the blade when the machine is turning.

3, use for a long time that the condition of the rod nylon washer, serious breakage of workpiece in cutting burr should beoff work at this time, open beside cover board, use special wrench to loosen the nut, loose screws, unload swinging rod. Pull the nylon washer, with the changing location method, nylon ring again.

4, if users need special cutting width of the workpiece, can be made to our various types of special gasket.

5, power supply should be safety grounding, ensure no leakage phenomenon.
