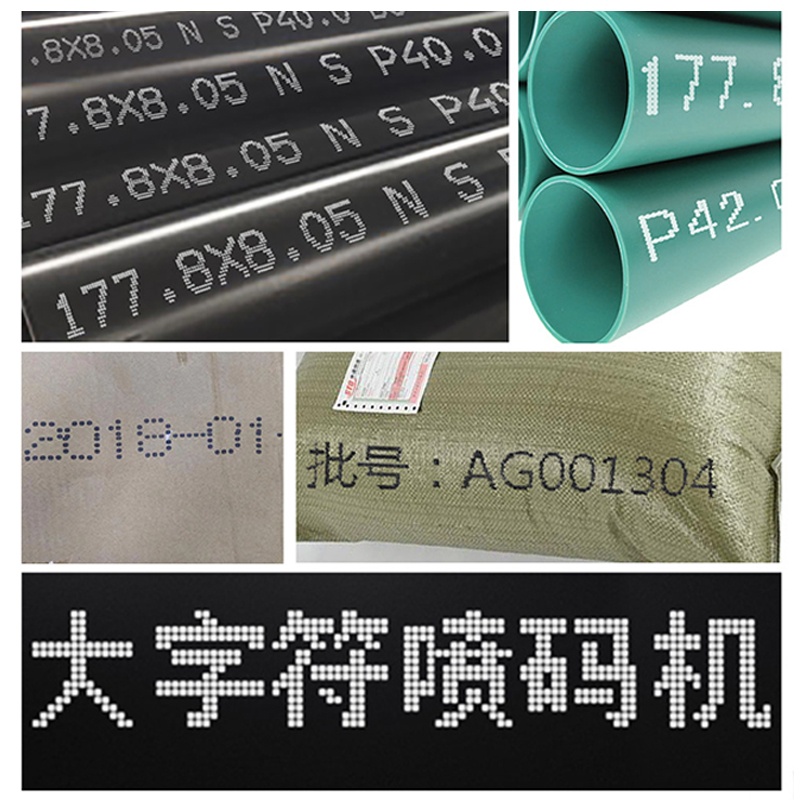

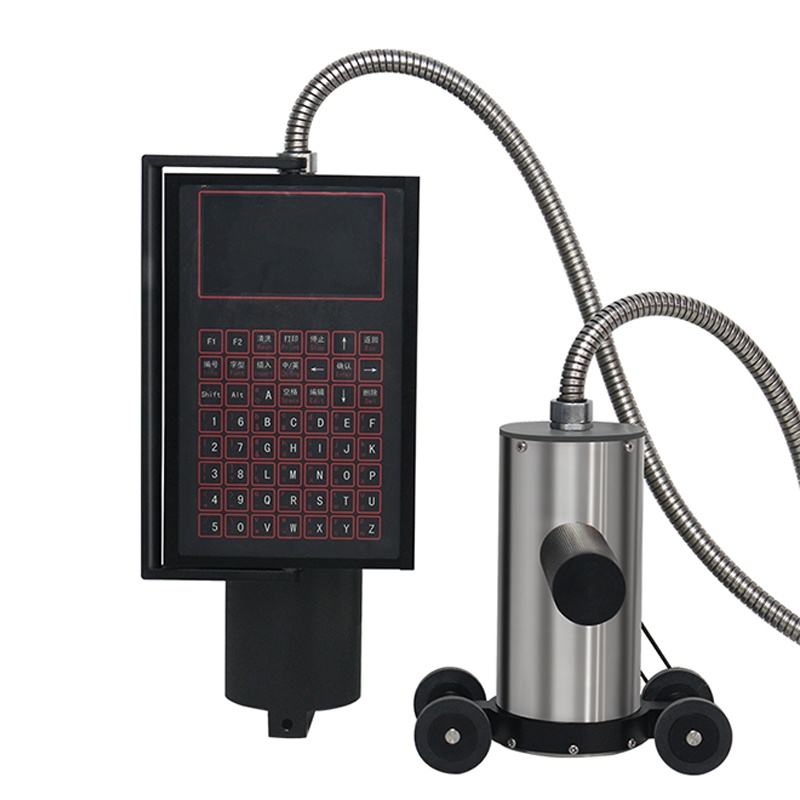

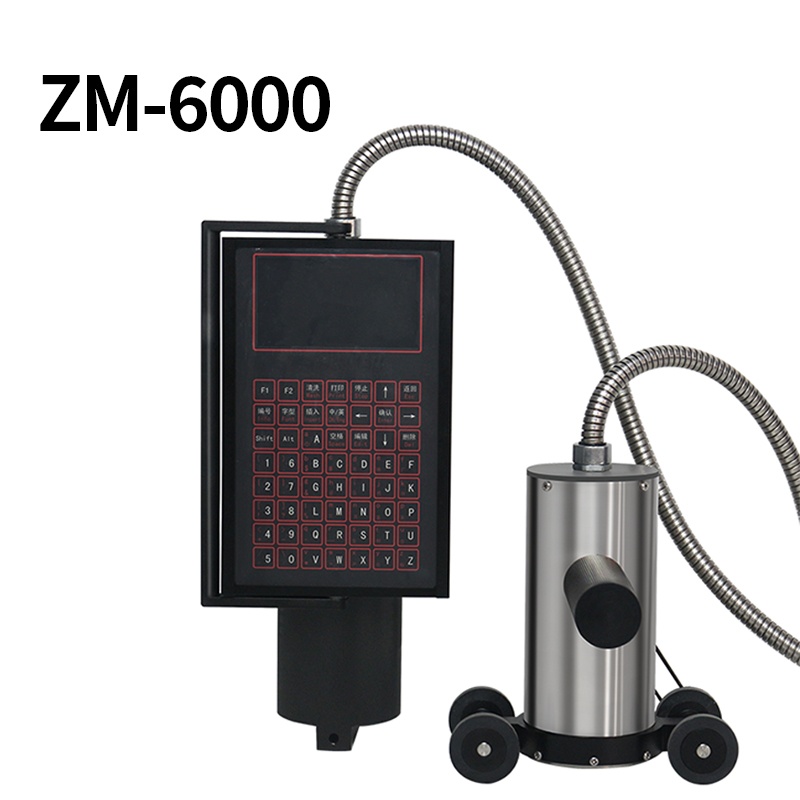

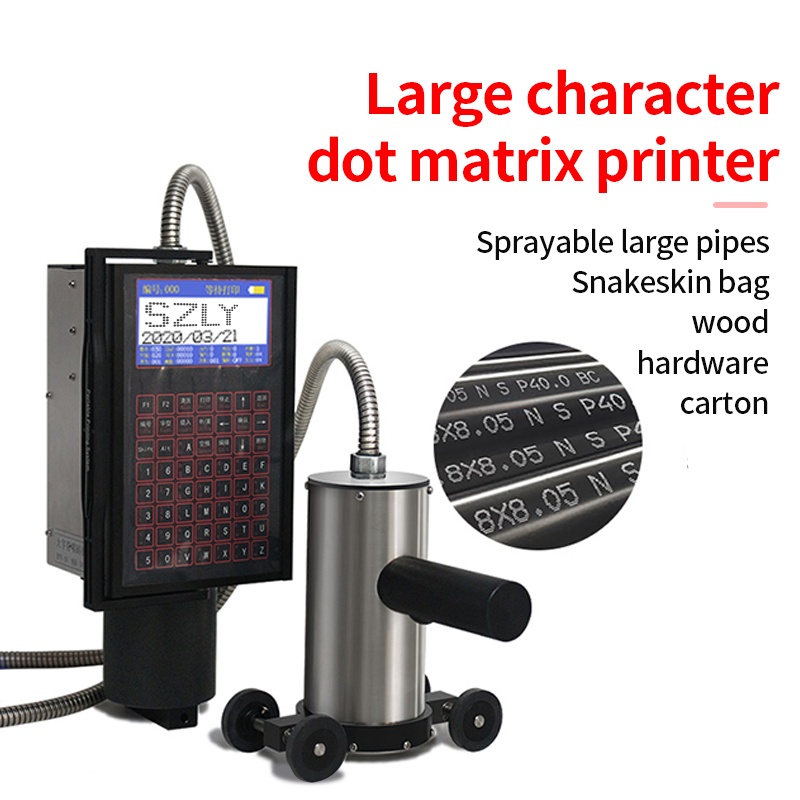

20~60mm Handheld Large Character Inkjet Online Printer Coding Machine for Printing Batch Code Number Date on Plastic Pipe Bottle Bag PVC

Print font size and number of lines

7 dot matrix: height 20mm-14mm optional, width can be adjusted

freely to print single line numbers or English

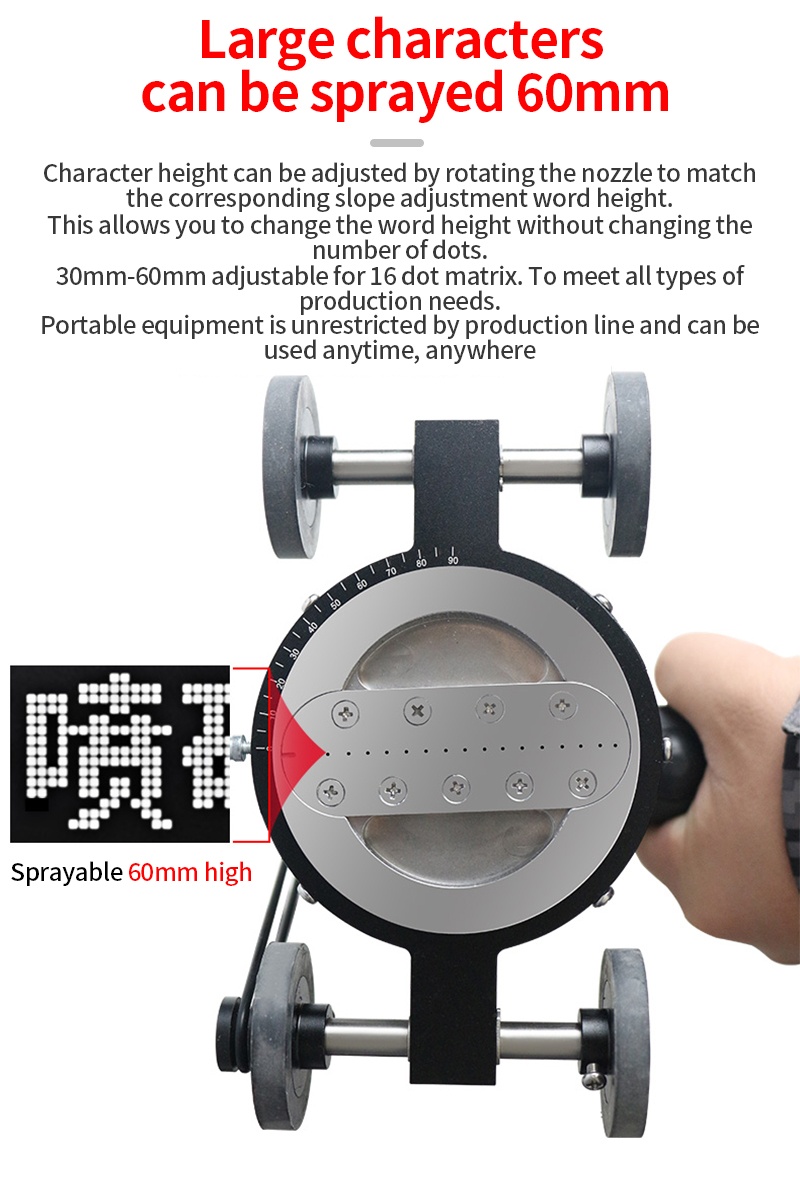

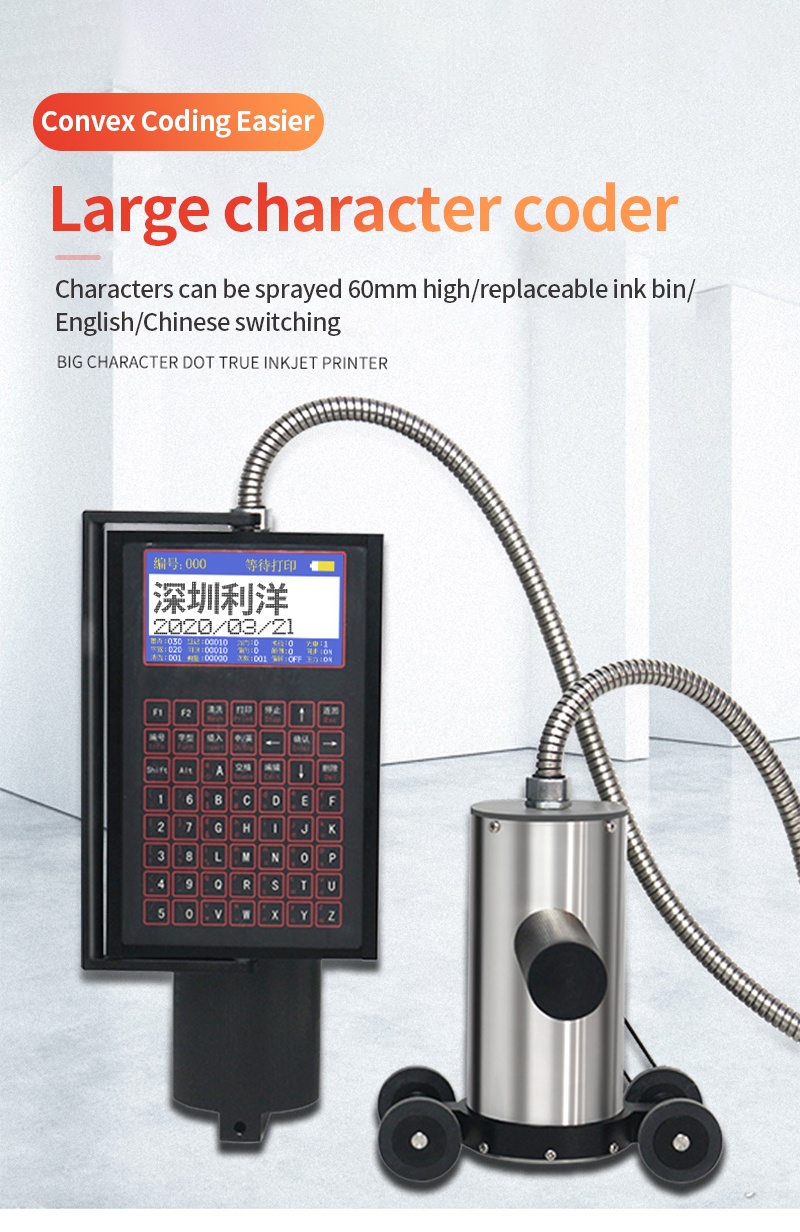

16 dot matrix: height 20mm~60 optional, width can be adjusted freely to

print single line Chinese characters and double line numbers or English

Software functions: real-time date and time, printing batch, counting, shift,

font upside down, left and right flippingglish

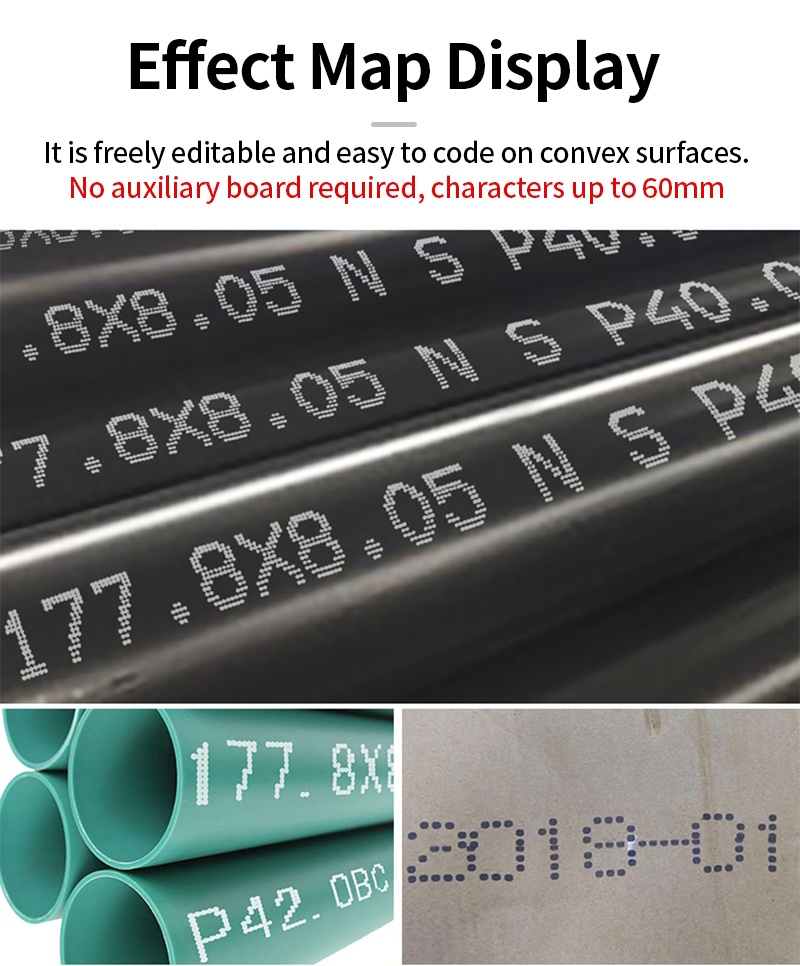

Inkjet printing graphics: can be used to print trademark graphics,sym-

bols, etc. (dot pattern)

Date code: support time (year, month, day,hour, minute, second)

Printing speed: manual control

Printing distance: 8mm from the surface of the object to be printed

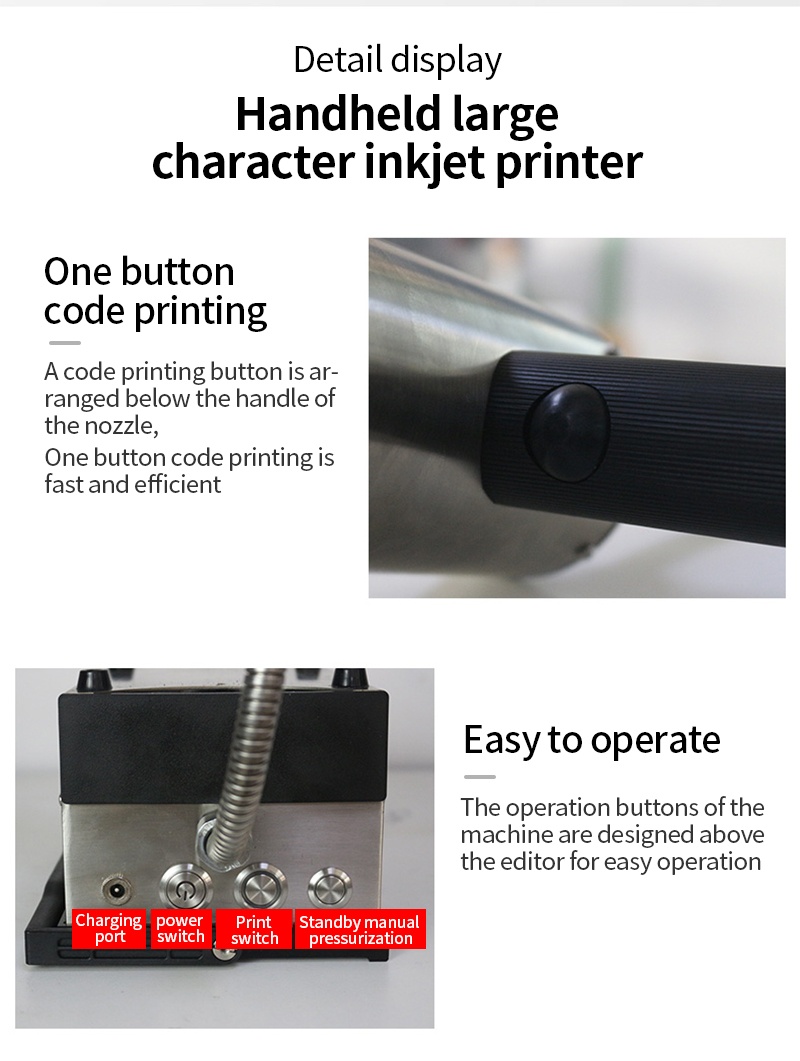

Status display: red indicator is on when printing

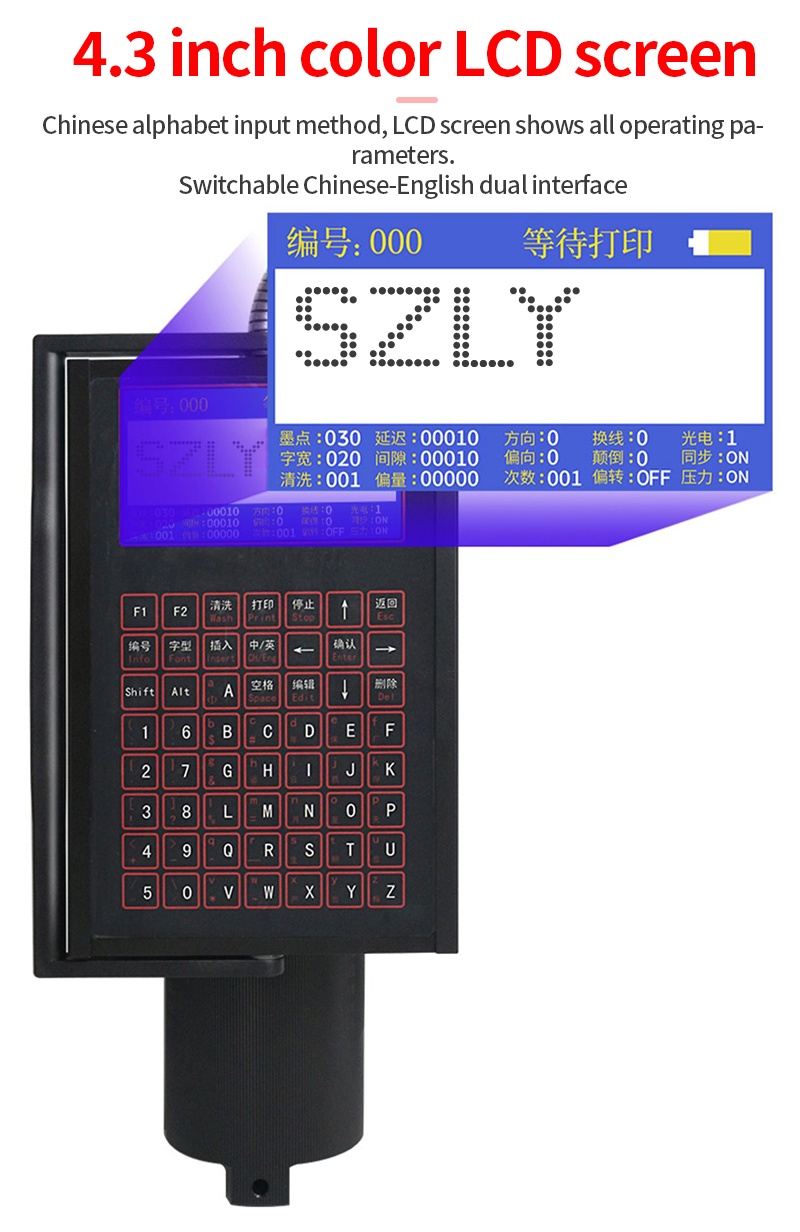

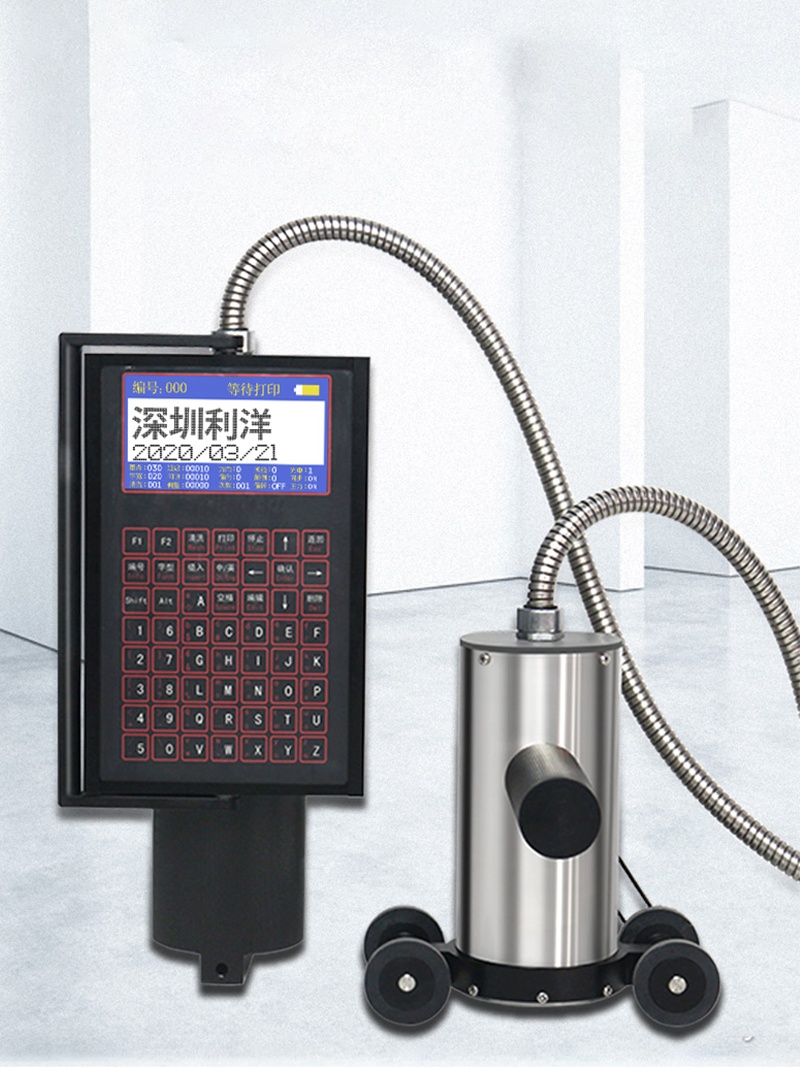

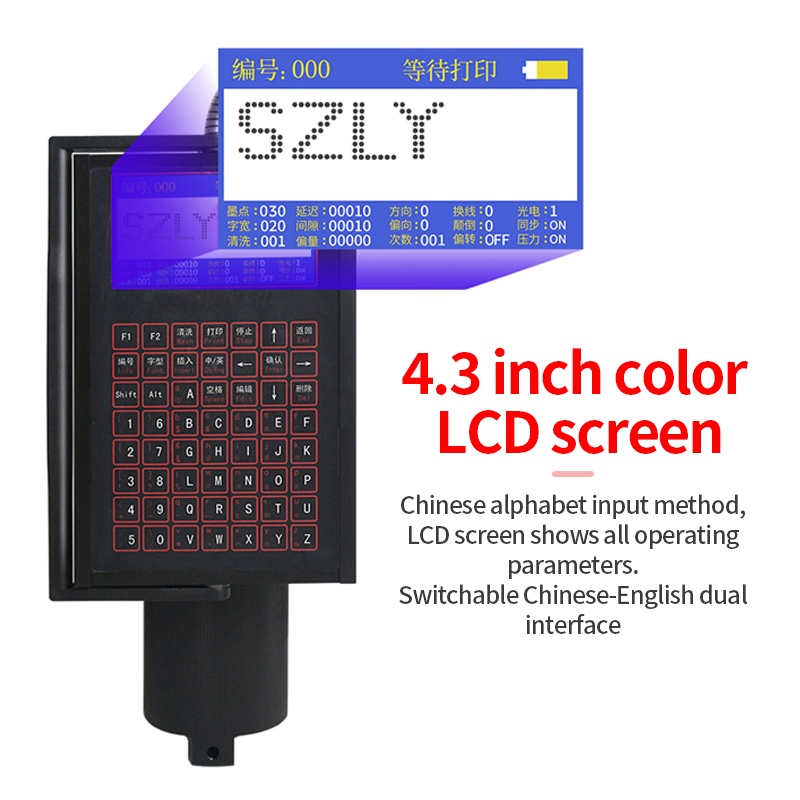

Screen display: display all printing parameters ata glance, and change

settings with one key

Trigger mode: triggered by photoelectric sensor

Printing control:encoder control

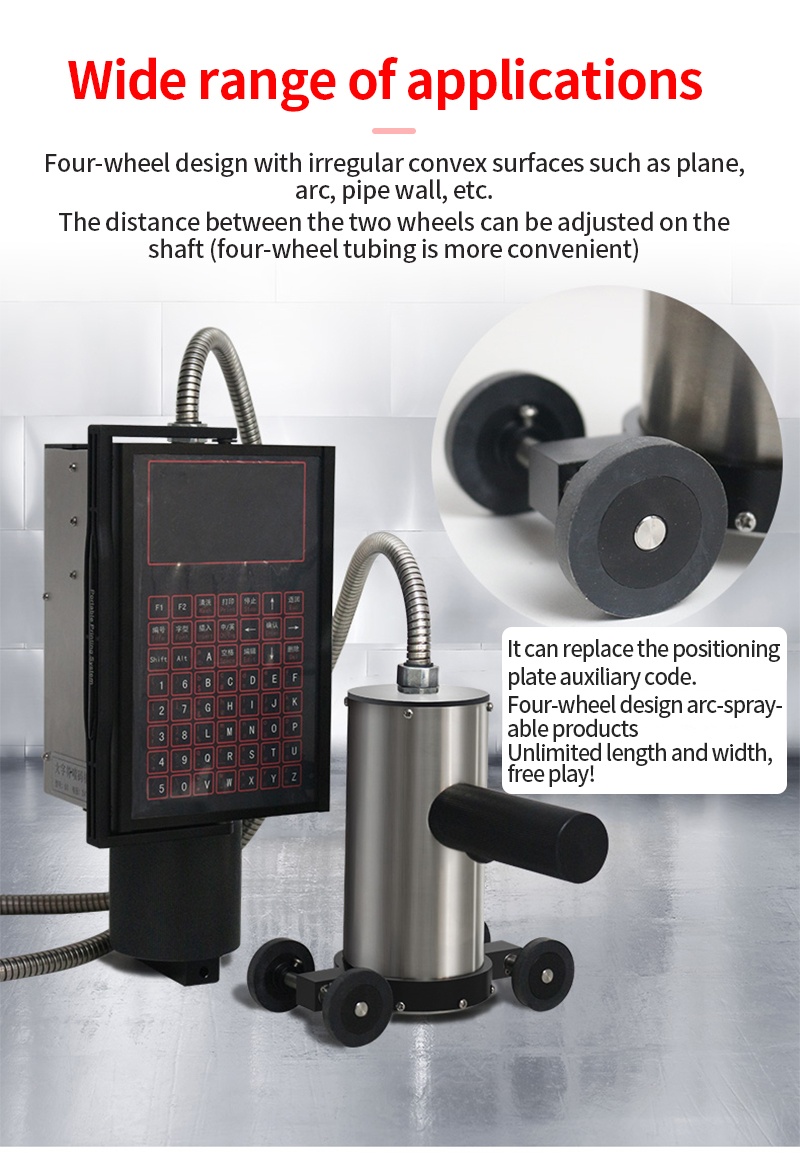

Printing direction: 360°

Spray printing material:  permeable or impermeable

Ink used: water-based ink (permeable surface) or oily ink (impermeable)

Ink color: black, white, optional

Ink supply mode: pressure by built-in air pump

Air source pressure: 0.01-0.06Mpa adjustable

Power parameter: charging input 100-240VAC50Hzoutput25.2V2A

Charging time: no more than 3hours

Data transmission: USB and computer transmission

Operating environment: temperature 5°C-45°C, humidity 10%-90%,

no condensation

Cable length: 1.8m (customized as required)

Machine weight: 4.1kg

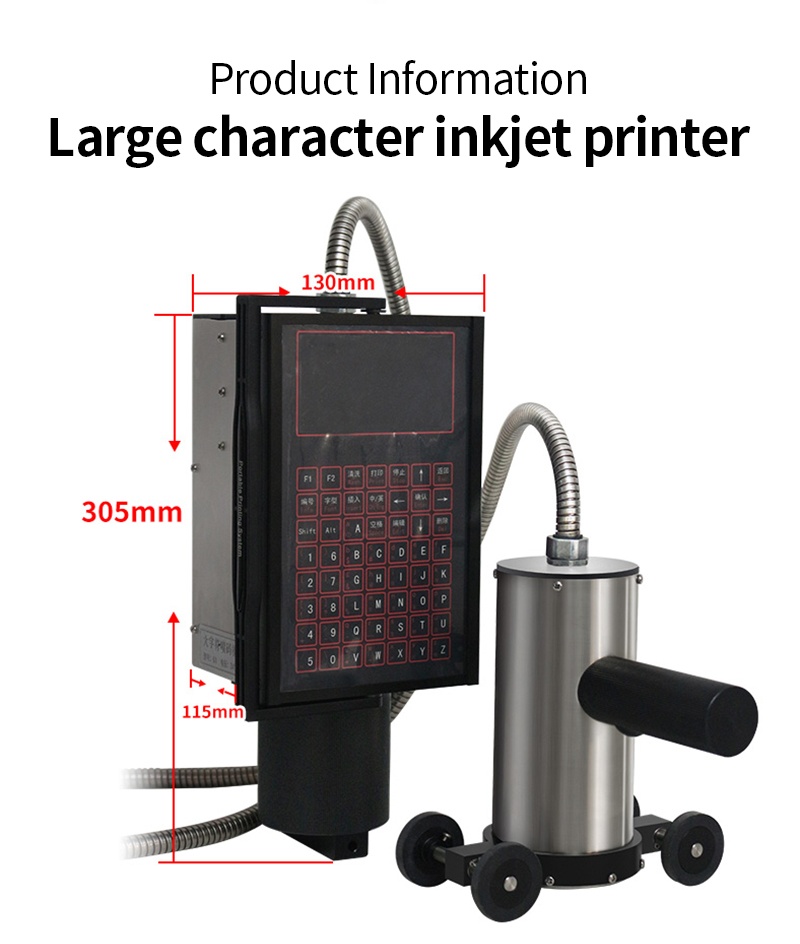

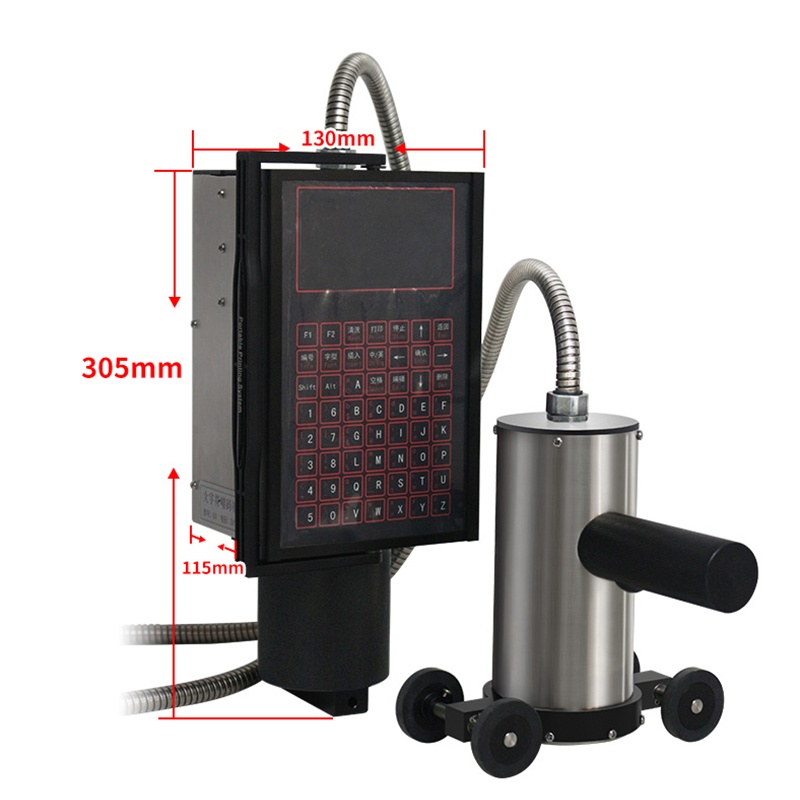

Machine size: 305*130*115 (editorsize only)

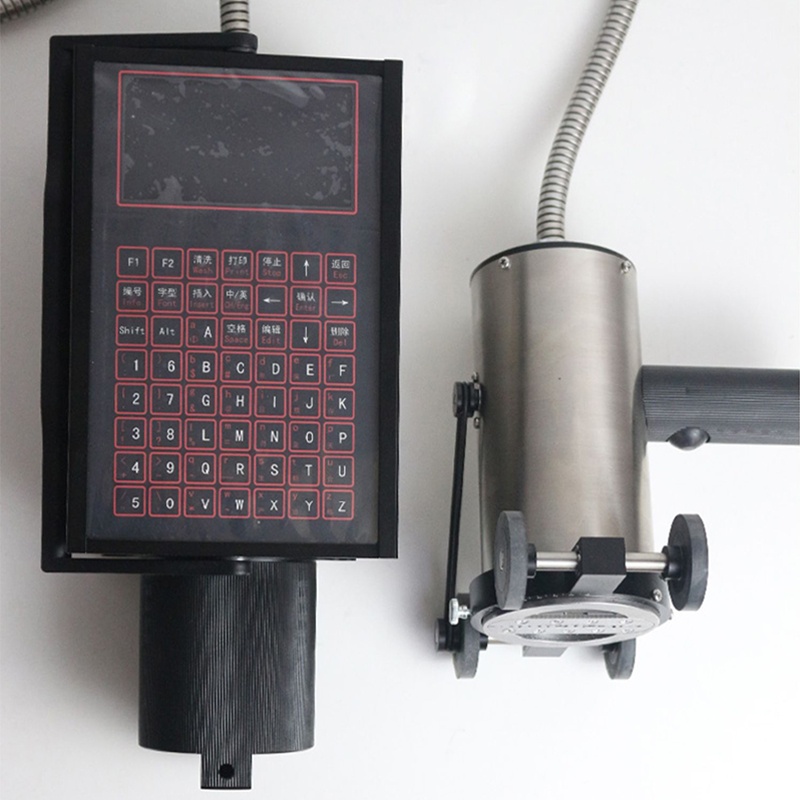

Machine appearance:stainless steel body, wear-resistant and durable
