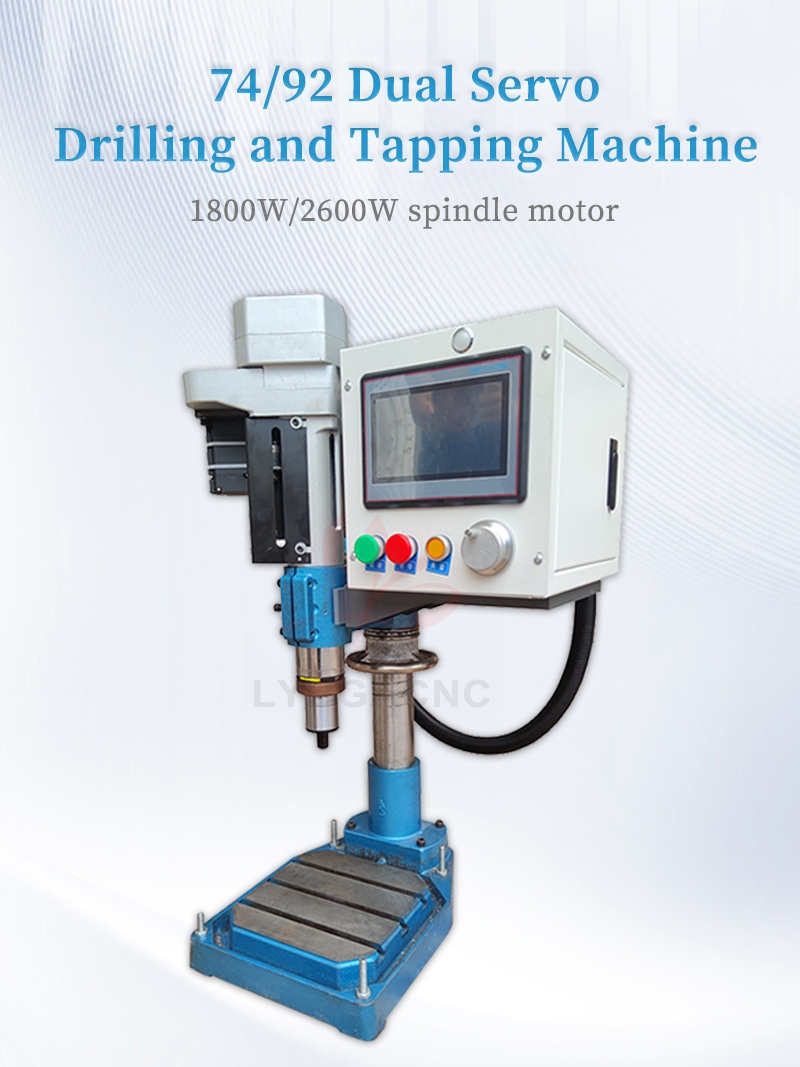

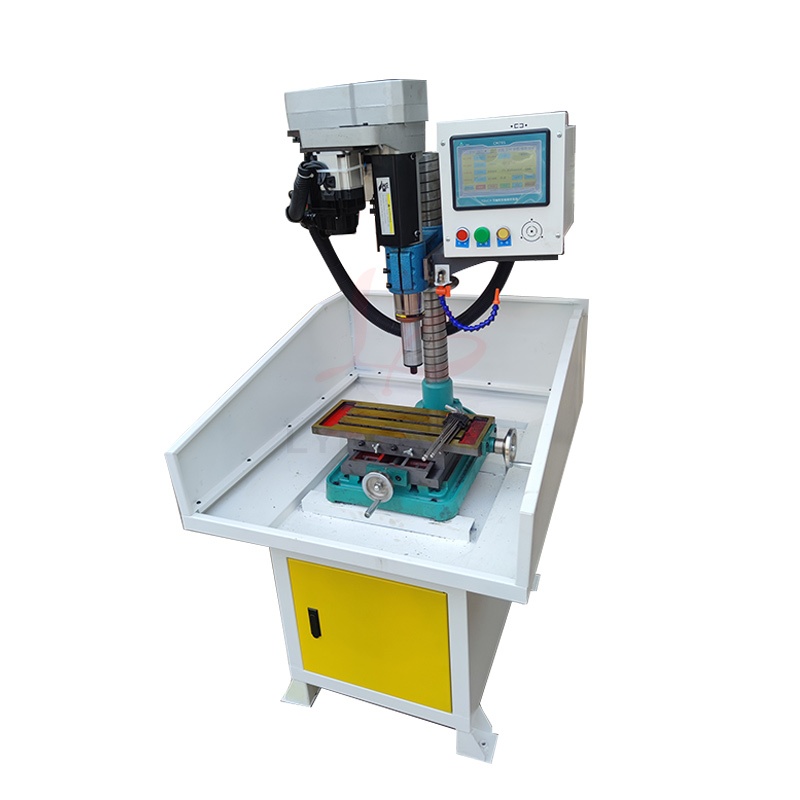

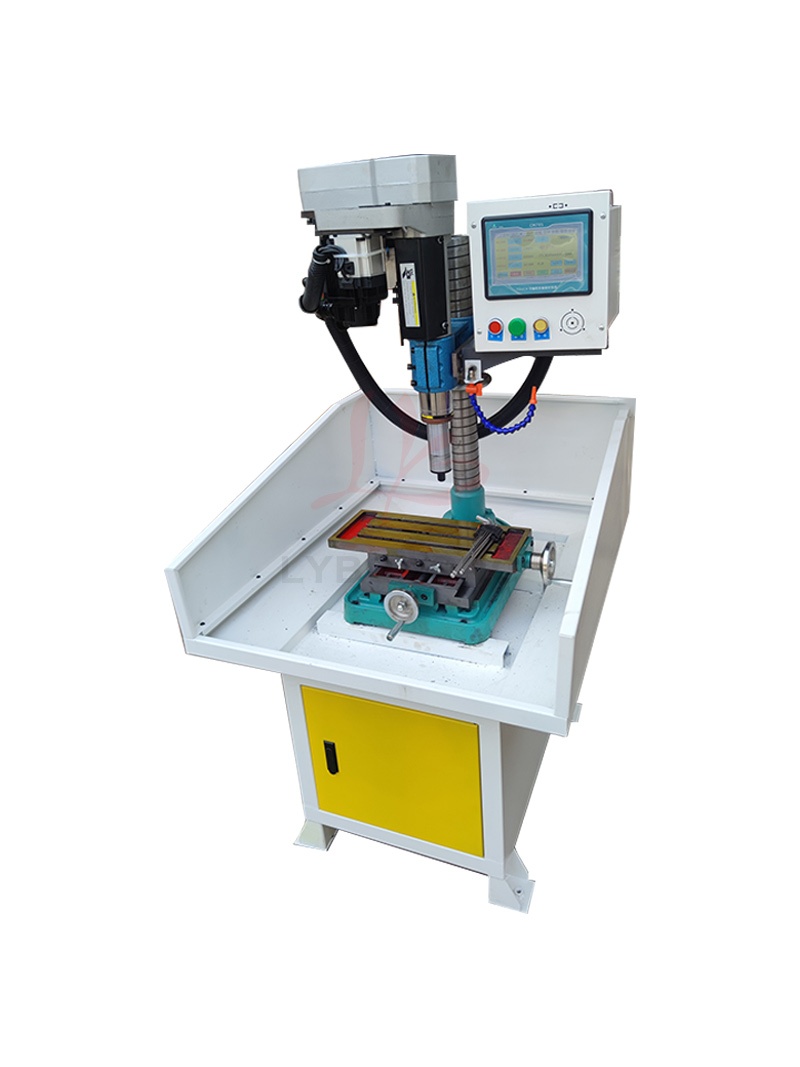

220V Dual Servo CNC Drilling and Tapping Machine with 74 92 Power Heads, Column Diameters 72mm & 92mm, Drilling Range 1-13mm, Feed & Spindle Motors, Sheet Metal Frame Base
Reviews(0)
Product Detail
Product Tags

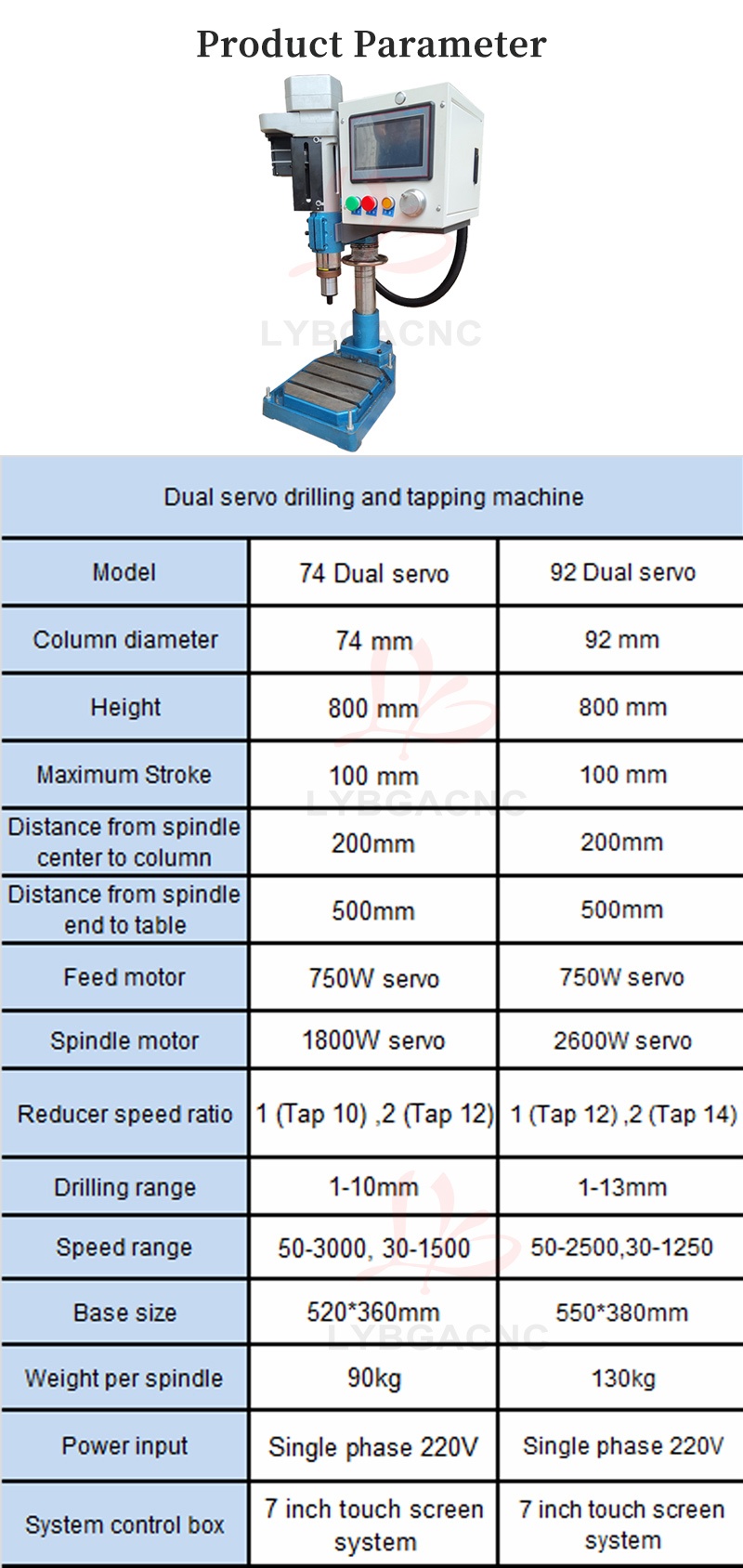

Equipment parameters
|
Dual servo drilling and tapping machine |
||
|
Model |

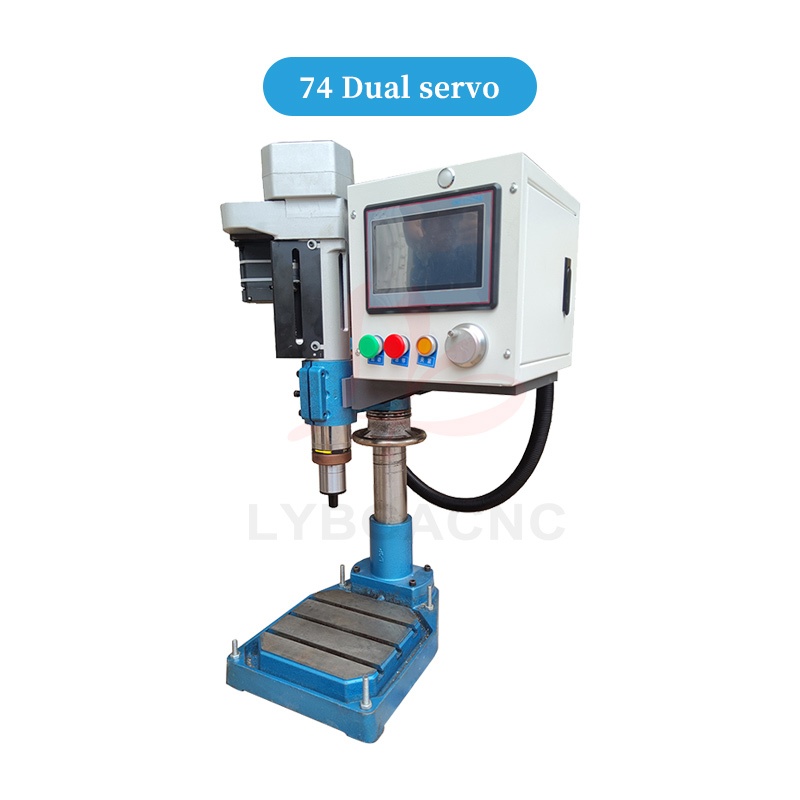

74 Dual servo |

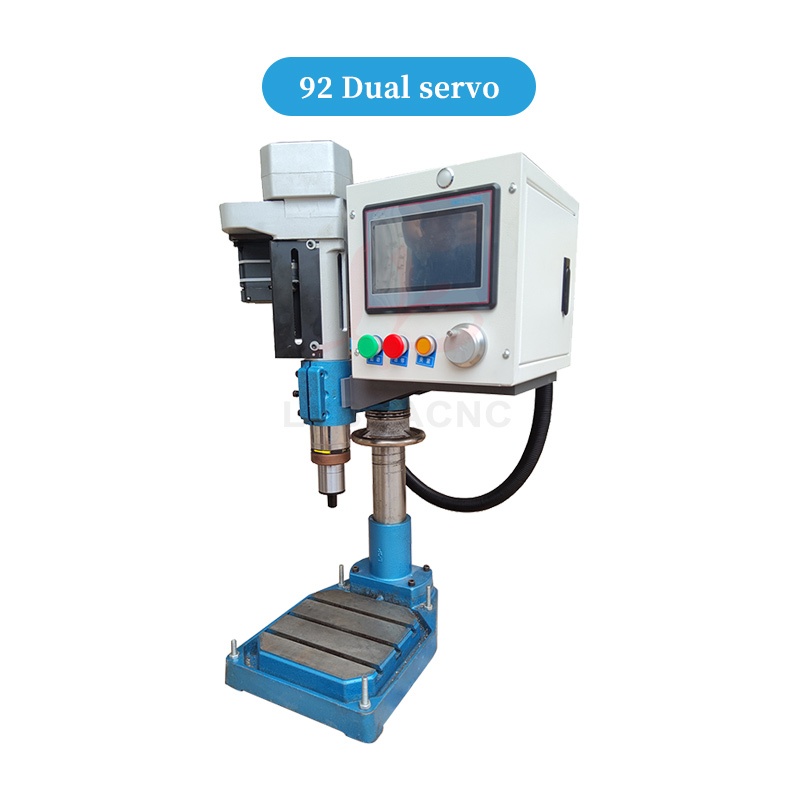

92 Dual servo |
|
Column diameter |
74 mm |
92 mm |
|

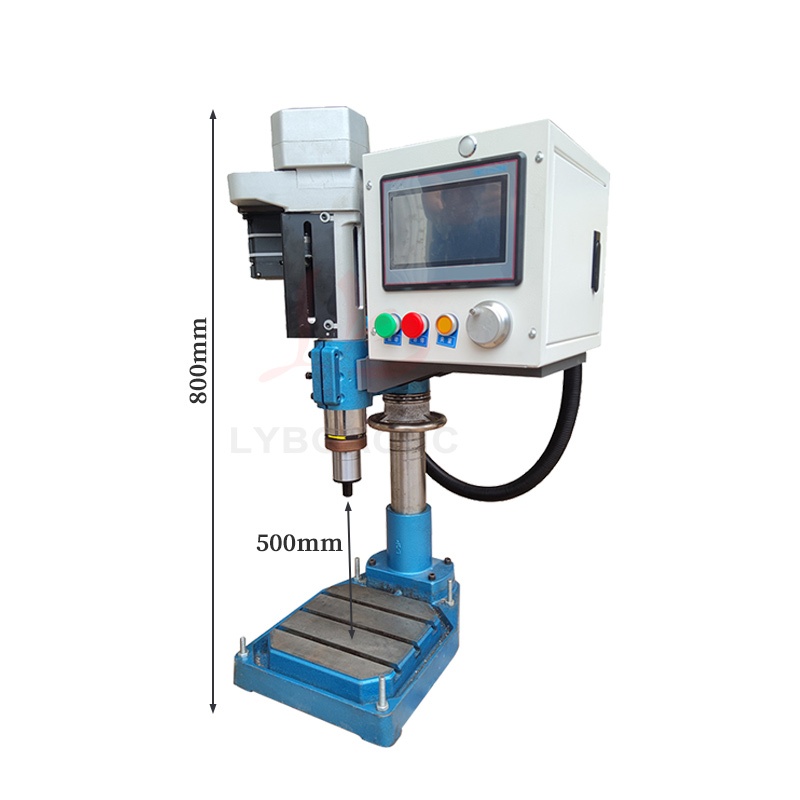

Height |
800 mm |
800 mm |
|
Maximum Stroke |
100 mm |
100 mm |
|
Distance from spindle center to column |
200mm |
200mm |
|
Distance from spindle end to table |
500mm |
500mm |
|

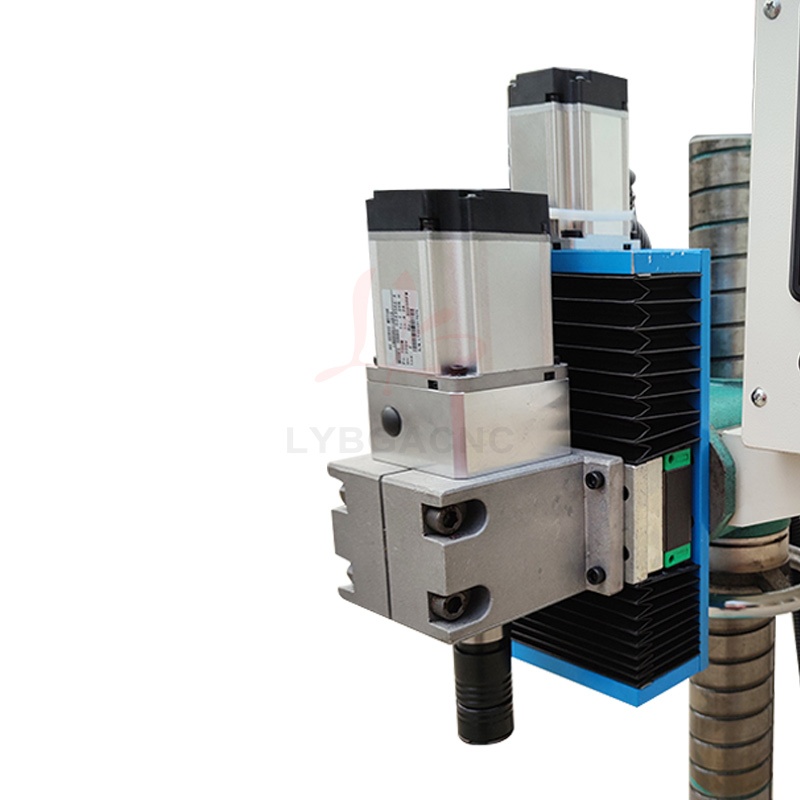

Feed motor |
750W servo |
750W servo |
|
Spindle motor |
1800W servo |
2600W servo |
|
Reducer speed ratio |
1 (Tap 10) ,2 (Tap 12) |
1 (Tap 12) ,2 (Tap 14) |
|
Drilling range |
1-10mm |
1-13mm |
|
Speed range |
50-3000, 30-1500 |
50-2500,30-1250 |
|
Base size |
520*360mm |
550*380mm |
|
Weight per spindle |
90kg |
130kg |
|
Power input |
Single phase 220V |
Single phase 220V |
|

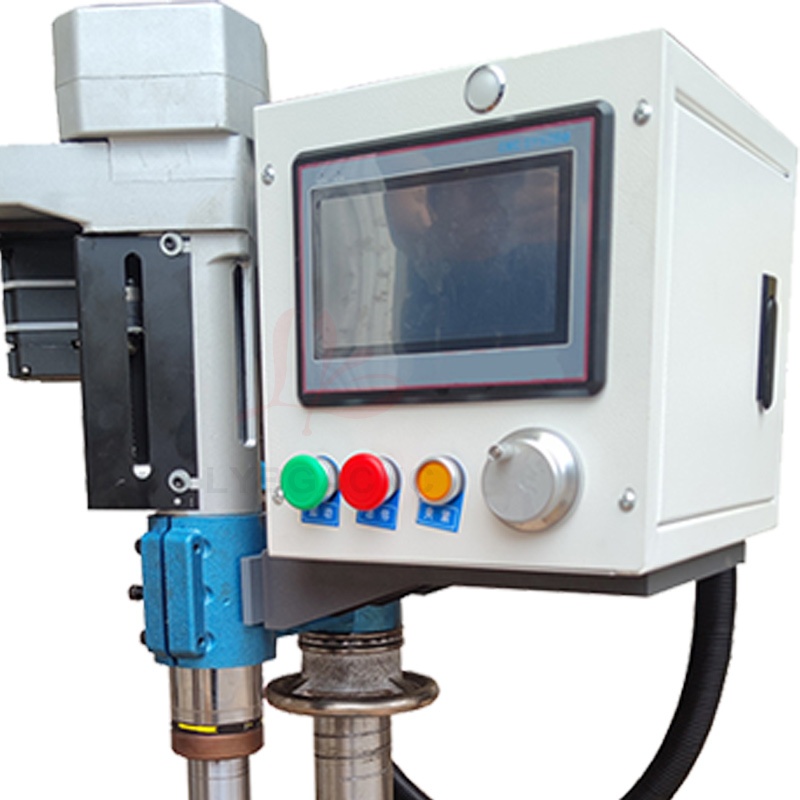

System control box |

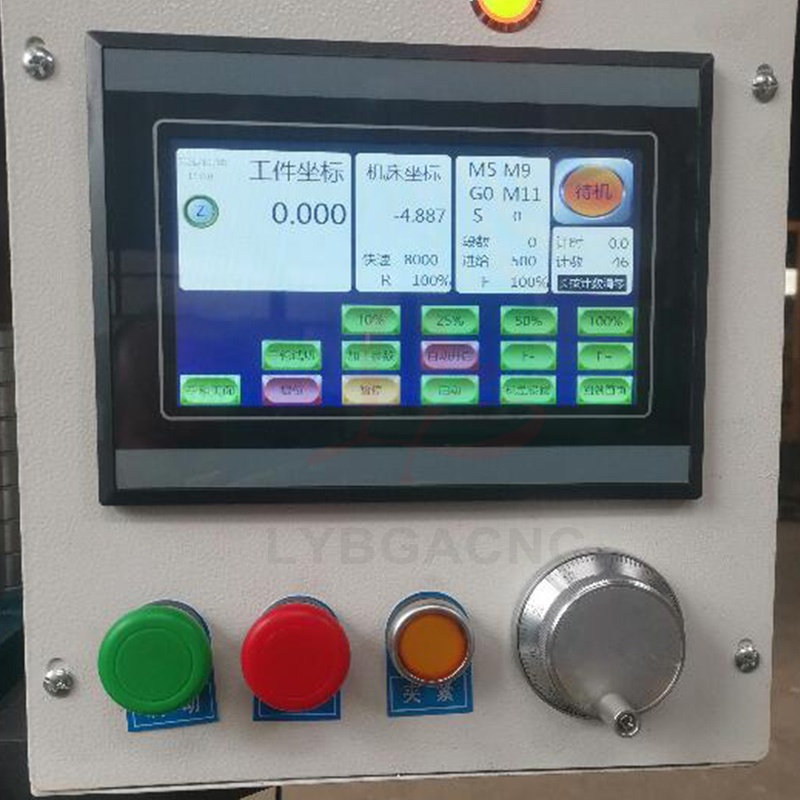

7 inch touch screen system |
7 inch touch screen system |

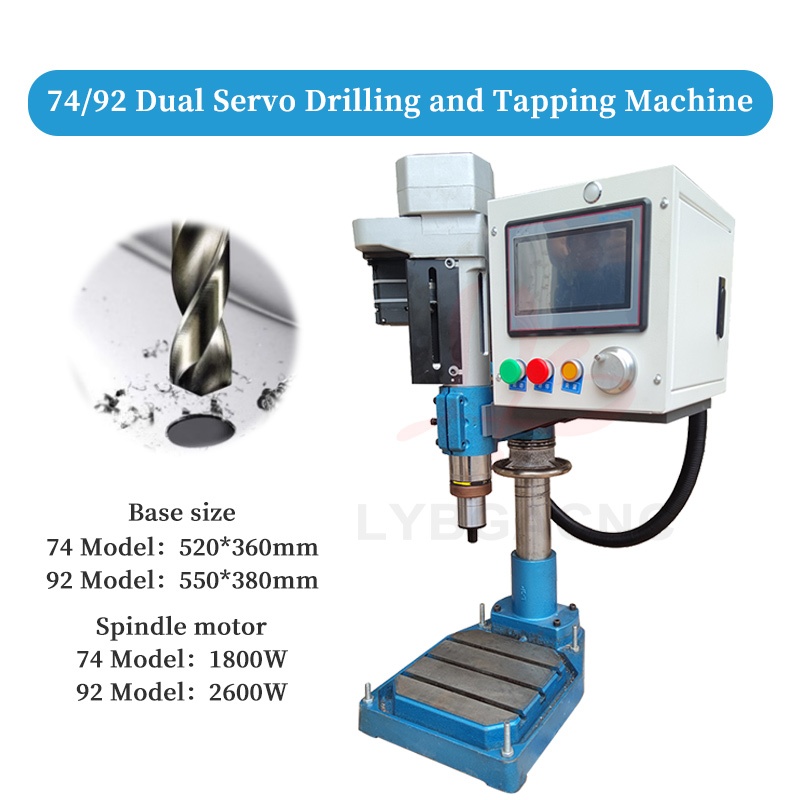

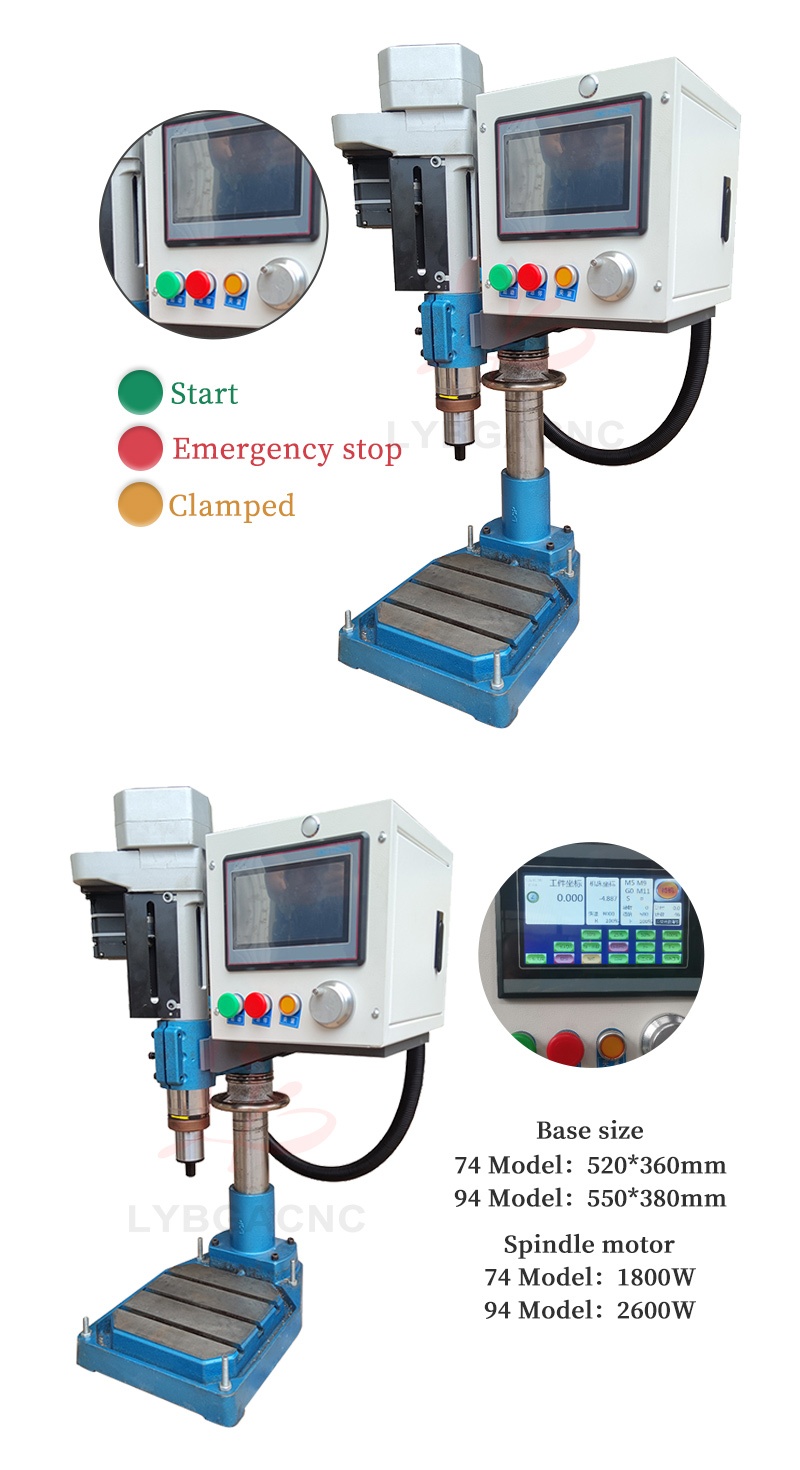

Base size：
74 model: 520*360mm
94 model: 550*380mm
Spindle motor
74 model: 1 800W
94 model: 2600W

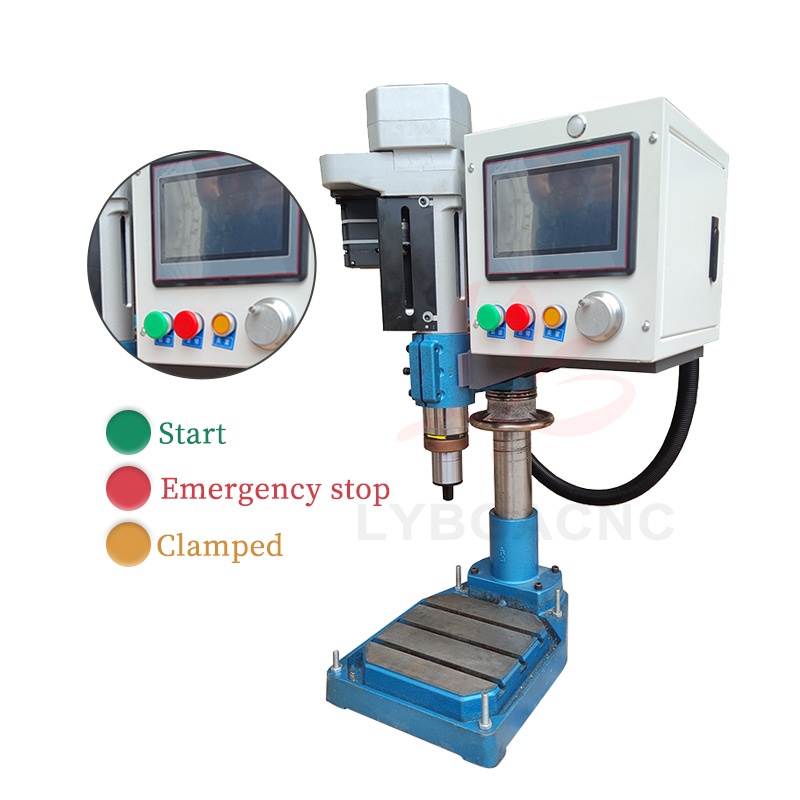

Alarm light：Three colors (Start, Emergency stop, Clamped)
Thanks for your order!

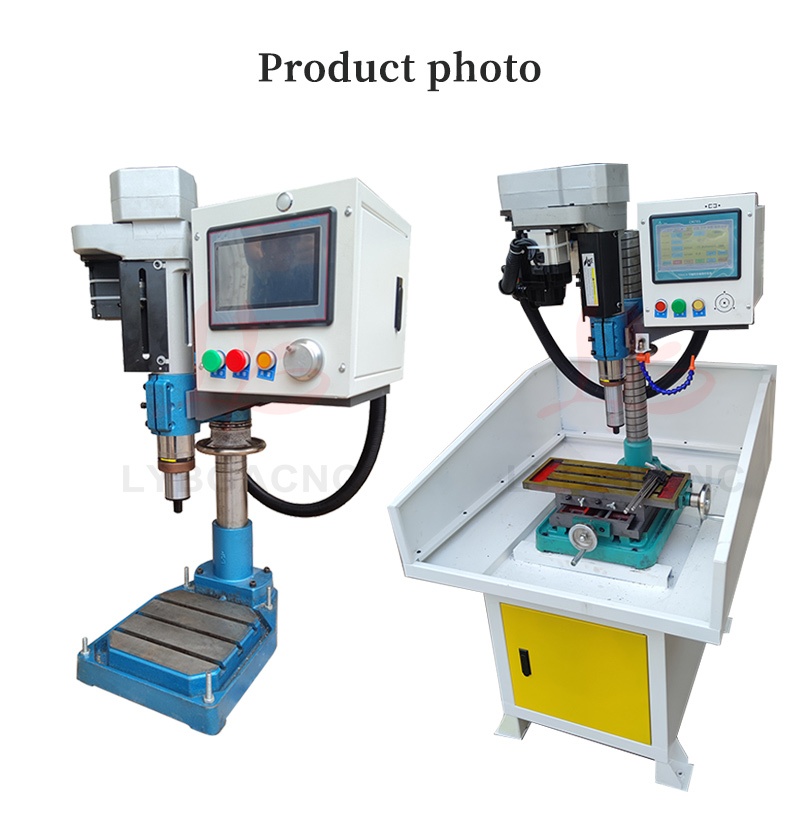

Product Pictures
