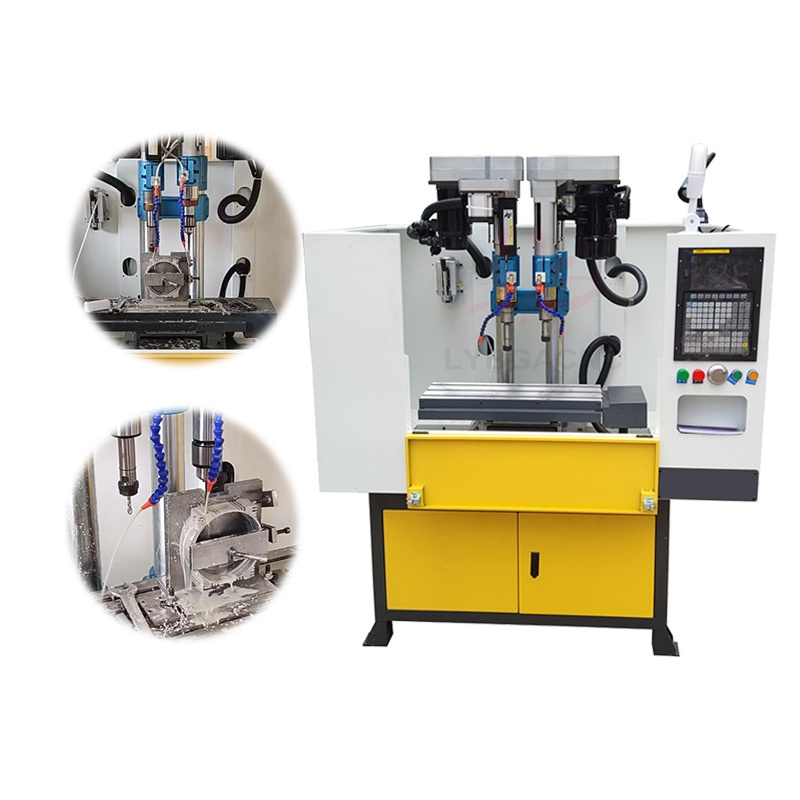

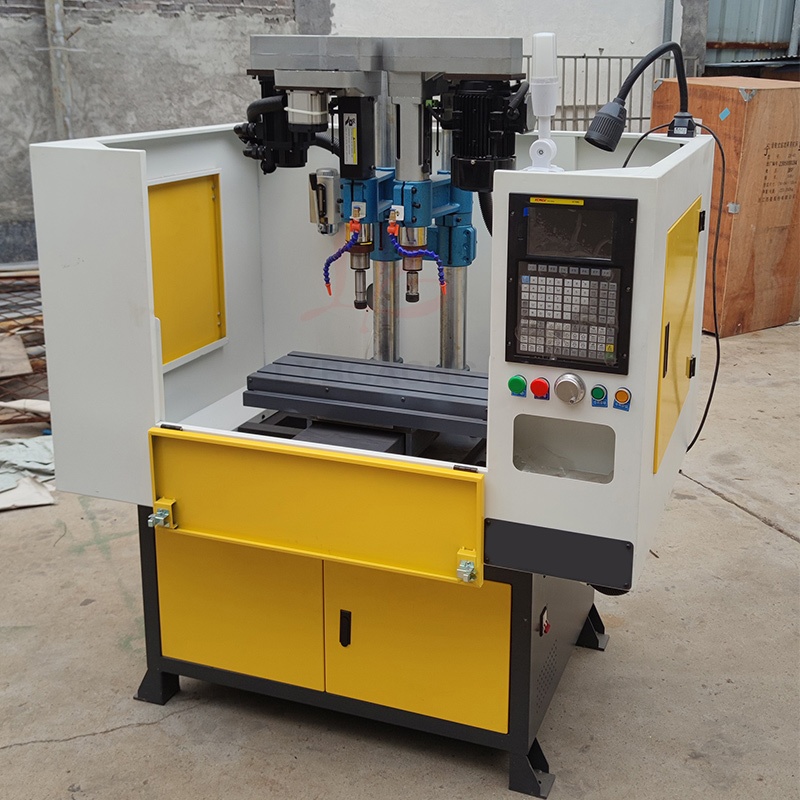

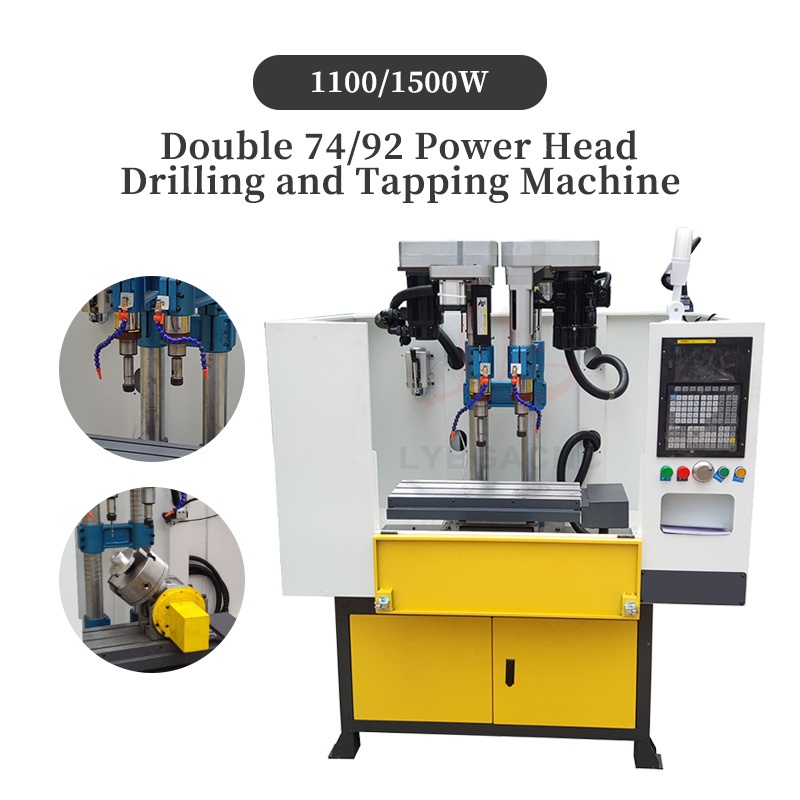

380V CNC Double Head Drilling and Tapping Machine, Water-cooled, 1100W & 1500W, 74 92 Dual Power Heads, Automatic with Electric Oil Pump, Tapping Range M2-M10-M14
Reviews(0)
Product Detail
Product Tags
|

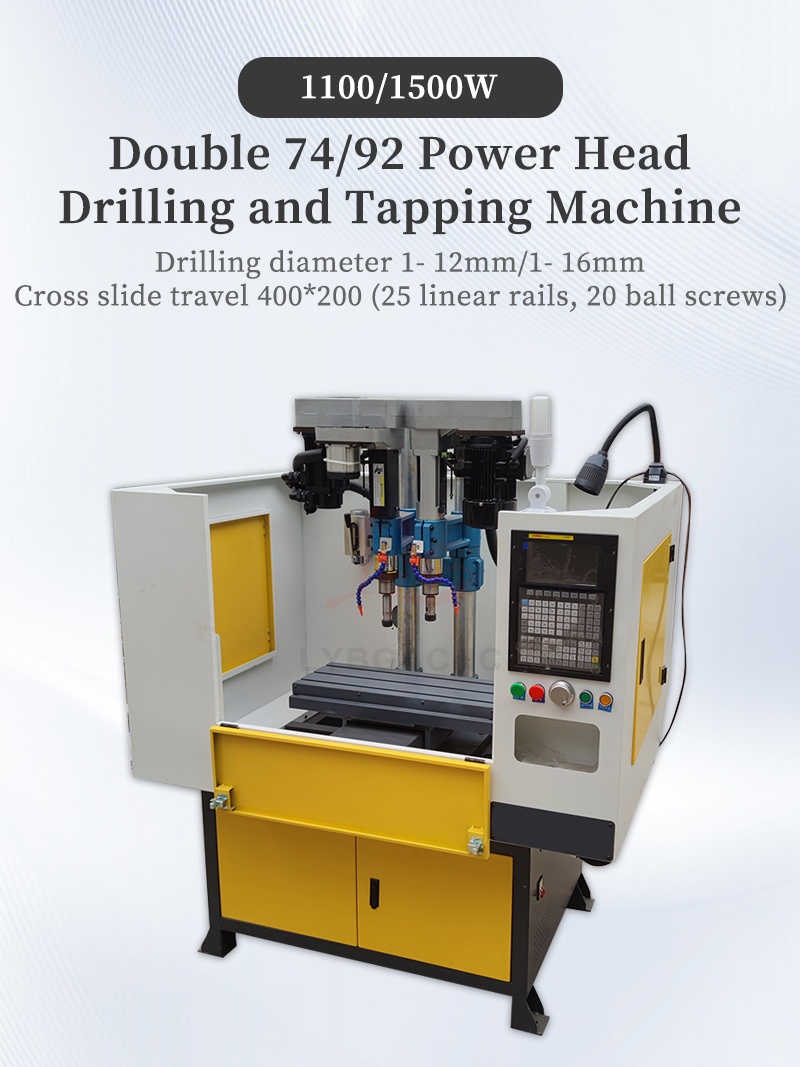

74/92 Dual head full servo cross slide drilling and tapping machine |
||
|
Model |
74 Dual head full servo |
92 Dual head full servo |
|
Bench drill model |

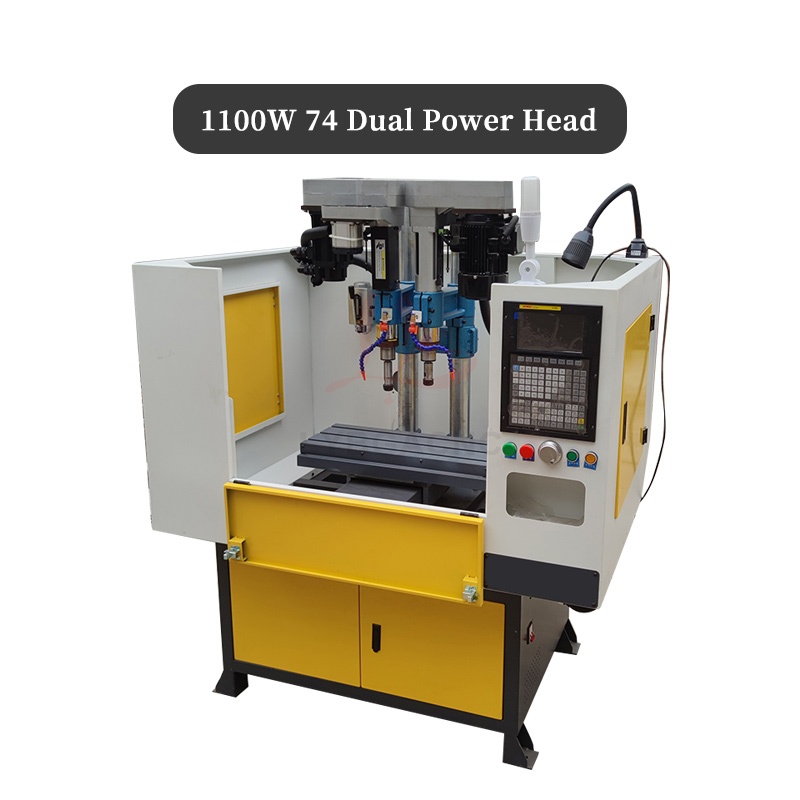

Double 74 power head drilling and tapping |

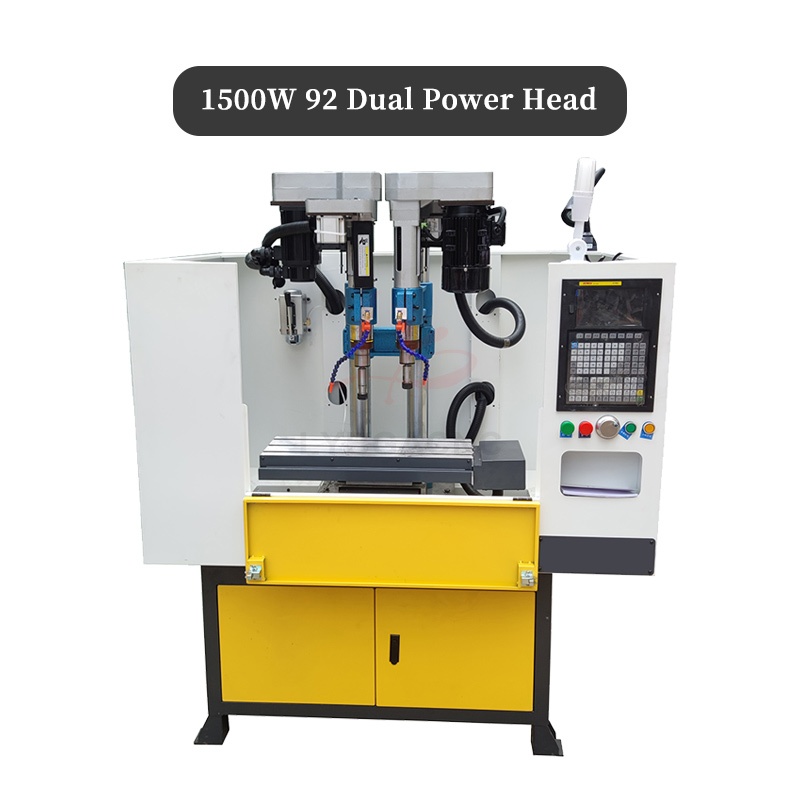

Double 92 power head drilling and tapping |
|
Spindle 1 servo power |
1800W AC servo |
2600W AC servo |
|
Punching spindle power |
1100V three-phase motor |
1500V three-phase motor |
|
Spindle 2 frequency converter |
380V industrial inverter |
380V industrial inverter |
|
Drilling diameter |
1- 12mm |
1- 16mm |
|
Tapping range |
M2- HM10 (Tapping spindle: aluminum speed ratio 1, steel speed ratio 2) |
M2- HM14 (Tapping spindle: aluminum speed ratio 1, steel speed ratio 2) |
|
Cross slide travel |
400*200 ( 25 linear rail, 20 ball screw) (X travel customized 600) |
400*200 ( 25 linear rail, 20 ball screw) |
|
XY axis CNC motor |
750W servo (traverse speed 20 meters per minute) |
750W servo (traverse speed 20 meters per minute) |
|
Column diameter |
74mm |
92mm |
|
Column height |
1 meter |
1 meter |
|
Z-axis maximum travel |
90mm |
90mm |
|
Feed mode |
16 ball screw |
20 ball screw |
|
Feed motor |
750W AC servo |
750W AC servo |
|
Distance from spindle center to column |
200mm |
200mm |
|
Distance from spindle end to table |
350mm |
350mm |
|
Spindle taper |
JT6 |
JT6 |
|
Spindle speed range |
100-3000 (customized 700, 1500, 3000, 5000) |
100-3000 (customized 700, 1500, 3000, 5000) |
|
Belt type |
5M synchronous belt |
5M synchronous belt |
|

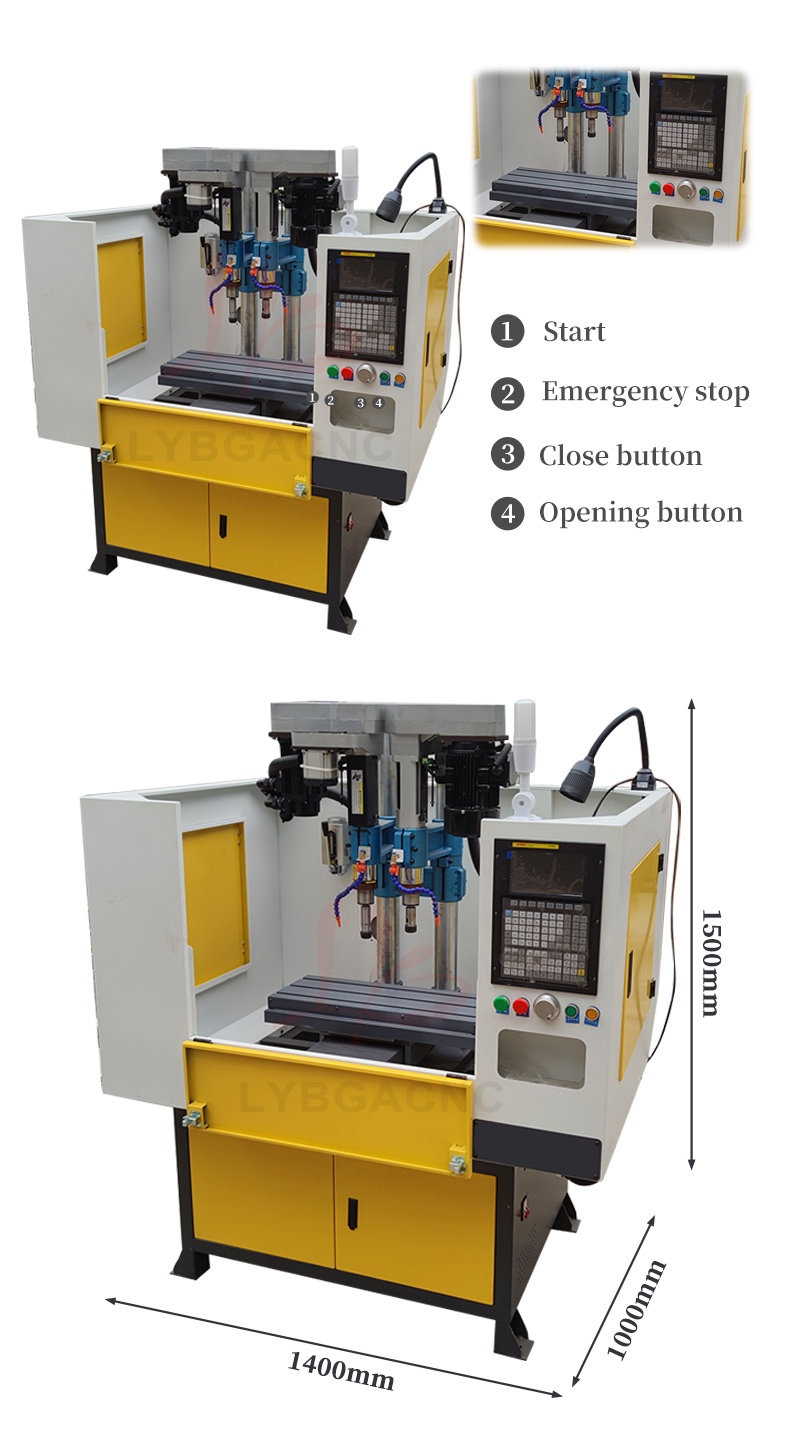

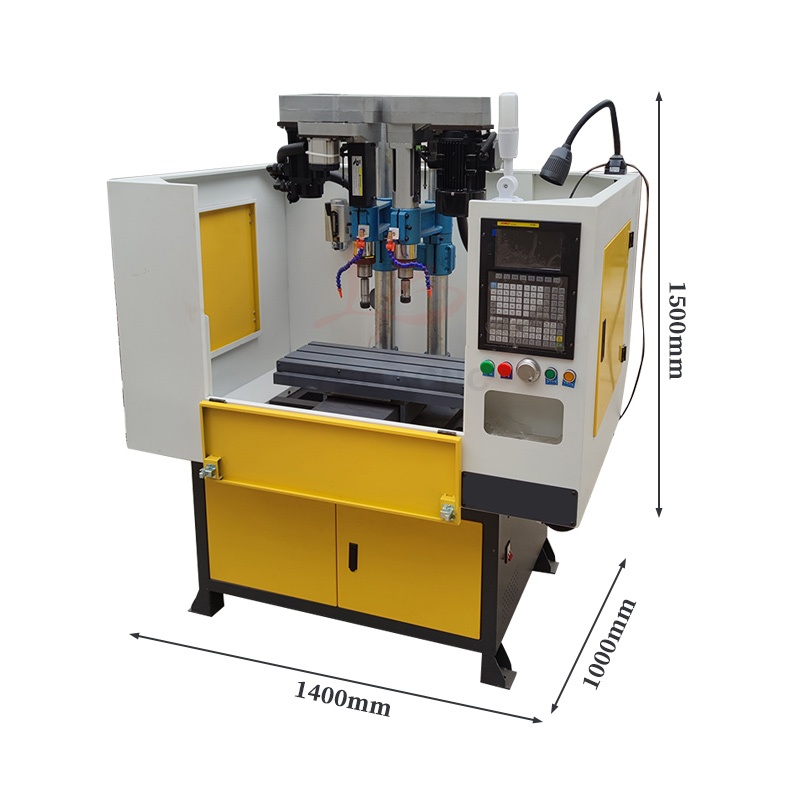

Overall Dimension |
1400* 1000*1500 |
1400* 1000*1500 |
|
Weight |
700kg |
750kg |
|
Power Input |
380V three-phase four-wire (zero wire) |
380V three-phase four-wire (zero wire) |
|
Numerical Control System |
5-axis 709 drilling and tapping system or 7-inch touch screen |
5-axis 709 drilling and tapping system or 7-inch touch screen |
|

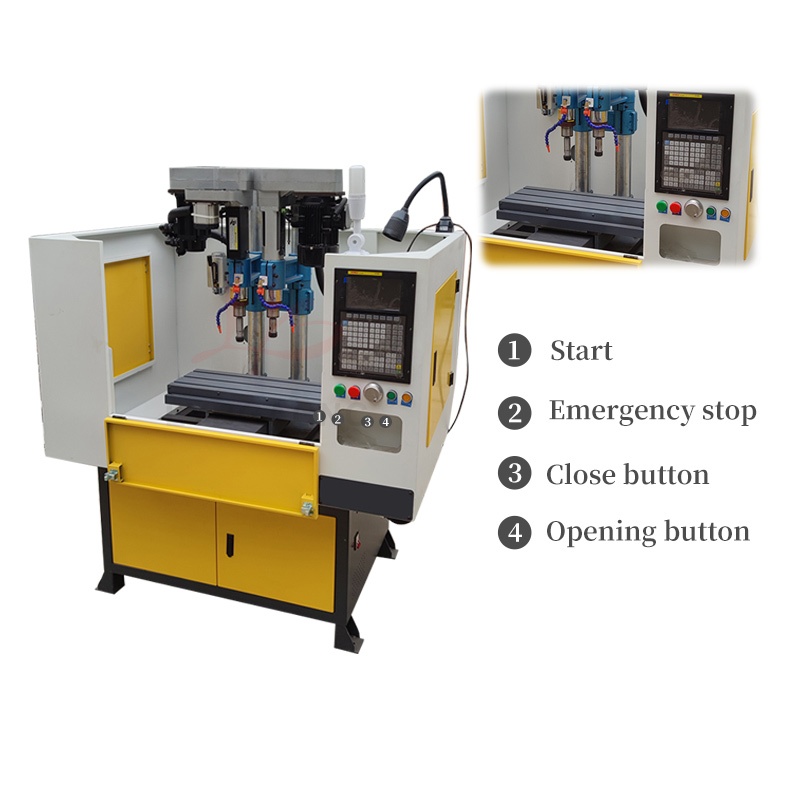

Electronic handwheel |
Panel standard |
Panel standard |
|
Oil Pump |
Electric oil pump |
Electric oil pump |
|
Alarm light |
Three colors (standby, running, alarm) |
Three colors (standby, running, alarm) |
|
One-piece sheet metal frame |

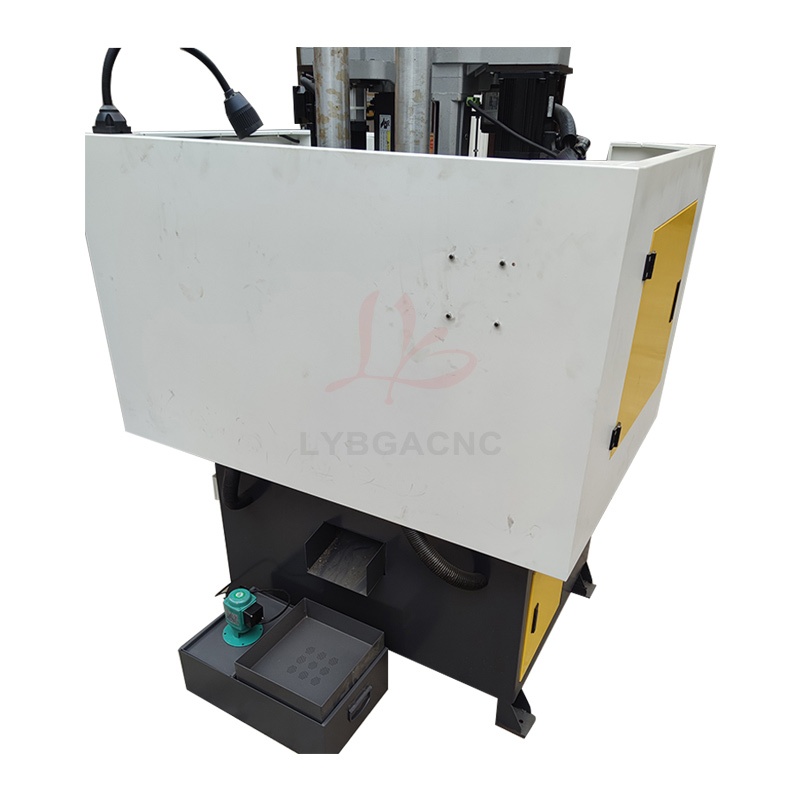

High enclosure with water tank and cooling accessories |
|
Thanks for your order!

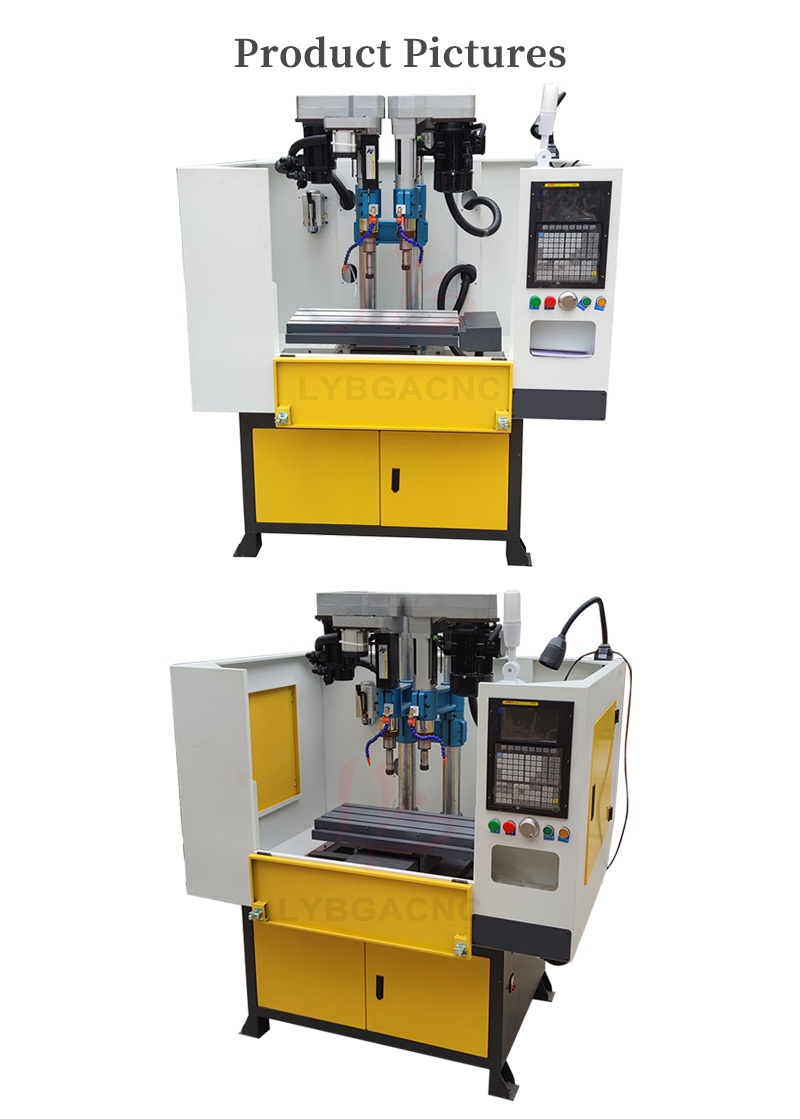

Product Pictures
