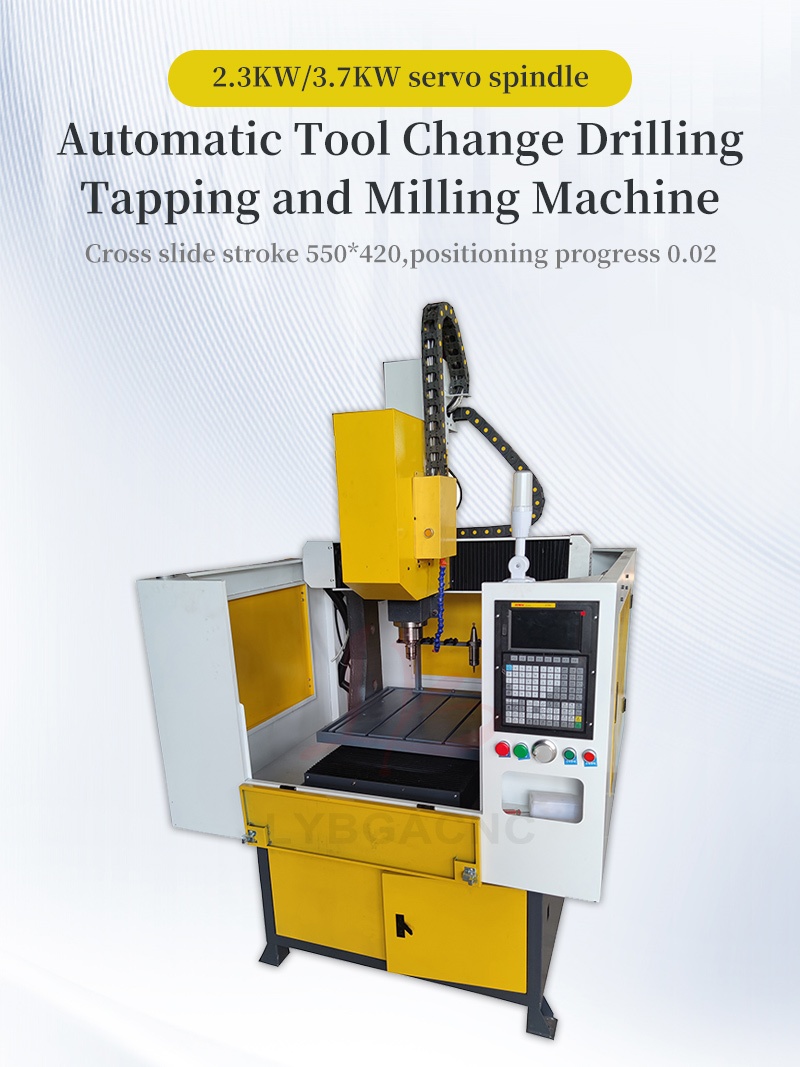

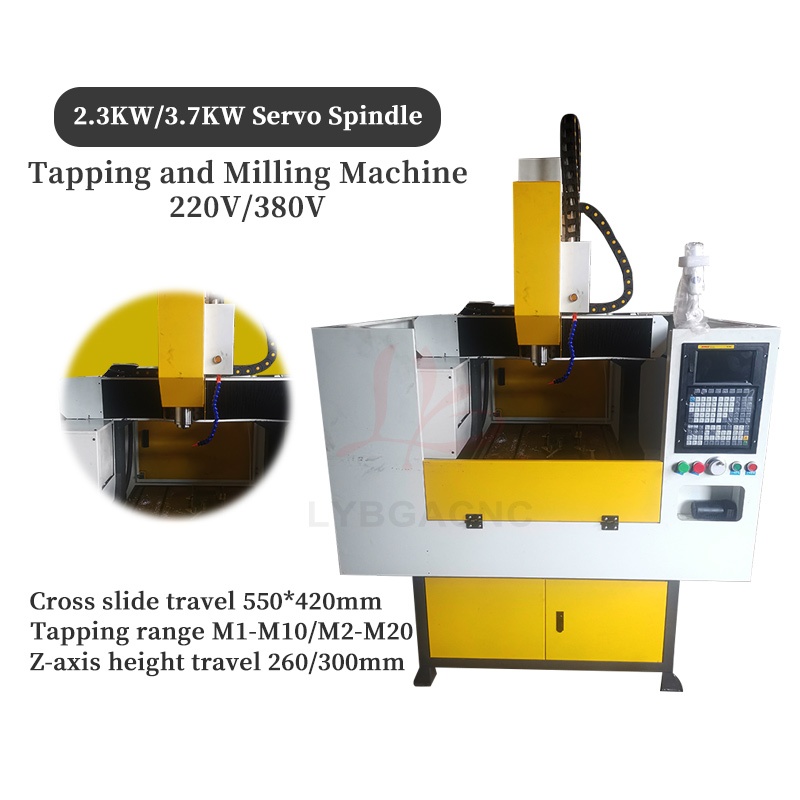

380V/220V Water-cooled CNC Drilling and Milling Machine with Automatic Tool Changer, for Drilling Tapping and Milling, 709 Drilling and Tapping System, Cross Slide Table Stroke 550*420mm
Reviews(0)
Product Detail
Product Tags
|

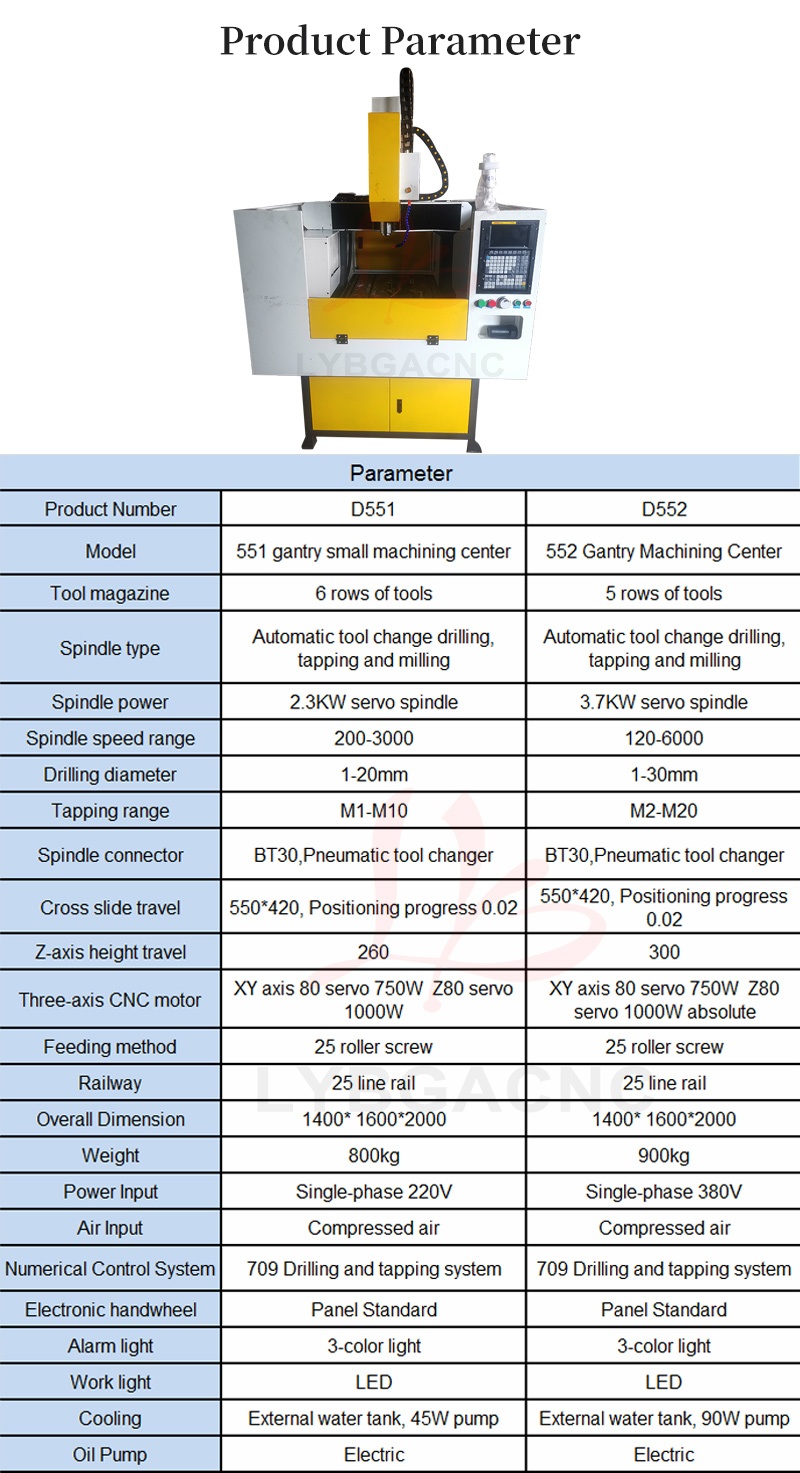

Product Number |
D551 |
D552 |
|
Model |
551 gantry small machining center |
552 Gantry Machining Center |
|
Tool magazine |
6 rows of tools |
5 rows of tools |
|
Spindle type |
Automatic tool change drilling, tapping and milling |
Automatic tool change drilling, tapping and milling |
|

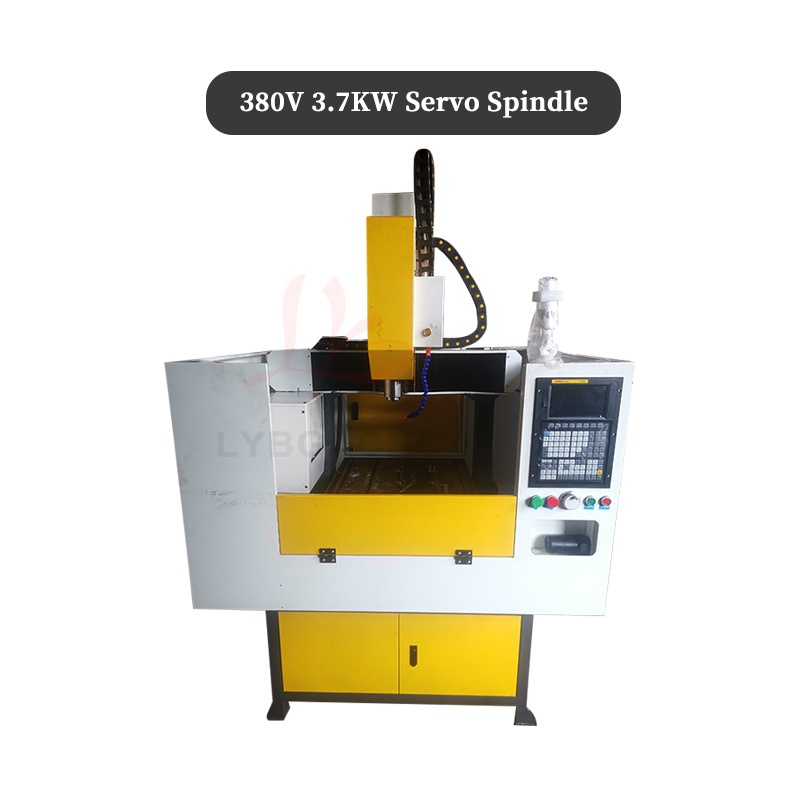

Spindle power |

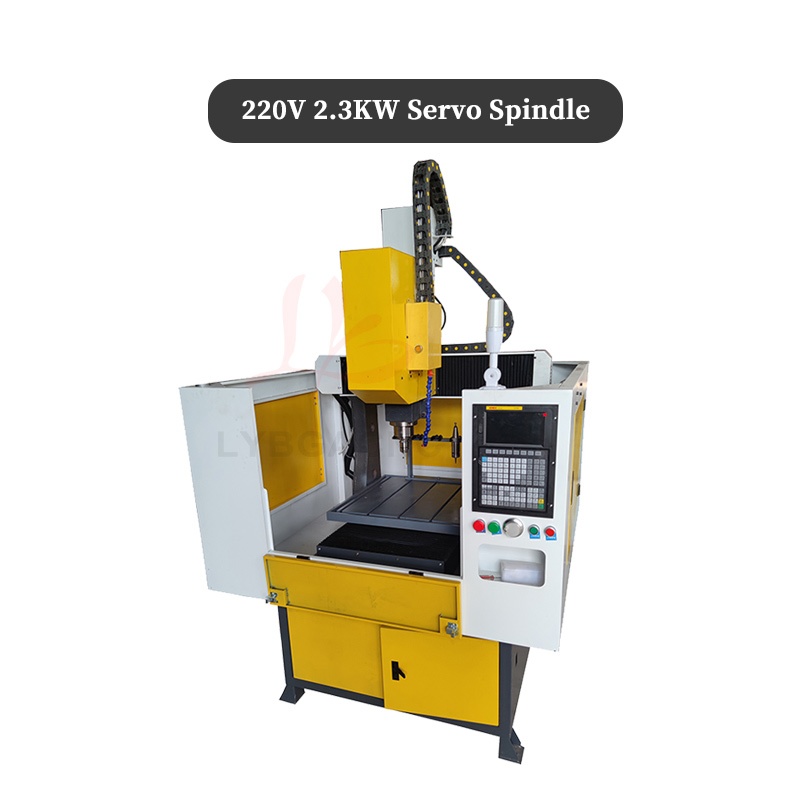

2.3KW servo spindle |
3.7KW servo spindle |
|
Spindle speed range |
200-3000 |
120-6000 |
|
Drilling diameter |
1-20mm |
1-30mm |
|
Tapping range |
M1-M10 |
M2-M20 |
|
Spindle connector |
BT30,Pneumatic tool changer |
BT30,Pneumatic tool changer |
|
Cross slide travel |
550*420, Positioning progress 0.02 |
550*420, Positioning progress 0.02 |
|
Z-axis height travel |
260 |
300 |
|
Three-axis CNC motor |
XY axis 80 servo 750W Z80 servo 1000W |
XY axis 80 servo 750W Z80 servo 1000W absolute |
|
Feeding method |
25 roller screw |
25 roller screw |
|
Railway |
25 line rail |
25 line rail |
|

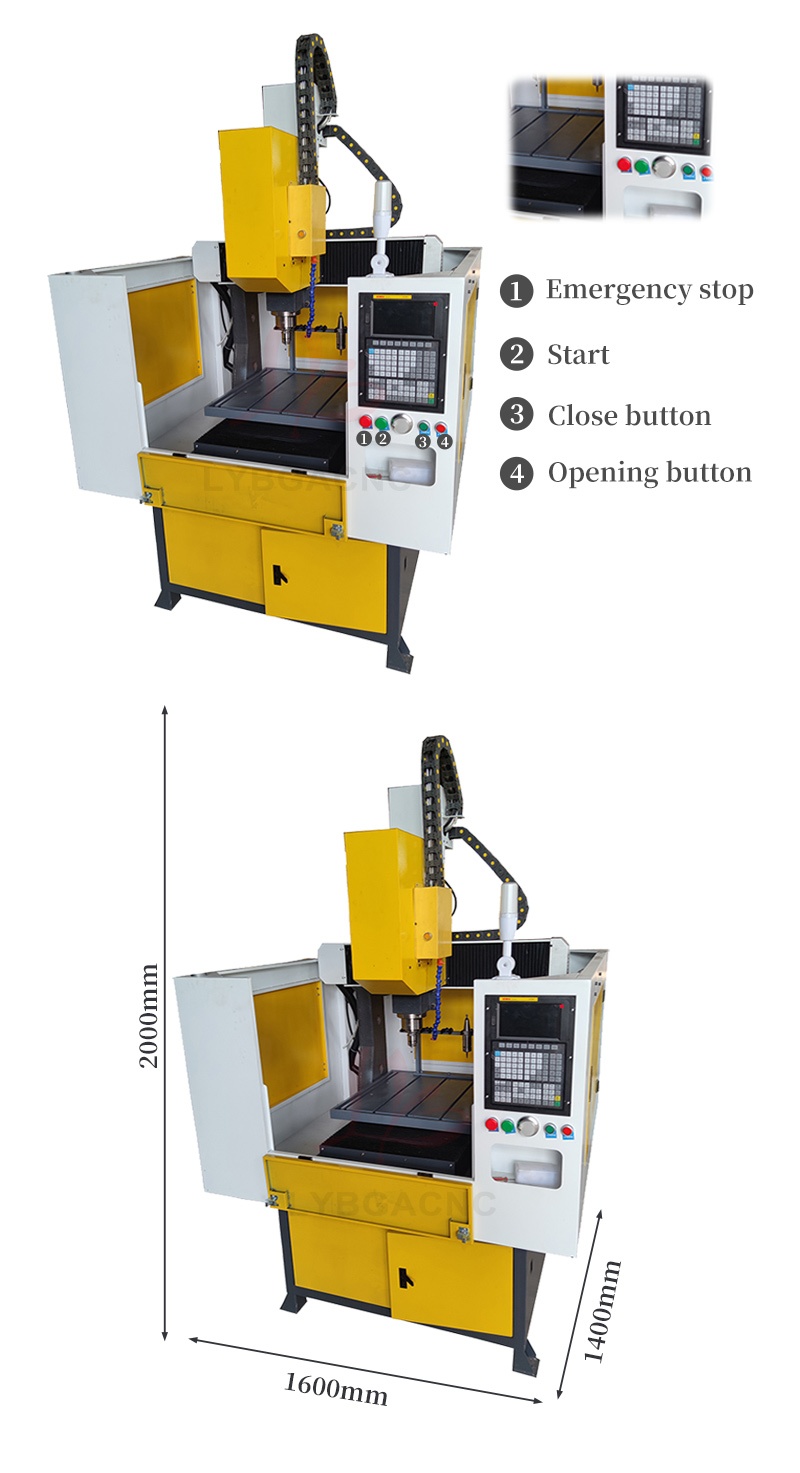

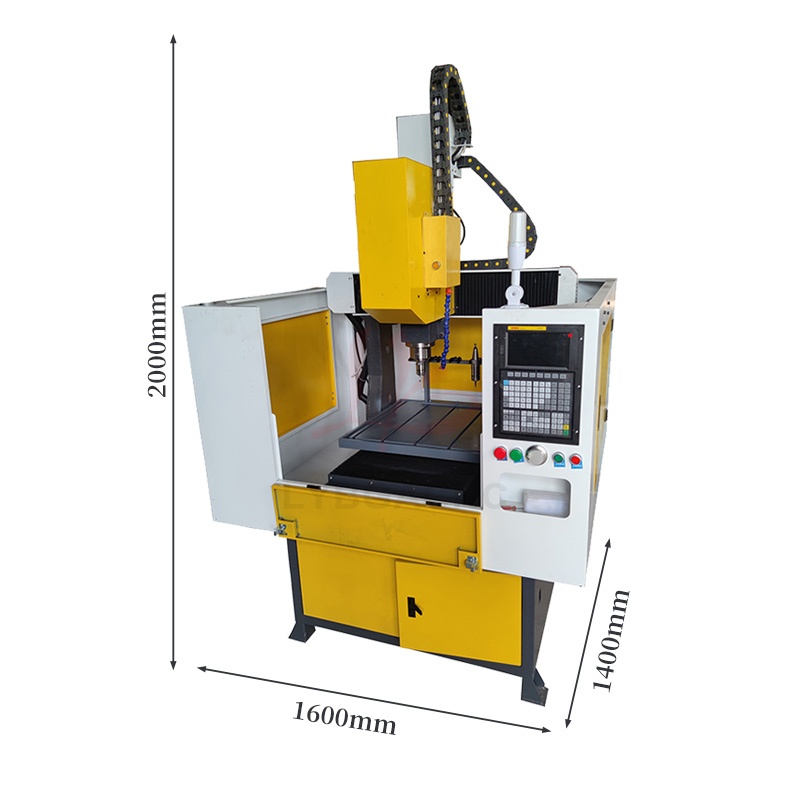

Overall Dimension |
1400* 1600*2000 |
1400* 1600*2000 |
|
Weight |
800kg |
900kg |
|
Power Input |
Single-phase 220V |
Single-phase 380V |
|
Air Input |
Compressed air |
Compressed air |
|
Numerical Control System |
709 Drilling and tapping system |
709 Drilling and tapping system |
|
Electronic handwheel |
Panel Standard |
Panel Standard |
|
Alarm light |
3-color light |
3-color light |
|
Work light |
LED |
LED |
|
Cooling |
External water tank, 45W pump |
External water tank, 90W pump |
|
Oil Pump |
Electric |
Electric |
Thanks for your order!

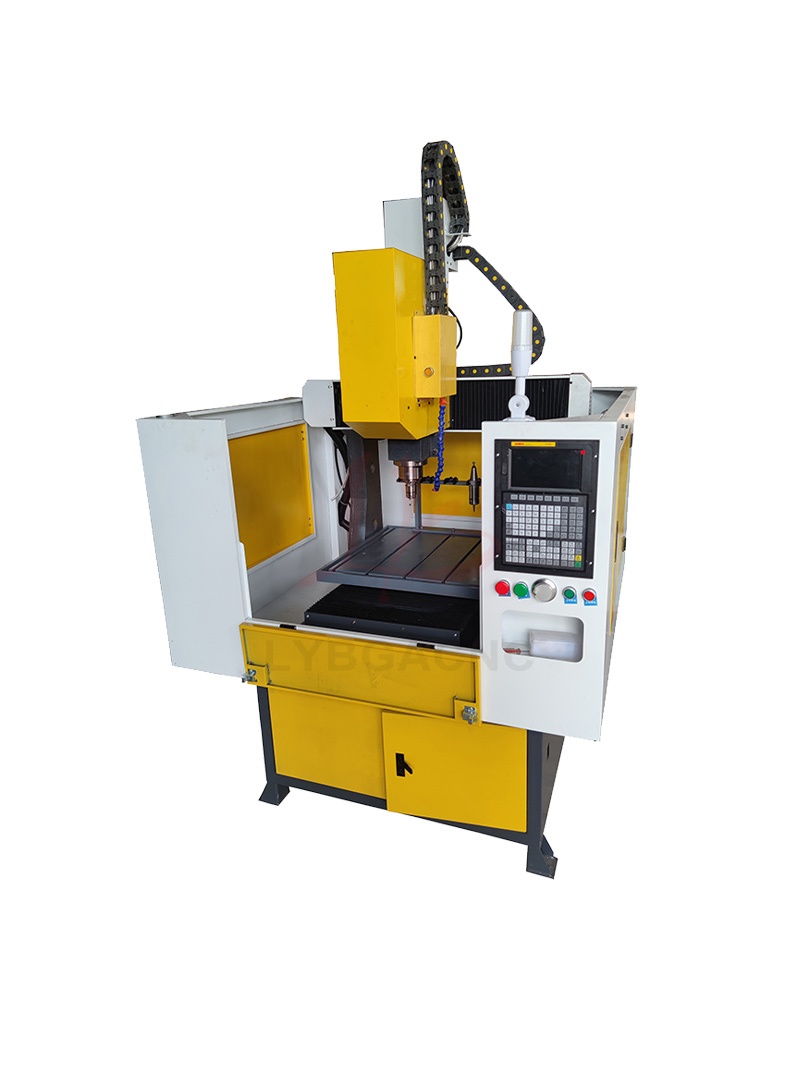

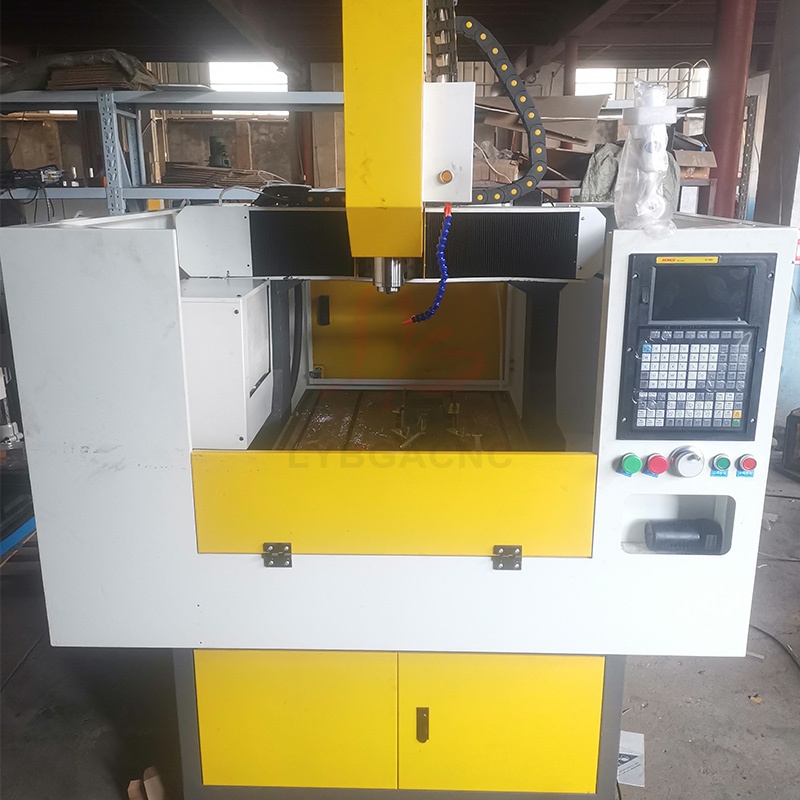

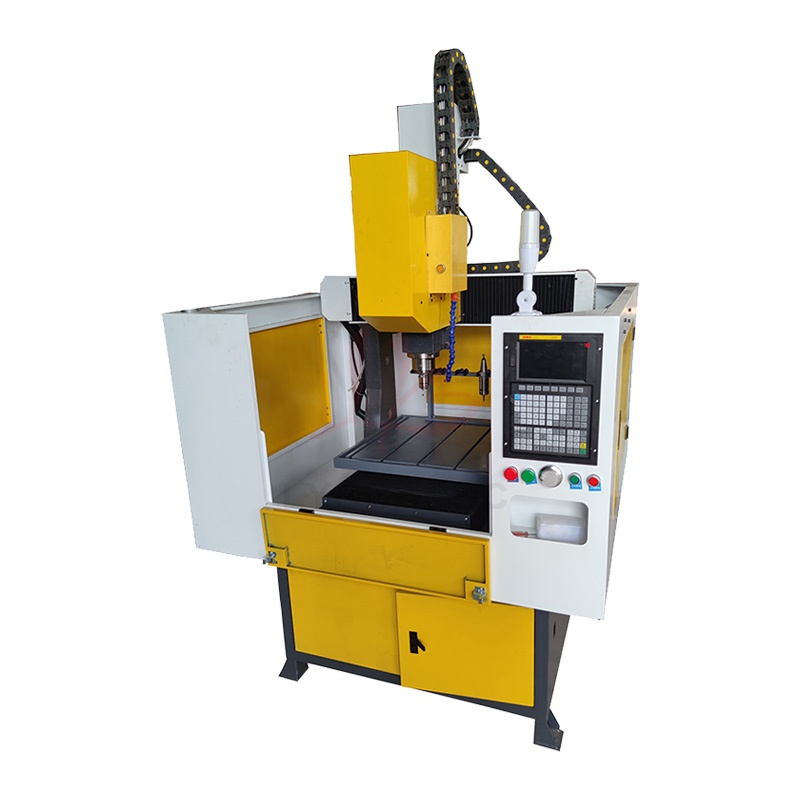

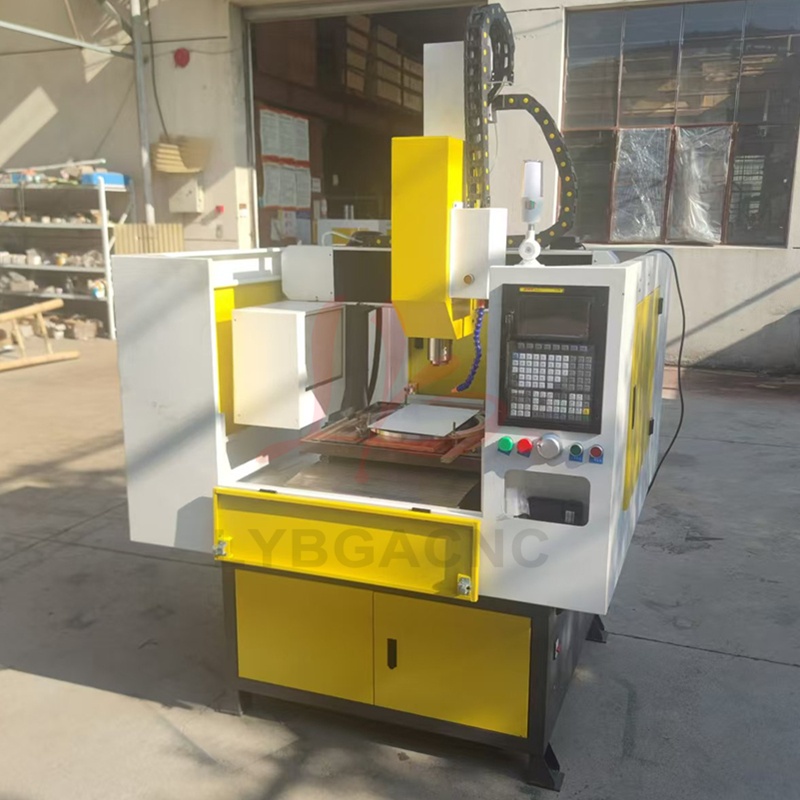

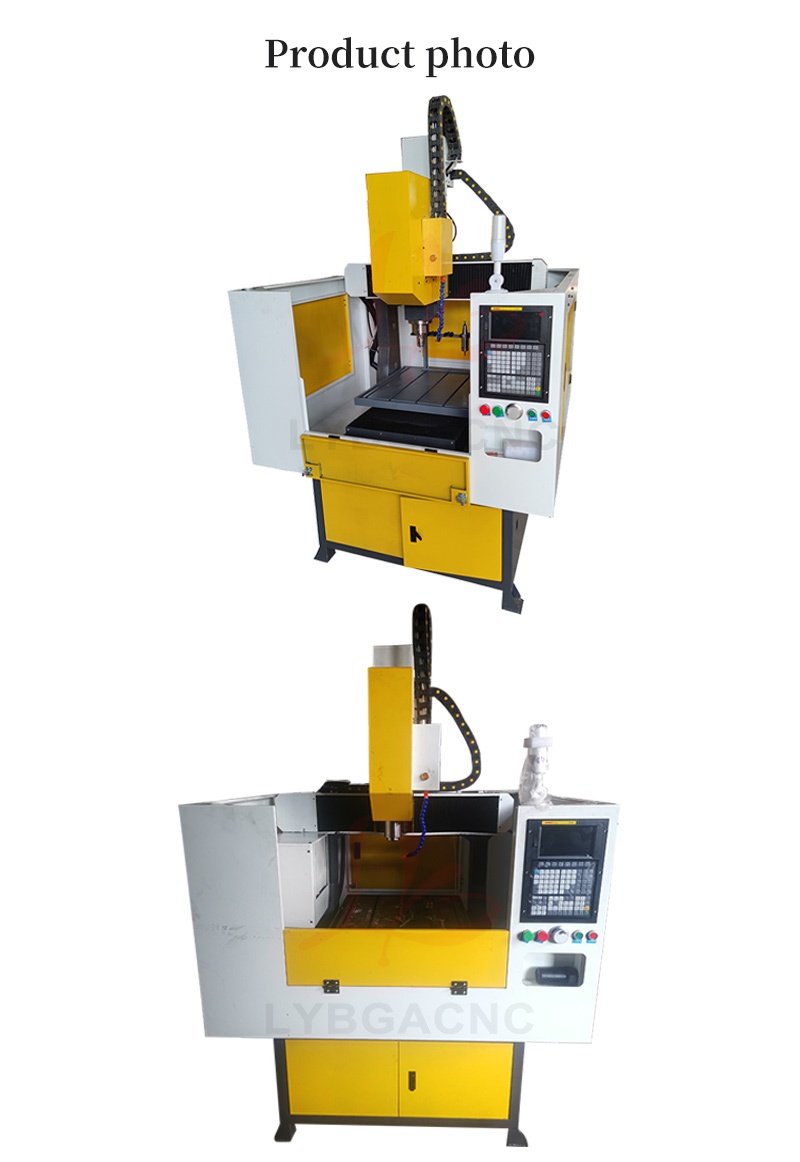

Product Pictures
