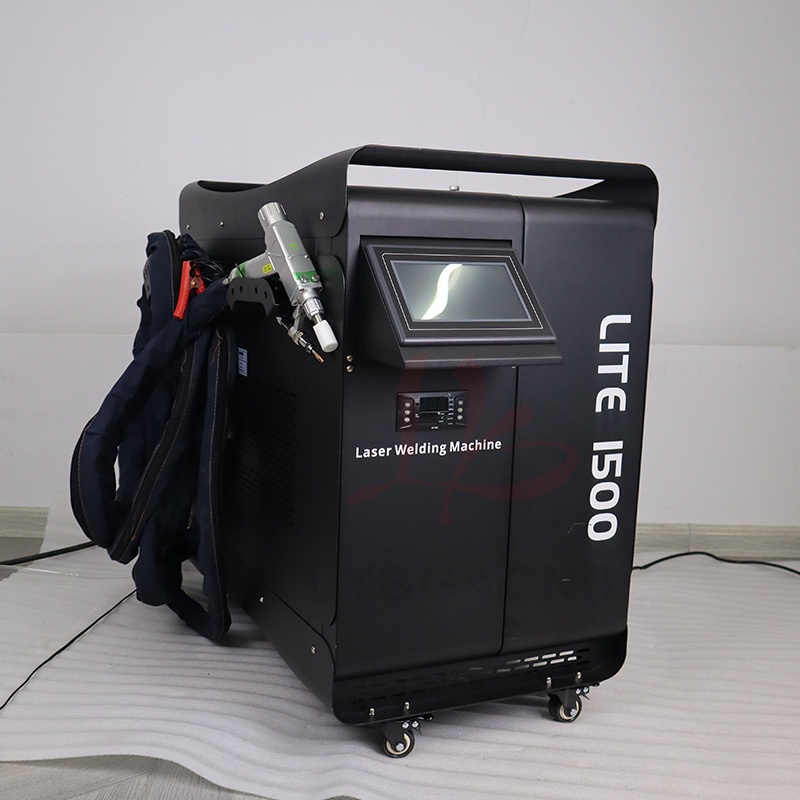

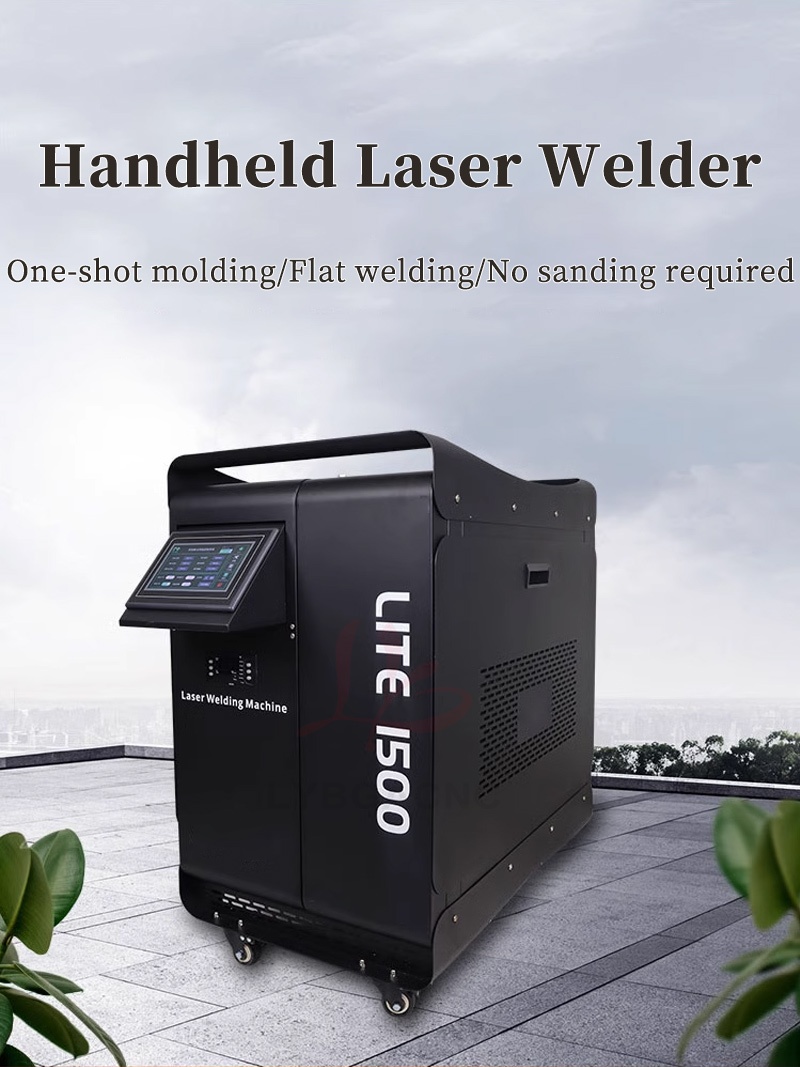

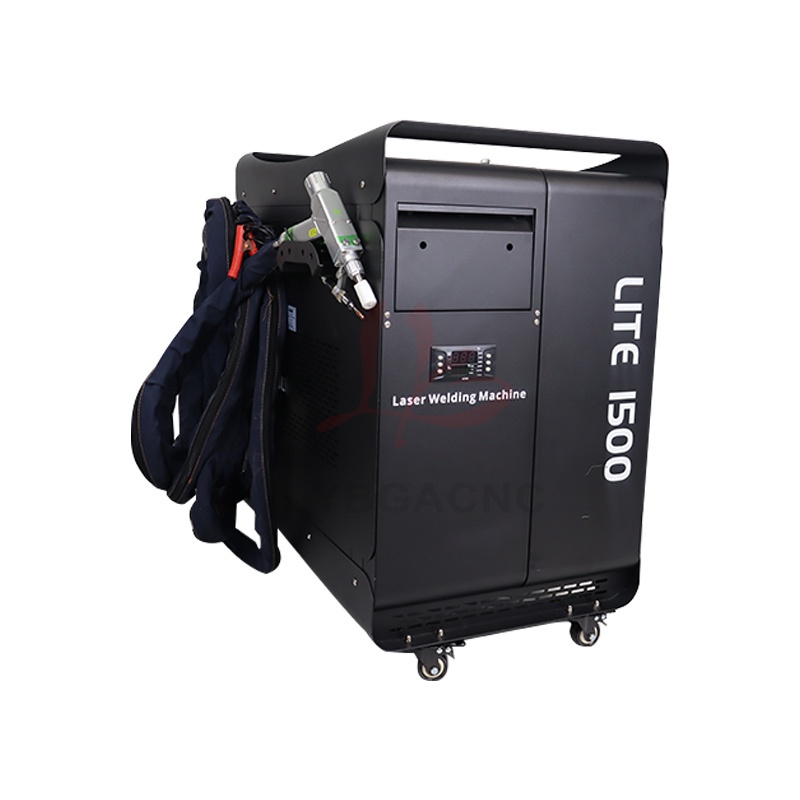

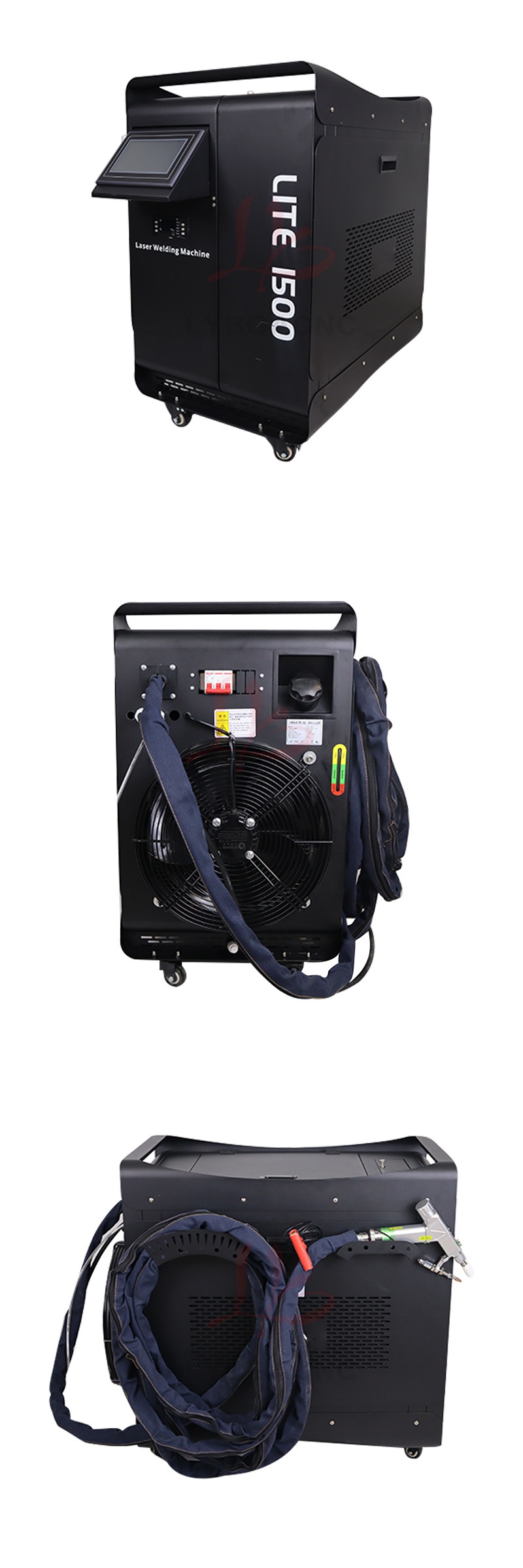

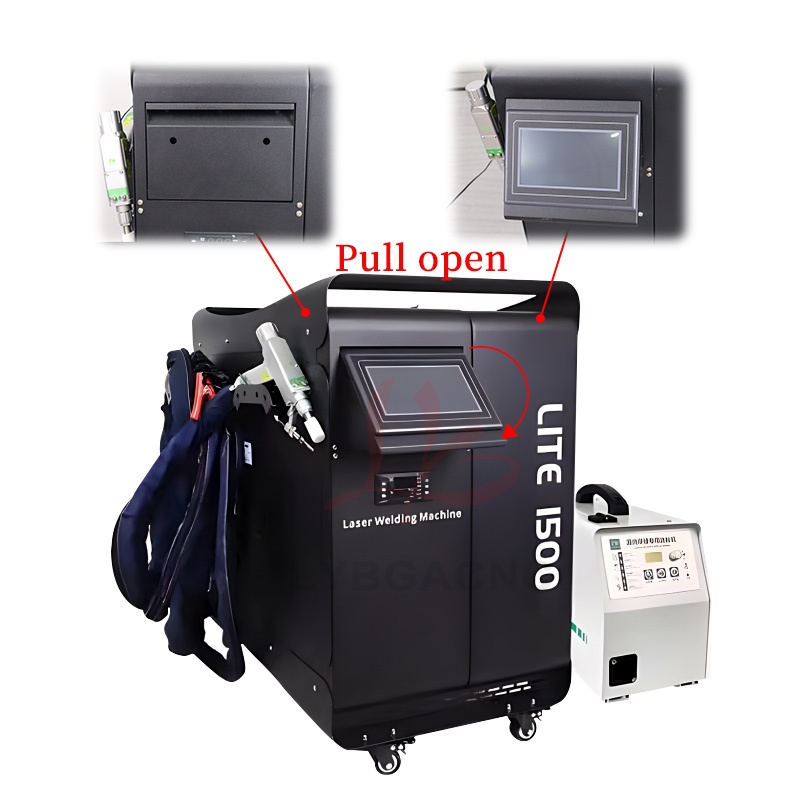

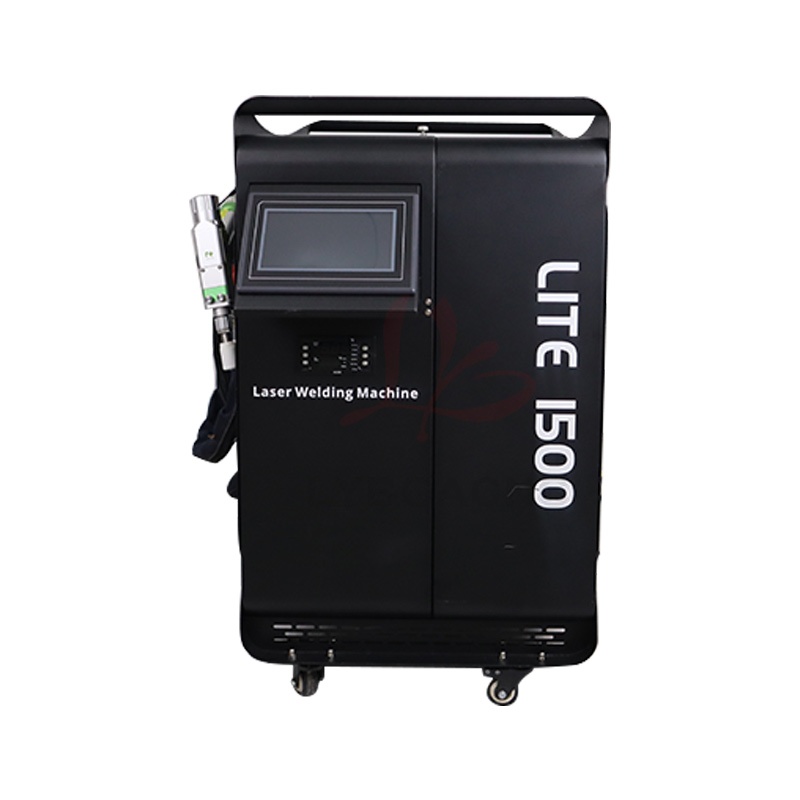

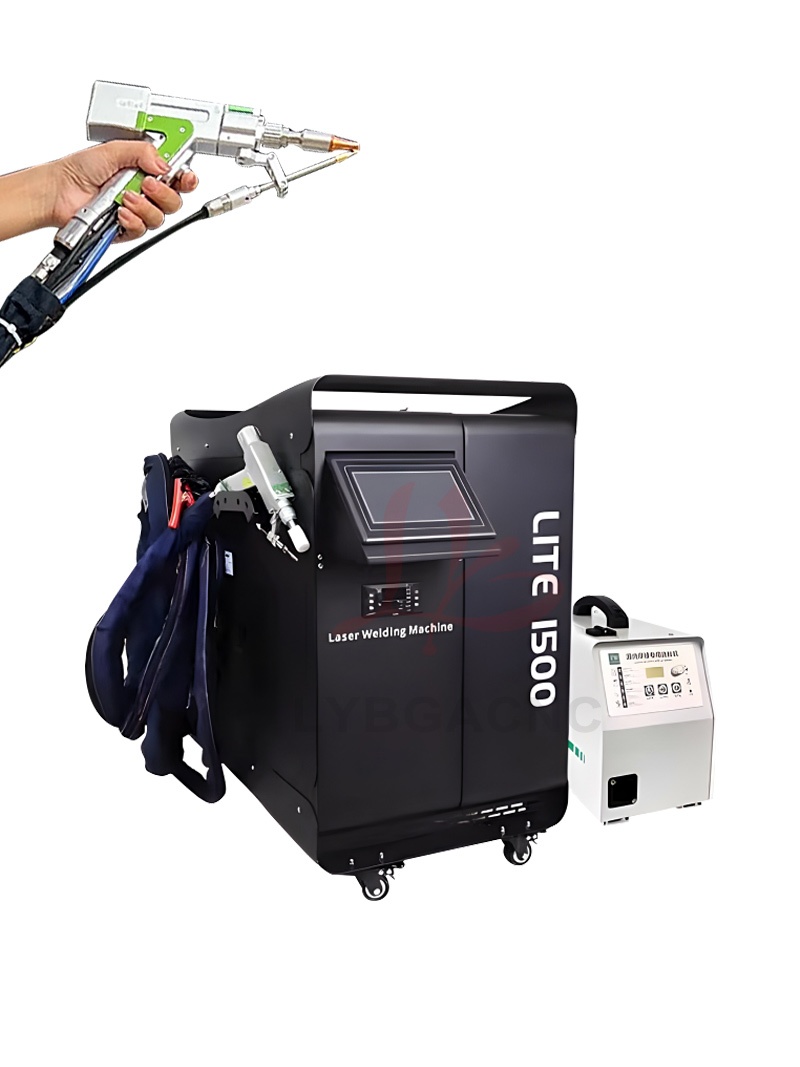

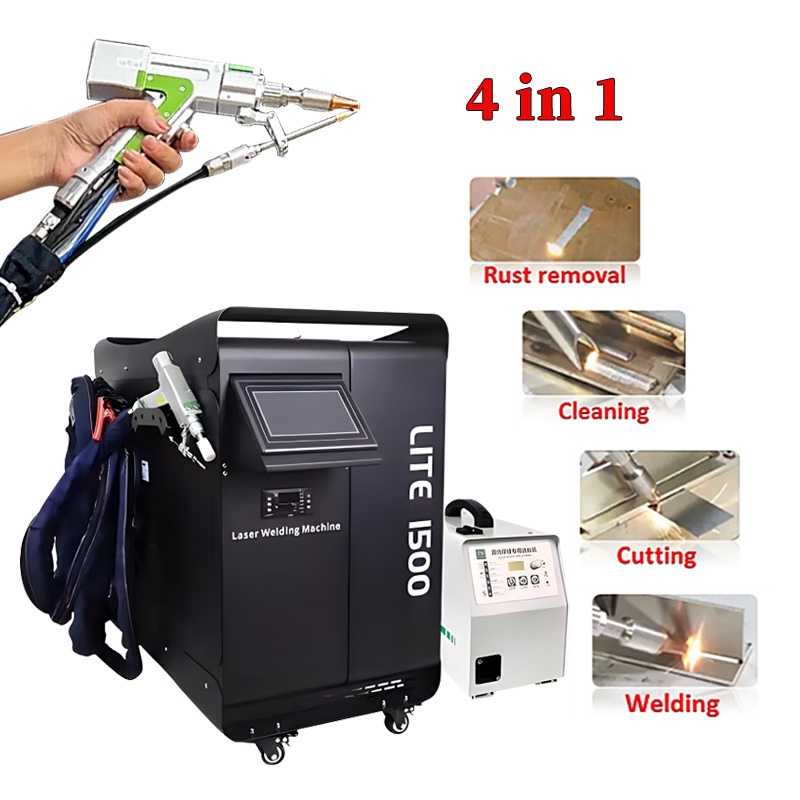

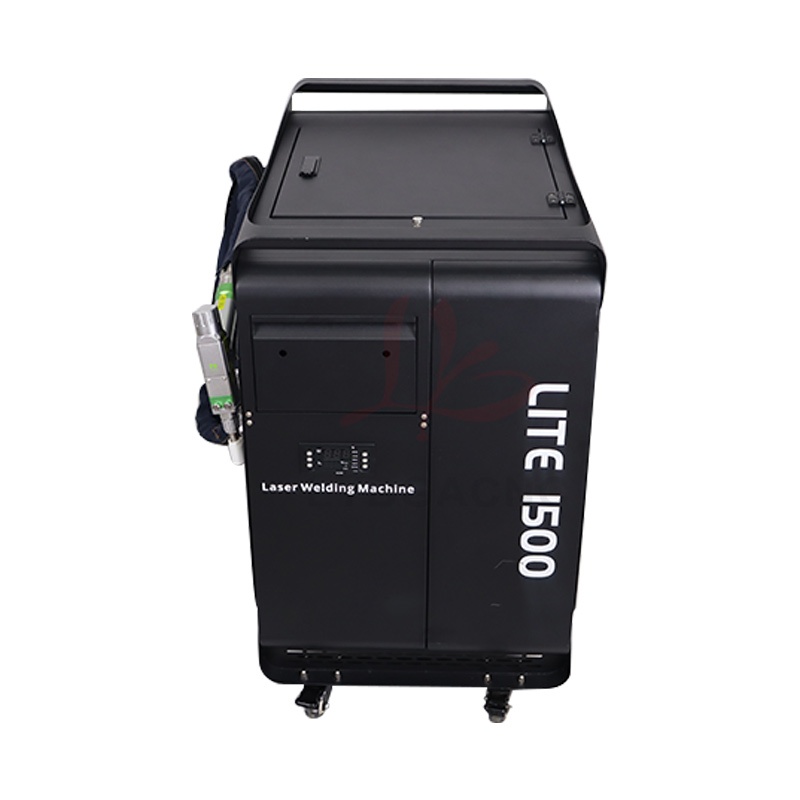

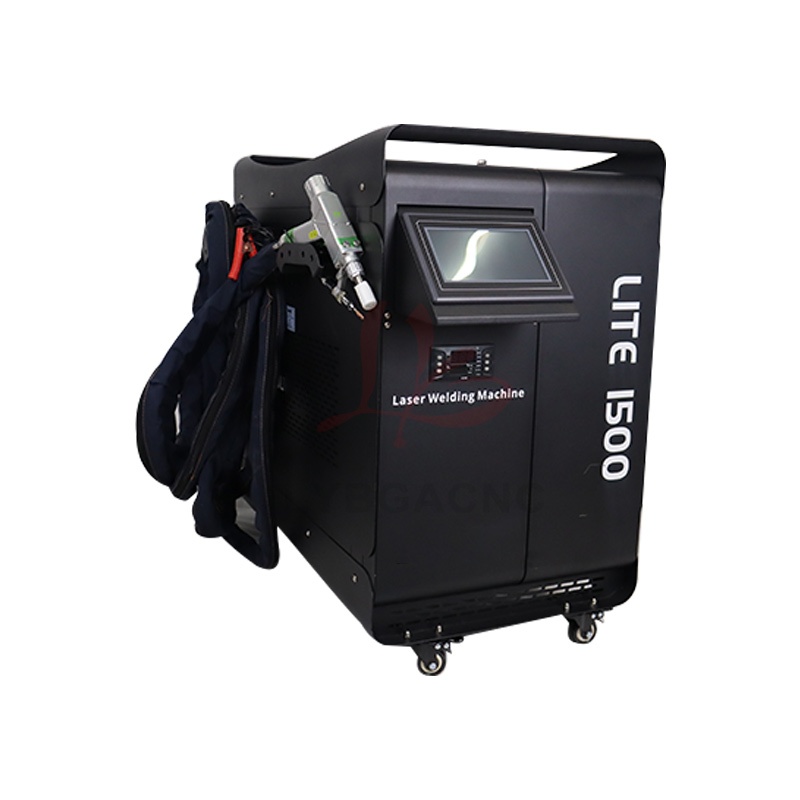

4-in-1 Handheld Fiber Laser Welding Cleaning Cutting Machine (1500W/2000W/3000W) – Ideal for Removing Metal Oxides on Stainless Steel Surfaces

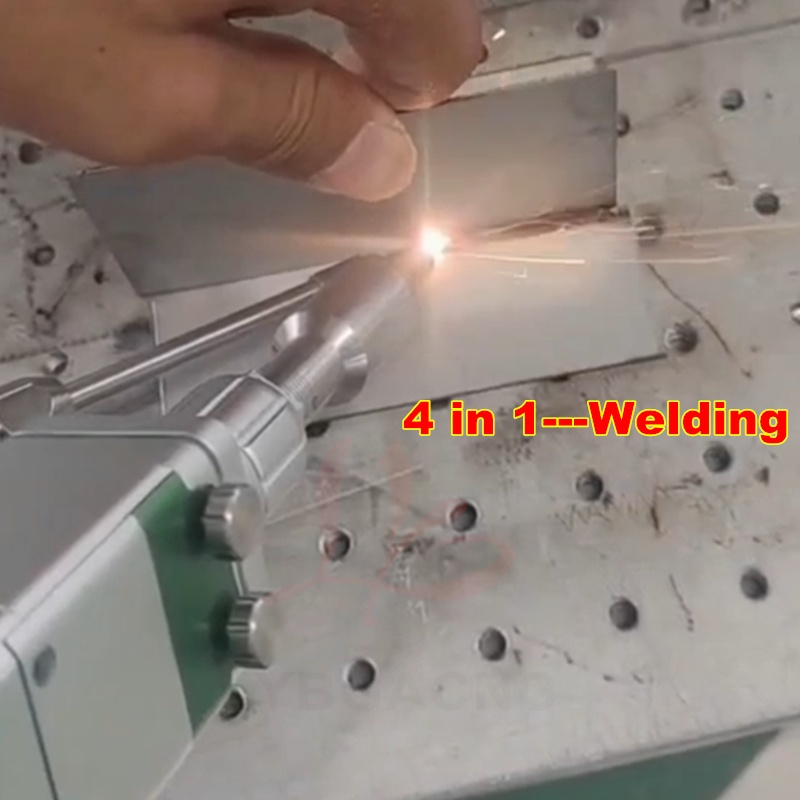

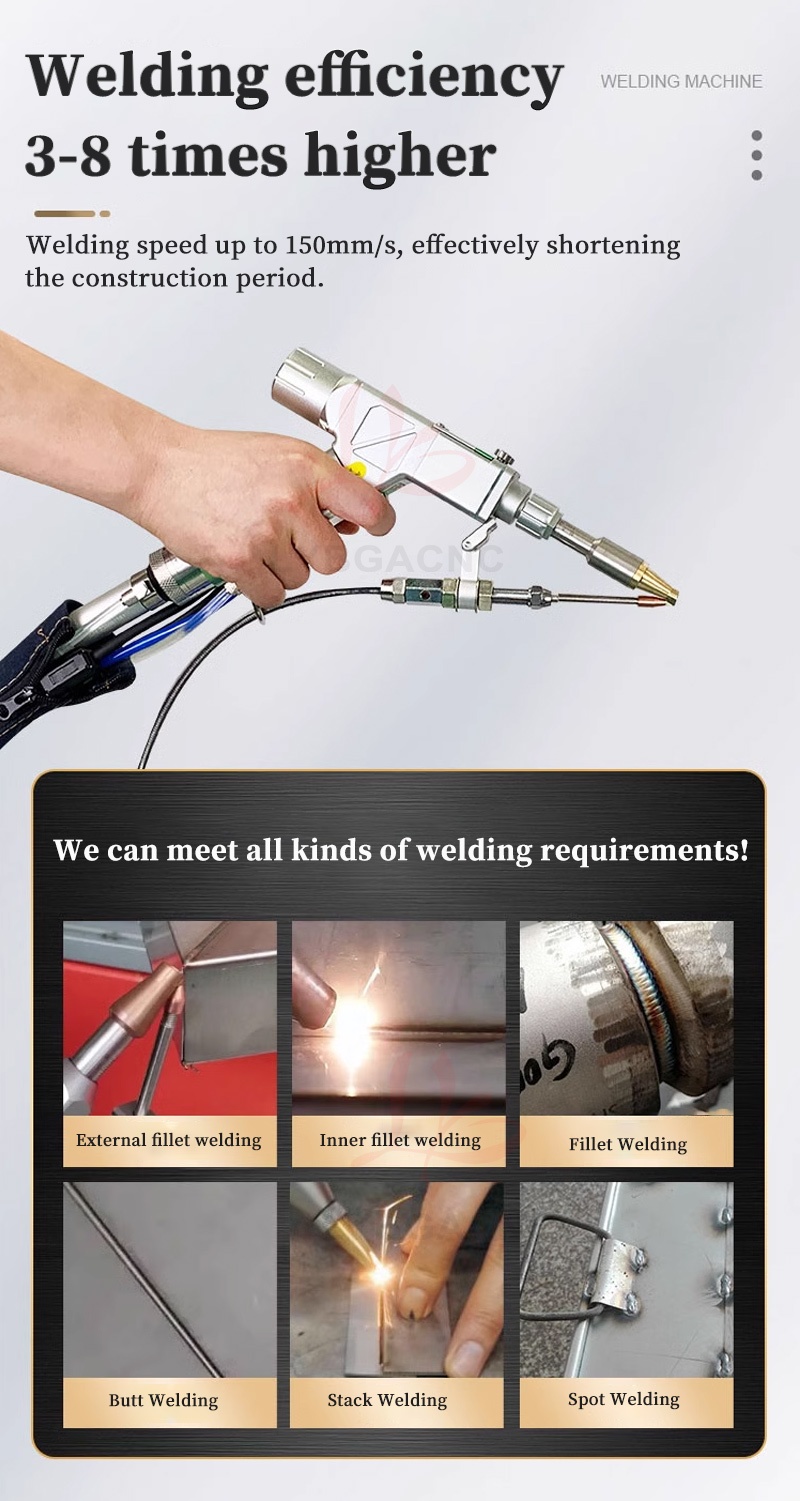

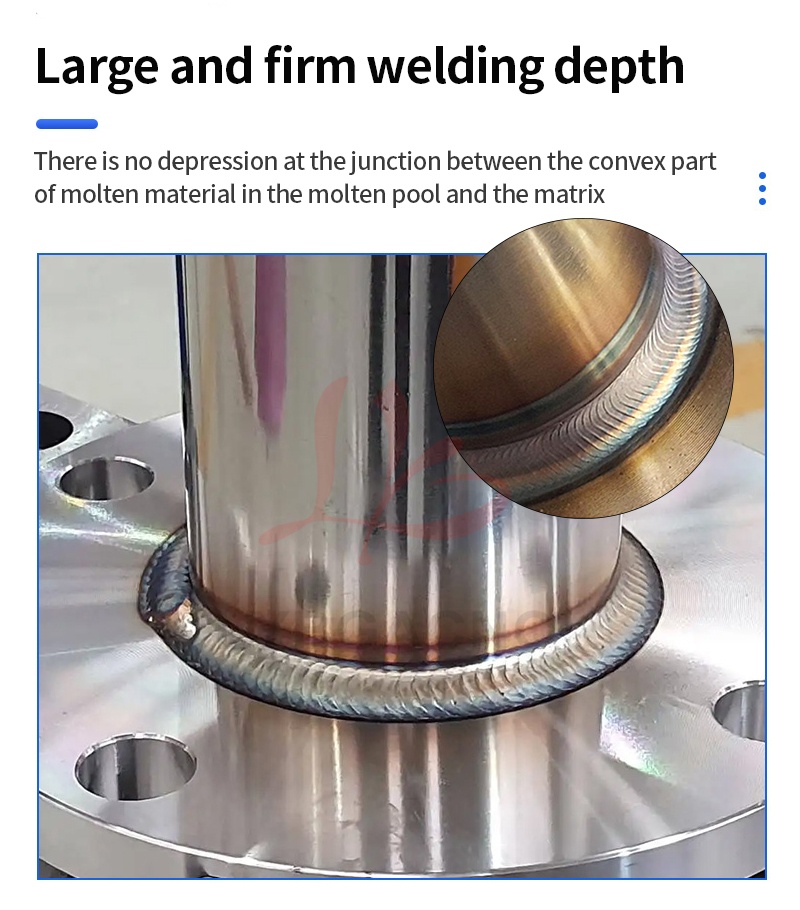

welding

Notice:

1.   Within the recommended power range, the smaller the power, the brighter the weld seam.

2.   The swing width needs to consider the actual weld width and wire diameter

3.    The diameter of the welding wire needs to consider the actual weld width and stacking height requirements

4.   Welding speed is directly related to wire feeding speed

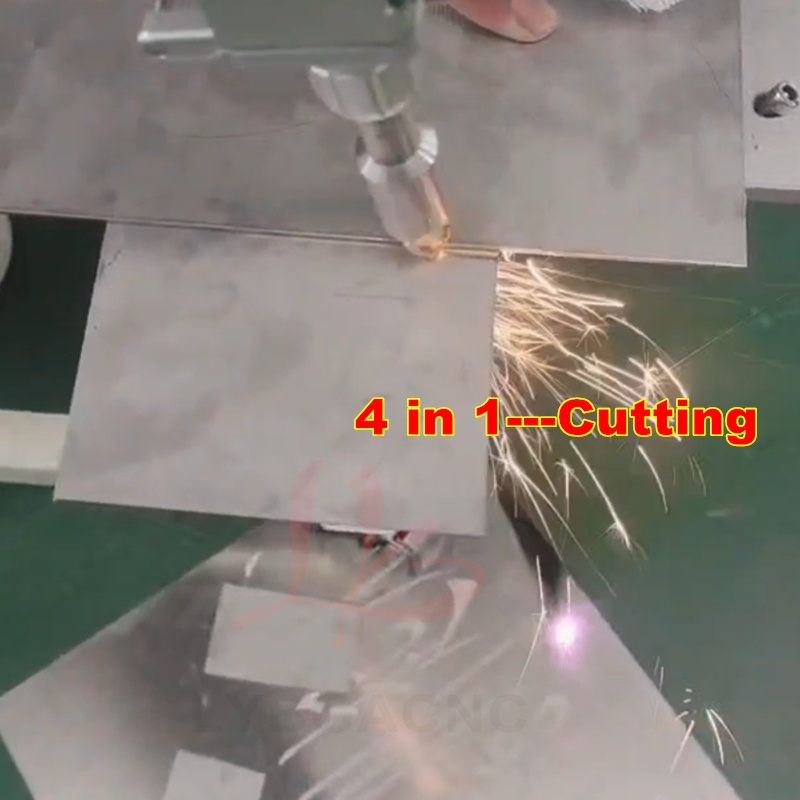

cutting

Notice:

1.    it is recommended to use compressed ar as the

protective gas.    The high pressure makes it easier to blow

off welding slag

2.   Ensure that all red light is emitted from the mouth of the

copper nozzle to avoid burning it out

3.   The cutting nozzle is perpendicular to the surface of the

material, which will have a better cutting effect

4.   Mark the surface of the material or use a backing to make

the cutting path more accurate

5.   lt Is recommended to set the maximum power to Improve

cutting efficiency

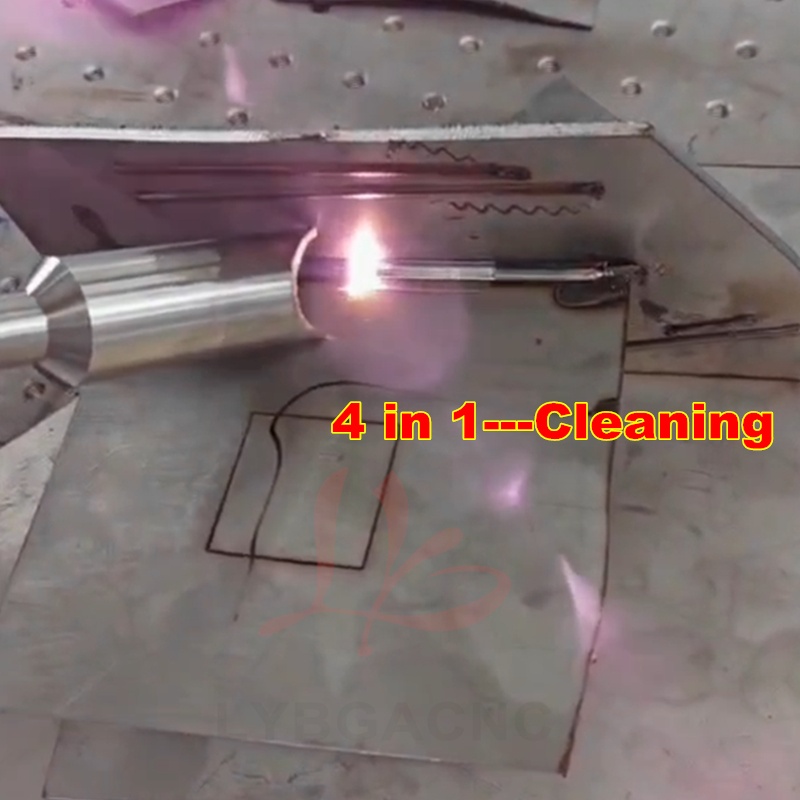

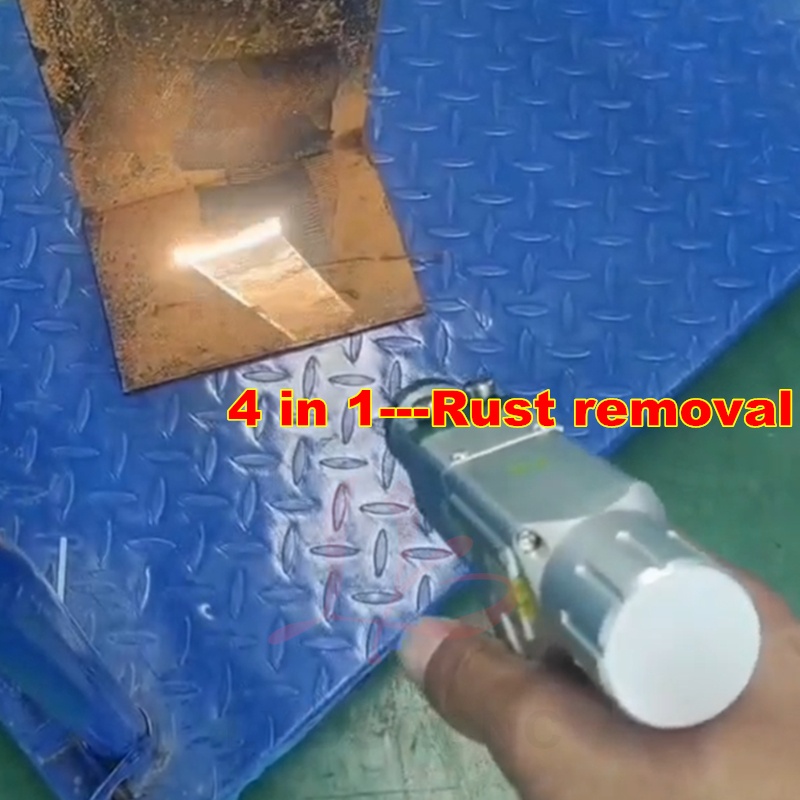

cleaning (Air-cool)/(Water-cool)

Notice:

1.   When in cleaning mode,it is necessary to remove the

stainless steei tube at the front of the gun head

2.   lt is necessary to clamp the safety clip onto the wire feed

bracket of the gun head

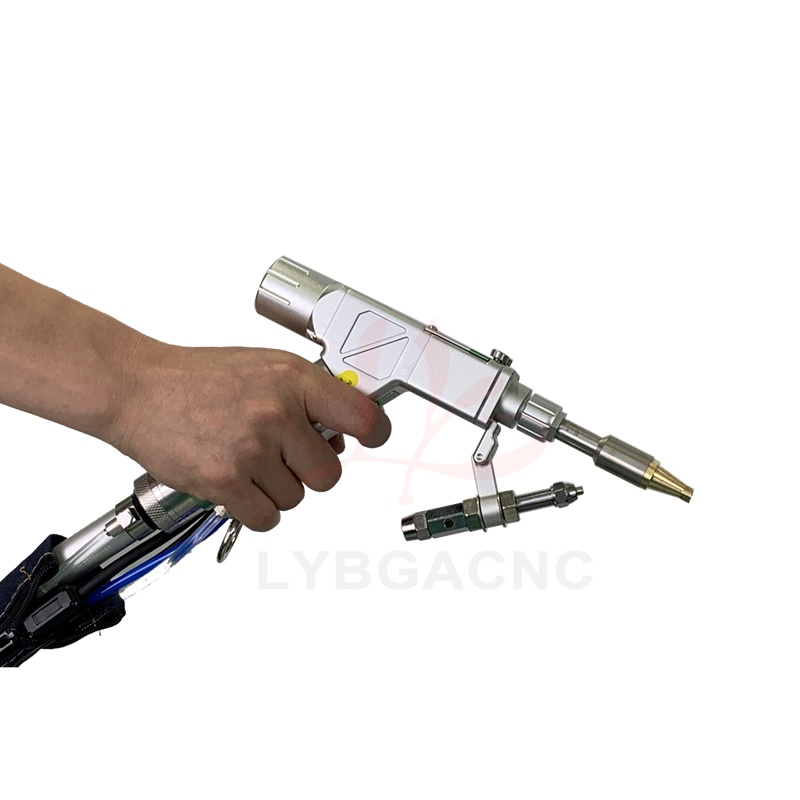

3.   The main function of this gun head is welding, and

cleaning is an auxiliary function.    If you need to achieve

better cleaning results, you can choose our company’s

dedicated laser cleaning machine

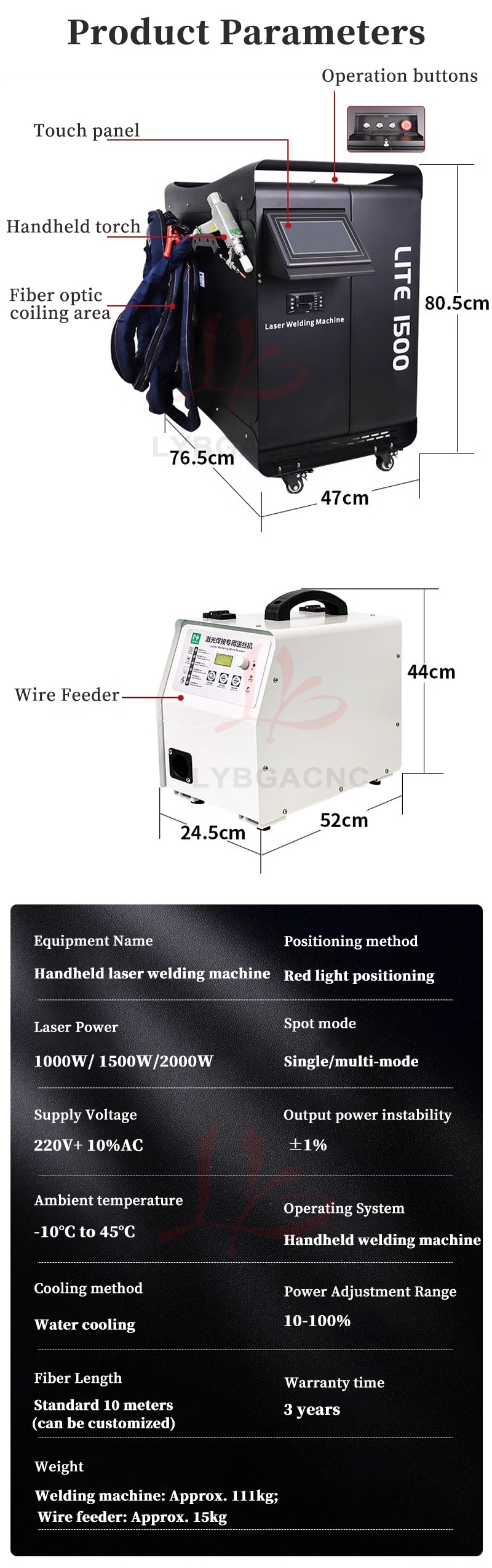

Product Parameters:

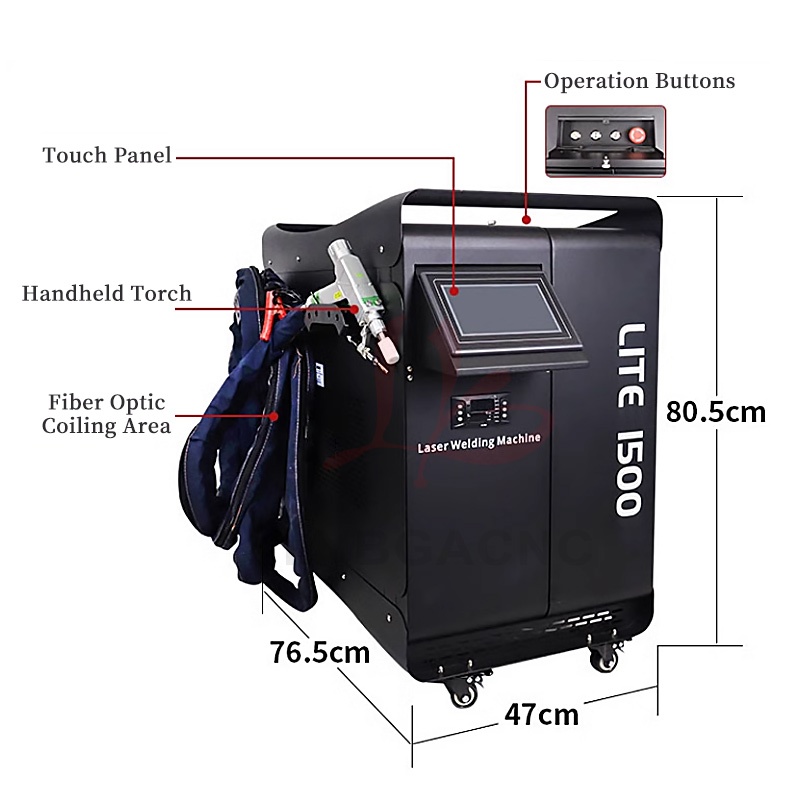

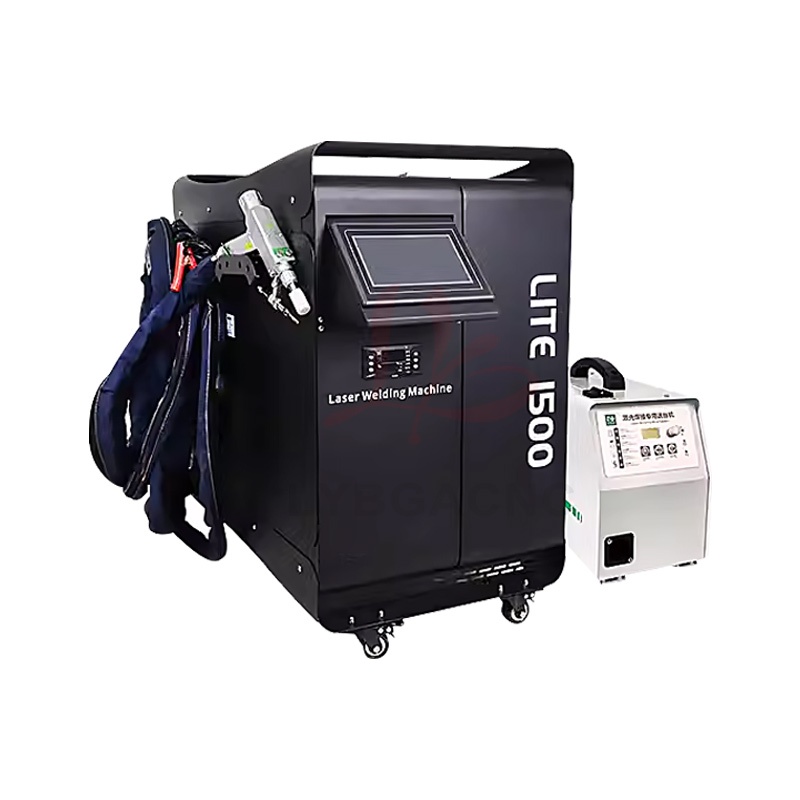

Equipment Name         Handheld laser welding machine

Positioning method        Red light positioning

LaserPower              1000W/1500W/2000W

Spot mode               Single/multi-mode

Supply Voltage             220V+10%AC

Outputpower instability     士1%

Ambient temperature       -10°C to 45°C

OperatingSystem           Handheldweldingmachine

Cooling method            Water cooling

Power Adjustment Range     10-100%

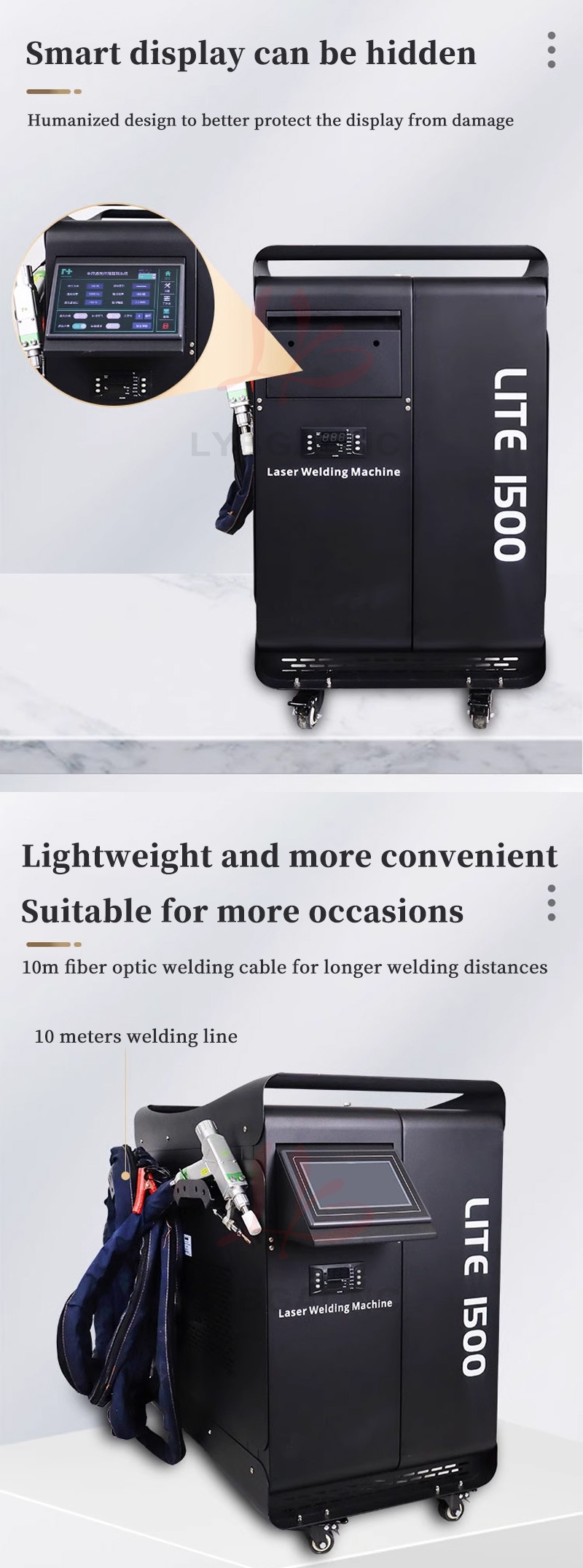

Fiber Length               Standard 10 meters(can be customized)

Warranty time              3 years

Weight                    Welding machine: Approx.11llkg;

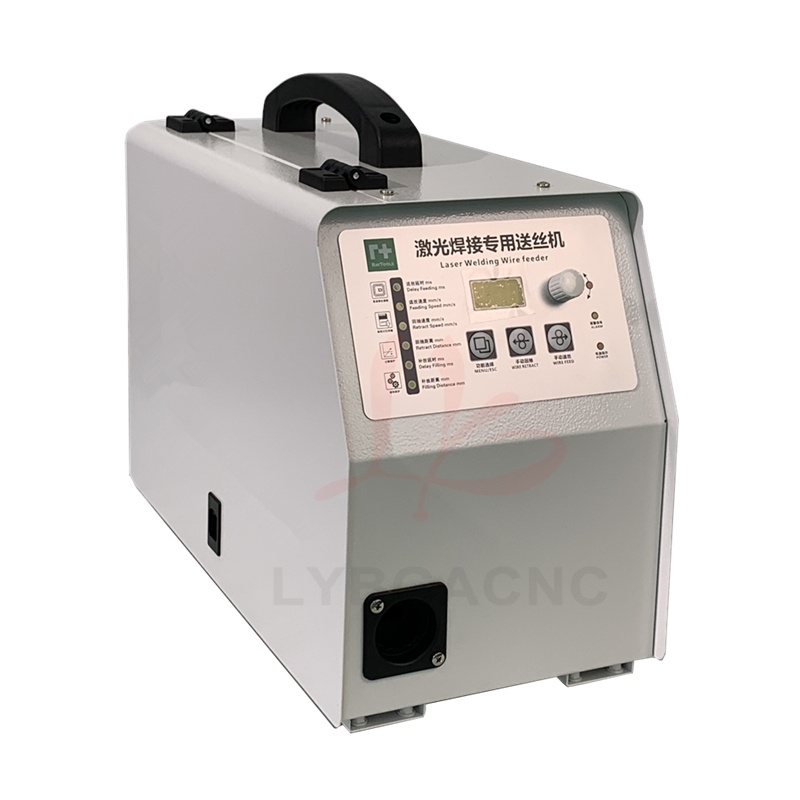

Wire feeder:Approx.15kg
