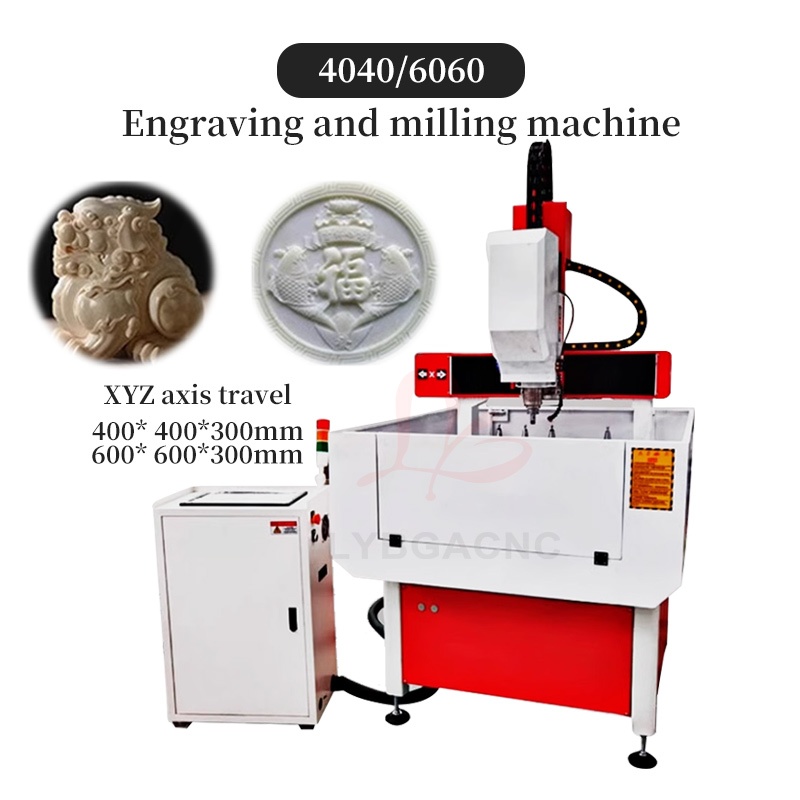

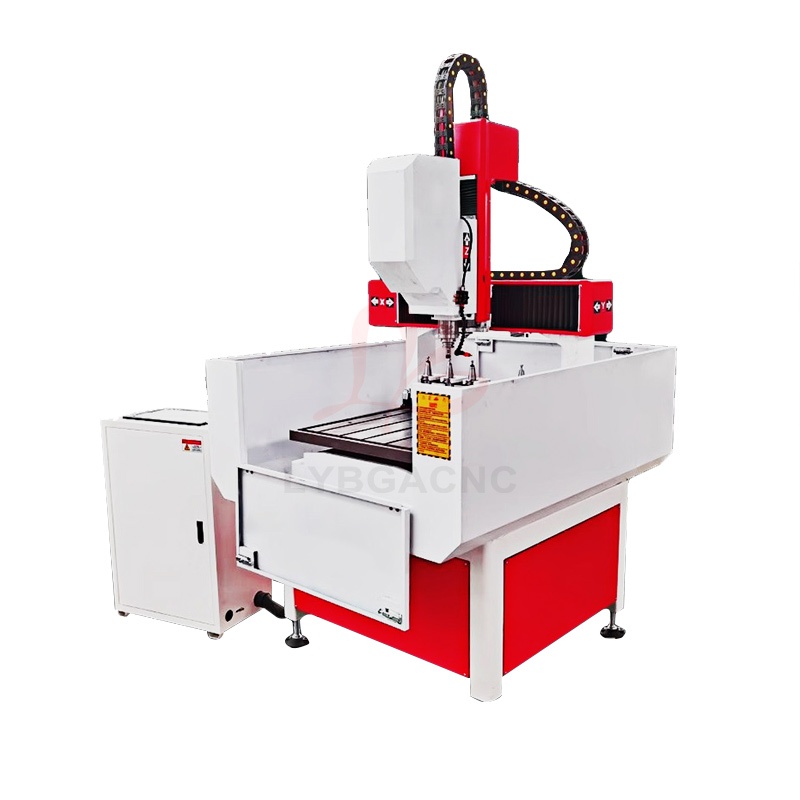

4040 6060 CNC Engraving and Milling Machines: Automatic Precision, Flat & Round Engraving, 3-in-1 for Drilling, Tapping & Engraving, Auto Tool Changer, XY Travels 300*300mm & 400*400mm
Reviews(0)
Product Detail
Product Tags

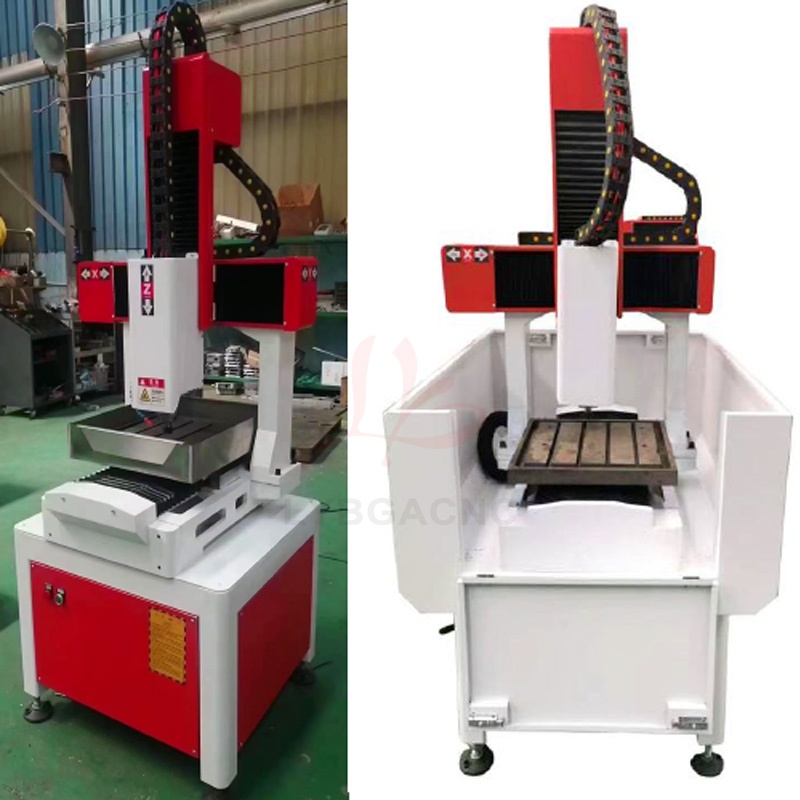

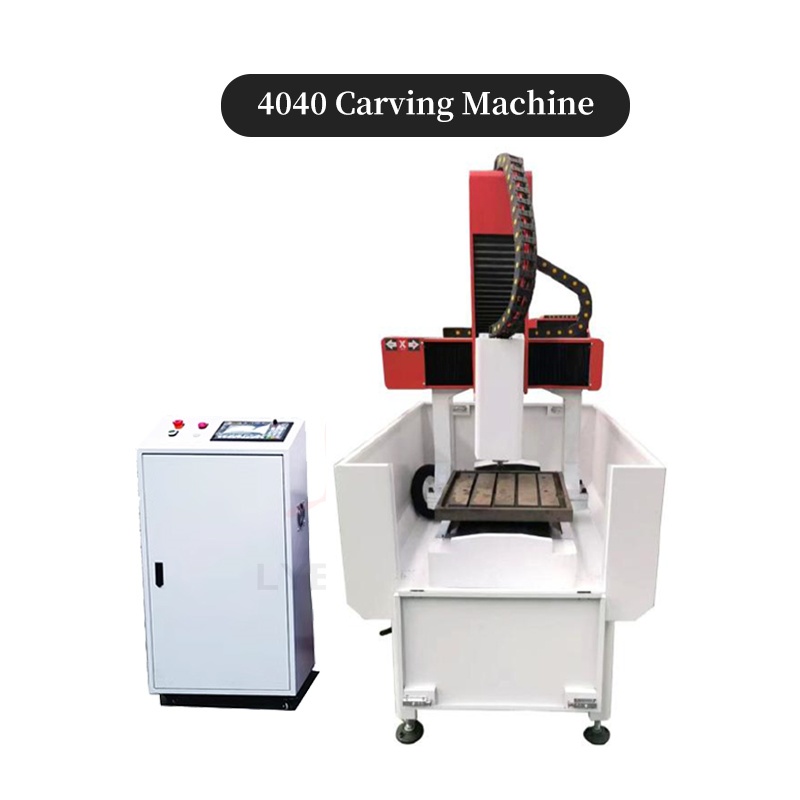

4040 CNC precision engraving machine
|
Product Name |
4040 CNC precision engraving machine |
|
Control System |
(Optional) System |
|
XYZ axis travel |
400*400*300mm |
|
Gantry height |
300mm |
|
Overall Dimension |
800* 800*1600mm |
|
Equipment motor |
Stepping motor |
|
Spindle motor |
Stepping motor |
|
Spindle |
Water-cooled spindle 2.2KW |
|
Frequency converter |
Specialized for Beside engraving machine |
|
Machine power supply |
380V/220V/50HZ |
|
Base |
Thickened cast iron movable base + anticorrosive plastic spraying sheet metal |
|
Table |
Thick cast iron one-piece table |
|
Gantry |
One-piece cast iron gantry |
|
Load-bearing |
Load capacity 300KG |
|
Dustproof |
Organ type high efficiency dustproof and waterproof |
|
Fixing method |
Fixture Fixing |
|
XYZ structure |
High precision ball screw +20 square rail |
|
Z-axis |
TBI12505 high-precision imported ball screw transmission |
|
Running guide |
High-precision specialized 200,000 rails |
|
Positioning accuracy |
+0.1mm/1000mm |
|
Machining speed |
8-15m/min |
|
Spindle speed |
6000-24000r/min |
|
Supported formats |
BMP,PLT,AI,CDR,DXF |
|
System environment |
Win7(4G RAM or above, 32bit) |
|
Engraving Command |
HCP/G |
|
Power Distribution Cabinet |
Built-in anti-interference electric cabinet |
|
Sheet metal color |
White/Red(Customizable) |
|
Oil filling system |
Manual oil filling |
|
Motor cable |
Industrial customized 4*1 high flexible shielded cable |
|
Spindle cables |
Industrial customized 3*2 high flexible shielded cable |
|
Warranty |
One year |
|
Function |
Stone, wood, plaster, foam and other deep relief, line engraving characters can also process a variety of metal PVC acrylic and so on. |
|
Random accessories |
Water pump software, test cutter *6, data cable *1 ,fixture *6, tool box *1, 3 tool holders, milling bottom cutter, massive gallery. |

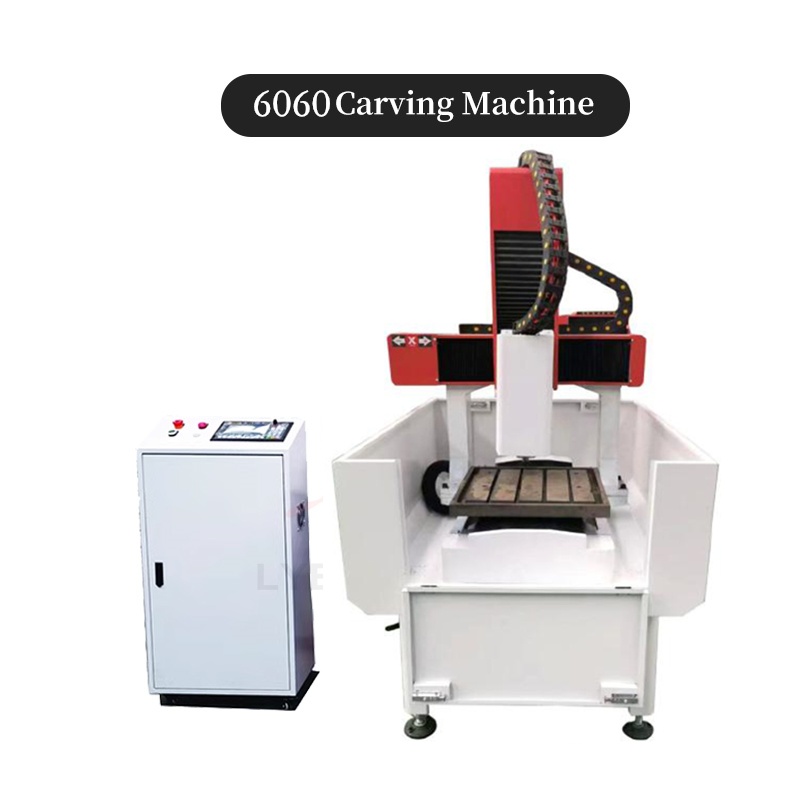

6060 CNC precision engraving machine
|
Product Name |
6060 CNC Precision Carving Machine |
|
Control System |
(Optional) System |
|
XYZ axis travel |
600* 600* 300mm |
|
Gantry height |
300mm |
|
Overall Dimension |
1200*1400*1600mm |
|
Equipment motor |
Stepping motor |
|
Spindle motor |
Water-cooled spindle 2.2KW |
|
Inverter |
Specialized for Beside engraving machine |
|
Machine power supply |
380V/220V/50HZ |
|
Base |
Thickened cast iron movable base + anticorrosive plastic spraying sheet metal |
|
Table |
Thickened cast iron one-piece table |
|
Gantry |
One-piece cast iron gantry |
|
Load-bearing |
Load capacity 300KG |
|
Dustproof |
Organ type high efficiency dustproof and waterproof |
|
Fixing method |
Fixture Fixing |
|
XYZ structure |
High precision ball screw +20 square rail |
|
Z-axis |
TBI12505 high-precision imported ball screw drive |
|
Running guide |
High precision special 20 square rail |
|
Positioning accuracy |
+0.1mm/1000mm |
|
Machining speed |
8-15m/min |
|
Spindle speed |
6000-24000r/min |
|
Supported formats |
BMP,PLT,AI,CDR,DXF |
|
System environment |
Win7(4G RAM or above, 32bit) |
|
Engraving Command |
HCP/G |
|
Power Distribution Cabinet |
Built-in anti-interference electric cabinet |
|
Sheet metal color |
Color/Red(Customizable) |
|
Oil filling system |
Manual oiling |
|
Motor cable |
Industrial customized 4*1 high flexible shielded cable |
|
Spindle cables |
Industrial customized 3*2 high flexible shielded cable |
|
Warranty |
One year |
|
Function |
Stone, wood, plaster, foam and other deep relief, line engraving characters can also be processed all kinds of metal PVC acrylic and so on. |
|
Random accessories |
Water pump software, test cutter *6, data cable *1 ,fixture *6, tool box *1, 3 tool holders, milling bottom cutter, massive gallery. |

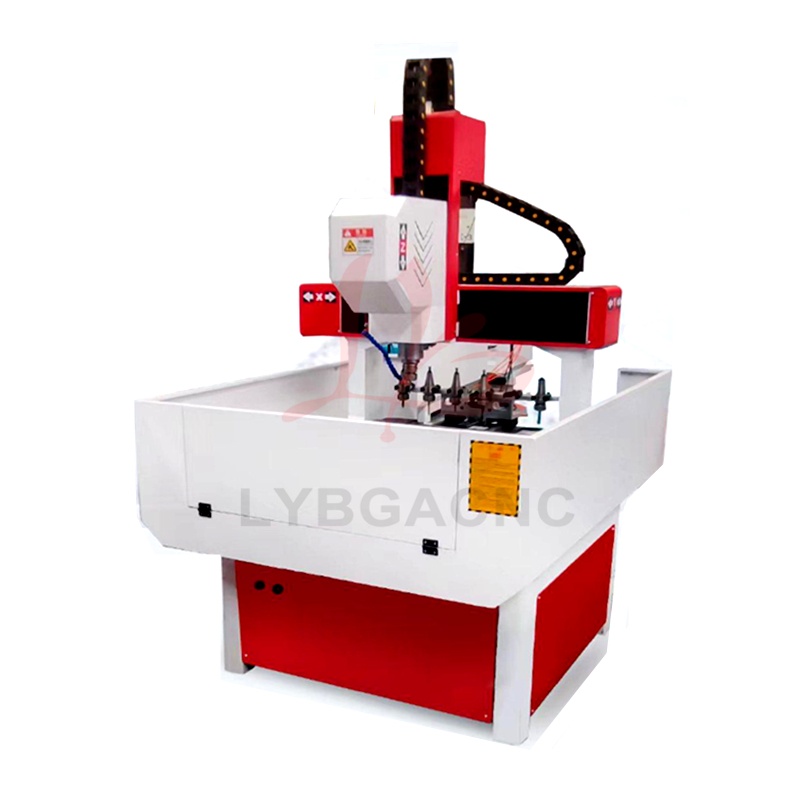

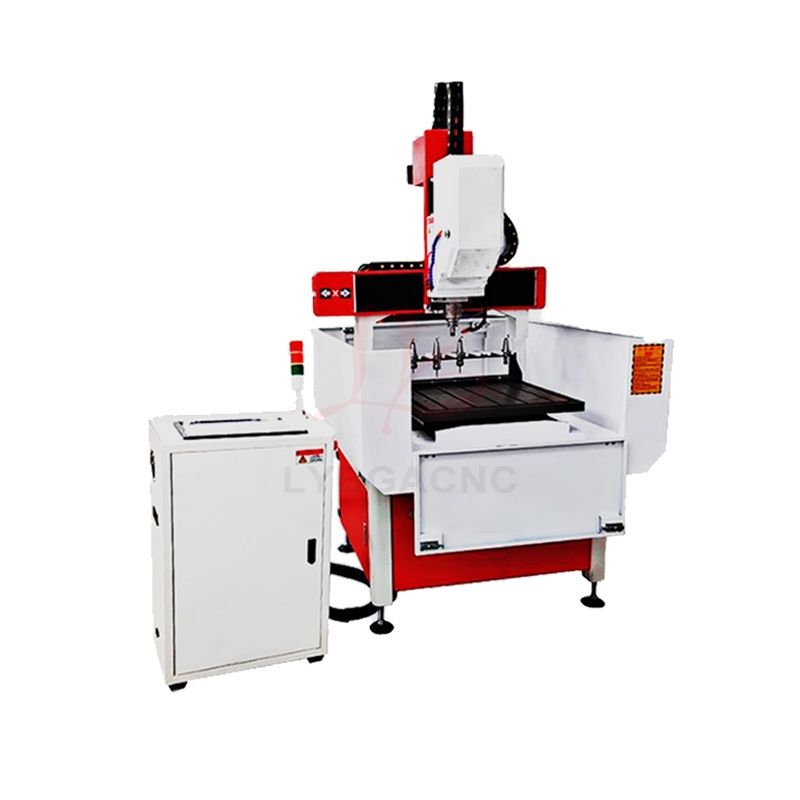

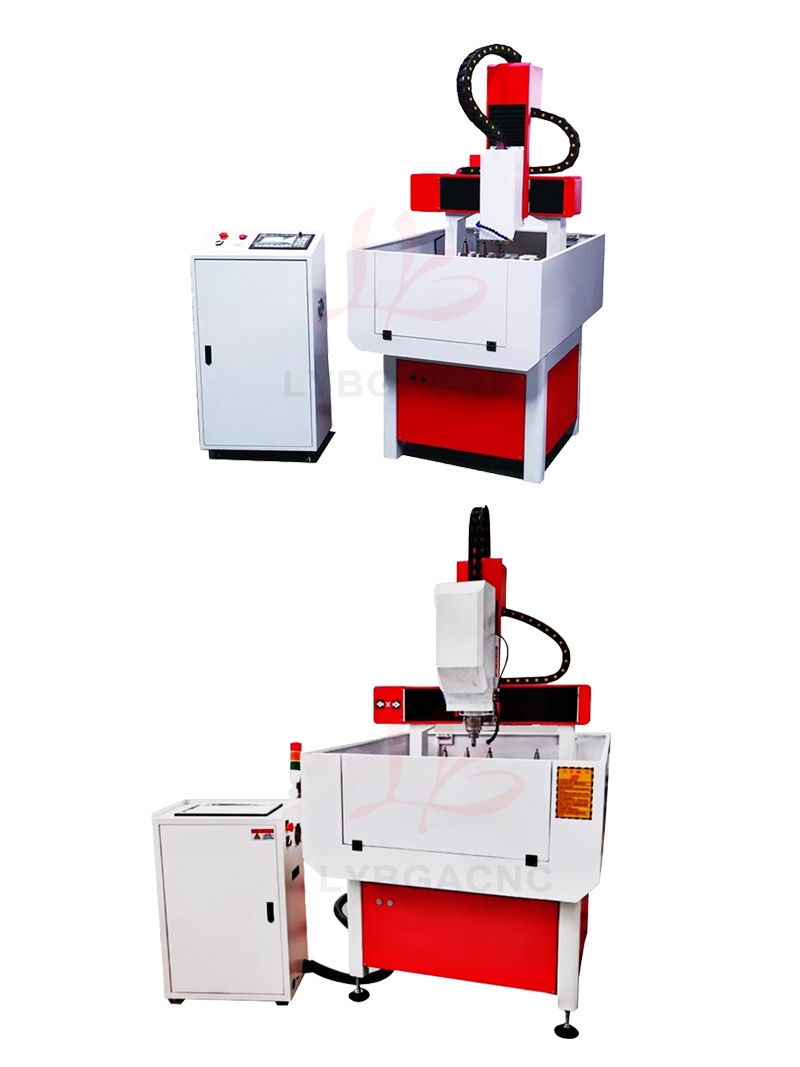

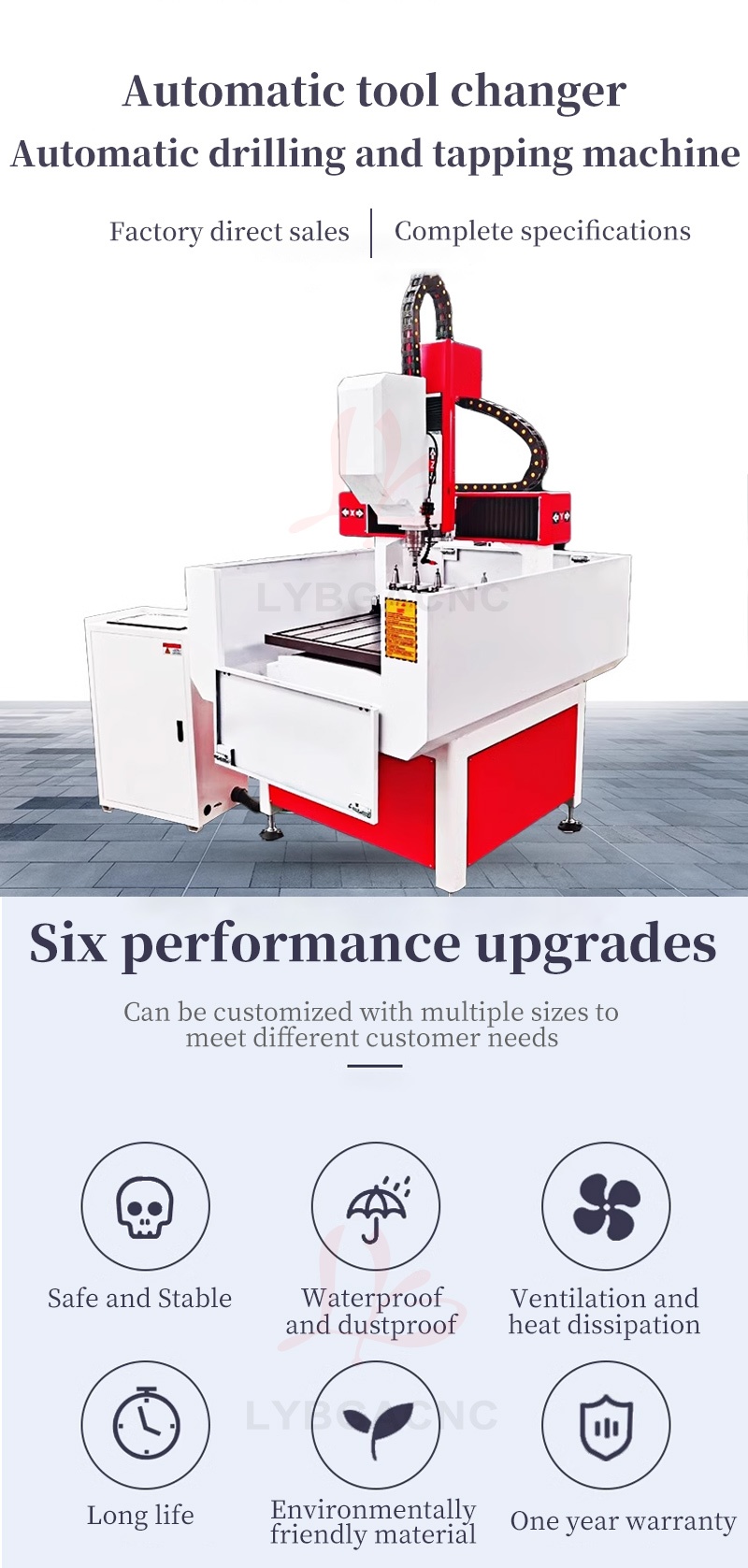

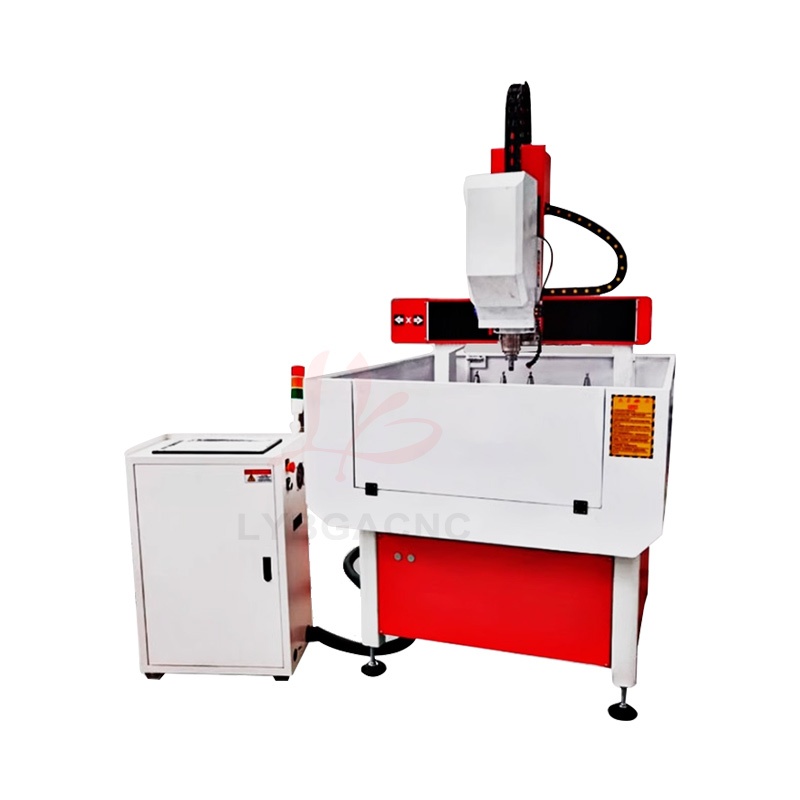

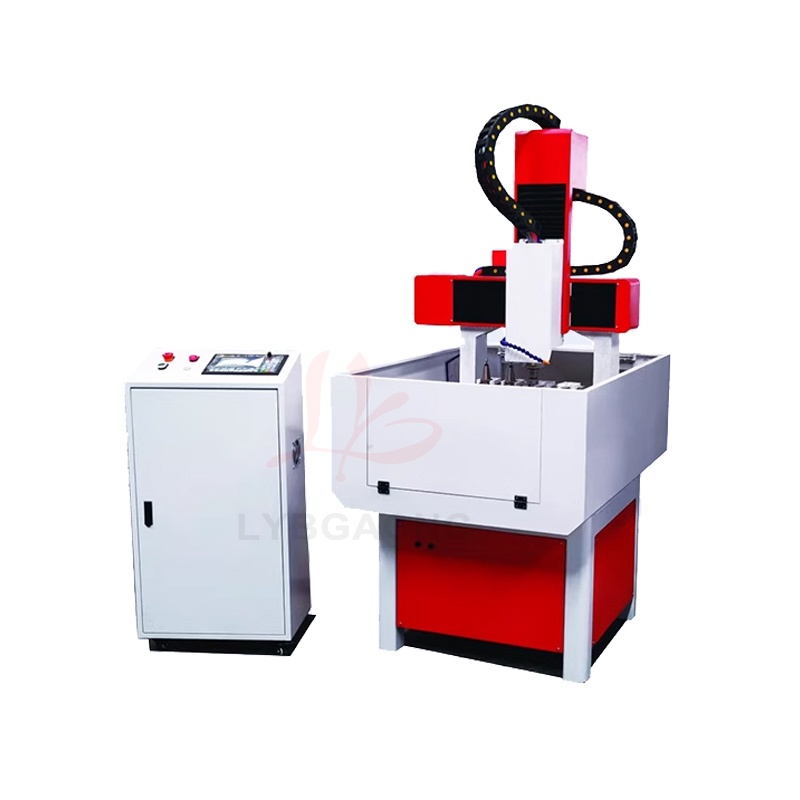

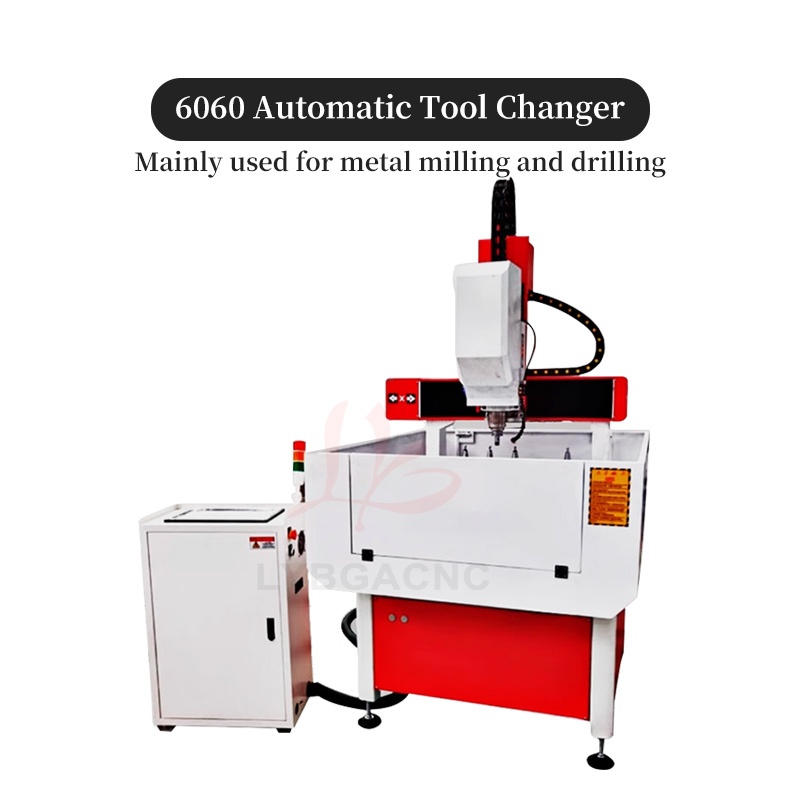

6060 Automatic tool changer integrated machine
|
Product Name |
6060 High-quality drilling and tapping machining center |
|
Customer Needs |
Tapping and drilling |
|
Brand |
LiYang |
|
Place of Origin |
Guangdong Shenzhen |
|
Model |
LY-6060 |
|
Control System |
DDCS |
|
XYZ axis travel |
600* 600* 300mm |
|
Gantry height |
300mm |
|

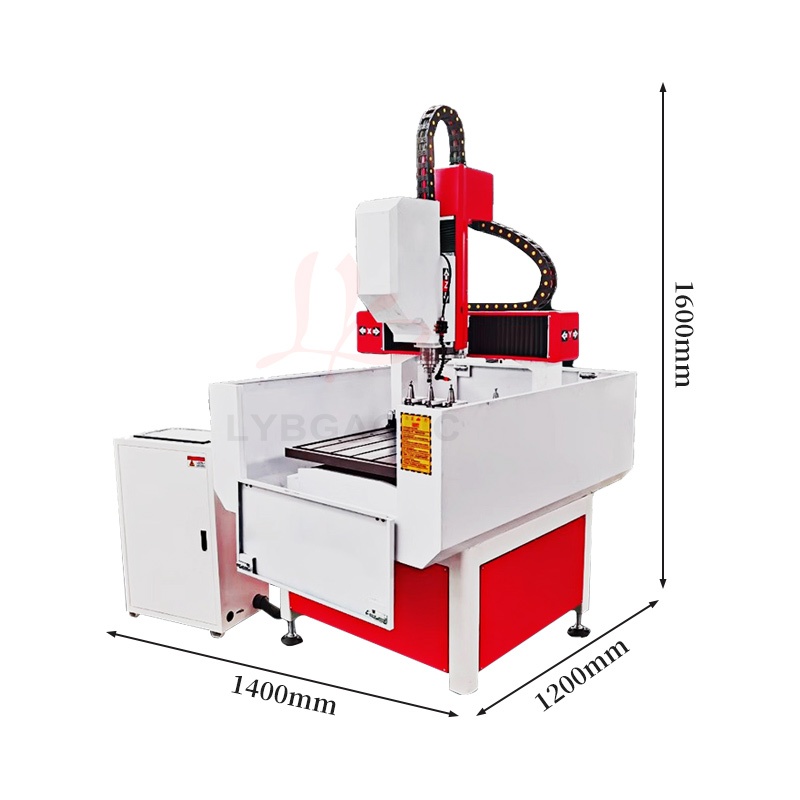

Overall Dimension |
1 200*1400*1600mm |
|
Equipment motor |
1 KW pure servo |
|
Spindle |
Water-cooled spindle 3.8KW servo spindle |
|
Tool magazine |
6 in-line tool changer |
|
Inverter |
Specialized for Beside engraving machine |
|
Machine power supply |
380V/220V/50HZ |
|
Chassis |
Thickened cast iron movable base + anticorrosive plastic spraying sheet metal |
|
Table |
Thick cast iron one-piece table |
|
Gantry |
One-piece cast iron gantry |
|
Load-bearing |
Load capacity 500KG |
|
Dustproof |
Organ type high efficiency dustproof and waterproof |
|
Fixing method |
Fixture fixing |
|
XYZ structure |
High precision ball screw +25 square rail |
|
Z-axis |
TBI12505 high-precision imported grinding ball screw drive |
|
Running guide |
High-precision special 25 square rails |
|
Positioning accuracy |
+0.1 mm/1000mm |
|
Machining speed |
8-15m/min |
|
Spindle speed |
6000-24000r/min |
|
Supported formats |
bmp,plt,ai,cdr,dxf |
|
Engraving command |
HCP/G |
|
Power Distribution Cabinet |
External anti-interference electric cabinet + integrated screen |
|
Sheet metal color |
Color/Red(Customizable) |
|
Oil filling system |
Automatic oil filling |
|
Motor Cables |
Industrial Customized 4*1 Highly Flexible Shielded Cable |
|
Spindle cables |
Industrial customized 3*2 high flexible shielded cable |
|
Warranty |
One year warranty |
|
Functions |
Stone, wood, plaster, foam and other deep relief, line engraving word can also process a variety of metal PVC acrylic, etc. |
|
Random accessories |
Water pump software, test knife * 6, data line * 1, fixture * 6 tool box * 1, 3 tool holders, milling cutter, massive image gallery |
详情页信息

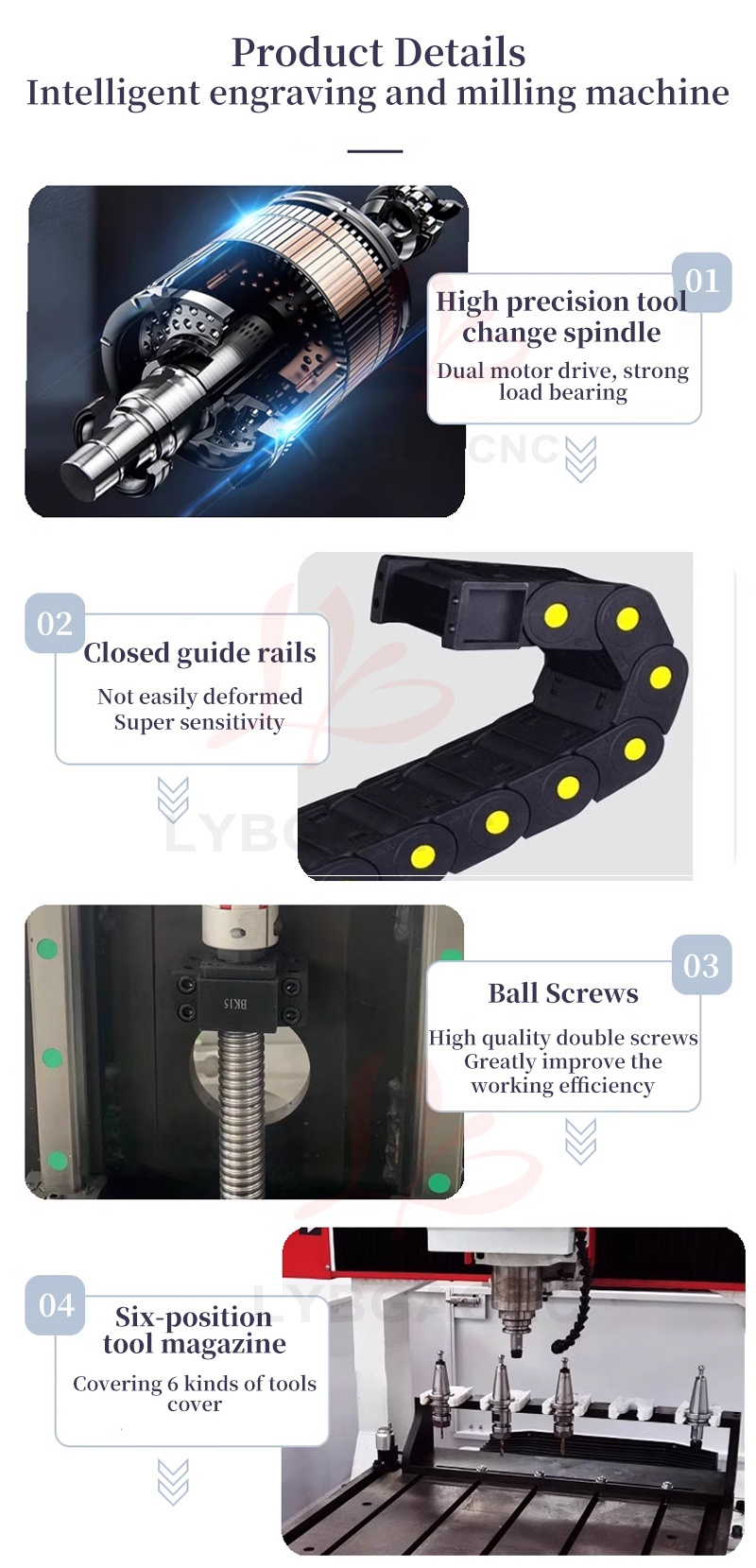

Product Details

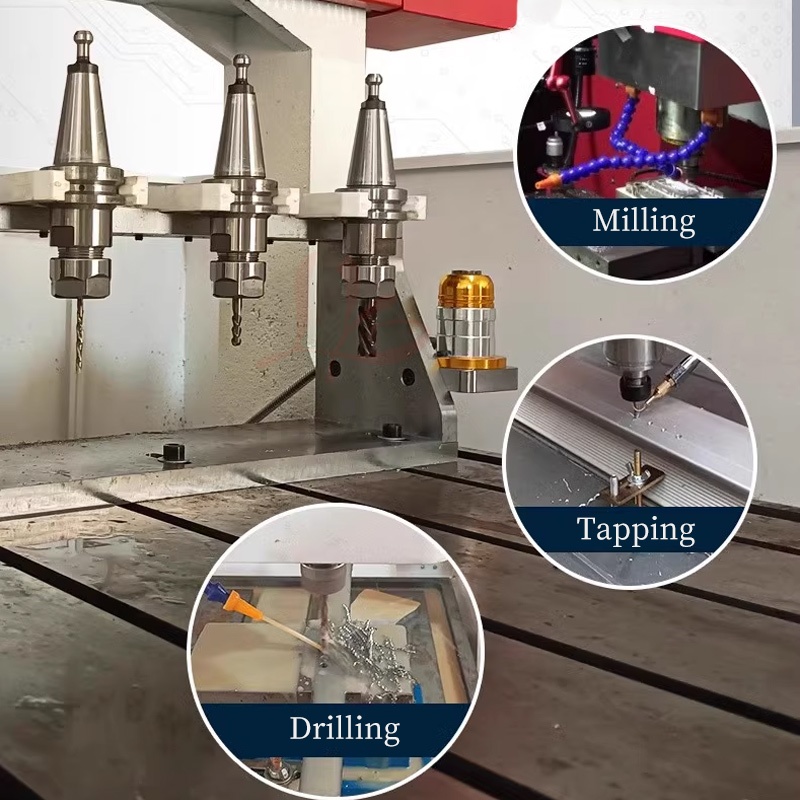

1. High precision tool change spindle
Dual motor drive, strong load bearing
2. Closed guide rails
Not easily deformed Super sensitivity
3. Ball Screws
High quality double screws, Greatly improve the working efficiency

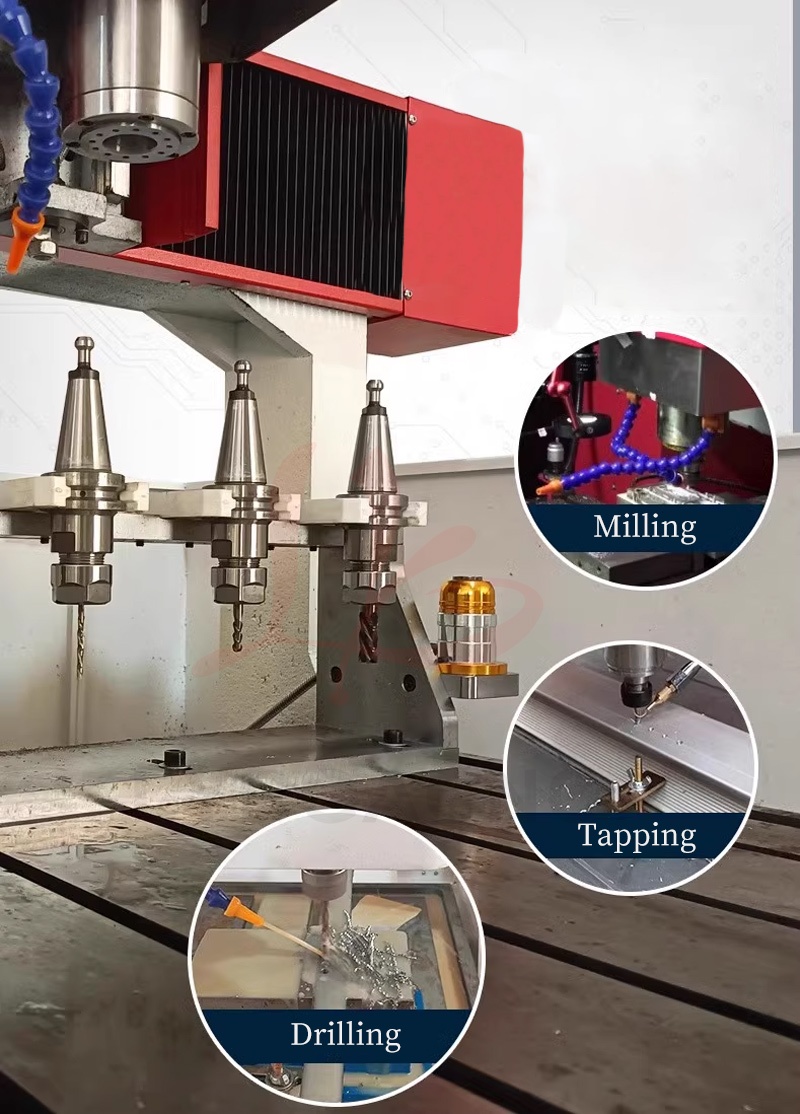

4. Six-position tool magazine
Covering 6 kinds of tools cover
Materials
Metal Materials
Aluminum alloy; brass, gold, silver, magnesium alloy, iron, zinc alloy and other soft metal materials
Three dimensional carving, plane carving, relief, hollowing, round carving, lettering, etc
Jade Materials
Jade, agate, jadeite, obsidian, colored gemstones, beeswax, amber, and other jade stones
Plane carving, three:-dimensional carving, hollowing, relief carving, lettering, etc.
Other materials
Acrylic, ceramics, plastics, wood, shells, pearls, resin and other non-metallic materials
Plane carving, .three -dimensional carving, hollowing, relief carving, lettering, etc

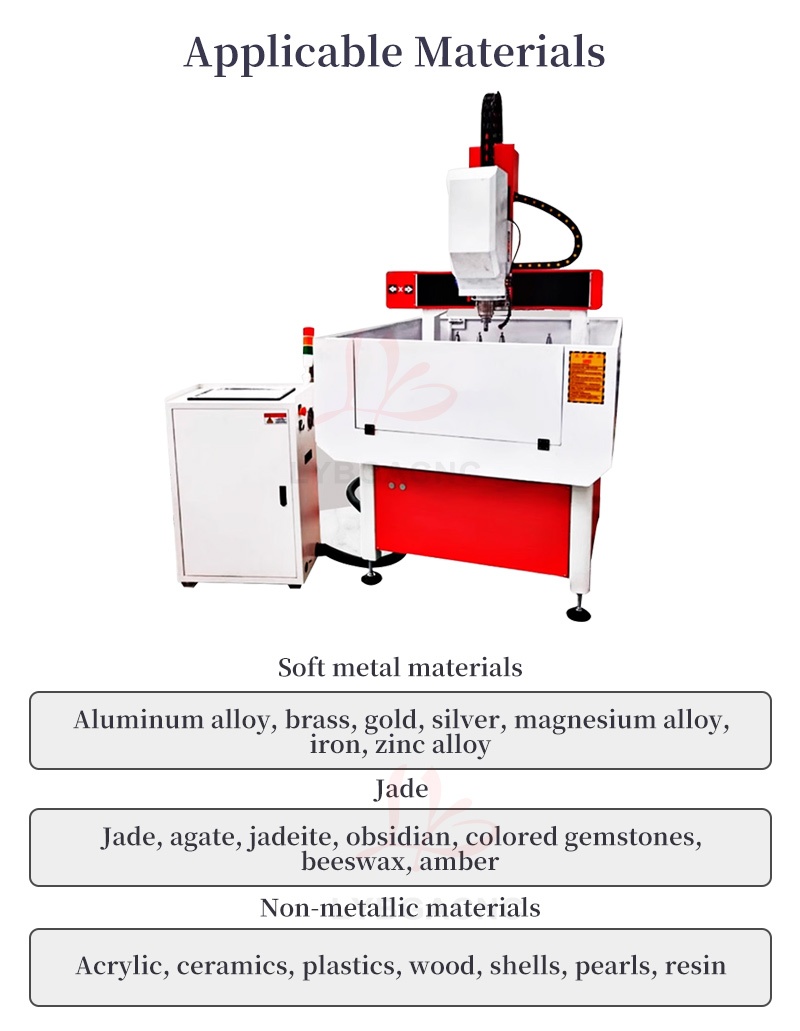

Applicable Materials
1. Soft metal materials
Aluminum alloy, brass, gold, silver, magnesium alloy, iron, zinc alloy
2. Jade
Jade, agate, jadeite, obsidian, colored gemstones, beeswax, amber
3. Non-metallic materials
Acrylic, ceramics, plastics, wood, shells, pearls, resin

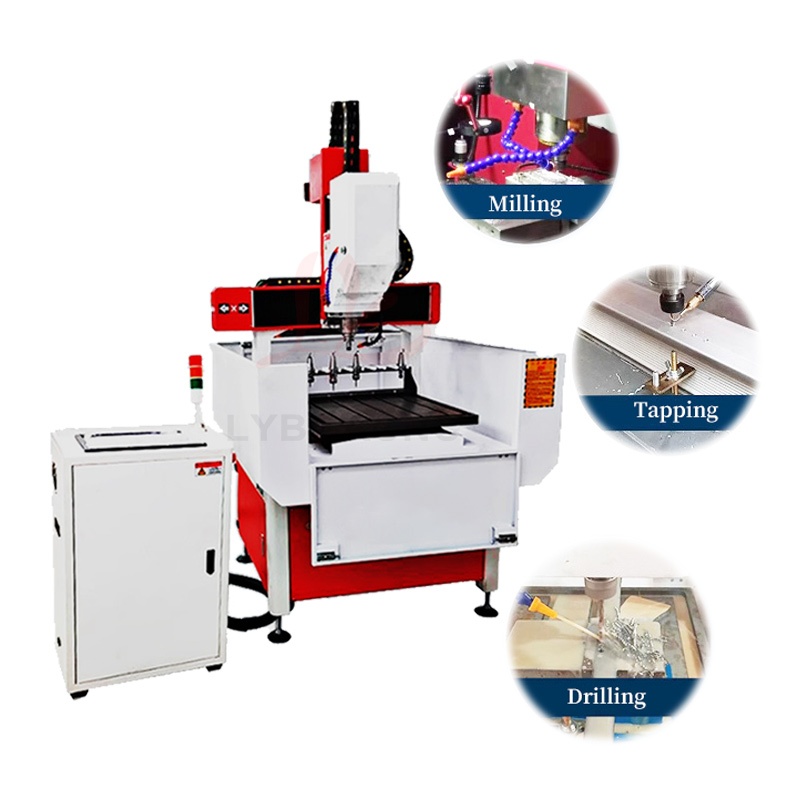

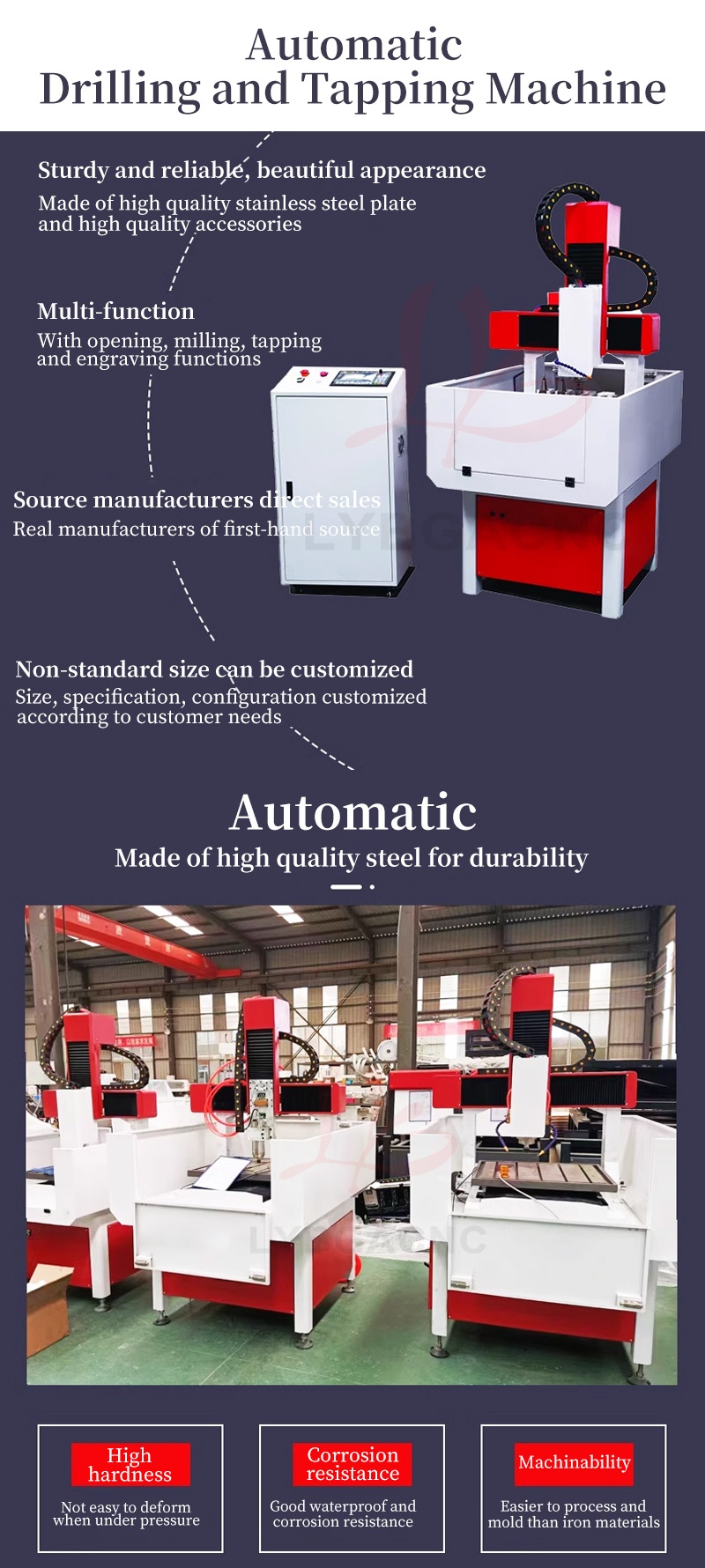

Automatic Drilling and Tapping Machine
1. Sturdy and reliable, beautiful appearance
Made of high quality stainless steel plate and high quality accessories
2. Multi-function
With opening, milling, tapping and engraving functions
3. Source manufacturers direct sales
Real manufacturers of first-hand source
4. Non- standard size can be customized
Size, specification, configuration customized according to customer needs
Made of high quality steel for durability
1. High hardness
Not easy, to deform when under pressure
2. Corrosion resistance
Good waterproof and corrosion resistance
3. Machinability
Easier to process and mold than iron materials
Thanks for your order!

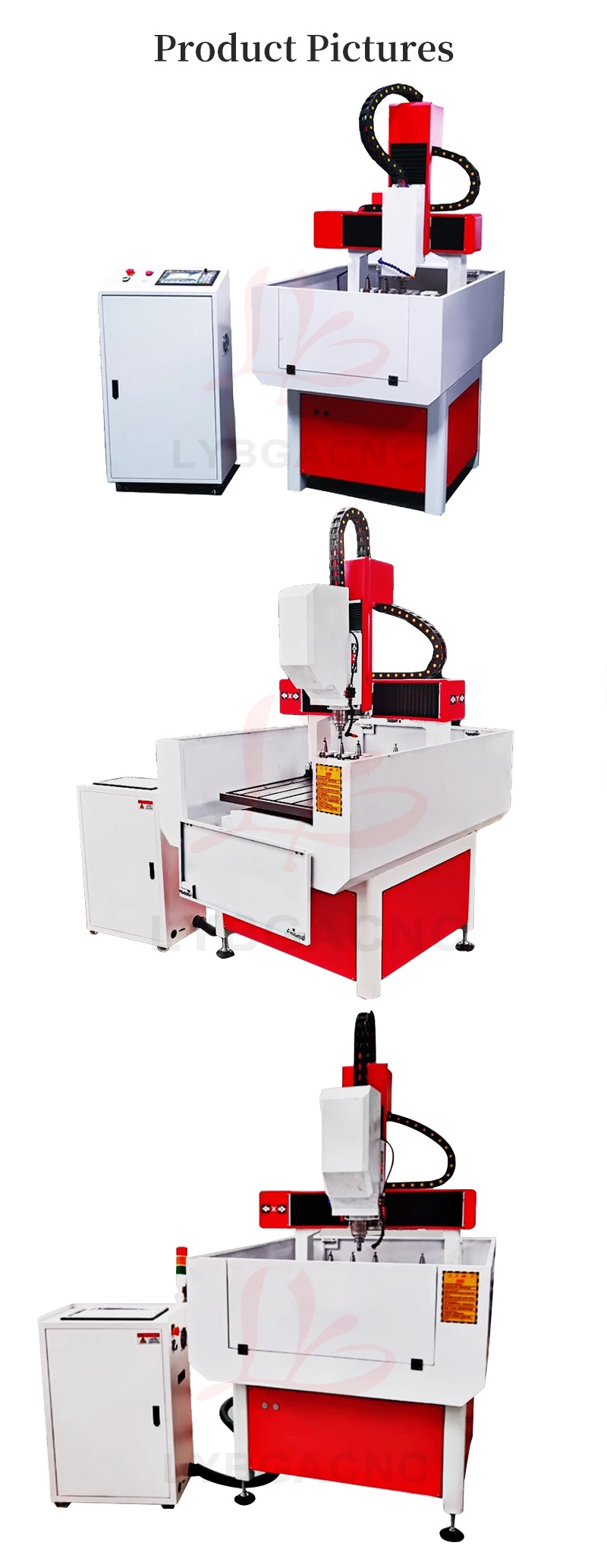

Product Pictures
