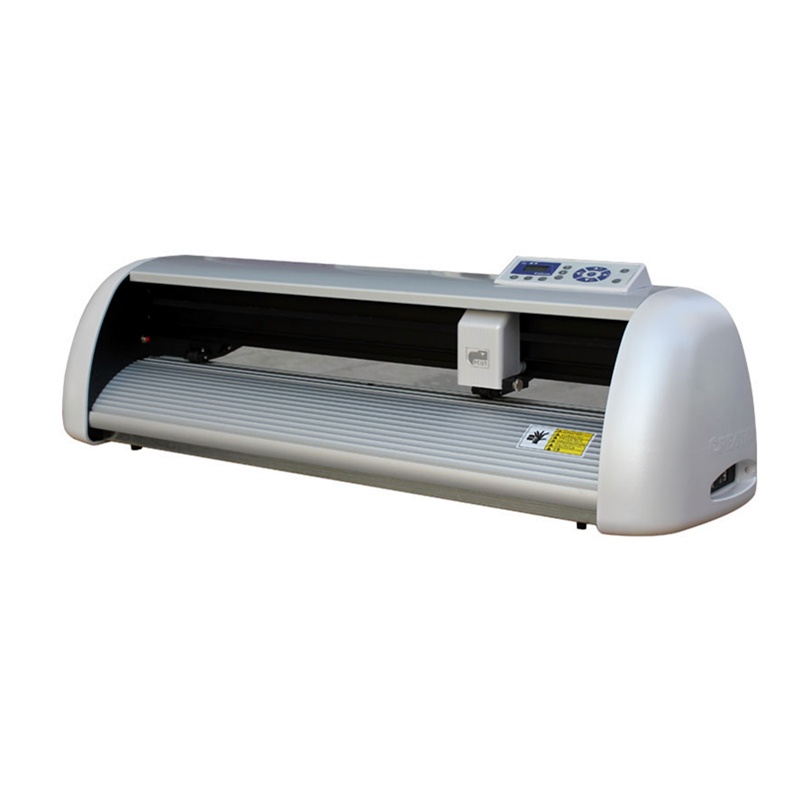

630-1200mm Digital Vinyl Sticker Cutting Plotter for Advertising Interior decoration

630-1200mm Digital Vinyl Sticker Cutting Plotter for Advertising Interior decoration

item ID: 69927
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$900 USD$541 (% off)
Payment

Product Detail

Product Tags

630-1200mm Digital Vinyl Sticker Cutting Plotter for Advertising Interior decoration

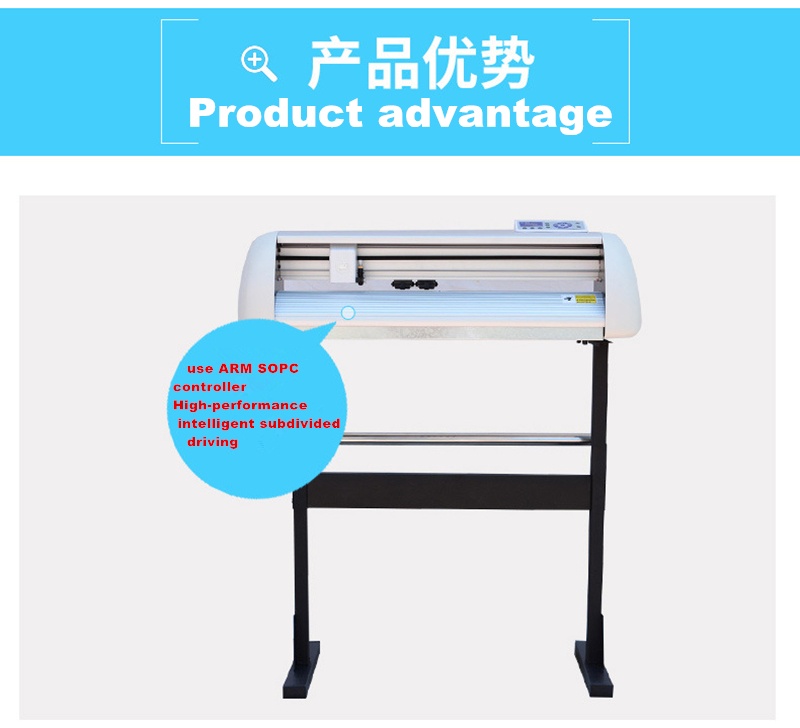

The machine features:

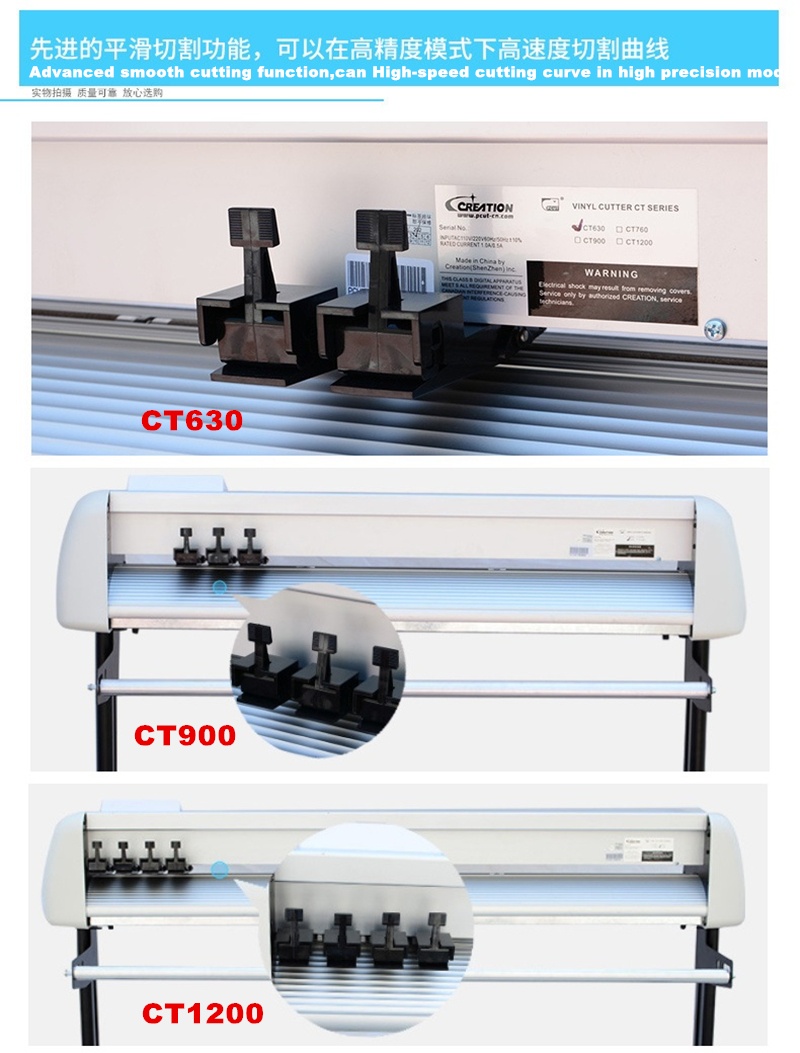

1. Digital precision adjustment, Angle of automatic compensation, adopt new micro step subdivision algorithm, so when high-speed cutting is also high cutting quality, more smooth curve. Carved small deformation, speed, big power, low noise.

2. All Chinese widescreen LCD, increased the computer USB interface connection output more easy and convenient, more has the following characteristics.

3. The new pickup carving machine with silvery white body design, advanced industrial aluminum body, 10 years do not fade, do not wear, the new trend of the fashion. Double layering, double, easily cut backless gummed paper thermal transfer paper, garment paper pickup special interface software, can accept AUTOCAD, CORELDRAW and other software output document, can set eccentric knife closed compensation and Angle compensation.

4. Improve the damping quieter, desktop M feeding frame, main shaft combination torsion motor, subdivide microstep driver, motor power, pickup computer carving machine series, 32 bit CPU, CACHE memory.

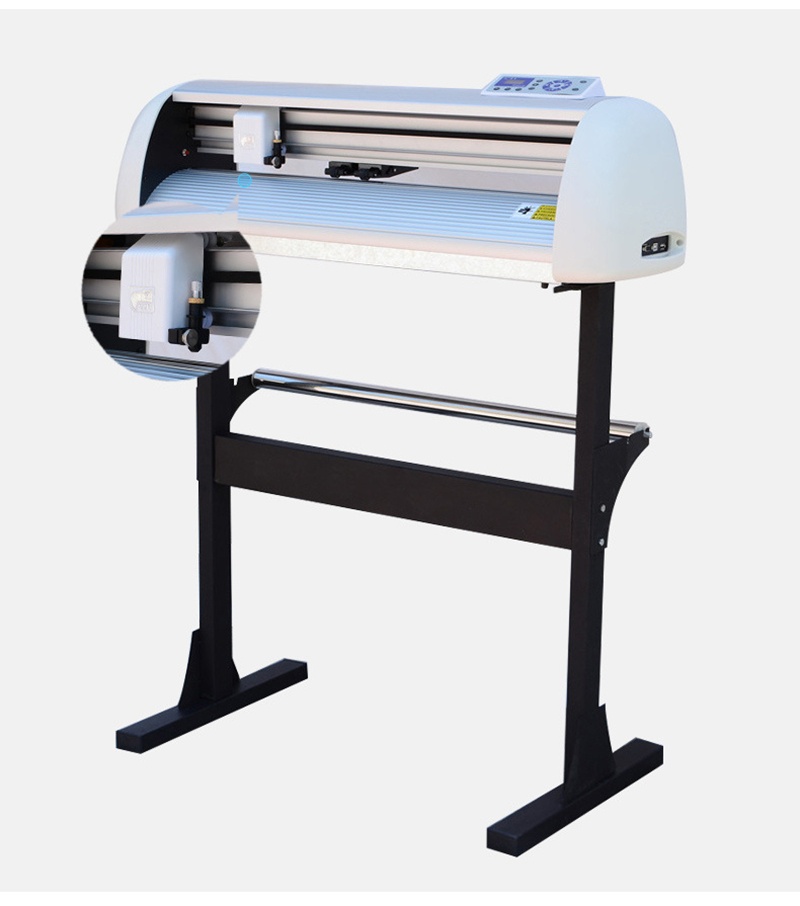

5. Pickup carving machine knife pressure using digital knife adjustment way, flexible operation.

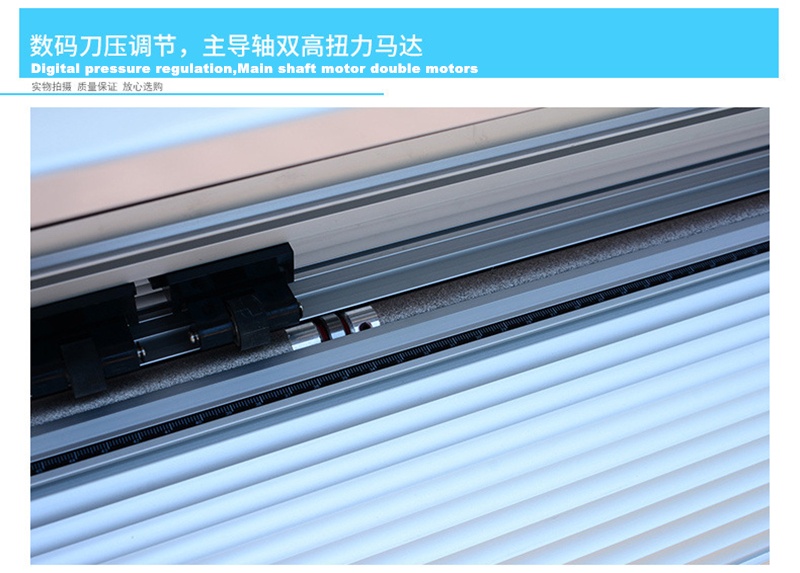

6. With double motor design, make the equipment operation more stable, guarantee the precision of paper feed, no paper feed partial like now.

7. Pickup carving machine into the paper width is 130 cm, more than the maximum width all material market at present, sharply engraved paint easily below.

8. To improve the damping quieter, further reduce the noise, and the motor power.

9. Pickup carving machine through the national security, performance, and comprehensive environmental test, ISO9001 international quality guarantee system, the performance is more reliable.

Scope of application:

Advertising word of sign, electronics, building mold, clothing drawing, figure hot cutting, etc.

Software support:

This machine carved painting software support most commercially available, such as FlexiSign and SignCut, WinPCSIGN, etc; Acceptable AUTOCAD, CORELDRAW and other software output document; Domestic software such as wen tai, carved painting masters. Is software compatibility of similar products in the best machine.















Technical parameters :

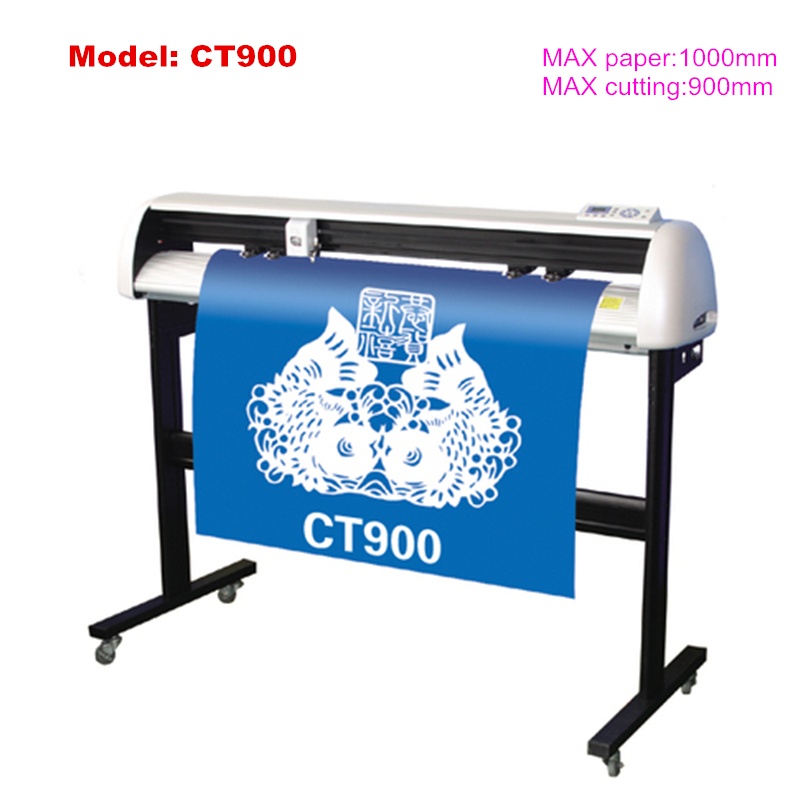

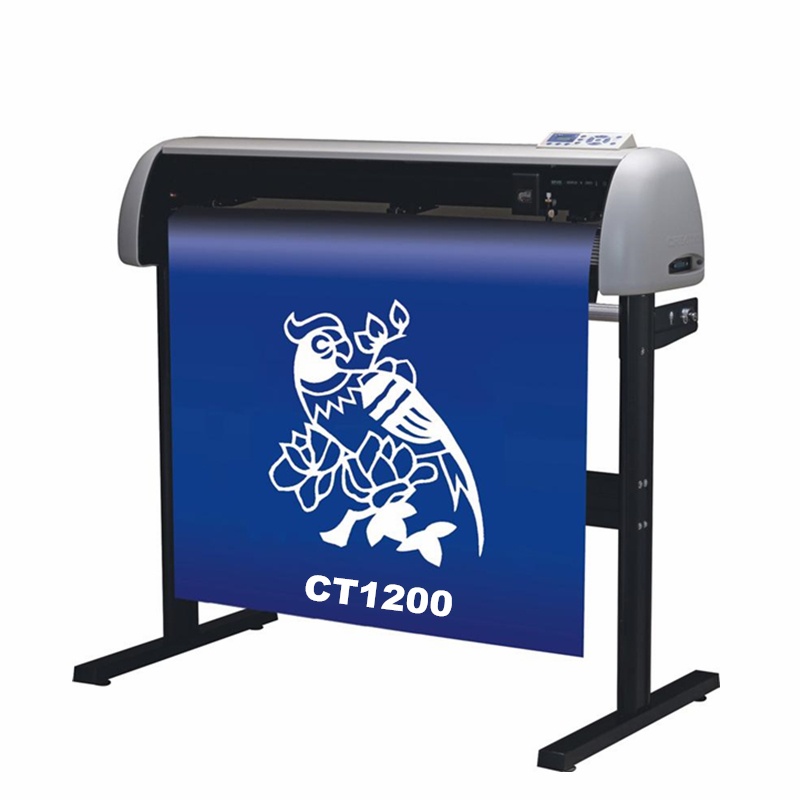

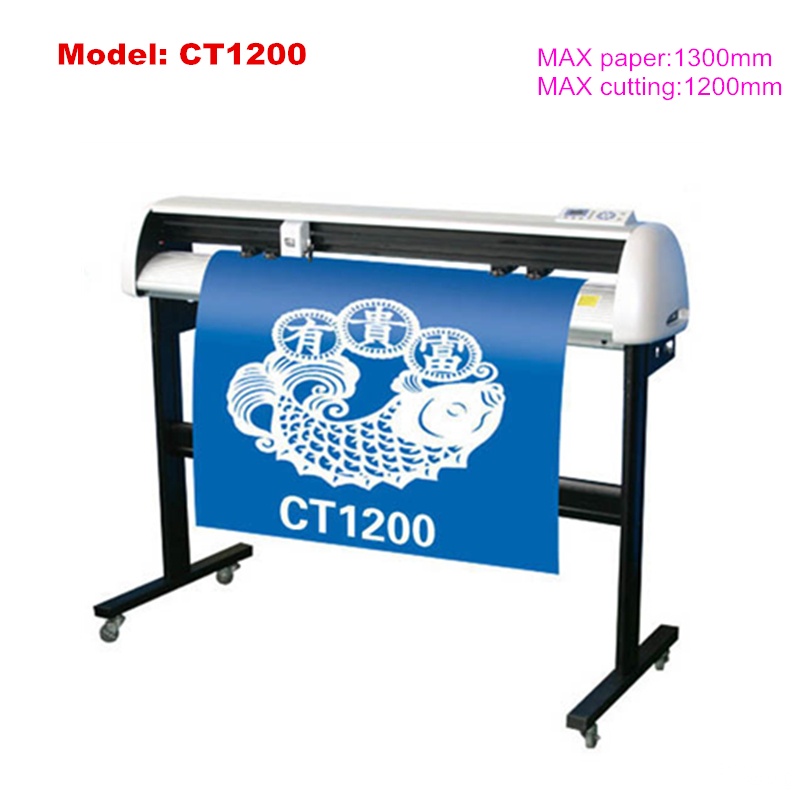

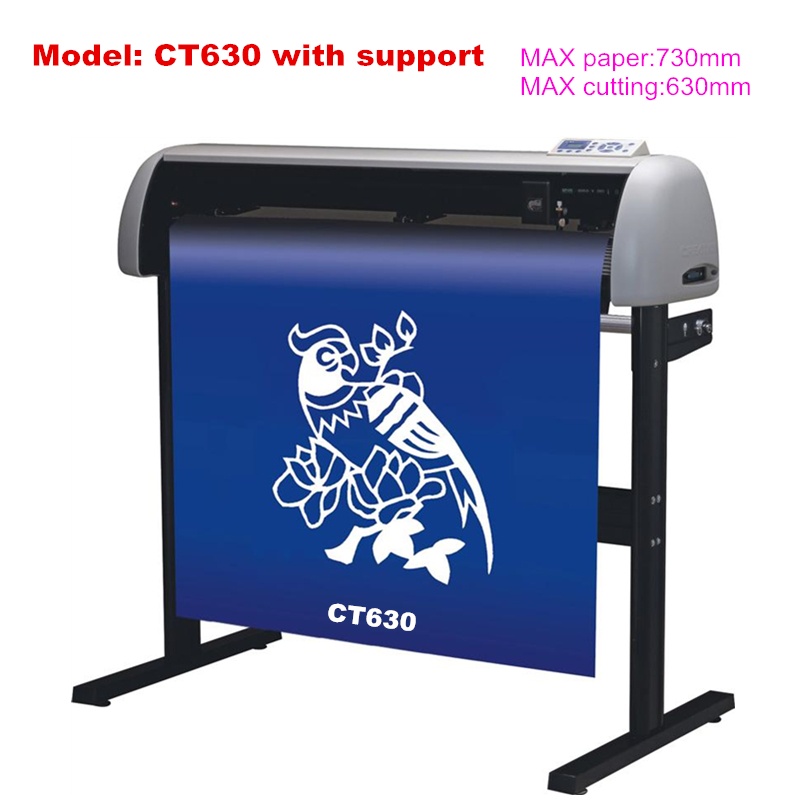

Model

CT630

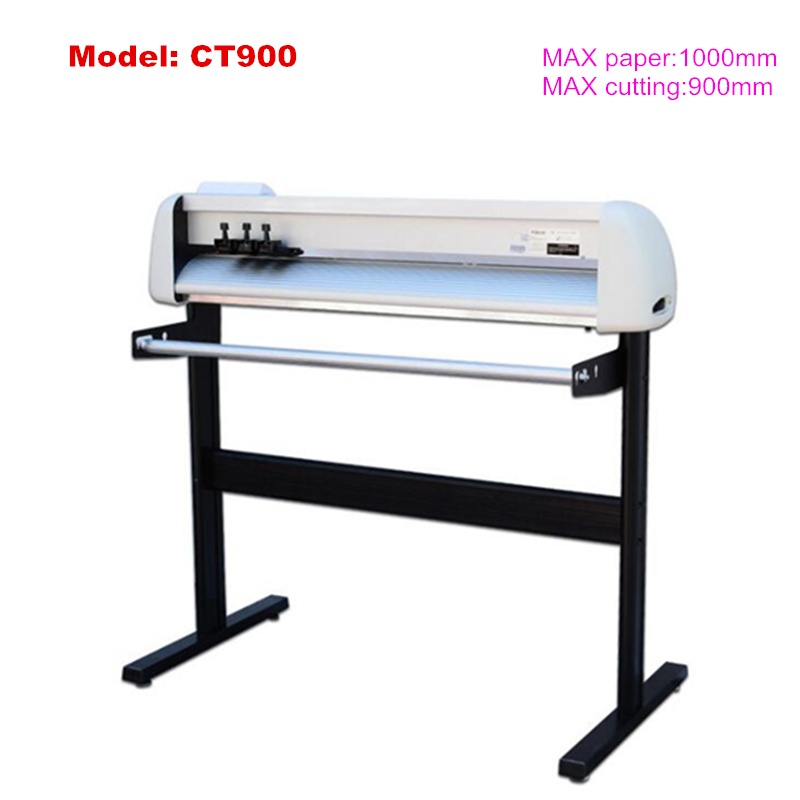

CT900

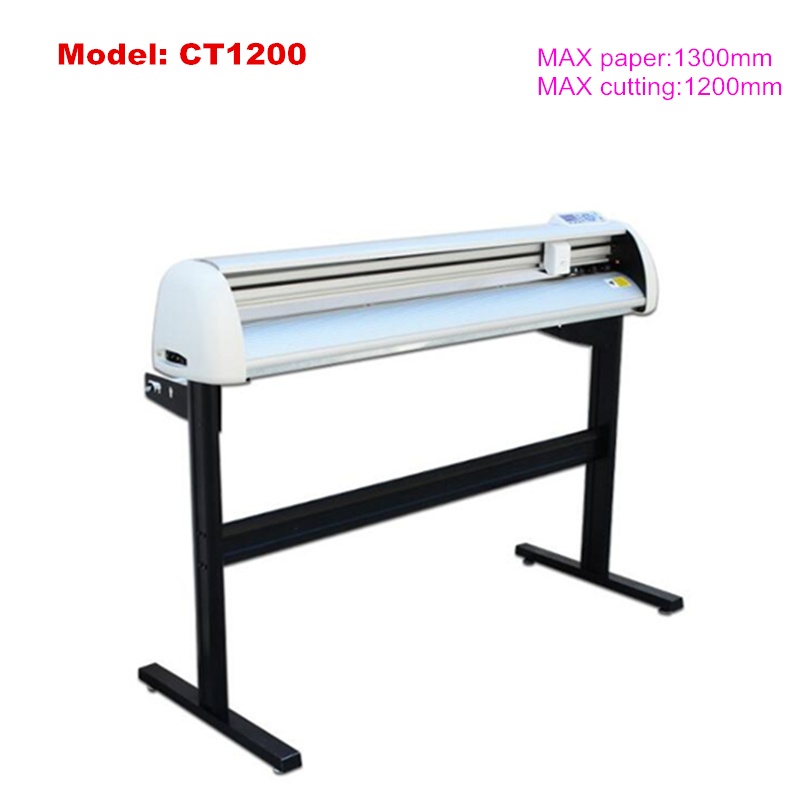

CT1200

mainboard

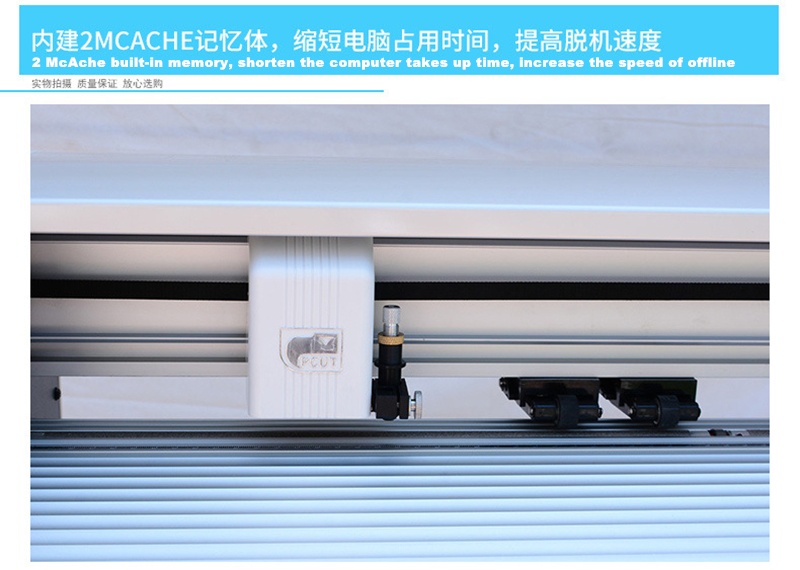

32 bit CPU, 16Mb high-speed CACHE memory

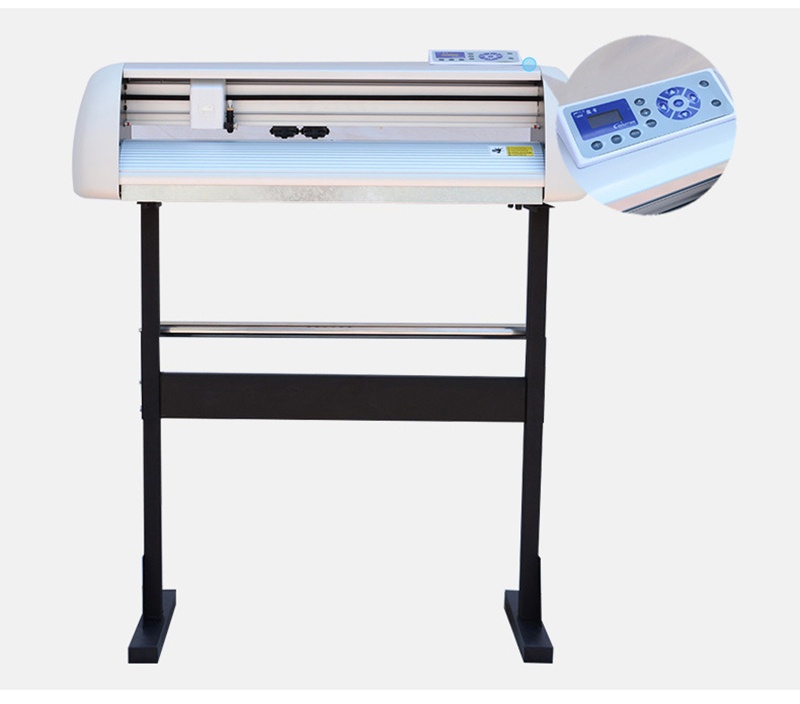

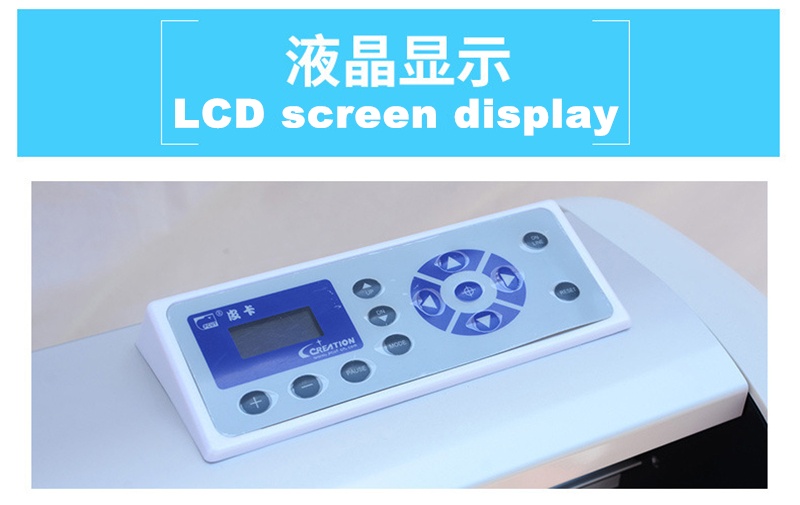

Control panel

Top mounted, 8X2 character LCD, 13 key touch film keyboard.

drive

Main shaft double high torque motor, micro step subdivision drive

Positioning mode

Electronic gauge, arbitrary origin setting

Supporting and

paper feeding mode

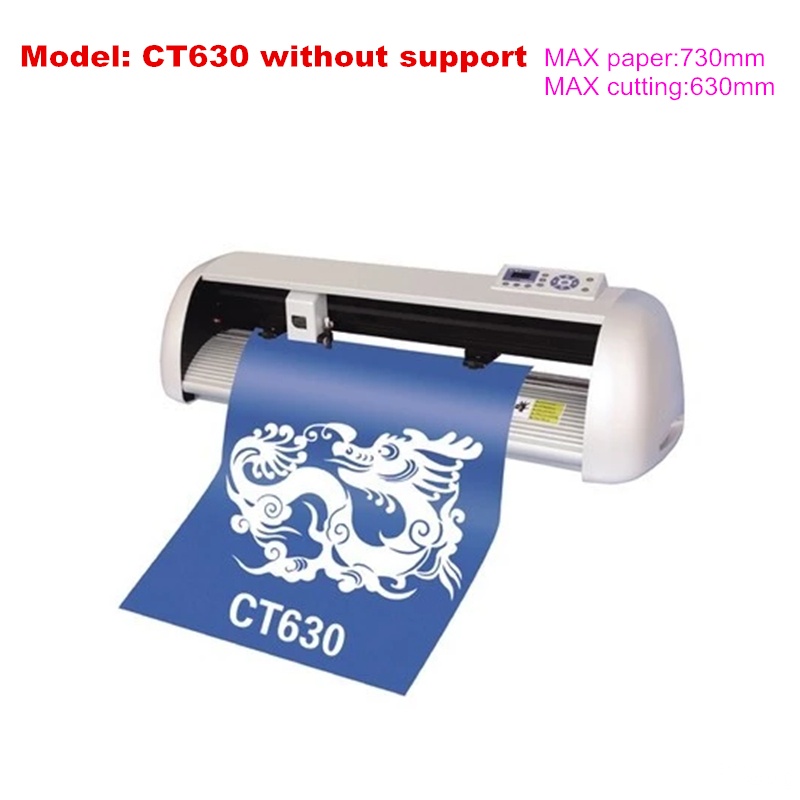

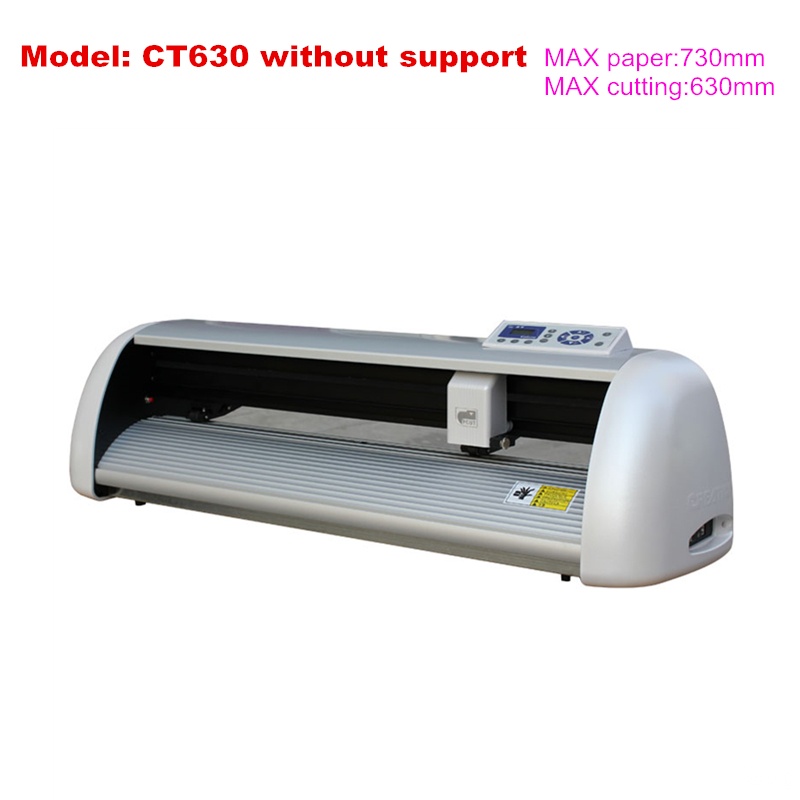

Desktop not support

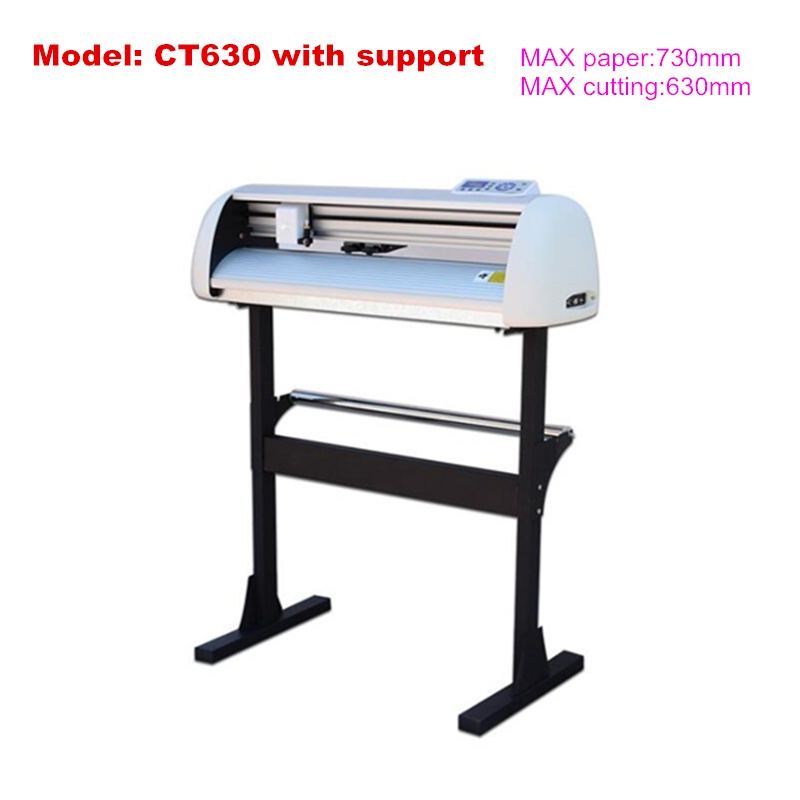

Vertical paper support

MAX Paper width

730mm

1100mm

1300mm

MAX Cutting width

635mm

1005mm

1205mm

MAX Cutting speed

400mm/s

MAX Cutting length

20000mm

Knife pressure

0-500g(Digital adjustment)

Mechanical precision

0.05mm

Repetition precision

<+-0.1mm

Drawing pen type

Diameter 11.4mm Water, oil, atomic pencil, poster pen

Drawing instruction

DM-PL/HP-GL automatic recognition

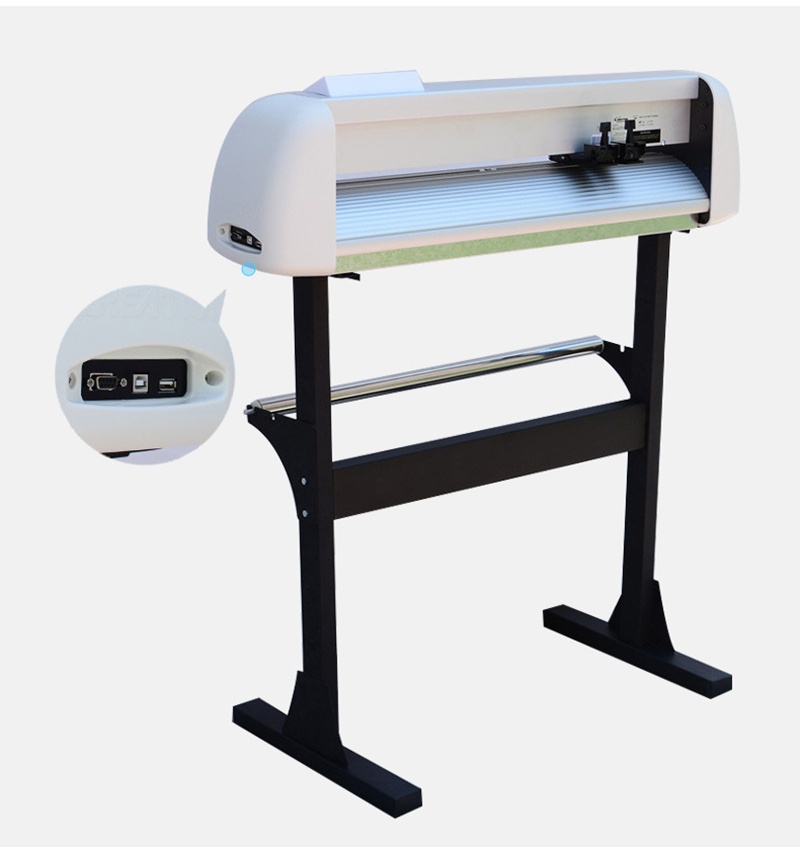

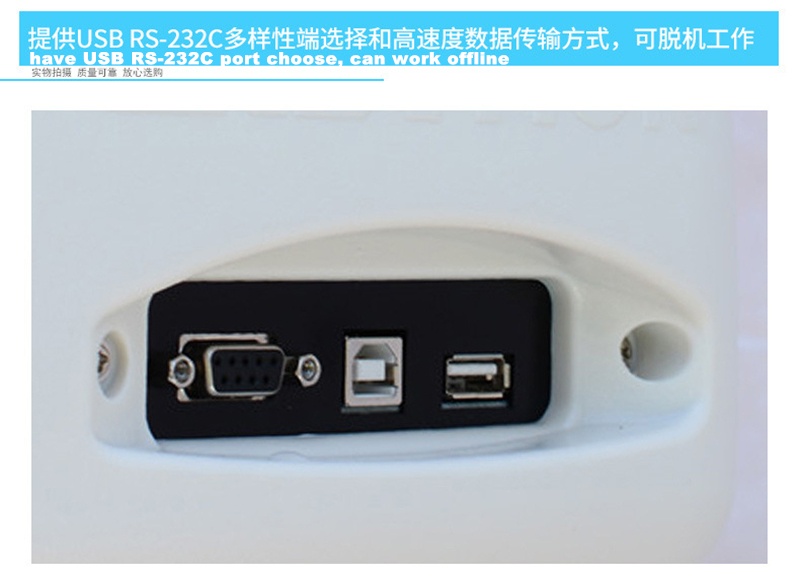

Interface

RS232/USB

Power Supply

AC110V /240V±10%,50Hz

Power waste

<100w

<120w

Operating environment

temperature:+5-+35,Relative temperature 30%-70%

Outsourced size

1045×330×355mm

1292×330×440mm

1593×330×440mm

weight

18kg

31kg

33kg
