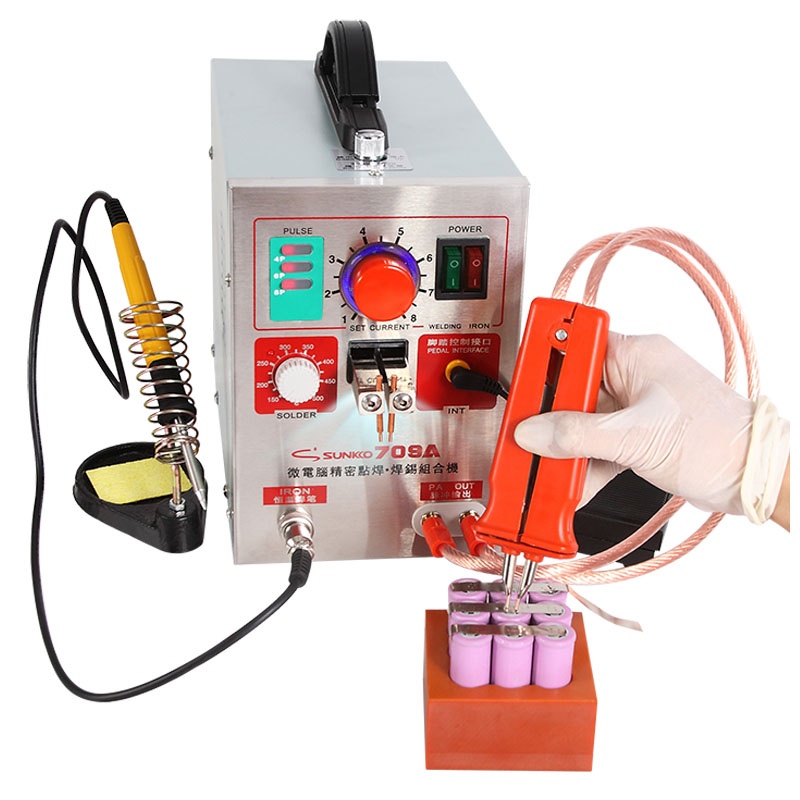

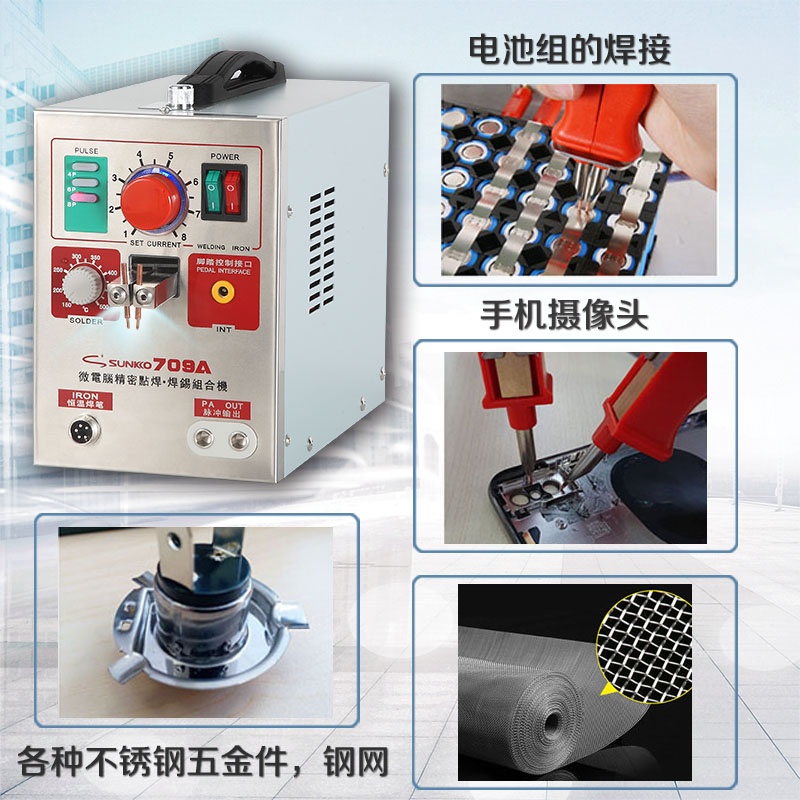

709A Spot welding machine 1.9KW 18650 lithium battery pack welder machine for 18650 battery pack welding precision spot welders

709A Spot welding machine 1.9KW 18650 lithium battery pack welder machine for 18650 battery pack welding precision spot welders

Note:

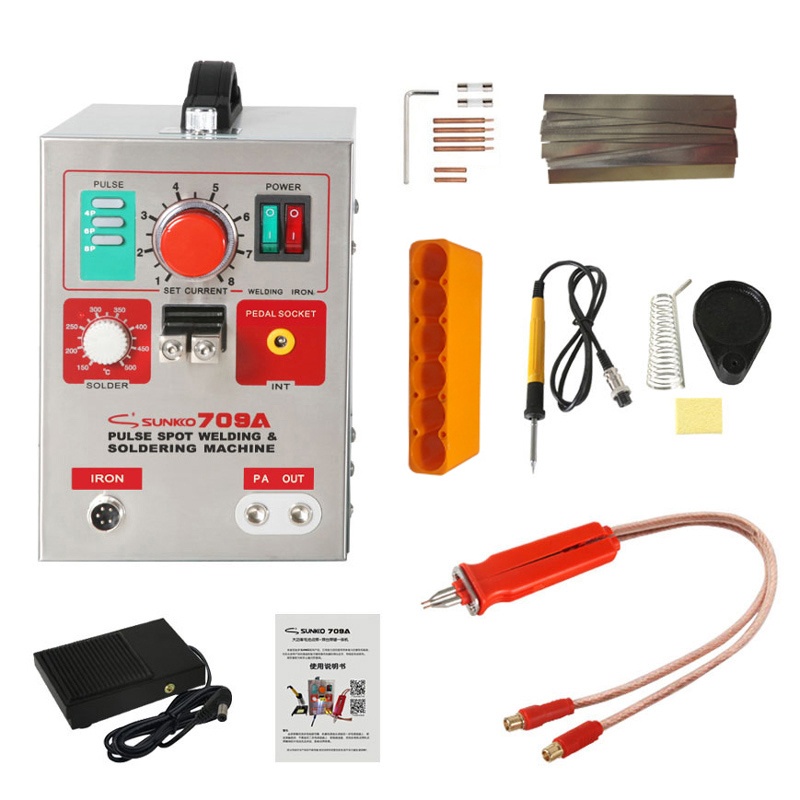

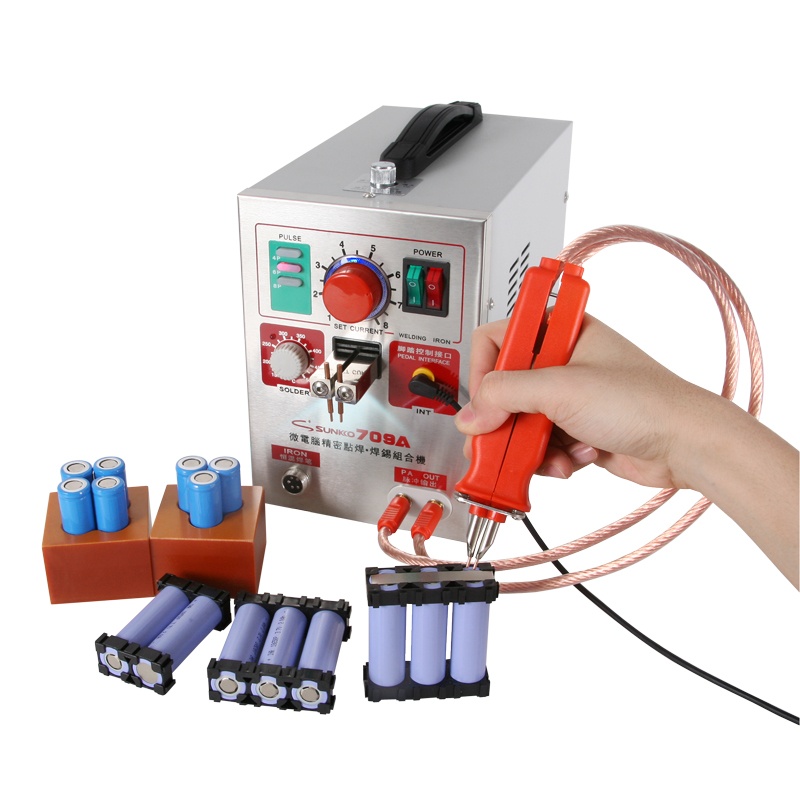

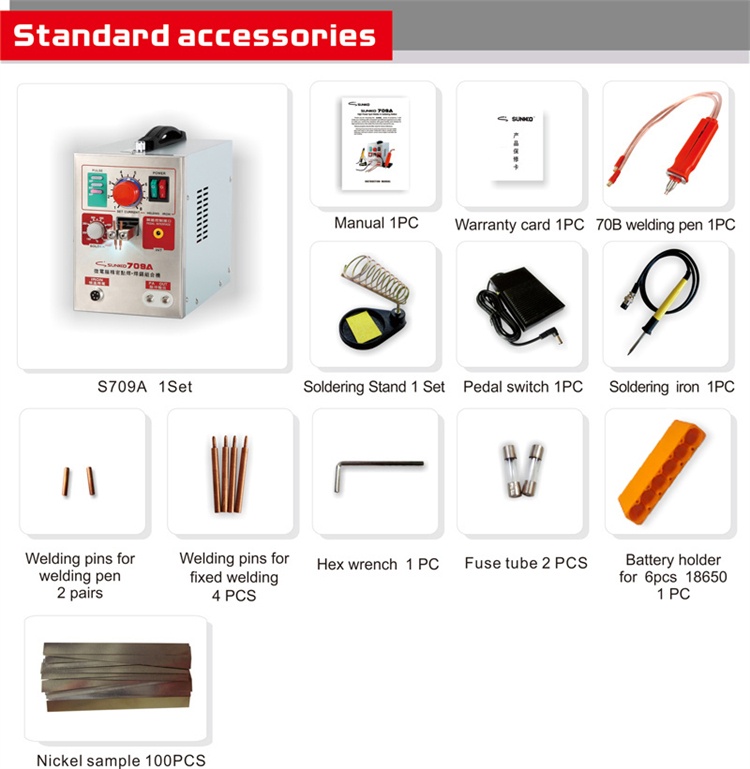

Battery only as a reference in the picture! Not included in the product! When sending, not including batteries! The machine’s standard welding pen is: S70BN, if you need other welding pen, please contact us, thank you!

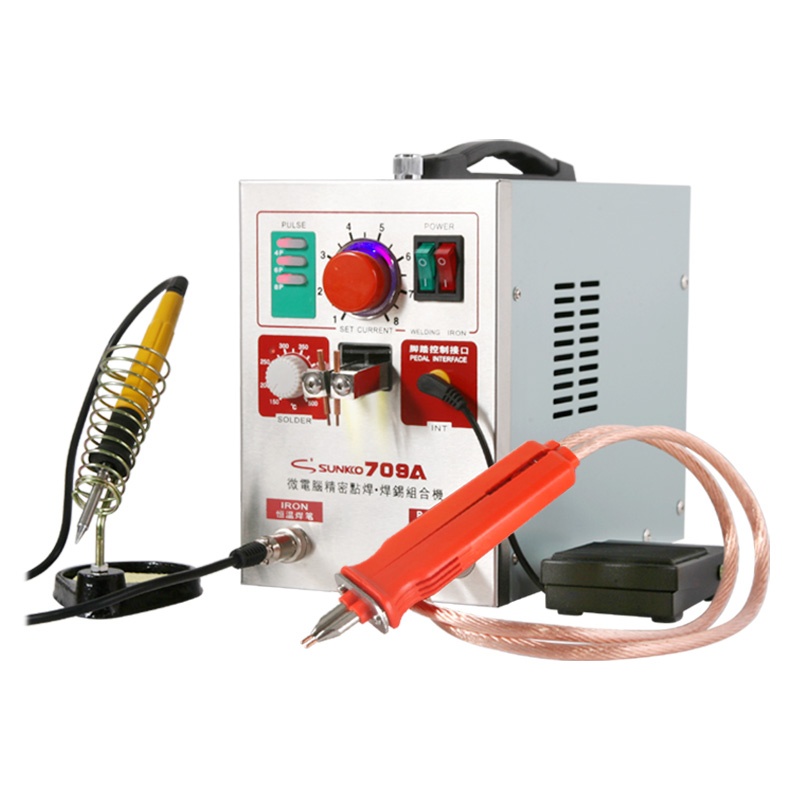

1.Combination of battery spot welding and circuit board solder

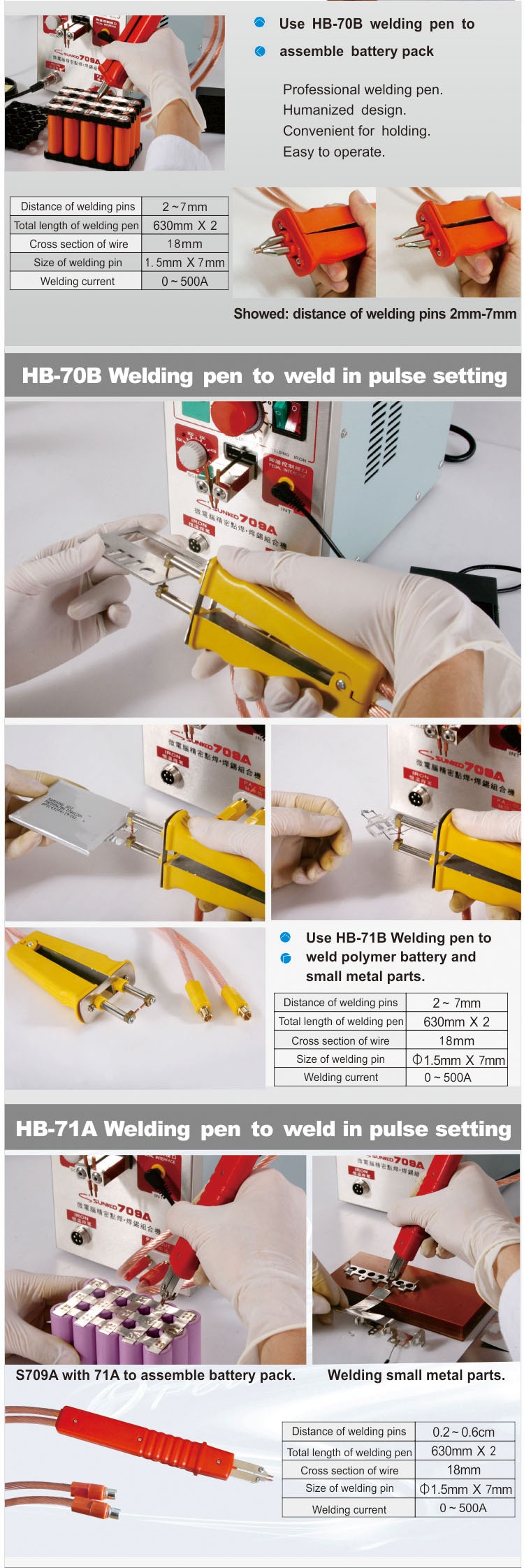

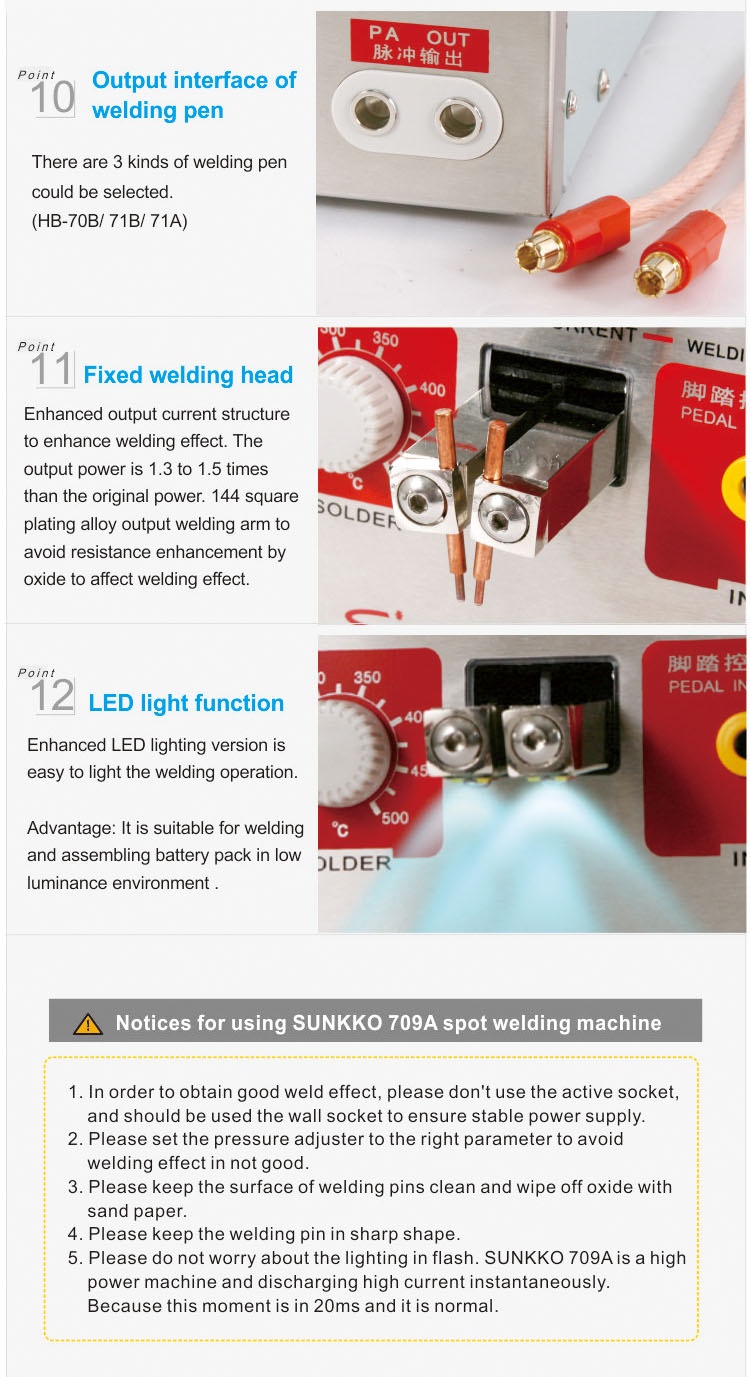

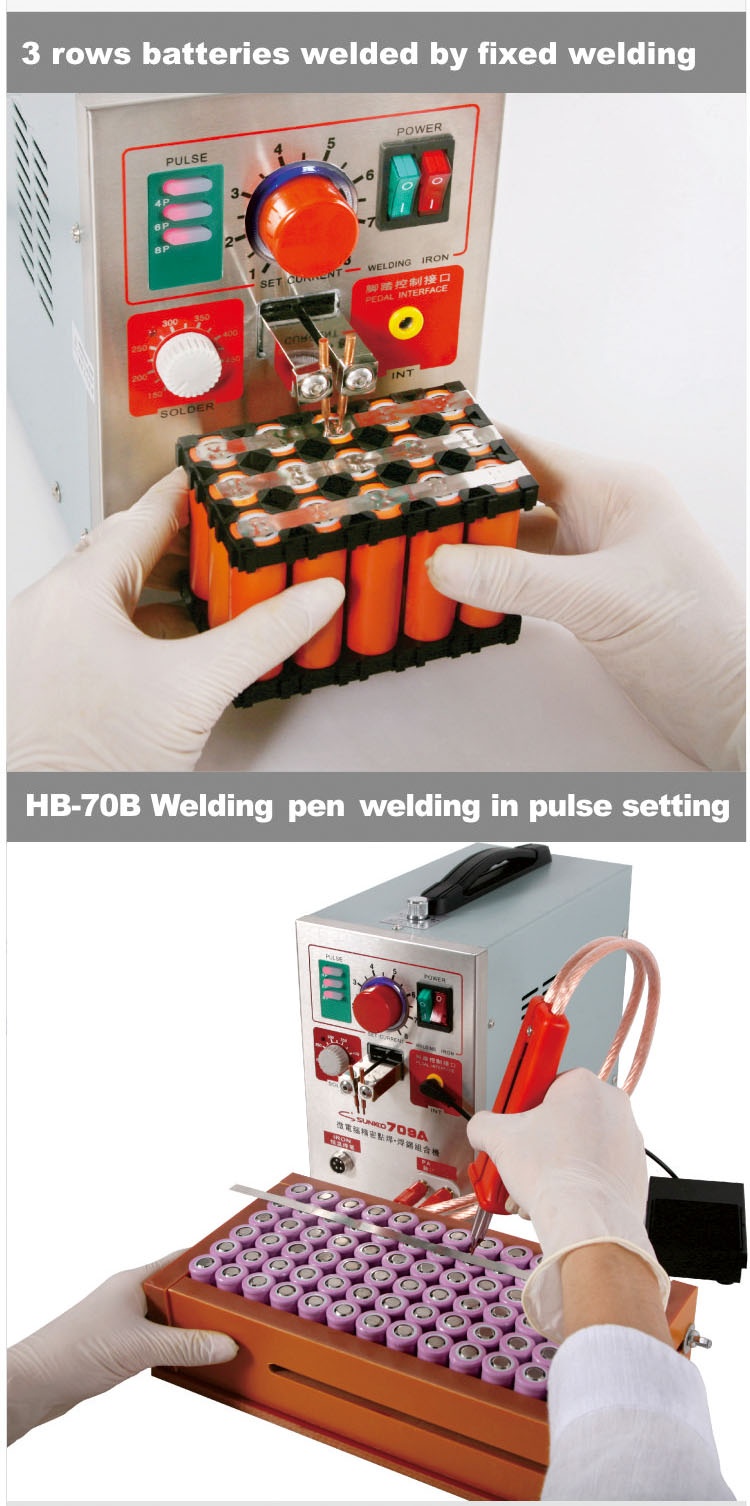

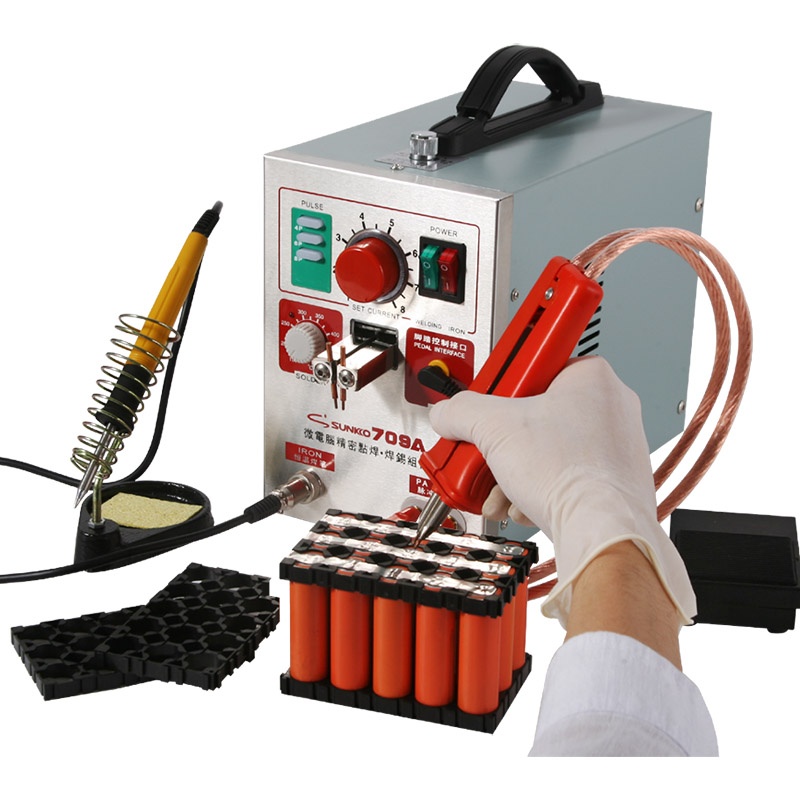

2.Fixed spot-welding head and mobile spot-welding pen are combined together in one machine,so that the welding will become flexible.

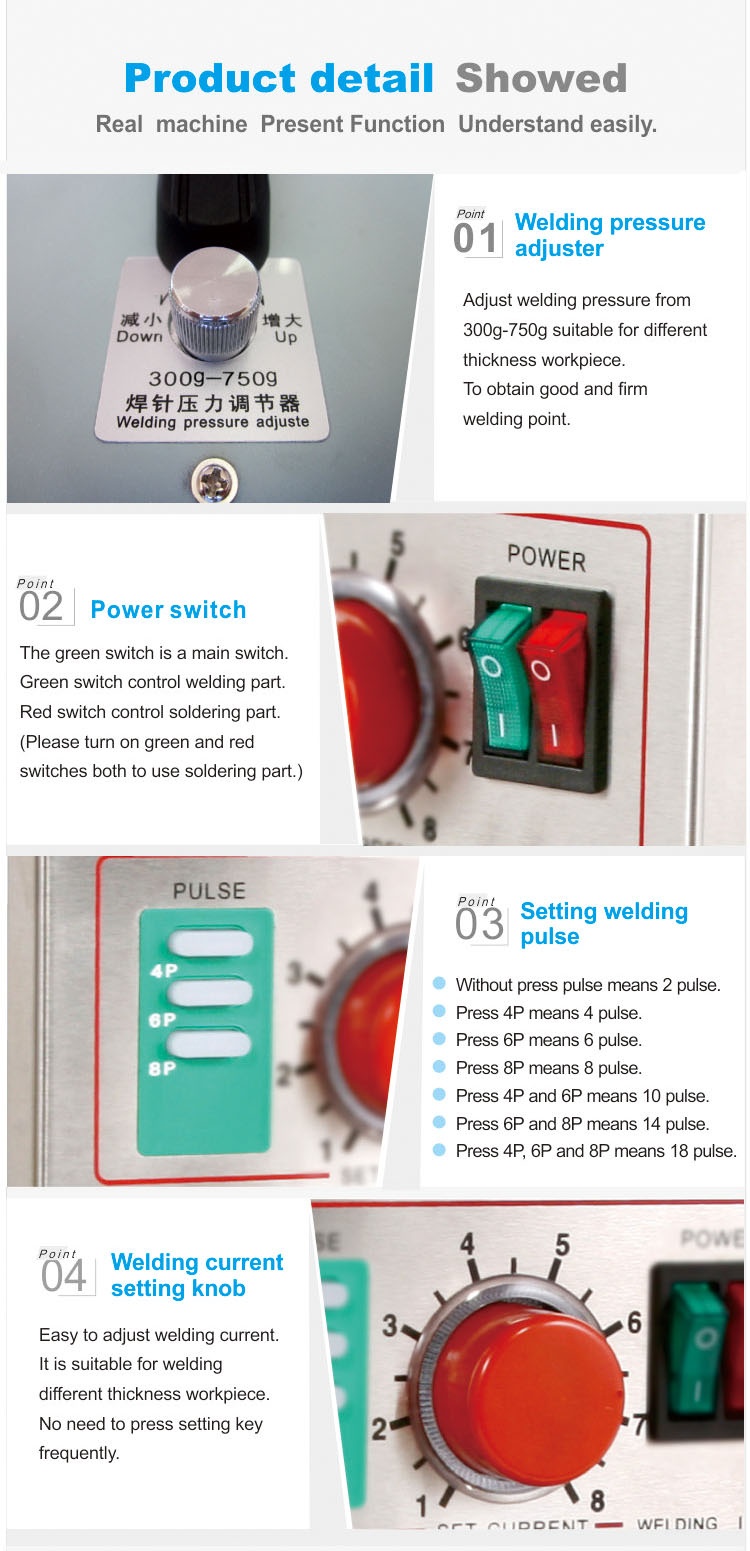

3.Possess the function of 2,4,6,8 welding pulses selection, make the solder joint reliable.
4.Possess welding current rapid regulator, selecting the current will become quick and efficient.

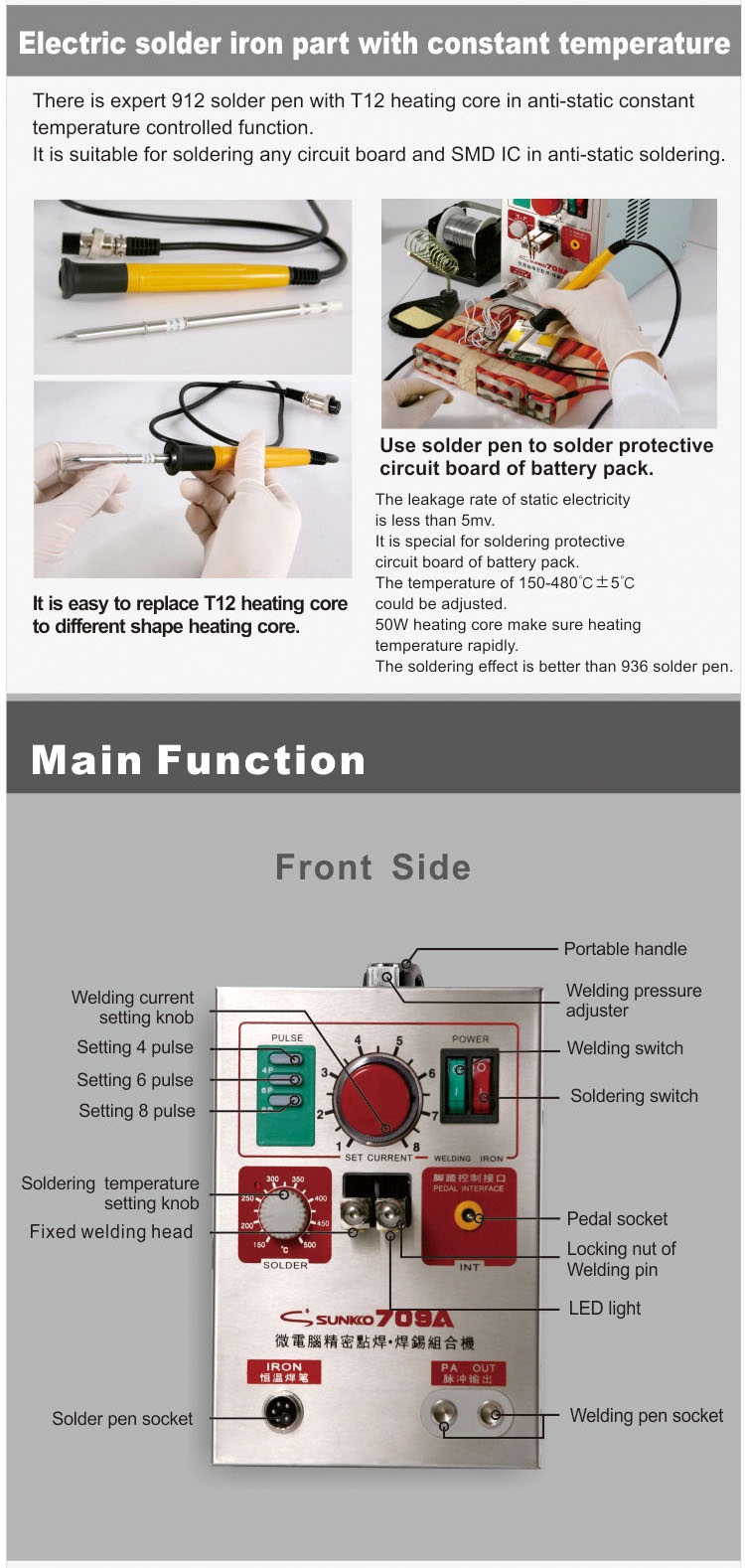

5.The anti-static soldering station which controls the temperature accurately ,it is suited for welding any integrated circuit or wiring.

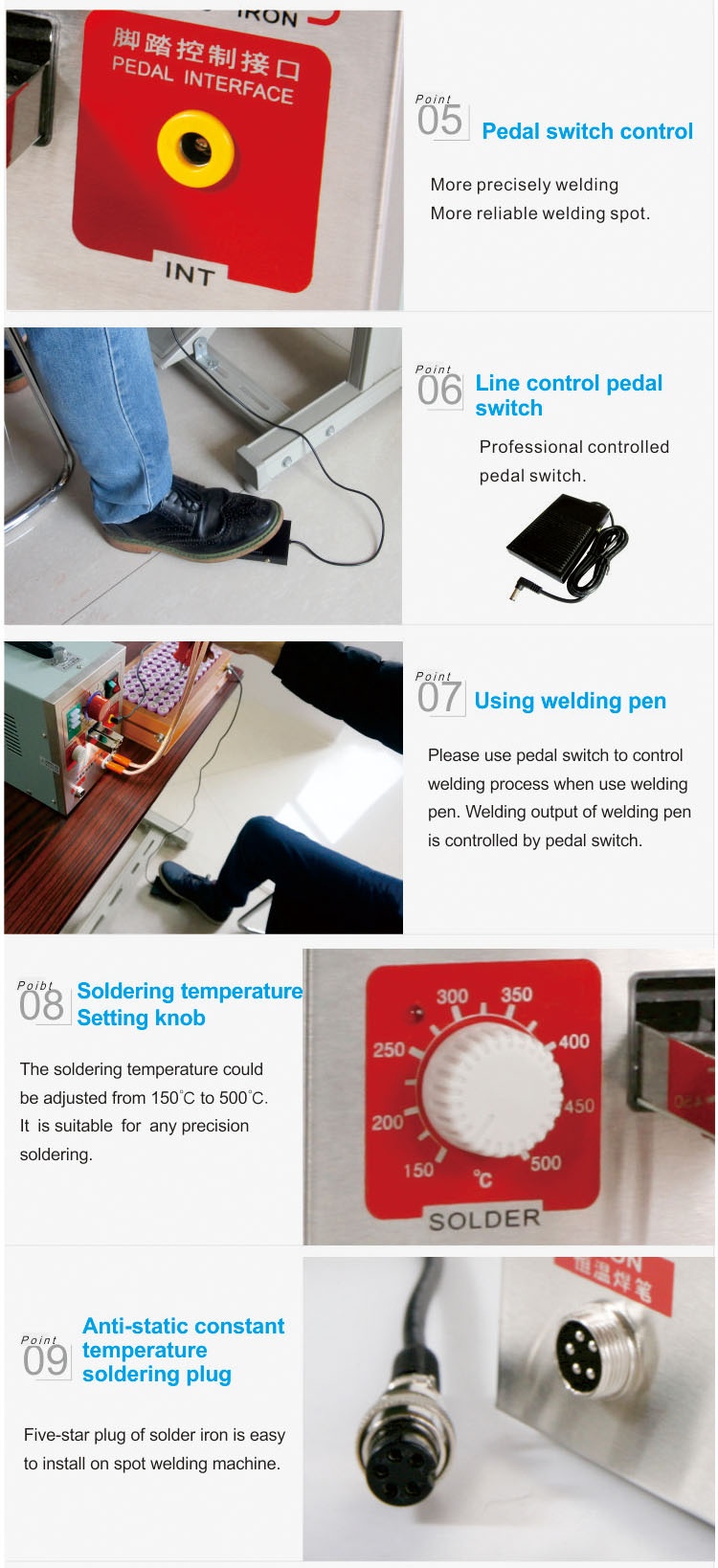

6.The removable foots witches can satisfy the reqirement of welding position or sophisticated technology.
7.The fixed spot-welding head has pressure regulating device which makes the solder connections more reliable.

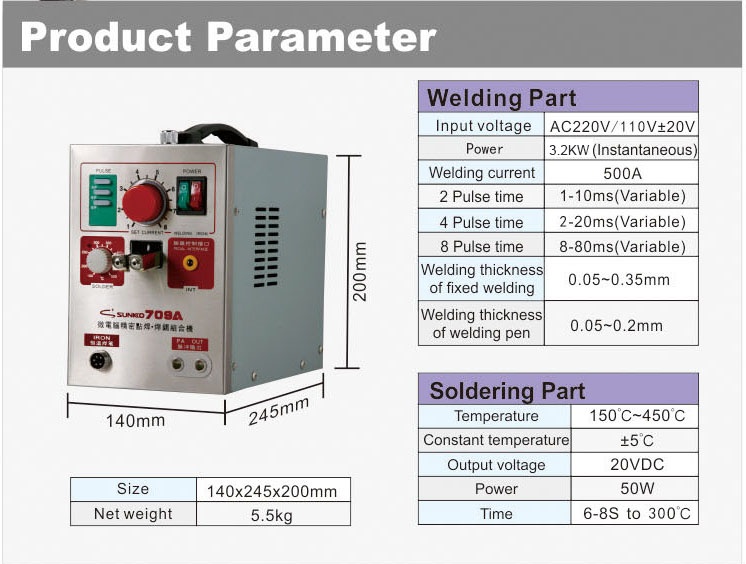

Parameters:

Spot-welder part
Supply Voltage AC 220V / 50HZ,110 V / 60 HZ(select)
Power 1.9 KW (Instantaneous)
Current 500 A

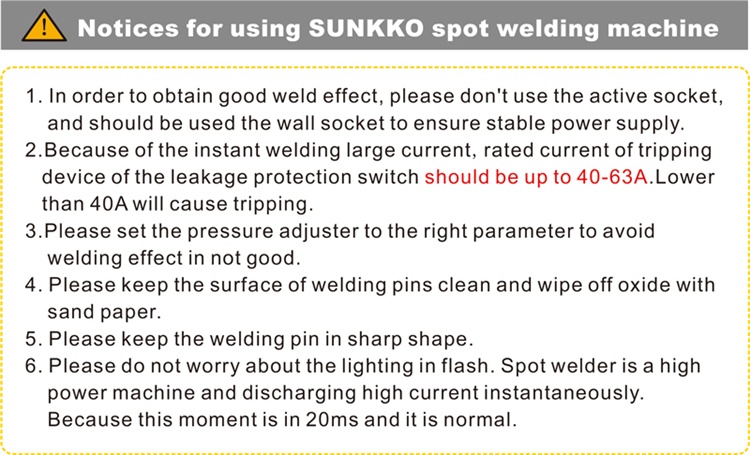

Electric leakage Switch Requirement 60 A or more than 60 A
Time of Double Pulse 1 ~ 10 ms
(Instantaneous Welding Time) (adjustable, by adjusting the welding current knob)
Time of Four Pulses 2 ~ 20 ms (adjustable)
(Instantaneous Welding Time)
Time of Eight Pulses 8 ~ 80 ms (adjustable)
(Instantaneous Welding Time)
Welding Pin Range 5 – 6 mm
Welding Pressure 300 – 500 g
Welding Distance Adjustable
Suitable Welding Thickness 0.03 – 0.3 mm for Fixed Copper Head
0.03 – 0.2 mm for Mobile Welding Pen
Soldering iron part
Temperature 150°C ~ 450°C
Power 50 W
Output Voltage 20V DC

Warranty:
One year

Tariff:

The price dose not include the tariff, Customers need to pay the tariff when package arrived at your local Customs

Note:

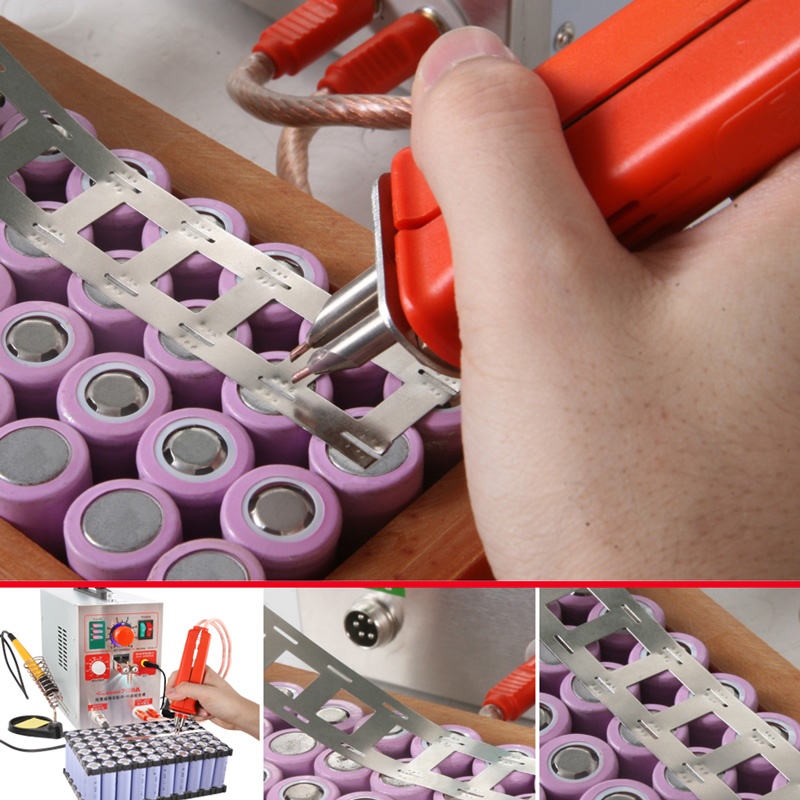

The welding thickness 0.03 – 0.3 mm indicates the thickness range of all alloy it can be weld, for nickel or nickel plated steel, the range is 0.08 – 0.3 mm.
