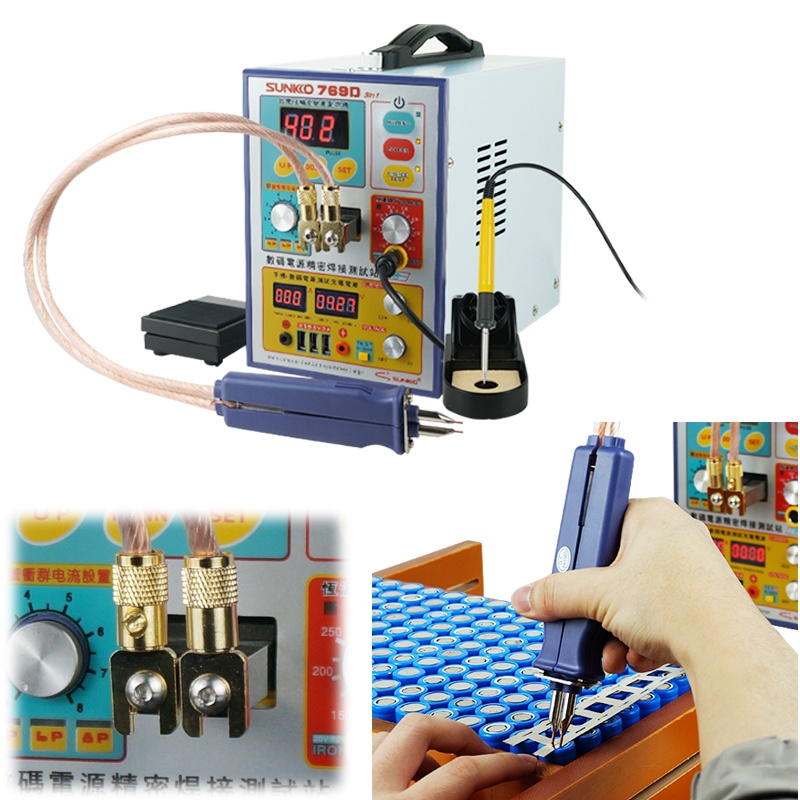

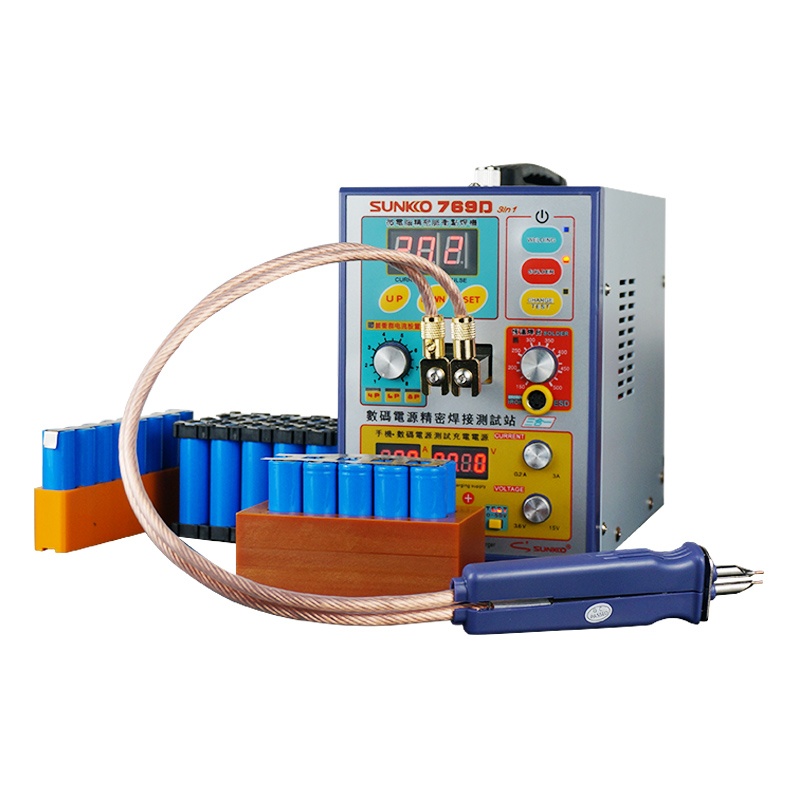

769D Battery Spot Welder Machine 3.2KW Automatic Pulse 18650 Battery Welding Machine With A High Power Spot Welding Pen

769D Battery Spot Welder Machine 3.2KW Automatic Pulse 18650 Battery Welding Machine With A High Power Spot Welding Pen

item ID: 64677
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$500 USD$295 (% off)
Payment

Product Detail

Product Tags

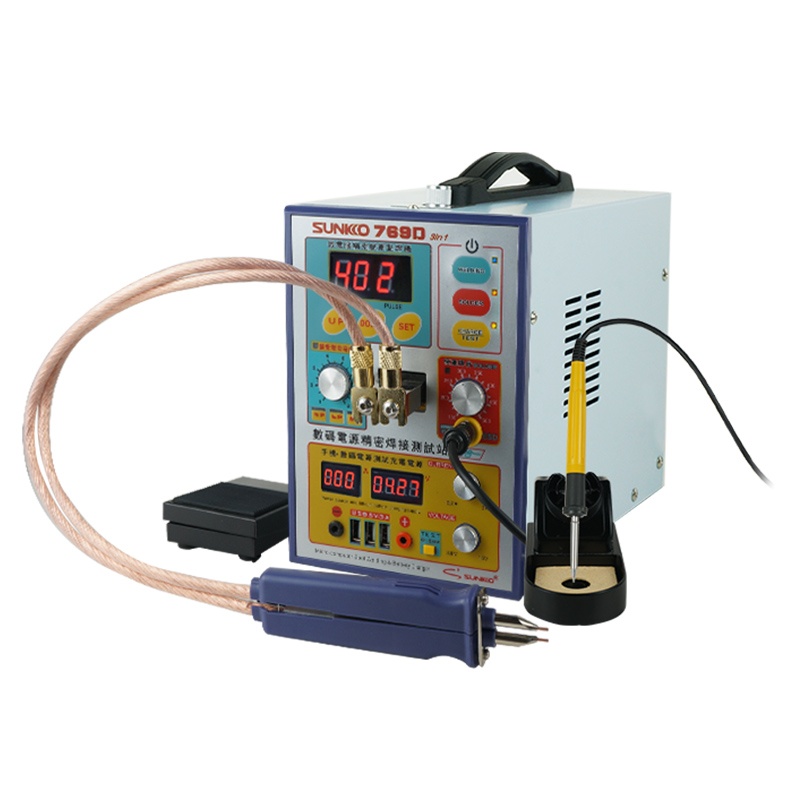

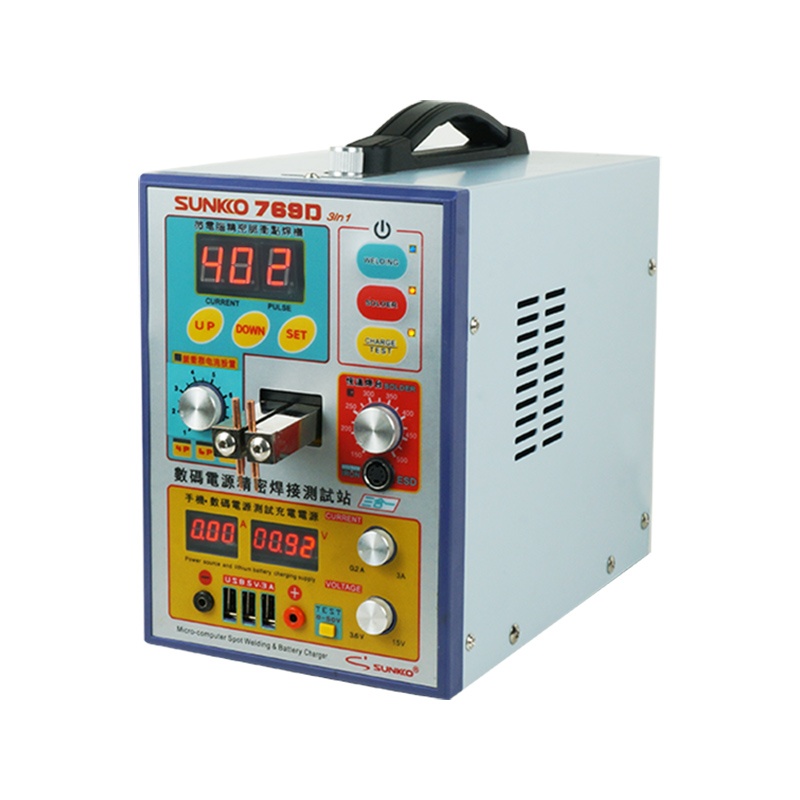

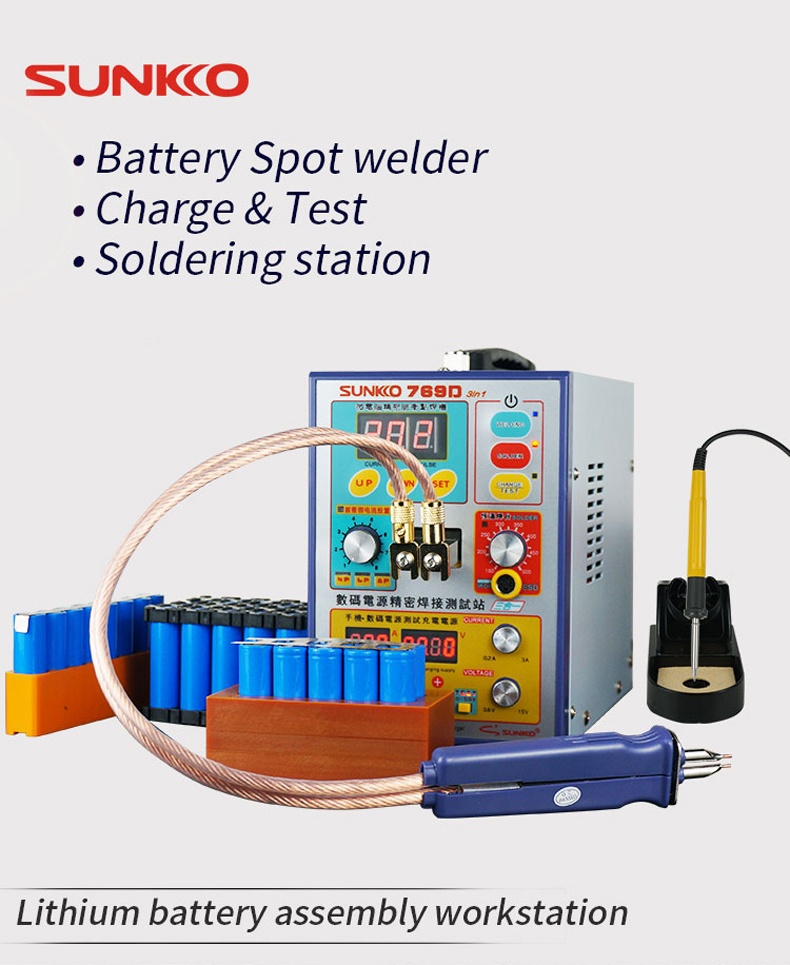

769D Battery Spot Welder Machine 3.2KW Automatic Pulse 18650 Battery Welding Machine With A High Power Spot Welding Pen

Spot welding machine parameters
Power supply voltage: 220V / 110V
Power: 3.2KW (instantaneous peak value)
Single pulse time: 0.5 ~ 5ms
Double pulse time: 1-10ms
18 pulse time: 0-80ms

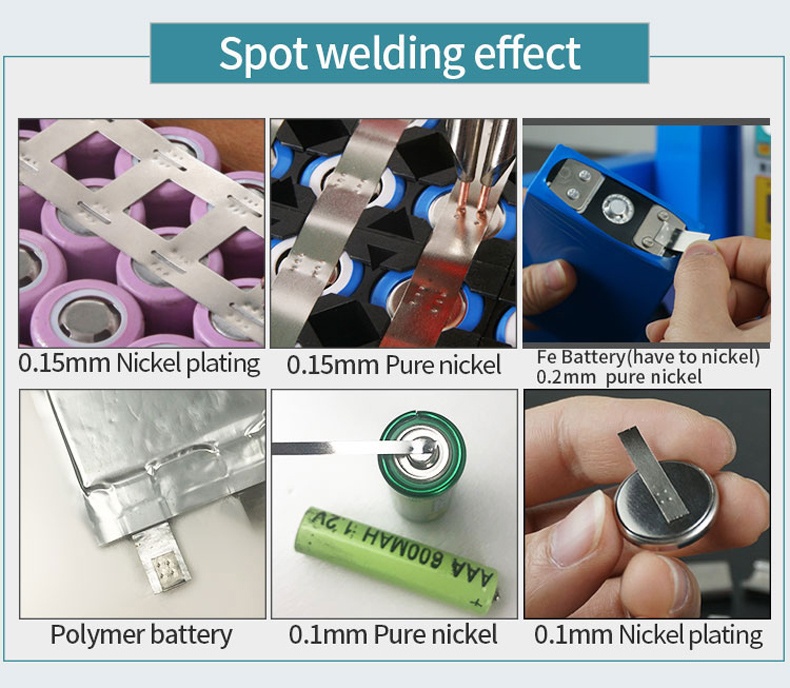

Welding capacity: 0.05 ~ 0.35mm

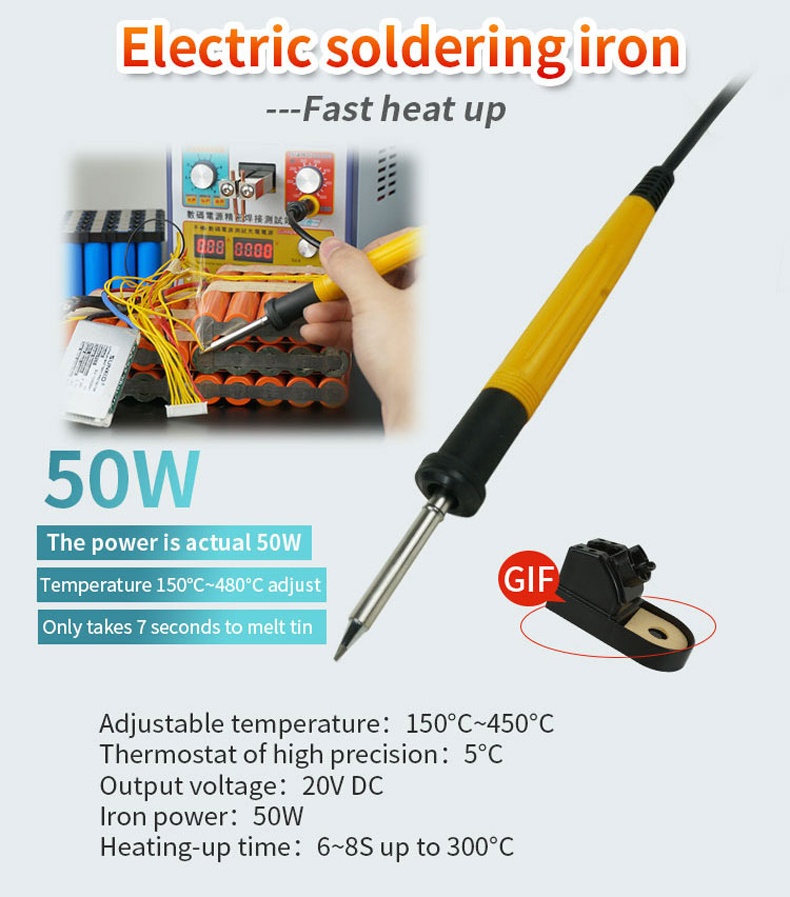

Some parameters of constant temperature soldering station
Solder pen temperature: 150 ℃ ~ 450 ℃
Constant temperature accuracy: 5 ℃
Output voltage of welding station: 20V DC
Welding pen power: 50W
Heating time: 6-8 seconds to 300 ^ C

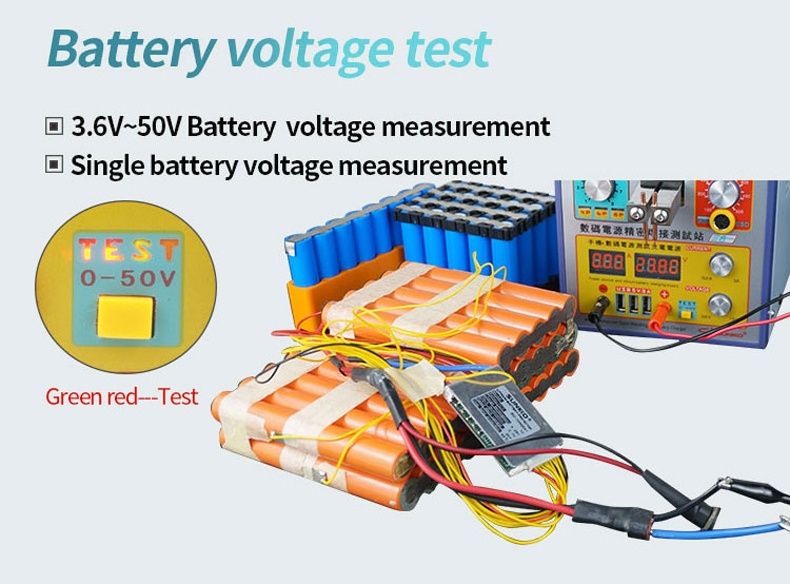

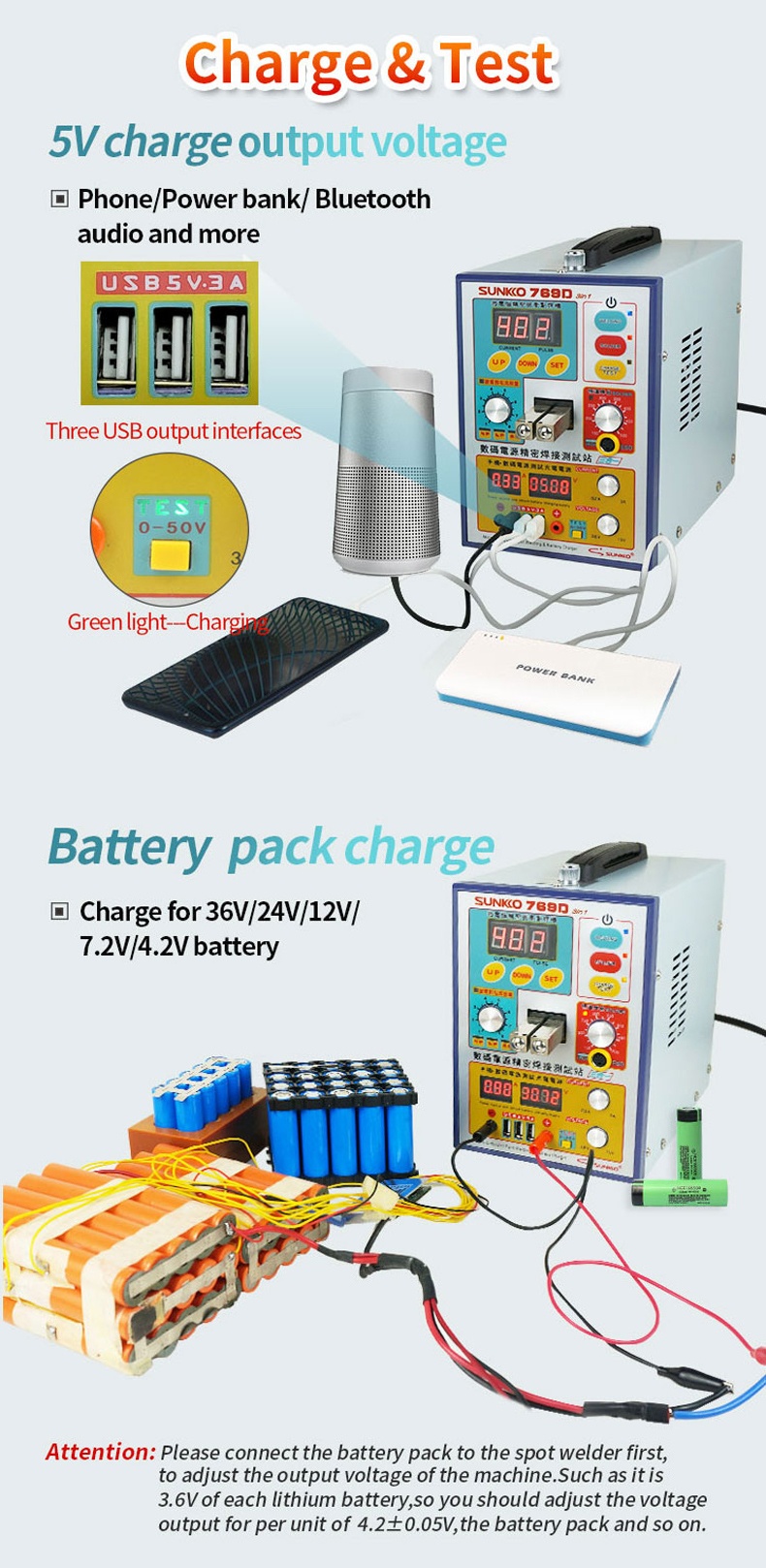

Charge and test power section
Output voltage: 4.2V ~ 36V
Output power: 38W (50W instantaneous value)
Constant current accuracy: soil 2.5% (set value)
Output current: 0 ~ 2A (MAX)
Voltage stability: ≤ 1.5 (set value)
Measurement error: ≤ 1.5 (set value)

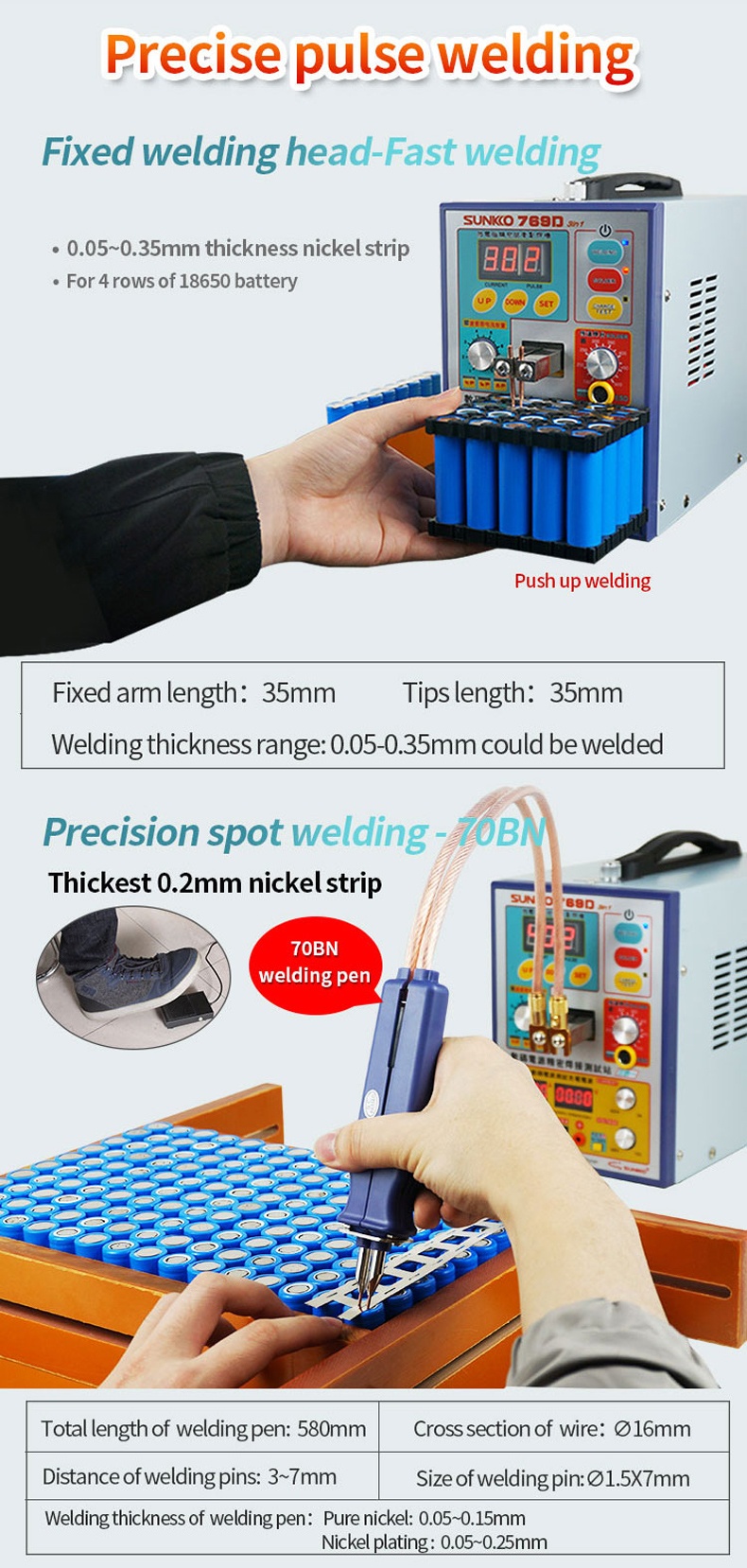

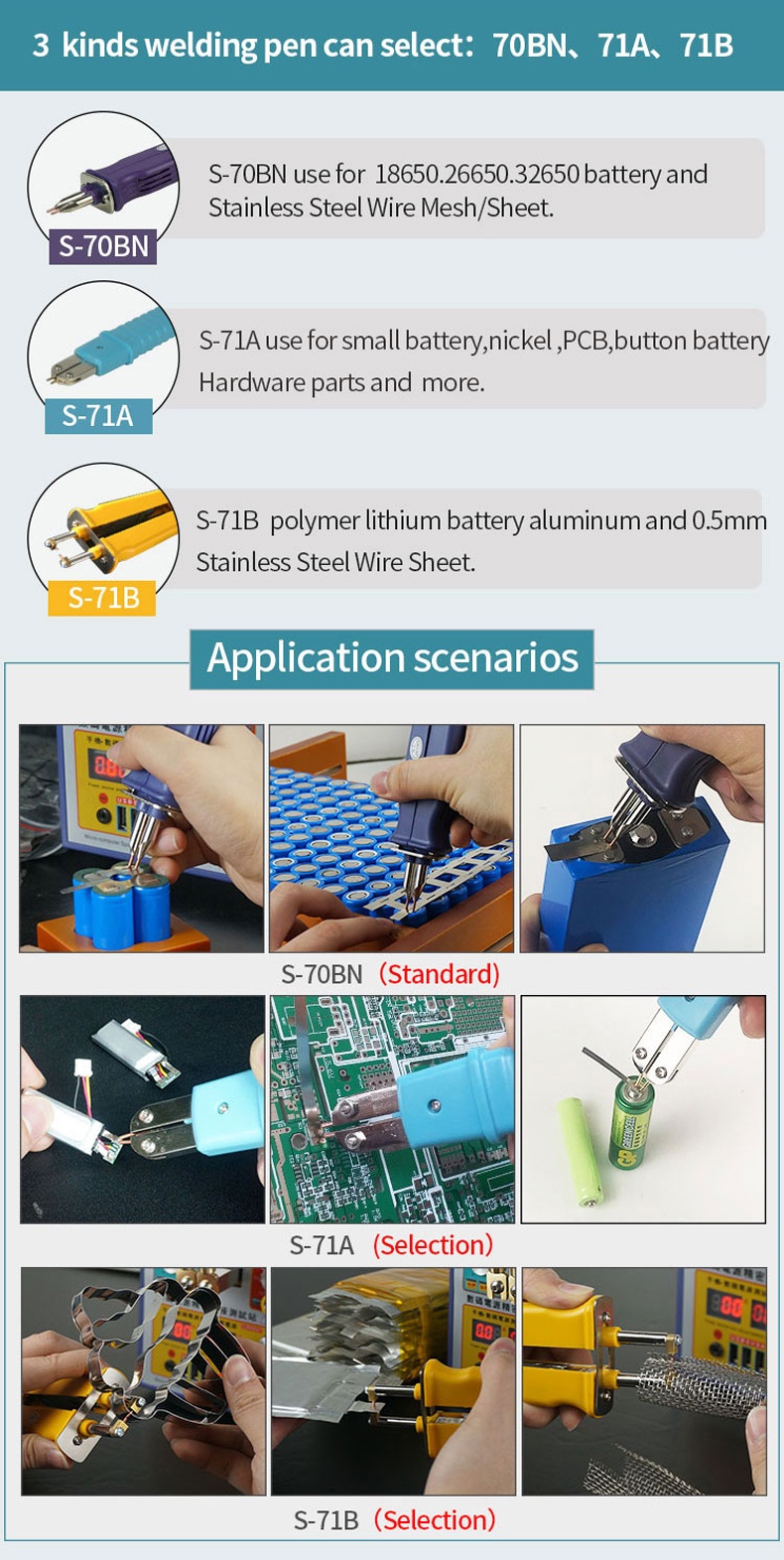

Moving spot welding pen parameters
Adjustable spot welding spot: 4-7mm
Total length of moving spot welding pen: ≈580mm
Solder pen cable area: 16mm2
Solder pin size: 15mm / 7mm



Thanks for your order!

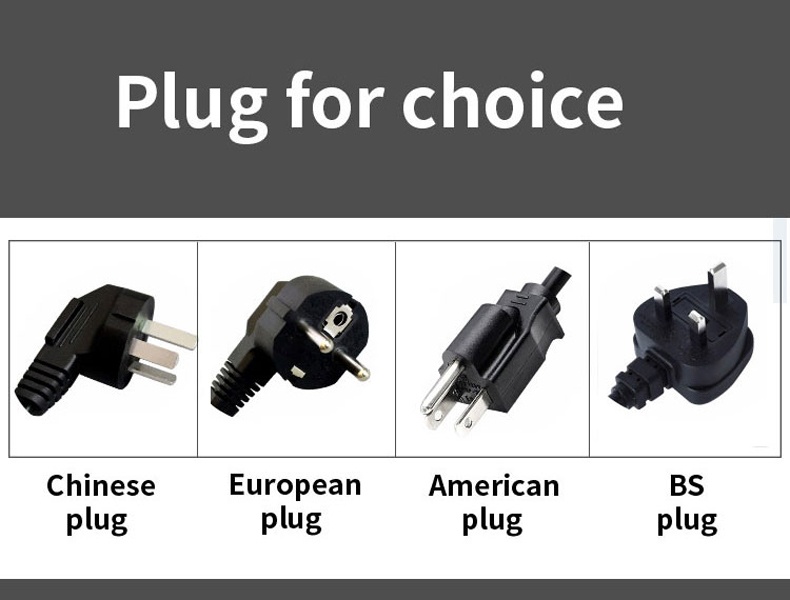

Voltage:
