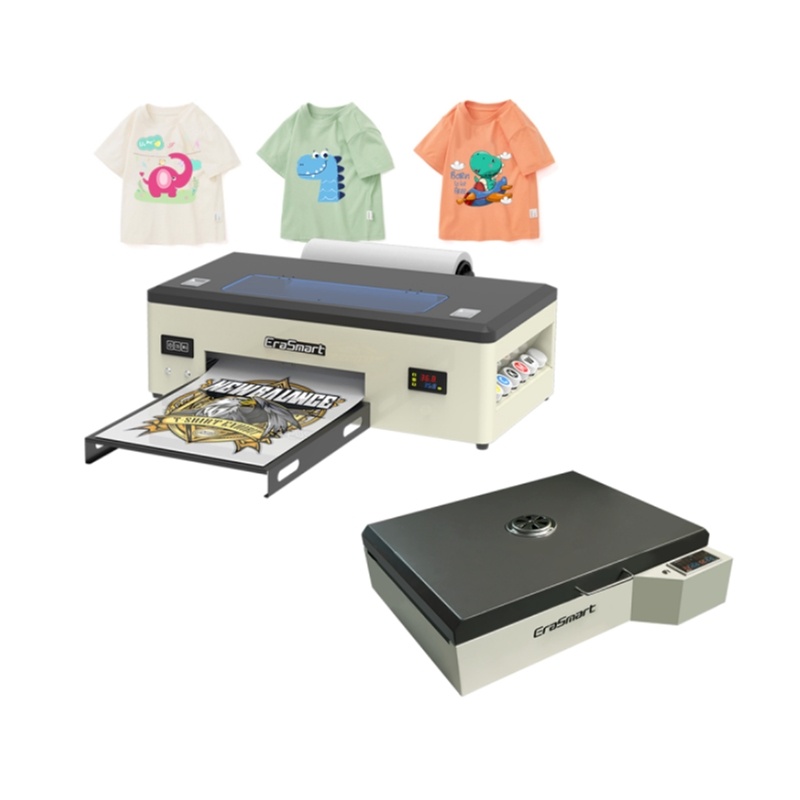

A3 DTF Printer Water-Based Ink Pet Film Heat Transfer Printing Machine For T-shirt Swimsuit Hat Sweater Apron Epson 1390 Print Head Optional DX5 Upgrade
item ID: 66553
Reviews(0)
Reviews(0)
Product Detail
Product Tags

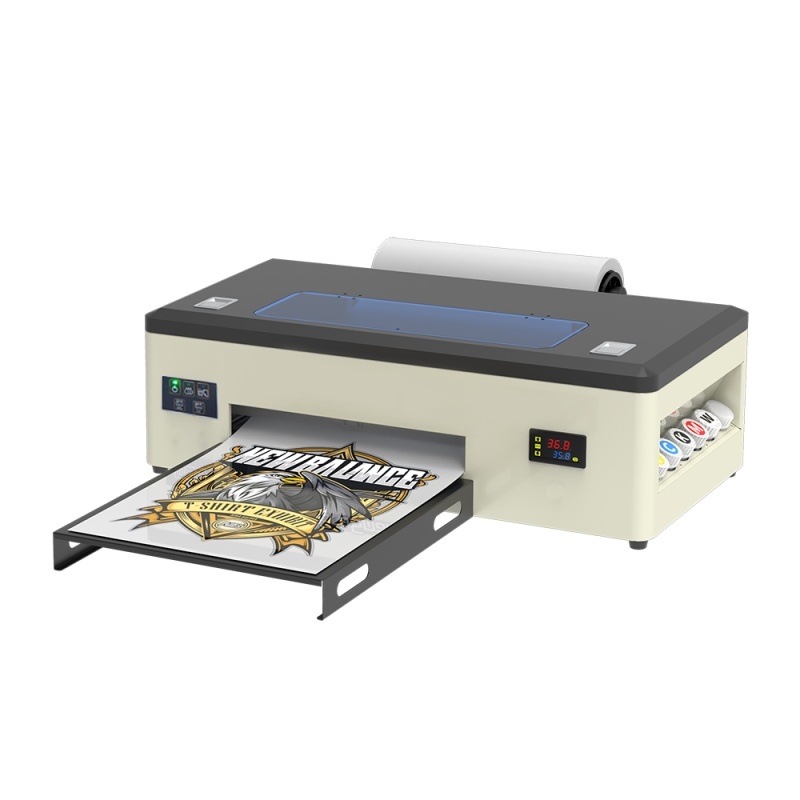

A3 DTF Printer Water-Based Ink Pet Film Heat Transfer Printing Machine For T-shirt Swimsuit Hat Sweater Apron Epson 1390 Print Head Optional DX5 Upgrade
Print size:300*420mm
Print Height: fixed
Print speed: 1440dpi/10min
Resolution: 5760*1440dpi
Print software: AcroRIP
Operation System: WINDOWS 7/8/10
Ink type: DTF
Print color: CMYK -WW
Net Weight: 35KG
Product size: 740*930*250mm
Weight: 30KG
Package size: 750*700*280mm
RE:
- Due to machine is with Ink Auto Restore function in itself. so don’t need to upgrade L1800 motherboard. if need that L1800 plus more $200.
- We also have DX5 print head kit version. print speed 1440dpi/3min.color CMYK-WWWW. if have plenty budget. can add more $1500 to upgrade it.
- If need bigger size can leave message to us .support OEM/ODM order.
Specification:
| Model number | A3 DTF printer (5th Generation DTF printer) |

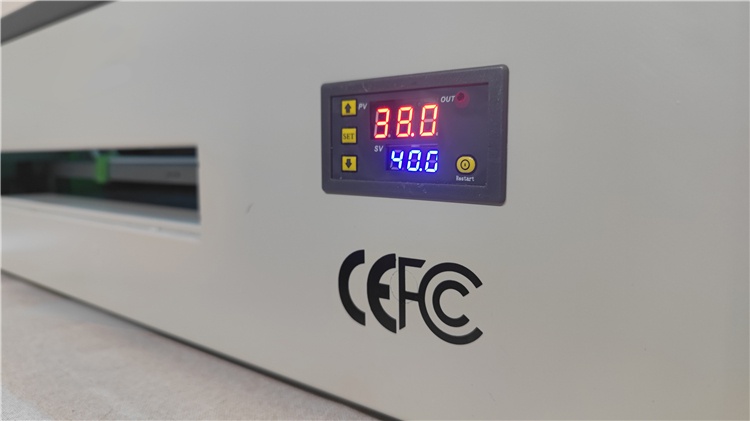

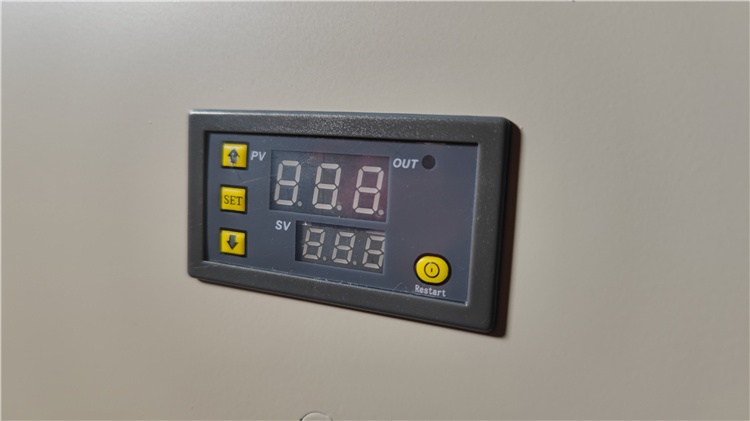

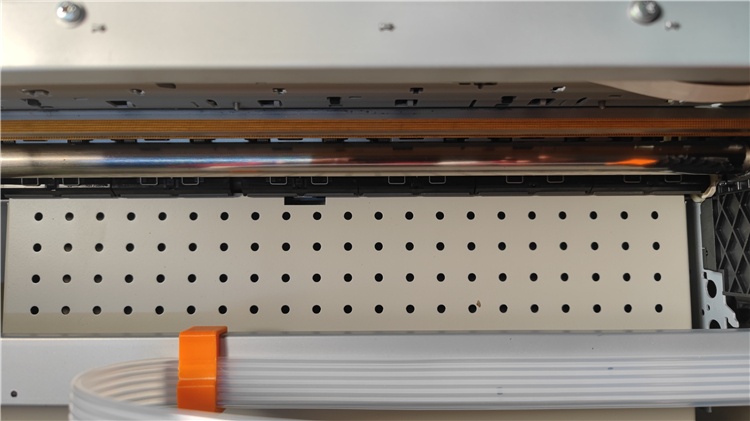

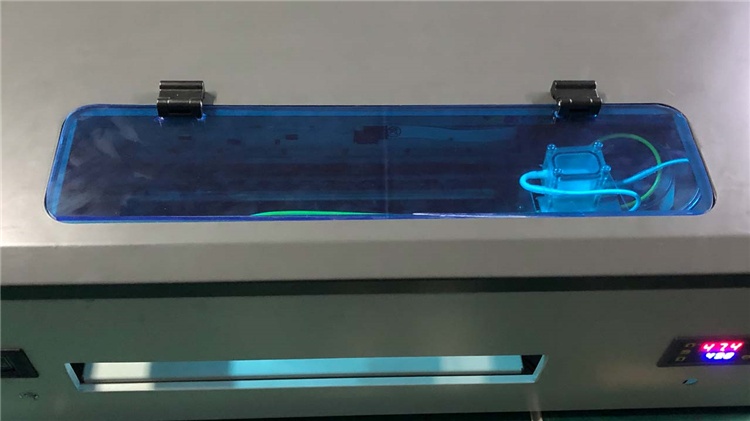

| 15 systems | 1.heating system 2.cooling system 3.white circulation system 4.constant pressure system 5.double contorl board system 6.pet film control system 7.Vacuum suction platform 8.Regular automatic cleaning system 9.White ink mixing system 10.One-click cleaning system 11.Automatic recovery of ink volume system 12.Upgrade the motor. Prevent the printing speed from slowing down.13. Personalized timing system 14. Power-on intelligent white ink mixing and white ink circulation system. 15. The nozzle intelligent flash spray protection system can extend the life of the printhead by 6 months. |
| Printing Technology | Smart inkjet printing technology print white and color at the same time |
| Ink color(UV ink) | cmykww |

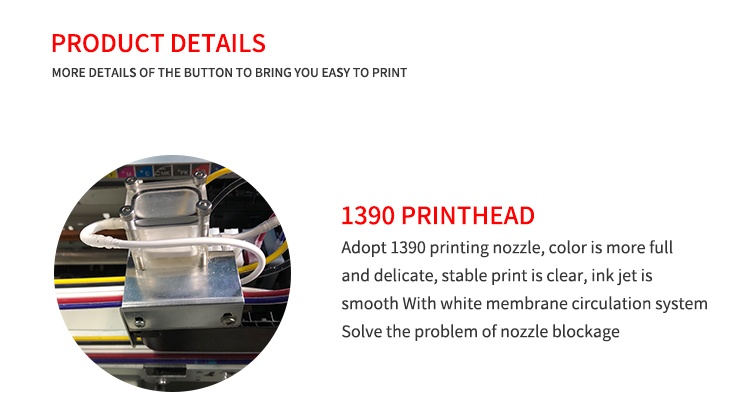

| Printer head | Epson 1390 print head |
| Printing speed | 30*45cm/4 minute |
| Max Print Resolution | 5760*1440dpi |
| Max Printing size | 310*450 mm |
| Print Object | t-shirt. sweater. hat. jeans. Pure cotton. polyester fiber. nylon. cotton and linen. mixed textile materials. |
| Printer size | L750*W320*H280mm |
| Package size | L800*W400*H430mm |
| Operating Temperature | 0 ° to 35 ° (50 ° to 95 ° F) Wet 20～80% |
| Interface | USB3.0 Gigabit Ethernet interface |
| cooling system | Motor wind cooling system |
| Printing software | Acrorip 9.0.3 |
| Cleaning method | Automatic clean or using computer automatic cleaning function “nozzle cleaning” |
| Weight(N/G) | 26KG/34KG |
| Power supply | VAC220/110 ± 10 .50HZ~60HZ. Power ≤ 35W |
| operating systems | Windows 7/8/10 |
| Warranty | 38 months (except ciss. cleaning unit. printer head and damage by human.) |
| Print Materials | pet film |
|
Consumables |
|
| Texitle ink | 1L ink can print about 100 square metres |
| Epson 1390 print head | 540 nozzles(6color*90). 1.5pl each nozzle |

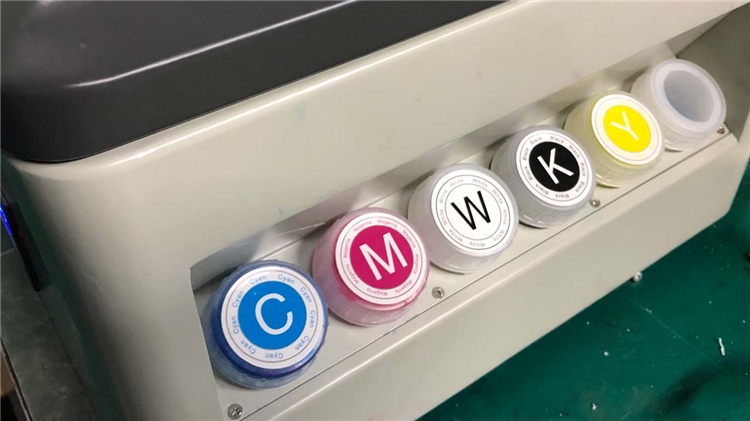

| CISS | Continue ink supply system |
| Clean unit | Cleaning printer head |
| Rip software | Control ink output |
