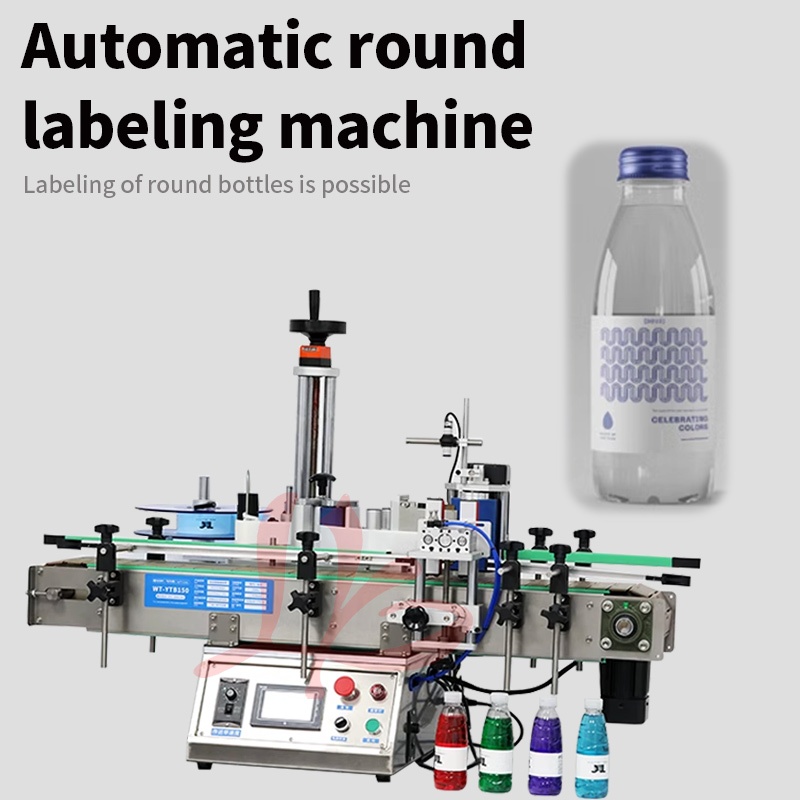

Automatic Self-adhesive Round Bottle Labeling Machine for Labeling and Printing on Round Plastic PET Metal Bottles in Beverage Industry with Adjustable Speed Multi-function Control Fast Speed Product Packaging Labeling

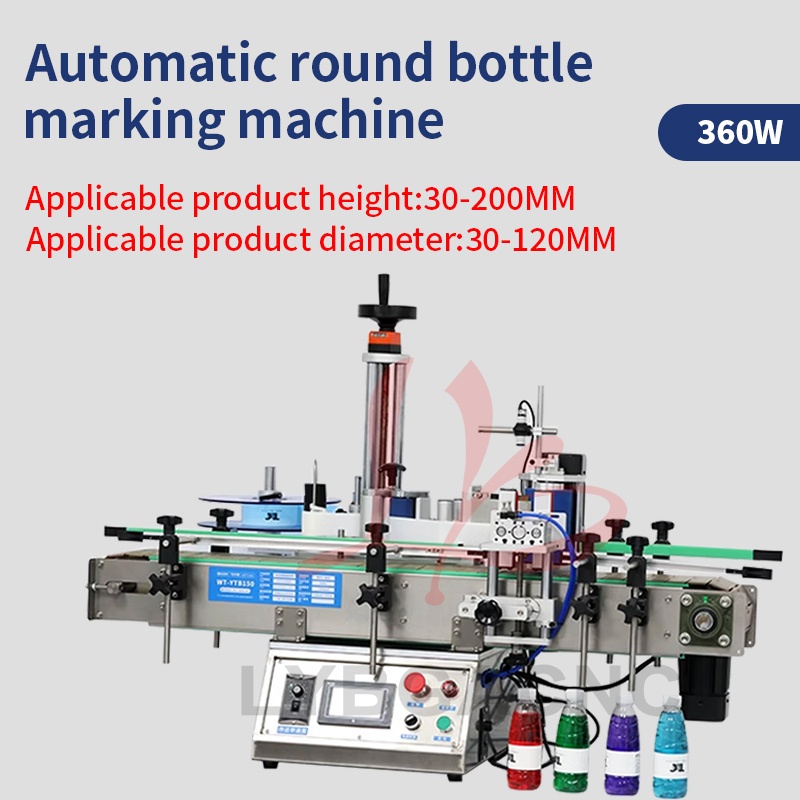

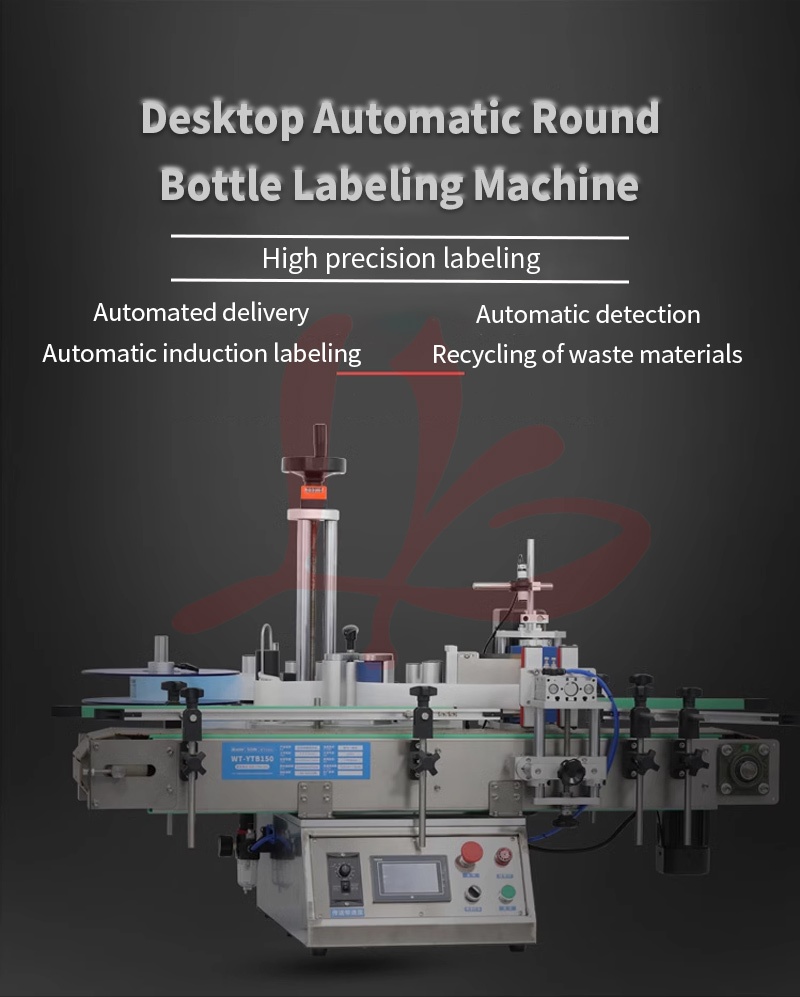

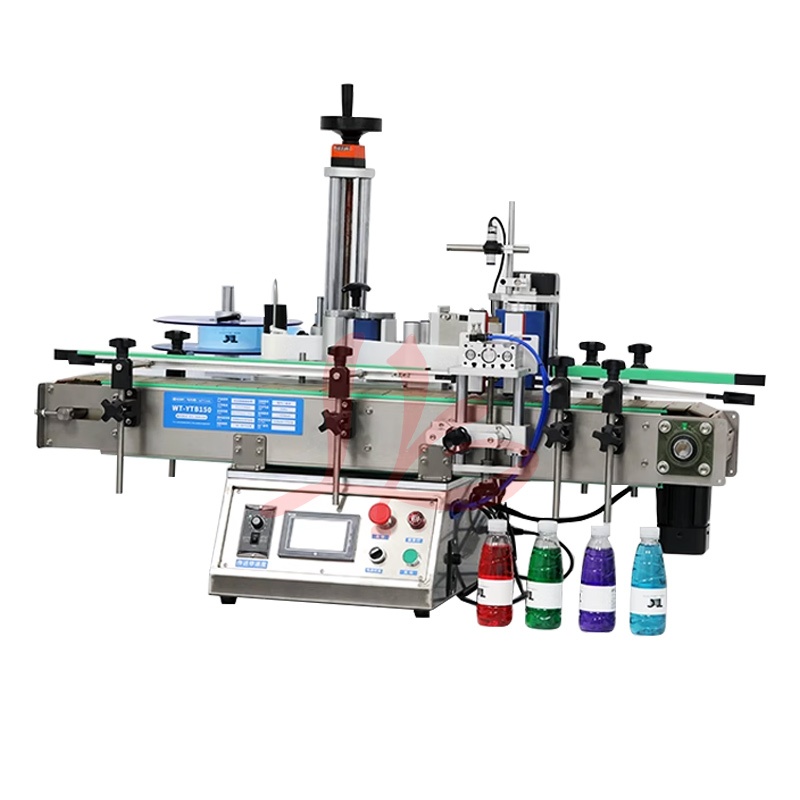

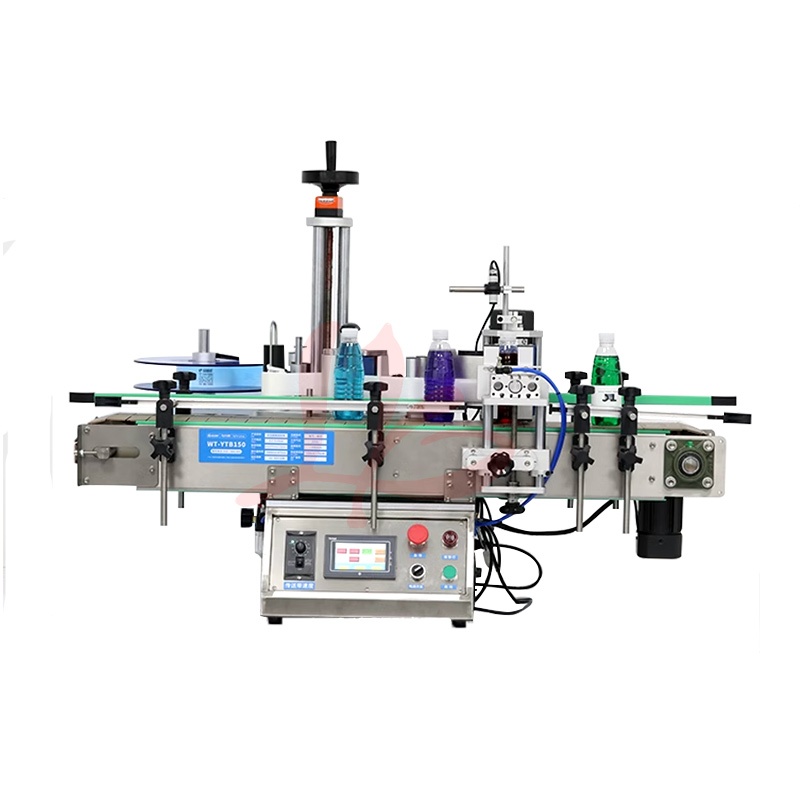

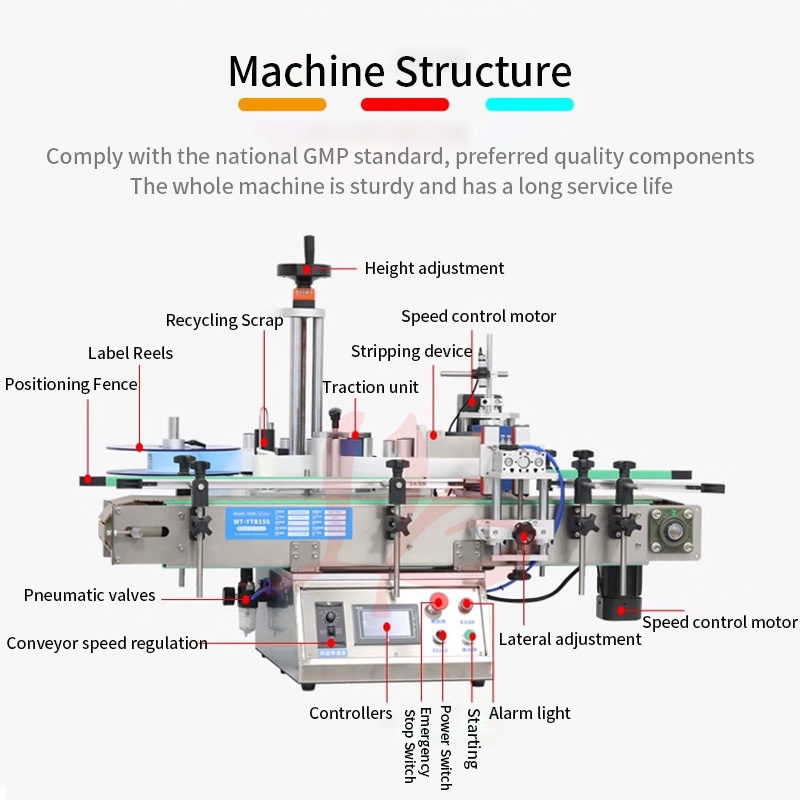

Model: WT-YTB150 Automatic Circular Labeling Machine

Material: whole body cream stainless steel shell

+ aluminum oxide sandblasting

Control: Electrical combined with PLC microcomputer controller

(control center, microcontroller)

Labeling speed: 40-60pcs/minute

Labeling precision:±1MM

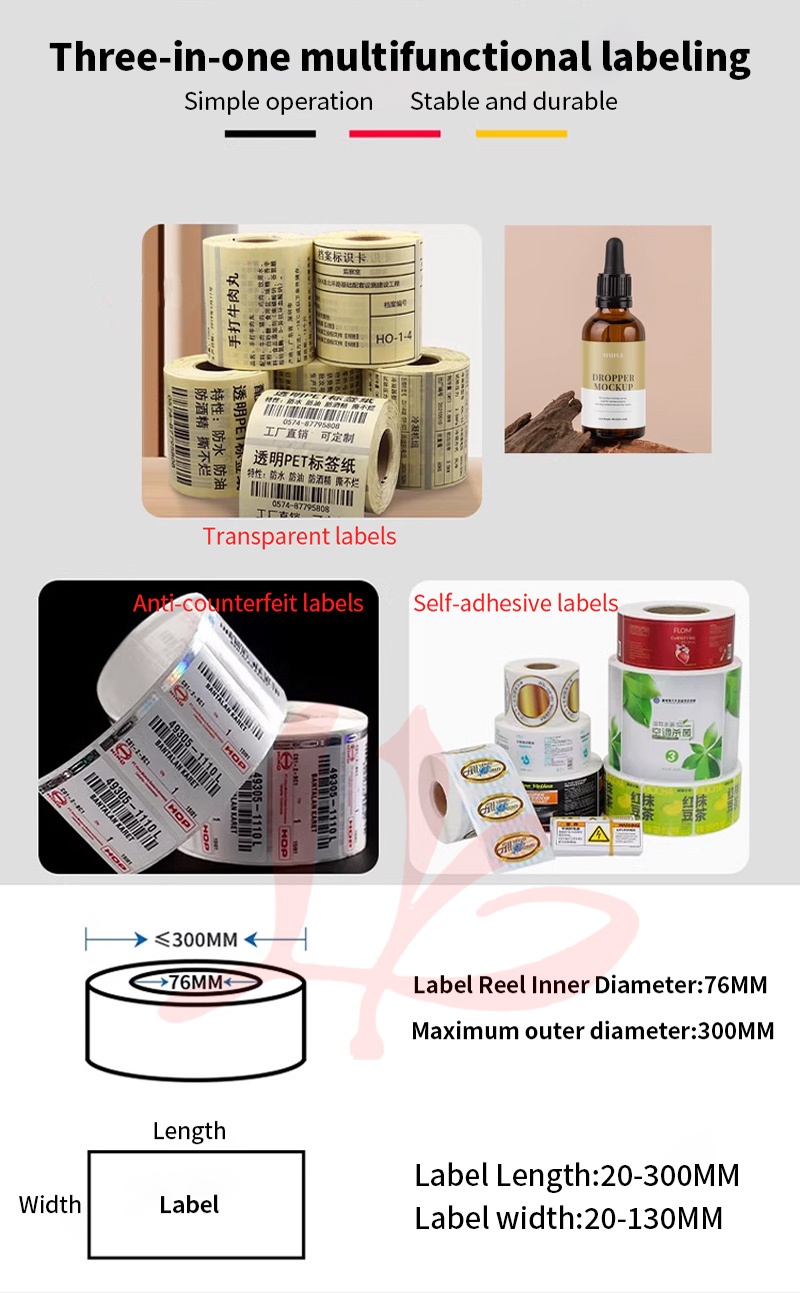

Label Width: 20-300MM

Label Length:20-130MM

Use of roll markers: Outer diameter Φ: 300MM Inner diameter Φ: 76MM

Voltage: 110v/220V

Power: 360W

Product Height: 30~200MM

Product Diameter:30~120MM

Net weight: about 90KG

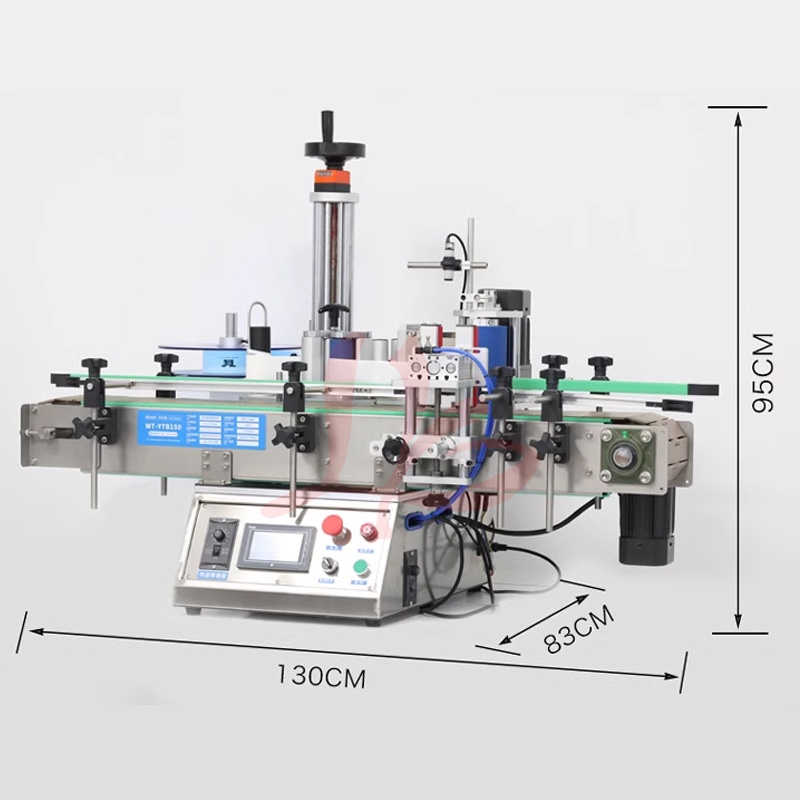

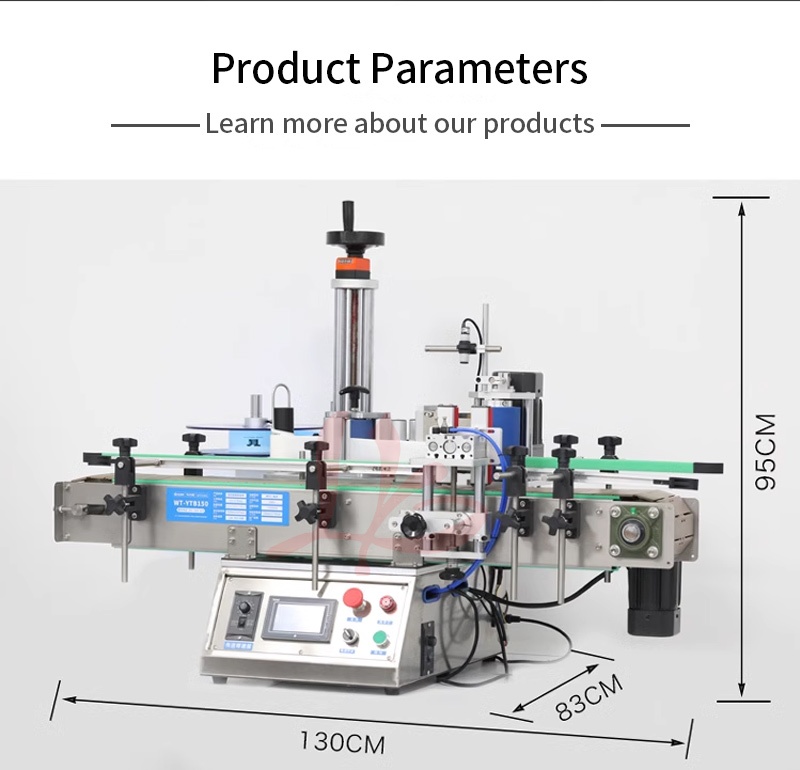

Machine size:130*83*95CM

Note: This machine is electrical combination, automatic assembly

line labeling machine, need to provide their own air source,

the machine labeling high precision, out of the labeling speed.

Wide range of products

Large and small round bottles can be labeled

Applicable to PET bottles, plastic bottles, glass bottles, metal

metal bottles and other self-adhesive labeling, widely used in food,

cosmetics,health products, medicine, stationery and other industries.

Applicable product height:30-200MM

Applicable product diameter:30-120MM

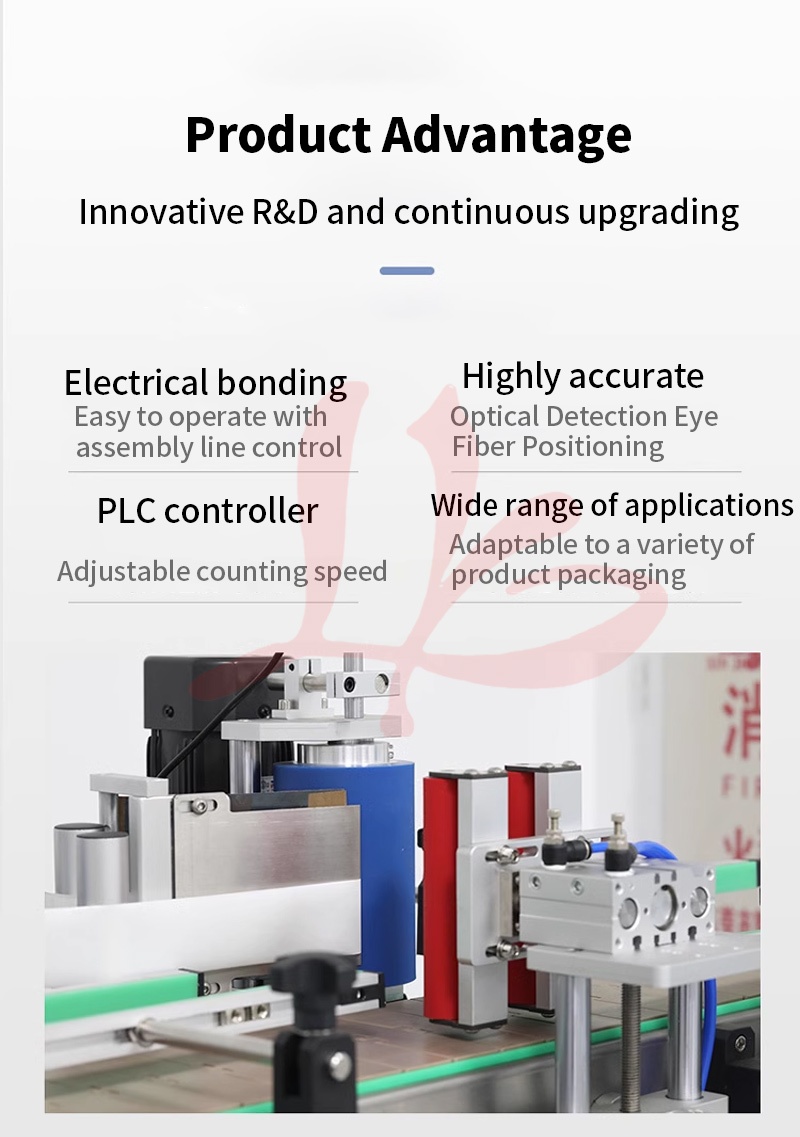

Product Advantage

Innovative R&D and continuous upgrading

1. Electrical bonding:Easy to operate with assembly line control

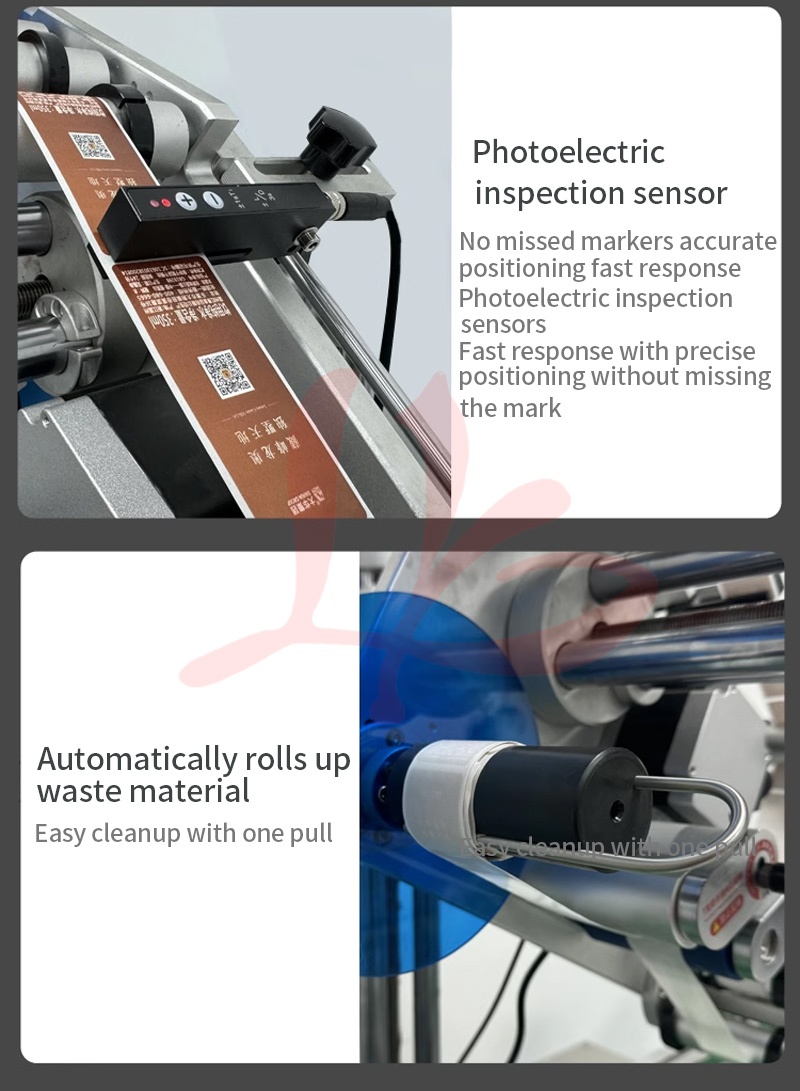

2. Highly accurate:Optical DetectionEye Fiber Positioning
3. PLC controller: Adjustable counting speed
4. Wide range of applications:Adaptable toavarietyof product packaging

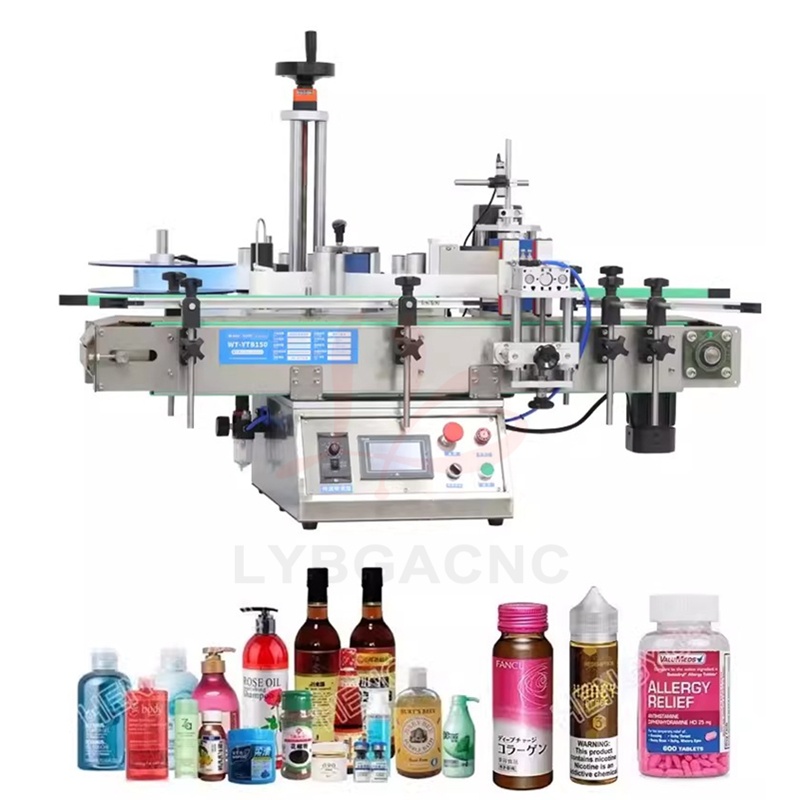

Applicable products

Specialized inall kinds of round productsurface self-adhesive labeling

Applicable to printing,stationery, food, beverage, medicine, cosmetics, daily chemicals

Electronics and other self-adhesive labeling applicable to a wide range.
