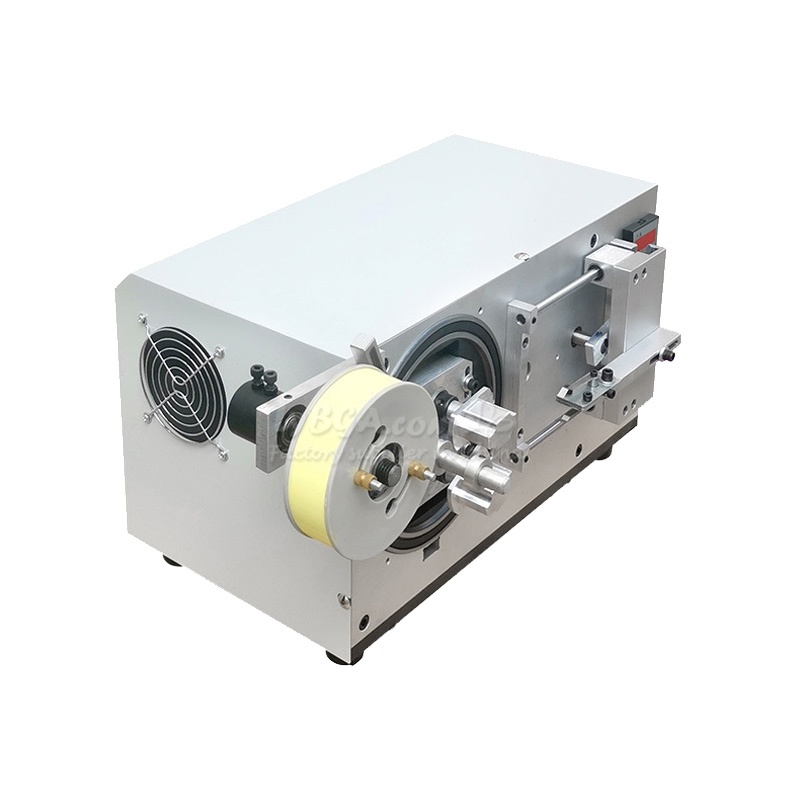

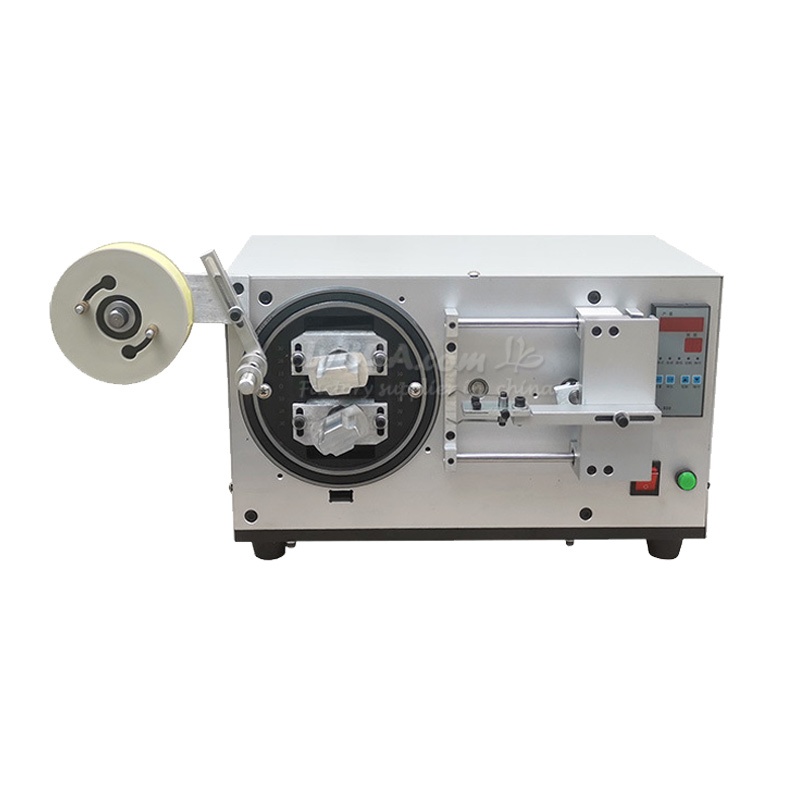

Automatic Tape Wrapping Machine Applicable To All Kinds Of Coil Transformer Wrapping Tape Adjustable Tape Position Strong Power

RE: Not with jig and return device, only machine, due to below:
1. If need jig, need provide real Sample, that will be most exactly, no error, or customer make it in local will be better.
2. Return device also need to make based on jig.(If jig not confirmed cannot make.)
3. If 110V country need to use with transformer in local, machine power not big,just less than 500W only.

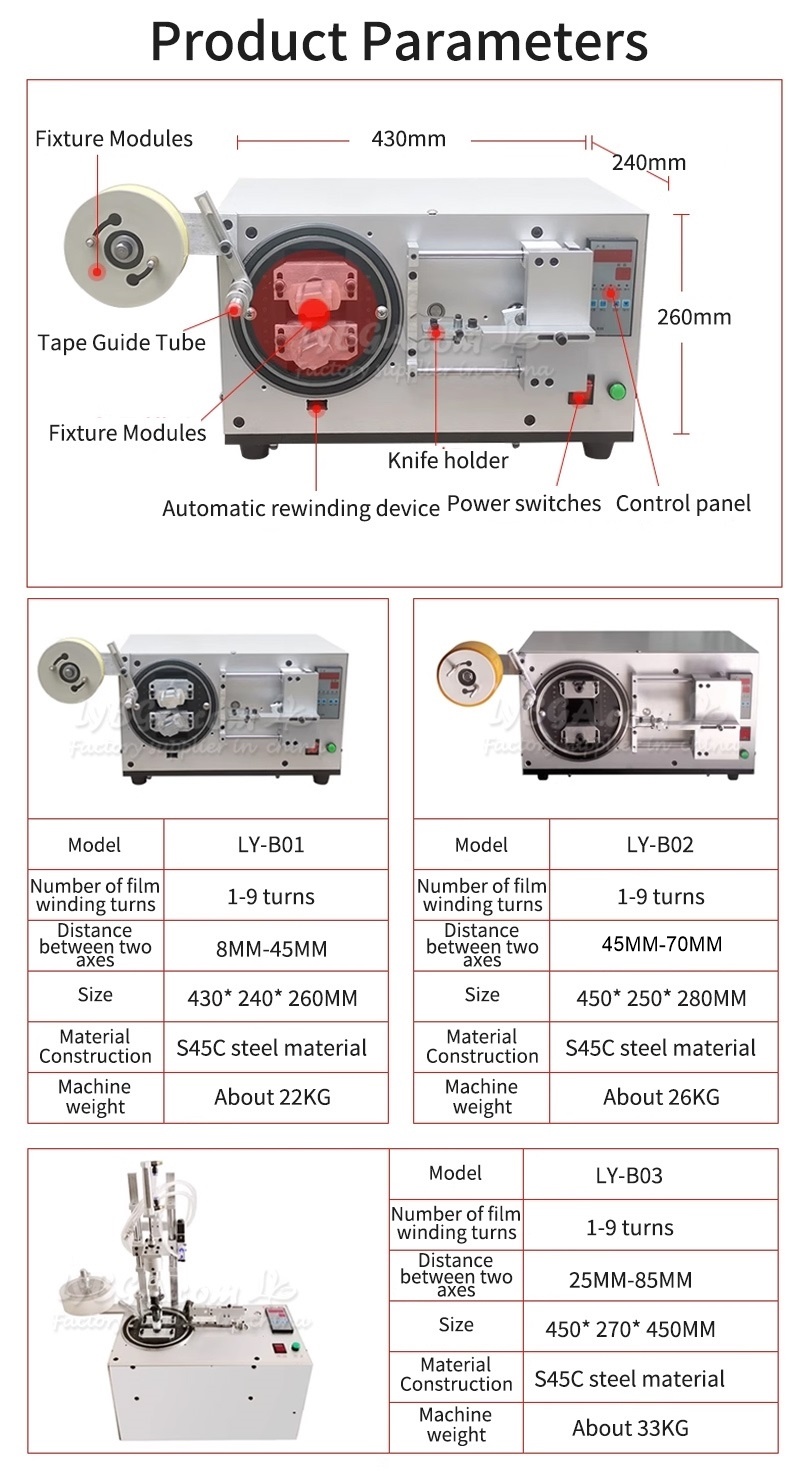

Equipment parameters

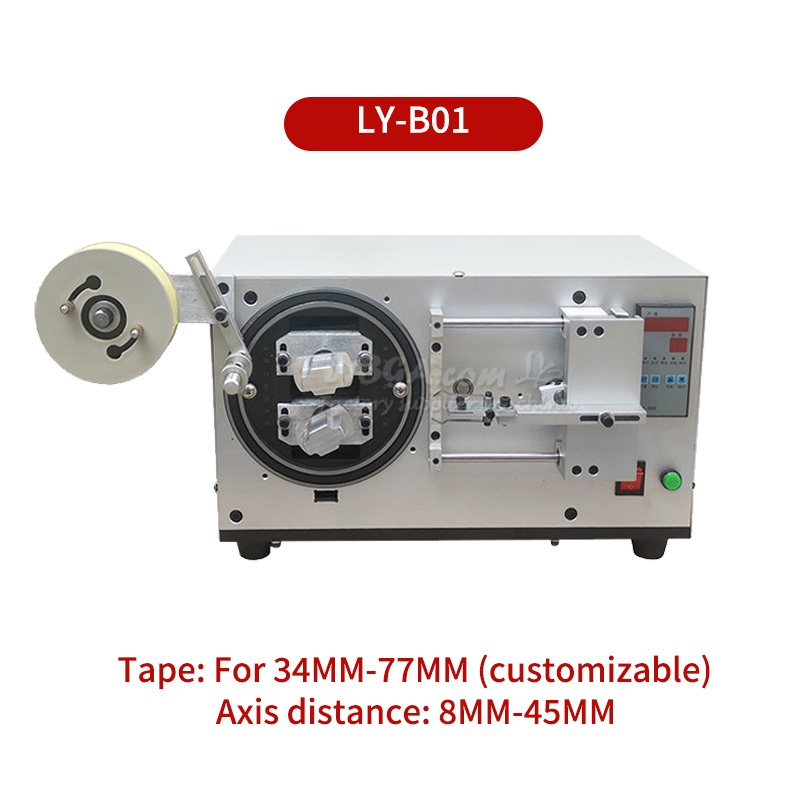

Model LY-B01
Number of film winding turns 1-9 turns
Distance between two axes 8MM-45MM
Size 430* 240* 260MM
Material Construction S45C steel material
Machine weight Approximate weight 22KG

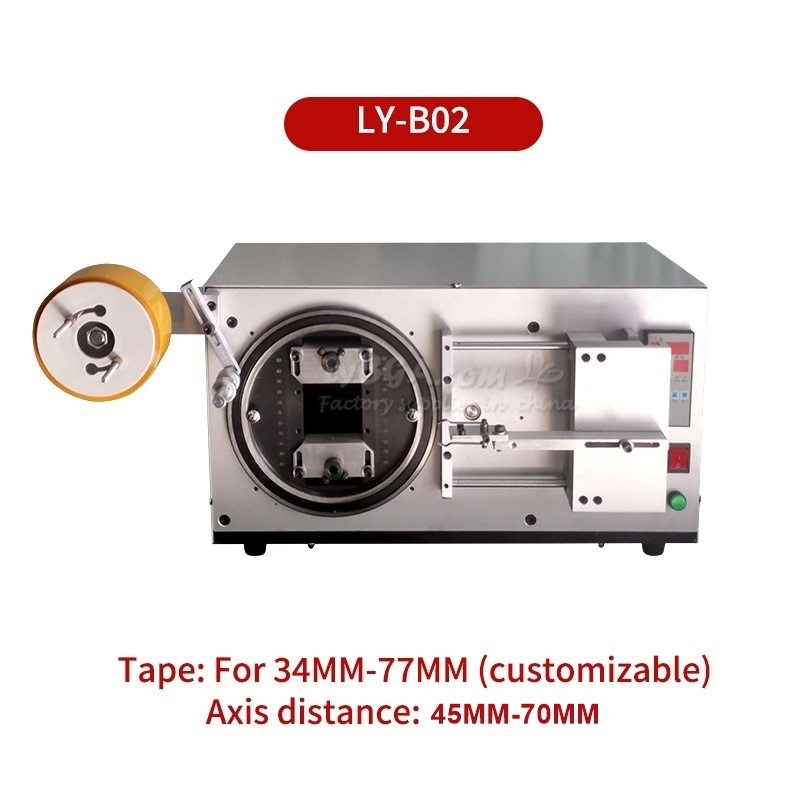

Model LY-B02
Number of film winding turns 1- 9 turns
Distance between two axes 45MM-70MM
Size 450*250* 280MM
Material Construction S45C steel material
Machine weight Approximate weight 26KG

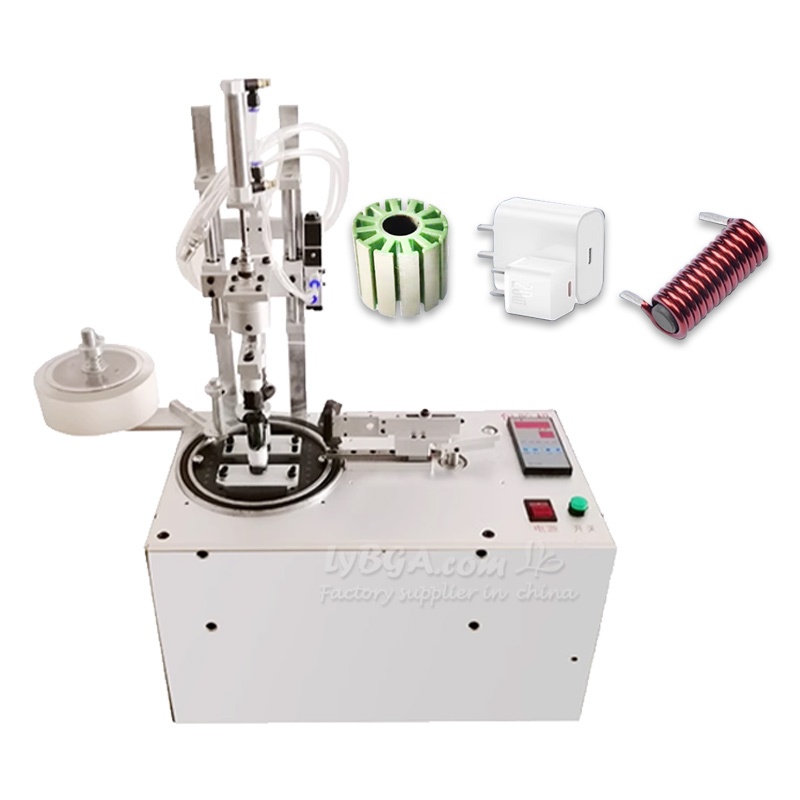

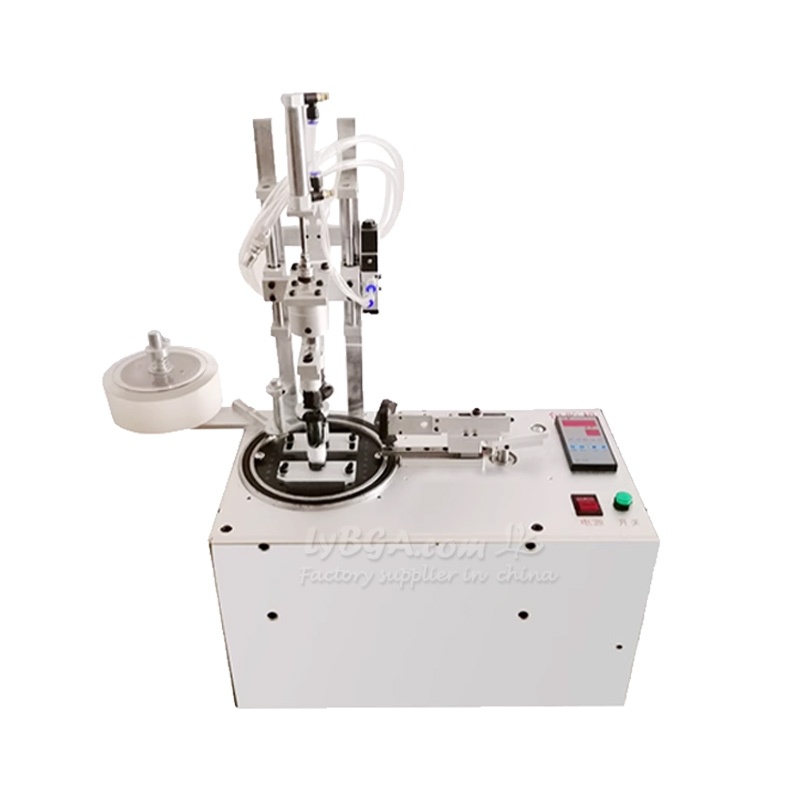

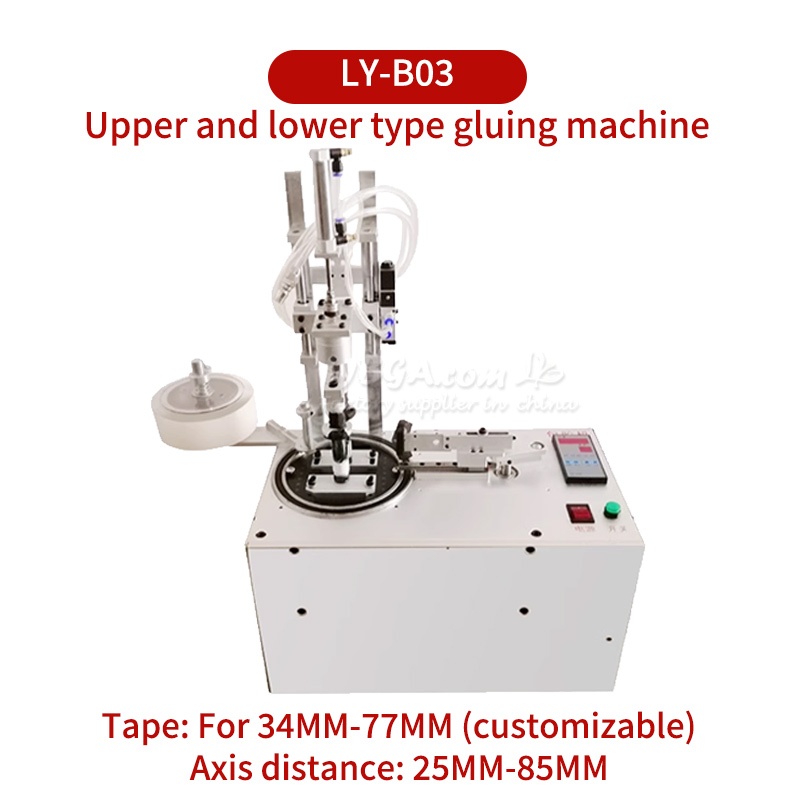

Model LY-B03
Number of film winding turns 1-9 turns
Distance between two axes 25MM-85MM
Size 450*270*450MM
Material Construction S45C steel material
Machine weight Approximate weight 33KG

Machine Features
1. Replacement of flatware can wrap all kinds of transformer coils and all kinds of charging heads, etc.
2. Automatic homing function design, in the production process of single-step action can be automatically returned to the origin
3. The machine is compact and affordable.
4. Foot switch control, reduce the work intensity of workers, simple operation.
5. Simple operation, easy to use, low energy consumption and low noise

Detailed Text

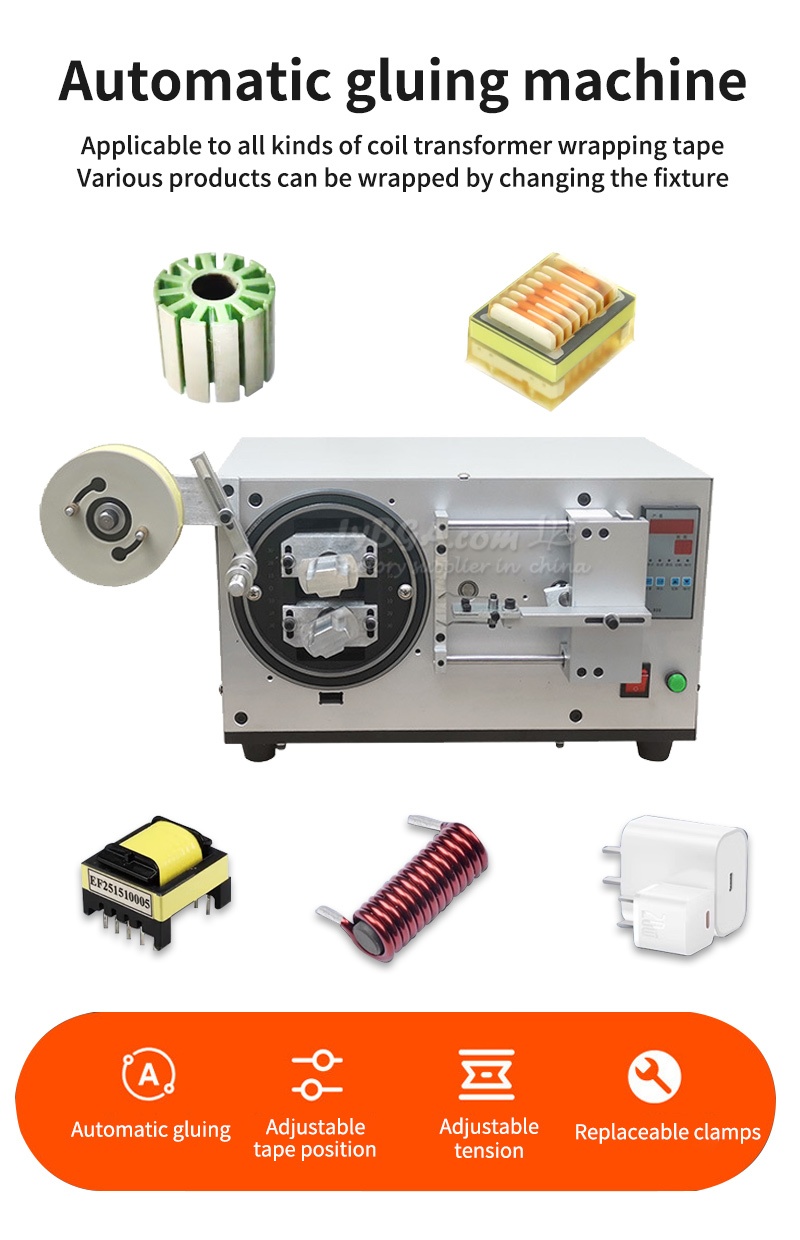

Automatic gluing machine
Applicable to all kinds of coil transformer wrapping tape
Various products can be wrapped by changing the fixture
Automatic gluing
Adjustable tape position
Adjustable tension
Replaceable clamps

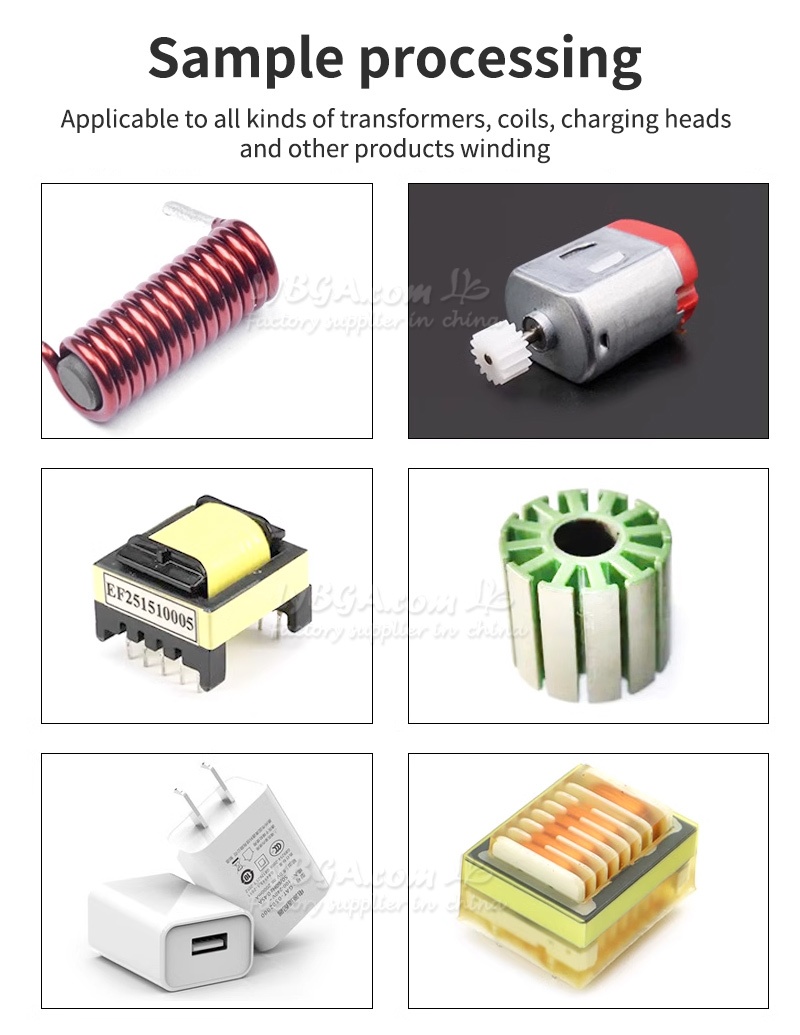

Sample processing

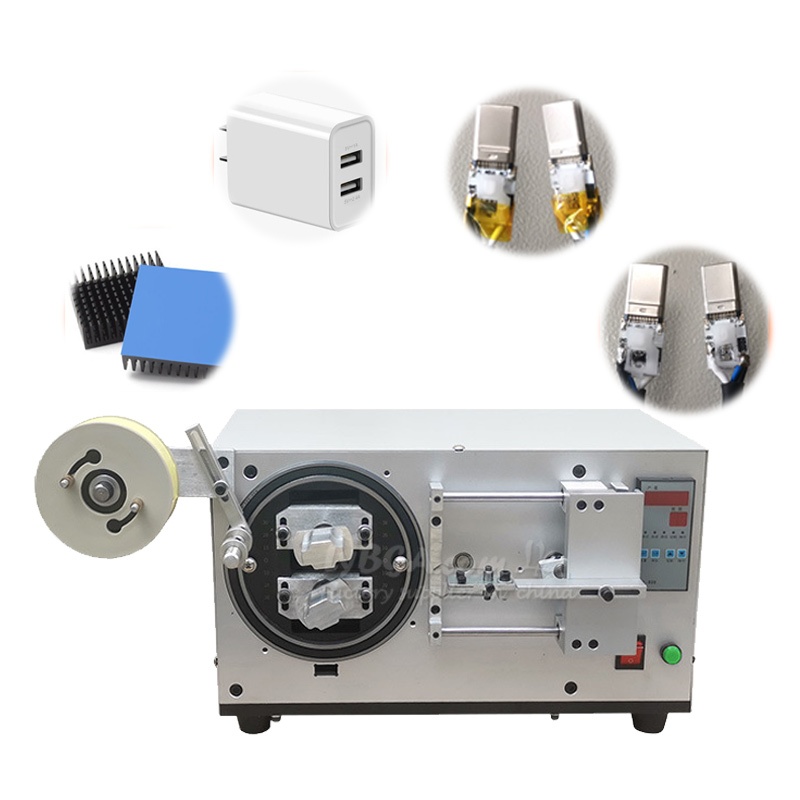

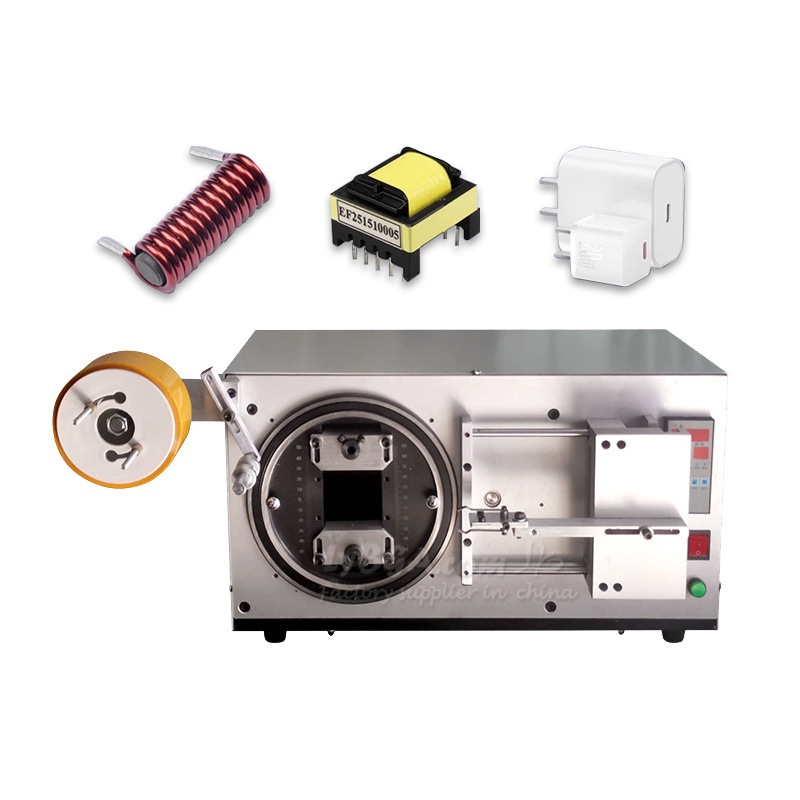

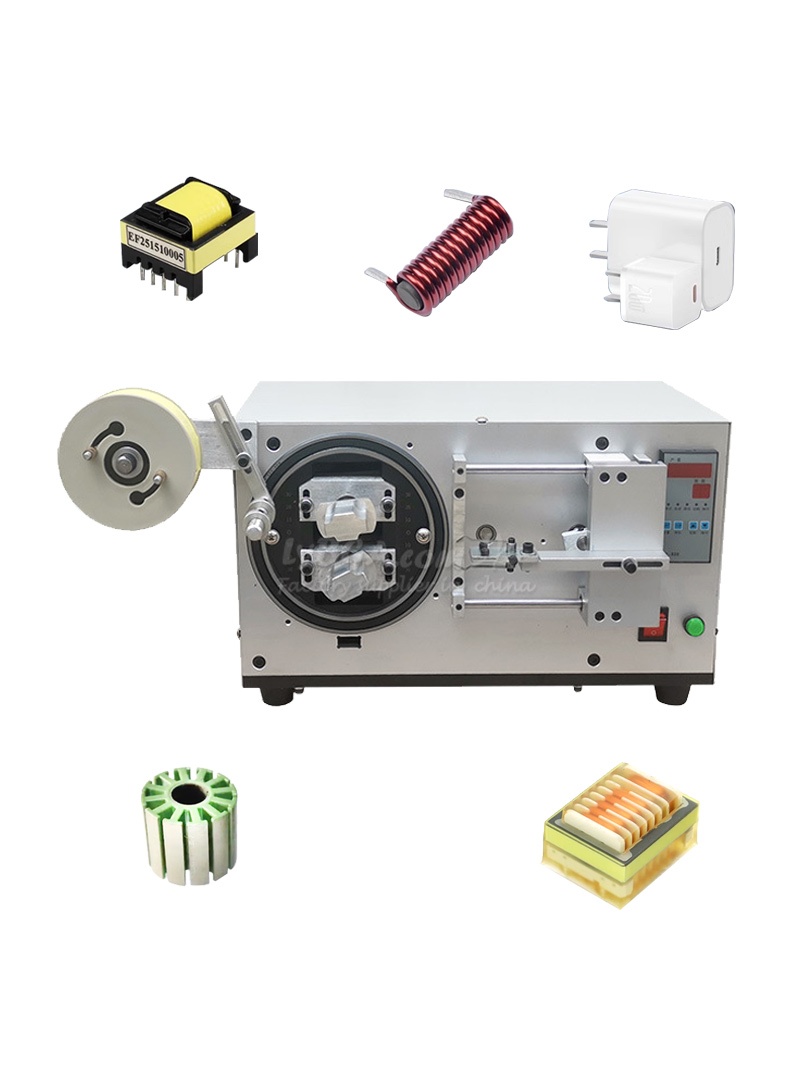

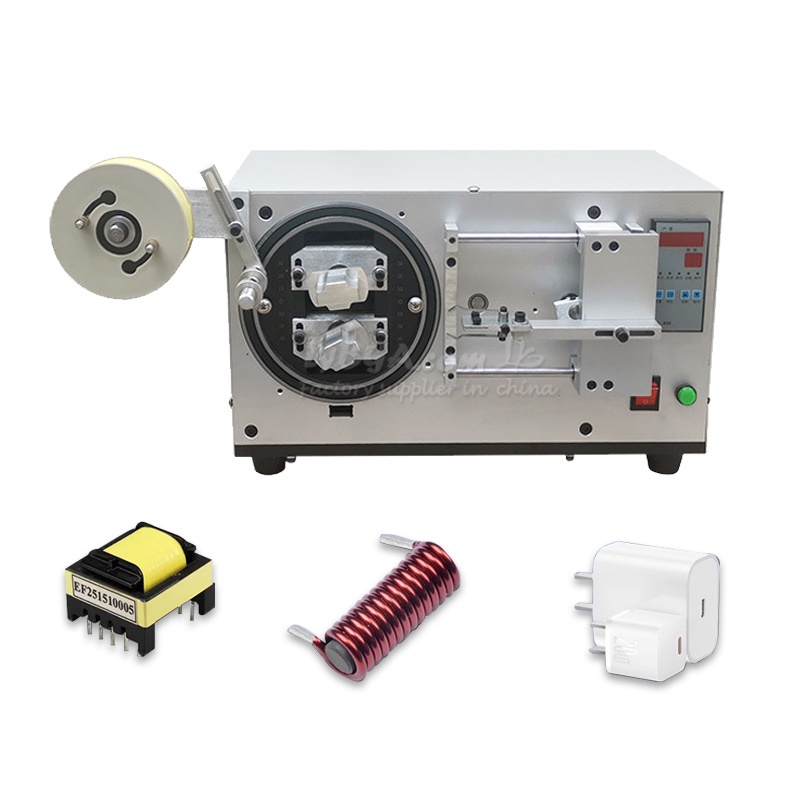

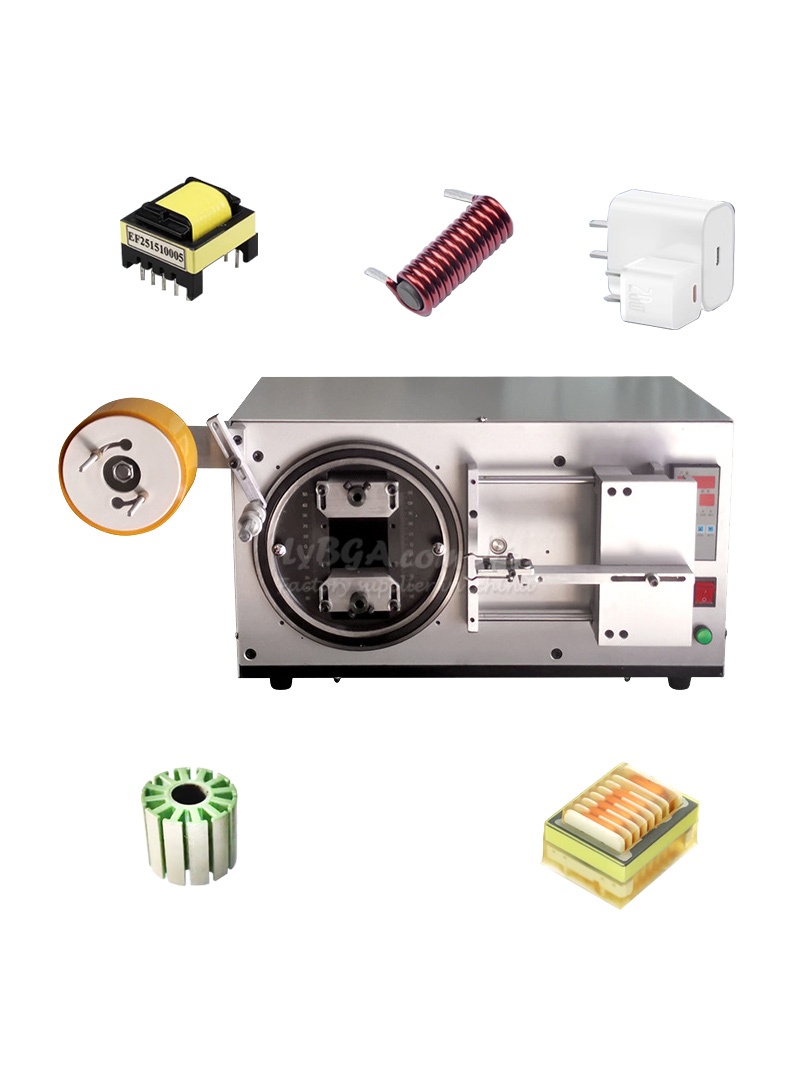

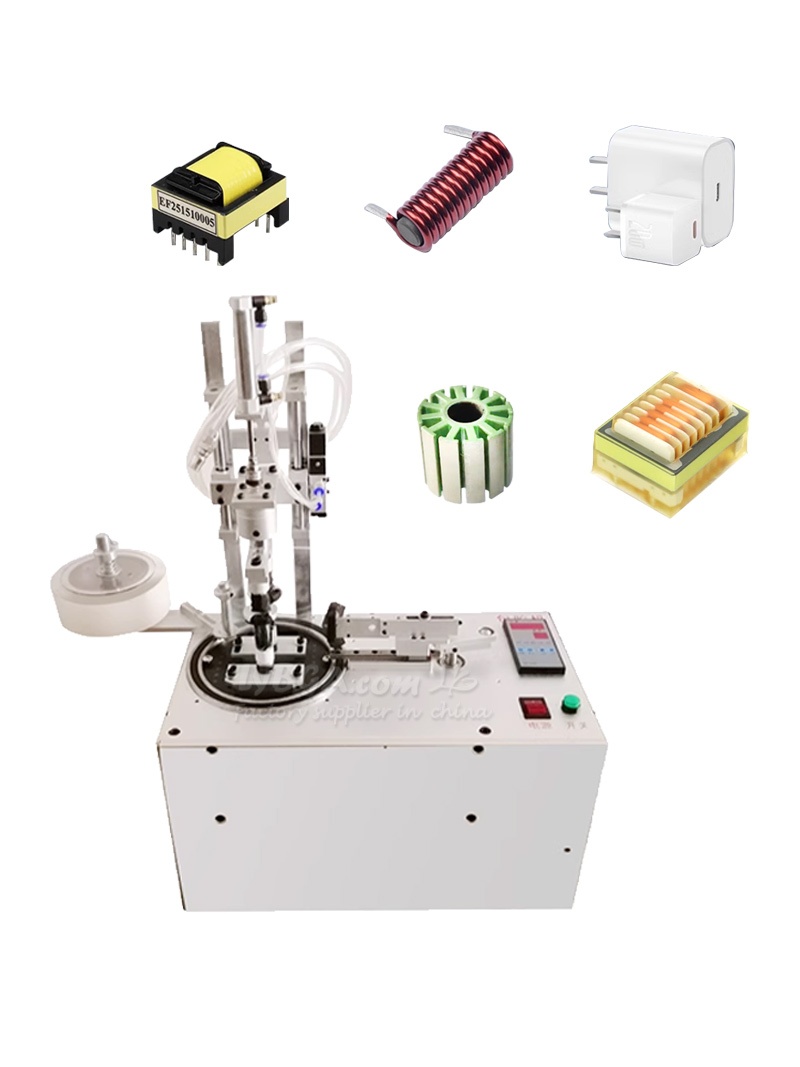

Applicable to all kinds of transformers, coils, charging heads and other products winding

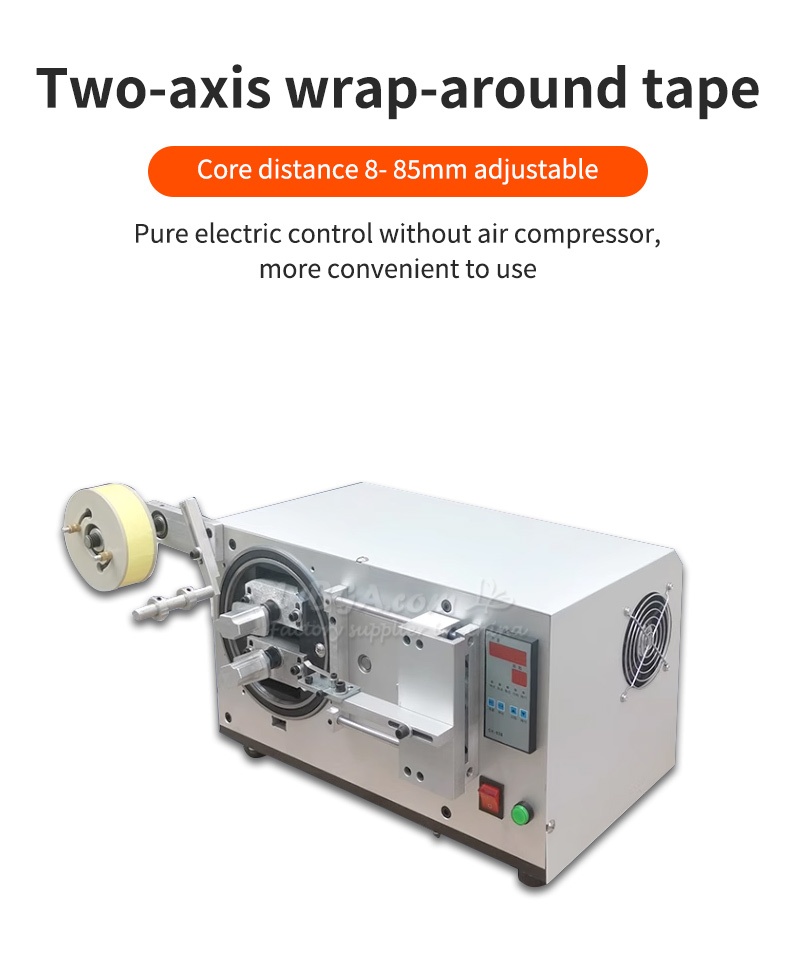

Two-axis wrap-around tape
Core distance 8- 85mm adjustable
Pure electric control without air compressor, more convenient to use

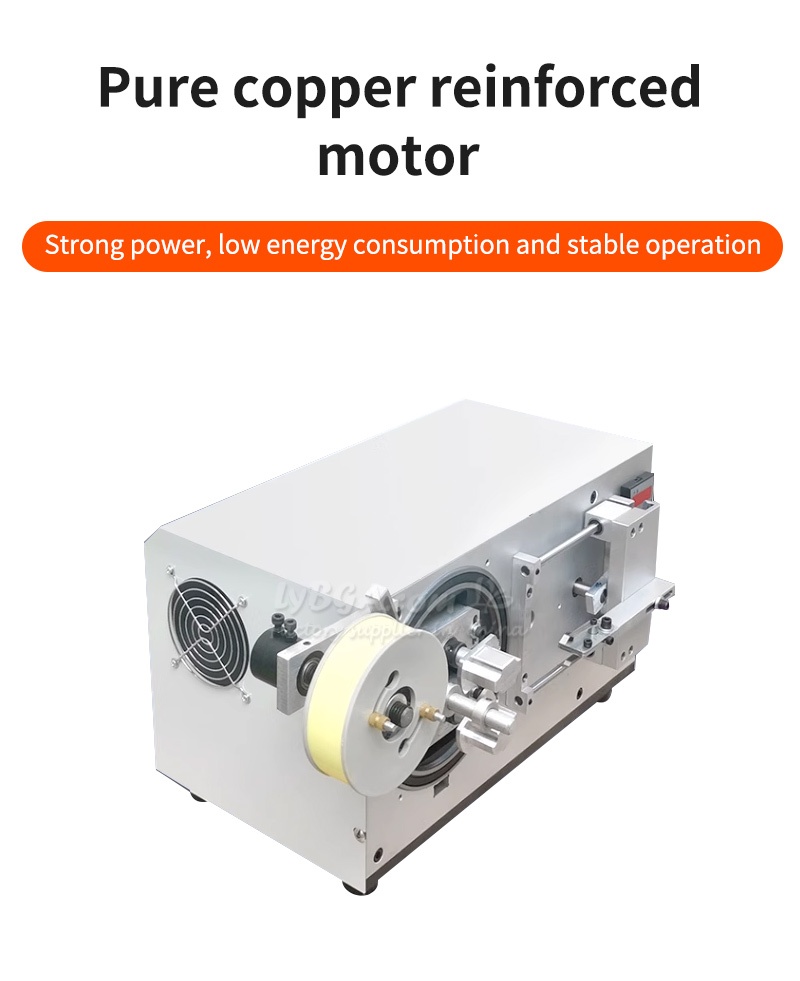

Pure copper reinforced motor
Strong power, low energy consumption and stable operation

Dual tape winding head design
Double clamps replace each other to double the efficiency
Microcomputer program control gear motor drive ensures the stability of the machine in operation.

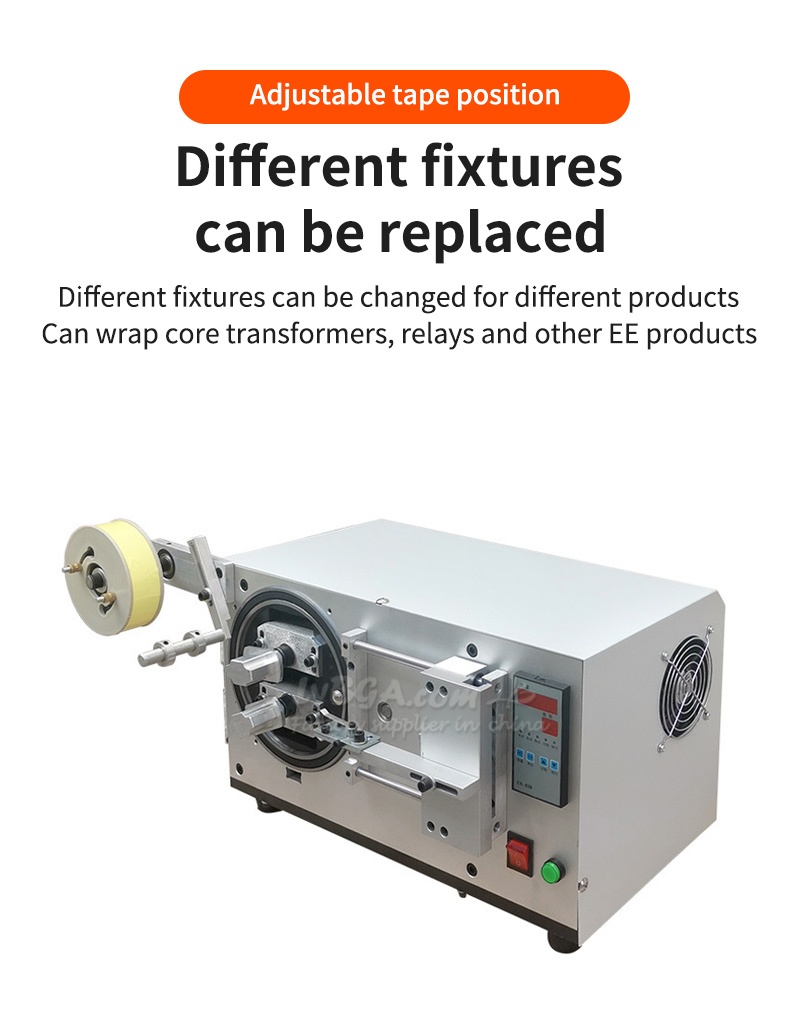

Adjustable tape position
Different fixtures can be replaced
Different fixtures can be changed for different products.
Can wrap core transformers, relays and other EE products

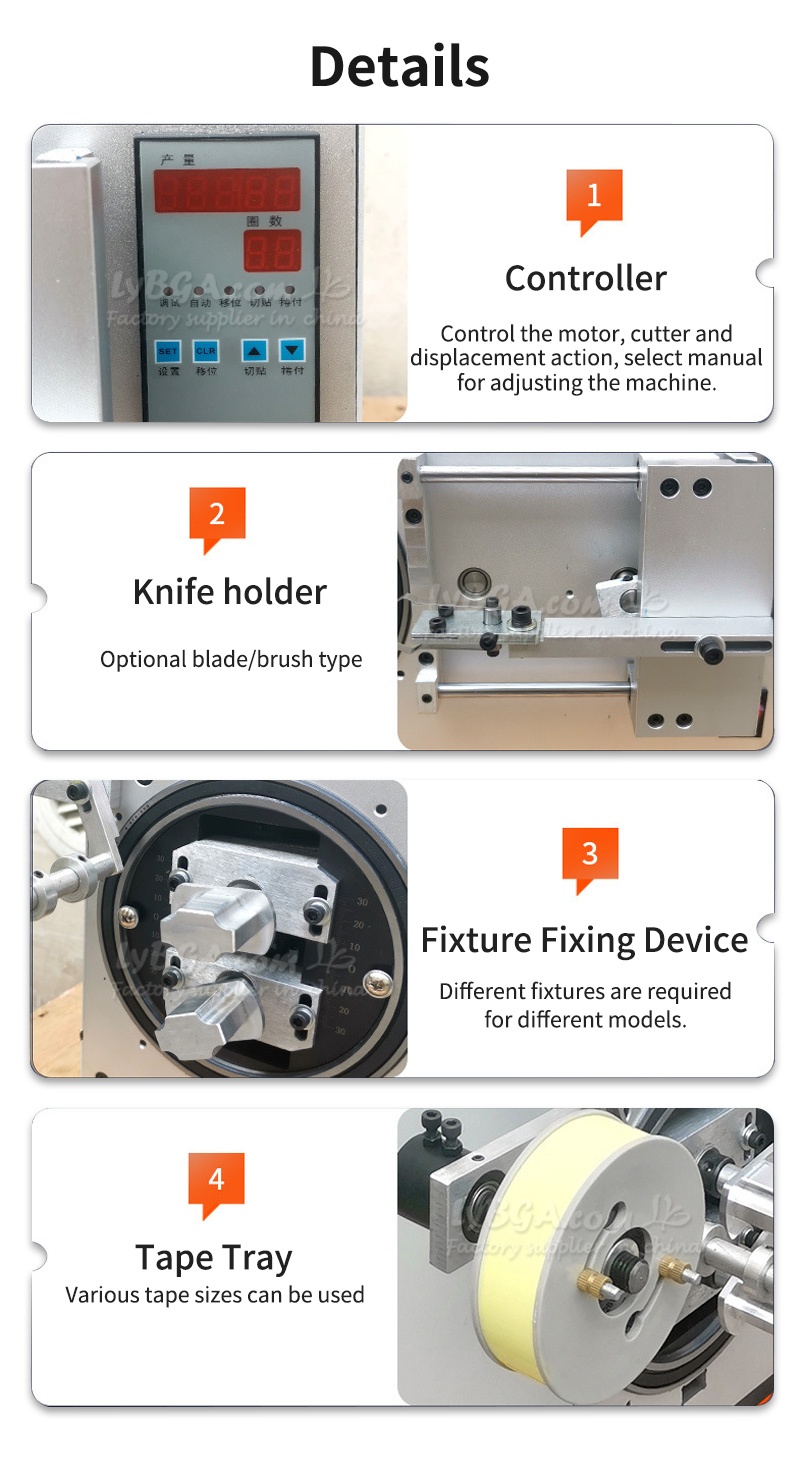

Details
Controller
Control the motor, cutter and displacement action, select manual for adjusting the machine.
Knife holder
Optional blade/brush type
Fixture Fixing Device
Different fixtures are required for different models.
Tape Tray
Various tape sizes can be used

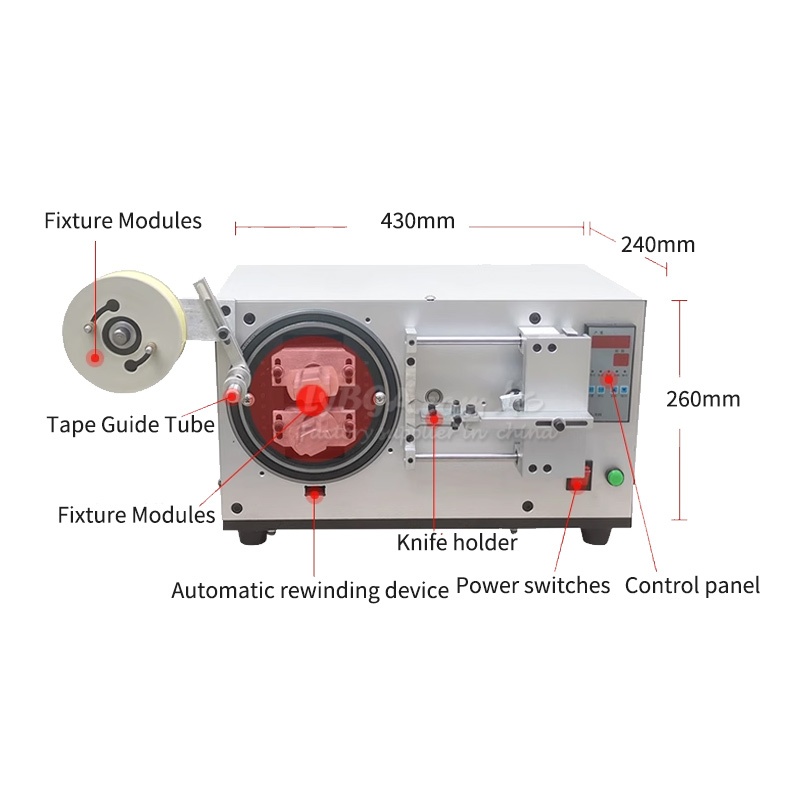

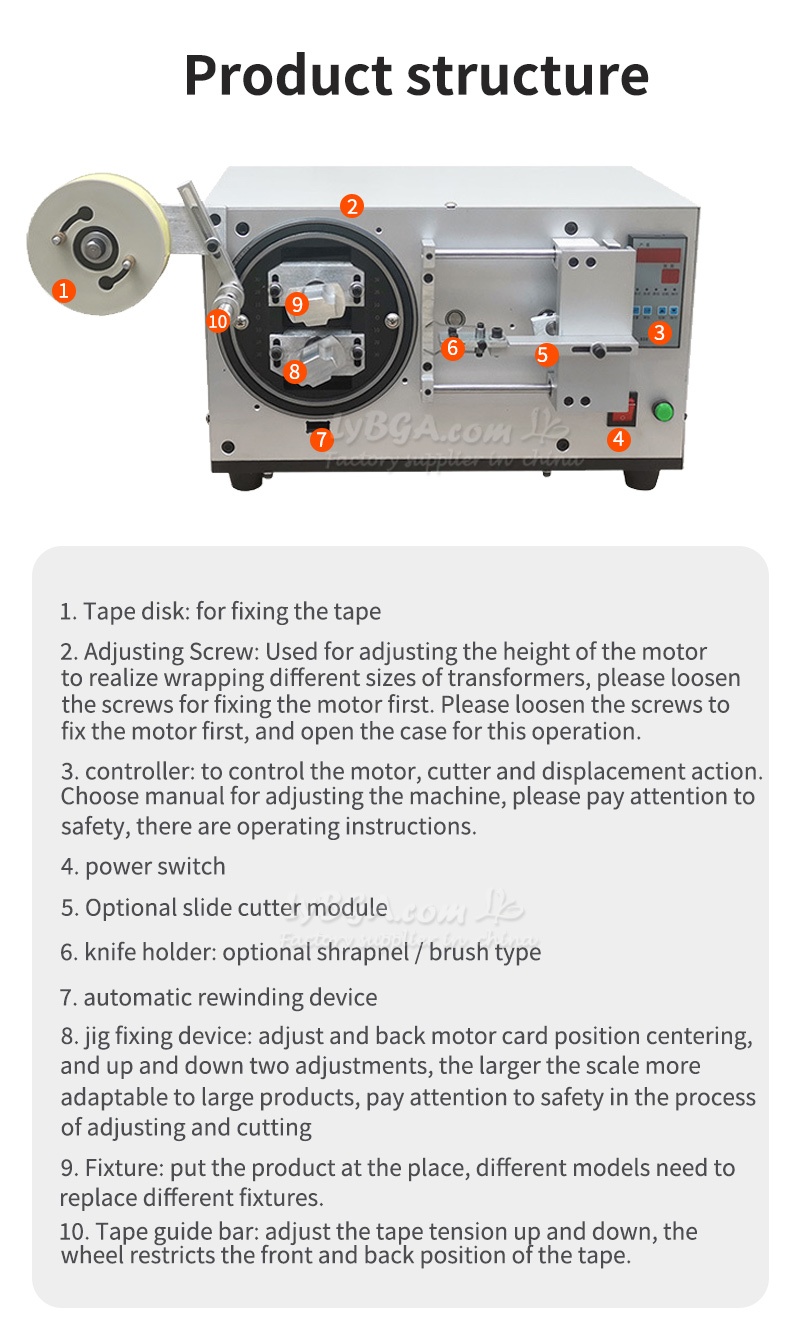

Product structure
1. Tape disk: for fixing the tape.
2. Adjusting Screw: Used for adjusting the height of the motor to realize wrapping different sizes of transformers, please loosen the screws for fixing the motor first. Please loosen the screws to fix the motor first, and open the case for this operation.
3. Controller: to control the motor, cutter and displacement action. Choose manual for adjusting the machine, please pay attention to safety, there are operating instructions.
4. Power switch
5. Optional slide cutter module
6. Knife holder: optional shrapnel / brush type
7. Automatic rewinding device
8. Jig fixing device: adjust and back motor card position centering, and up and down two adjustments, the larger the scale more adaptable to large products, pay attention to safety in the process of adjusting and cutting
9. Fixture: put the product at the place, different models need to replace different fixtures.
10. Tape guide bar: adjust the tape tension up and down, the wheel restricts the front and back position of the tape.
