Introduction

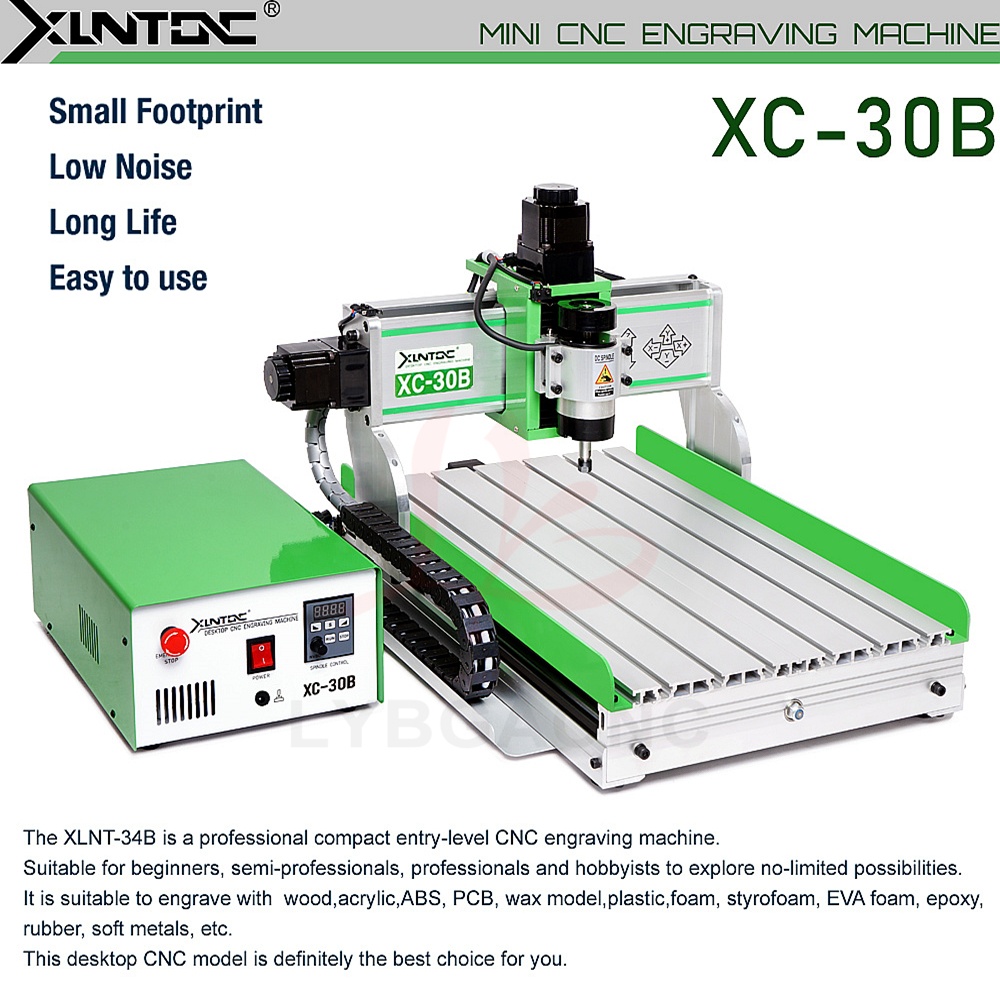

The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.

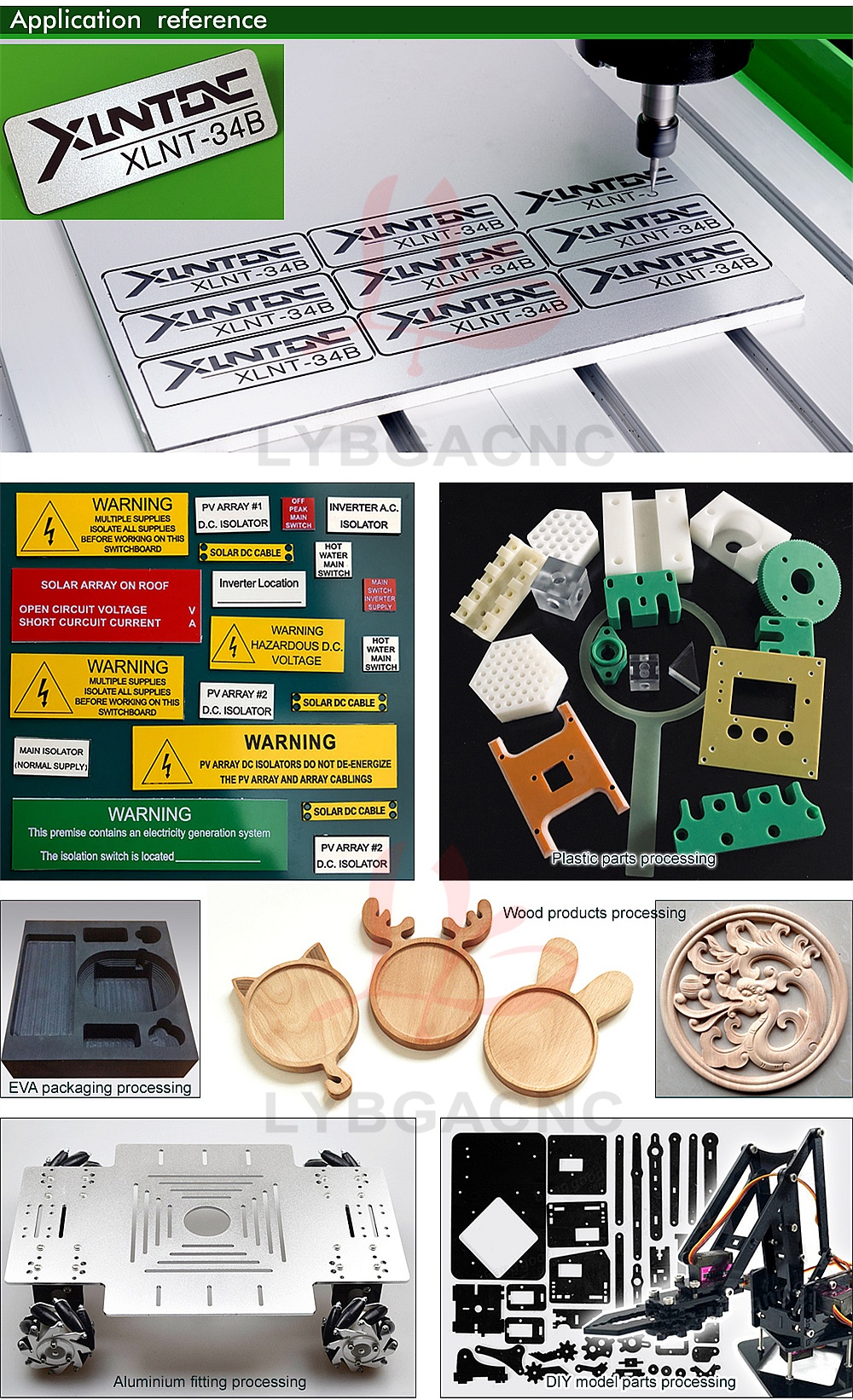

The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.

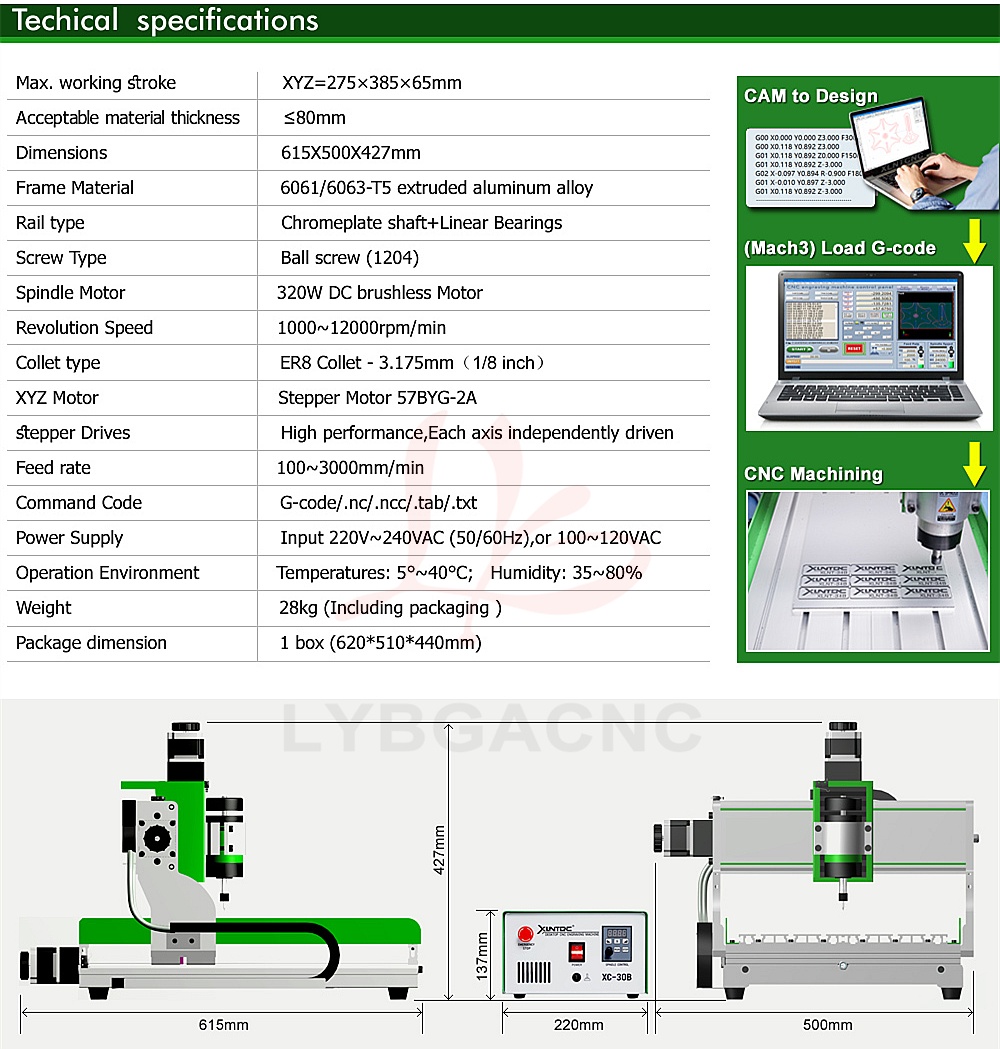

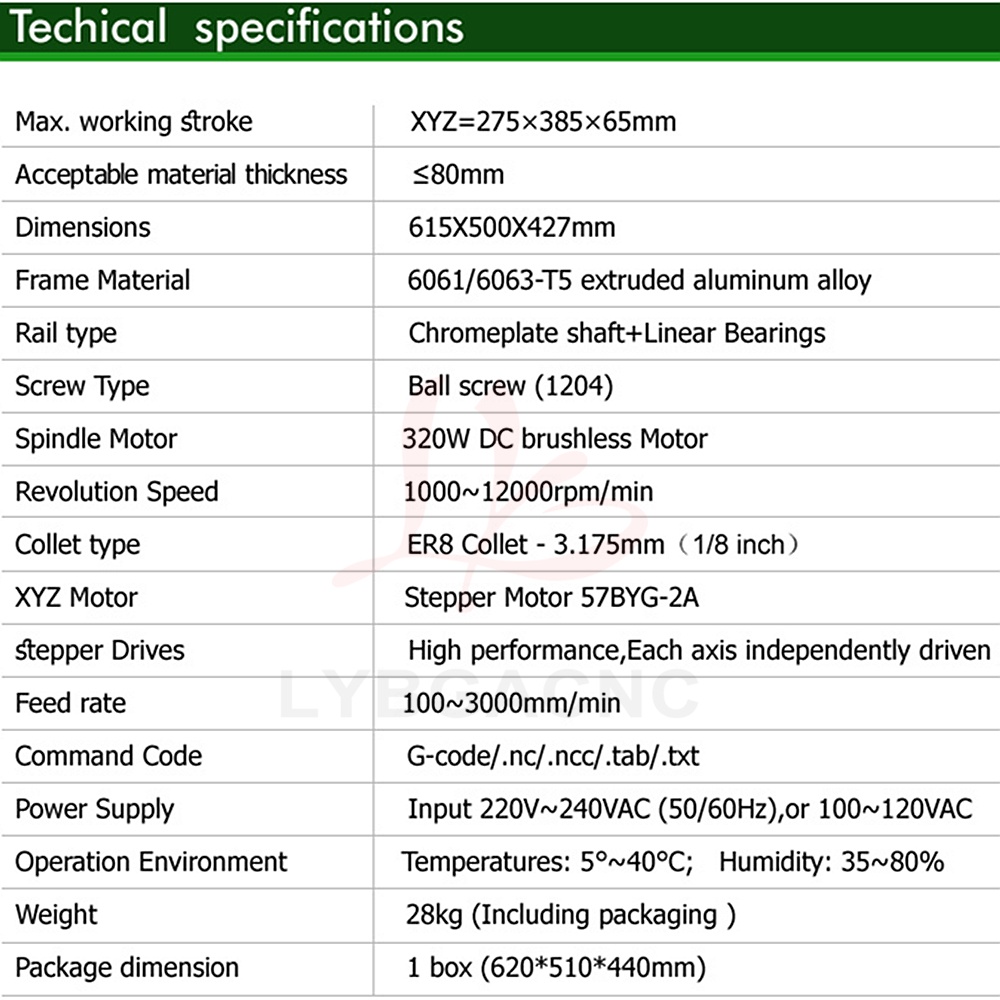

Model and Technical Parameters:
| MODEL | XC-30B | |||
| Attribute | 3axis | 4axis | ||
| Axis | 3axis | 4axis | ||
| Interface | USB port | USB port | ||
| Limit switch | Yes | Yes | ||
| Tool auto-checking | Yes | Yes | ||

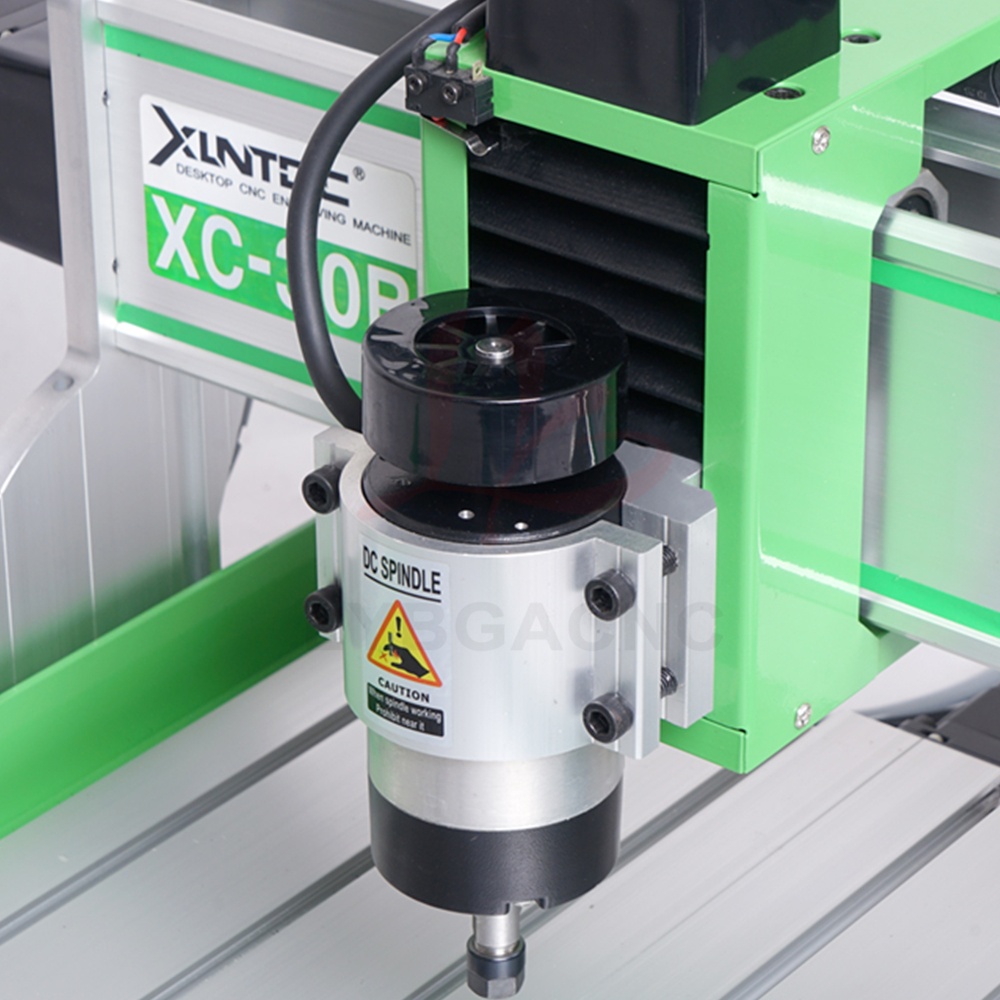

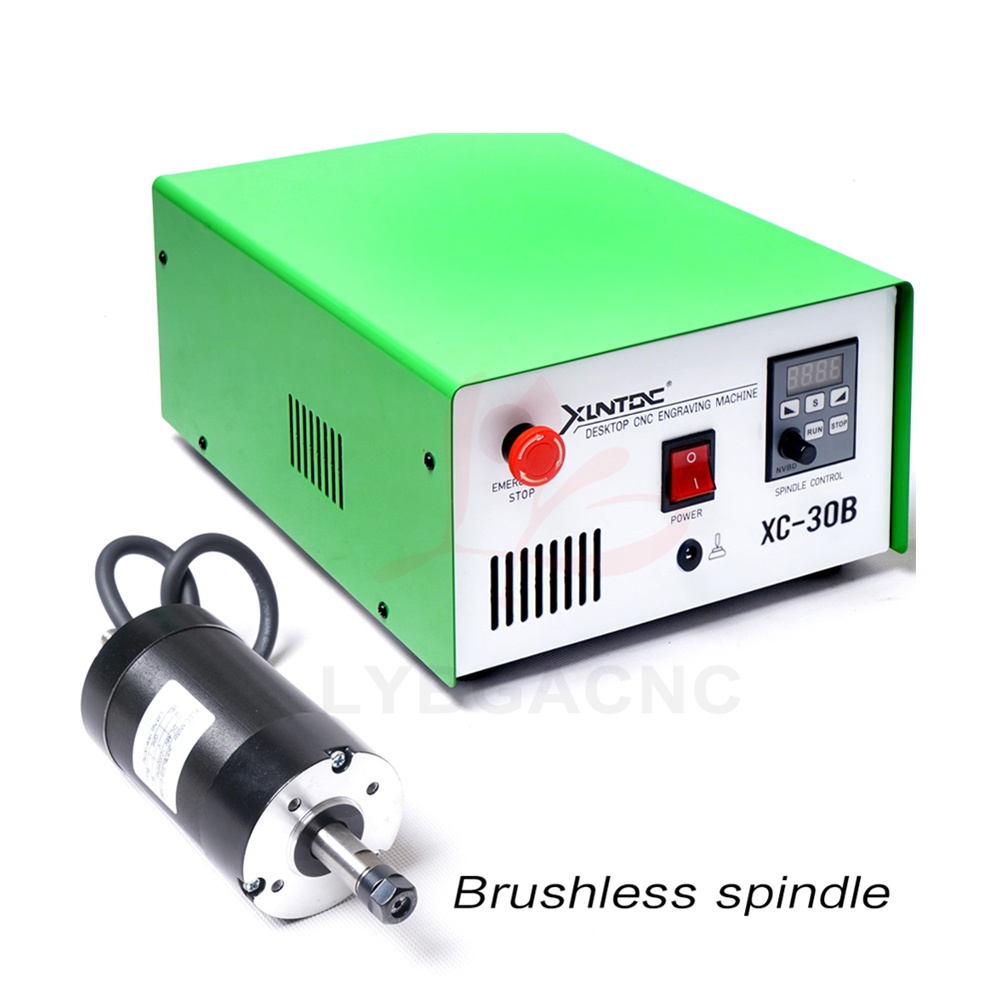

| Spindle Motor: | 320W DC Brushless Motor | 320W DC Brushless Motor | ||
| Type of screw | Ball screw | Ball screw | ||
| Weigh | 28 | 33 | ||
|
Machine Dimensions： |
615X500X427mm |
|||
|
Rack material： |
6061 and 6063-T5 Extruded aluminum alloy |
|||
|
Engraving area： |
385X275mm |
|||
|
Z-Axis Stroke： |
65mm, Engraving depth depends on the length of the tool edge |
|||
|
Acceptable material thickness： |
≤80mm |
|||
|
Rail type： |
Chromeplate shaft + Linear Bearings, Surface hardening 61HRC |
|||
|
Type of screw： |
Ball screw 1204, Pitch 4mm |
|||
| Spindle motor： | 320W/11000r/min（(Very small noise)） | |||
|
Collet type： |
ER8,1/8″(3.175mm) Collet |
|||
|
Stepper motor and drive： |
Stepping motor 57BYG-2A |
|||
|
Maximum operating speed： |
4000mm/min (Engraving speed: 100-2500mm/min) |
|||
|
Repeat positioning Accuracy： |
0.03mm |
|||
|
Software Compatability： |
Mach3/Emc2/Kcam (Type3,Wentai, ArtCAM, coppercam) |
|||
|
Command code： |
G code/.nc/.ncc/.tab/.txt |
|||
| Power Supply | Input 220V~ 240VAC (50/60Hz) or 100~ 120VAC | |||

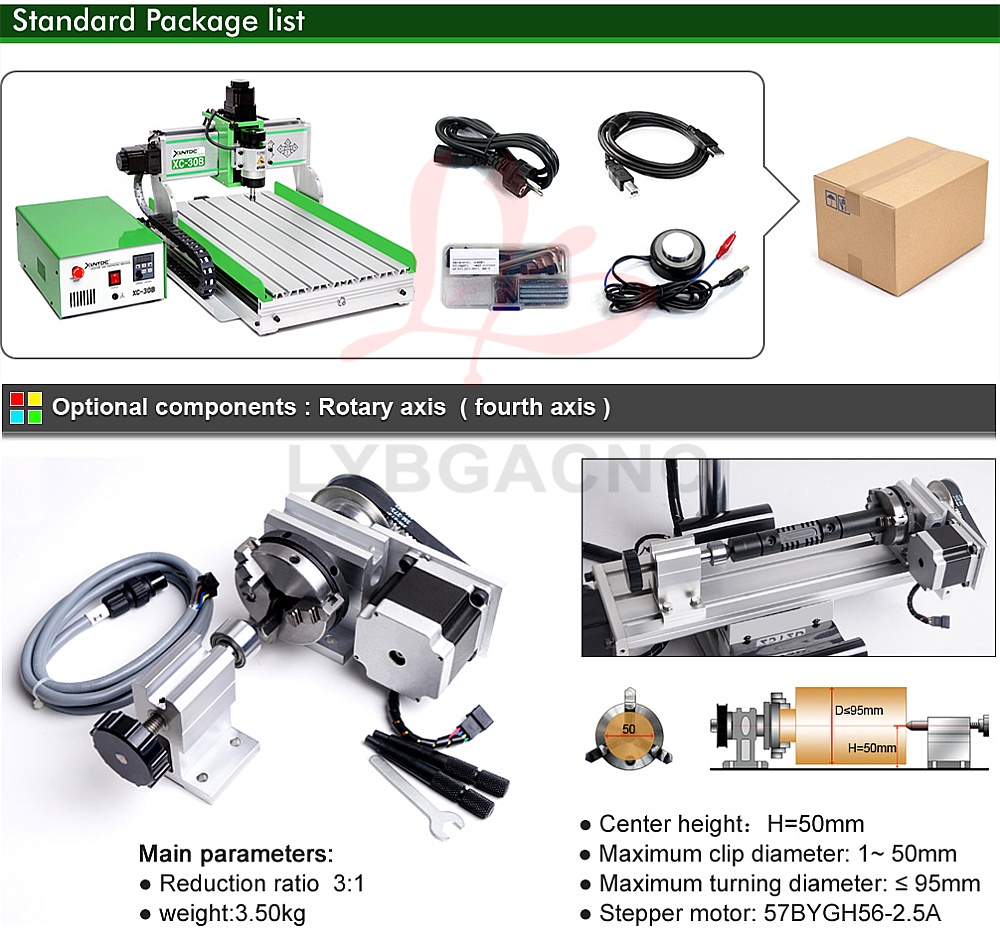

| Rotation Axis (4th Axis)Description: | Center height: H = 50mmMaximum turning diameter: ≤95mmDeceleration ratio: 3:1
Stepper motor: NEMA23-2.5A Weight: 4.0KG |
|||
Thanks for your order!

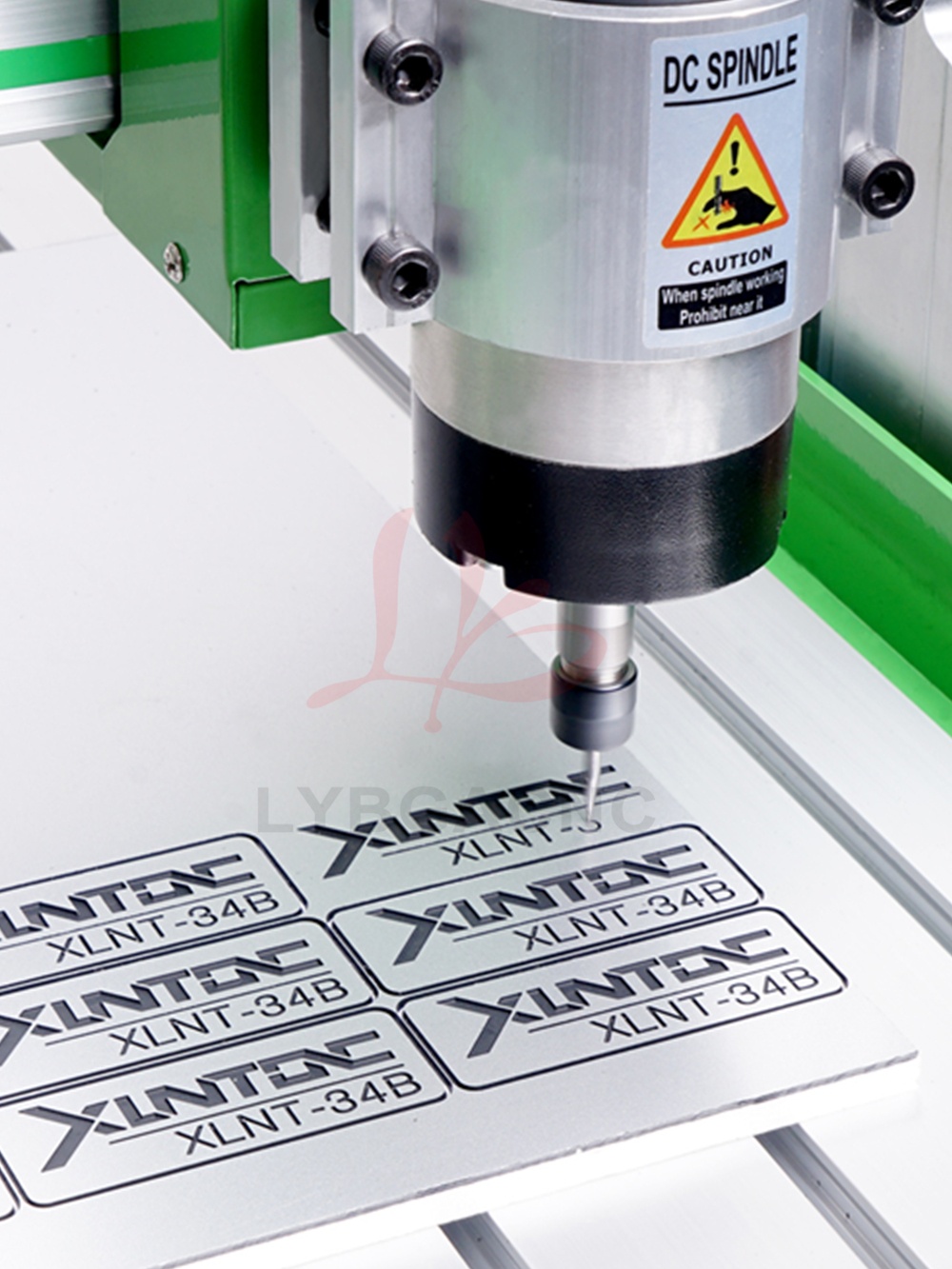

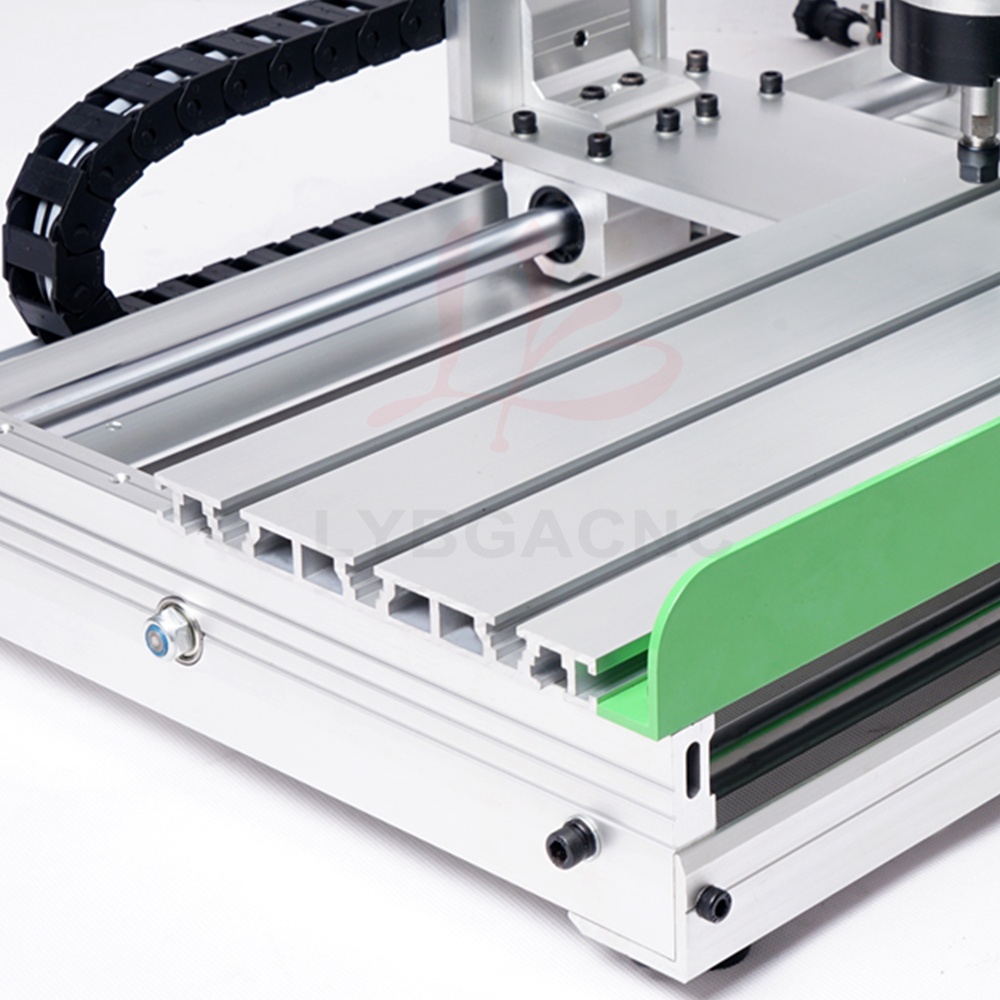

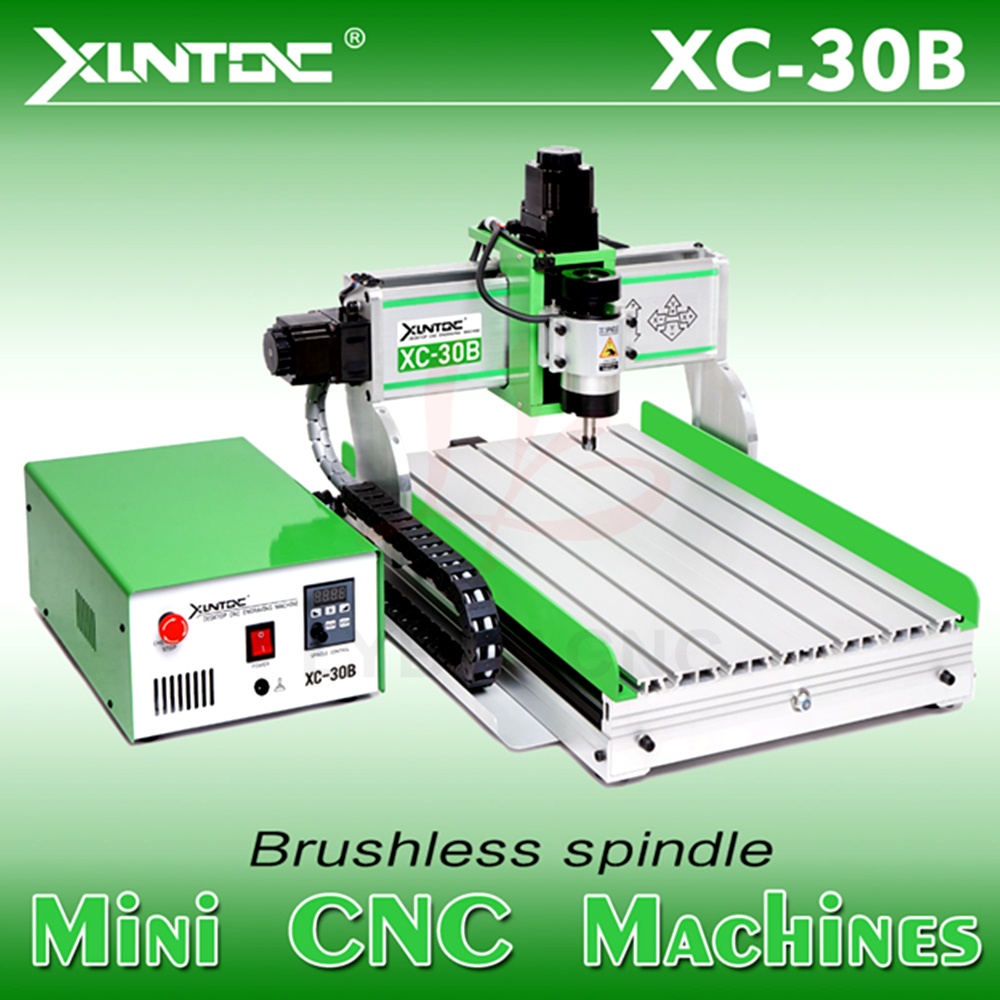

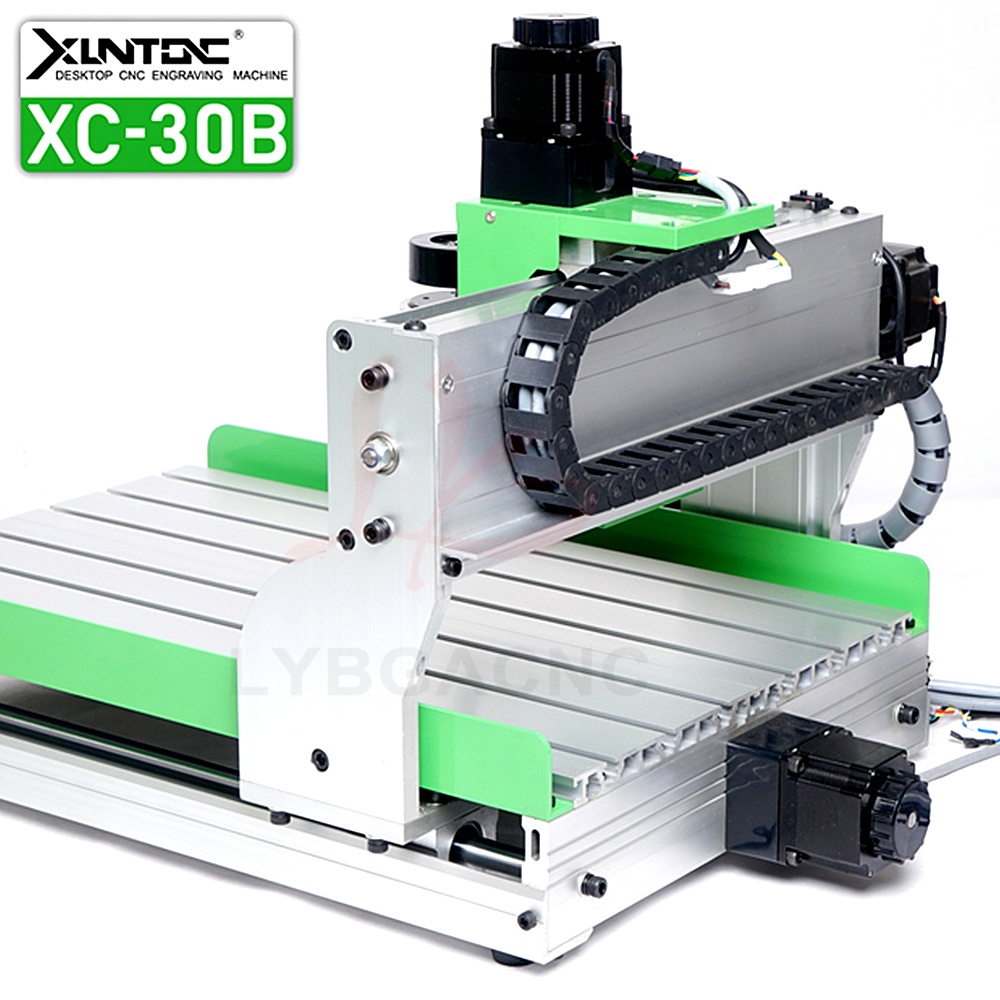

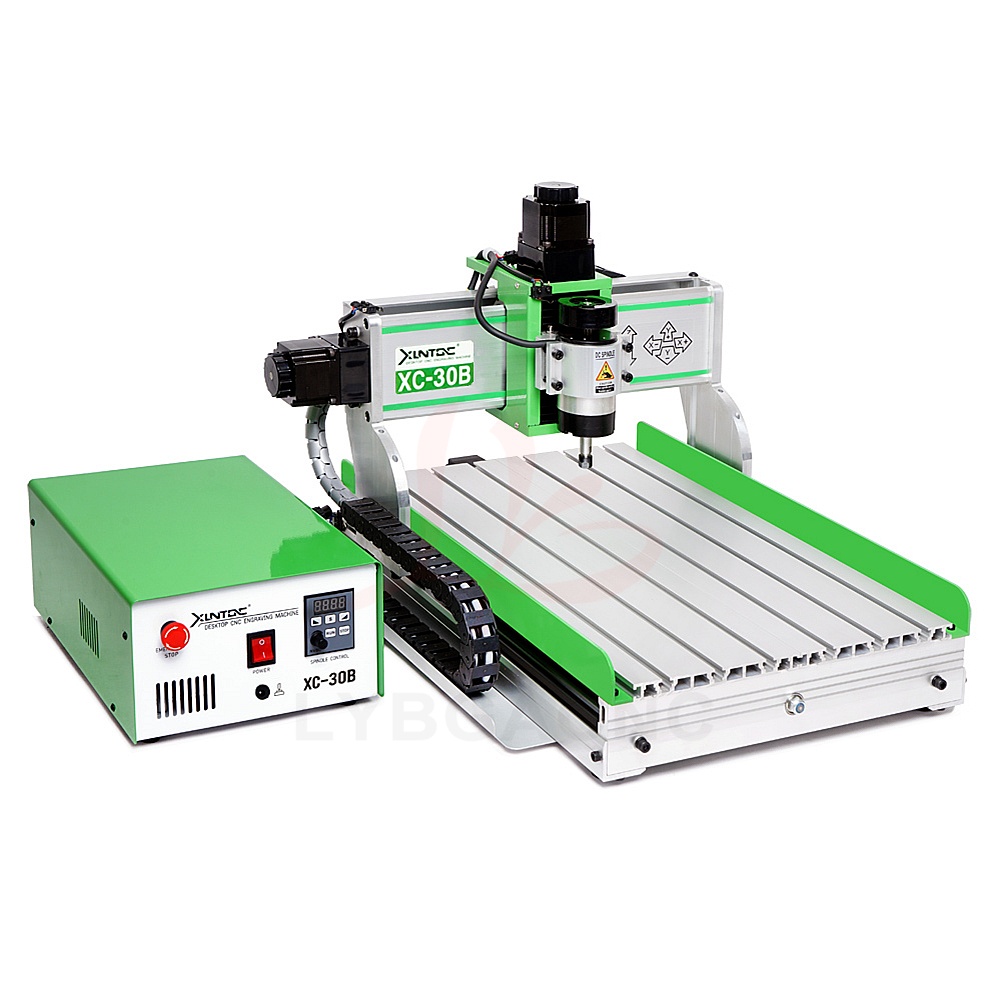

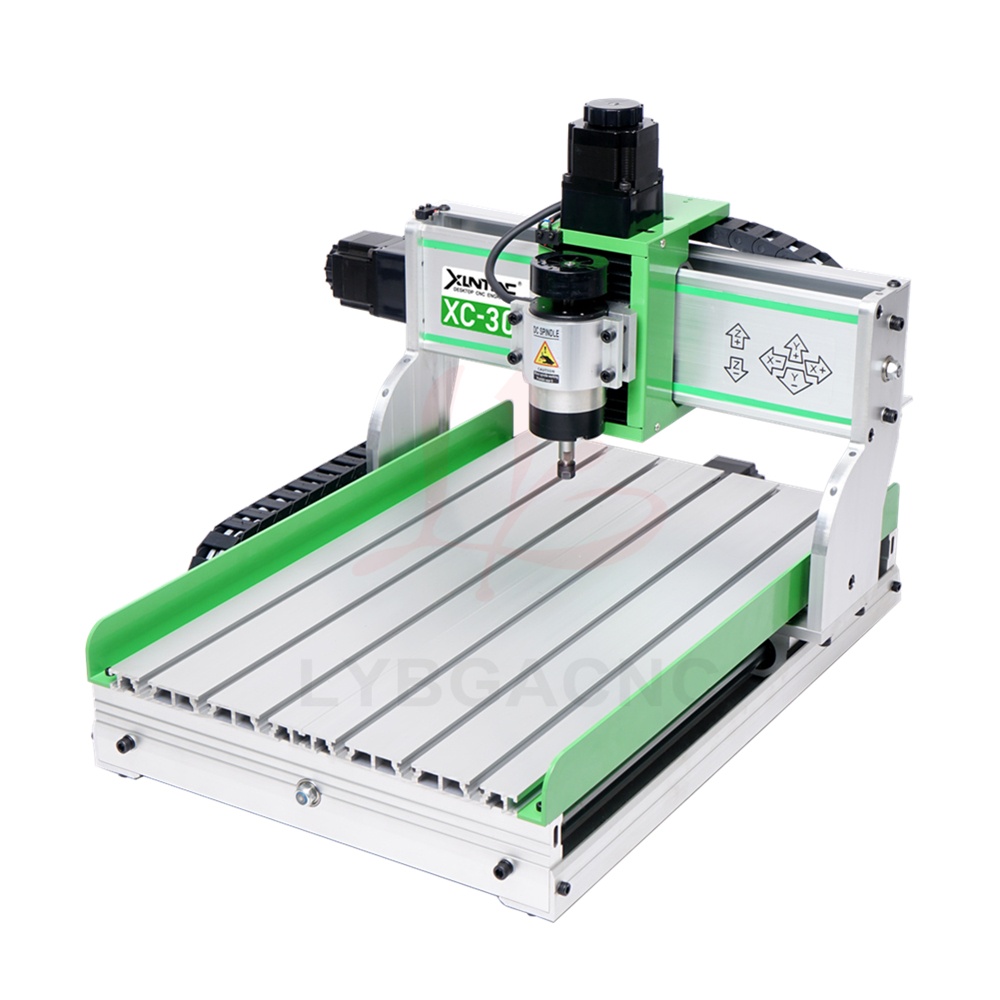

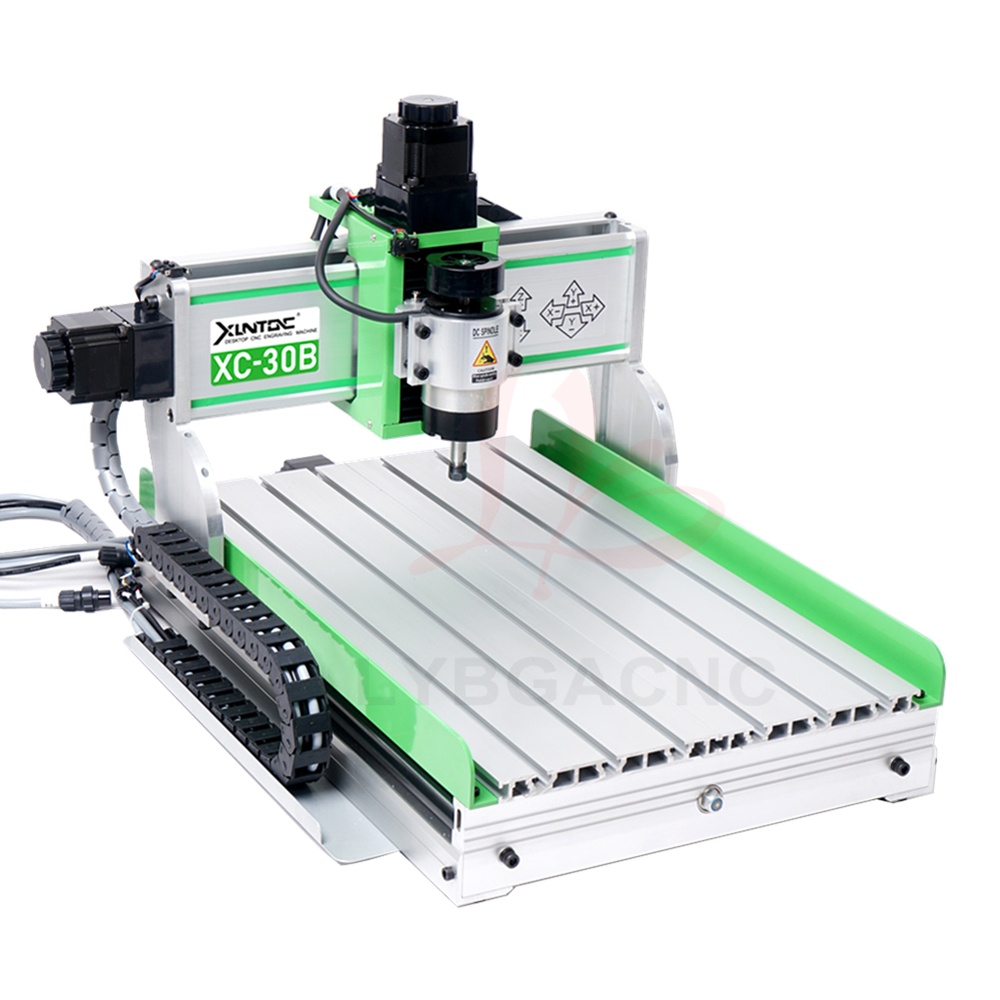

Product Pictures
