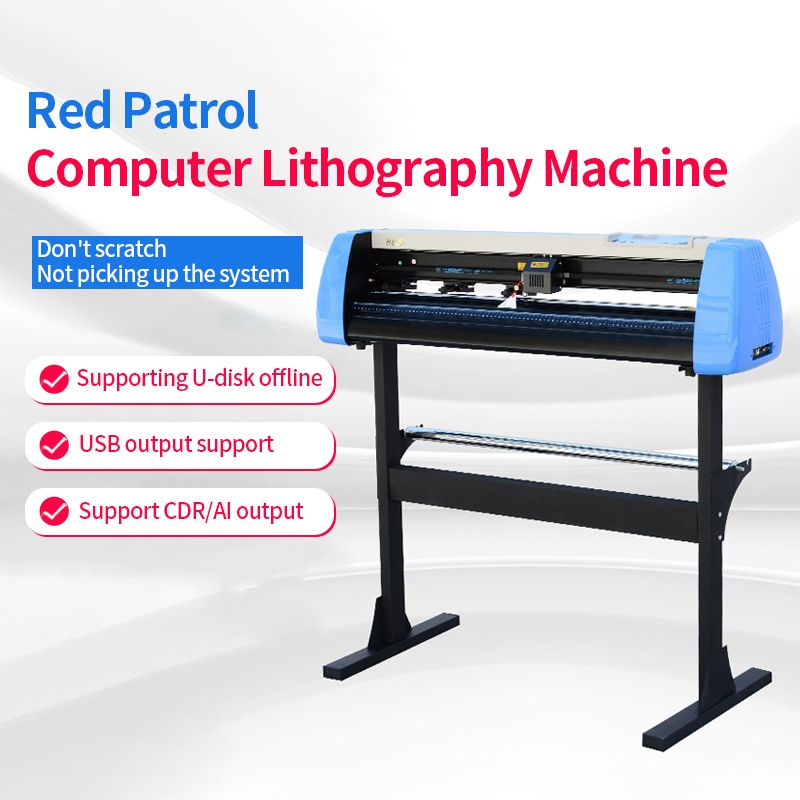

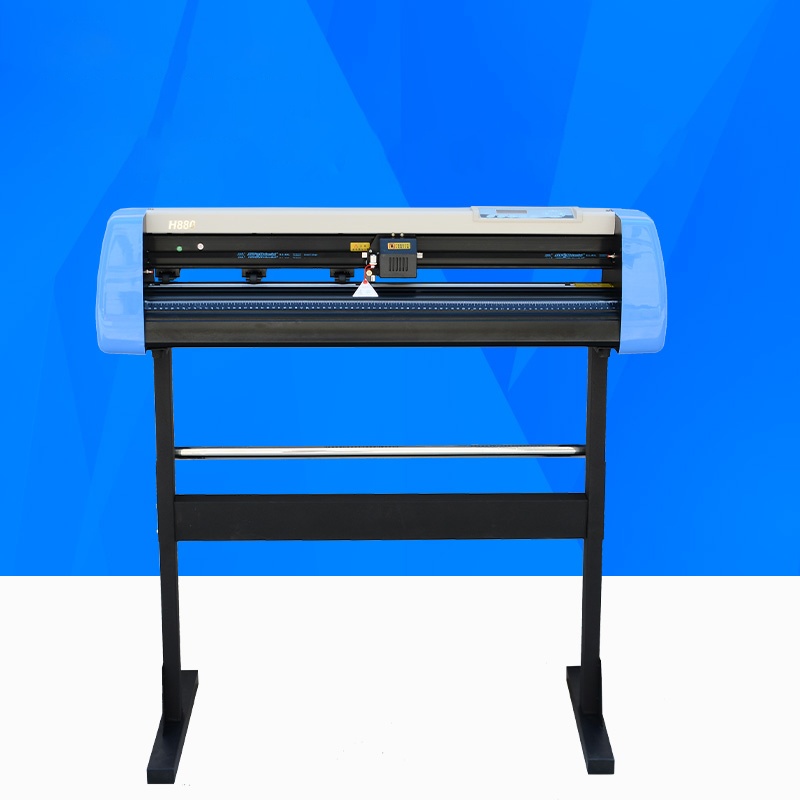

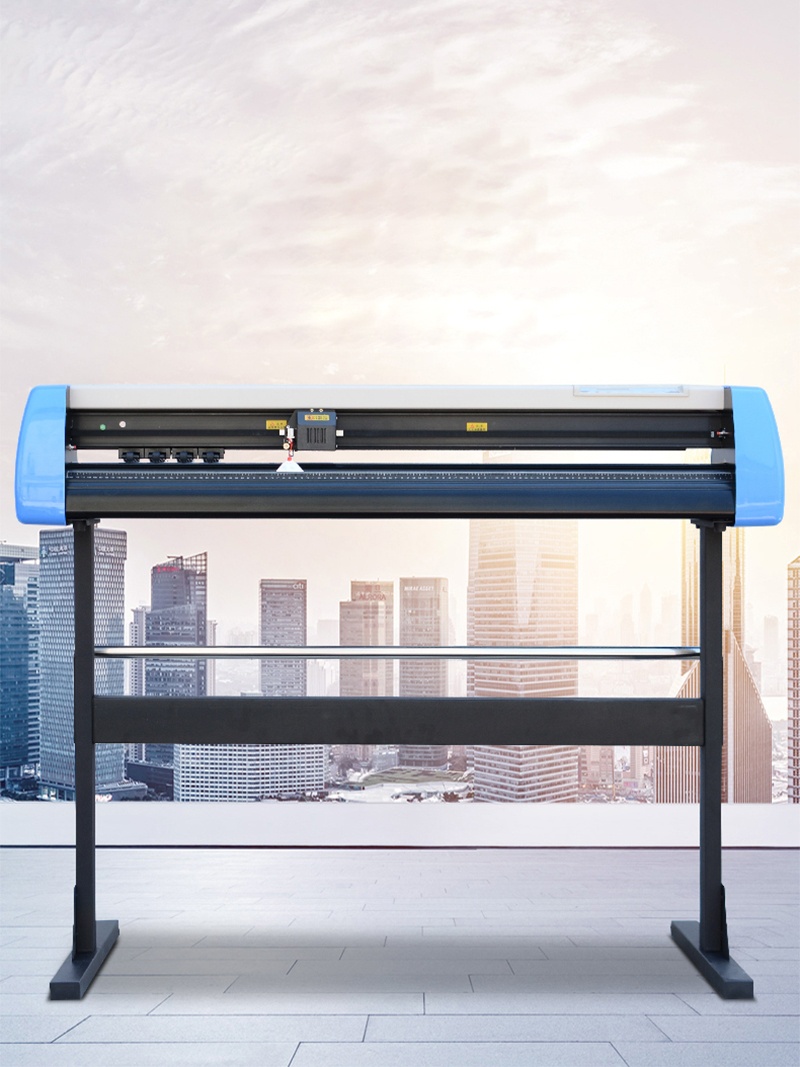

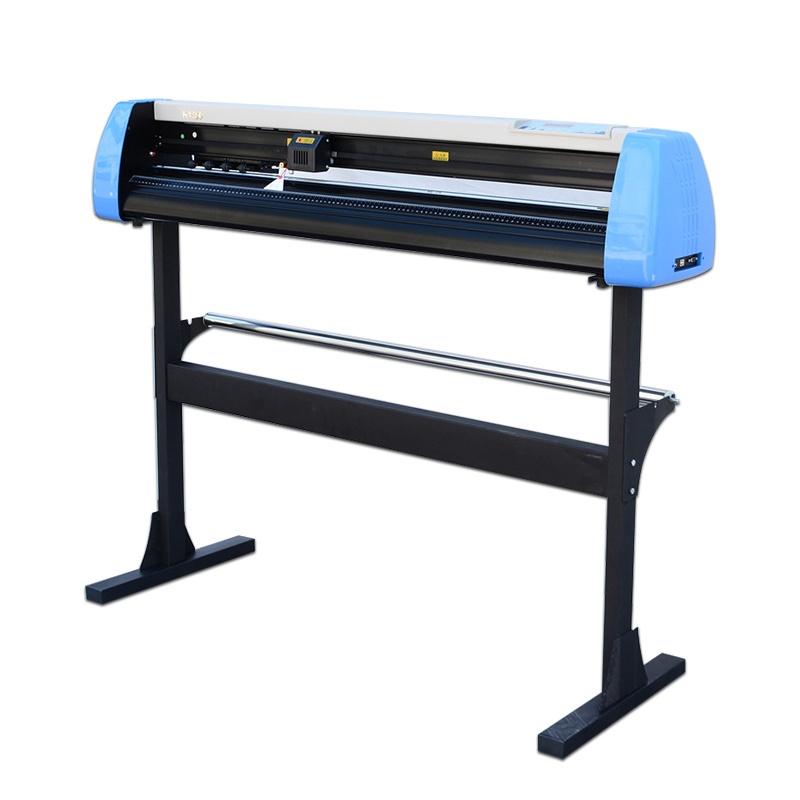

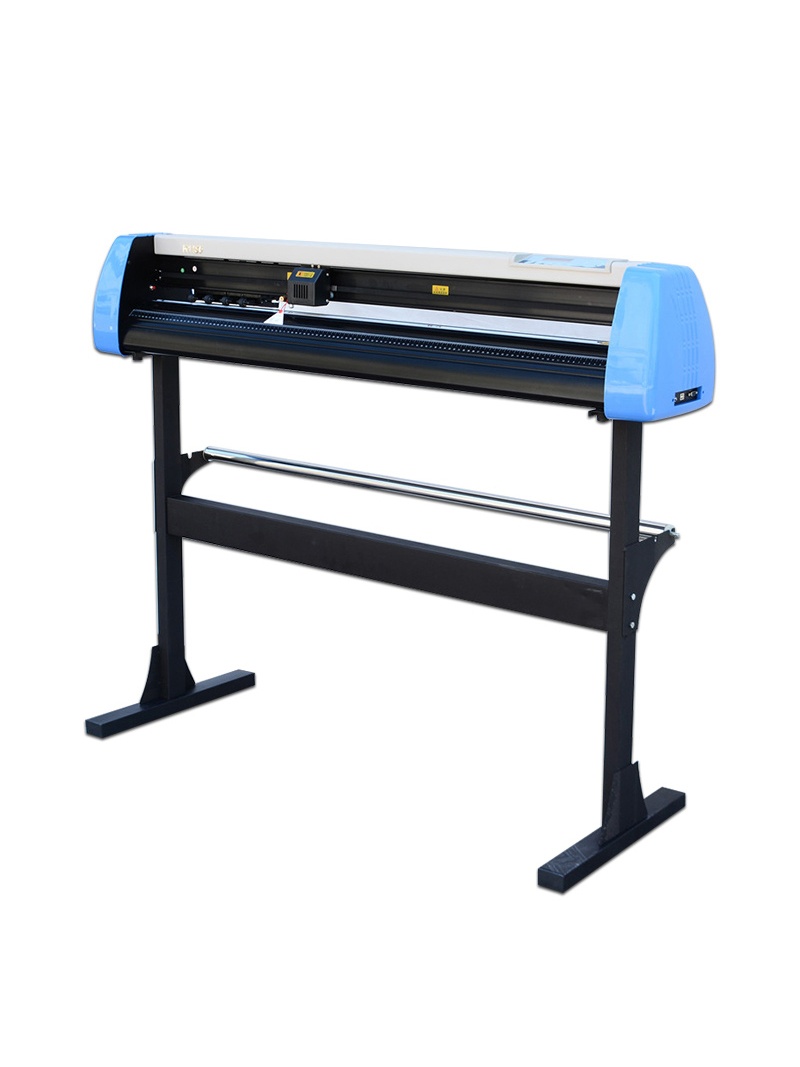

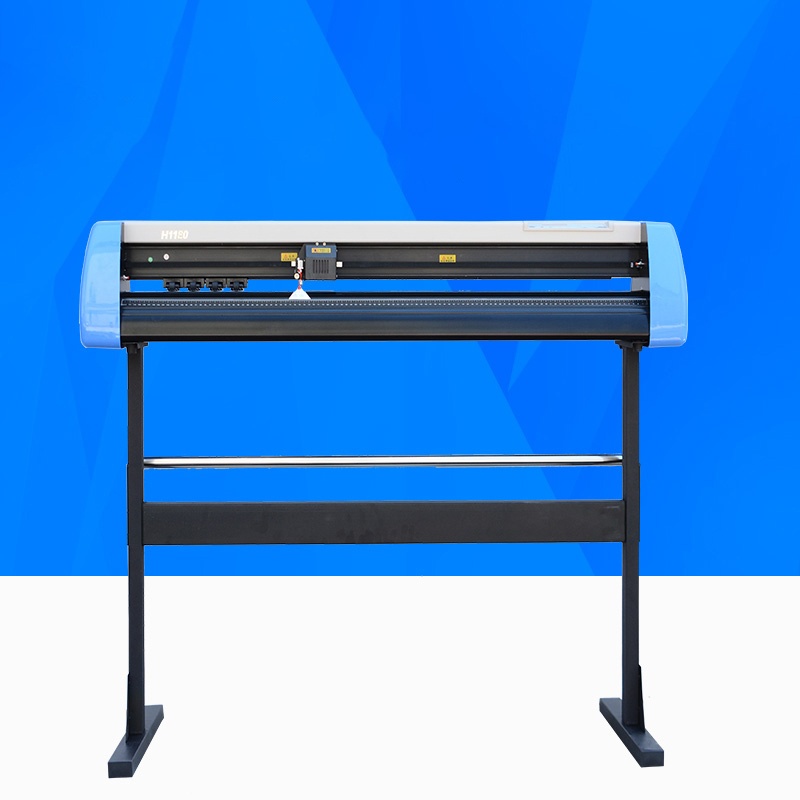

Computer Lettering Engraving Carving Machine for Small Diatom Mud Shell Powder Advertisement Instant Sticker Paper with 800~1500mm Carving Width

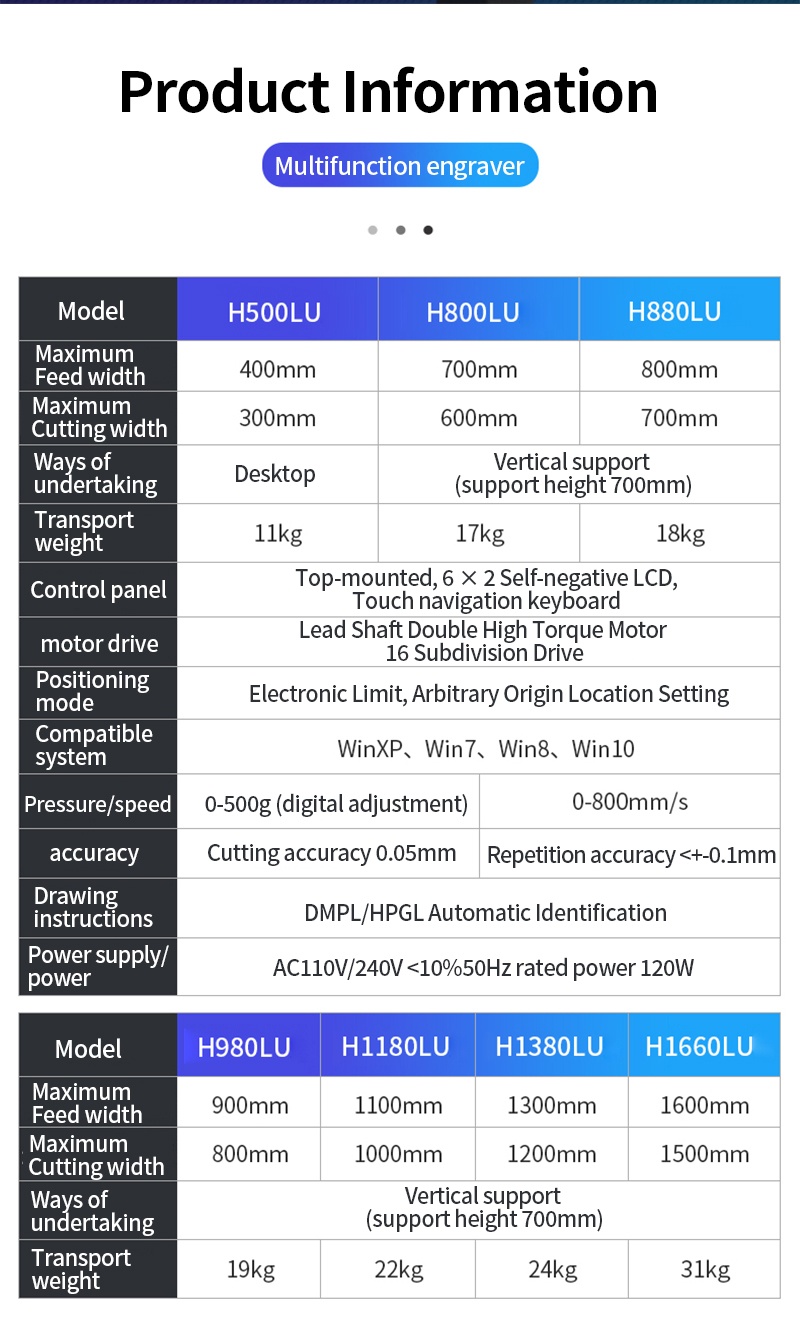

Product Information

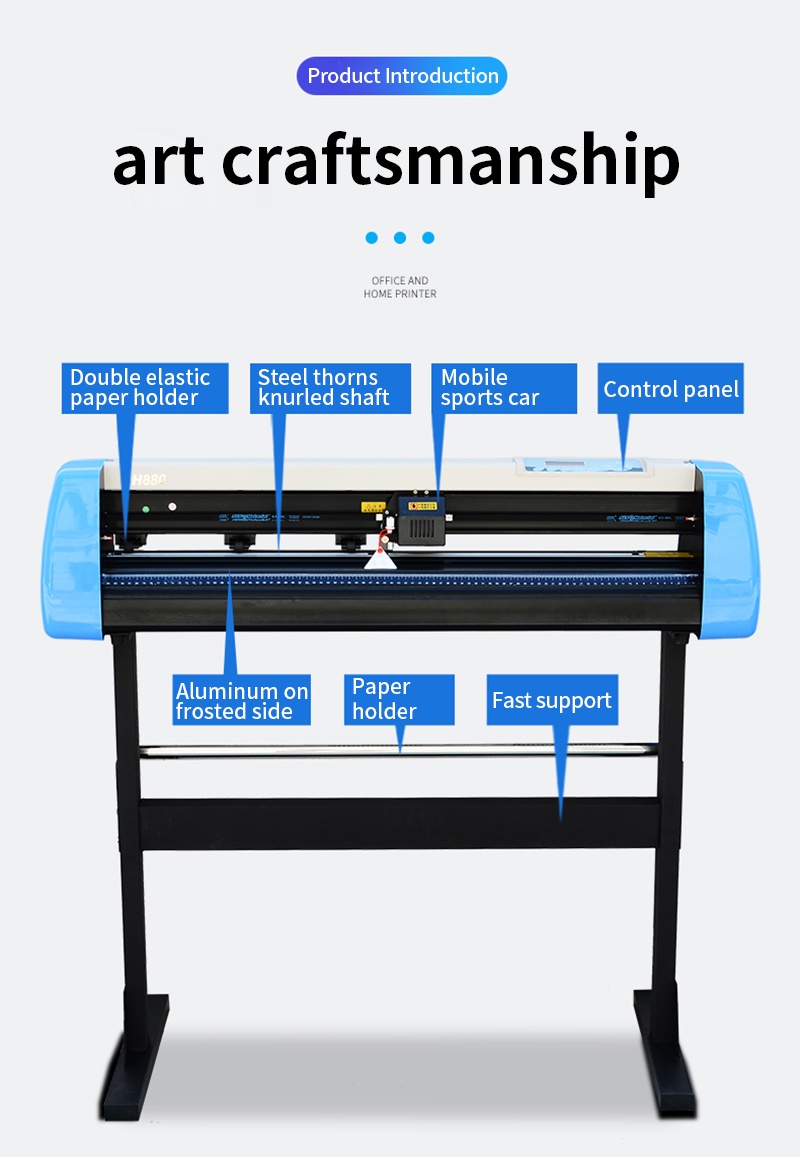

Multifunction engraver

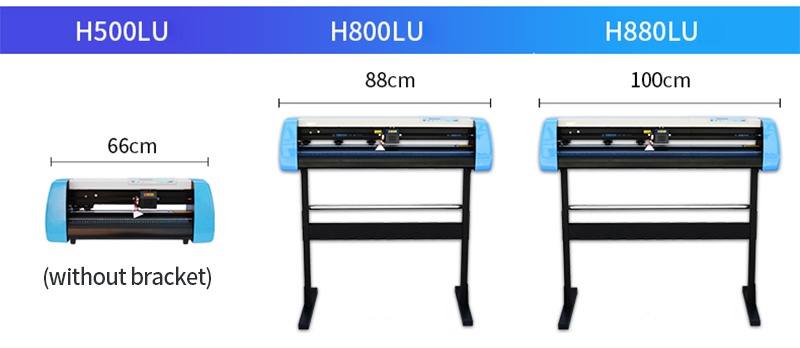

Model                H500LU       H800LU           H880LU

Maximum  Feed width   400mm         700mm           800mm

Maximum Cutting width   300mm          600mm         700mm

Ways of undertaking        Desktop     Vertical support (support height 700mm)

Transport  weight         11kg            17kg                 18kg

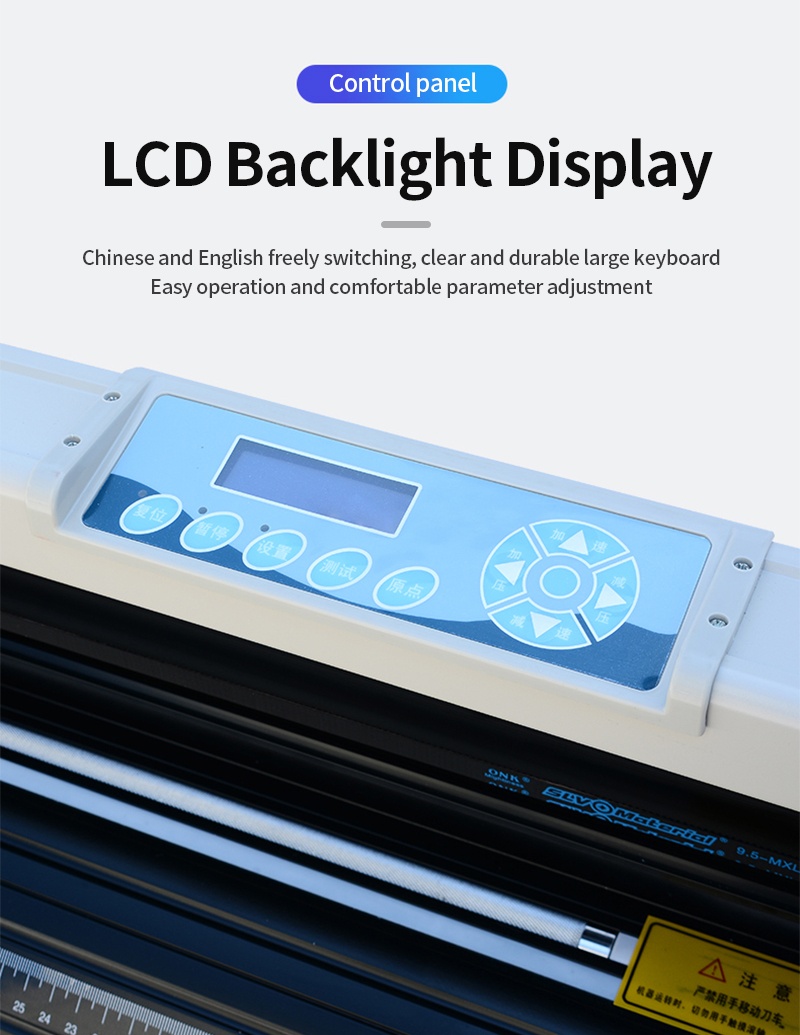

Control panel         Top-mounted,6 X 2 Self-negative LCD, Touch navigation keyboard

motor drive           Lead Shaft Double High Torque Motor 16 Subdivision Drive

Positioning  mode        Electronic Limit, Arbitrary Origin Location Setting

Compatible    system             WinXP、Win7、Win8、Win10

Pressure/speed        0-500g (digital adjustment)         0-800mm/s

Accuracy              Cutting accuracy 0.05mm        Repetition accuracy<+-0.1mm

Drawing instructions           DMPL/HPGL Automatic Identification

Power supply power          AC110V/240V<10%650Hz rated power 120W

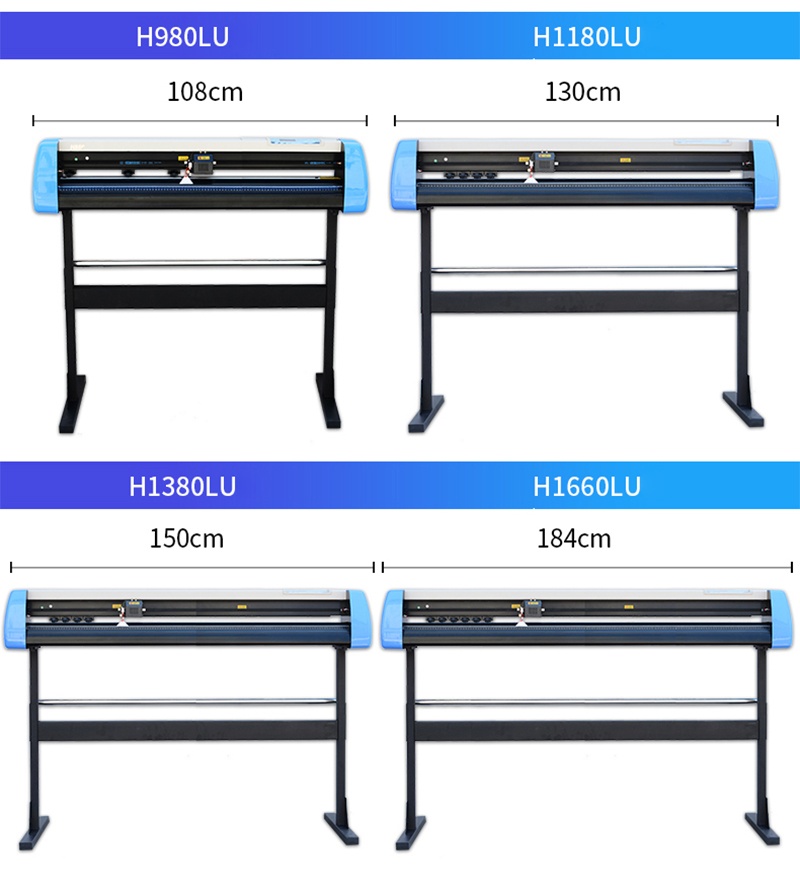

Model                   H980LU       H118OLU     H1380LU     H1660LU

Maximum Feed width       900mm      1100mm       1300mm      1600mm

Maximum   Cutting width   800mm     1000mm       1200mm       1500mm

Ways of  Undertaking         Vertical support(support height 700mm)
