Customized Pneumatic Rocker Tapping Machine for Screw Hole Making, Tap Back Function, M3 – M12 Collet, Ideal for Common Iron Parts
Reviews(0)
Product Detail
Product Tags

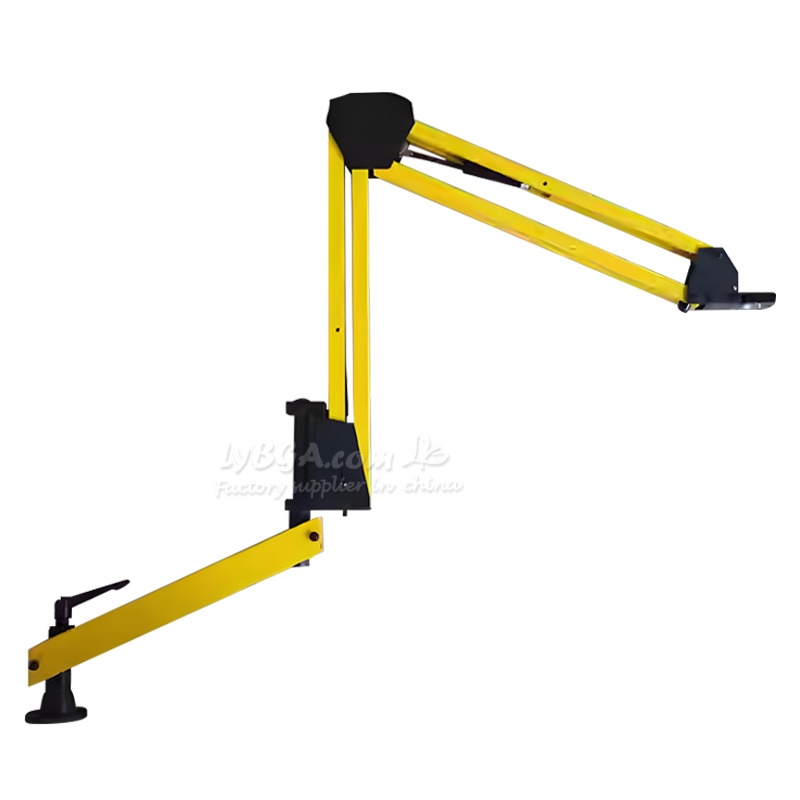

The machine must be used with a bracket!!!
The machine requires its own air compressor!!!
|
Model |
Idle speed |
Tapping capacity |
Required air pressure |
N.W |
Features and functions |
|

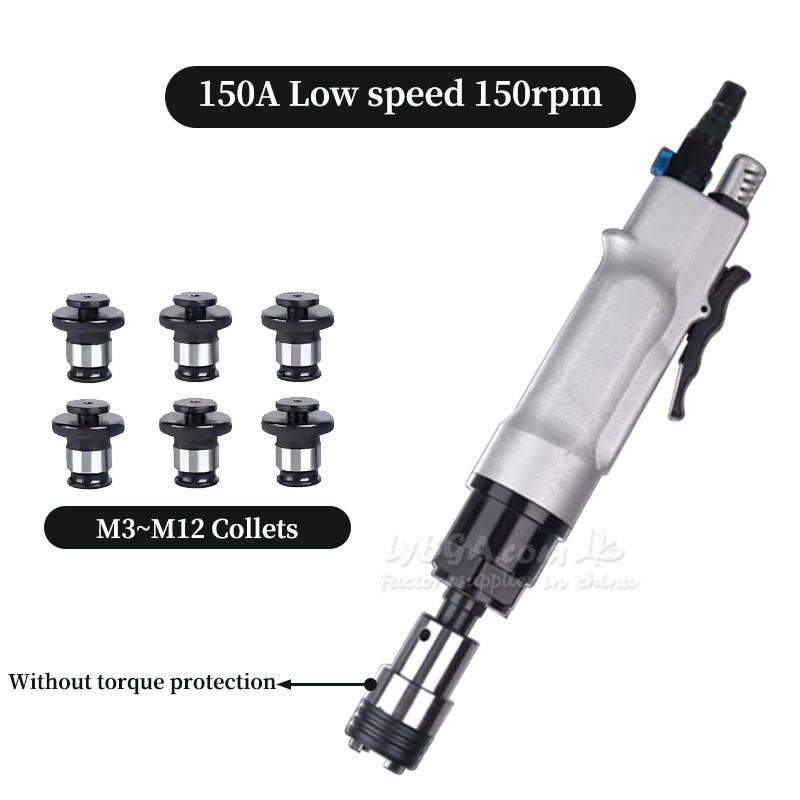

Slow speed |
150 rpm/min |
Aluminum: 3-14 holes |
5-8KG |
1.3KG |
Slow speed and high force |
|
Slow speed |
150 rpm/min |
5-8KG |
1.35KG |
Slow speed and high force |
|
|

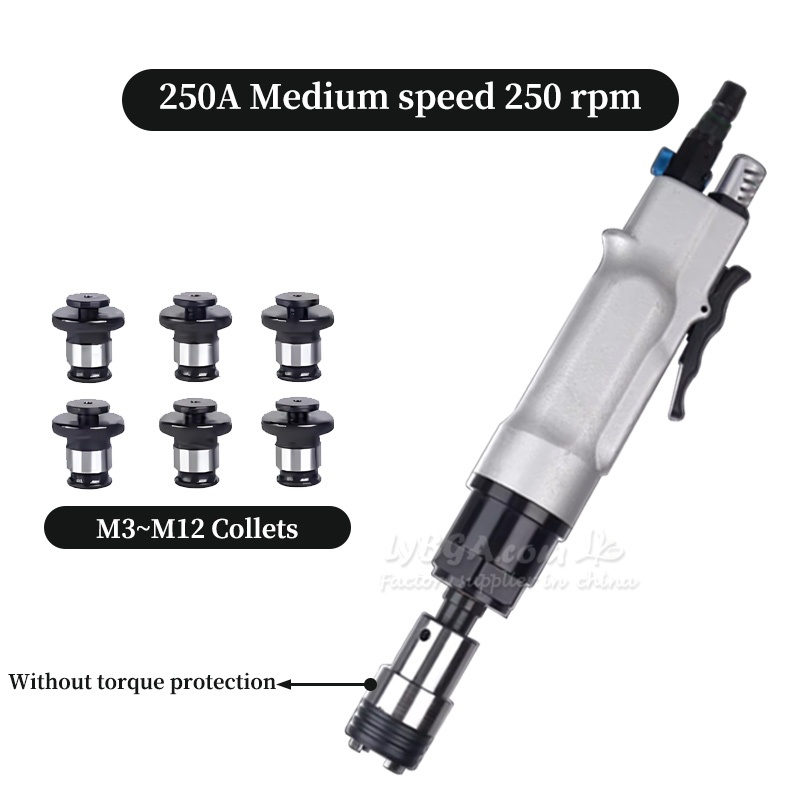

Medium speed |
250 rpm/min |
Aluminum: 3-12 holes |
5-8KG |
1.3KG |
Medium speed and moderate force |
|

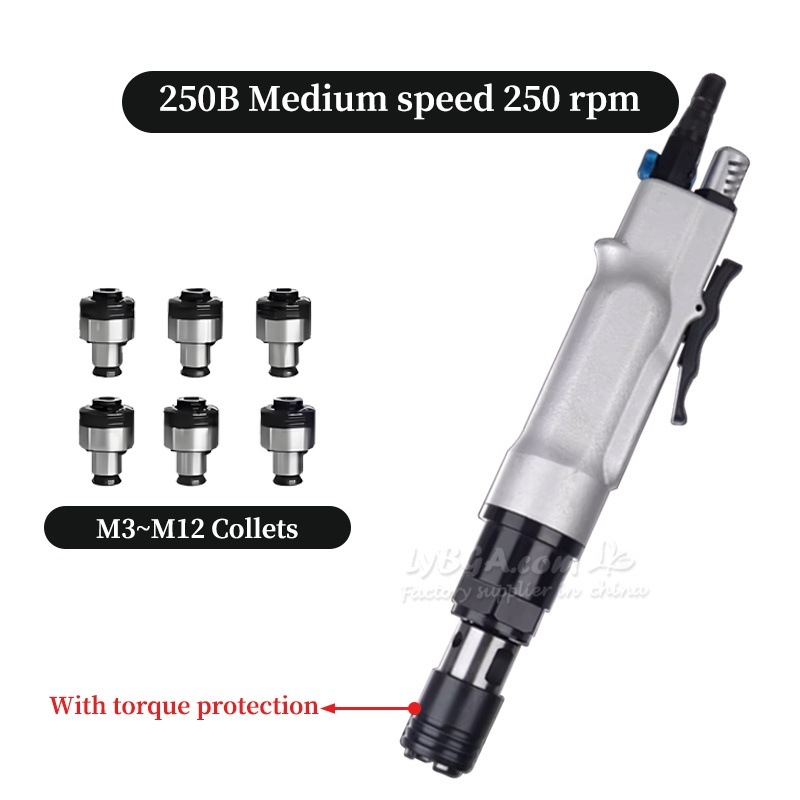

Medium speed |
250 rpm/min |
5-8KG |
1.35KG |
Medium speed, medium force |
|
|

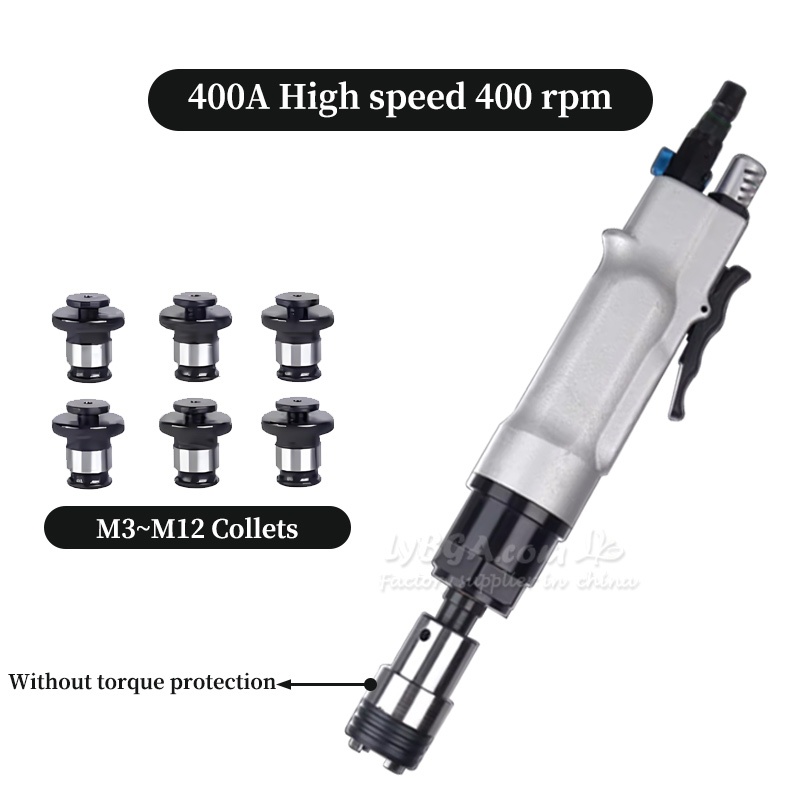

Fast |
400 rpm/min |
Aluminum: 3-10 Wire Holes |
5-8KG |
1.3KG |
Fast speed with relatively small force |
|
Fast |
400 rpm/min |
5-8KG |
1.35KG |
Fast speed with relatively low force |
|
|
Overload protection: when the resistance is greater than the tap capacity of the tap chuck will start the protection device (with the tapping machine jumping rotation), so that the tapping machine will not be too strong and twisted off the tap tap hole inside the hole will not be because of the broken tap and waste of workpieces. |
|||||
Detailed page information

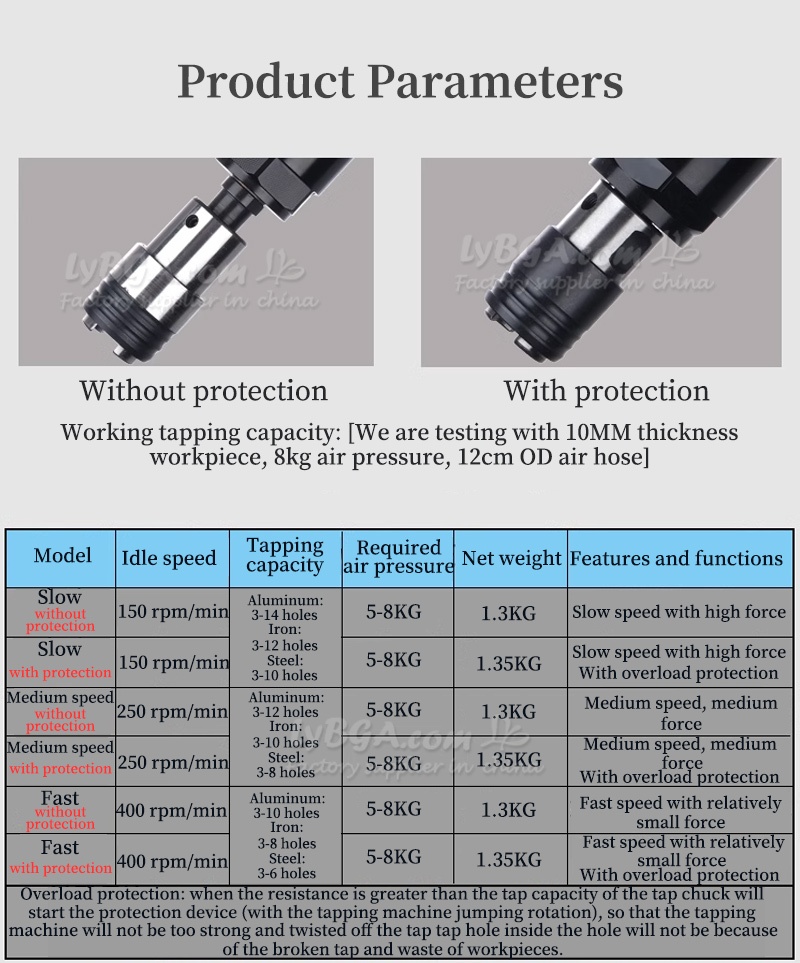

Working tapping capacity: [We are testing with 10MM thickness workpiece, 8kg air pressure, 12cm OD air hose]
Installation method diagram

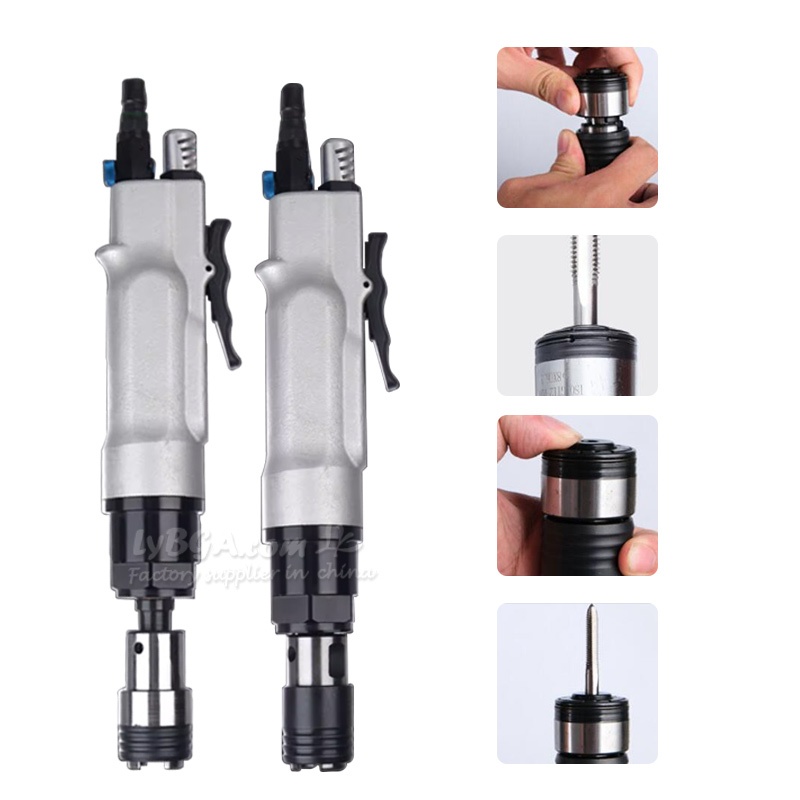

Double quick release self-locking for quick and easy replacement
1. Press the self-locking button to put the collet in
2. Release the self-locking buckle to complete the installation
3. Press the tap self-locking buckle into the tap
4. Release the self-locking button to complete the installation

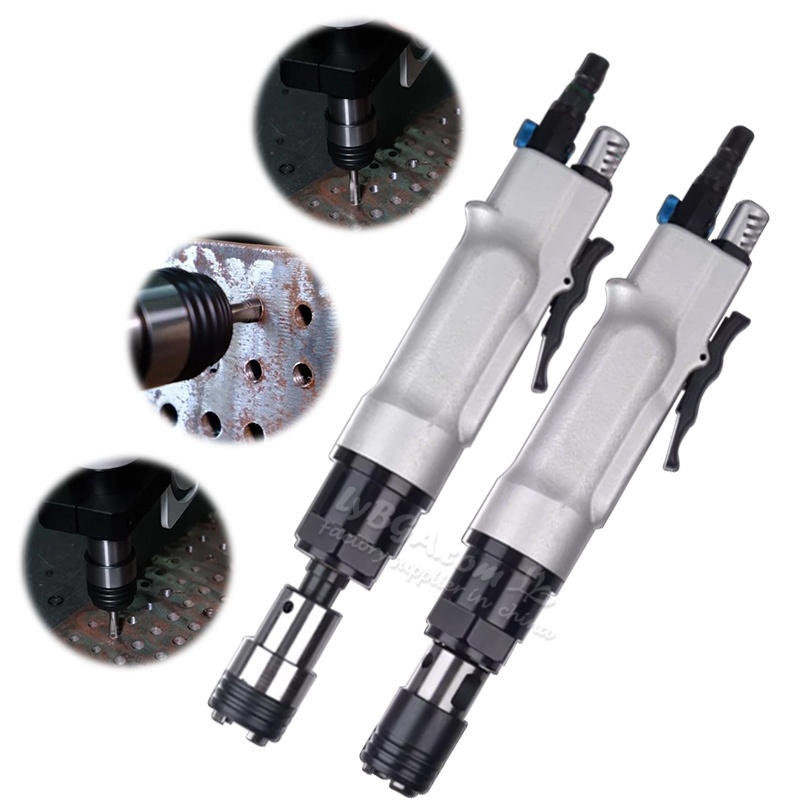

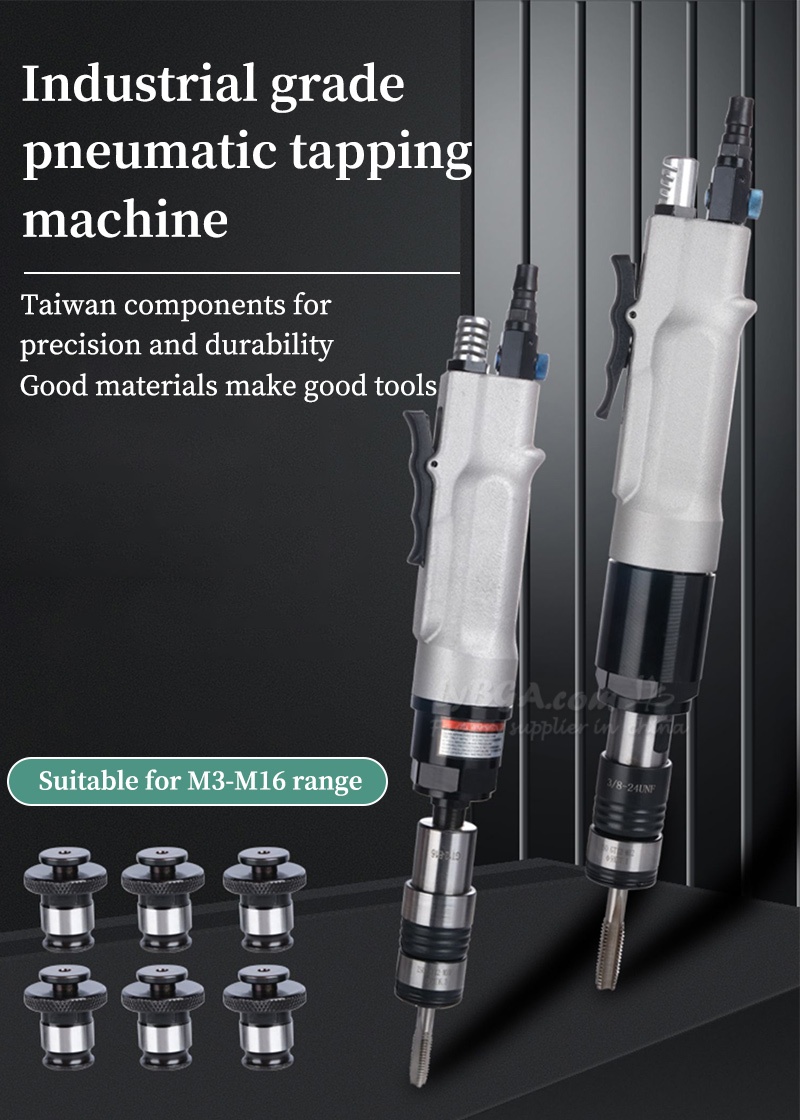

Industrial grade pneumatic tapping machine
Taiwan components for precision and durability Good materials make good tools
Suitable for M3-M16 range

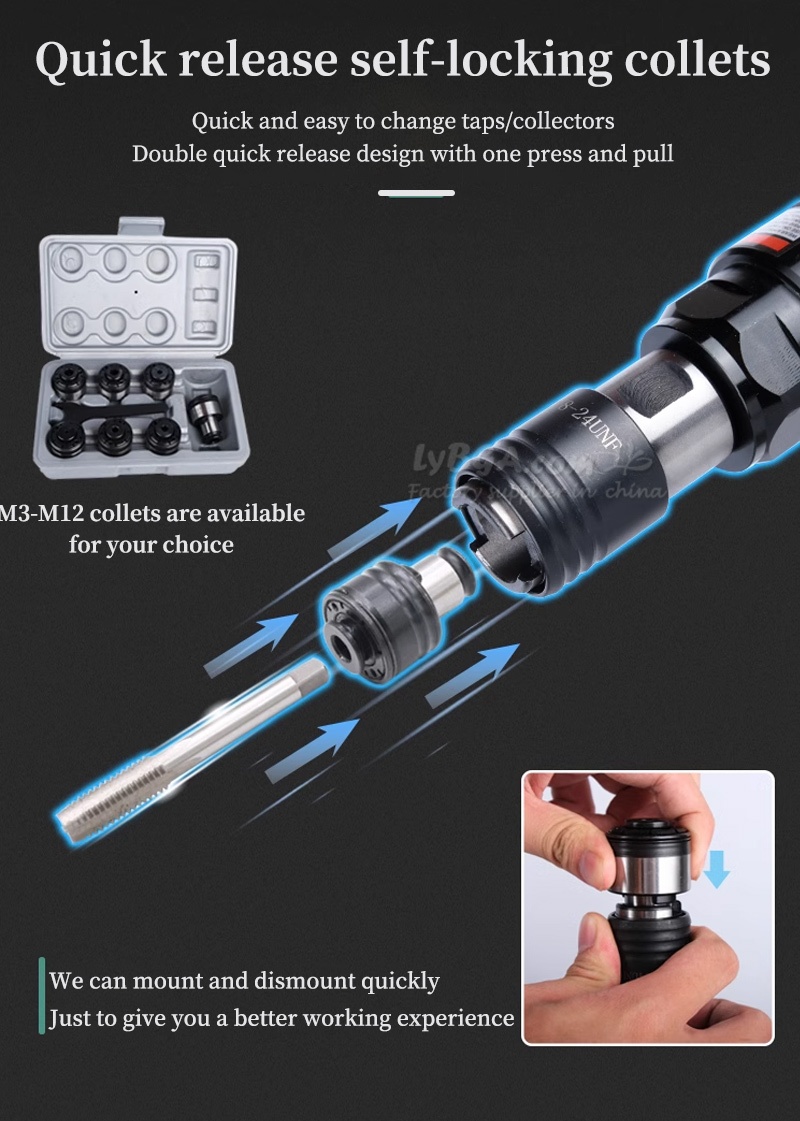

Quick release self-locking collets
Quick and easy to change taps/collectors, double quick release design with one press and pull

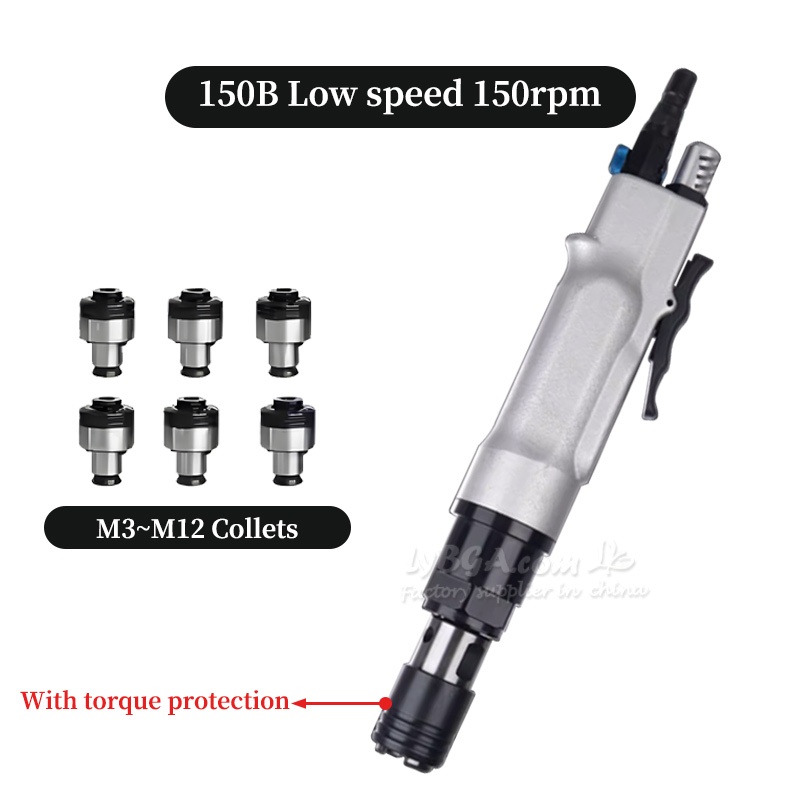

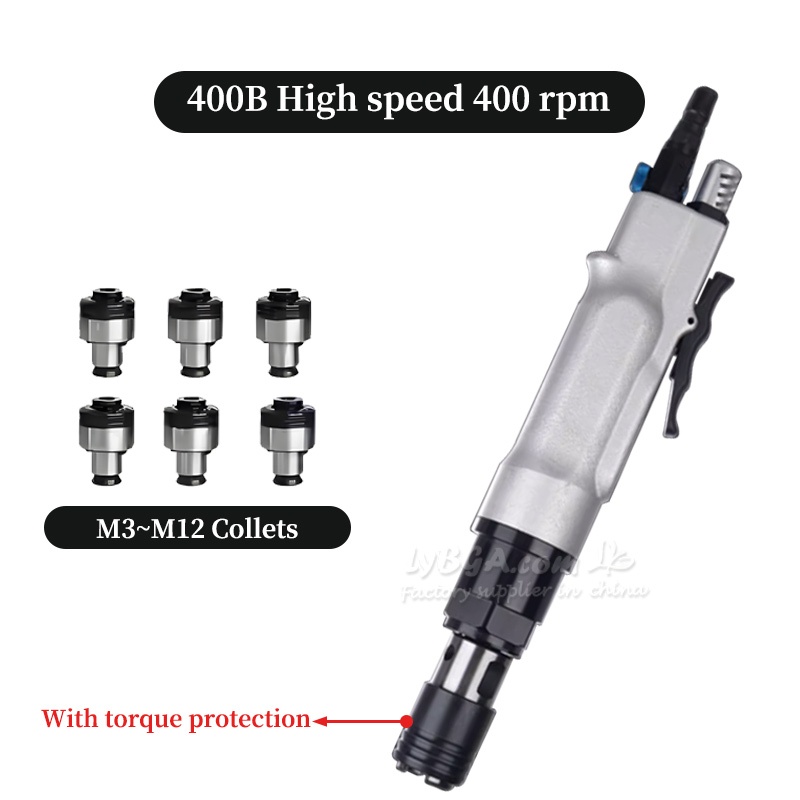

M3-M12 collets are available for your choice
We can mount and dismount quickly
Just to give you a better working experience

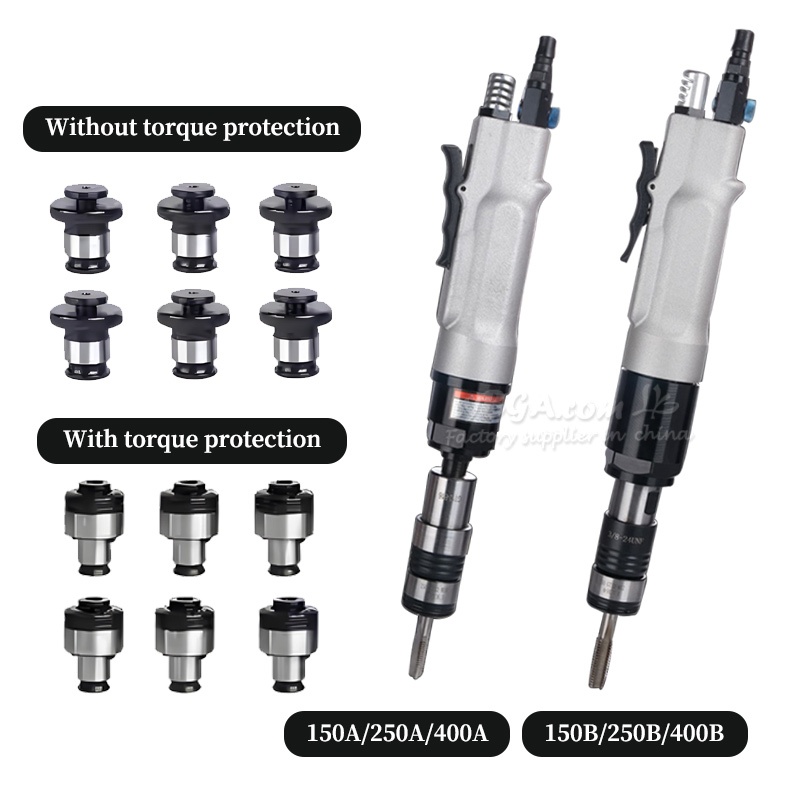

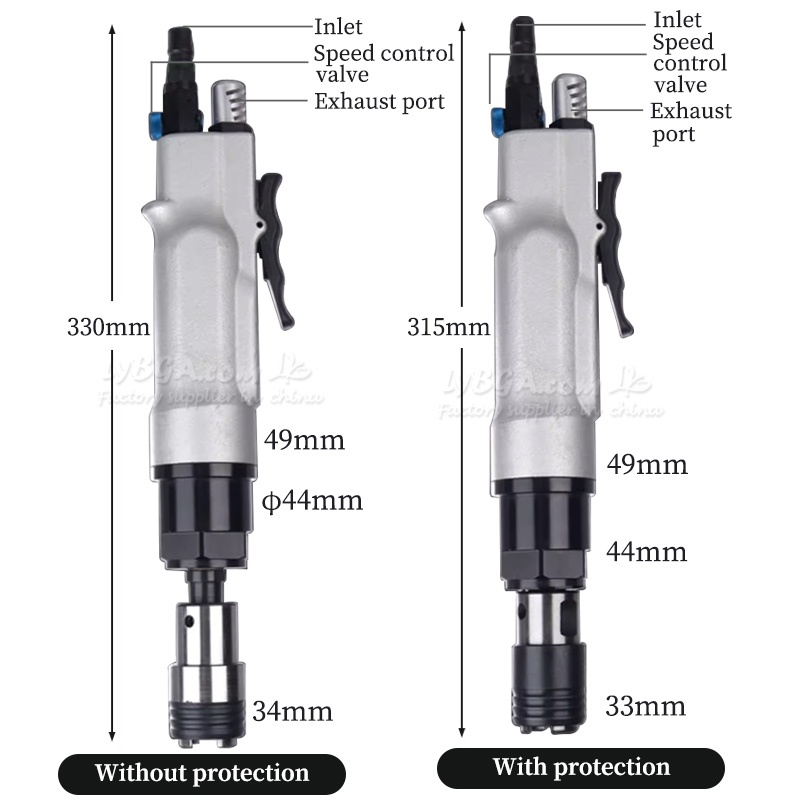

Optional Torque Overload Protection Collets
The protection chuck can cut of the power output when the resistance is greater than the tapping force, which can prevent the tapping force from being too strong, thus avoiding the waste of workpiece.

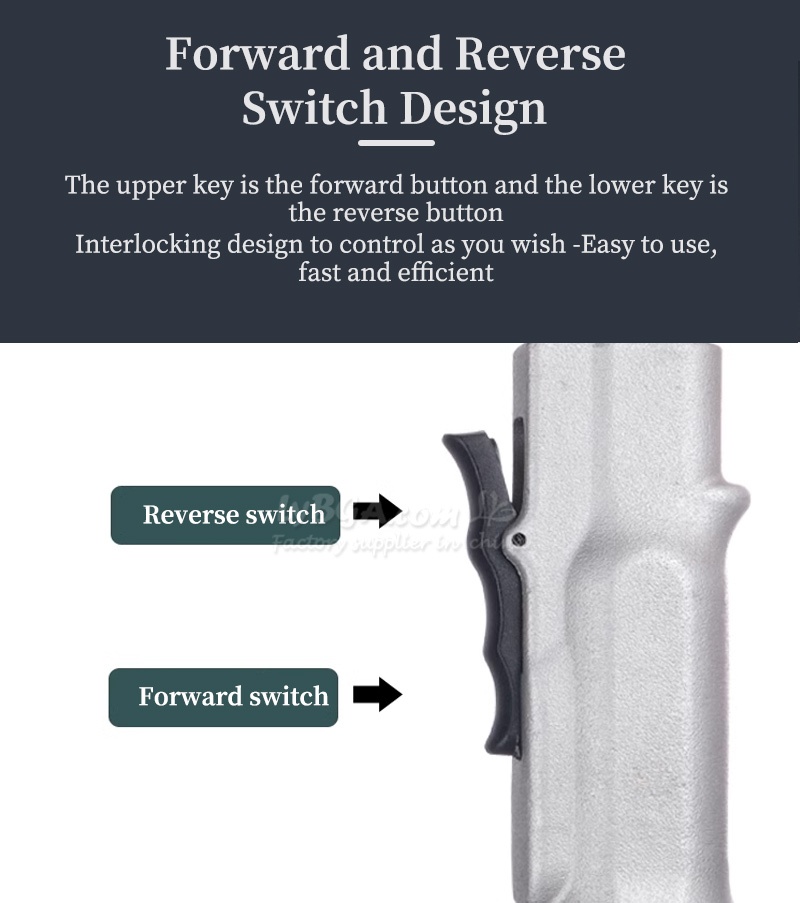

Forward and Reverse Switch Design
The upper key is the forward button and the lower key is the reverse button Interlocking design to control as you wish Easy to use, fast and efficient

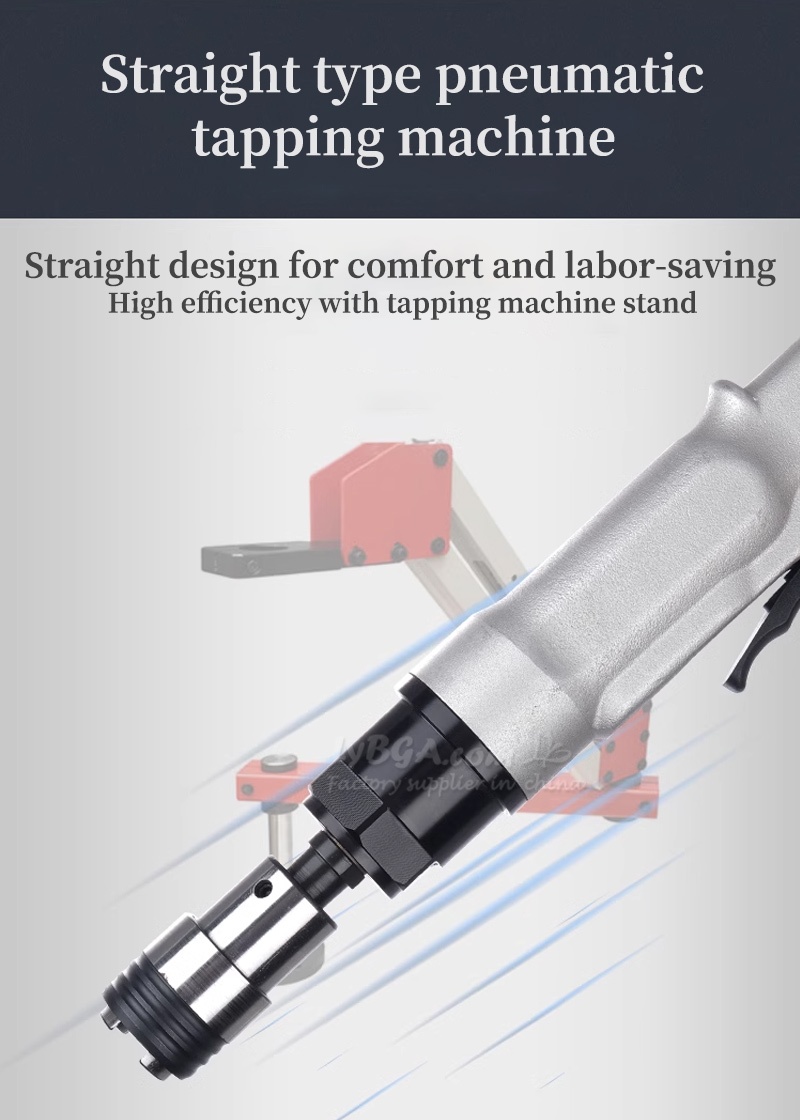

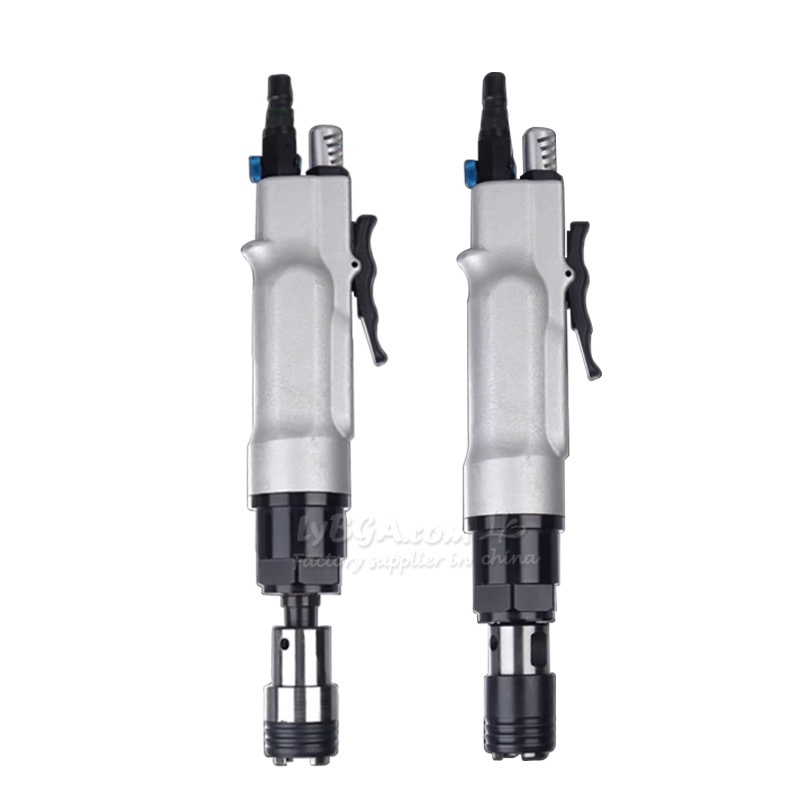

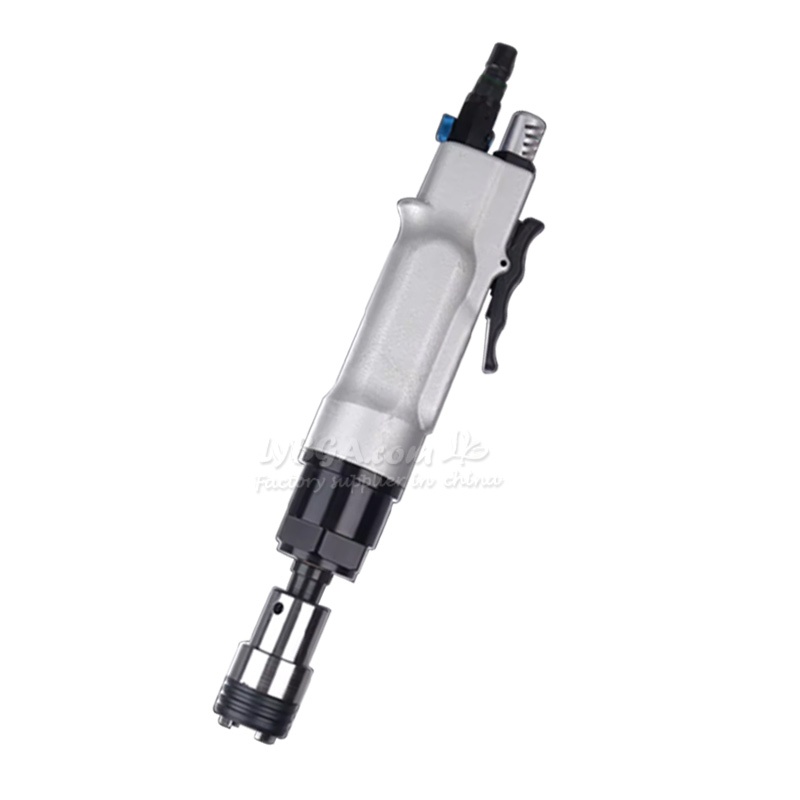

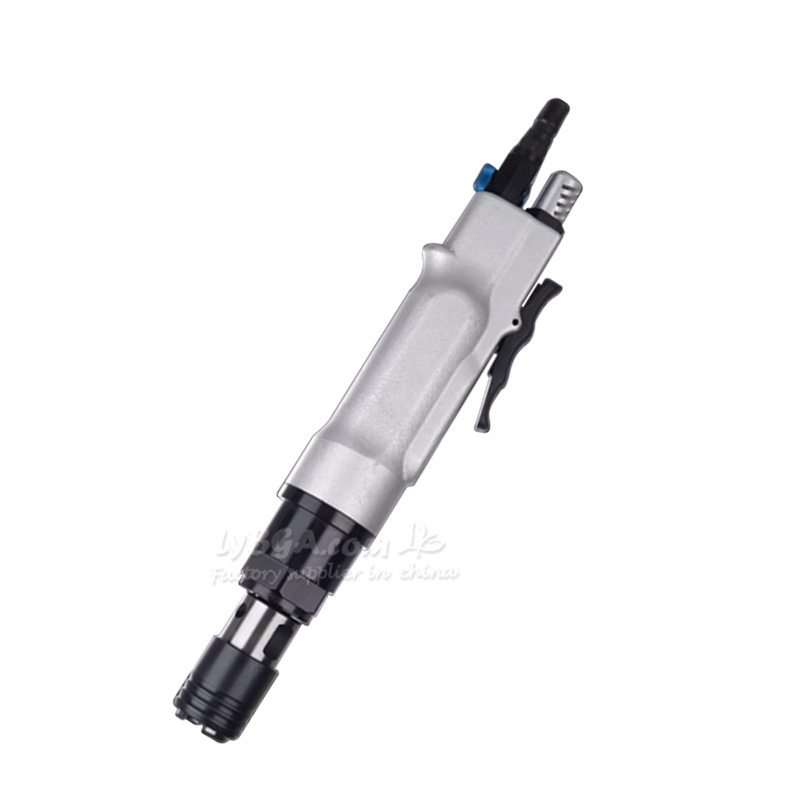

Straight type pneumatic tapping machine
Straight design for comfort and labor-saving

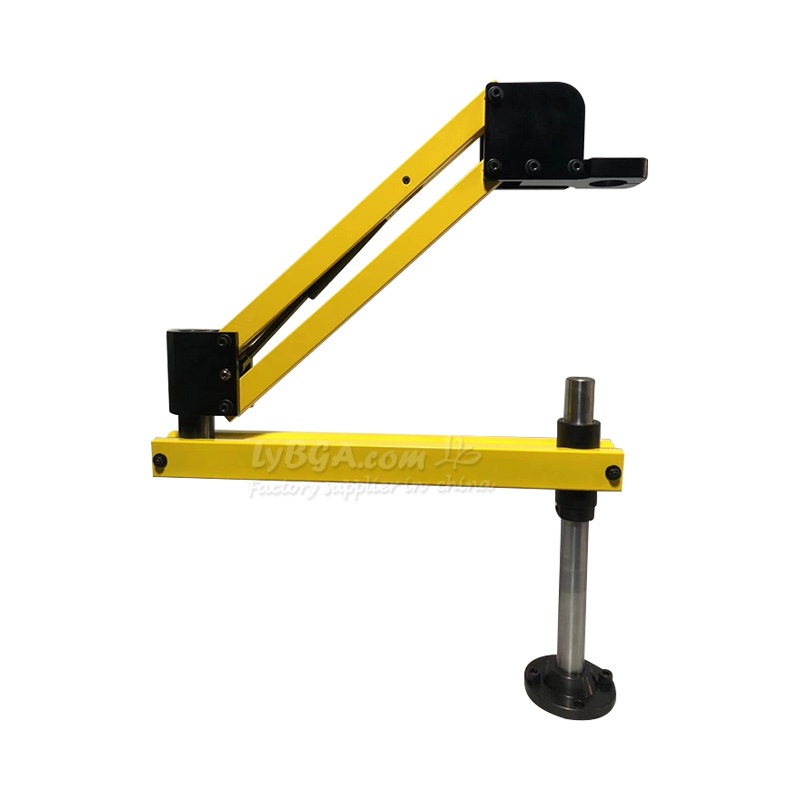

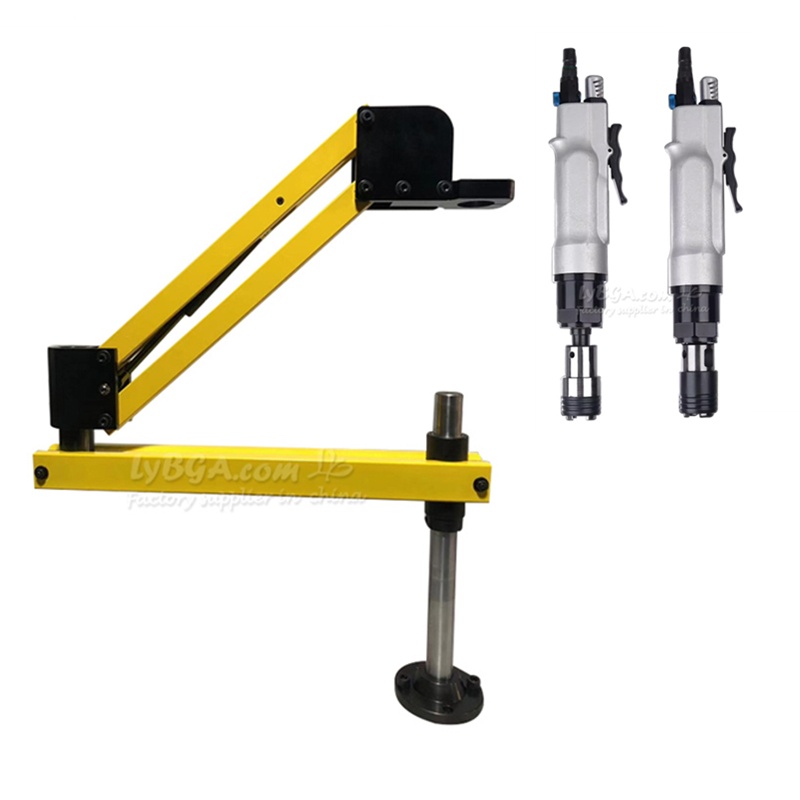

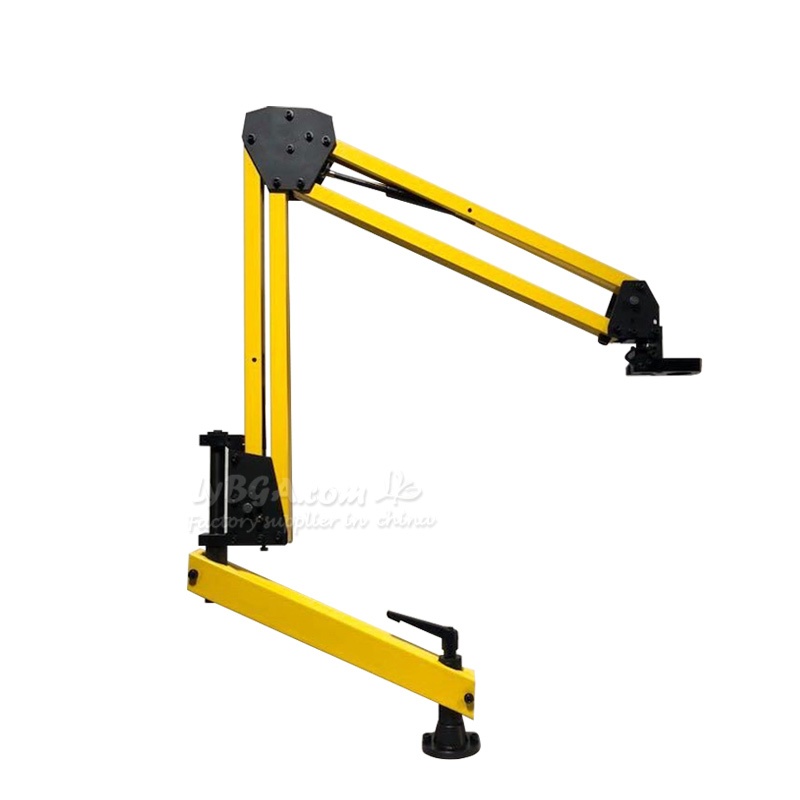

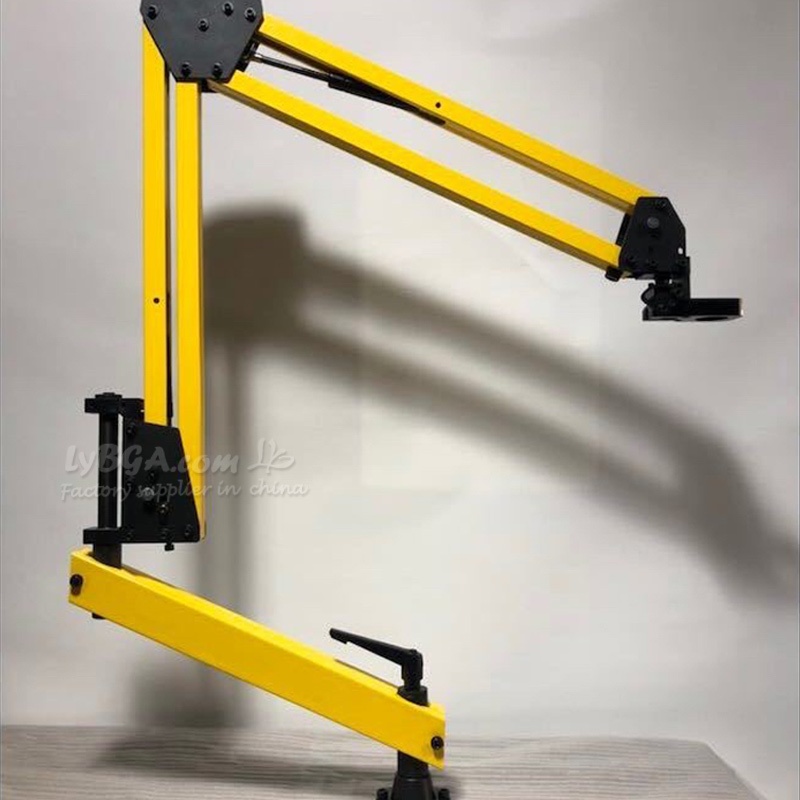

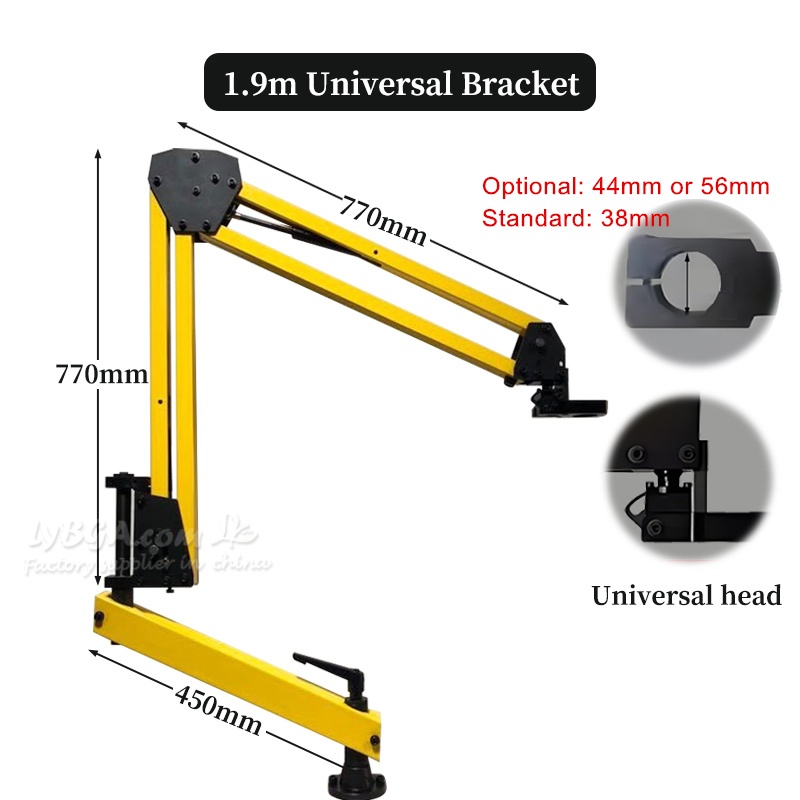

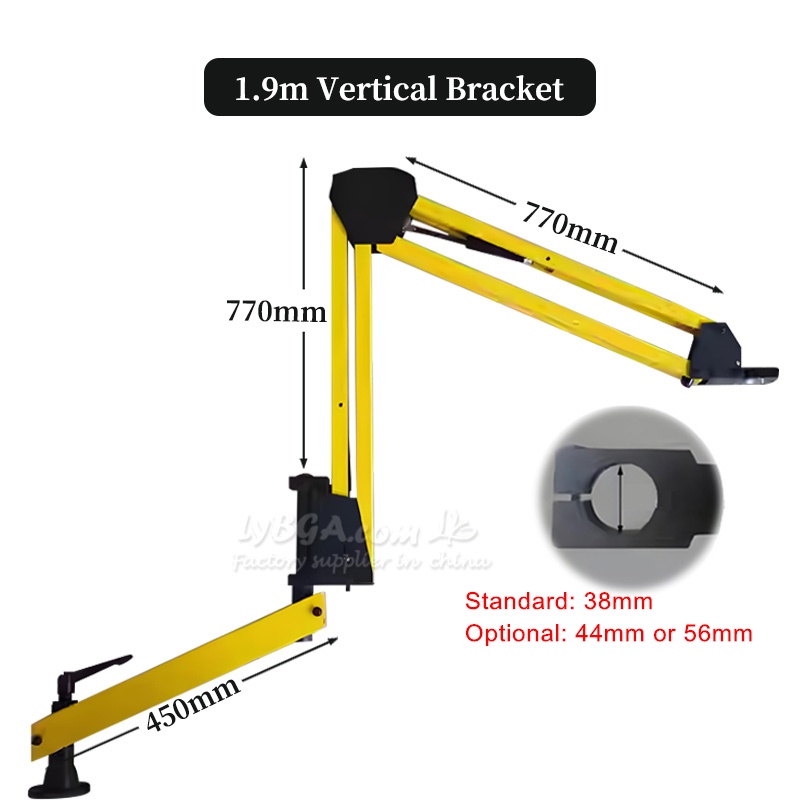

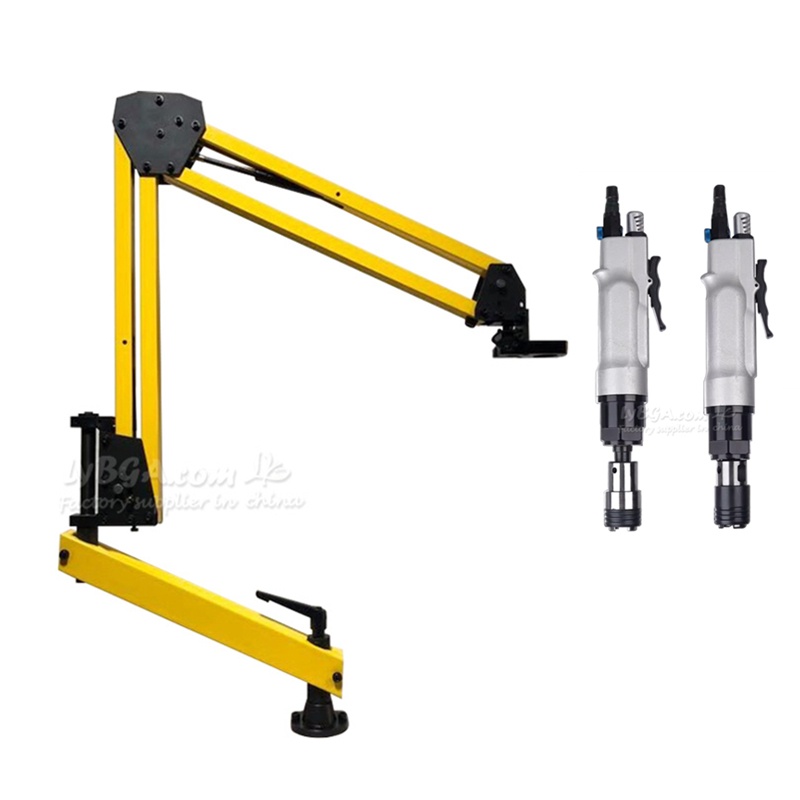

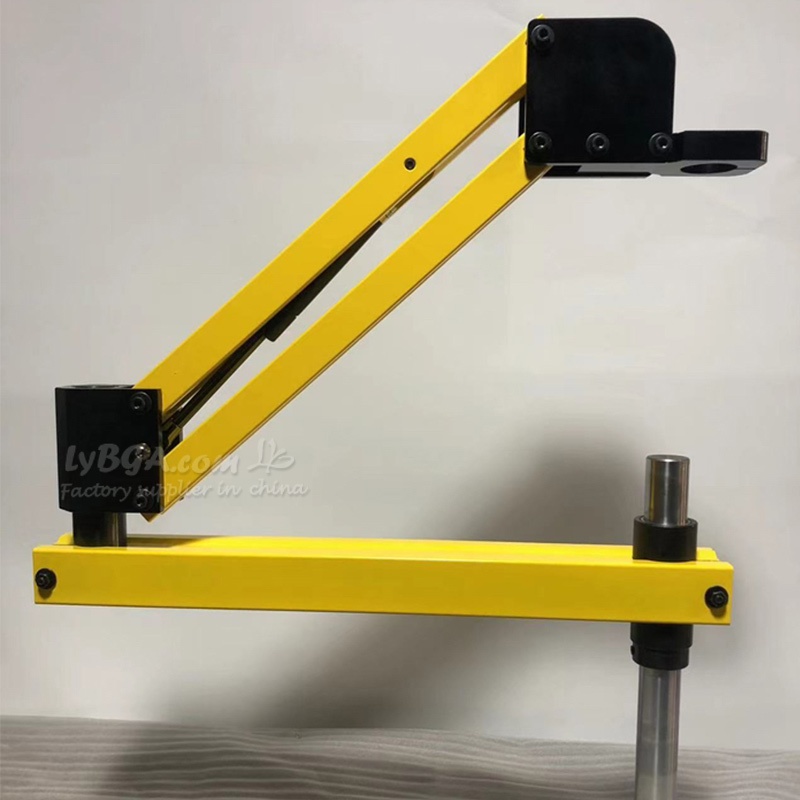

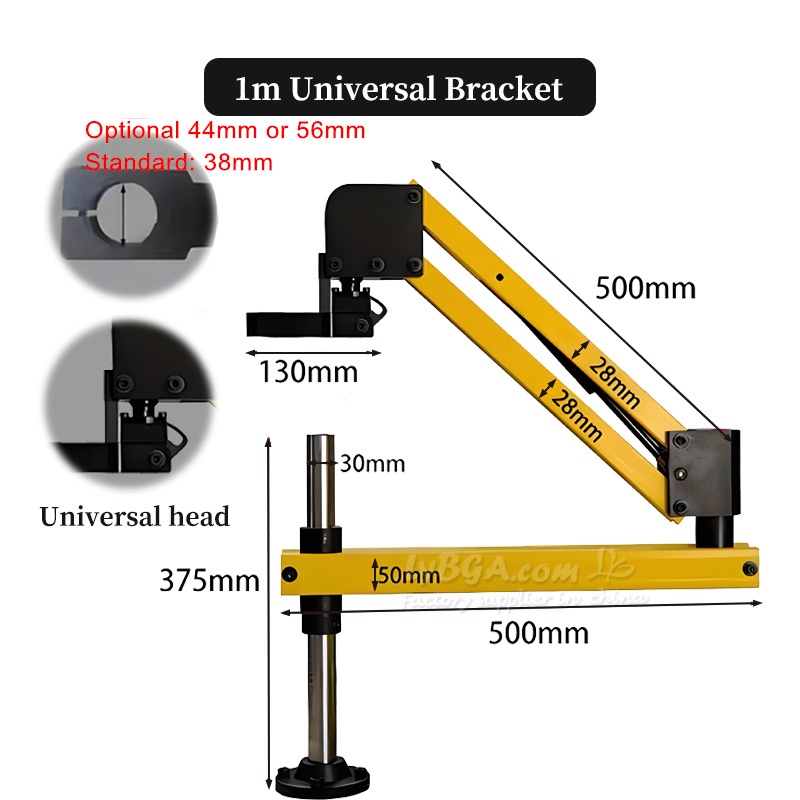

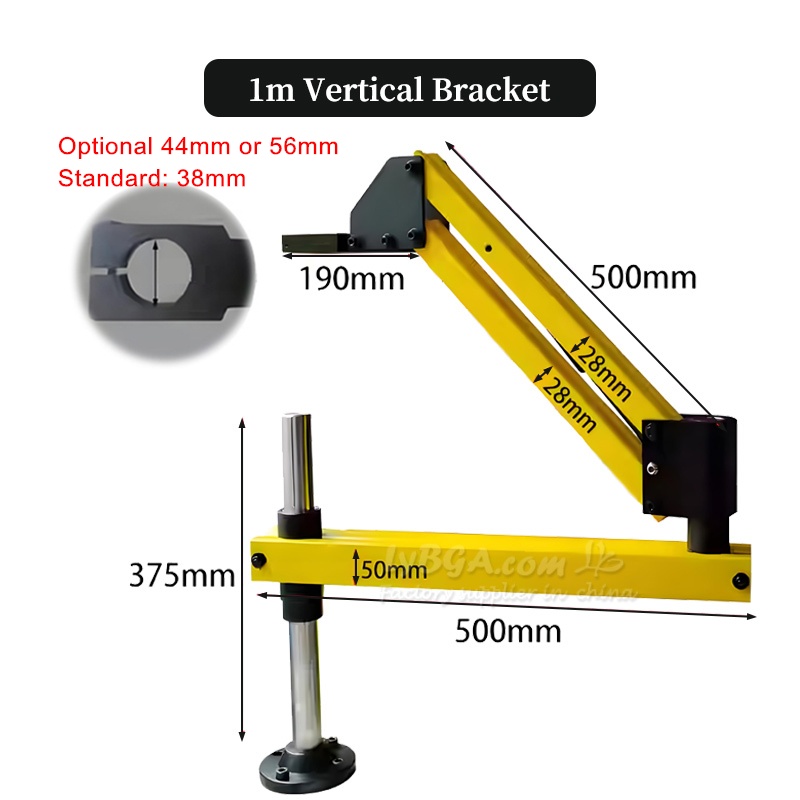

High efficiency with tapping machine stand

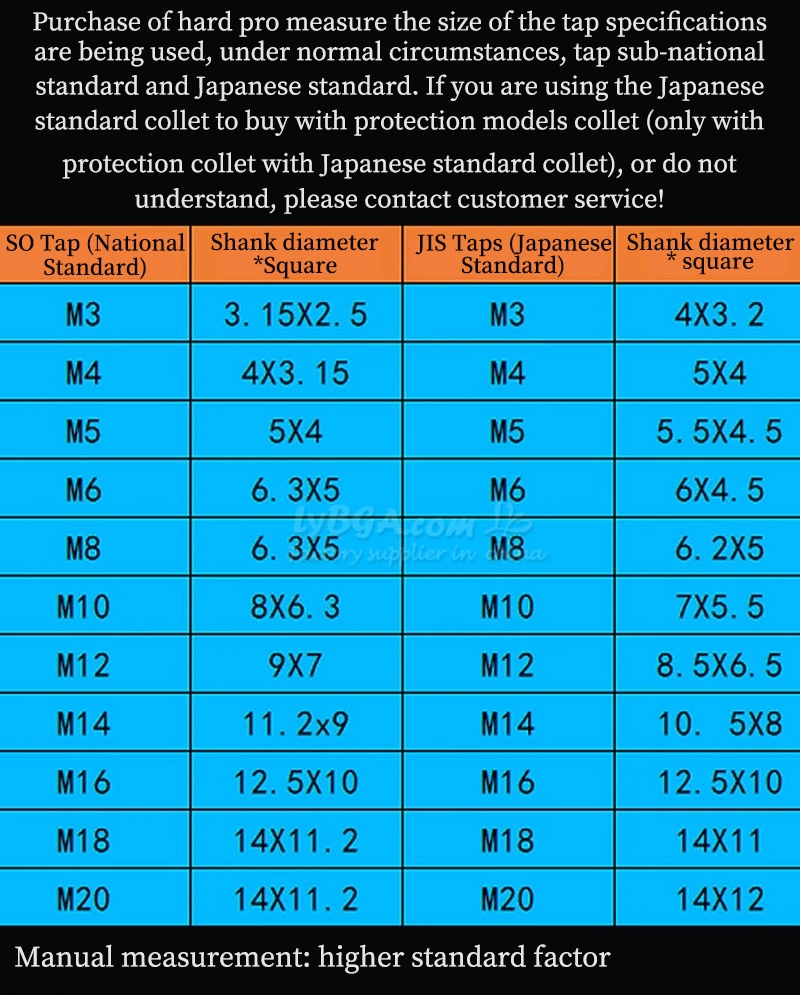

Purchase of hard pro measure the size of the tap specifications are being used, under normal circumstances, tap sub-national standard and Japanese standard. If you are using the Japanese standard collet to buy with protection models collet (only with protection collet with Japanese standard collet), or do not understand, please contact customer service!
|
SO Tap (National Standard) |
Shank diameter *Square |
JIS Taps (Japanese Standard) |
Shank diameter square |
|
M3 |
3.15*2.5 |
M3 |
4*3.2 |
|
M4 |
4*3.15 |
M4 |
5*4 |
|
M5 |
5*4 |
M5 |
5.5*4.5 |
|
M6 |
6.3*5 |
M6 |
6*4.5 |
|
M8 |
6.3*5 |
M8 |
6.2*5 |
|
M10 |
8*6.3 |
M10 |
7*5.5 |
|
M12 |
9*7 |
M12 |
8.5*6.5 |
|
M14 |
11.2*9 |
M14 |
10.5*8 |
|
M16 |
12.5*10 |
M16 |
12.5*10 |
|
M18 |
14*11.2 |
M18 |
14*11 |
|
M20 |
14*11.2 |
M20 |
14*12 |

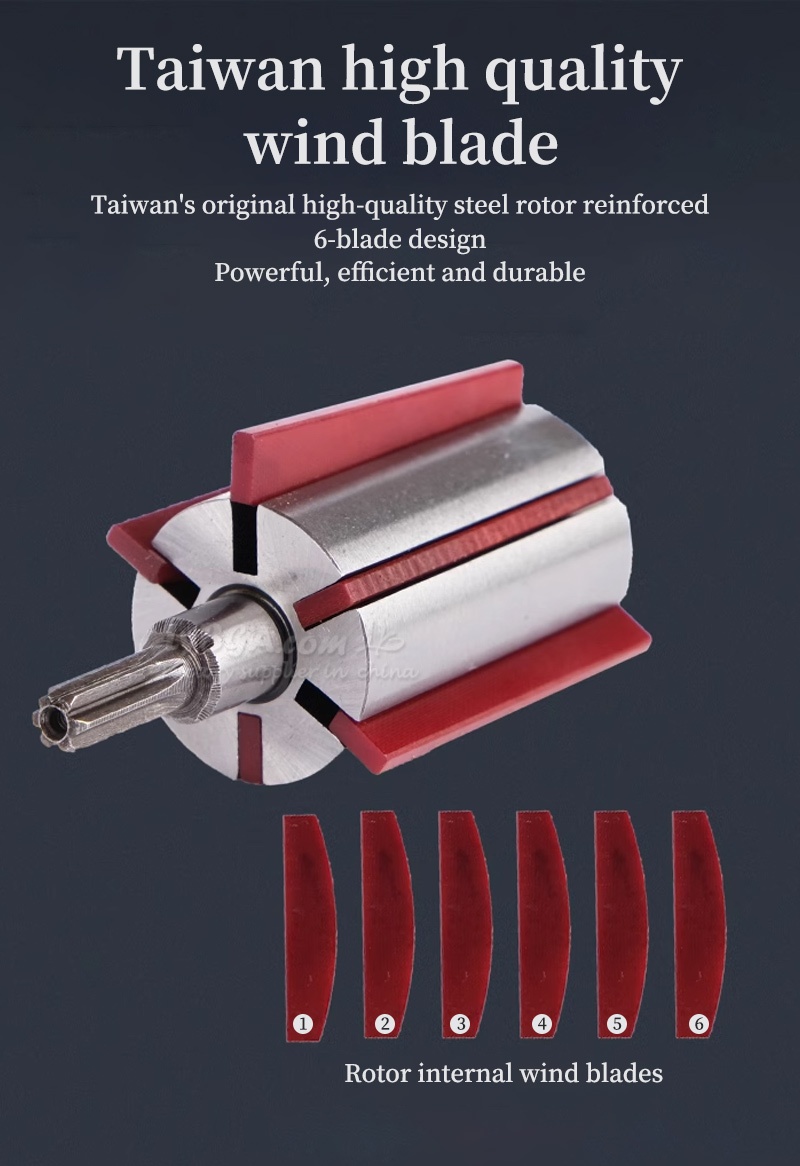

Taiwan high quality wind blade
Taiwan’s original high quality steel rotor reinforced 6 blade design Powerful, efficient and durable

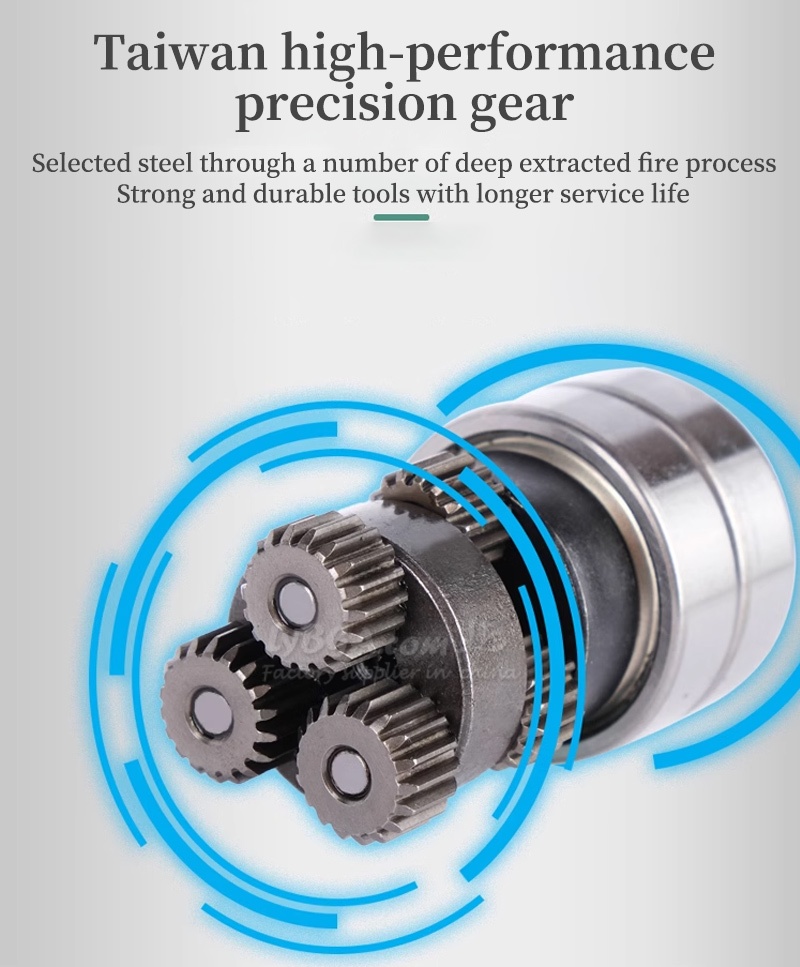

Taiwan high-performance precision gear
Selected steel through a number of deep extracted fire process
Strong and durable tools with longer service life

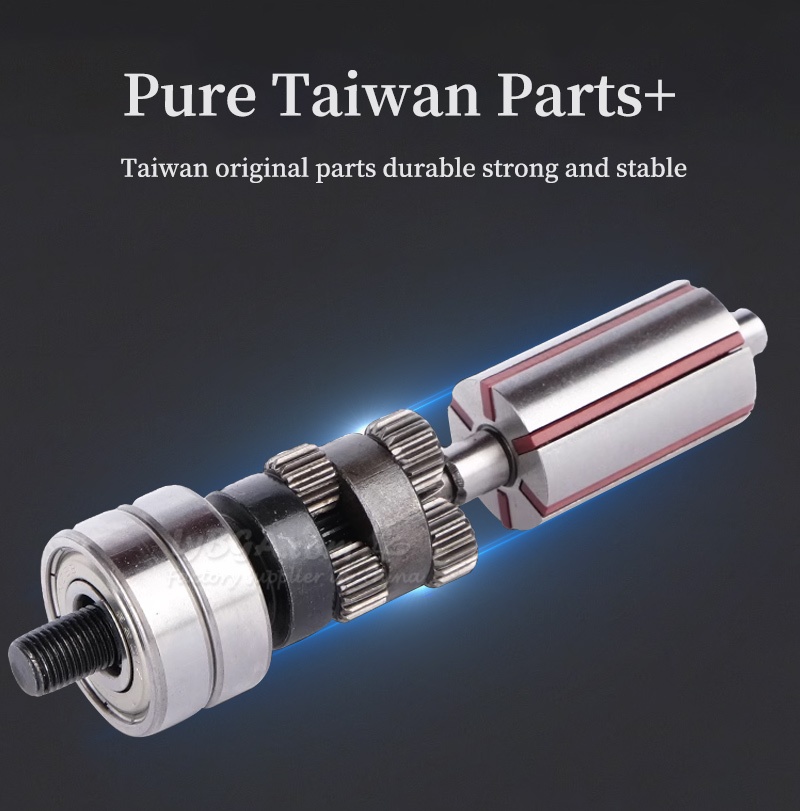

Pure Taiwan Parts+
Taiwan original parts durable strong and stable
Thanks for your order!

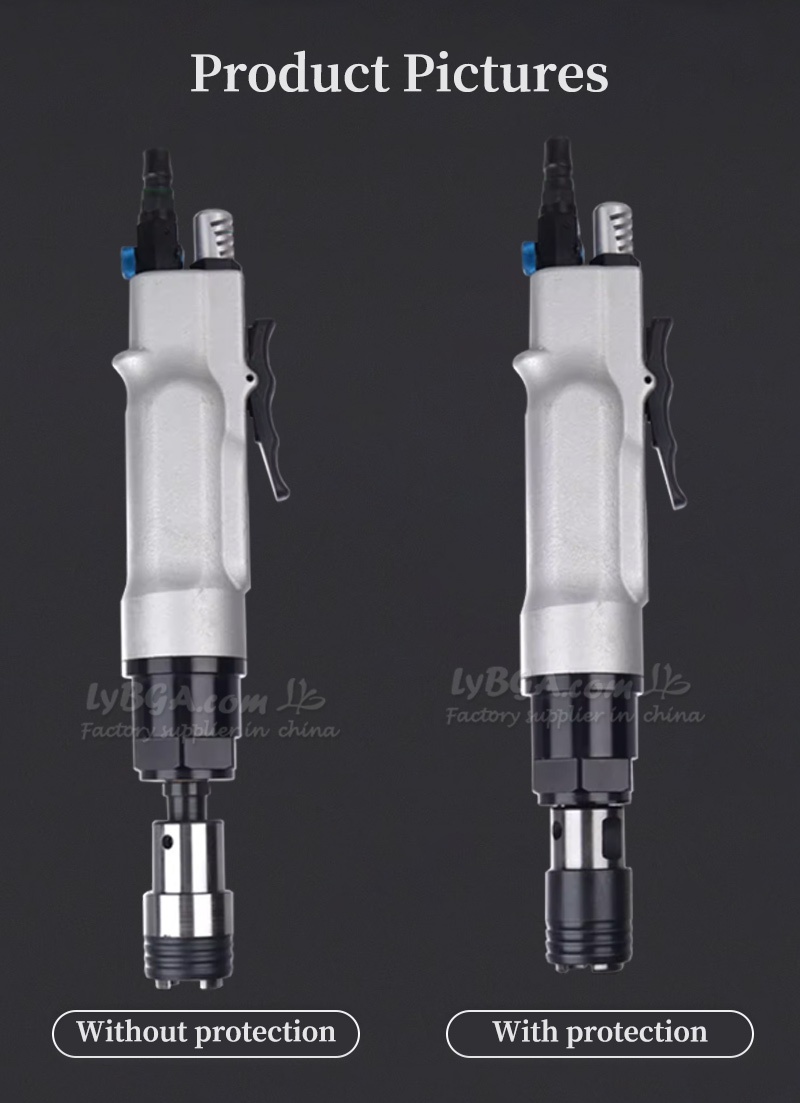

Product Pictures
