Digital Vinyl Sticker Cutting Plotter (390-610mm) with Camera Profile Die Cutting Laser and WIFI
Reviews(0)
Product Detail
Product Tags

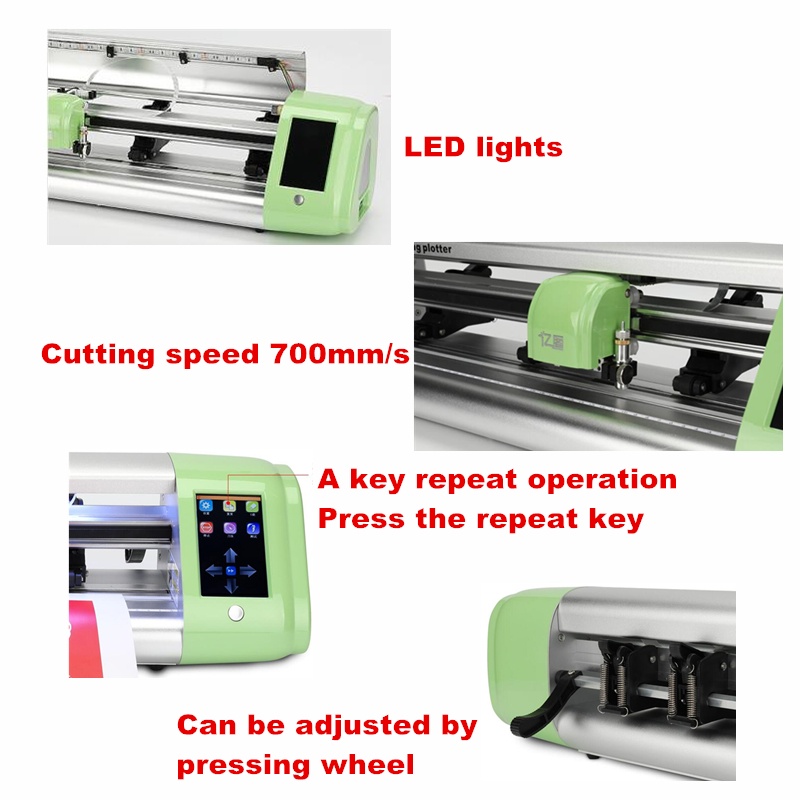

Product advantage:

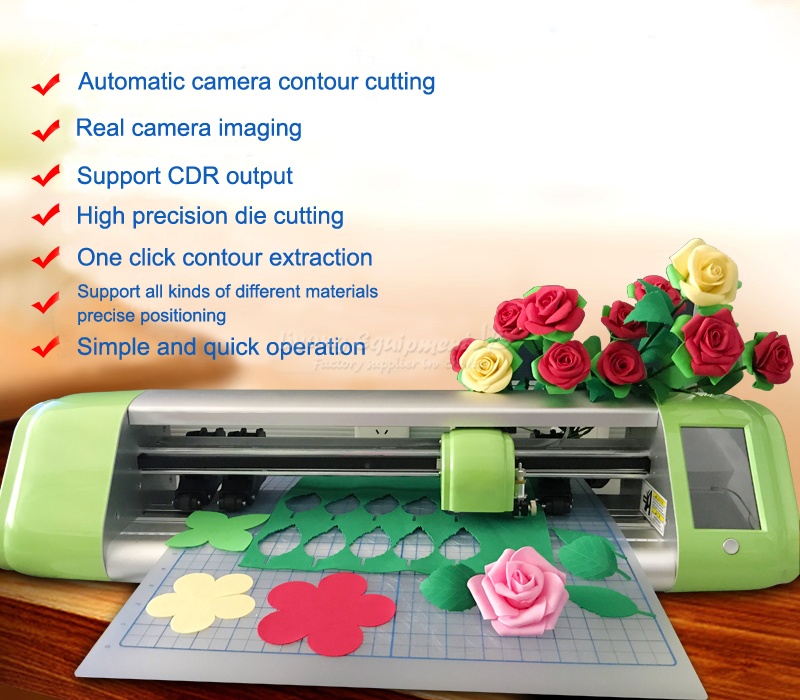

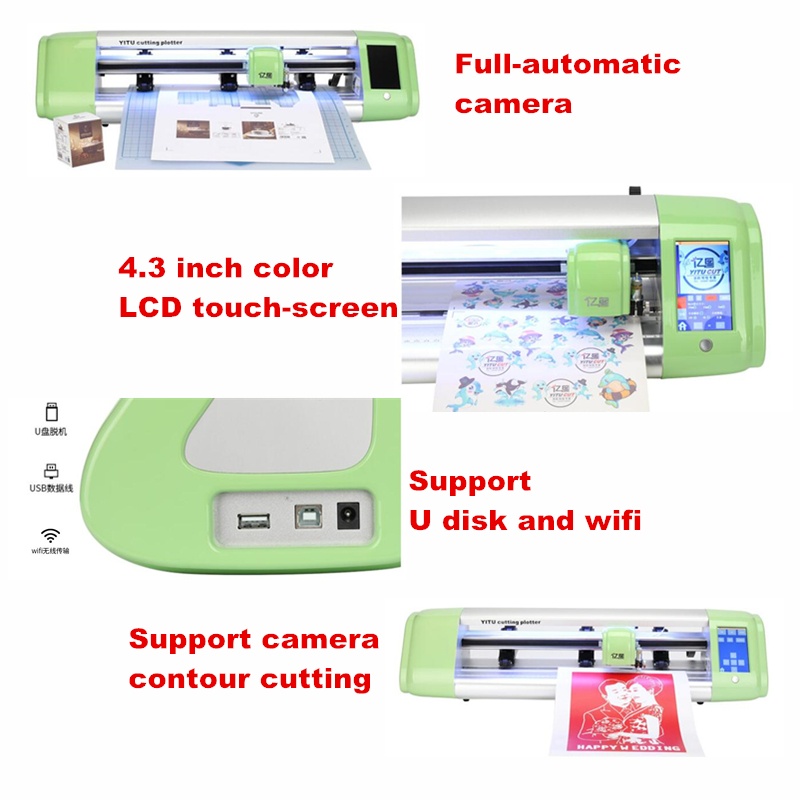

1. Full-automatic camera contour cutting, preciseness die cutting;
2. 4.3 inch high-definition color LCD touch-screen;
3. The ARM chips support remote upgrade
4. The built-in wifi, analog phone Settings interface, convenient and quick
5. Support U disk offline contour cutting, can batch tour edge operations
6. Support the phone APP
Technical parameters :
|
Model |
CA16 |
CA24 |
|
MAX Paper width |
500mm |
720mm |
|
MAX Cutting width |
390mm |
610mm |
|
MAX Cutting linear speed |
750mm/s |
|
|
MAX Cutting Curves speed |
600mm/s |
|
|
Knife pressure |
0-800g |
|
|
Cutting precision |
+/-0.01mm |
|
|
Repetition precision |
0.082mm |
|
|
Interface |
USB Flash / WIFI / USB cable |
|
|
Power waste |
＜100w |
|
|
Operating environment |
temperature：+5-+35，Relative temperature 30%-70% |
|
|

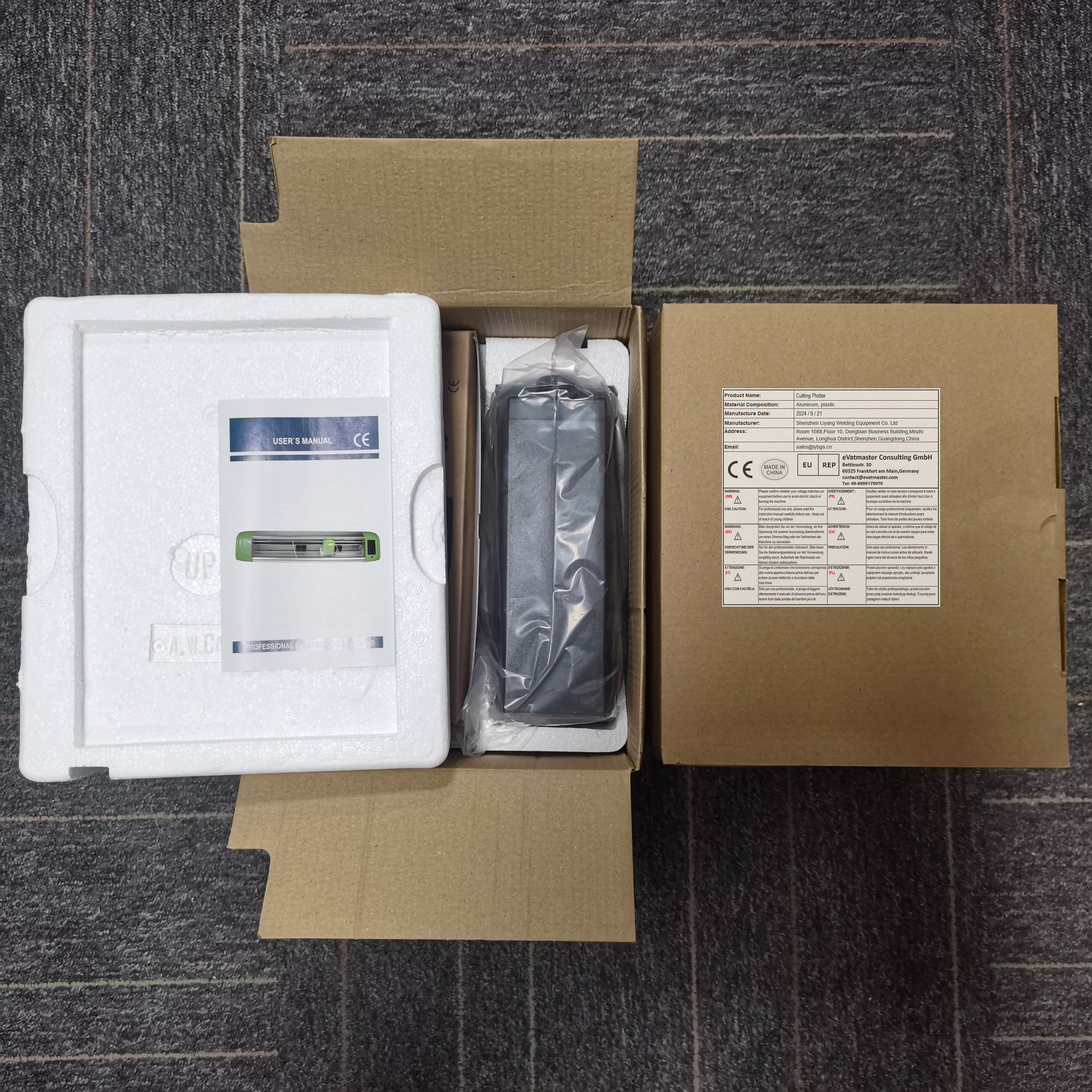

Packaging size |
765×307×267mm |
1000×375×370mm |
|
Weight |
9/7KG |
12.6/9.2KG |
|

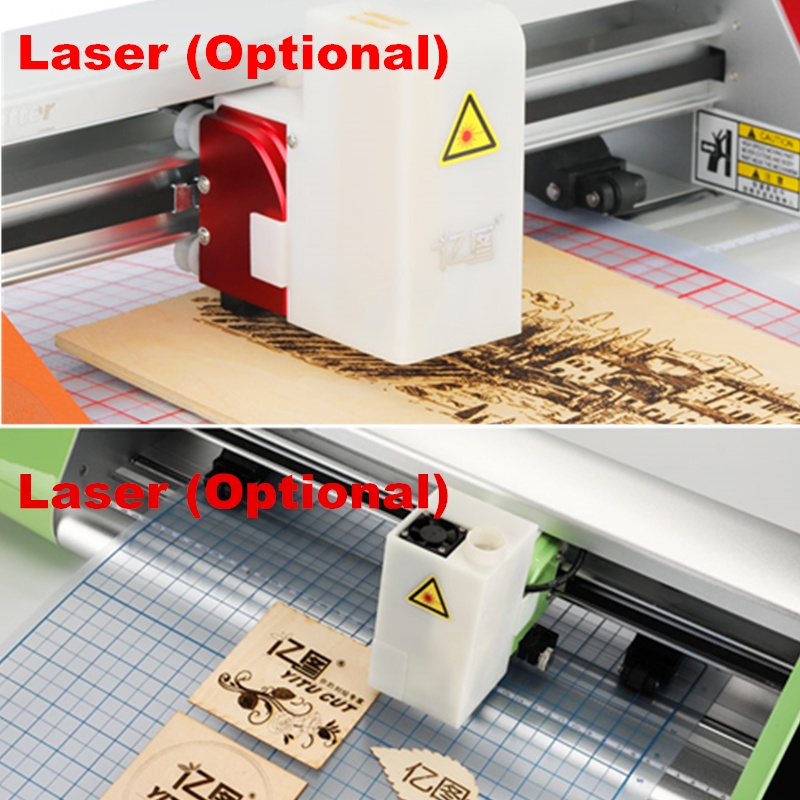

Add Laser (2.5W blue light) |
Optional |
Optional |
Thanks for your order!

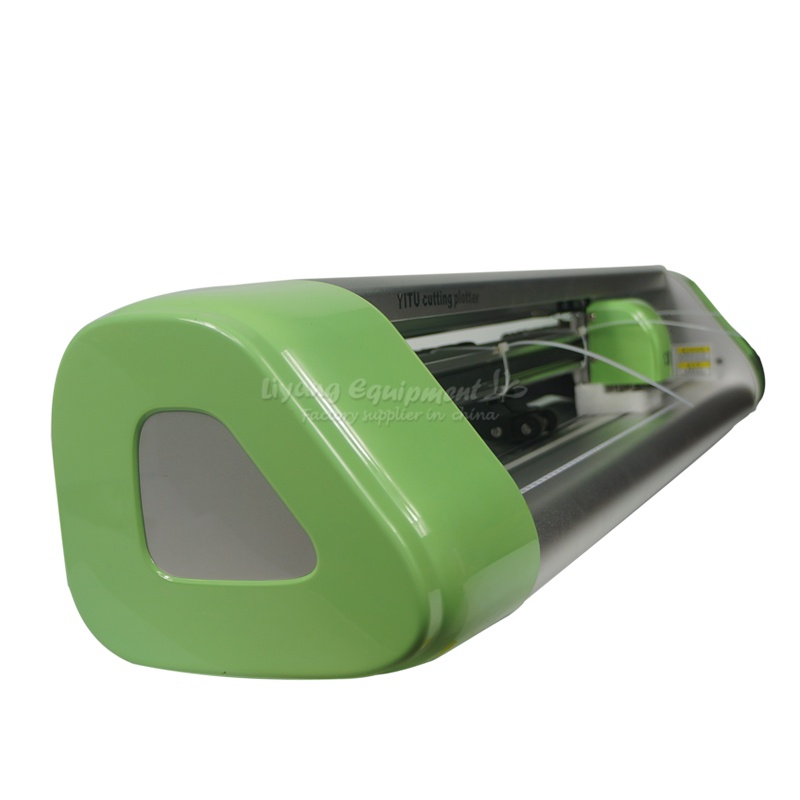

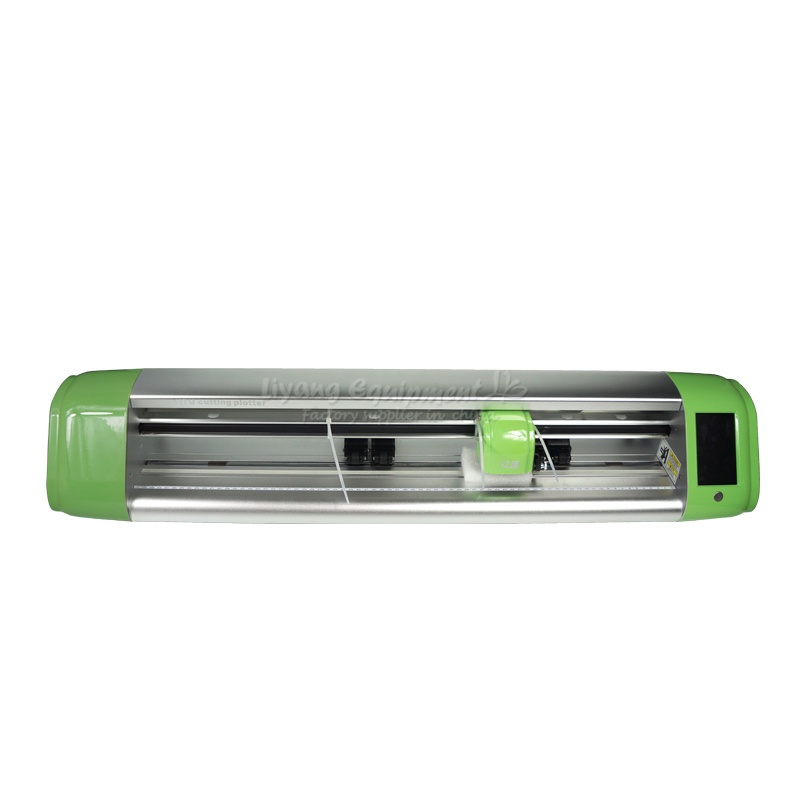

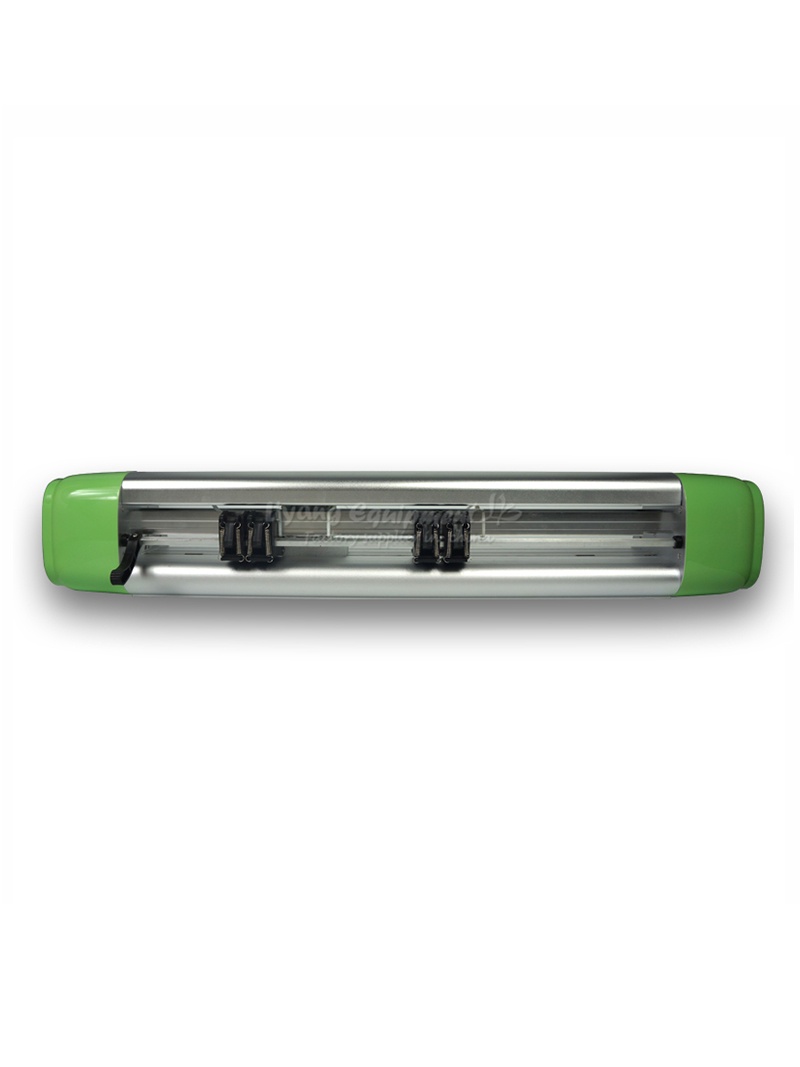

Product Pictures
