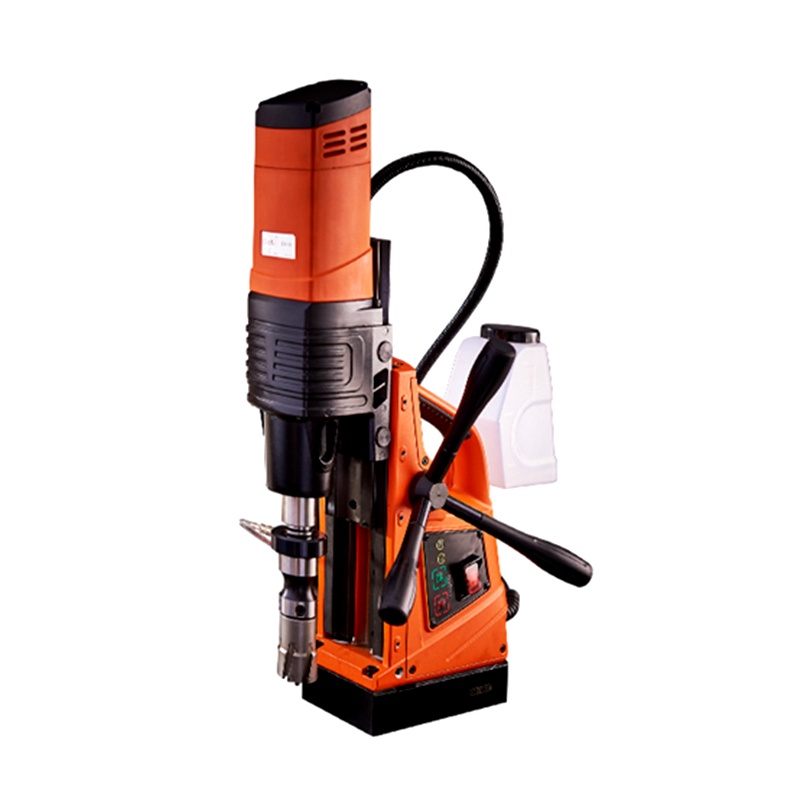

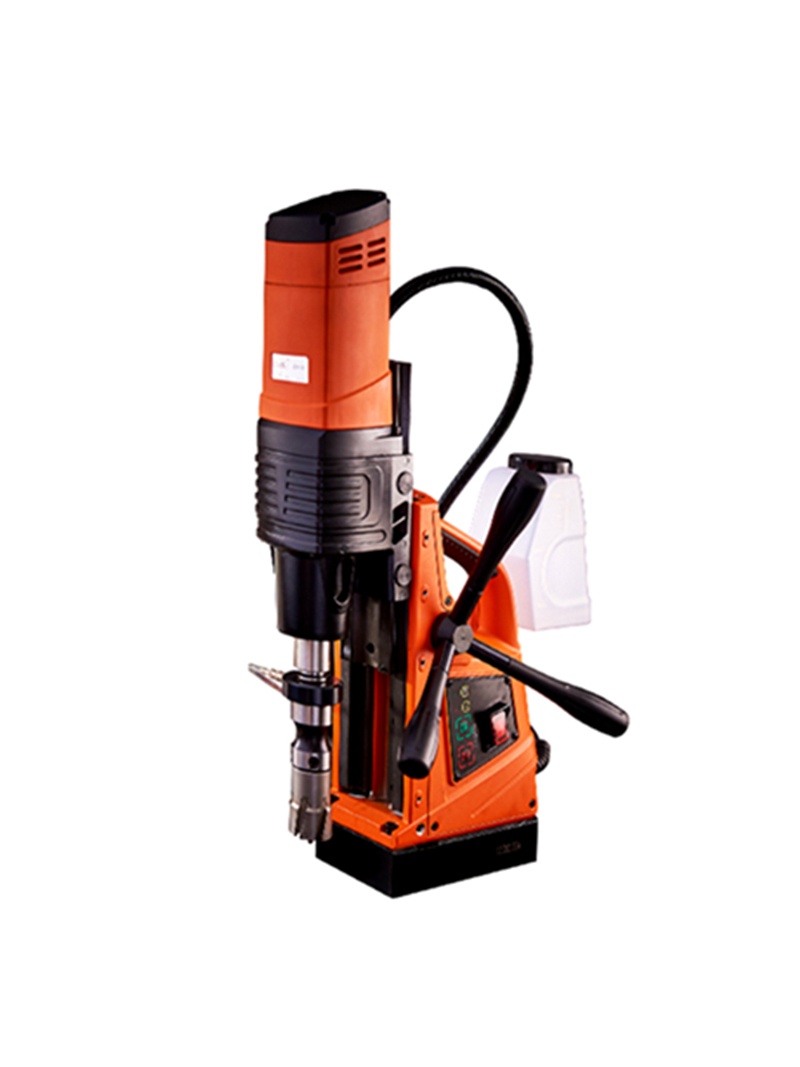

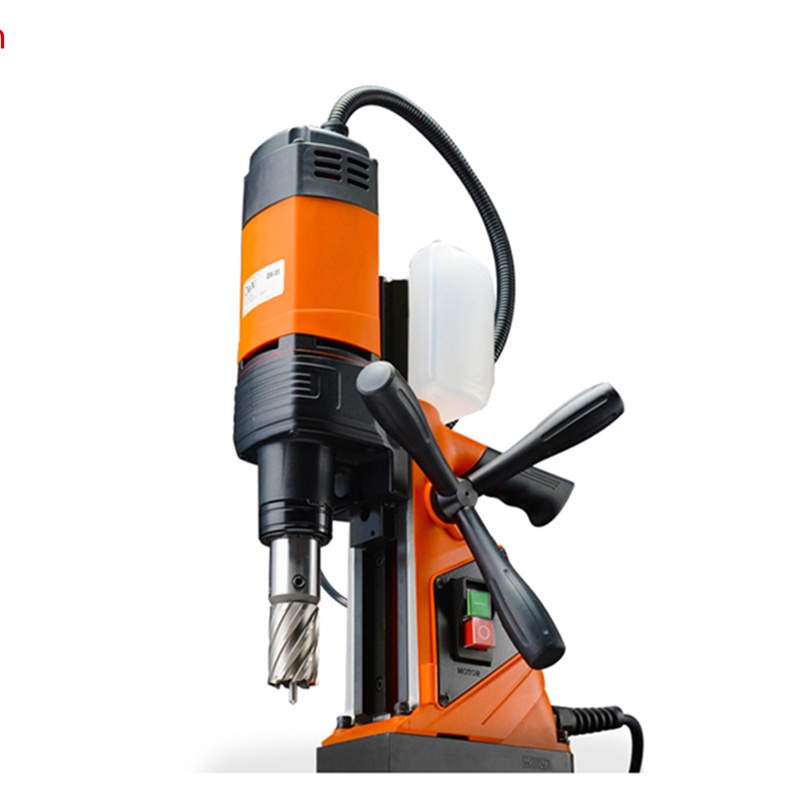

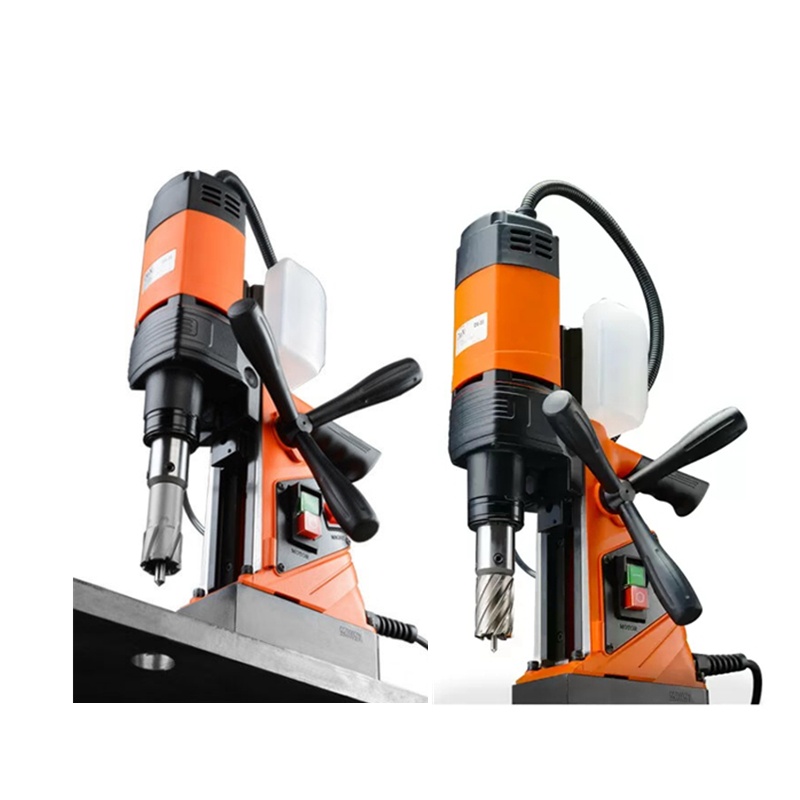

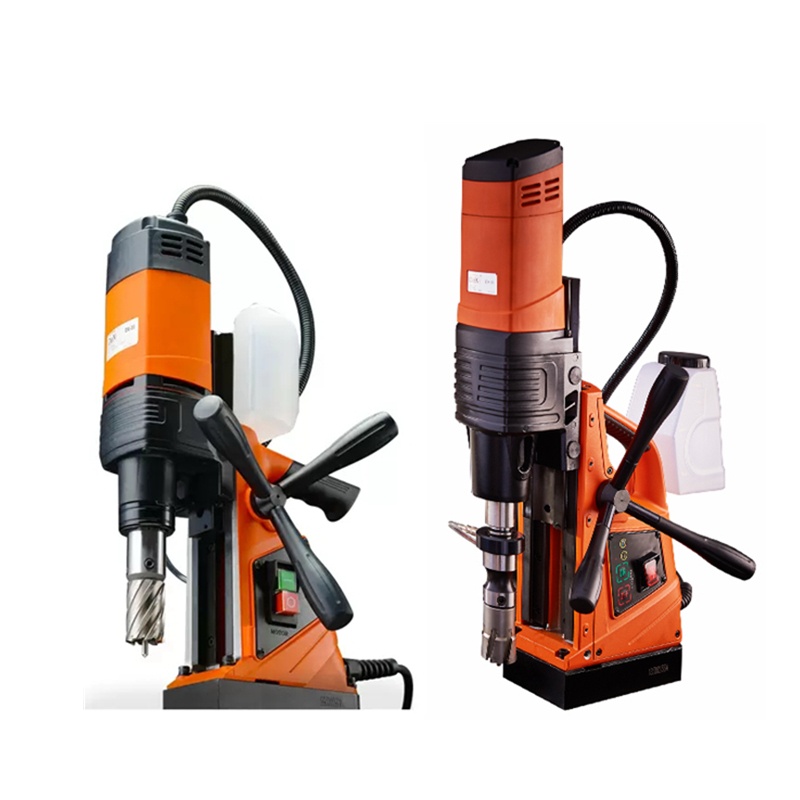

DX-35 and DX-60 Magnetic Core Drill Machines with Annular Cutters, 1100W and 1500W Magnetic Drill Presses, Electric Bench Drilling Rigs for Engineering Steel Structure

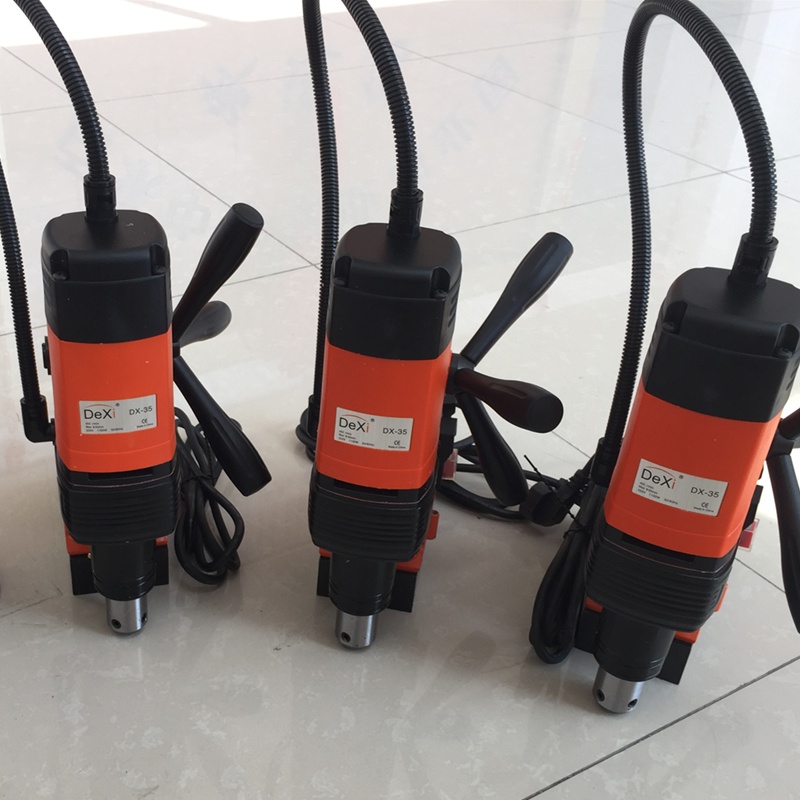

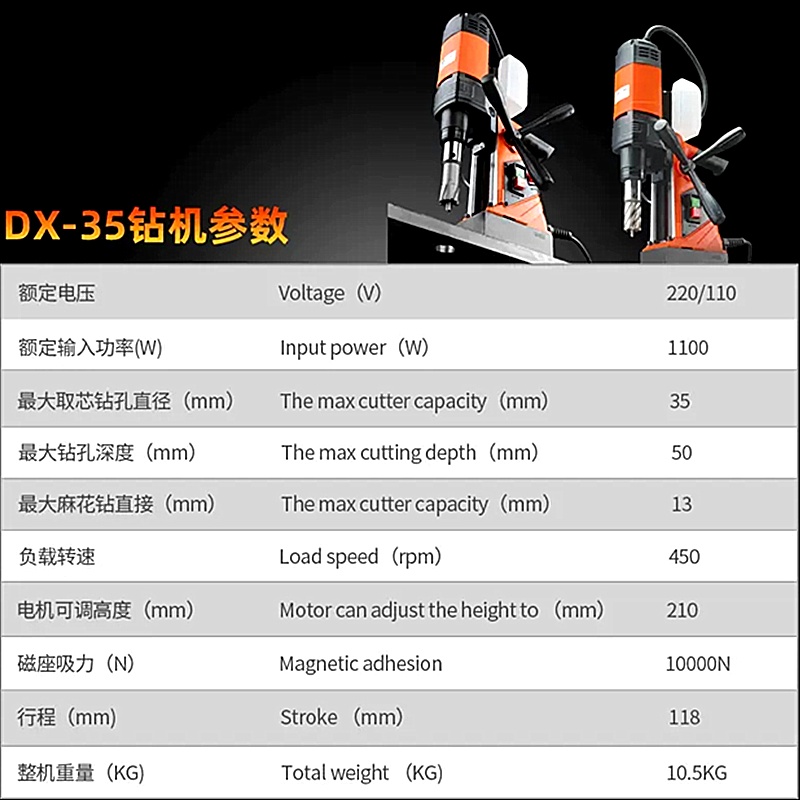

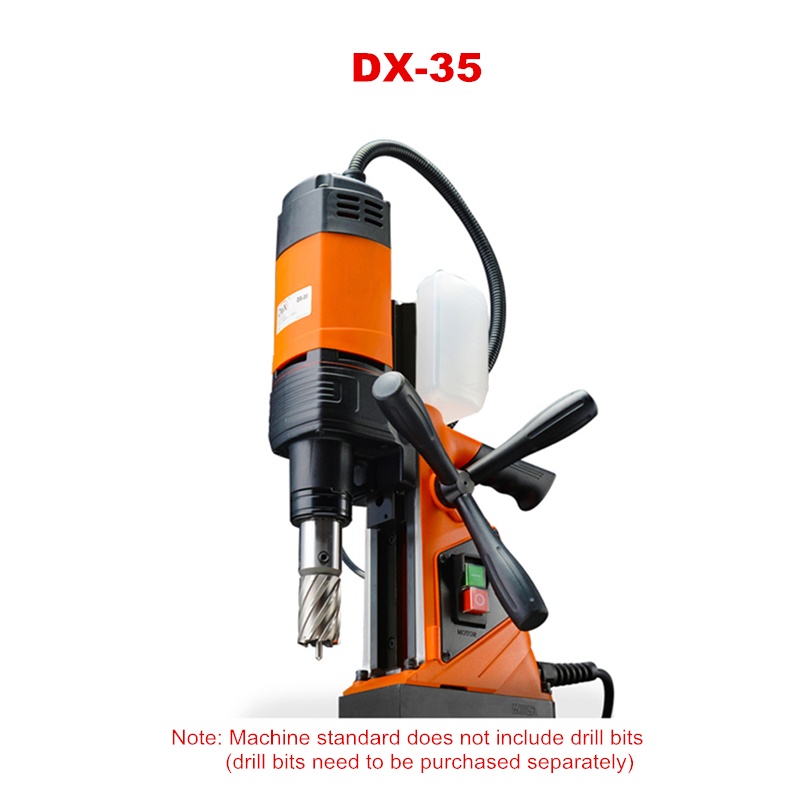

DX-35
Voltage (V) 220/110
Input power (w) 1100
The max cutter capacity (mm) 35
The max cutting depth (mm) 50
The max cutter capacity (mm) 13
Load speed (rpm) 450
Motor can adjust the heightto(mm) 210
Magneticadhesion 1000ON
Stroke (mm) 118
Total weight (KG) 10.5KG

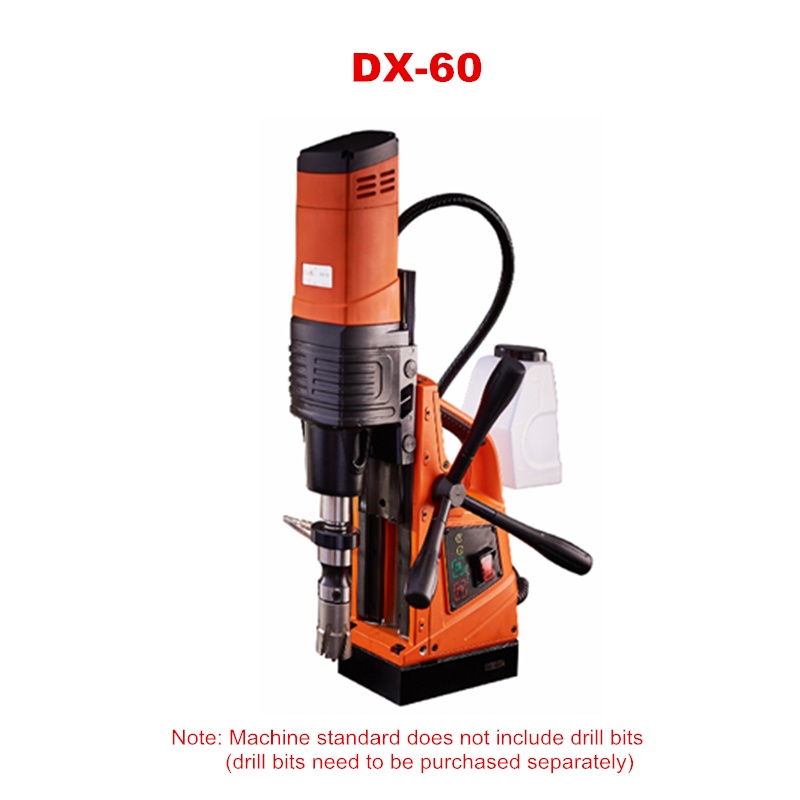

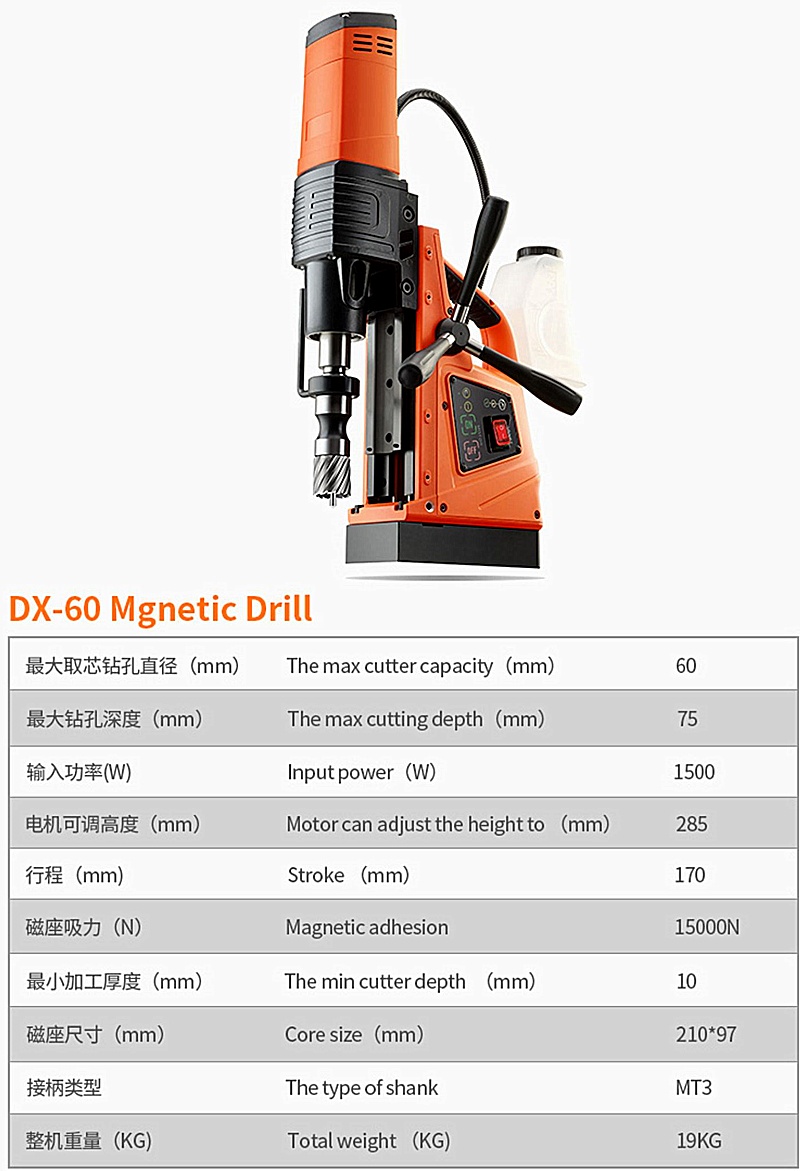

DX-60 Mgnetic Drill
The max cutter capacity (mm) 60
The max cutting depth (mm) 75
Input power (W) 1500
Motor can adjust the height to (mm) 285
Stroke (mm) 170

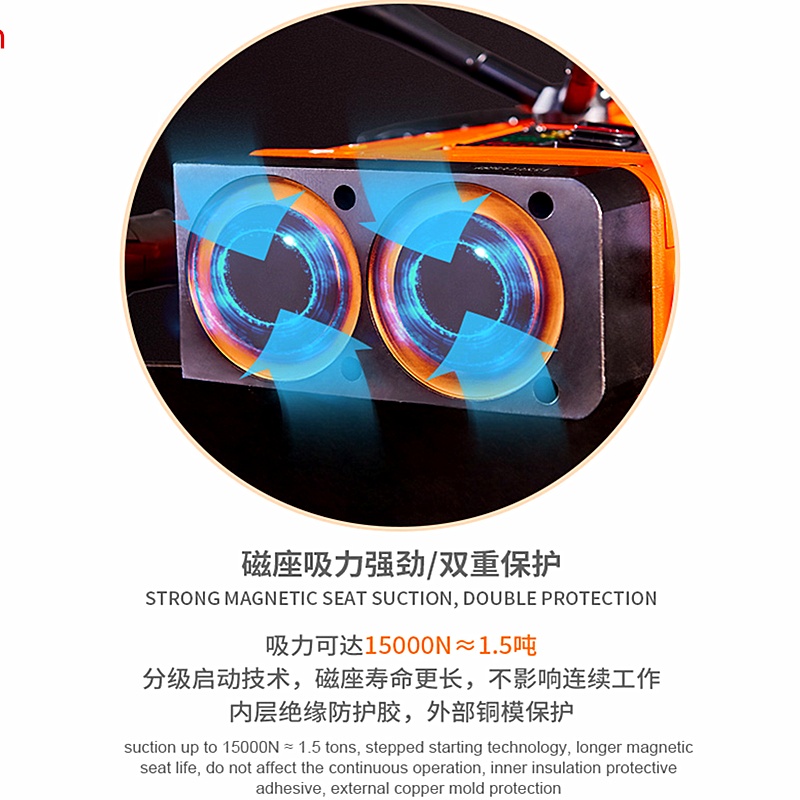

Magnetic adhesion 15000N
The min cutter depth (mm) 10
Core size (mm) 210*97
The type of shank MT3
Total weight(KG) 19KG
