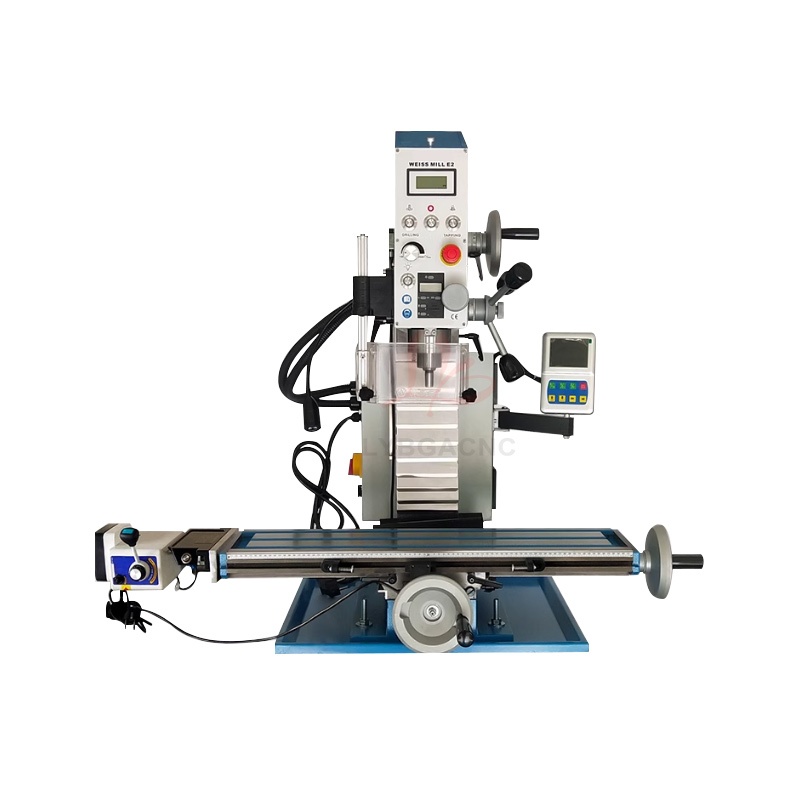

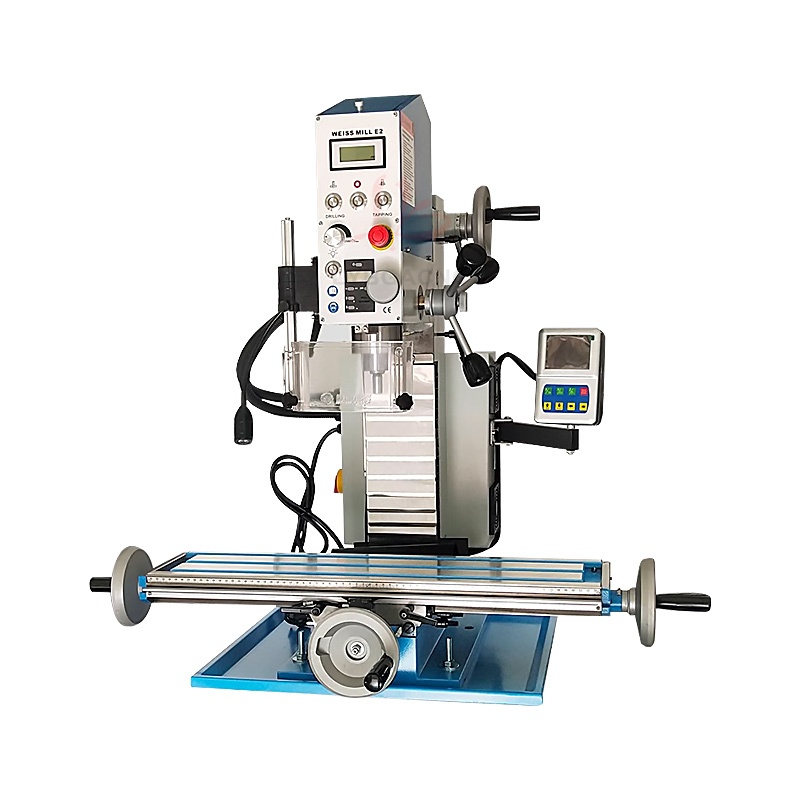

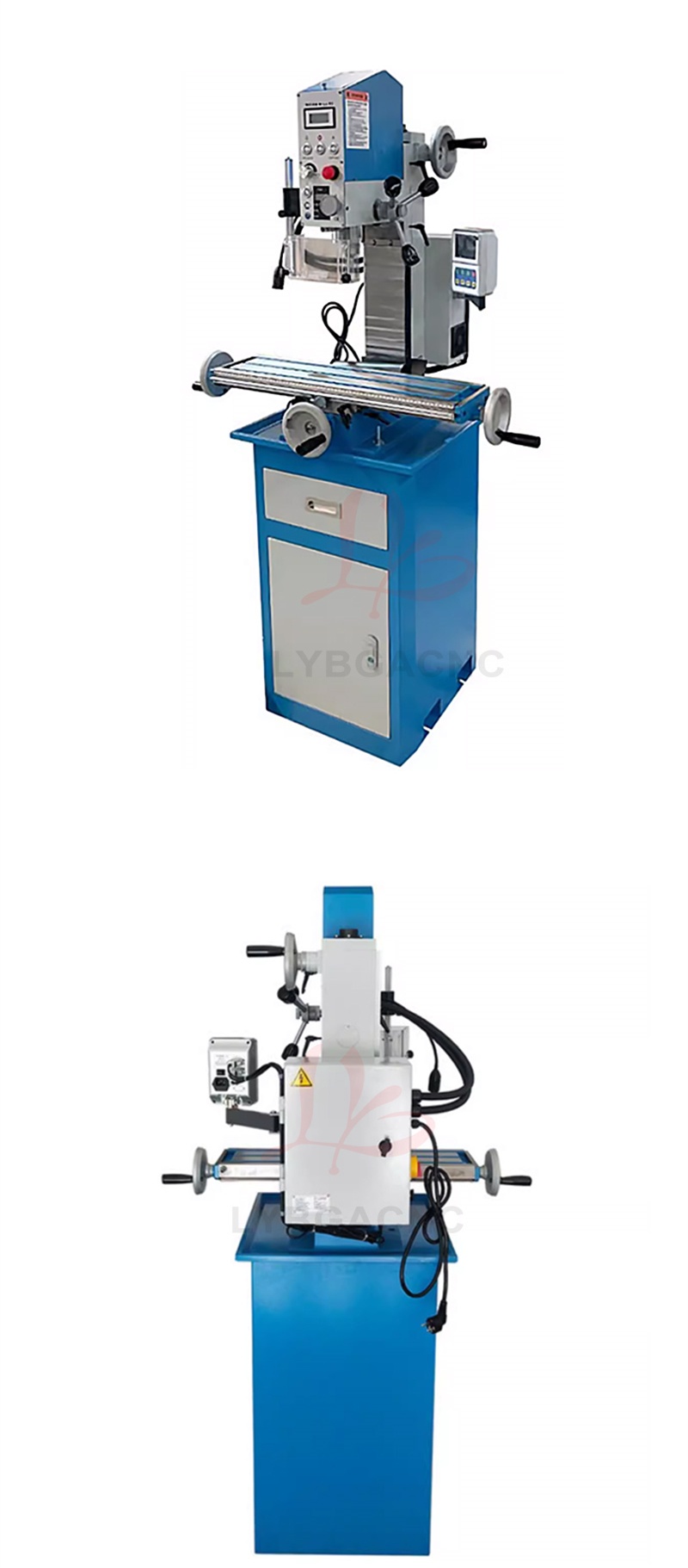

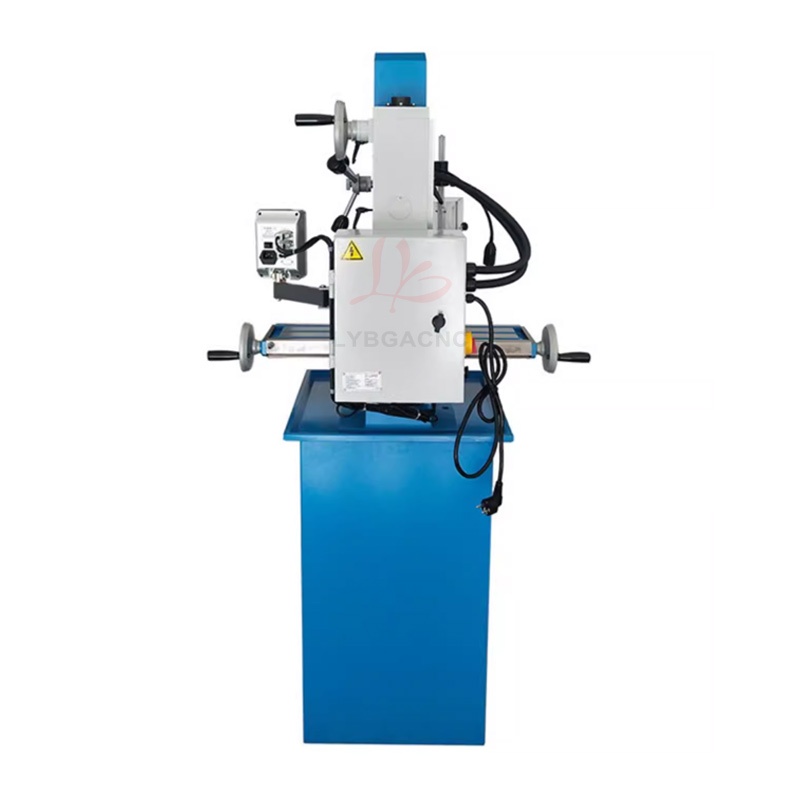

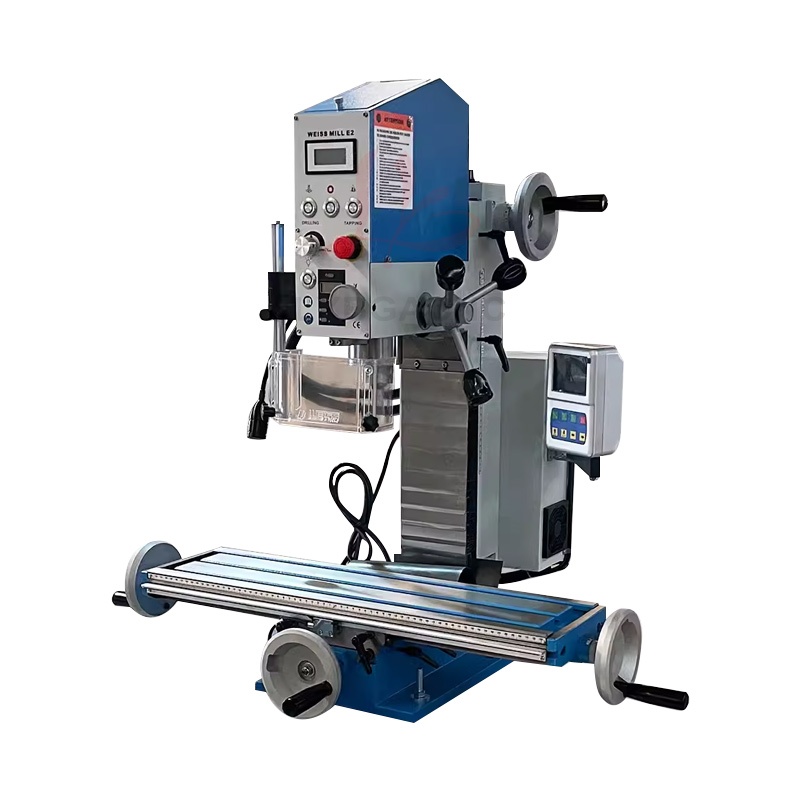

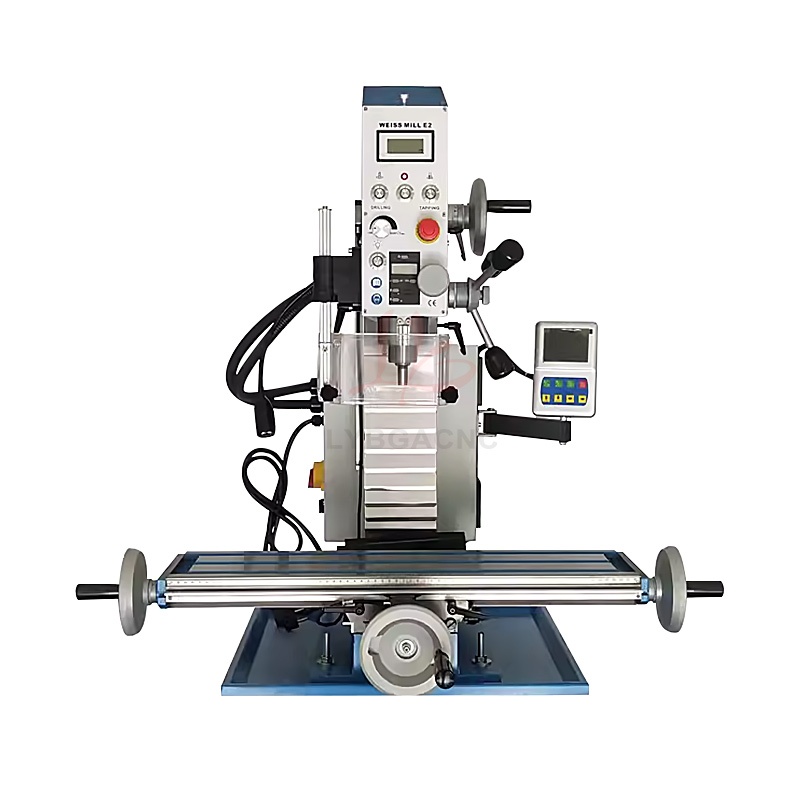

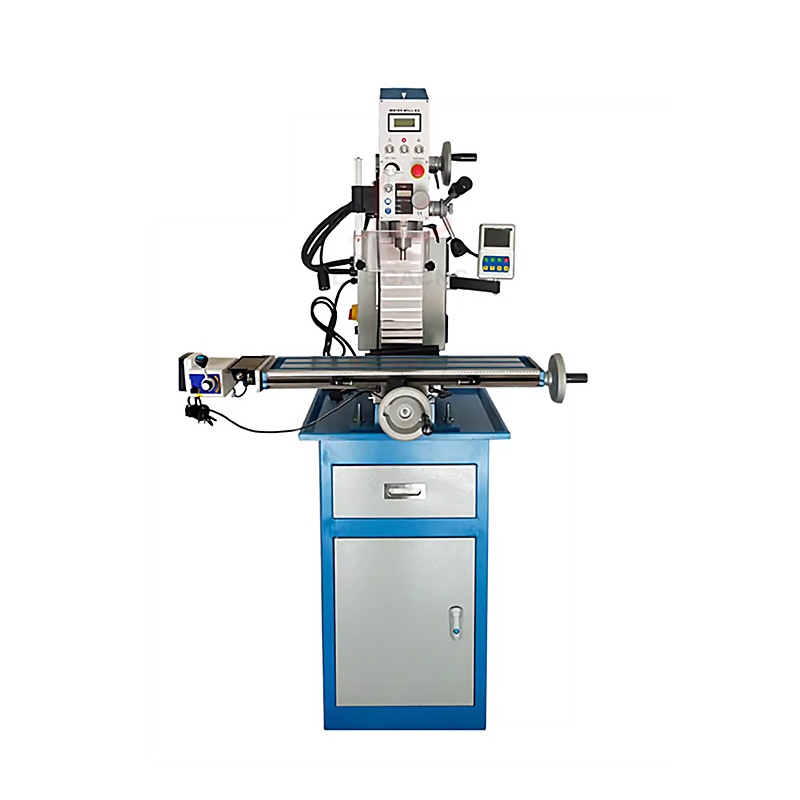

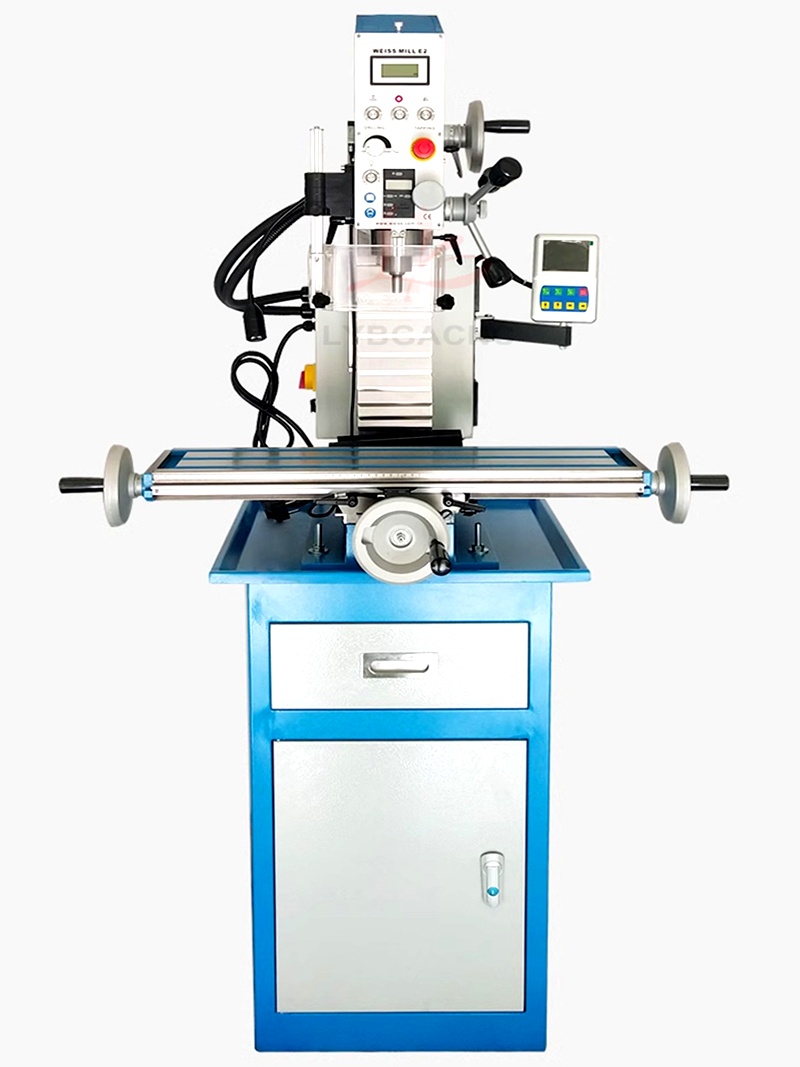

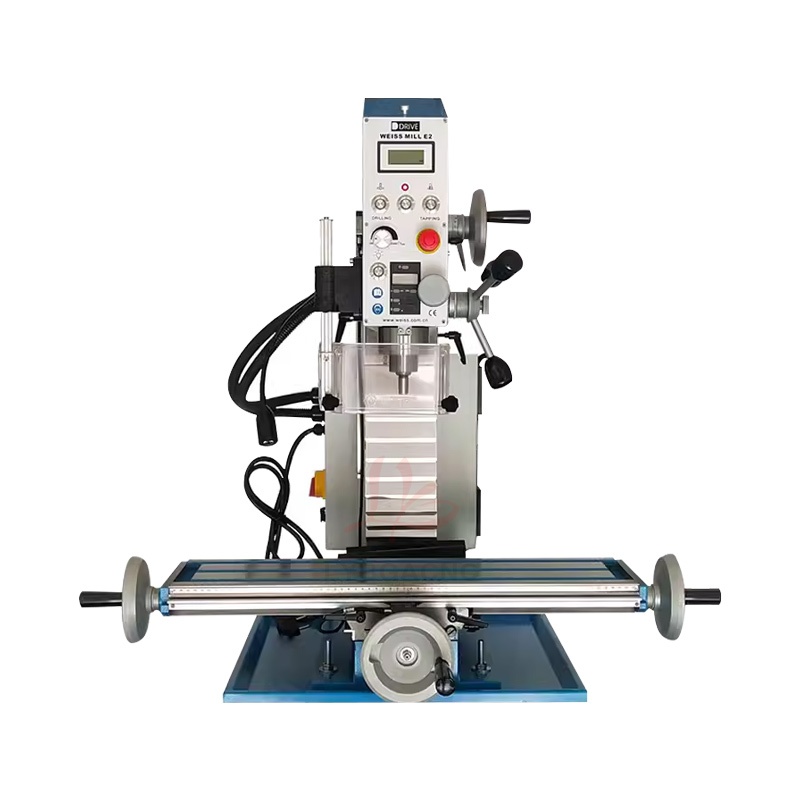

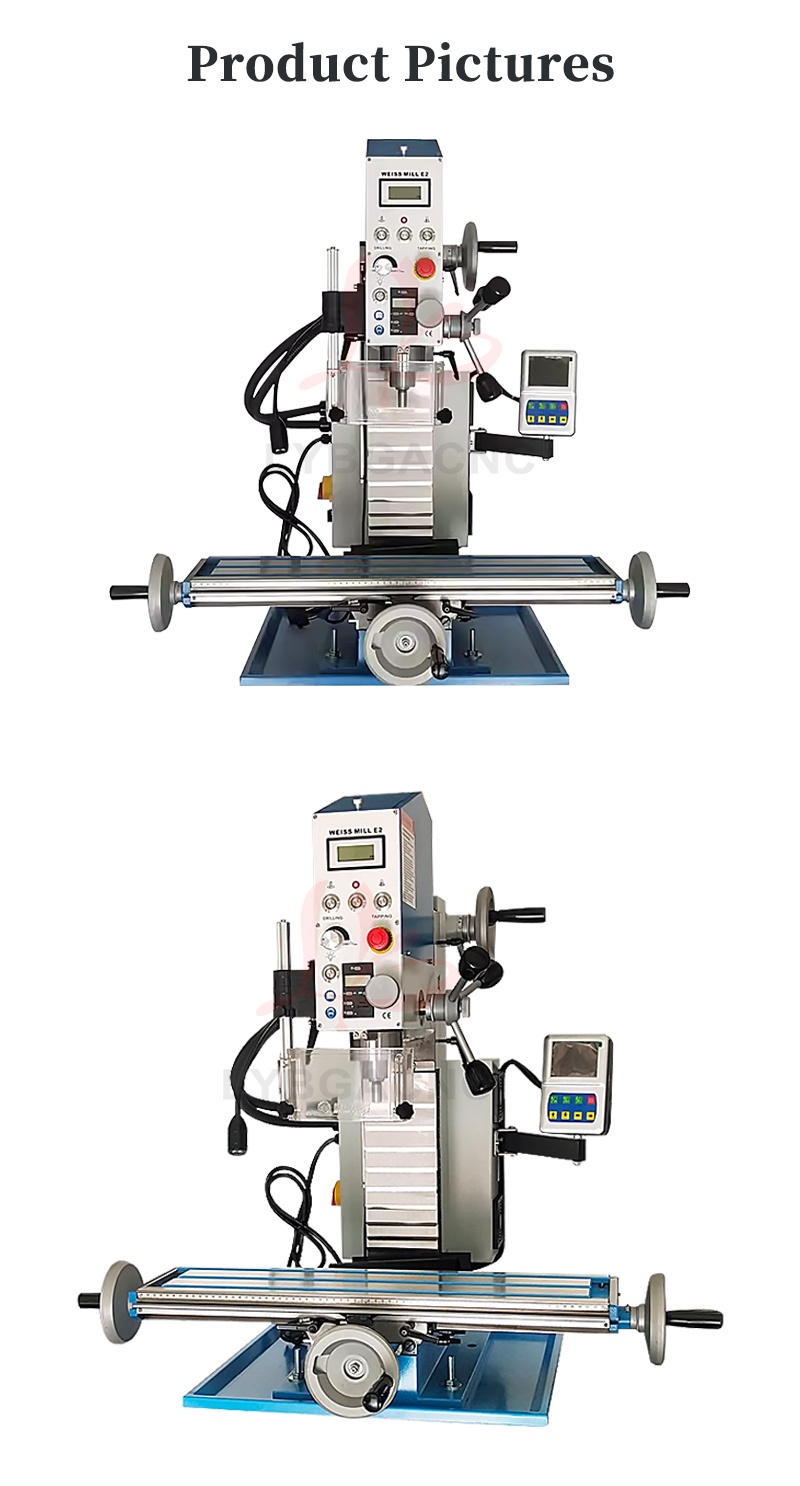

E2 Multi-functional CNC Drilling and Milling Machine: Compact Size, Stepless Speed DC Brushless Motor, 3-Axis Digital Display. Spindle Box Tilts 90° Left/Right, Auto Tool Travelling, Direct-Driven Silent High-Torque Spindle

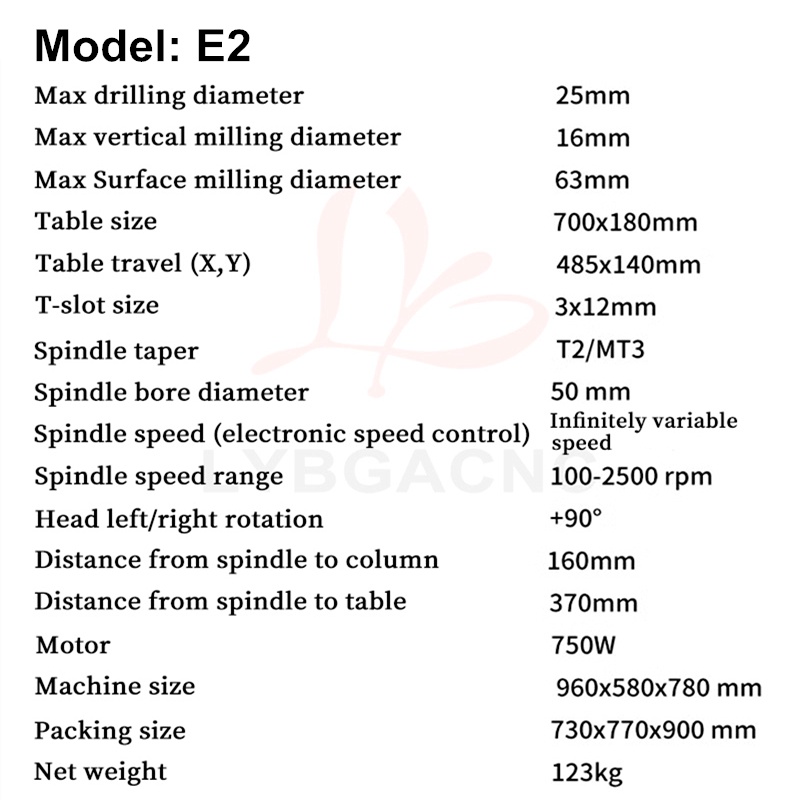

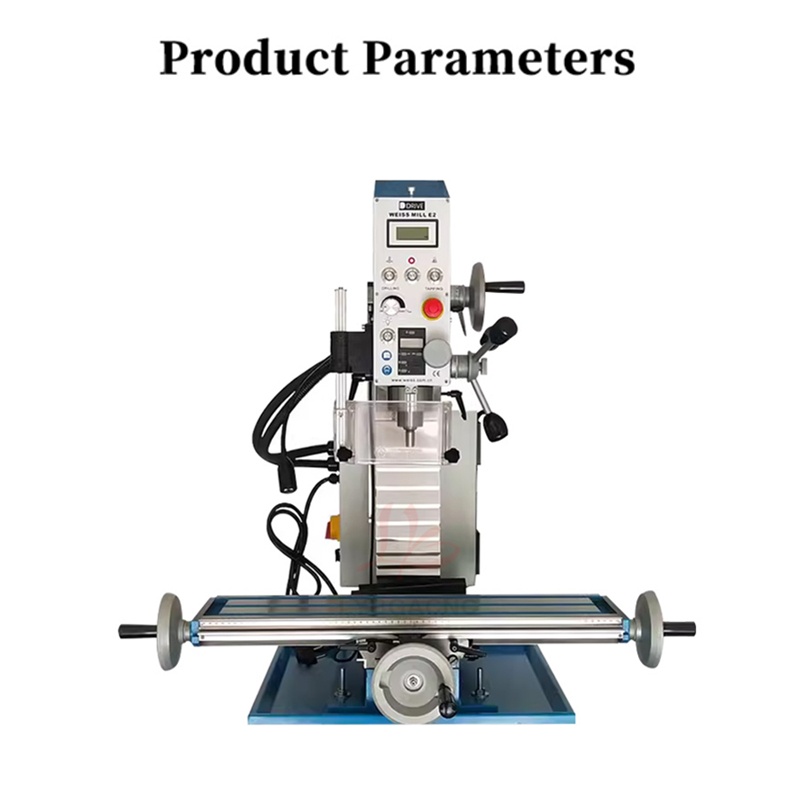

Model:E2

Max drilling diameter 25mm
Max vertical milling diameter 16mm
Max Surface milling diameter 63mm
Table size 700x180mm
Table travel (X,Y) 485x140mm
T-slot size 3x12mm
Spindle taper T2/MT3
Spindle bore diameter 50 mm

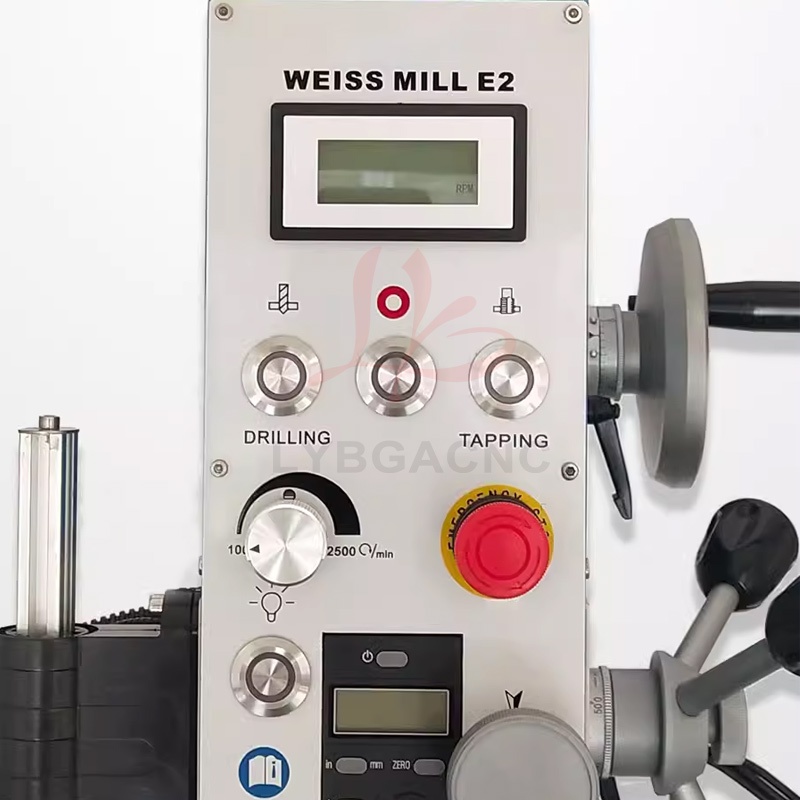

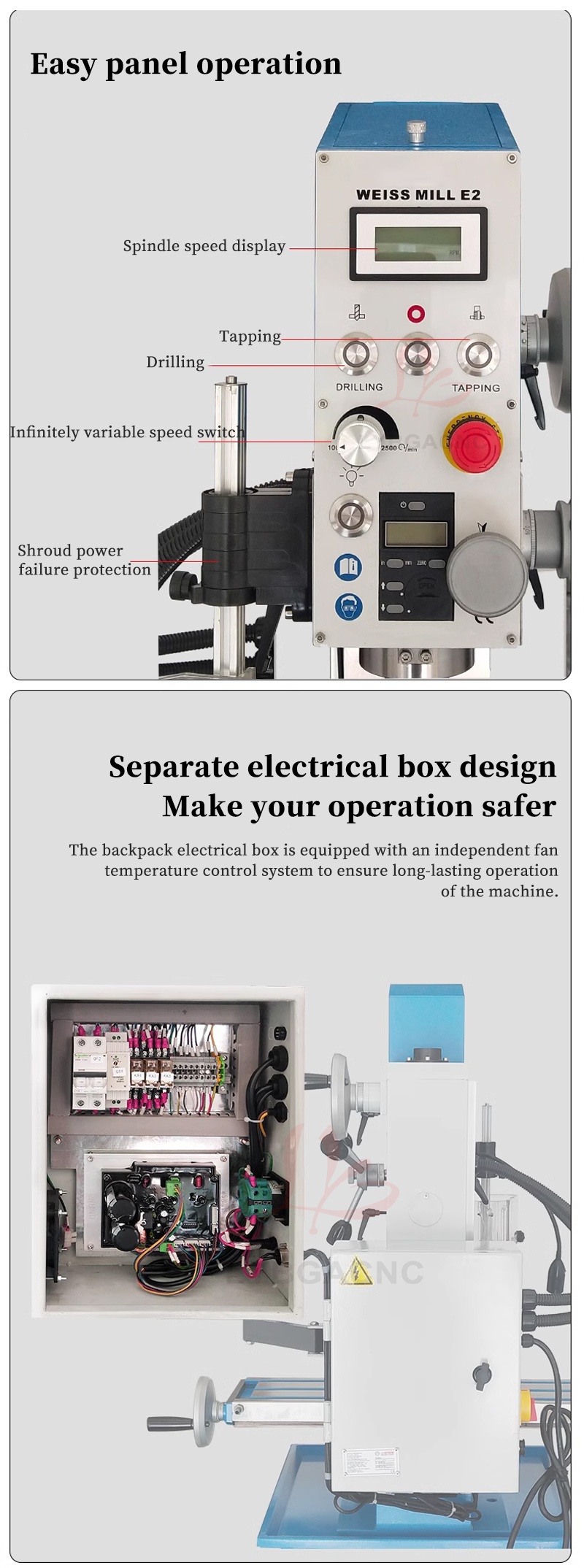

Spindle speed (electronic speed control) Infinitely variable speeds
Spindle speed range 100-2500 rpm

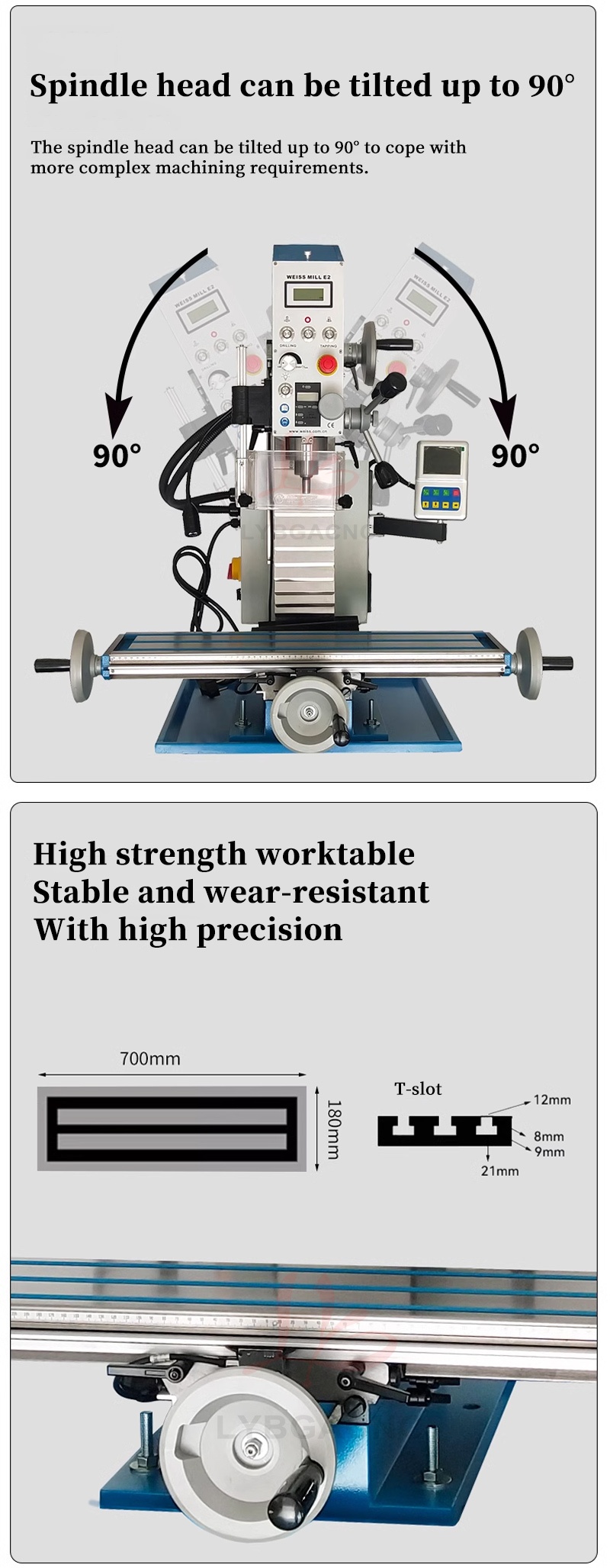

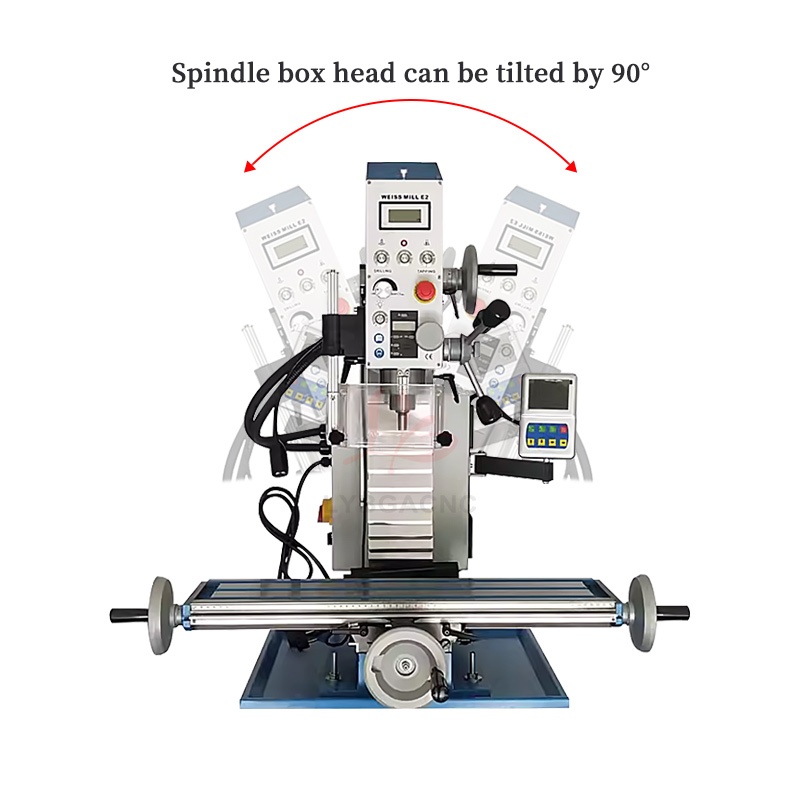

Head left/right rotation +90°
Distance from spindle to column 160mm
Distance from spindle to table 370mm
Motor 750W

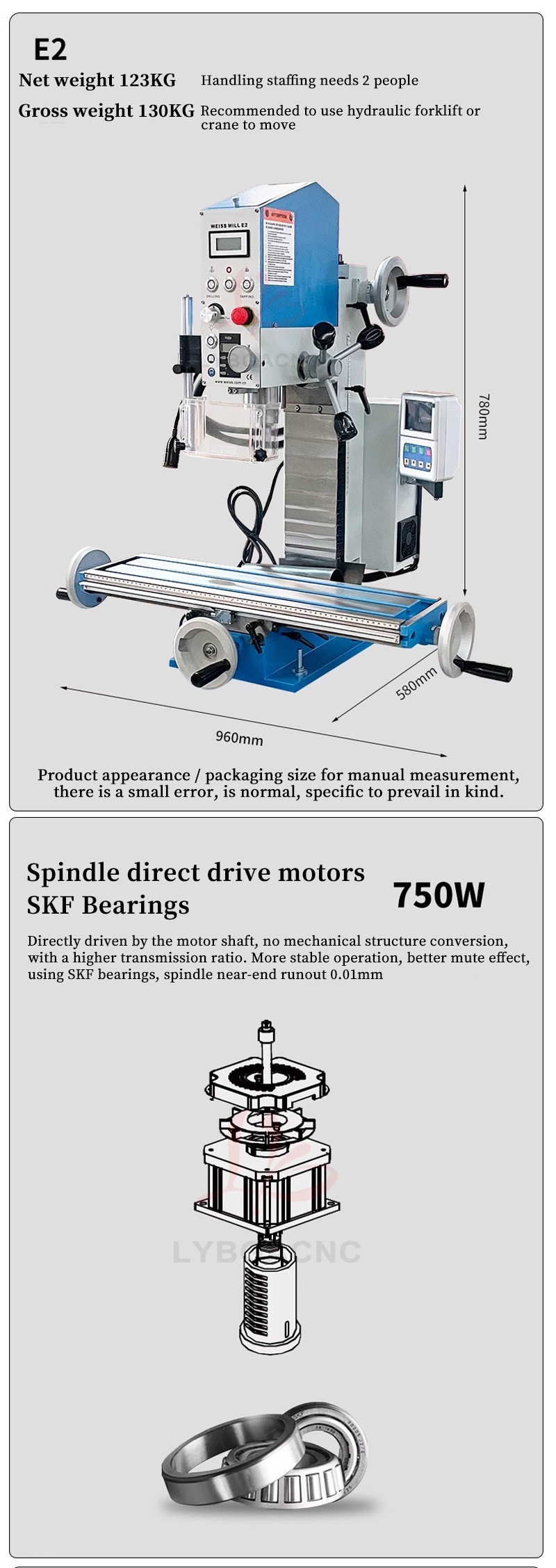

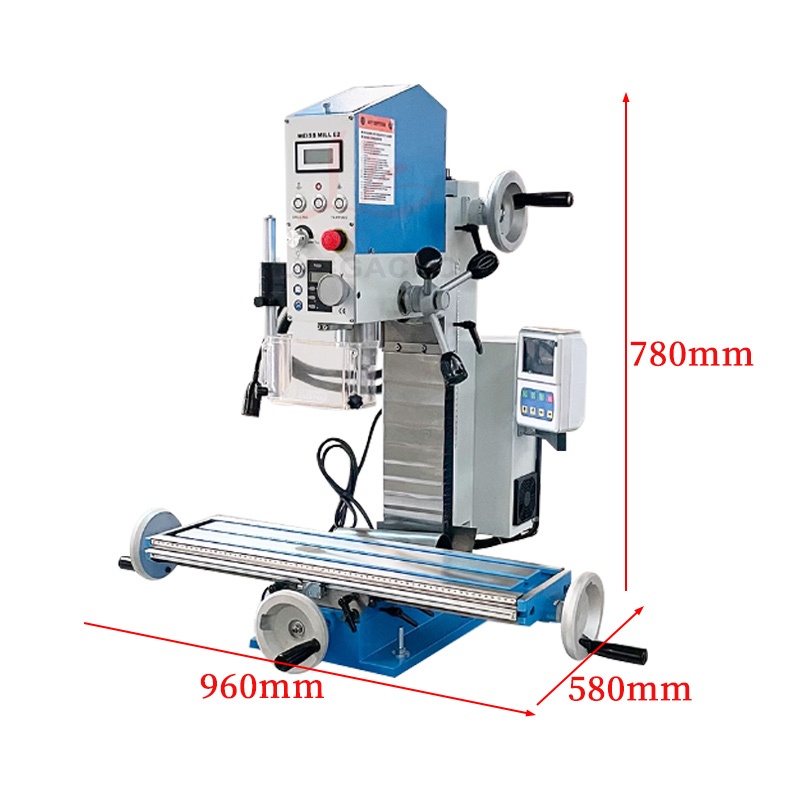

Machine size 960x580x780mm
Packing size 730x770x900mm
Net weight 123kg

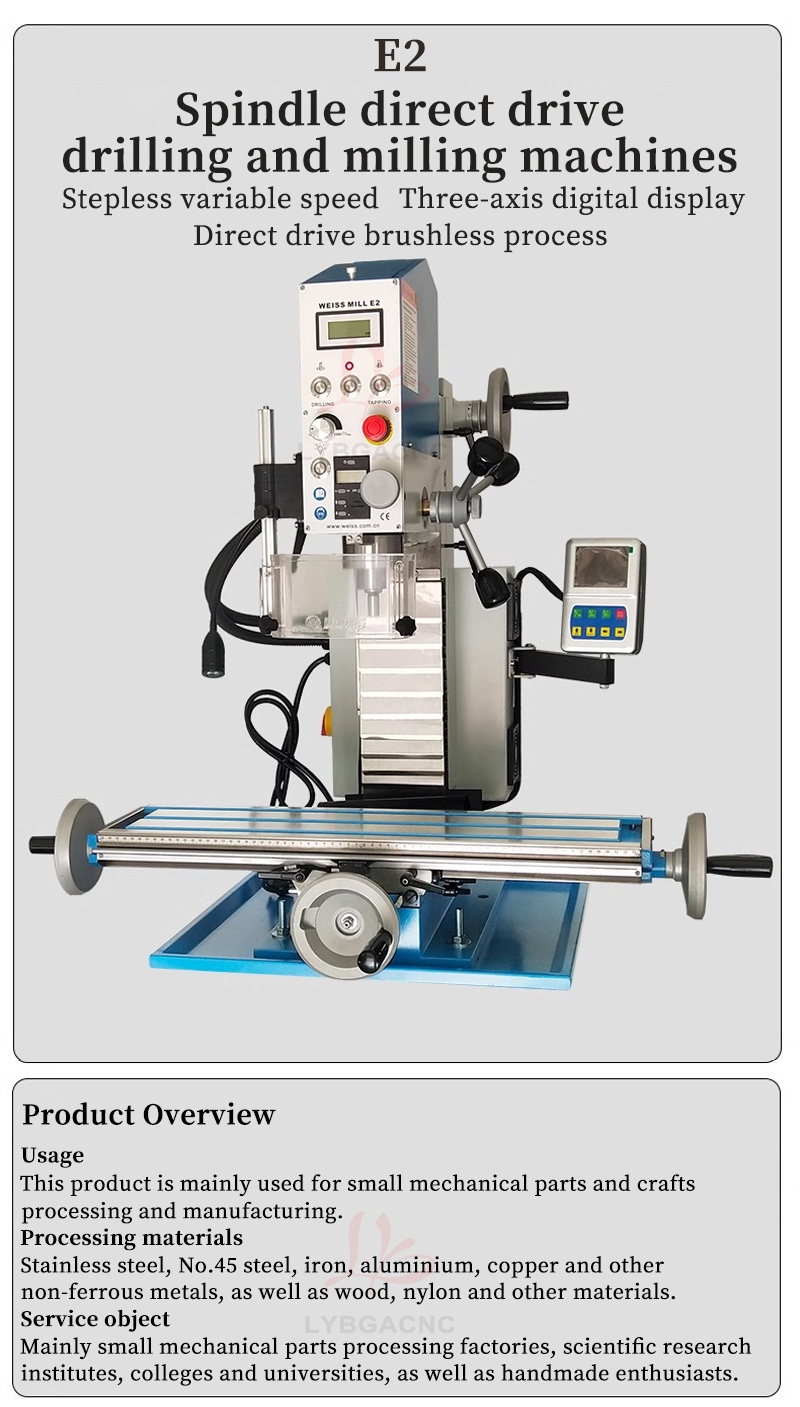

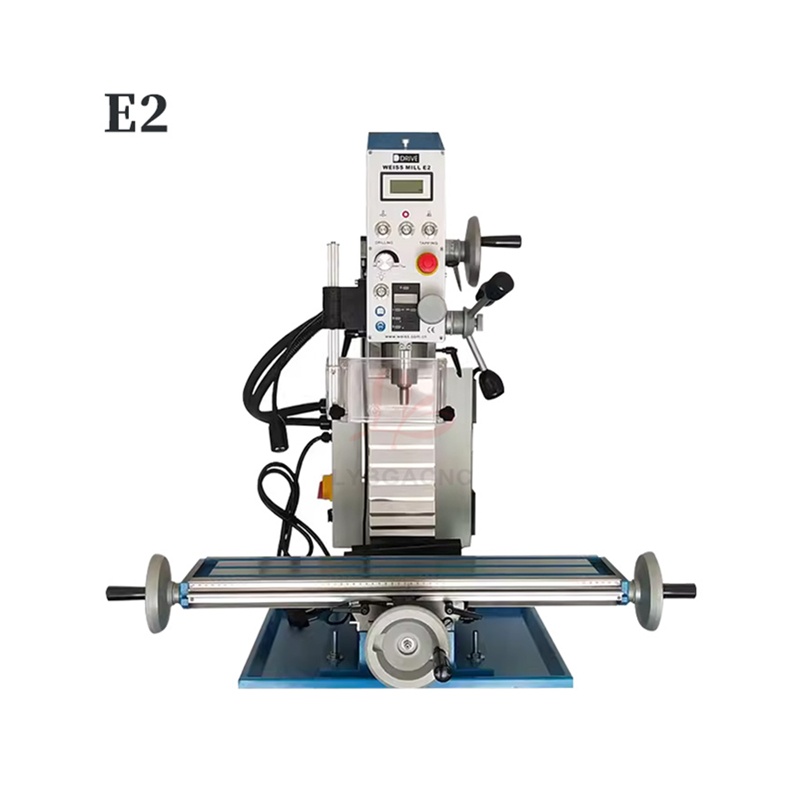

E2

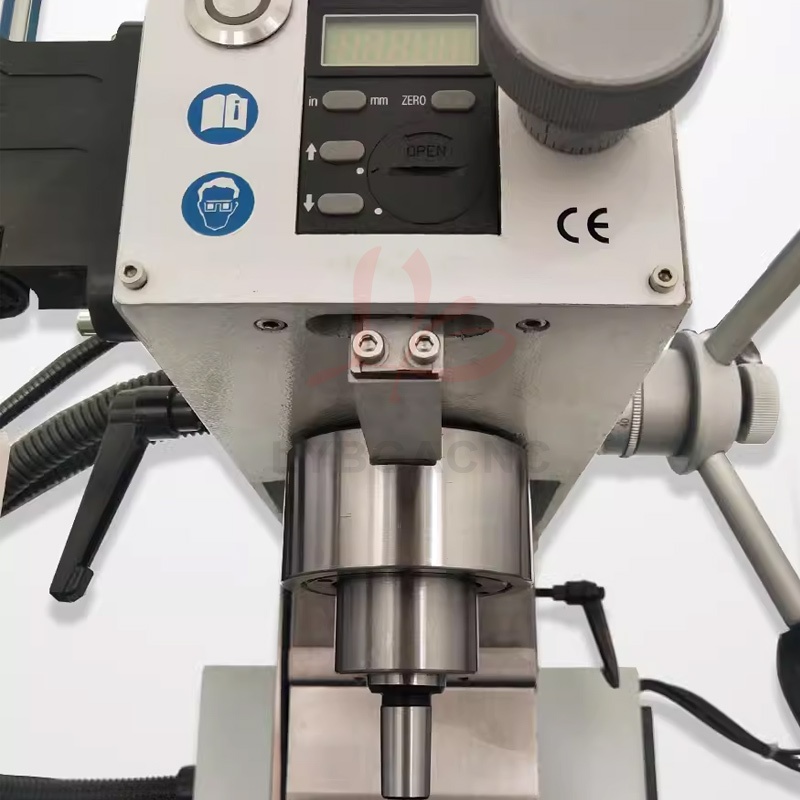

Spindle direct drive
drilling and milling machines

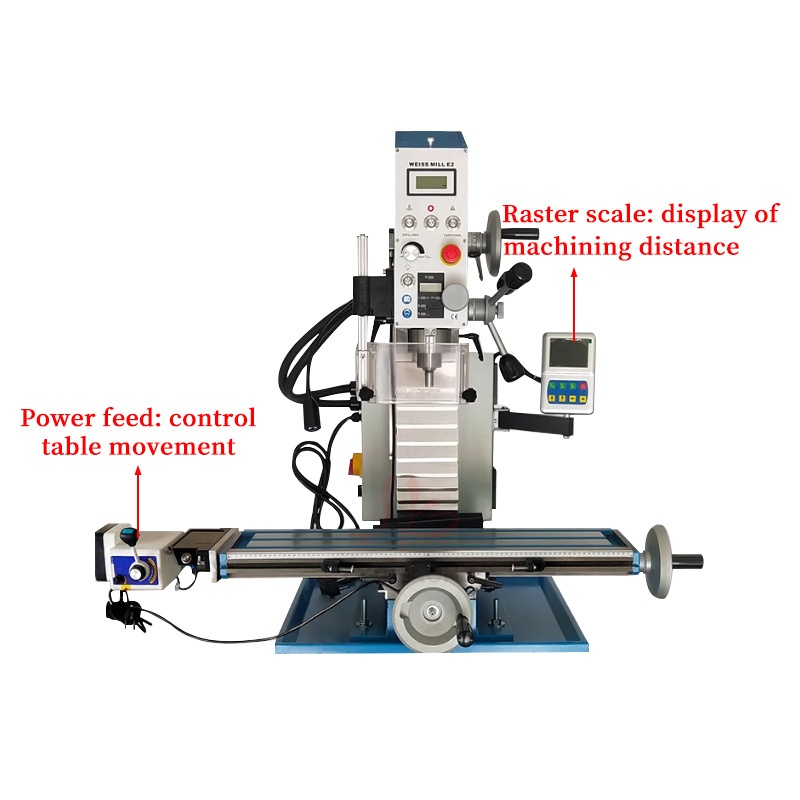

Stepless variable speed Three-axis digital display
Direct drive brushless process

Product Overview

Usage
This product is mainly used for small mechanical parts and crafts
processing and manufacturing.

Processing materials
Stainless steel, No.45 steel, iron, aluminium, copper and other
non-ferrous metals, as well as wood, nylon and other materials.

Service object
Mainly small mechanical parts processing factories, scientific research
institutes, colleges and universities, as well as handmade enthusiasts.
