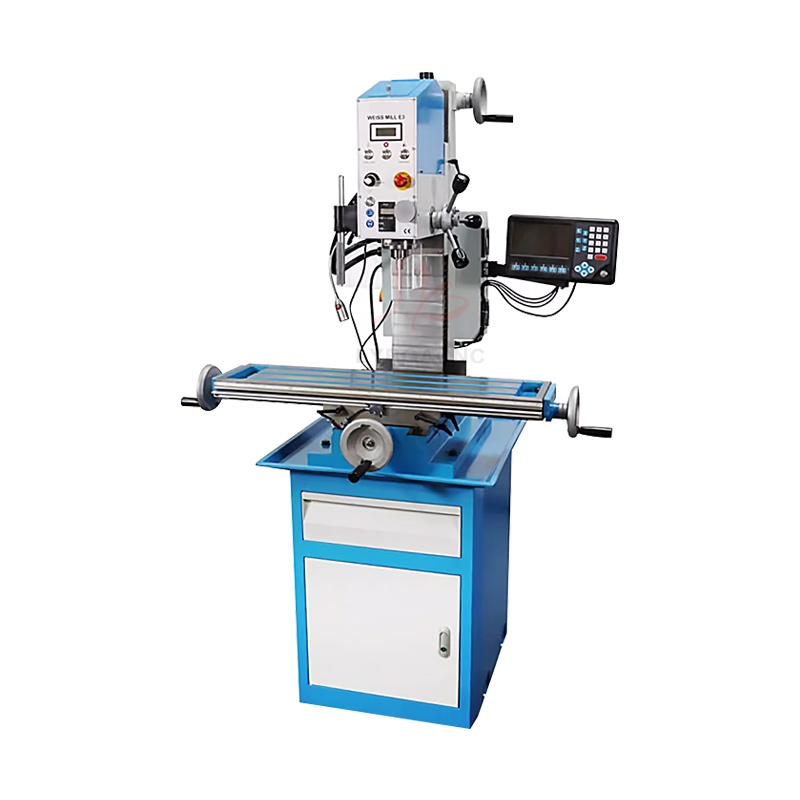

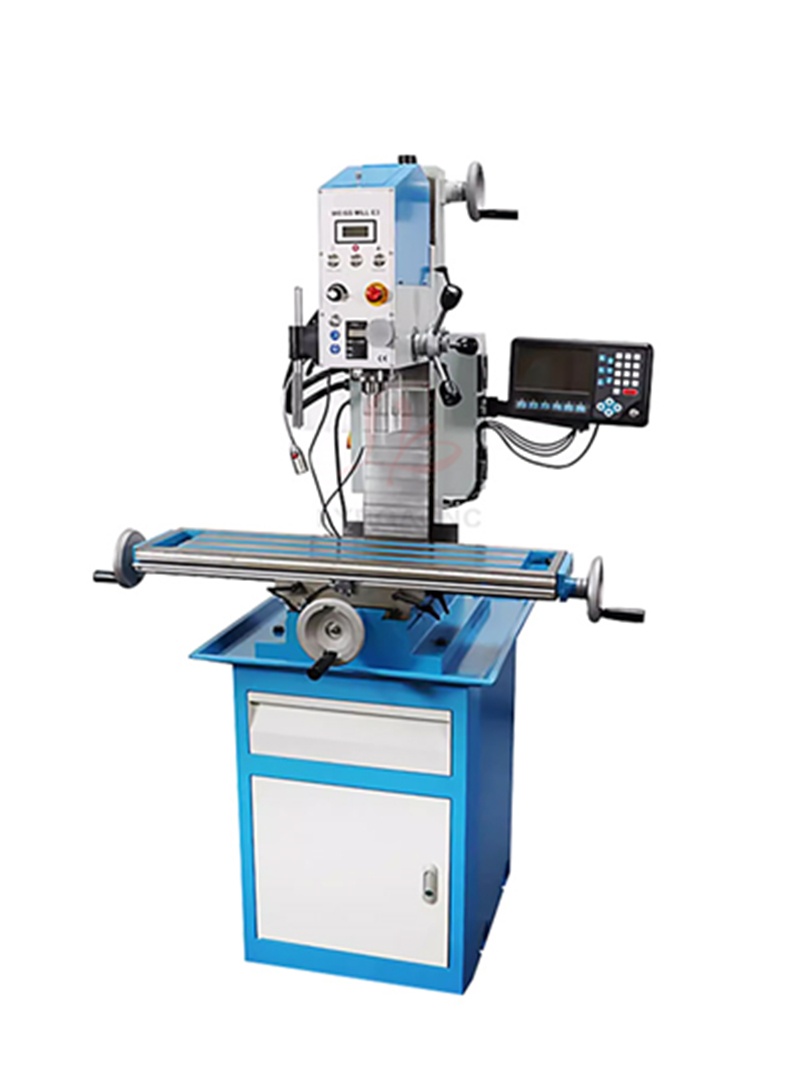

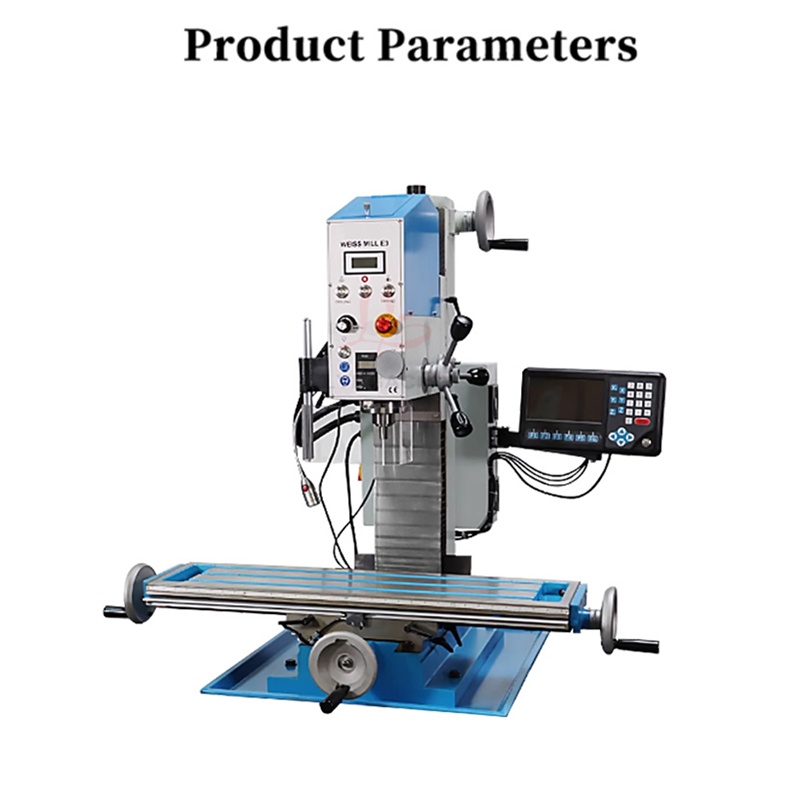

E3 Multi-functional CNC Drilling and Milling Machine, a Small Milling Machine with Stepless Speed Control, Brushless DC Motor, Three-axis Digital Display. Spindle Box Tilts 90° Left & Right, Automatic Tool Walking, Direct-drive Silent High-torque Spindle (Taper R8/MT3/ISO30)

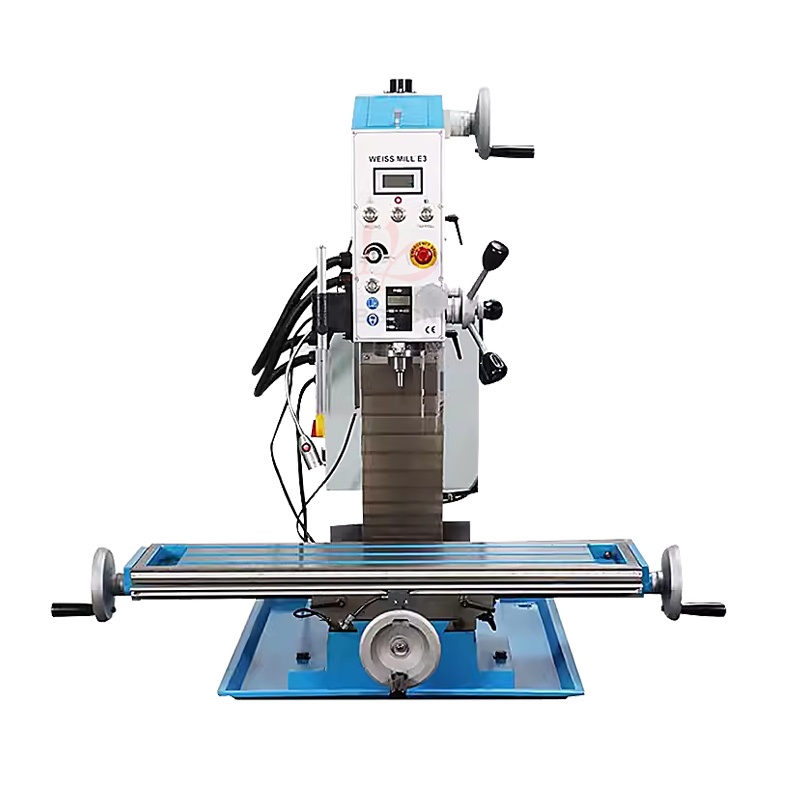

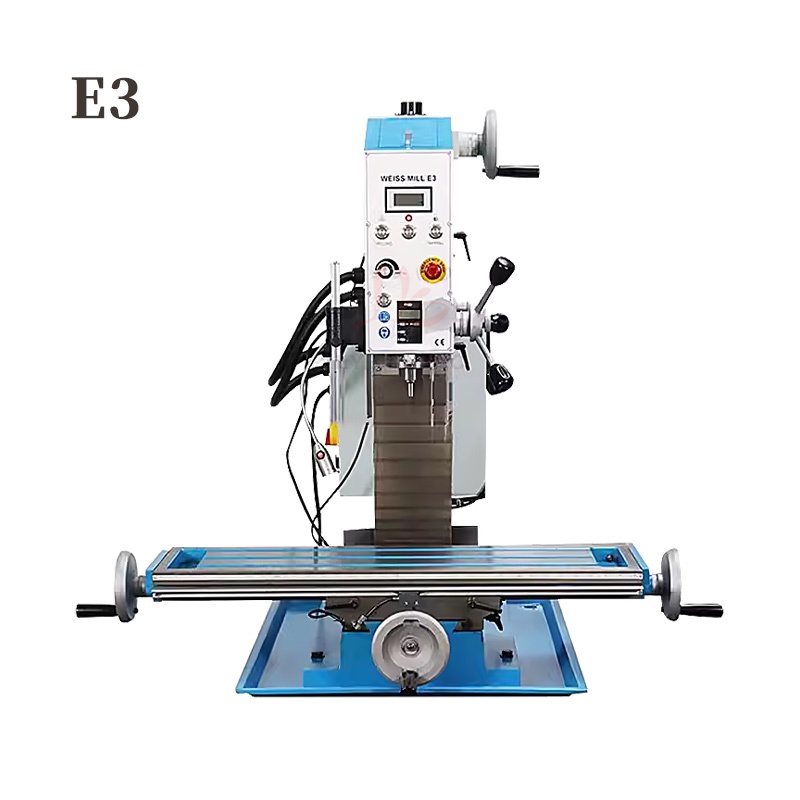

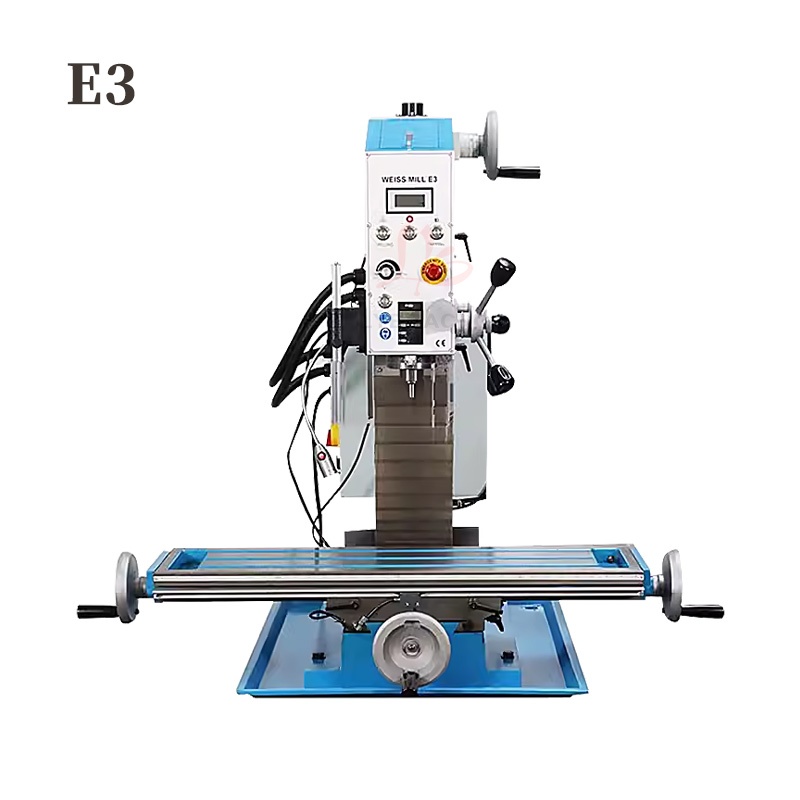

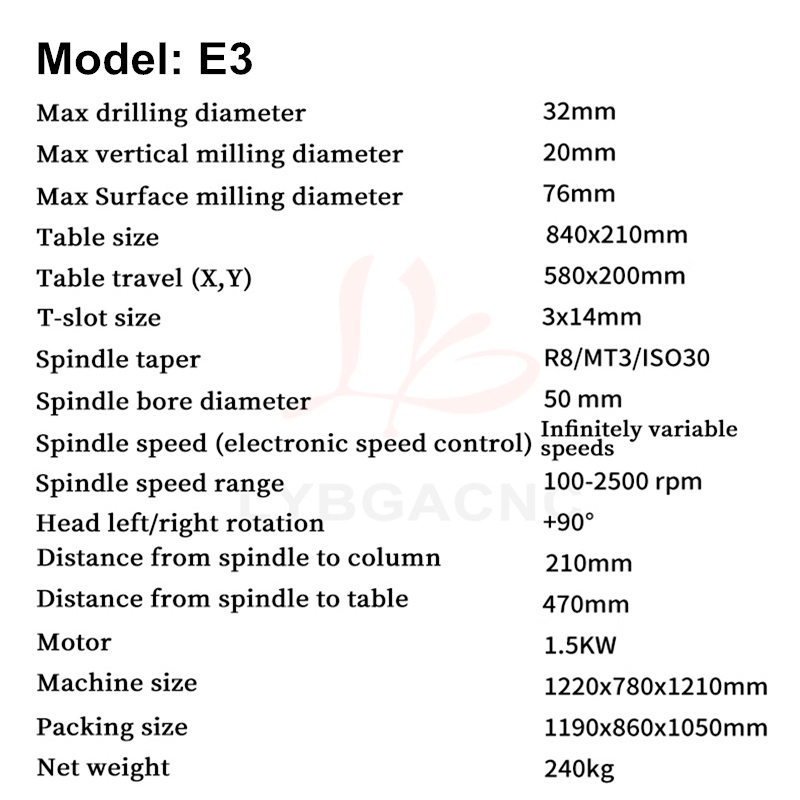

Model:E3

Max drilling diameter 32mm
Max vertical milling diameter 20mm
Max Surface milling diameter 76mm

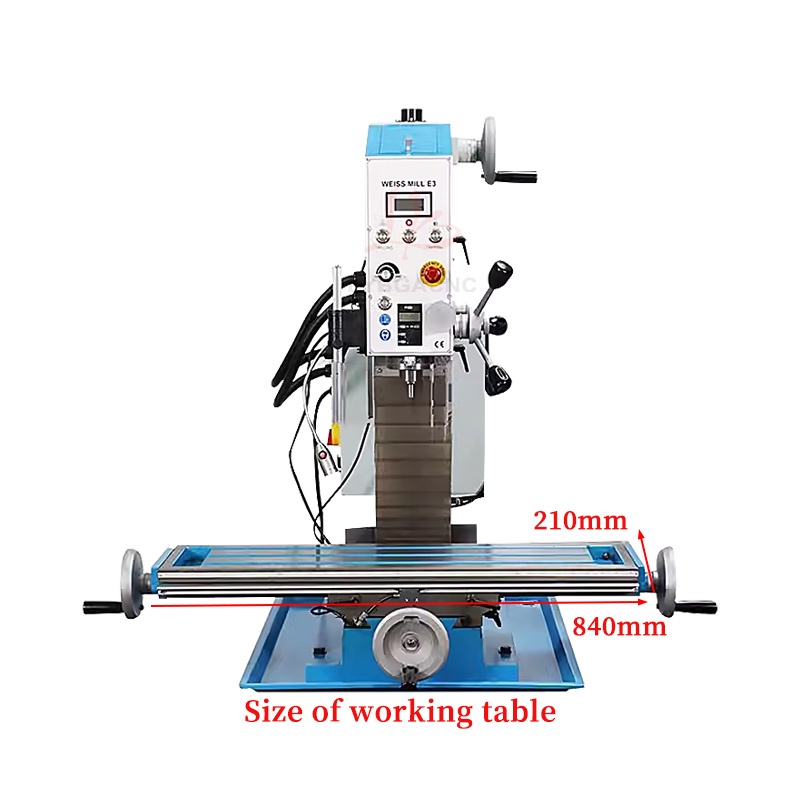

Table size 840x210mm
Table travel (X,Y) 580x200mm
T-slot size 3x14mm
Spindle taper R8/MT3/ISO30
Spindle bore diameter 50 mm

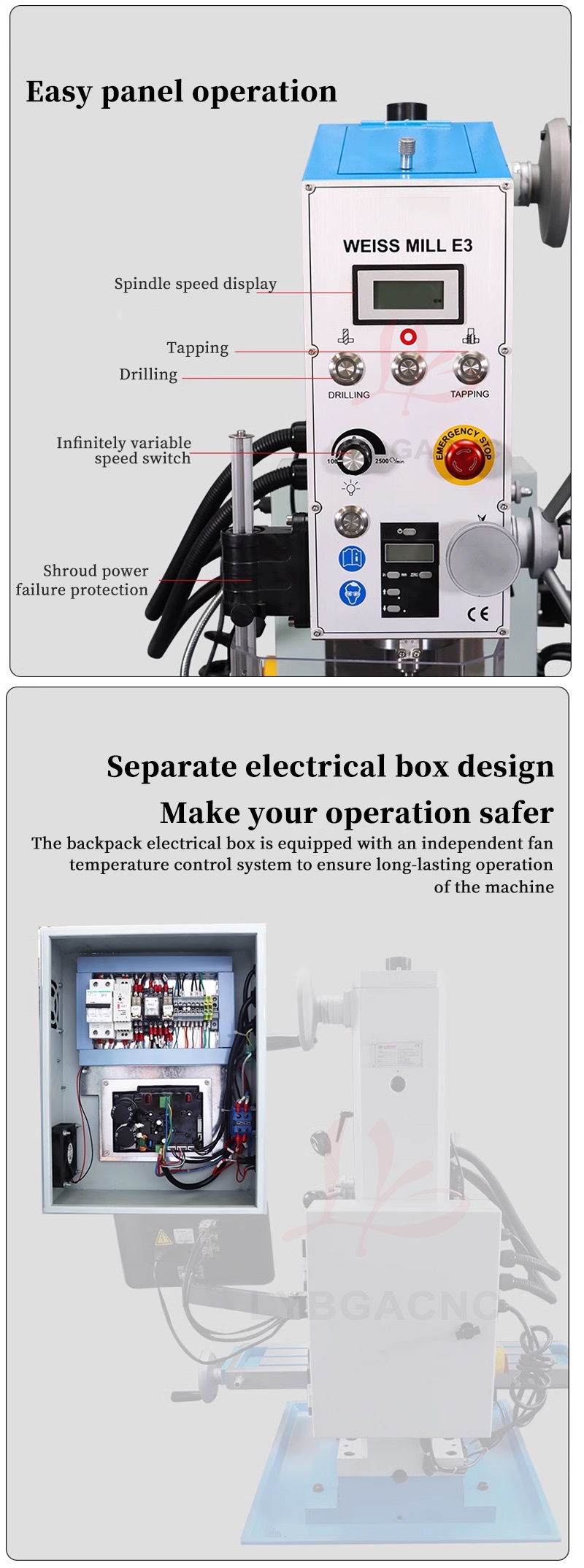

Spindle speed (electronic speed control) Infinitely variable speeds
Spindle speed range 100-2500 rpm

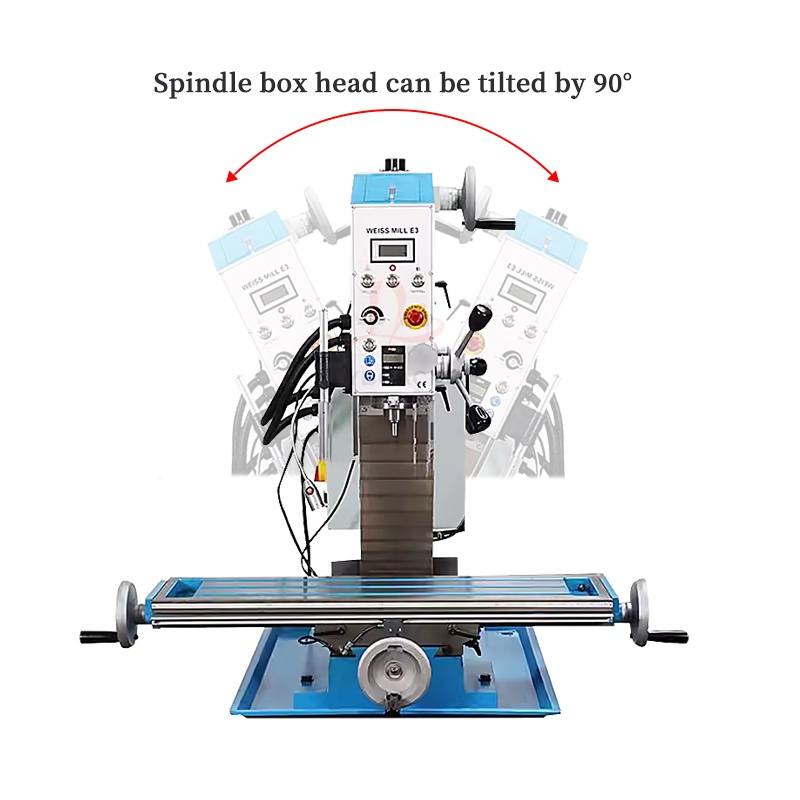

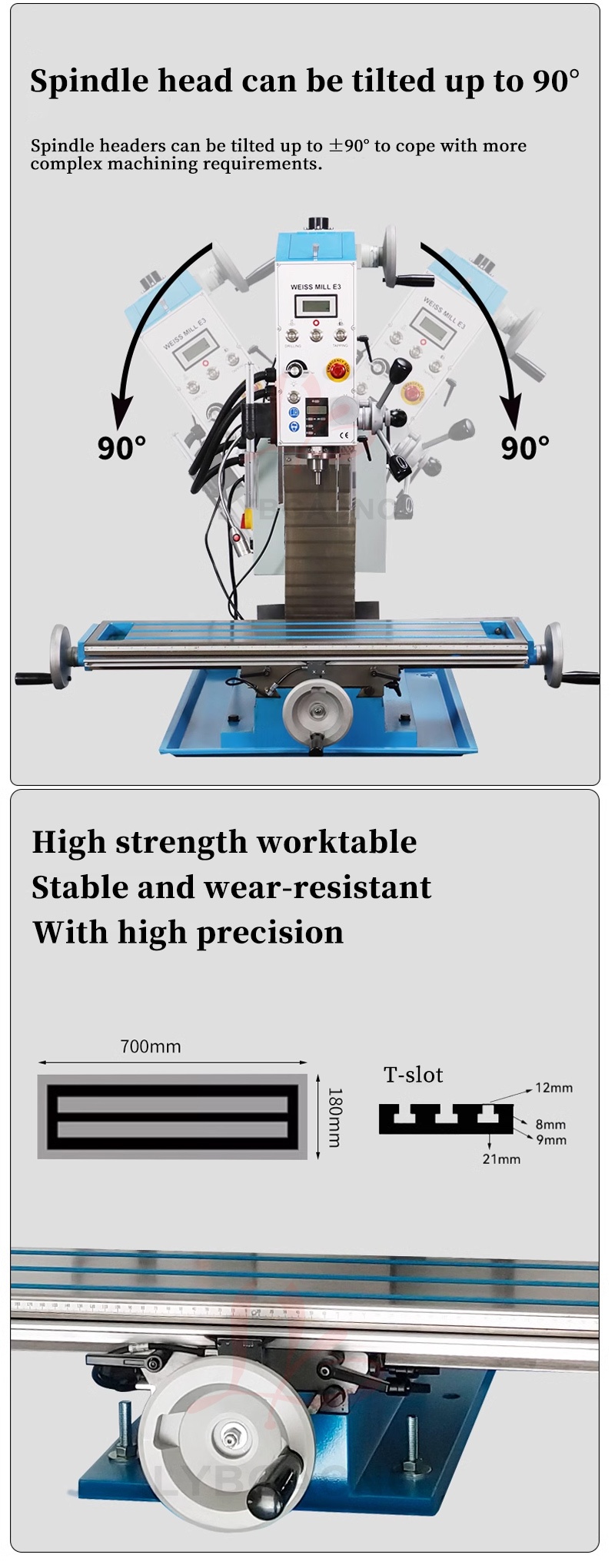

Head left/right rotation +90°
Distance from spindle to column 210mm
Distance from spindle to table 470mm
Motor 1.5KW

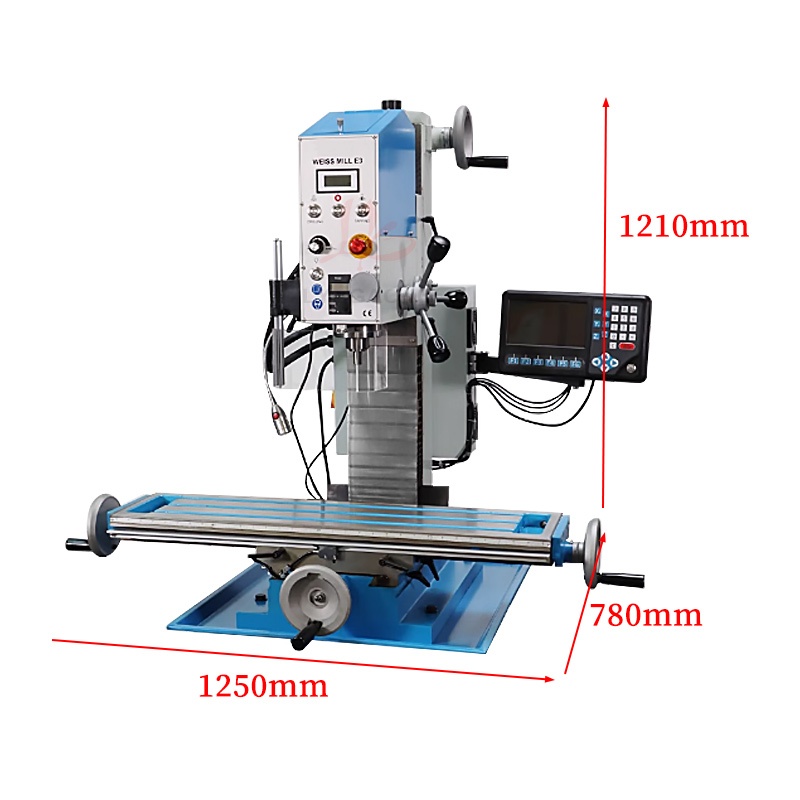

Machine size 1220x780x1210mm
Packing size 1190x860x1050mm
Net weight 240kg

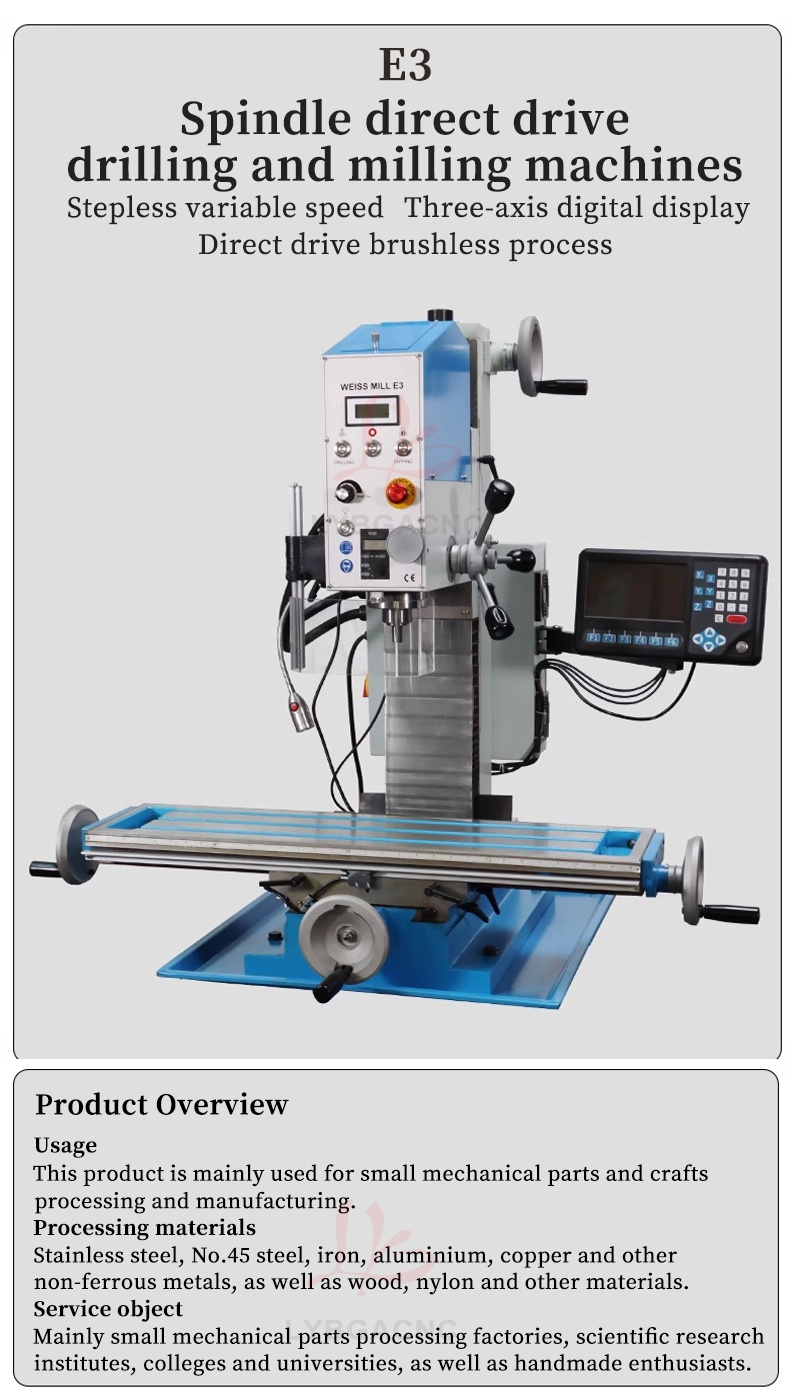

E3
Spindle direct drive
drilling and milling machines
Stepless variable speed Three-axis digital display
Direct drive brushless process

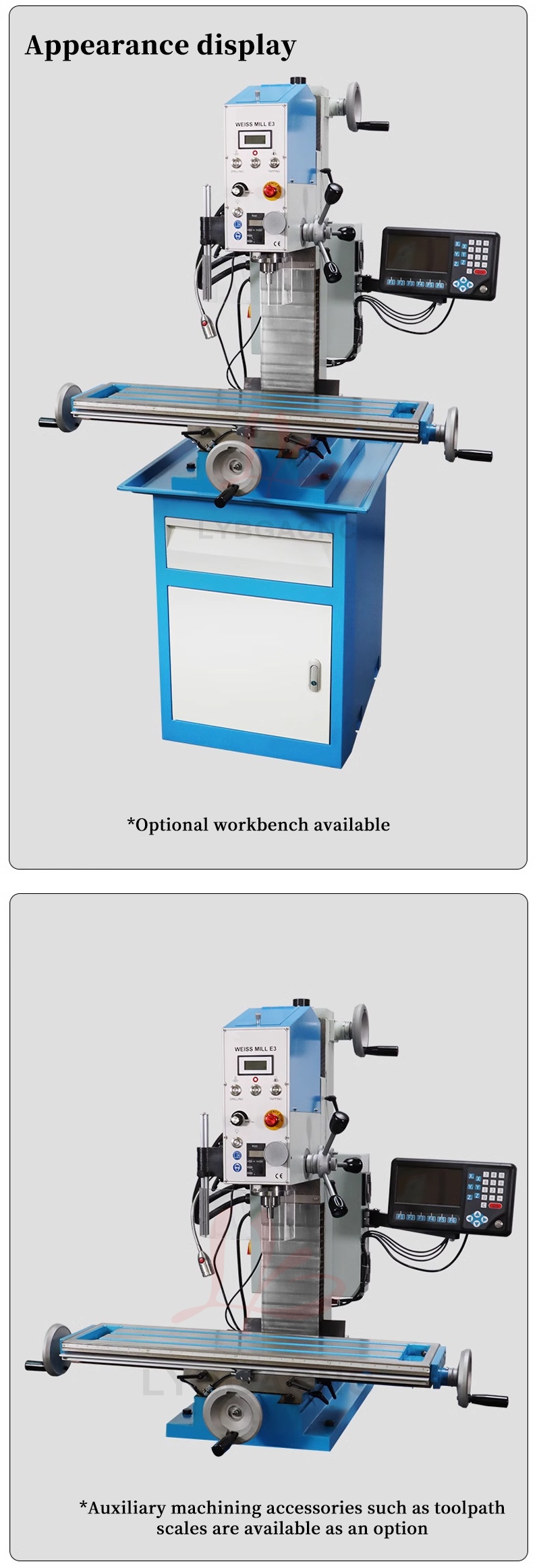

Product Overview

Usage
This product is mainly used for small mechanical parts and crafts
processing and manufacturing.

Processing materials
Stainless steel, No.45 steel, iron, aluminium, copper and other
non-ferrous metals, as well as wood, nylon and other materials.

Service object
Mainly small mechanical parts processing factories, scientific research
institutes, colleges and universities, as well as handmade enthusiasts.
