Hot Foll Stamp Coder expiry date coding machine printing machine Manual expiry date code printers
Description

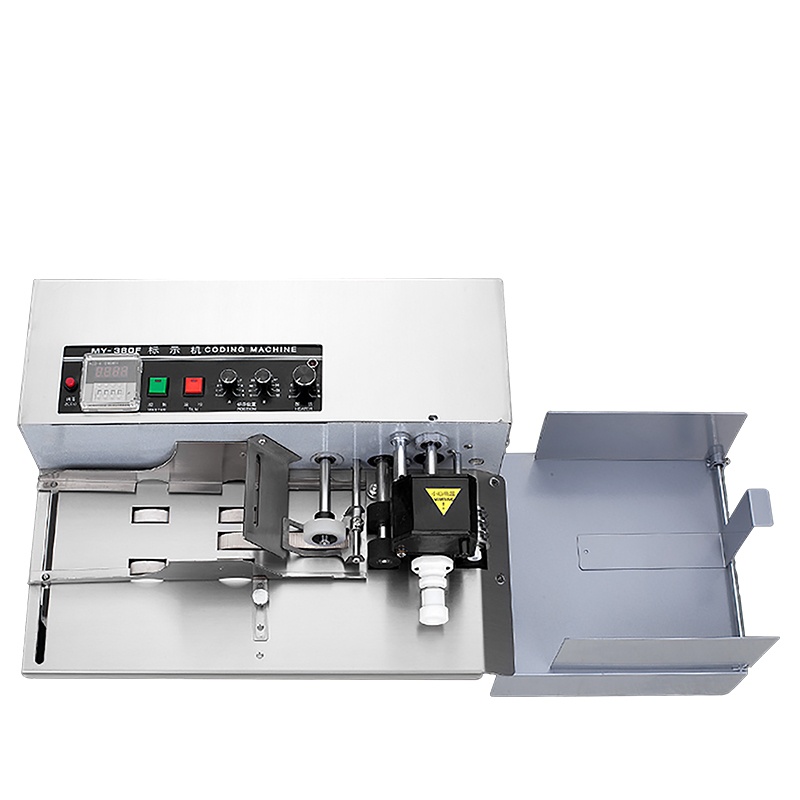

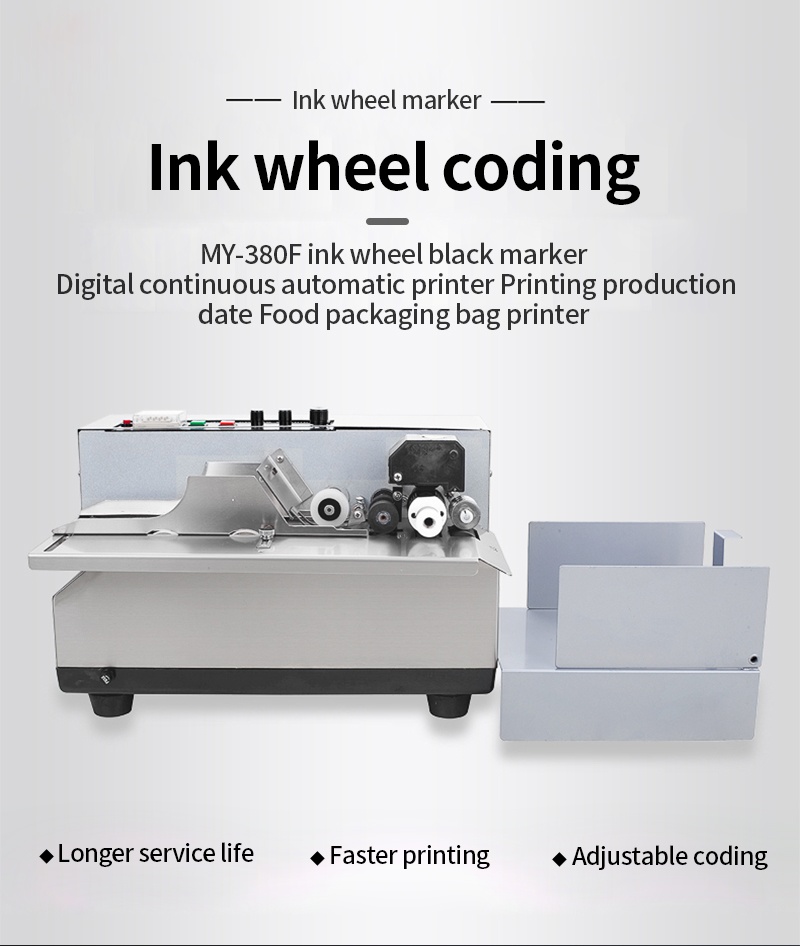

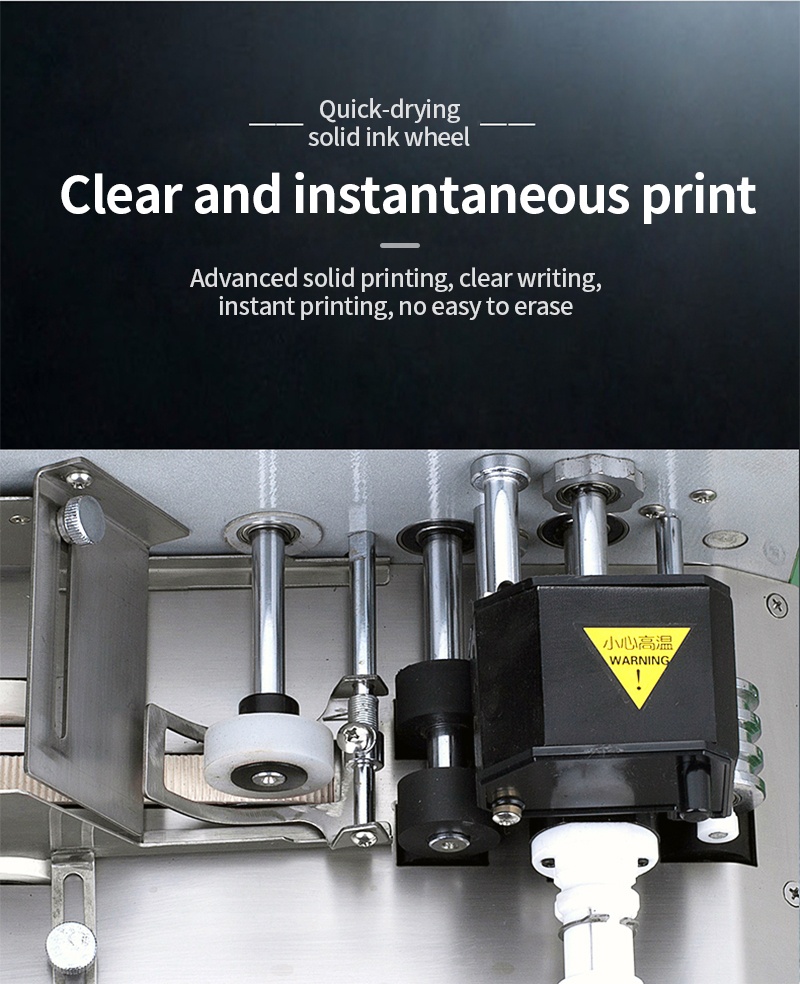

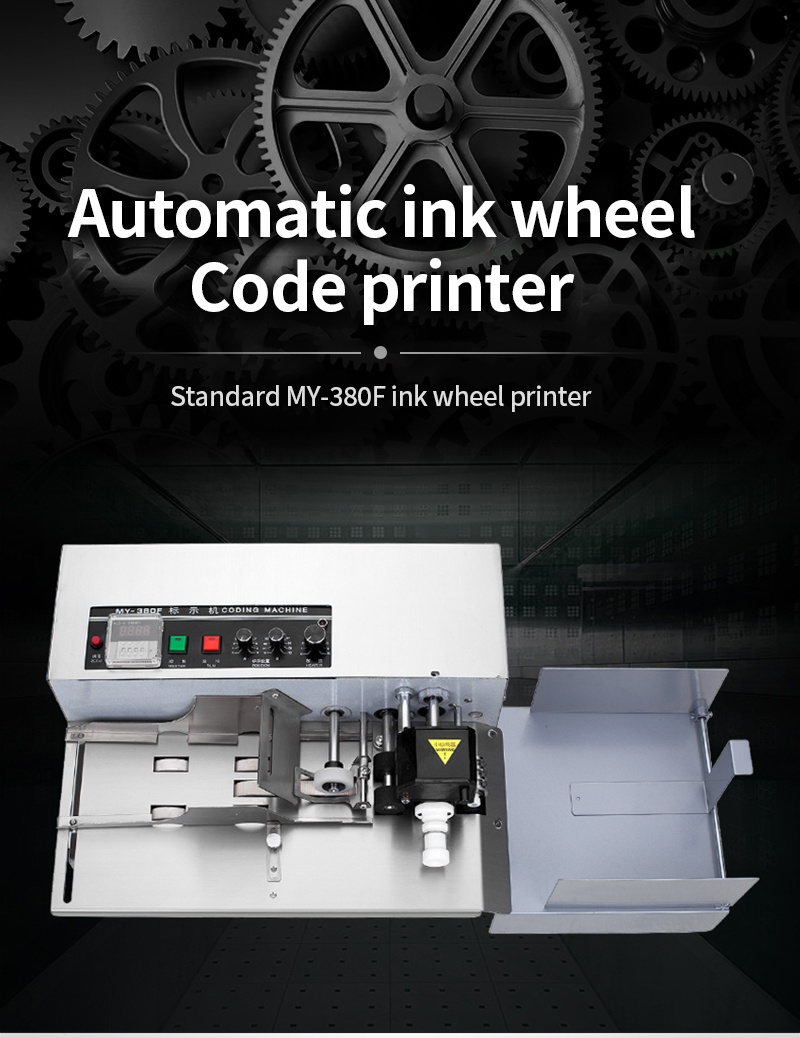

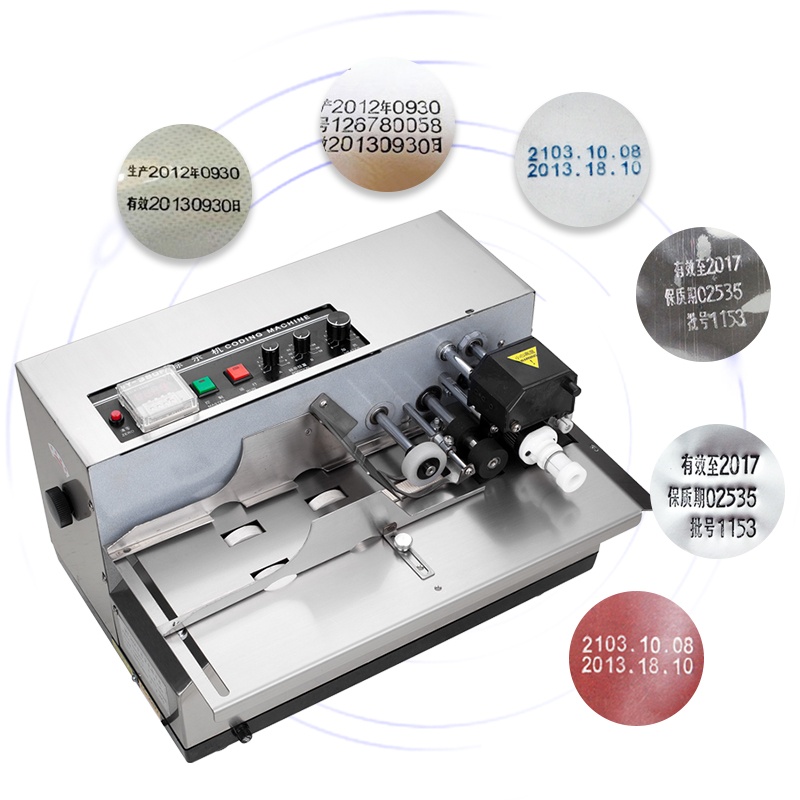

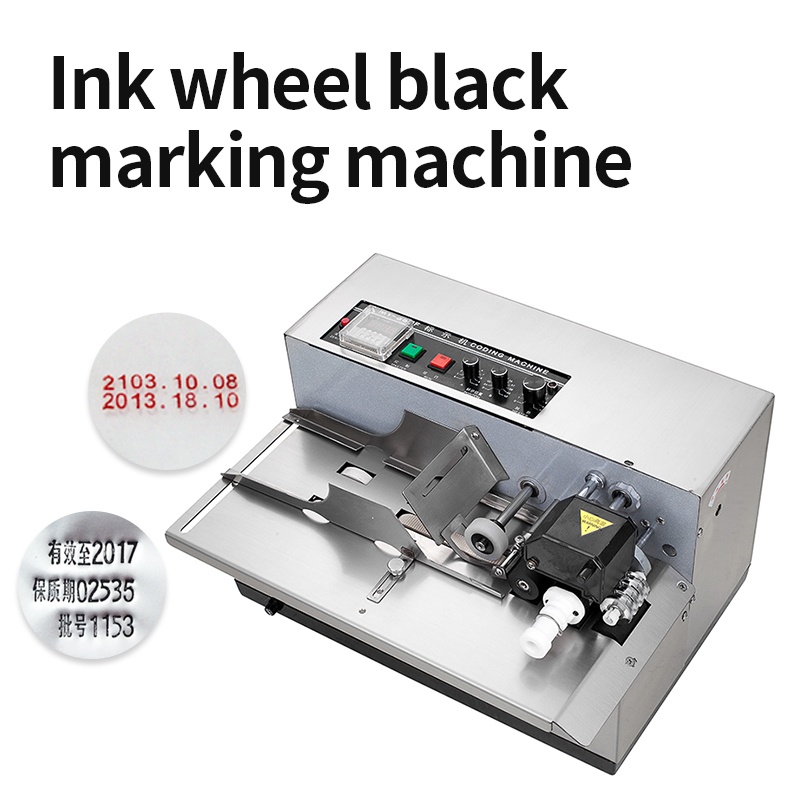

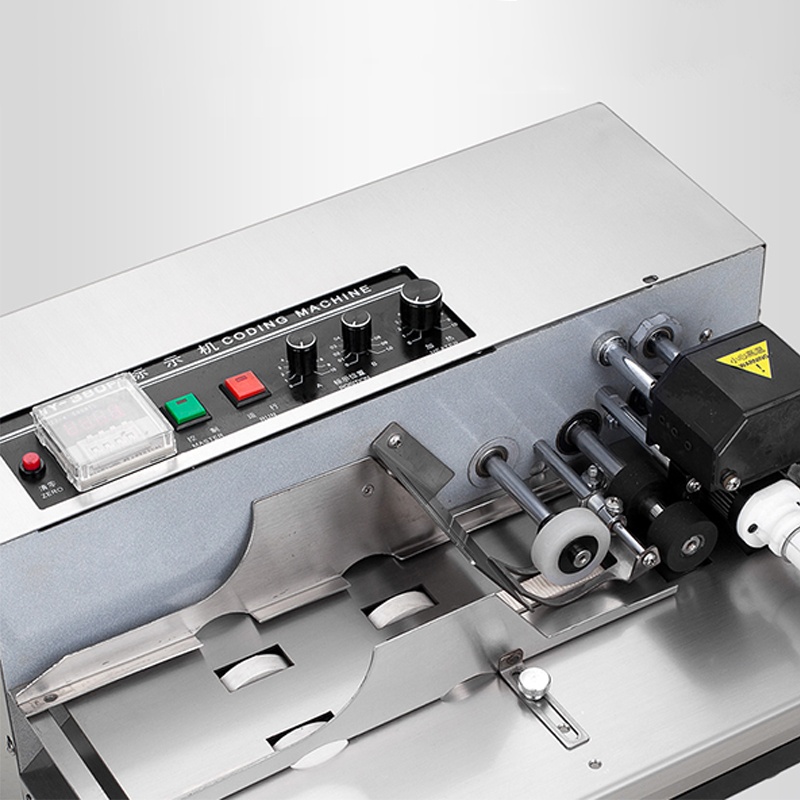

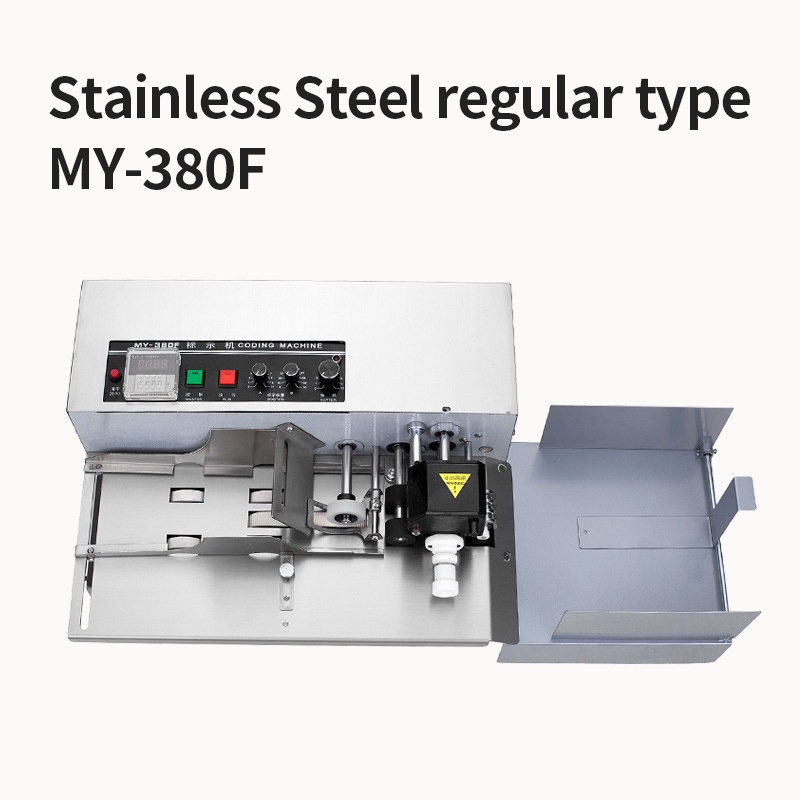

MY-380F solid-ink coding machine fit for printing label on paper, thin cardboard, plastic film and aluminum foil. Adopt solid-ink coding, characterized by high definition, instant printing & instant dry, various colors selectable and strong adhesion.
Characteristic

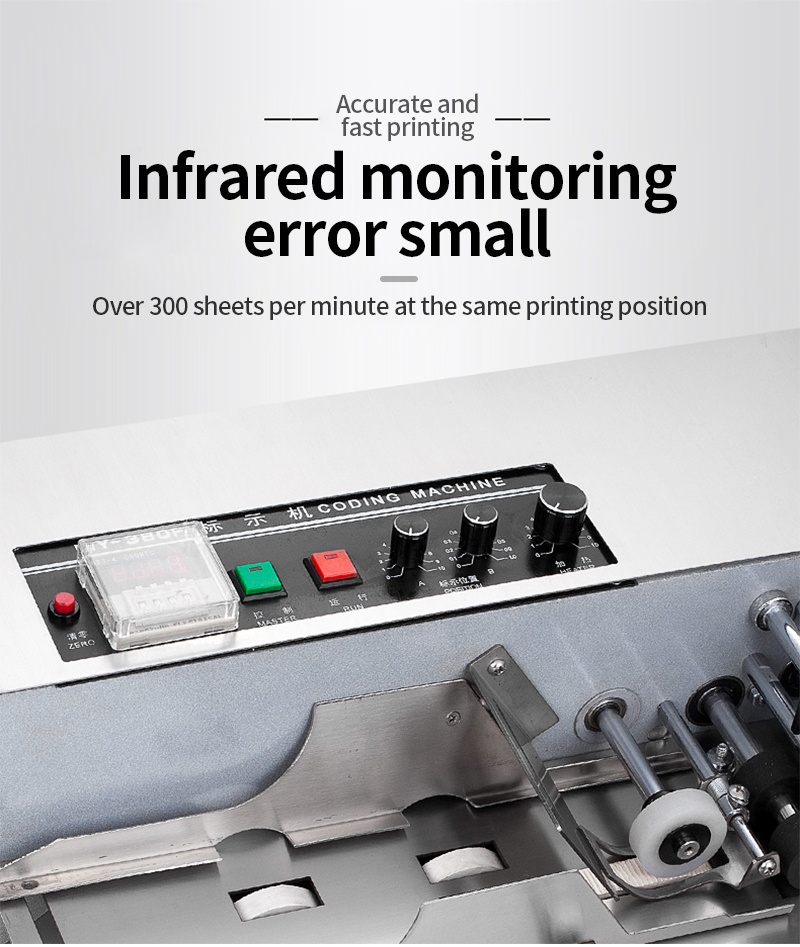

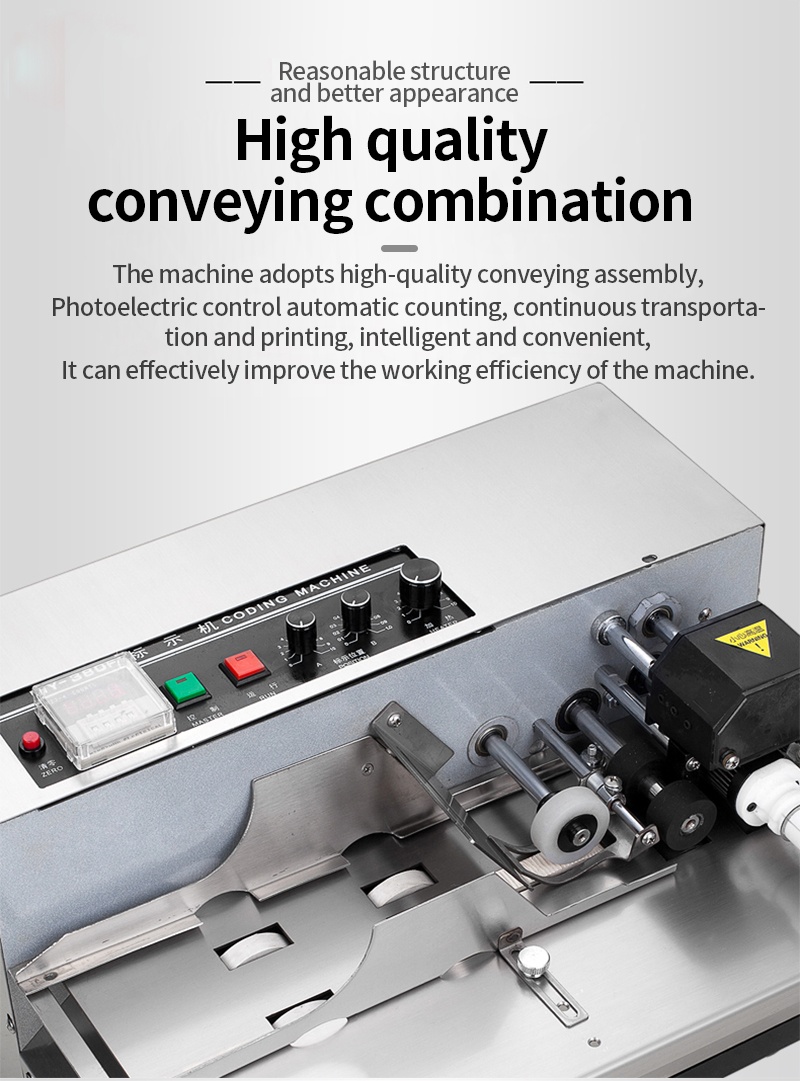

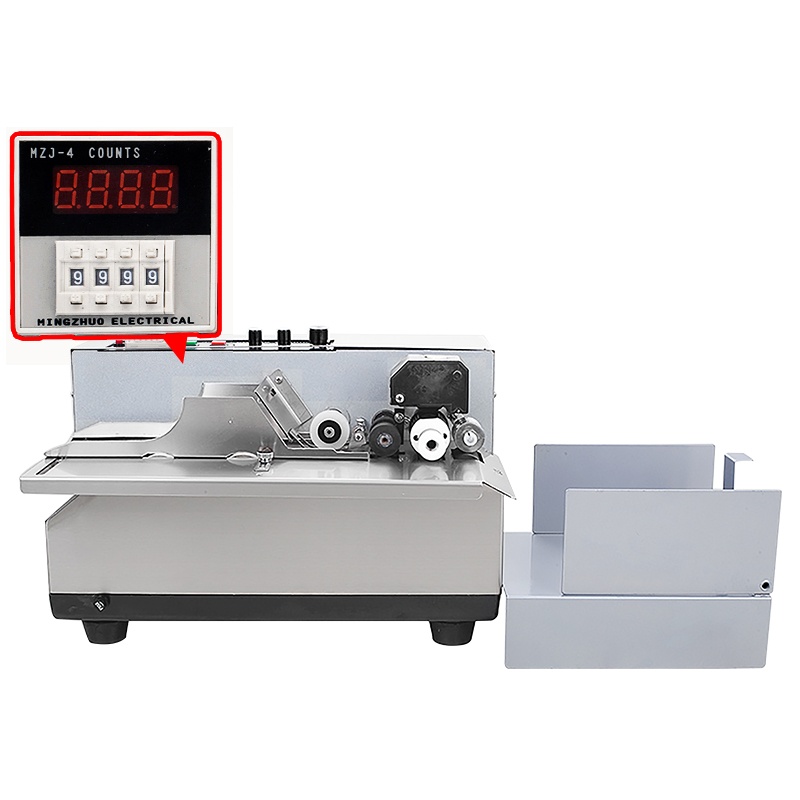

• Adopt photoelectric mechanism technology, automatic temperature control, auto counting, adjustable print position.

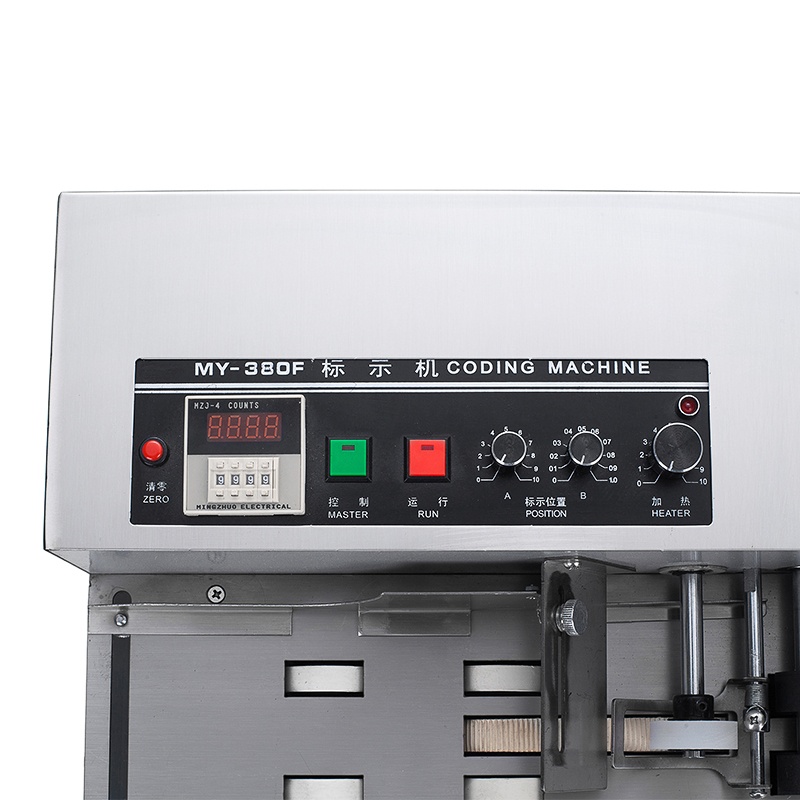

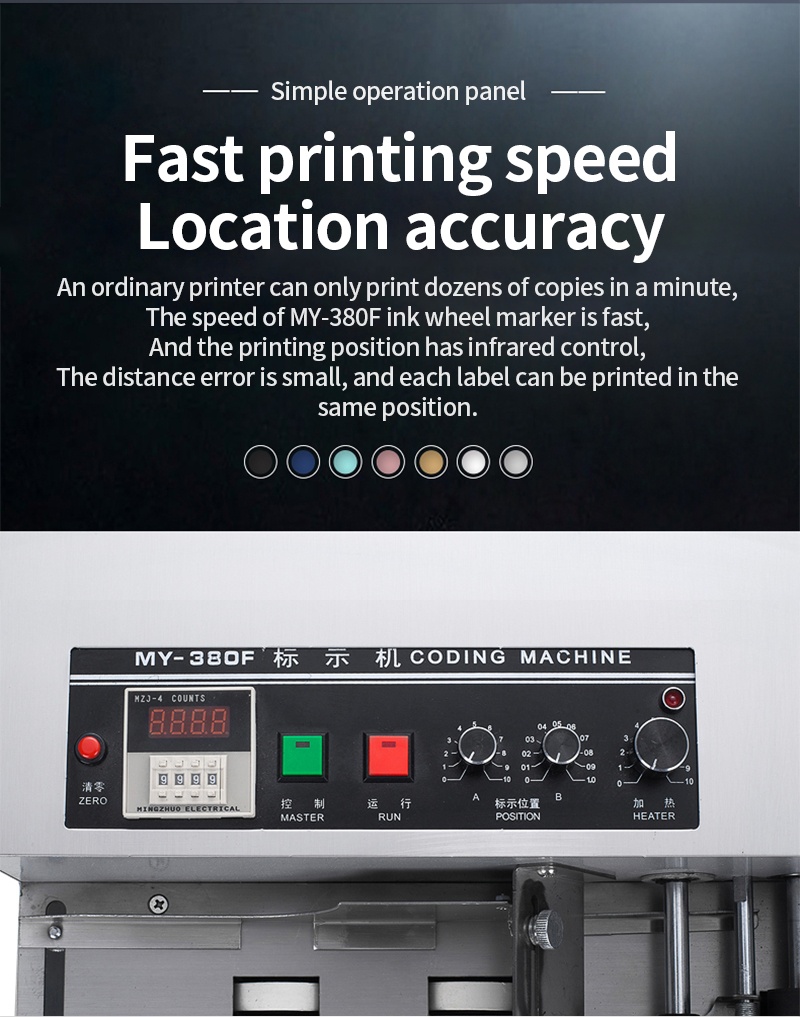

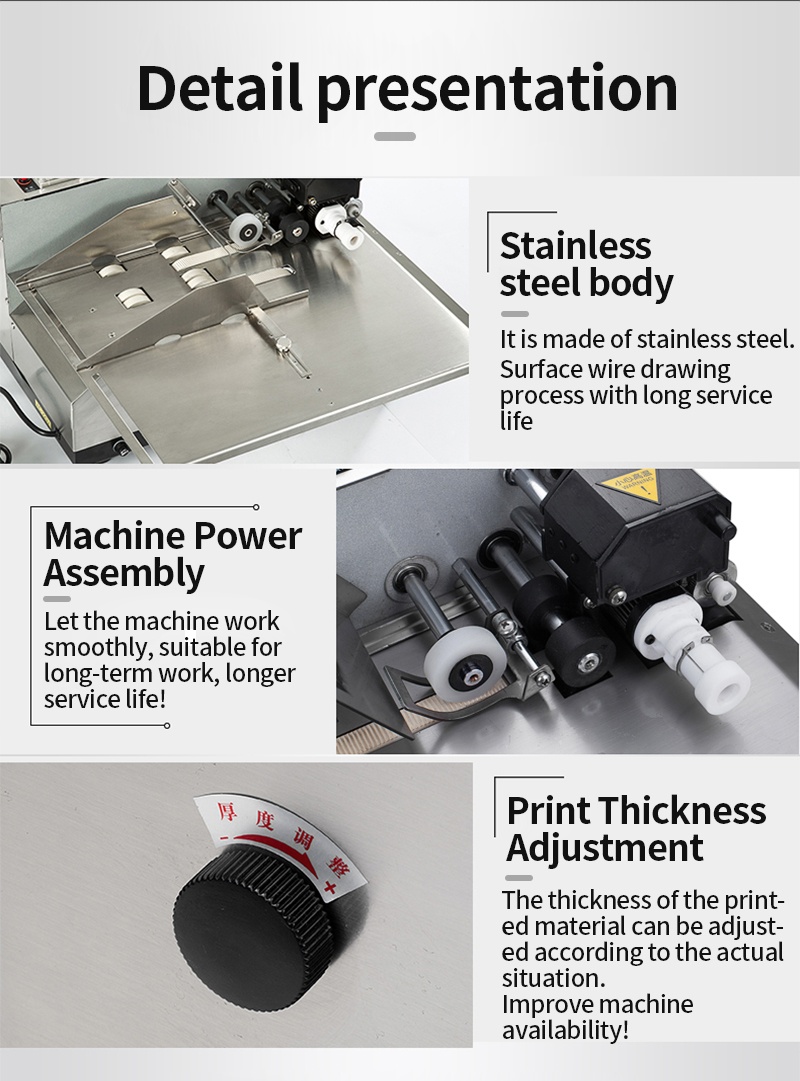

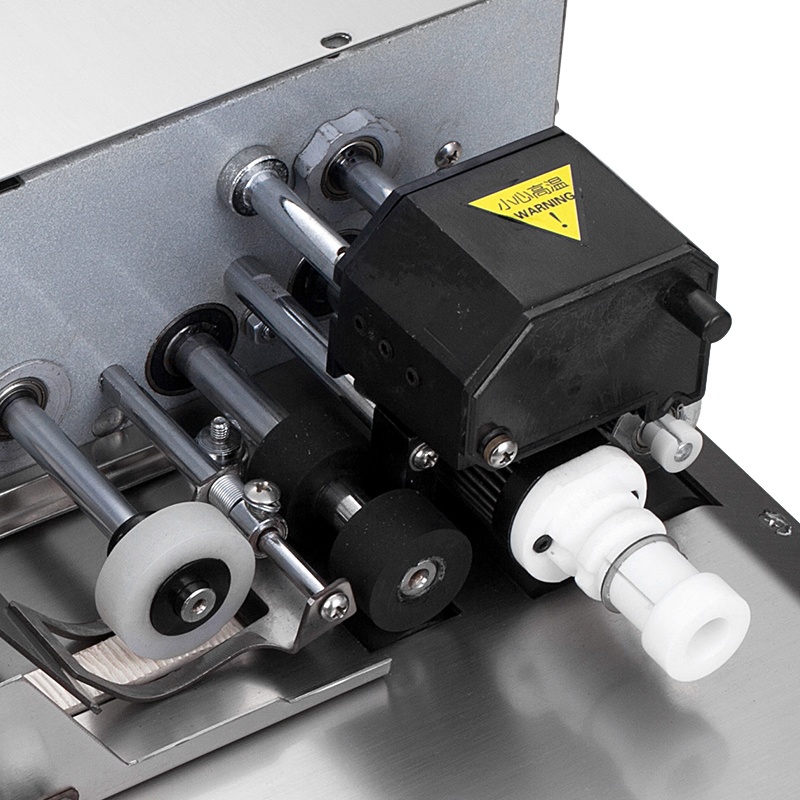

• The printing position can be adjusted by rotating the knob, easy to operate.
• Work efficiently and automatically at high speed, up to 30pcs per minute.
• The thickness can be adjusted as needed, making it suitable for products of different thickness.
• With the function of paging and printing date at one machine, saving labor cost and improving efficiency.

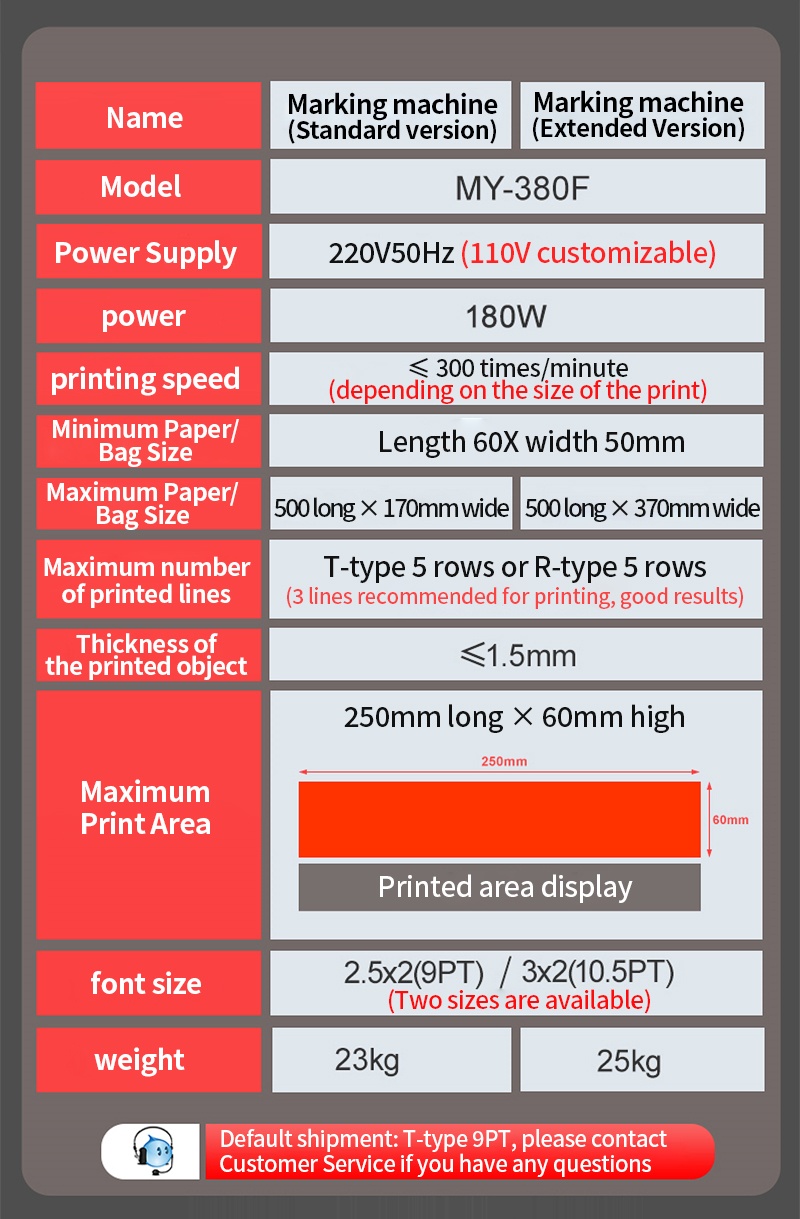

Parameter
|
Machine Model |

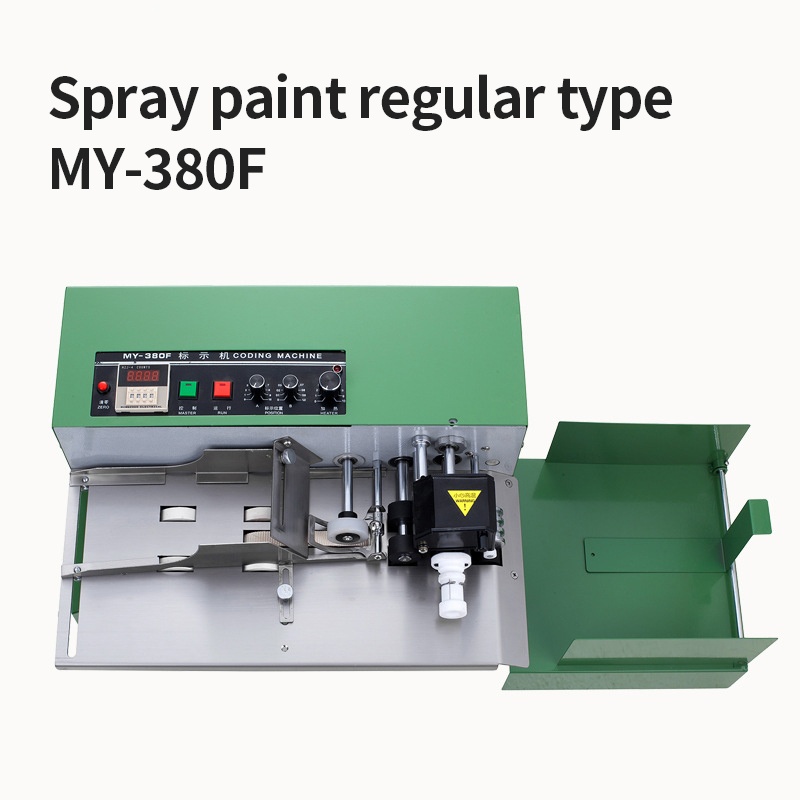

MY-380F |

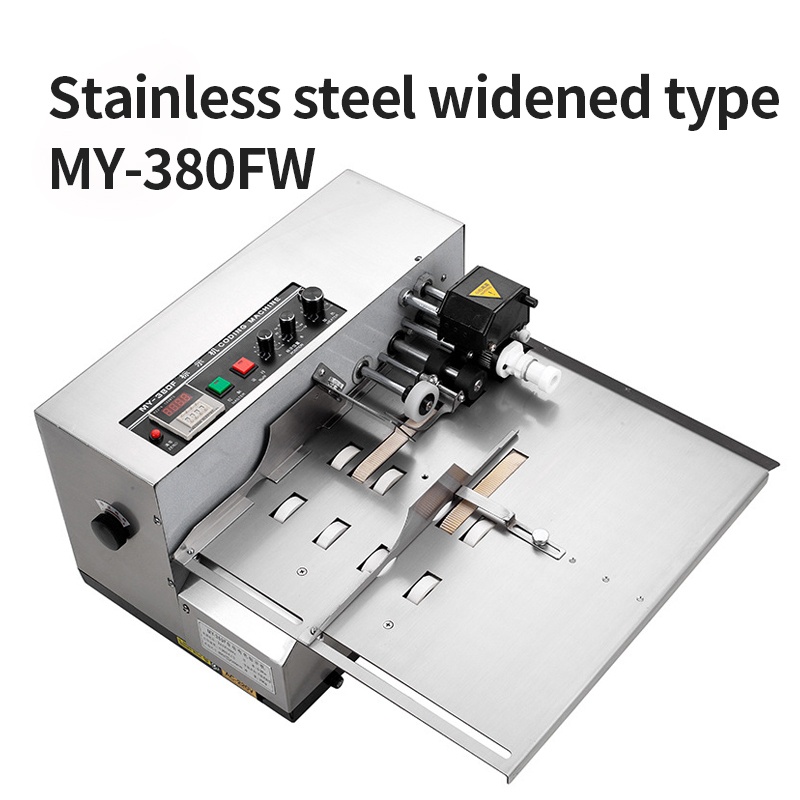

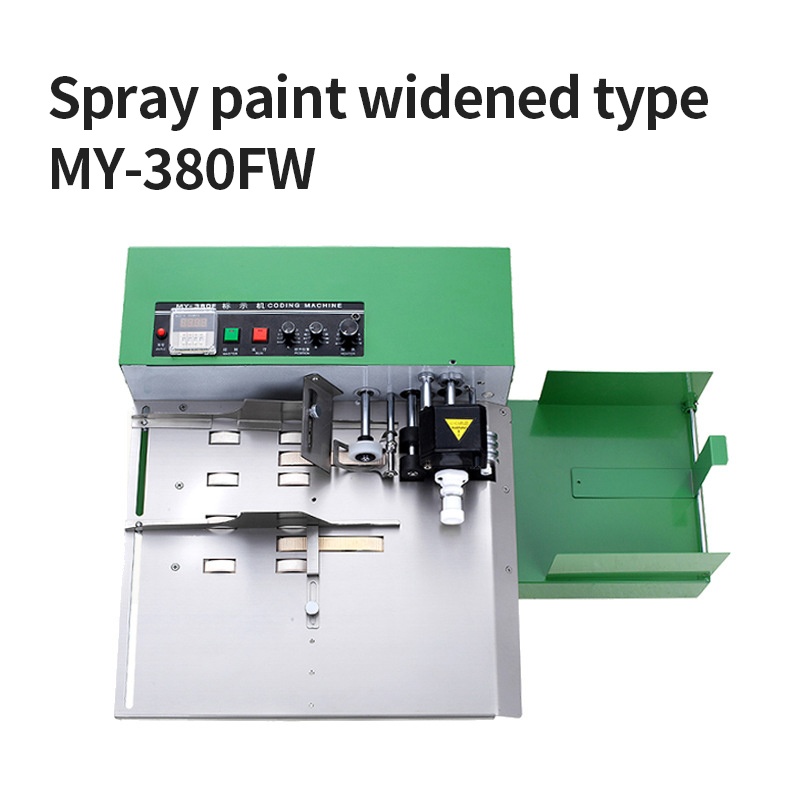

MY-380FW |
|
Feature |
Standard |
Wider Type |
|
Voltage |
AC 220V/110V 50-60Hz |
|
|
Power |
180W |
|
|

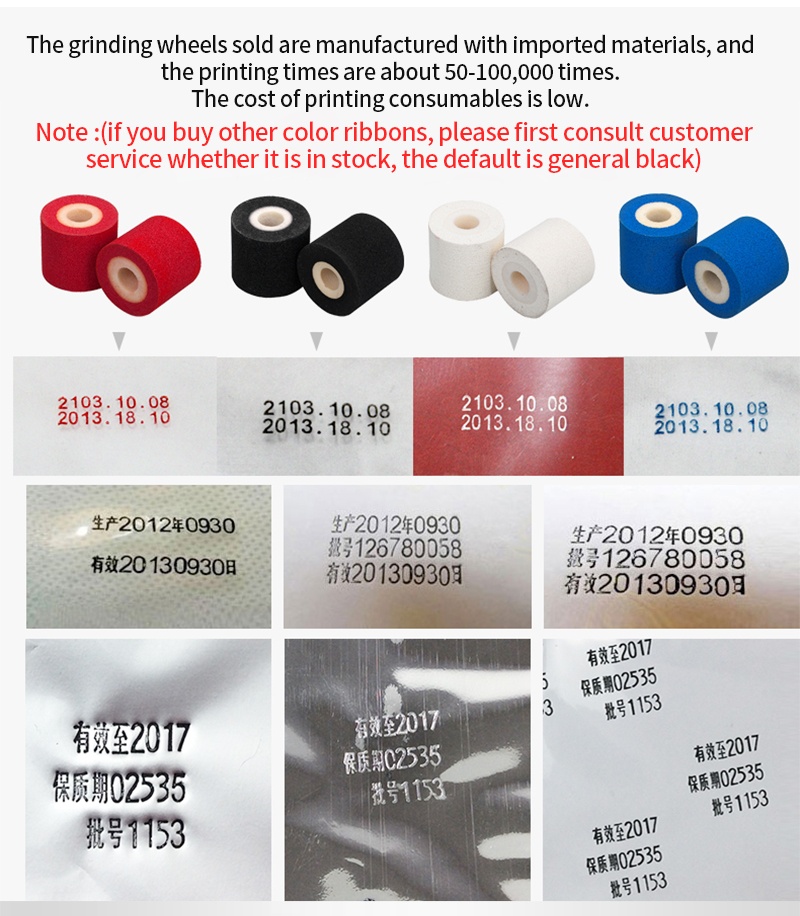

Solid InkRollSize(OD*H) |
φ36×32MM(default),φ36*16MM,φ36*32MM,φ36*36MM,φ36*40MM |
|
|
ApplicableFont Size |

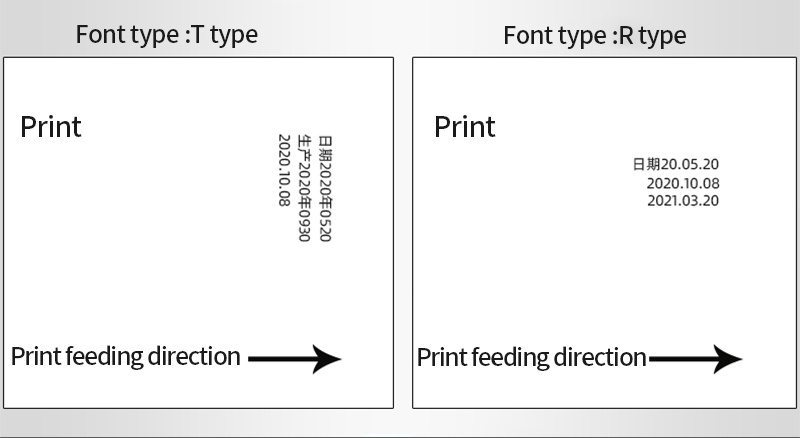

2*3.5*6.8mm(T, default)3*3.5*6.8mm(T) |
|
|
Attention |
Pleaseremarkwhich ink roll and letters you want in the order, or we’ll ship the defaulted one.(One machine is only with one type of letters and ink roll) |
|
|
Working Speed |
12.5m/min |
|
|
Printing Speed |
≤300 times/min |
|
|
Printing Lines |
Max 11 Lines, 15pcs letters(based on2*3.5*6.8mm) |
|
|
Minimum Product Size(L*W) |
55*30MM |
50*30MM |
|
Maximum Product Size(L*W) |
500*190MM |
500*300MM |
|
Product’s Thickness |
10-25MM |
|
|
Print Position |
Unilateral 60-250mm |
|
|
Font |
Number 0-9, E,X,P,M,F,D,L,O,T |
|
|
Machine Size |
440*365*260mm |
440*465*300mm |
|
Machine Weight |
22kg |
24kg |
|
Package Size |
510*410*340mm |
560*510*340mm |
|
Package Weight |
23kg |
25kg |
Notice
STANDARD MACHINE is 220V, if you need 110V. PLS contact to us or leave message, or we will ship 220V in Euro Plug Directly. Thank you!
Please note that t
he standard configuration is not a complete set of fonts. If you need a complete set of fonts, you need to purchase additional, please click this PICTURE to purchase,Thank you
Thanks for your order!

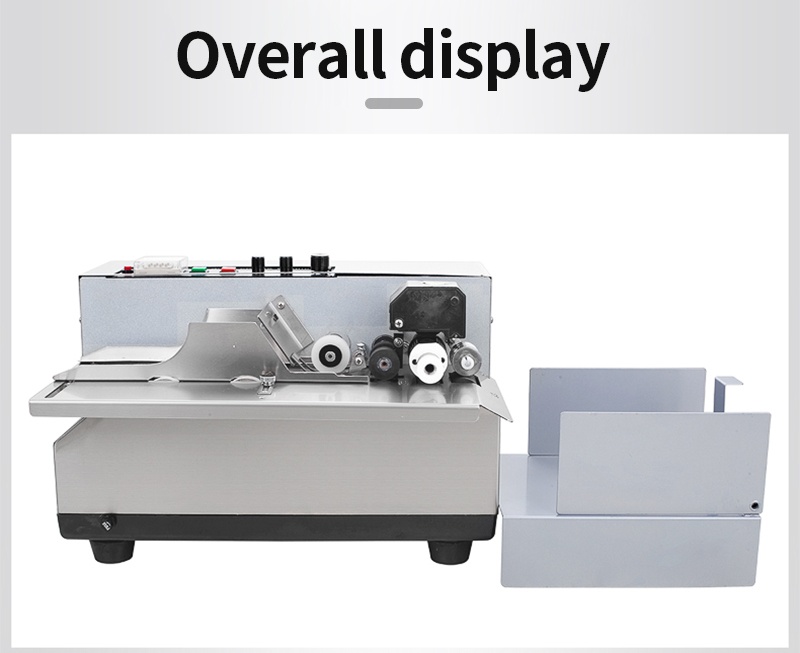

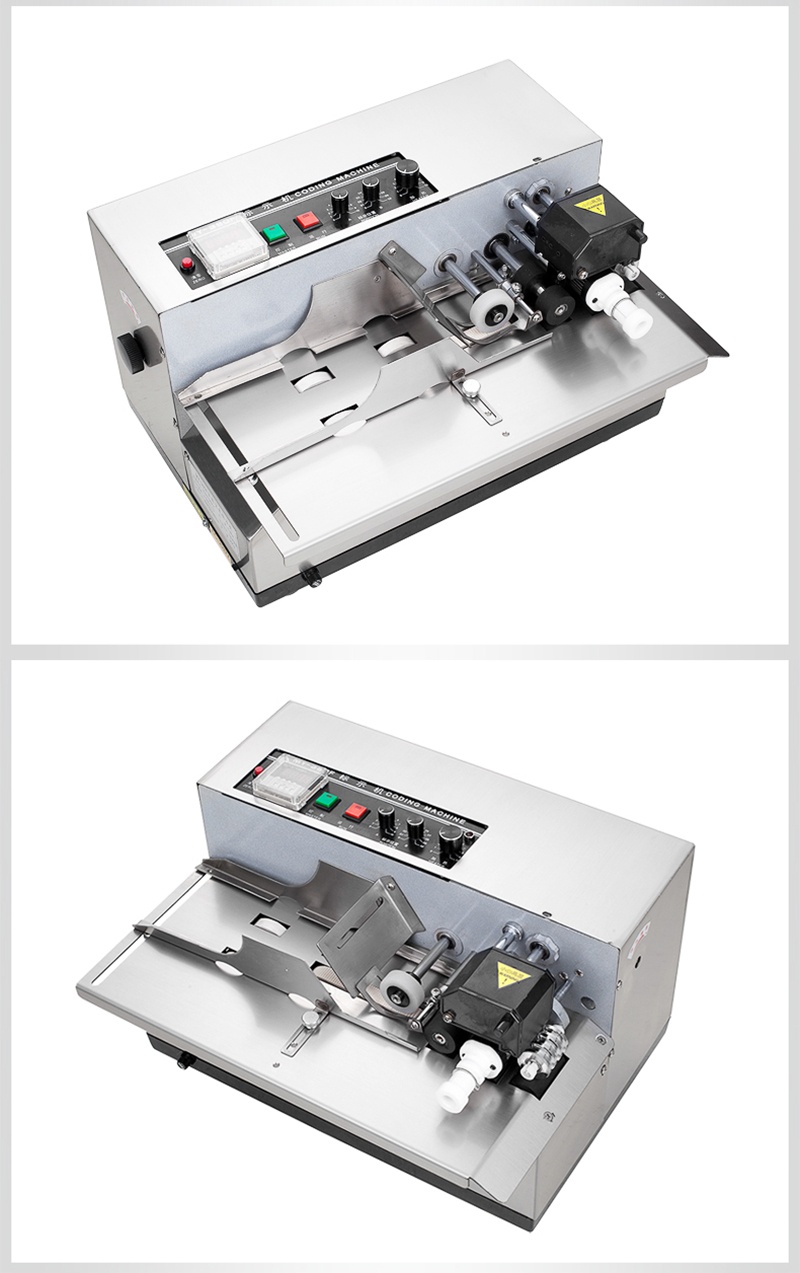

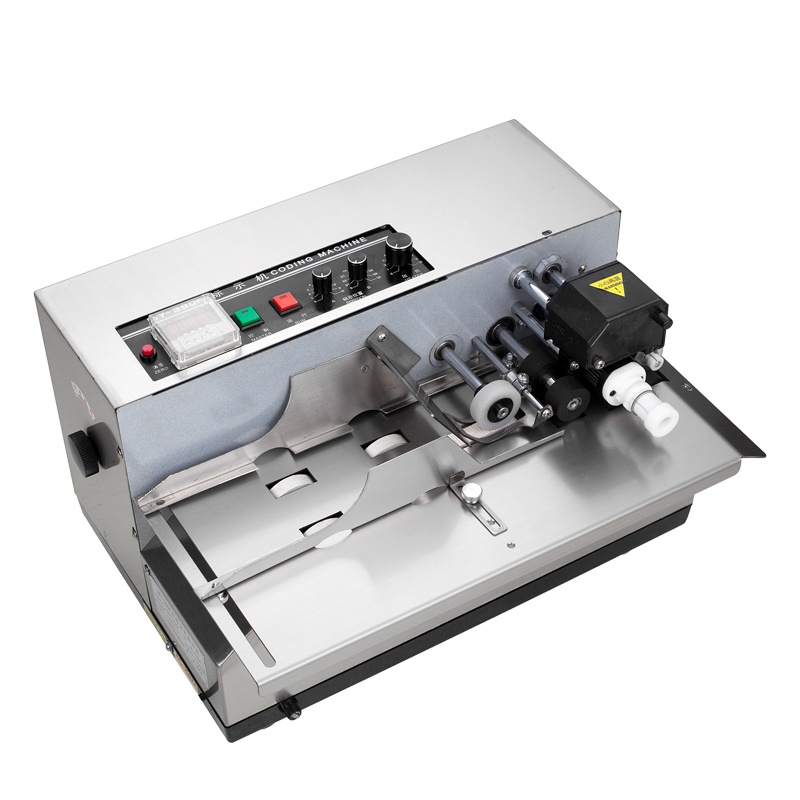

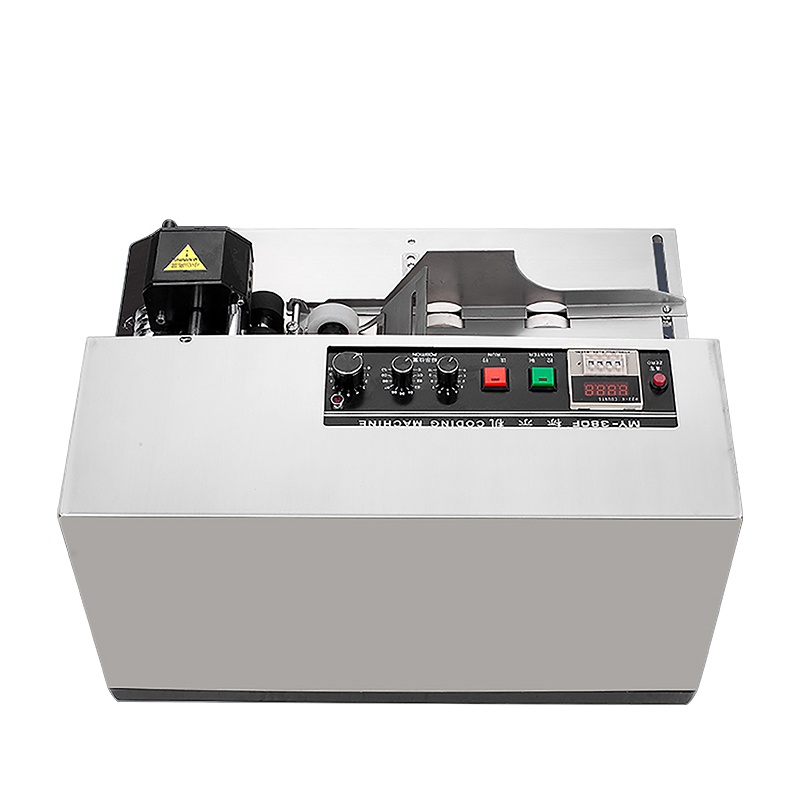

Product Pictures
