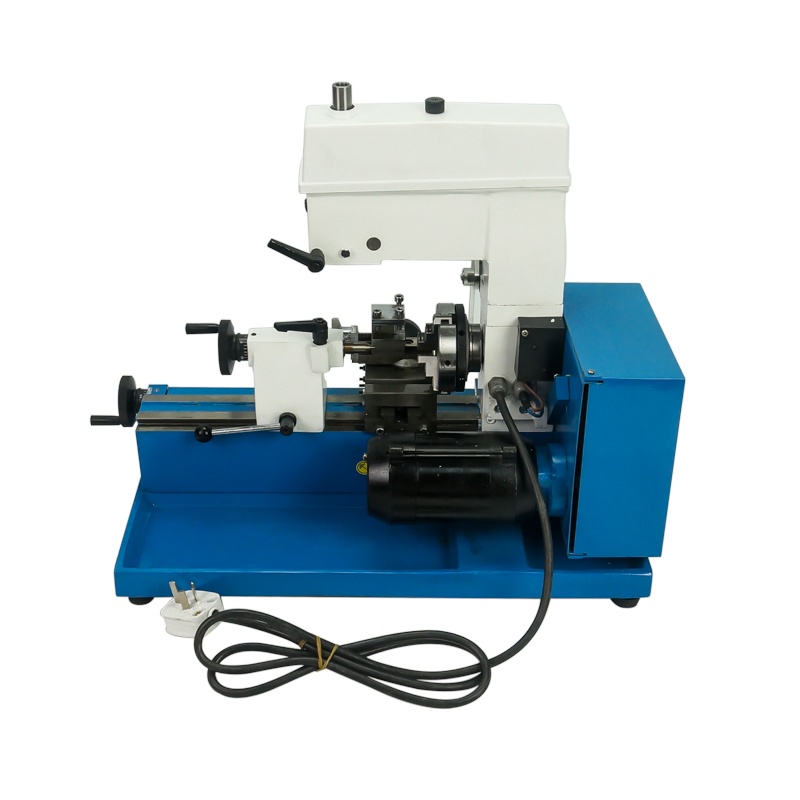

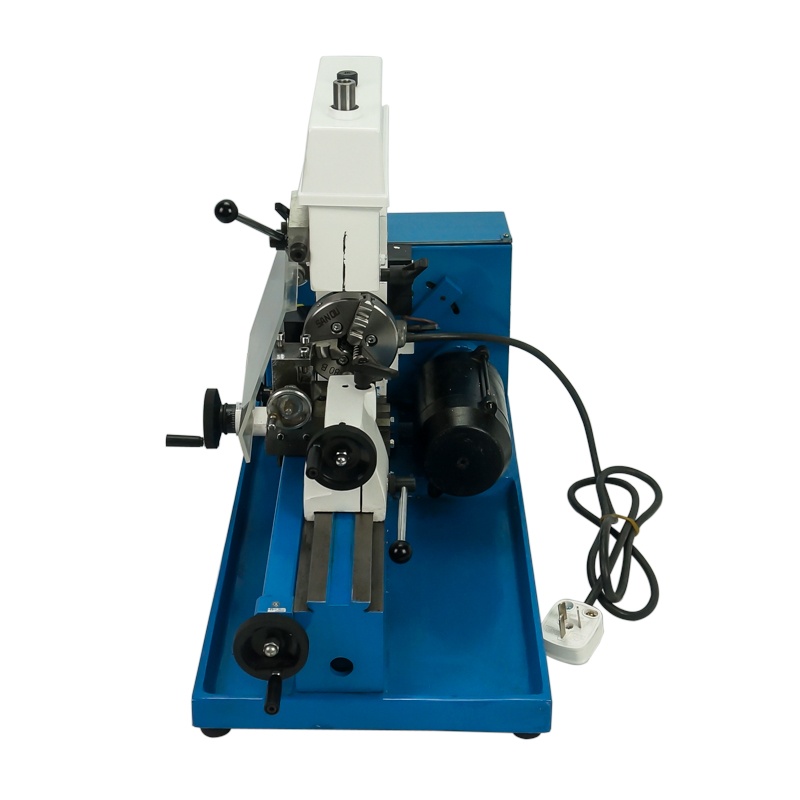

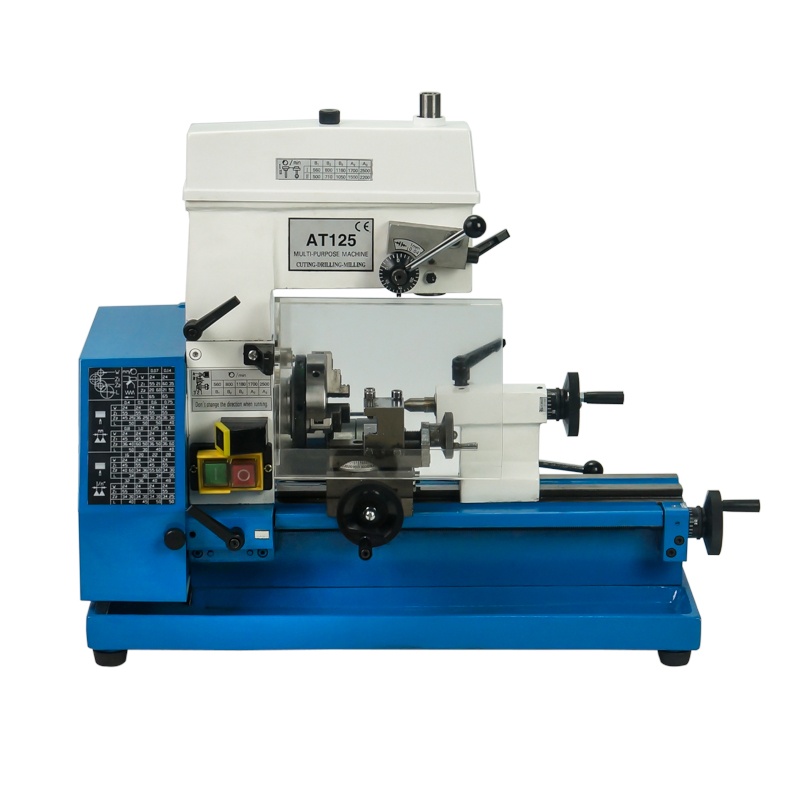

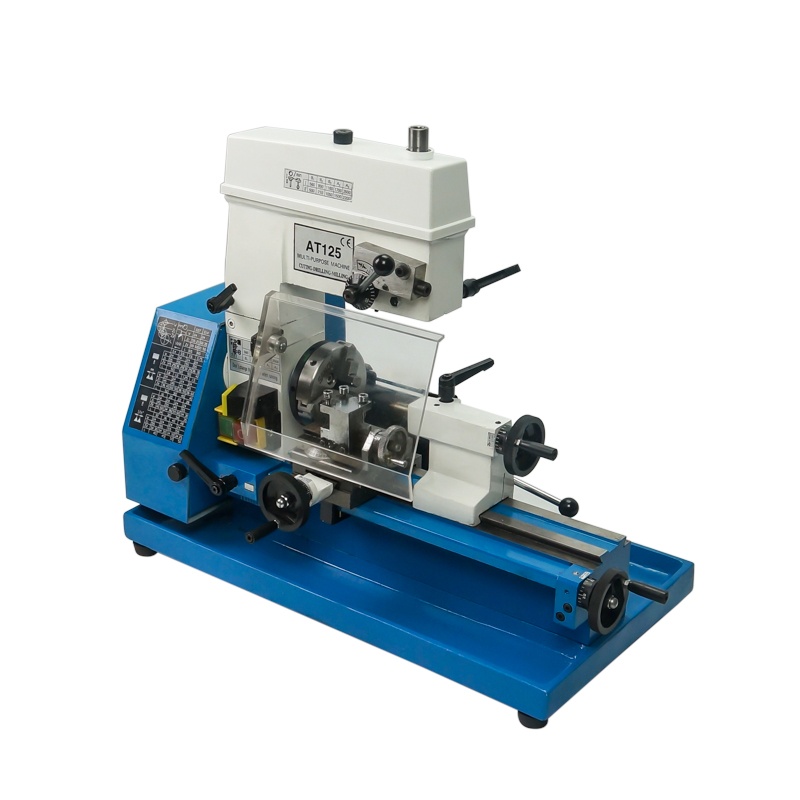

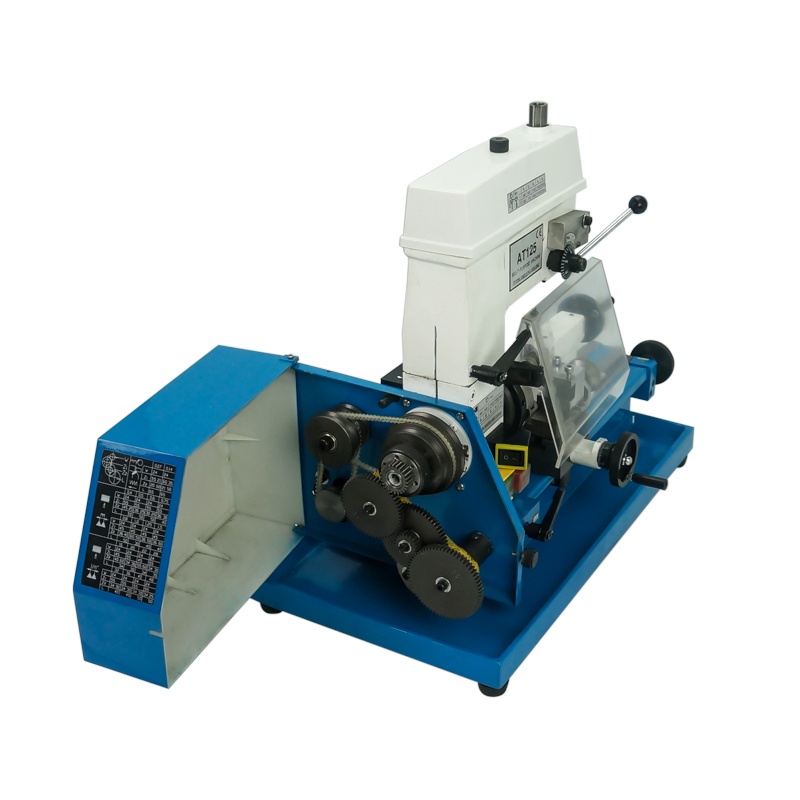

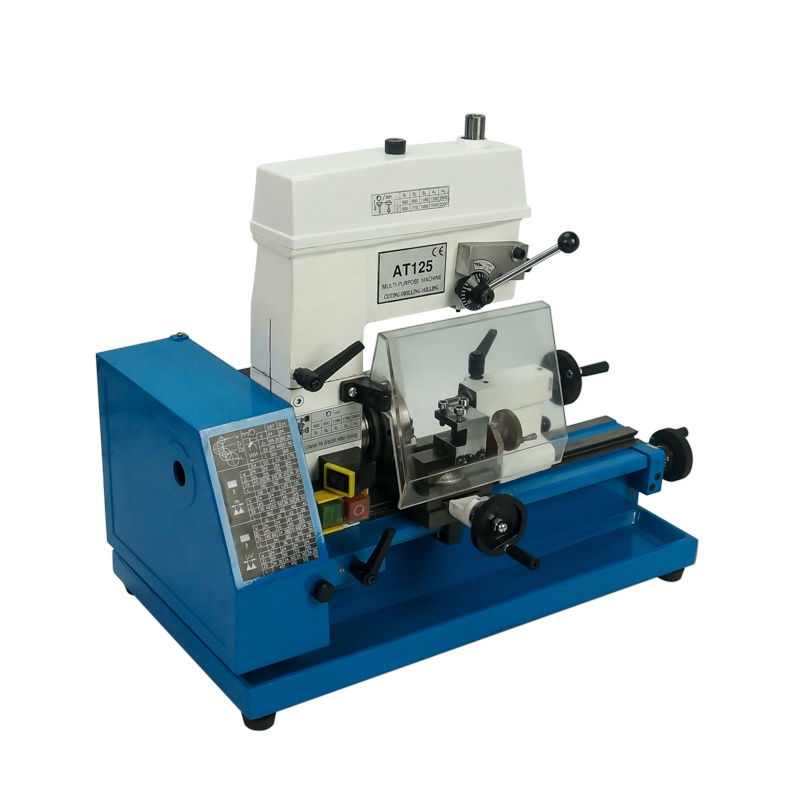

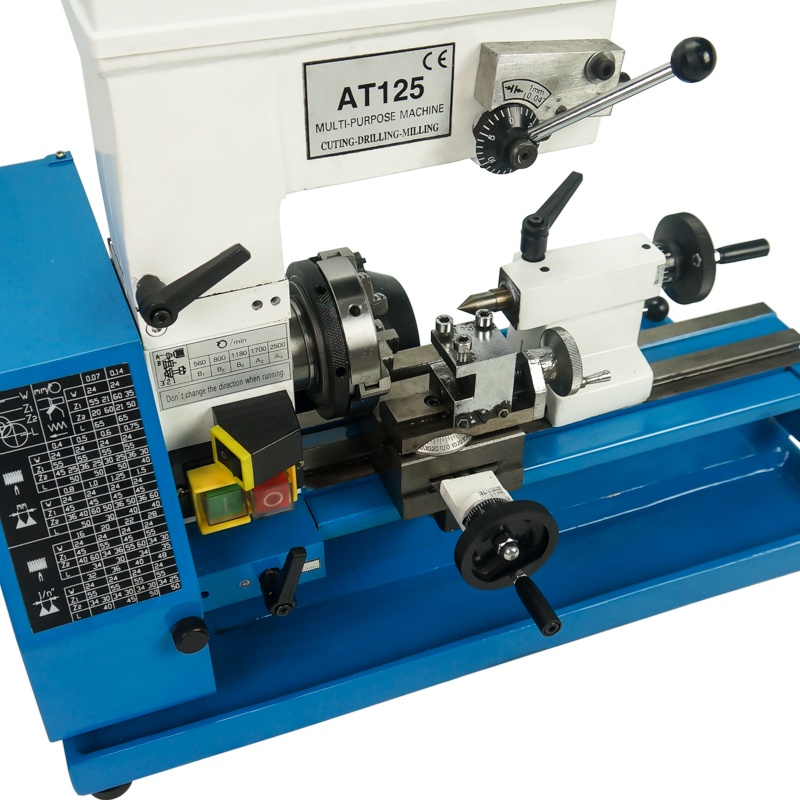

Household milling small lathe machine tool bench Multifunction AT125 Bench drilling machine tool

Description:

AT125 Hot sale Household milling small lathe machine tool bench Multifunction Bench drilling machine tool

Specification:

Turning: AT125

Body Maximum workpiece swing diameter: 125MM

Maximum workpiece length: 180MM

On the turret swing diameter: 60MM

Spindle through-hole diameter: 9MM

Spindle bore Morse taper: MT 1

Machining metric thread species 8

Machining metric thread pitch 0.8-1.5MM

Inch thread machining 8 species

Processing Inch thread pitch 16-48 1 / n “

Per spindle revolution turret longitudinal feed rate 0.07-0.14MM

The maximum amount of movement of the tailstock sleeve 18MM

Hole in the tailstock Morse taper MT 1

5 spindle speeds

Spindle speed range 560-2500r / min

Drilling Milling

Maximum drilling diameter 6MM

Spindle nose to table distance 120-180MM

Spindle axis to column surface distance 125MM

Drill Head box around the column rotation angle 360

Spindle speeds 10

Spindle speed range 500-2500

Working table size 85 * 60MM

Drilling and milling spindle Morse taper MT 1

Quill movement amount 40MM

Motor 180W

Weight 22KG

Dimensions 520 * 300 * 410MM

Feature:

1.Working material: wood, and engineering plastic ,soft metal etc.  Machine color is made up of red and black. Motor blade and gear are made of metal.

Technical parameters:

1.Motor speed :20,000rpm/min

2.Input voltage/current/power:12VDC/2A/24W

3.Maximum working material diameter:20mm

4.Working material length:135mm

5. The transformer has over-current protection, over-voltage protection, over heating protection.

Certificate Transformer passed: CE,UL
