LY 3360 UV Double full automatic flatbed Photo UV DTG Inkjet printer machine USB infrared ray measure max work size 330X600mm 2880 DPI printing height 180mm 220V 110V

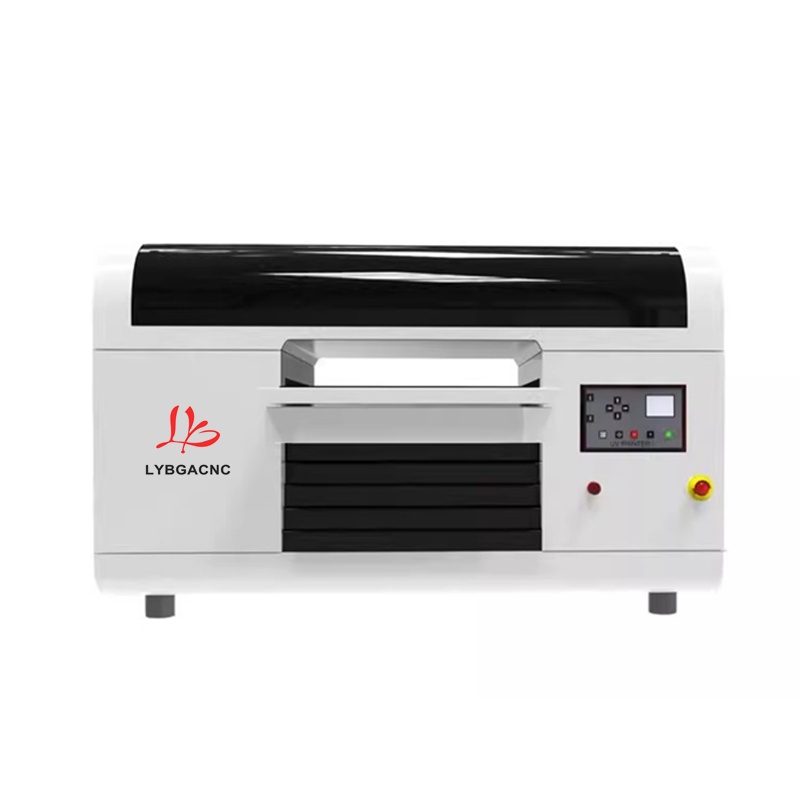

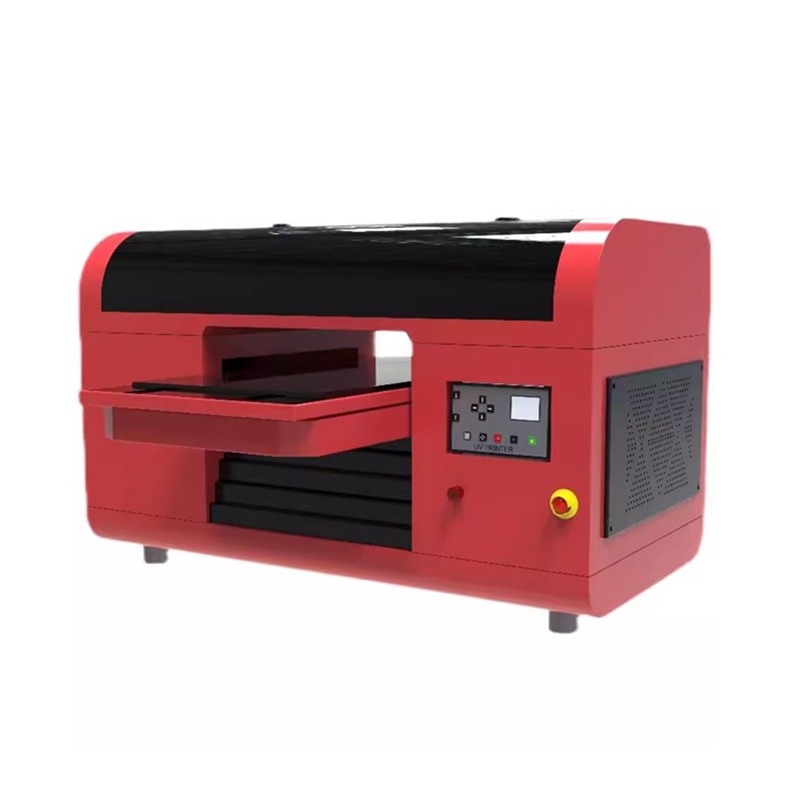

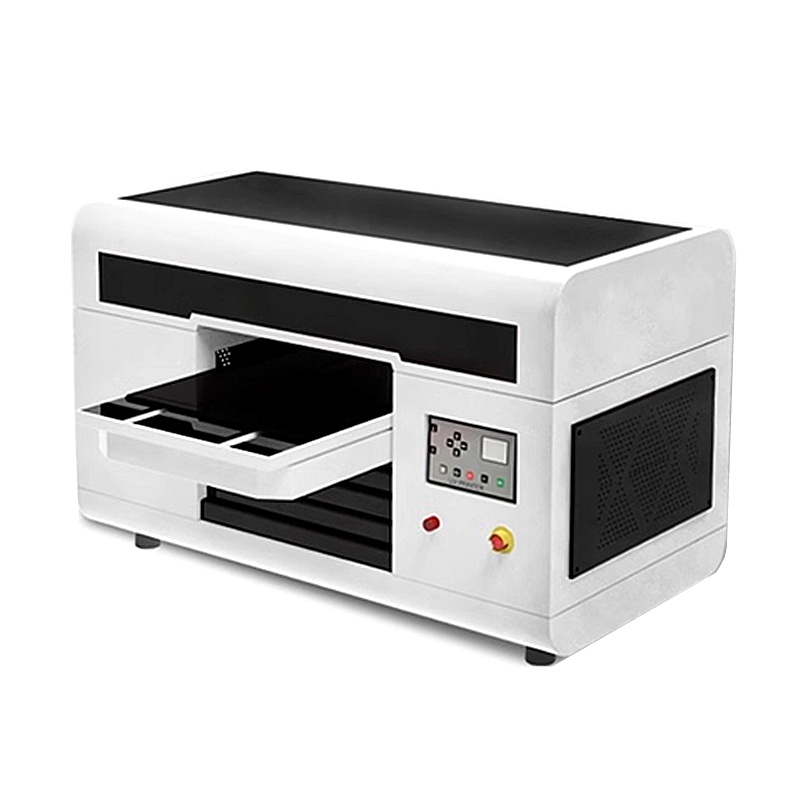

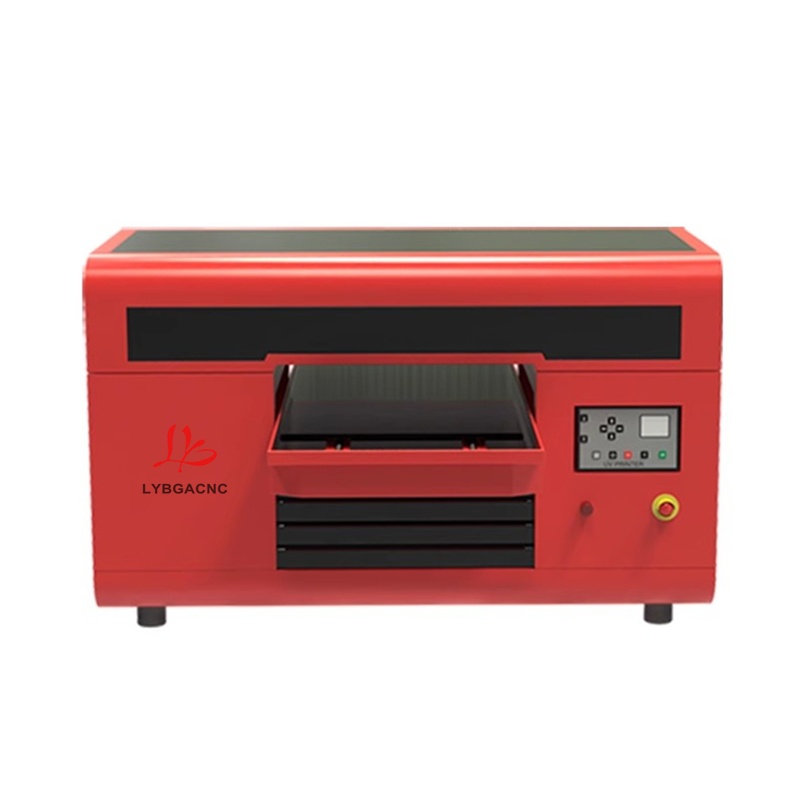

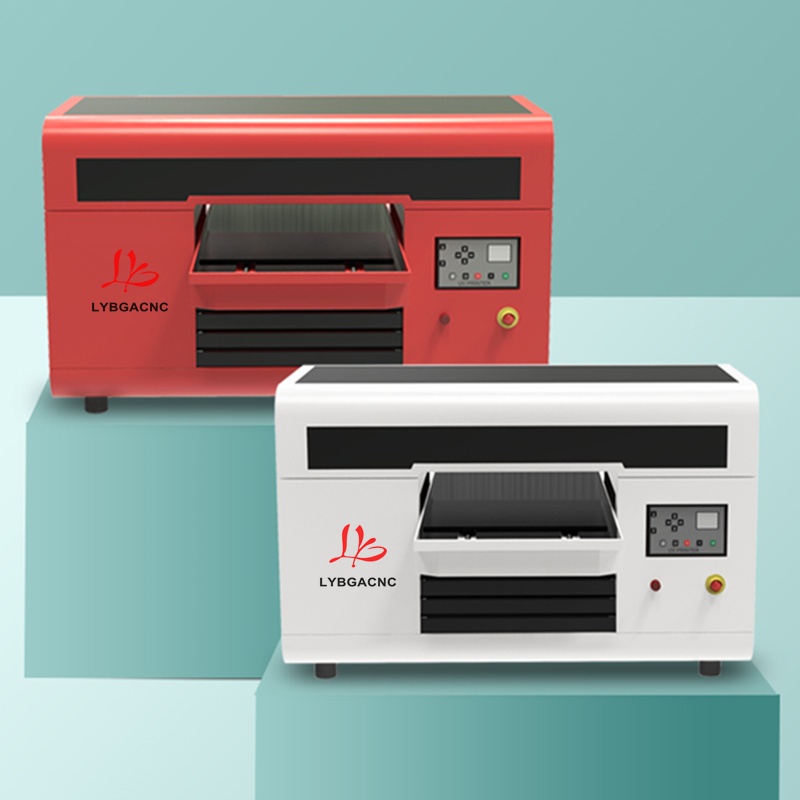

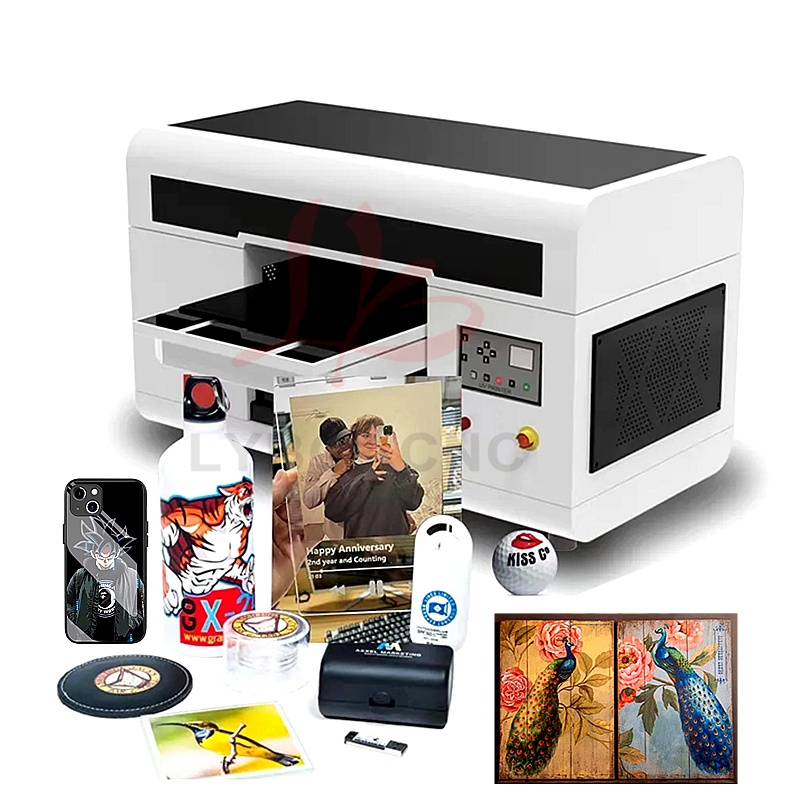

3360 UV flatbed printer is the ideal solution for DIY Customied printing on the products, which is a multi-functional LED UV flatbed printer
that created by LY and was built with industrial configuration as thicken aluminum profile, Water circulating cooling system.

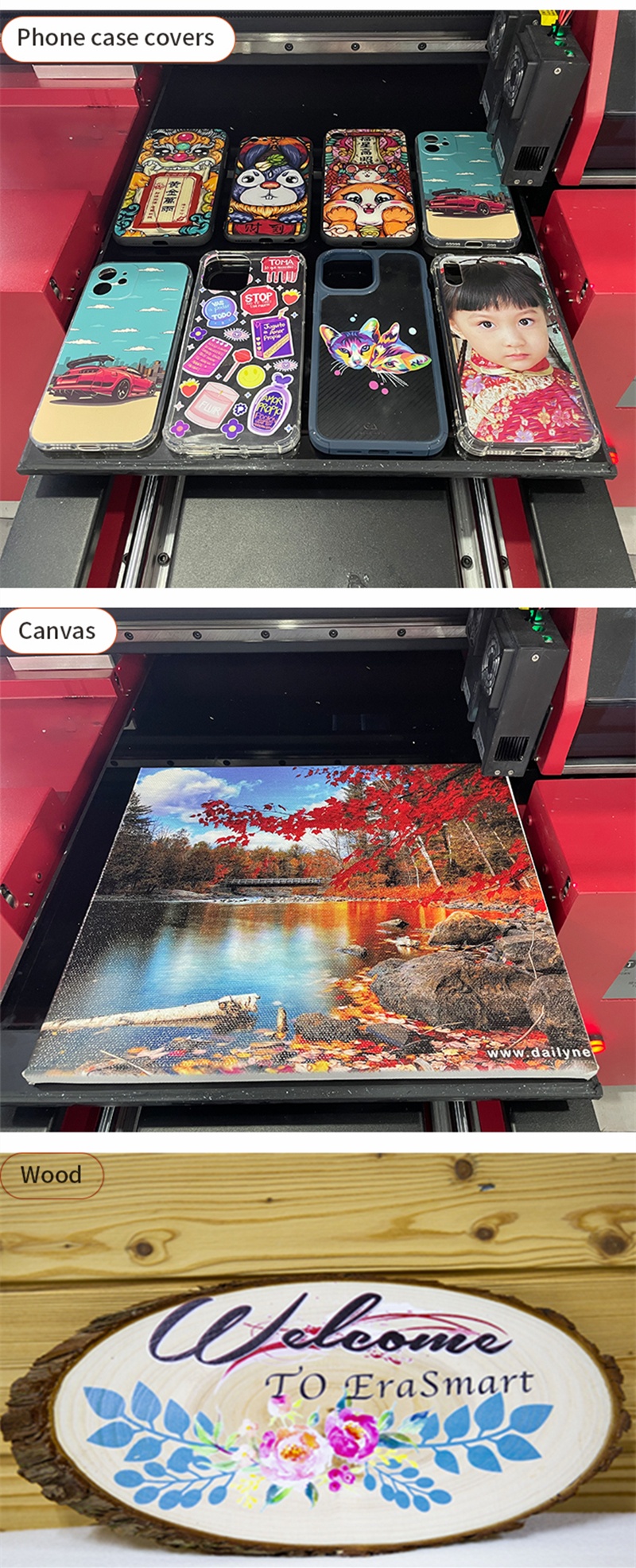

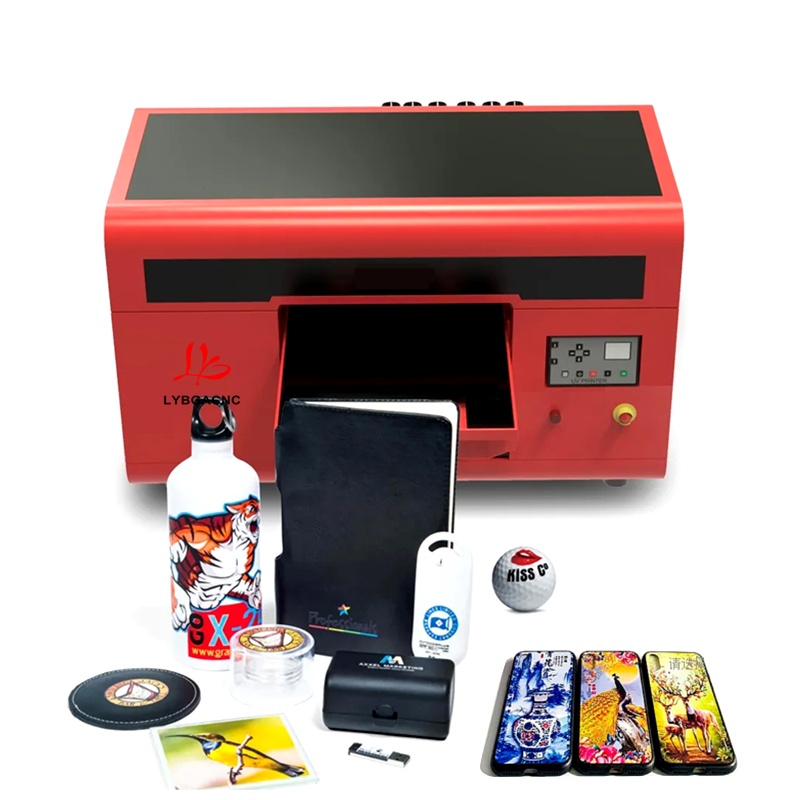

Automatic detect UV curing system, 6 colors and max 2880 dpi printing resolution. Can print on all kinds of surfaces, available in 3D textured and raised printing, suitable for printing on both rigid and flexible material, like phone cases, metal ( aluminum, copper etc ), alloys, mirror, gifts packaging (wood, carbon paper, metal), tablet cover, USB sticks, DVD disc, industry signs, badge, plastic card, PVC, glass, wood, paper etc.
Main Features:
1-Easy Operation: Unique lateral loading platform design, Control on Demand system.
2-Maximize your productivity: Unidirection / Bidirection.

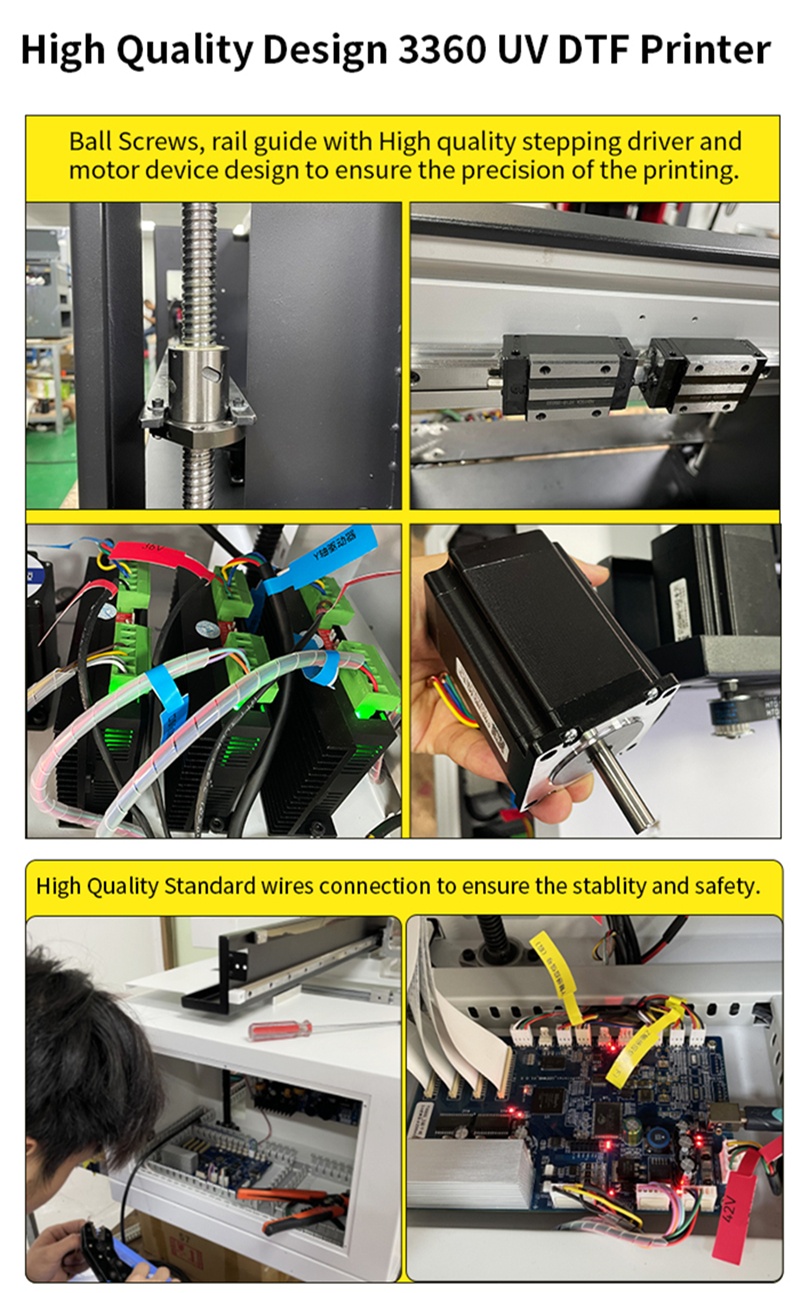

3-High Printing Precision: Automatic detect the X (carriage), Y (flatbed) motion pulse and send back the real motion data to the main-board for interpolating. Combine with the closed-loop structure circuit design to enhance the stability of the system and ensure the flatbed printing with one pass printing precision and repeat printing precision.
4-High Resolution Printing:
a. High color density, Wide color gamut, Instant drying.
b. Excellent adhesion to both coated and uncoated media.
c. Superior scratch and alcohol resistance. 3 years outdoor durability.

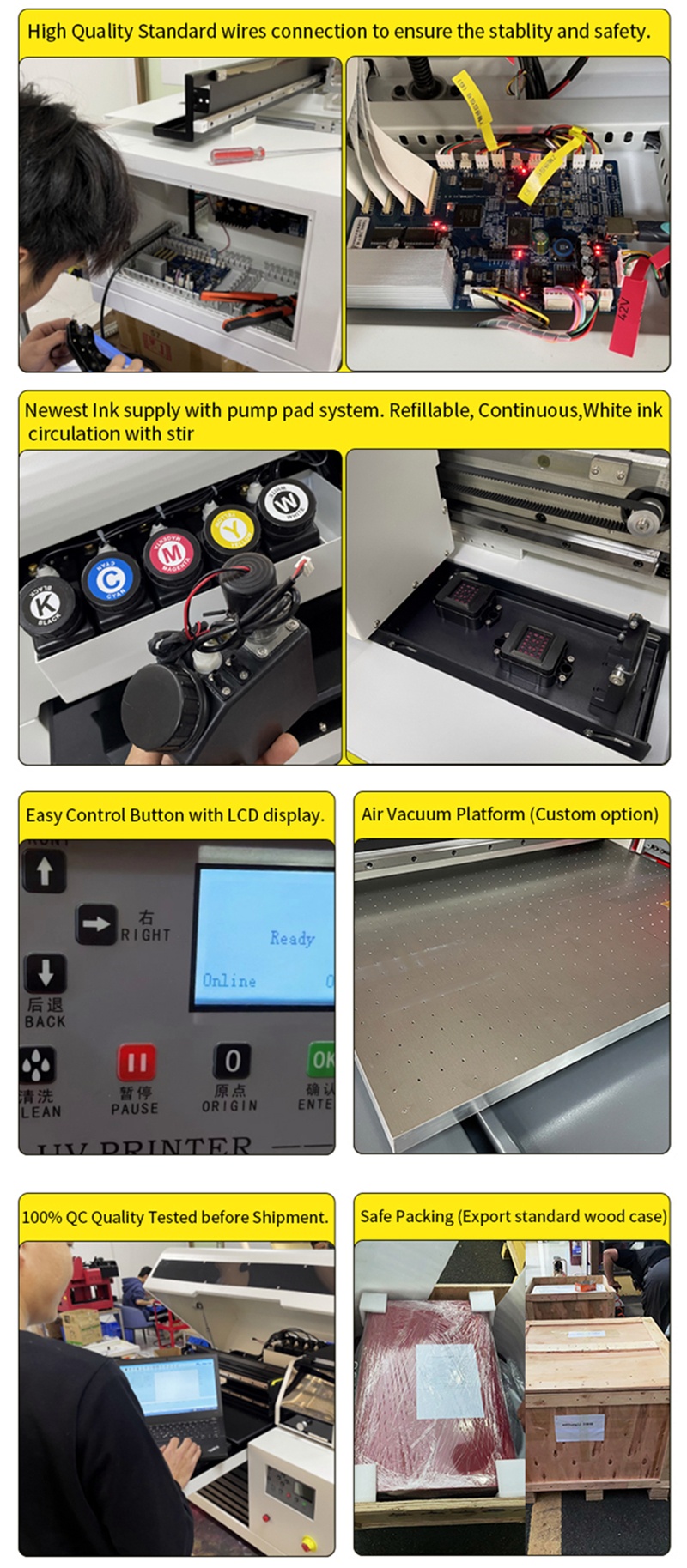

5-Maintenance simplified:

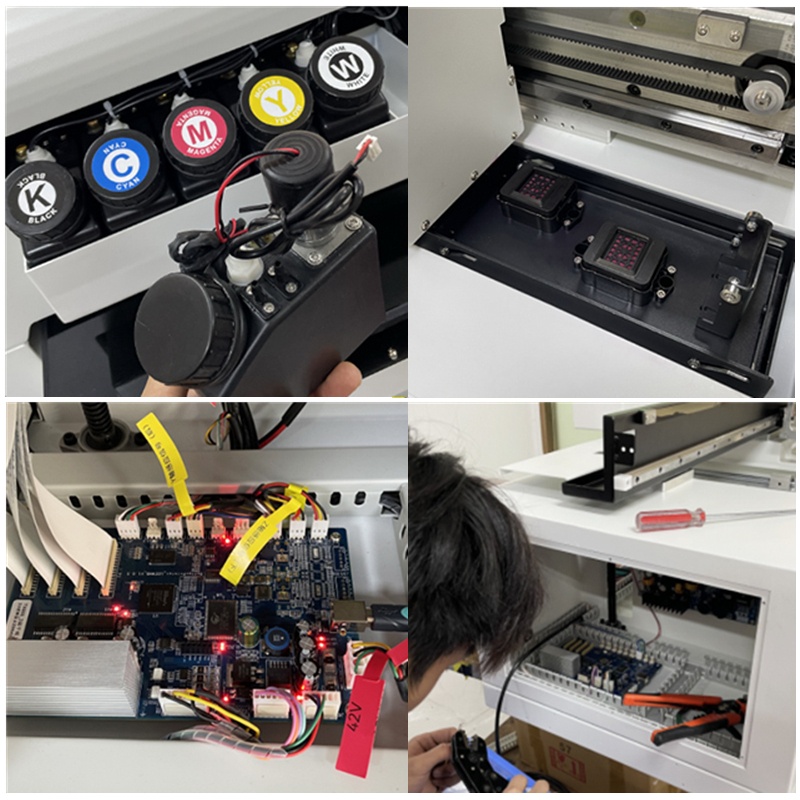

a. Accessible electronic, Components in on integrated compartment
b. Easily accessible ink system from maintenance.
Specifications:
| Printer Model | LY-3360UV Double Printer |
| Print head | 2* EPSON TX800 Industrial Grade |
| Colors channels | CMYK+W W+ VARNISH |
| Resolution | 360/ 720/ 1440*2880dpi |
| Speed | 6-8pass 60-120 min/ Sqaure meter |

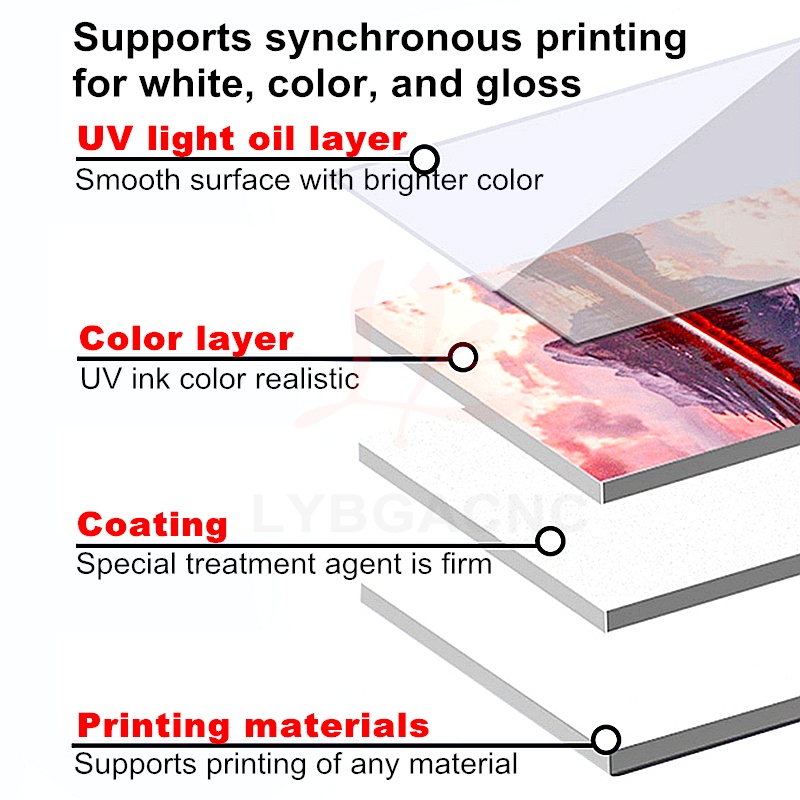

| Output | White or Colors, White+ colors, White+ colors +Varnish |
| Max print height | 0-180mm |
| Print size | 330*600MM |
| Precision | Reach 0.3mm |
| Software | Main TOP RIP |
| Port | USB2.0 |
| System | All windows system |
| Power | Max 500Wt |

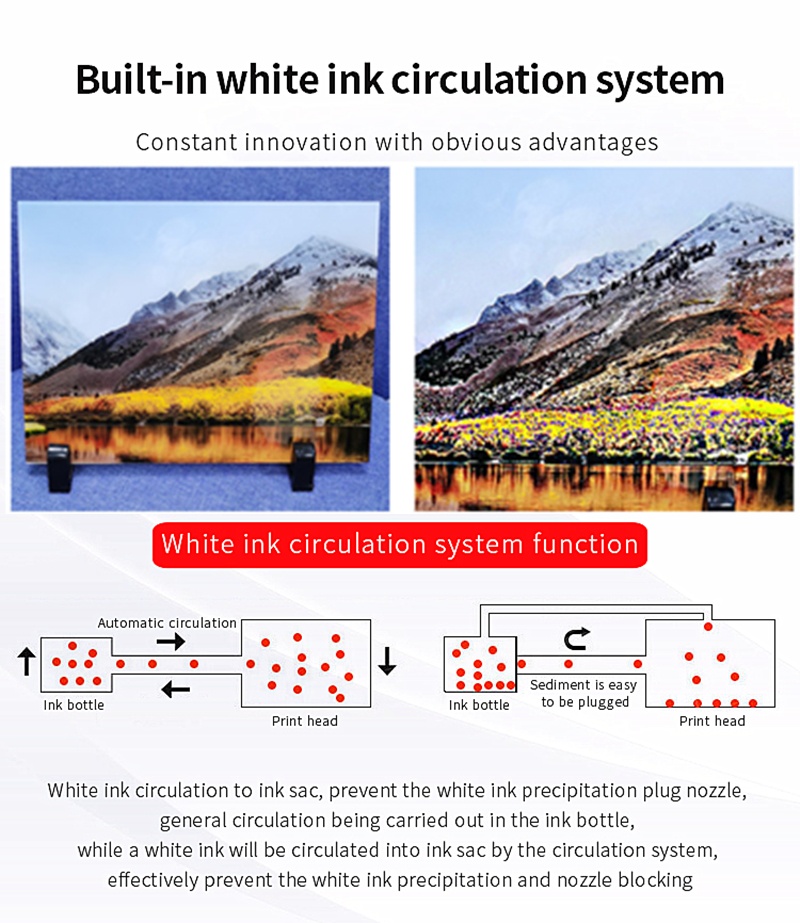

| Ink supply system | Continue ink supply+ circulation system |
| Net/Gross weight | 96kg / 125kg |
| Ink consumation | 10-15ml/ Square meter |
| Flash | Auto flash Jetting |
| UV LED power | 50Watt Long life UV LED curing system |
| Image form | TIFF/JPG/PNG/PDF |
| Work voltage | AC110V-220V/50-60HZ |
| Machine size | L900mm*W850mm*H600mm |
| Rotary printing | Support Rotary printing for bottles |
Packing List:
1* 3360 UV printer
1* rotary axis
1* Accessories tools
5* 250ML UV ink (C/M/Y/K/WT) [optional]
