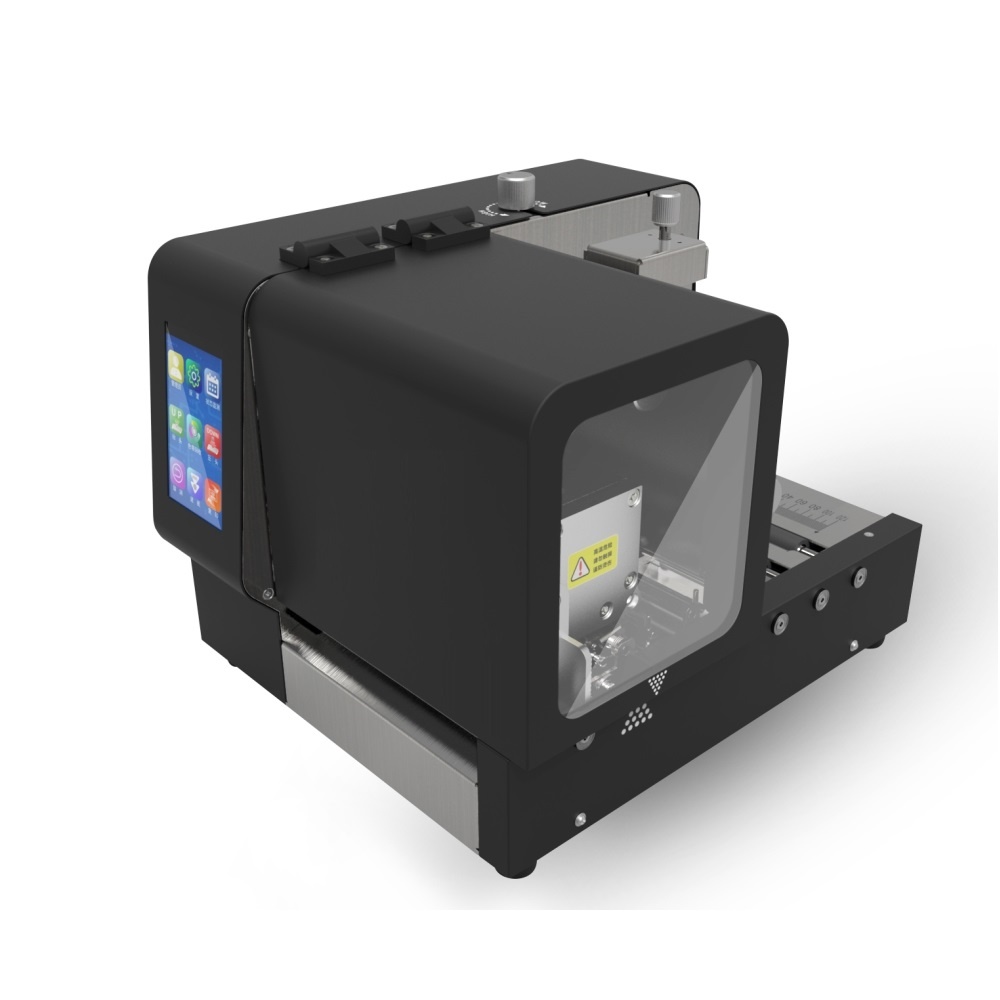

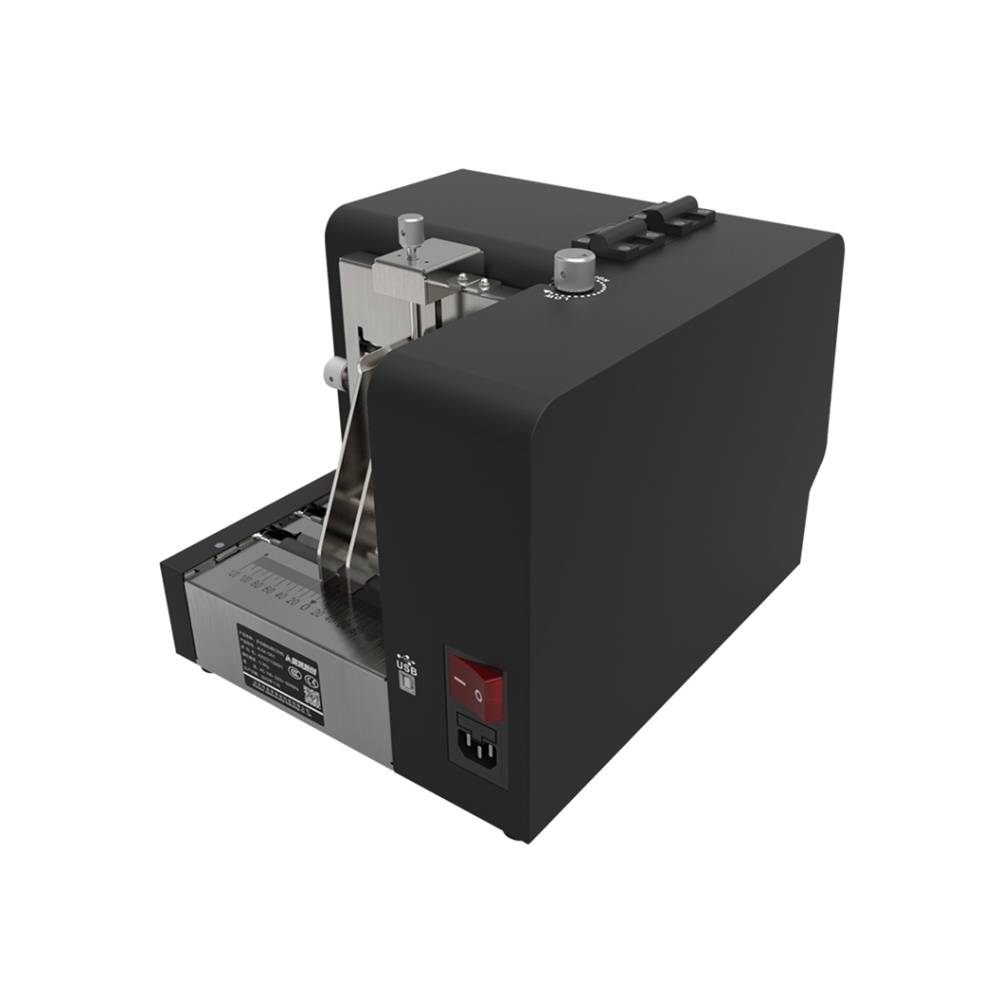

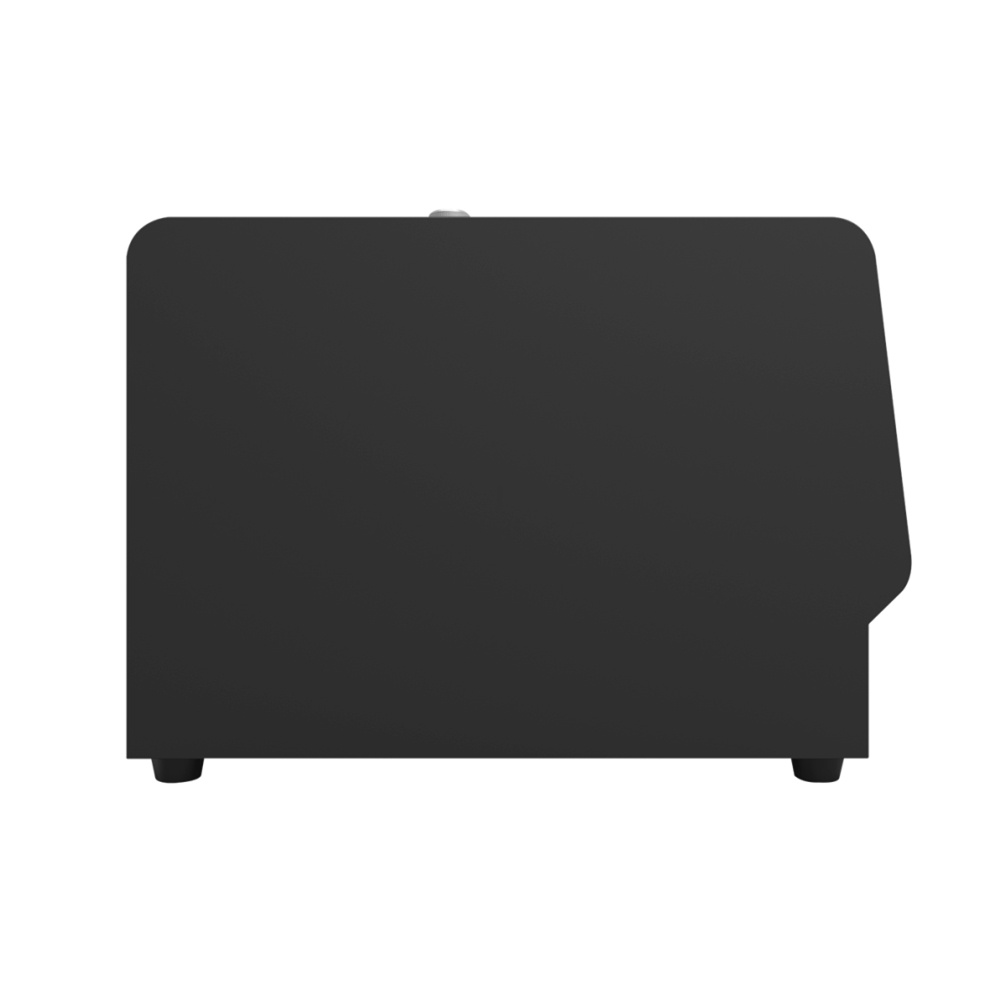

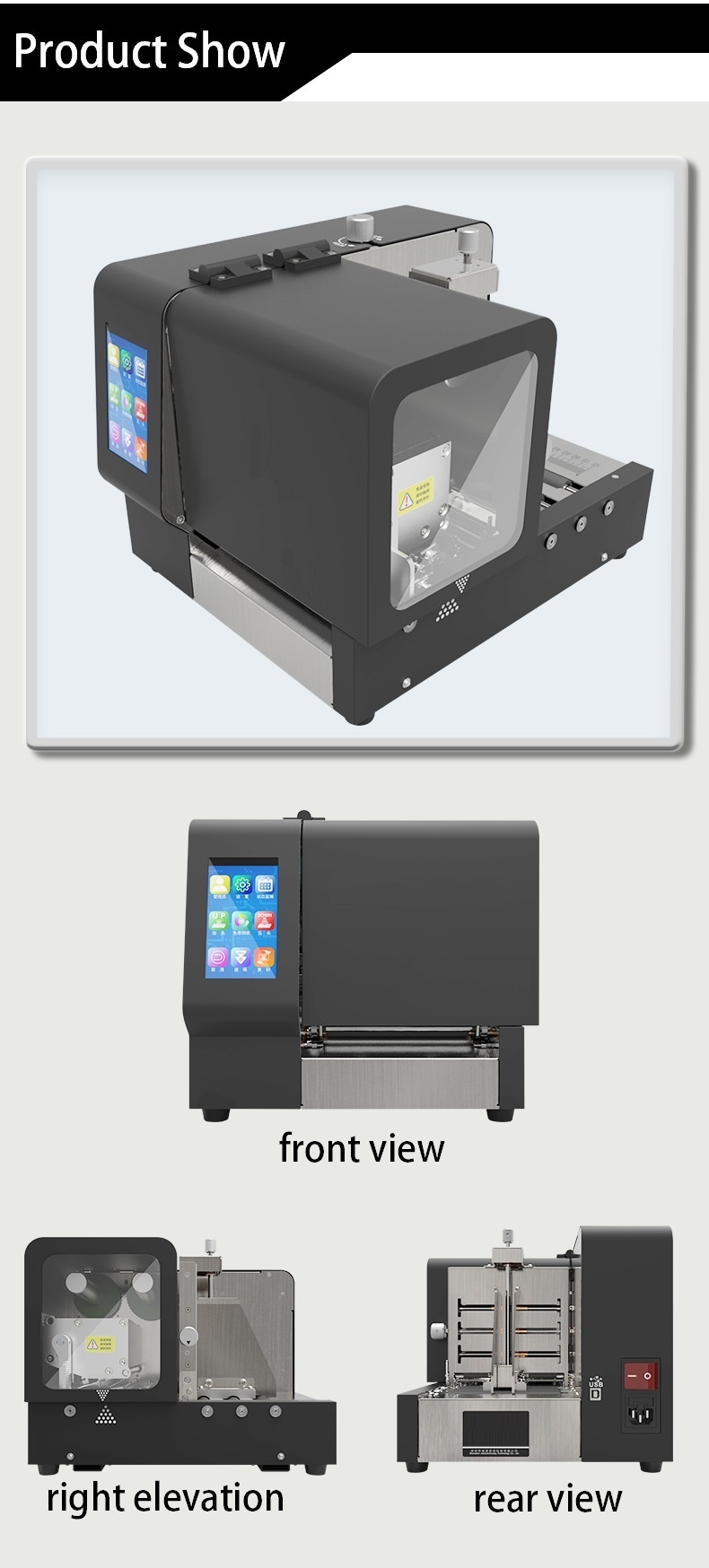

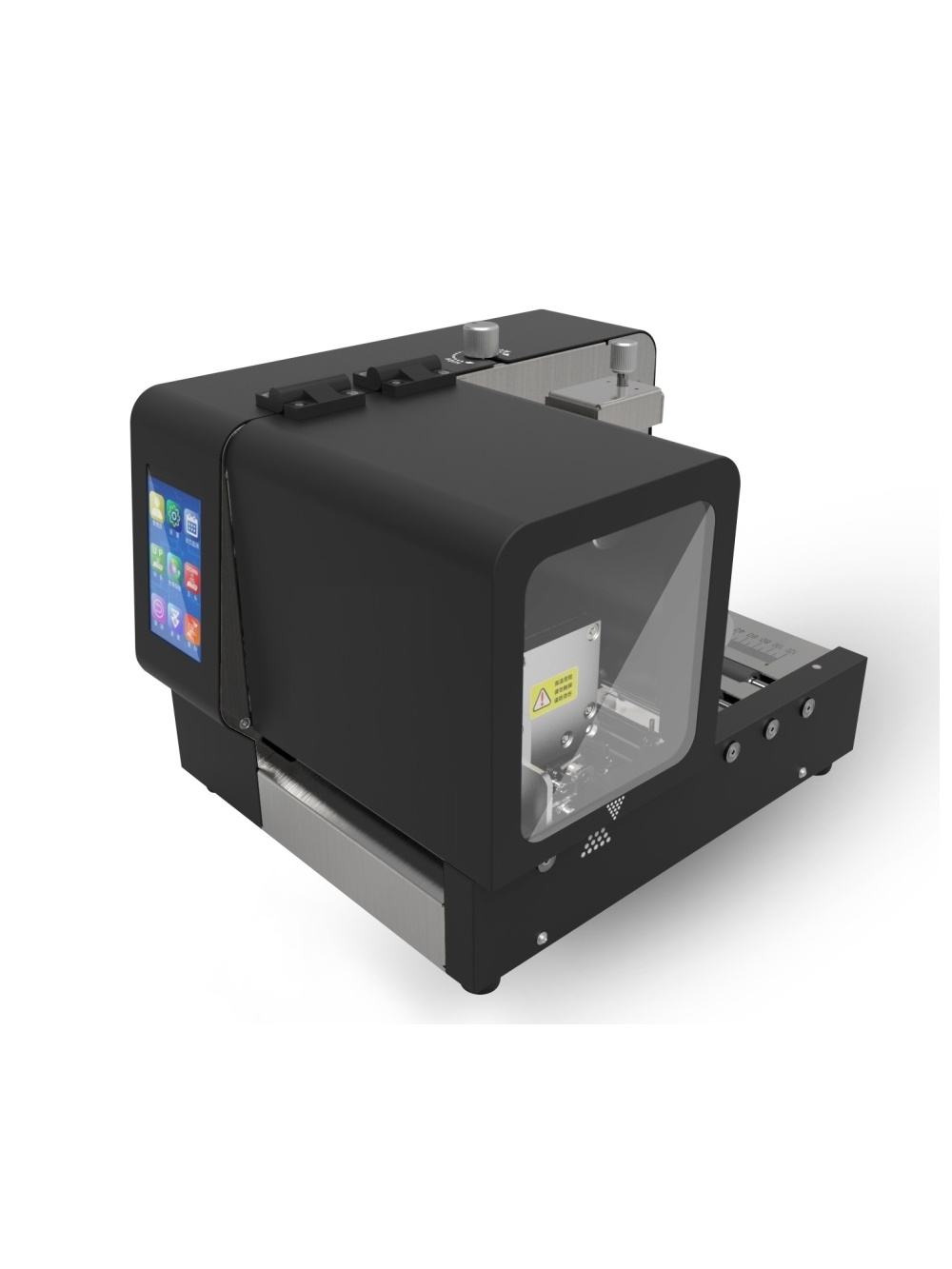

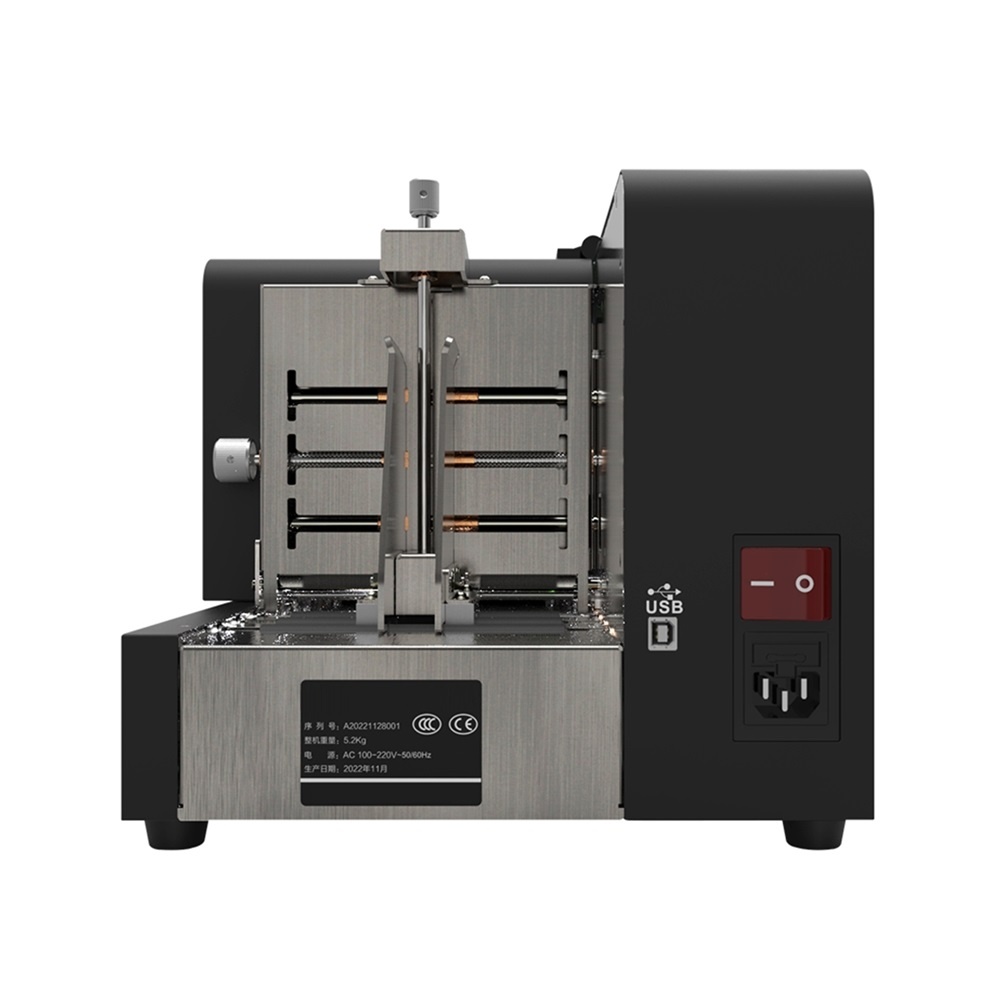

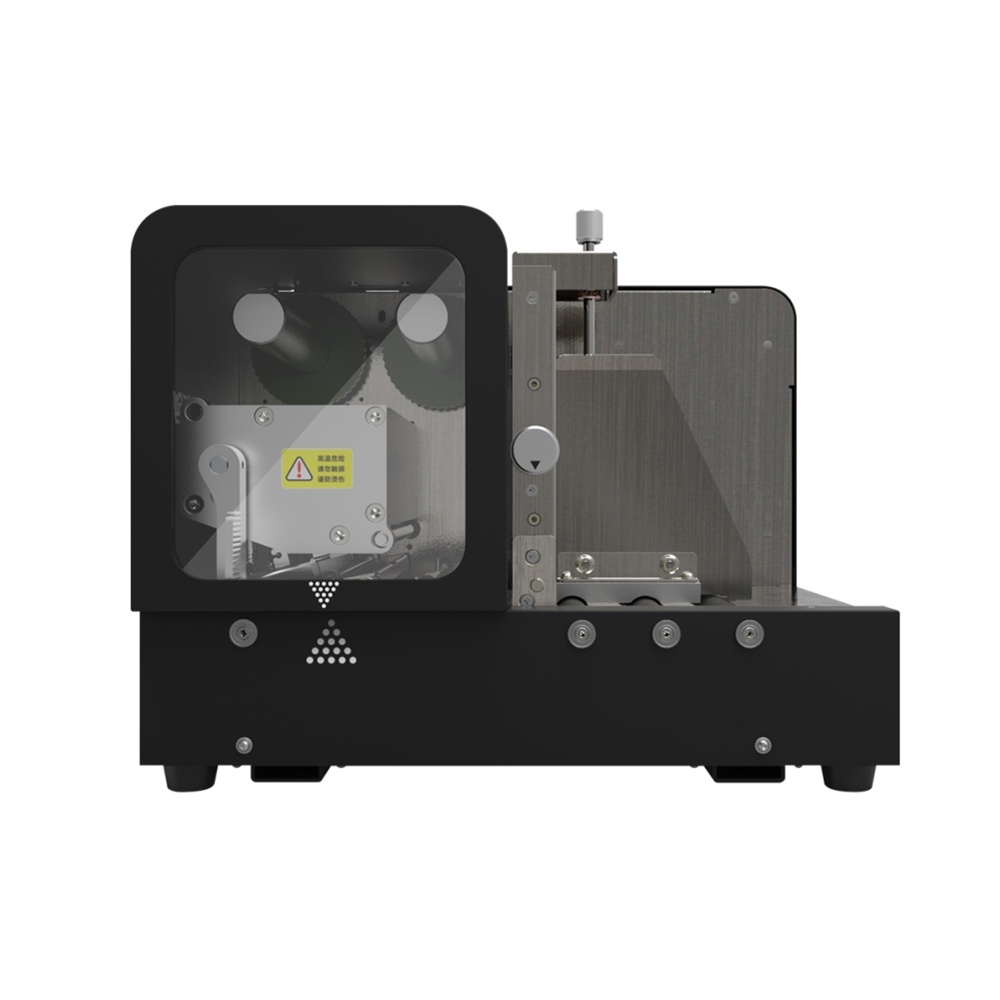

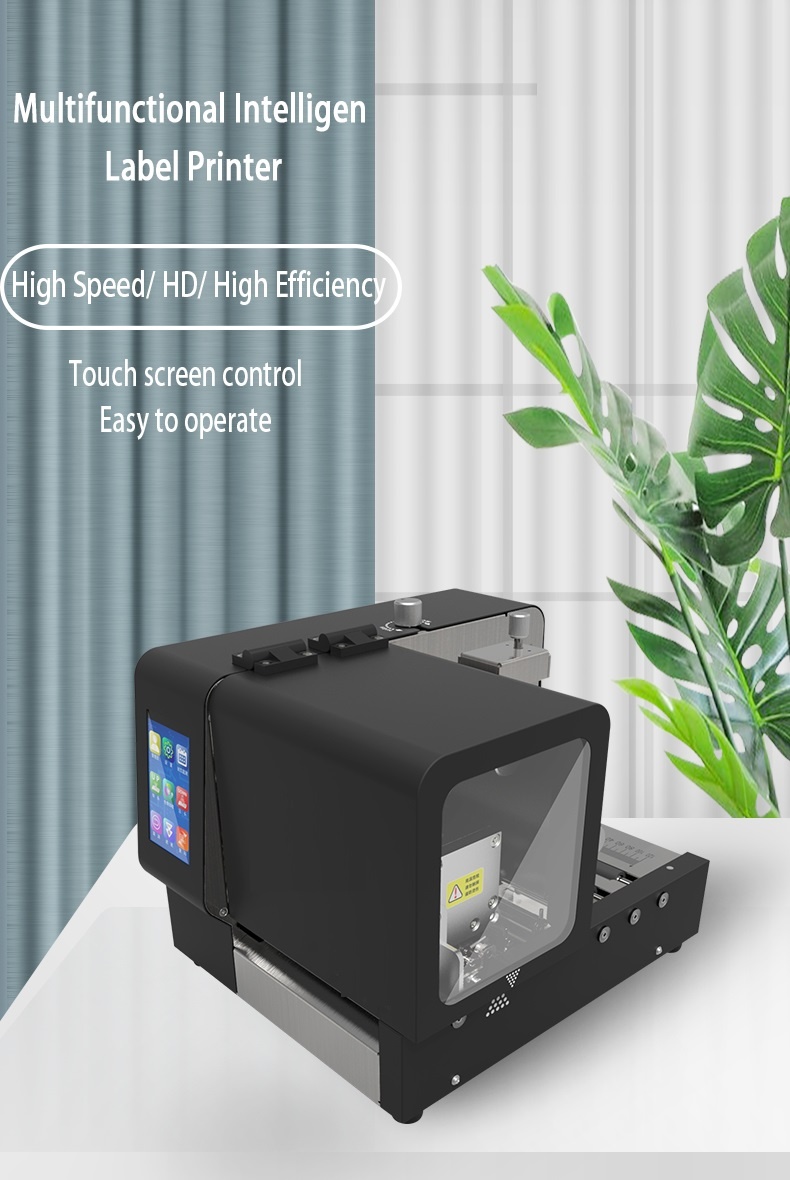

Industrial Multi-functional Intelligent Label Printer LY 43D Screen Control 300 DPI High Speed Support Non-drive Carbon Ribbon

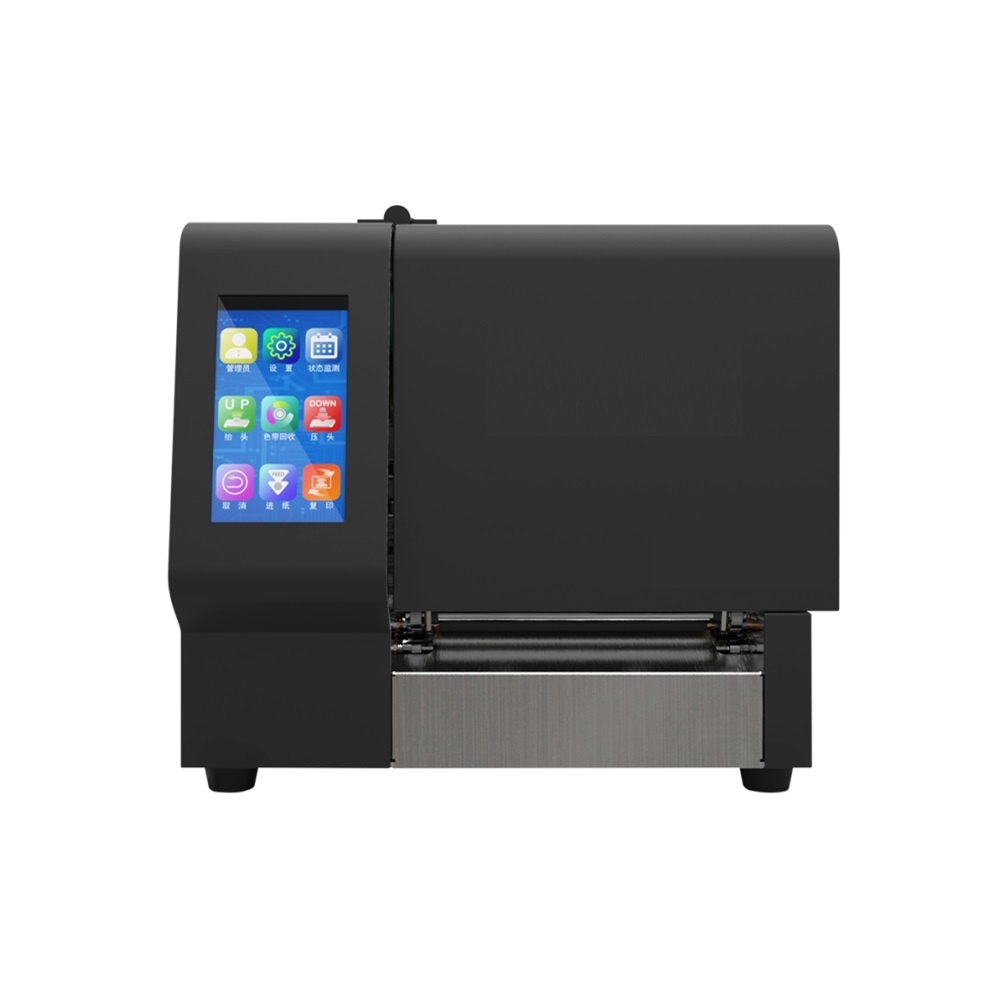

4.3 inch capacitive touch screen, comfortable to touch, meeting all visual operations support English Language operation.

4-inch center printing, compact body, fully functional, space saving

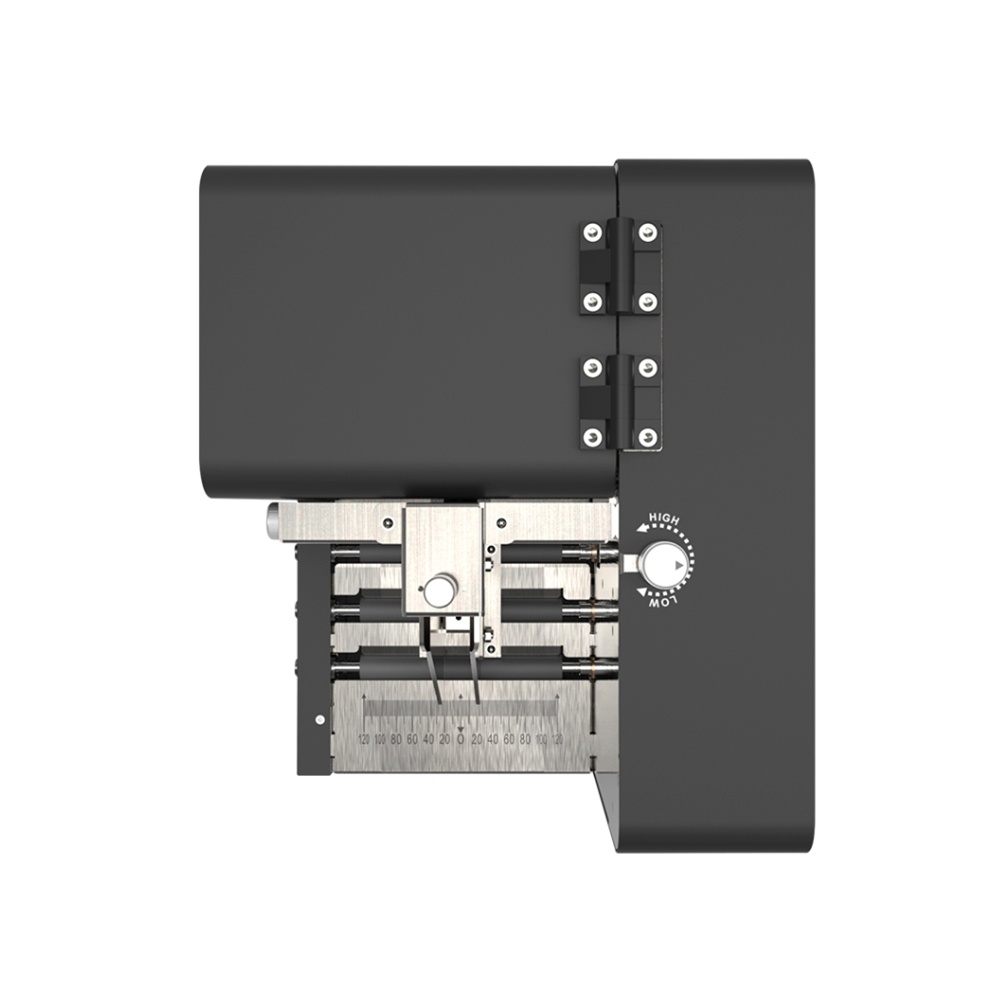

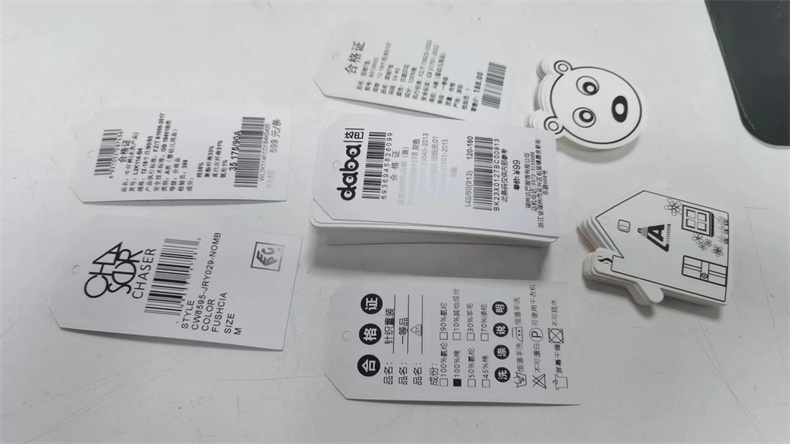

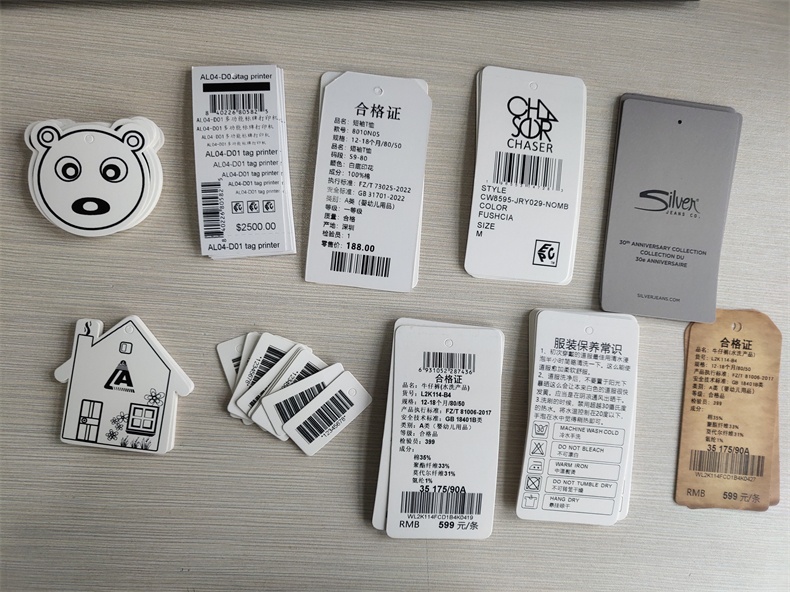

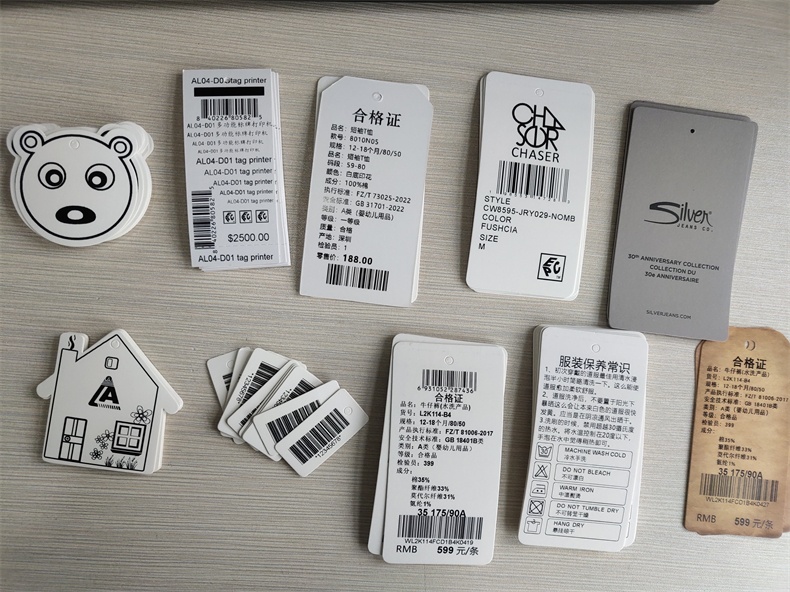

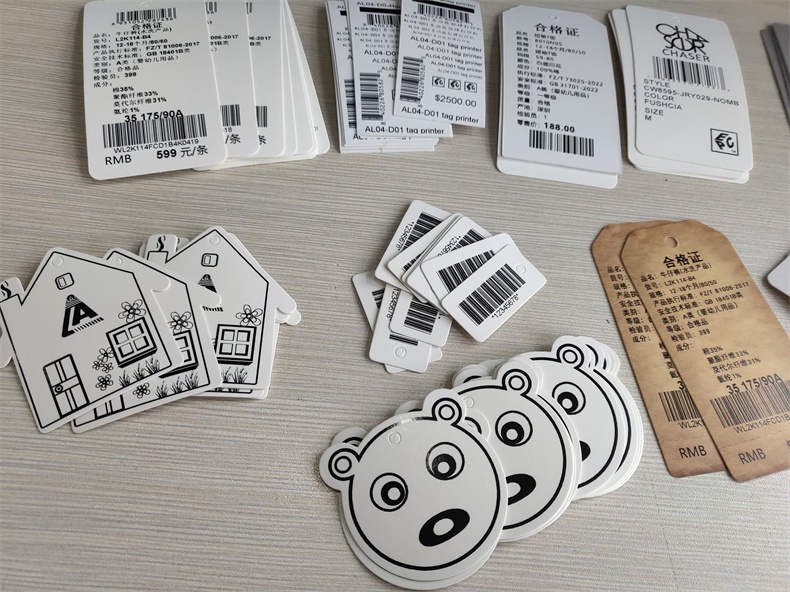

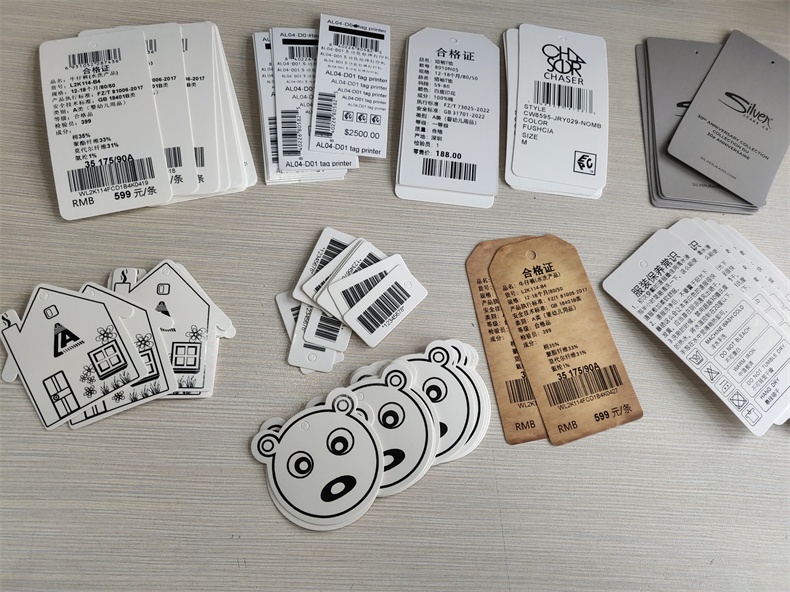

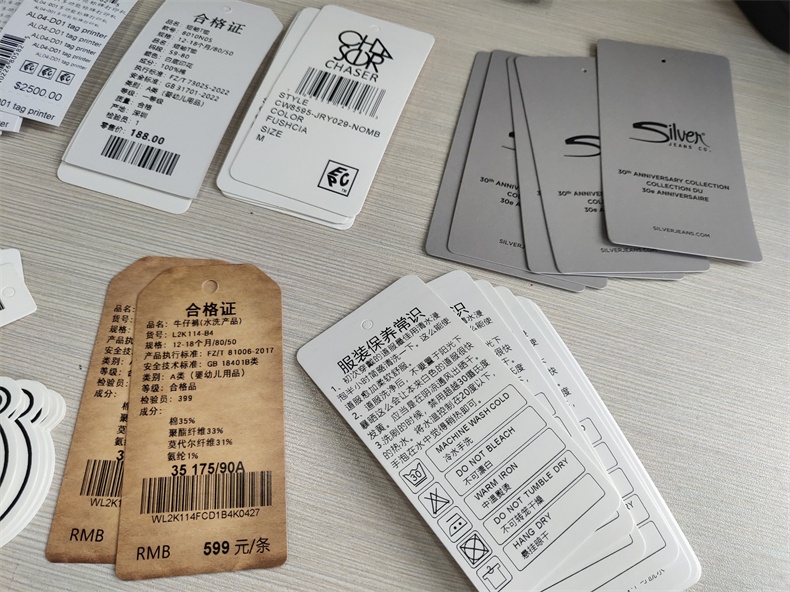

Integrated adaptive counterweight pressure block, easy to operate, compatible with both 40~260mm long and short hanging tags

Hanging tags with any thickness within 100-400g/m2 can be divided and printed, and the width of the 20-120mm paper feed can be freely adjusted

4-inch 300DPI high-definition printing

Support for drive free printing, simpler operation

Standard super carbon saving belt function

Min 5MM Height adjustable

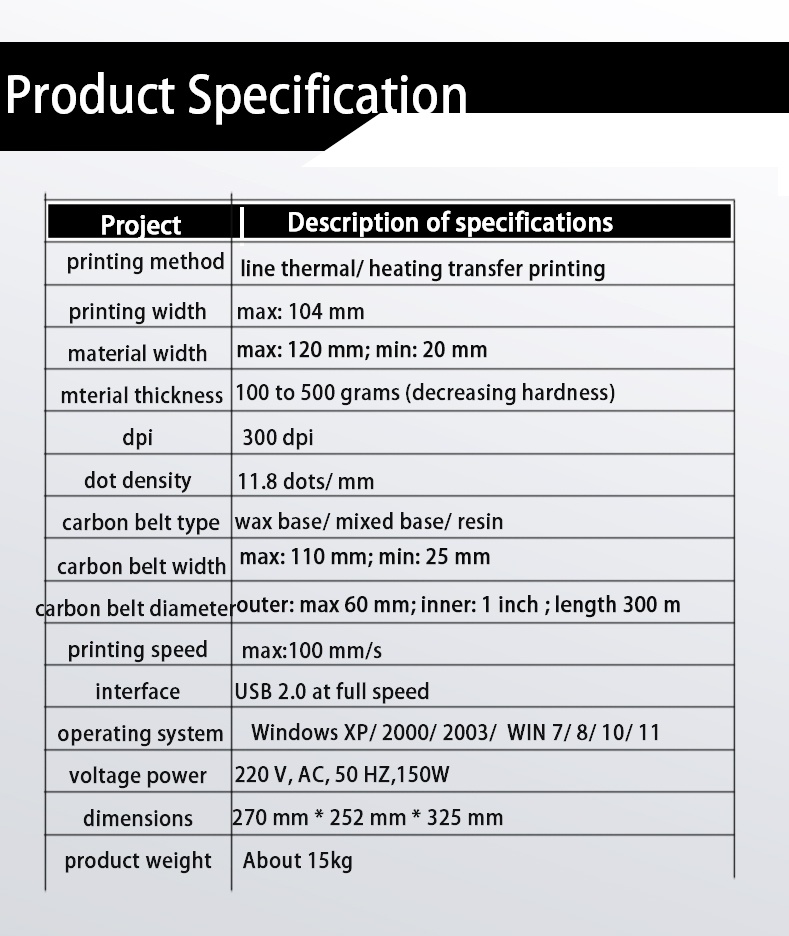

Specification:

Printing method

Line heat transfer printing

Print width

104mm (1280dots)

Printing resolution

300DPI (point density: 11.8dots/mm)

Paper width

20~ 120mm

Print length

40~220mm

Paper thickness

100-400 g weight (decreasing hardness)

feed method

180 ° automatic feed

Carbon belt type

Wax based/mixed based/resin

Carbon tape size

Length: MAX300 meters

Inner hole: 1 inch

Printing speed

MAX120mm/s

communication interface

USB2.0 full speed

operating system

Windows XP/WIN7/8/10/11

sensor

Head opening monitoring, head temperature monitoring, paper feeding monitoring, paper in place monitoring, carbon belt monitoring, and carbon saving belt monitoring

Power Supply

220VAC~50Hz

energy consumption

150W

work environment

Temperature: 0-50 ° C Humidity: 20-85% RH (no condensation)

Storage environment

Temperature: -25~70 ° C Humidity: 0~90% RH (excluding printing paper and no condensation)

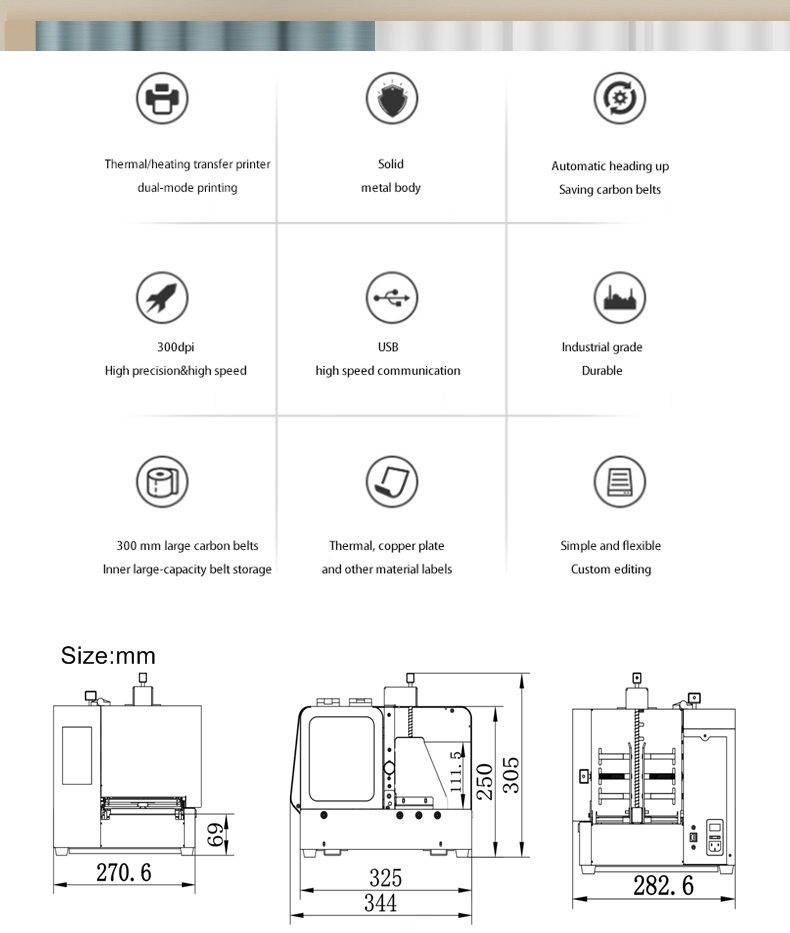

Physical dimensions

Width 270mm X Height 305mm X Depth 325mm

Net weight

About 15kg
