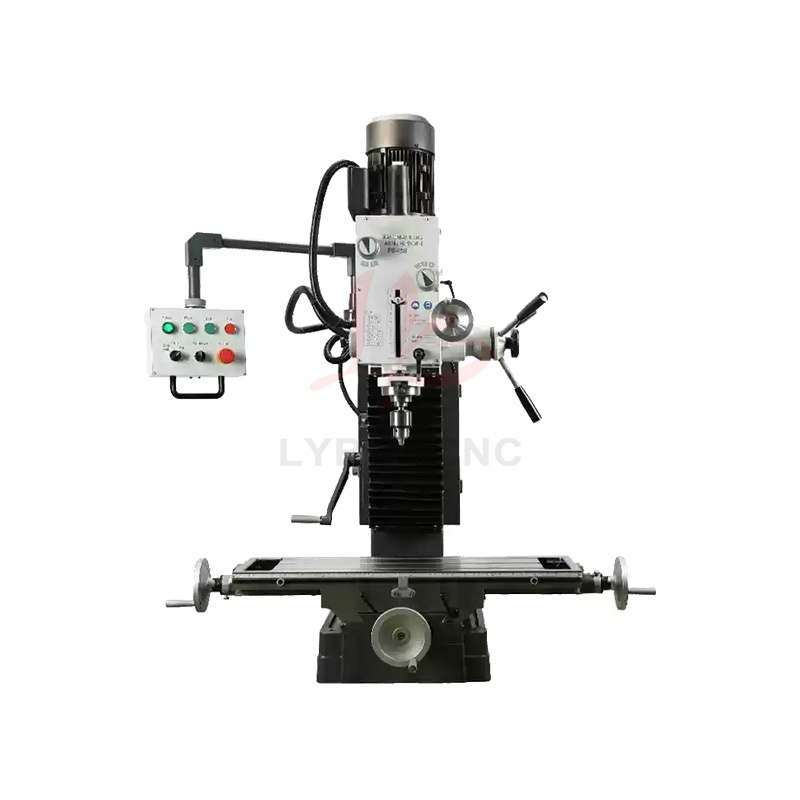

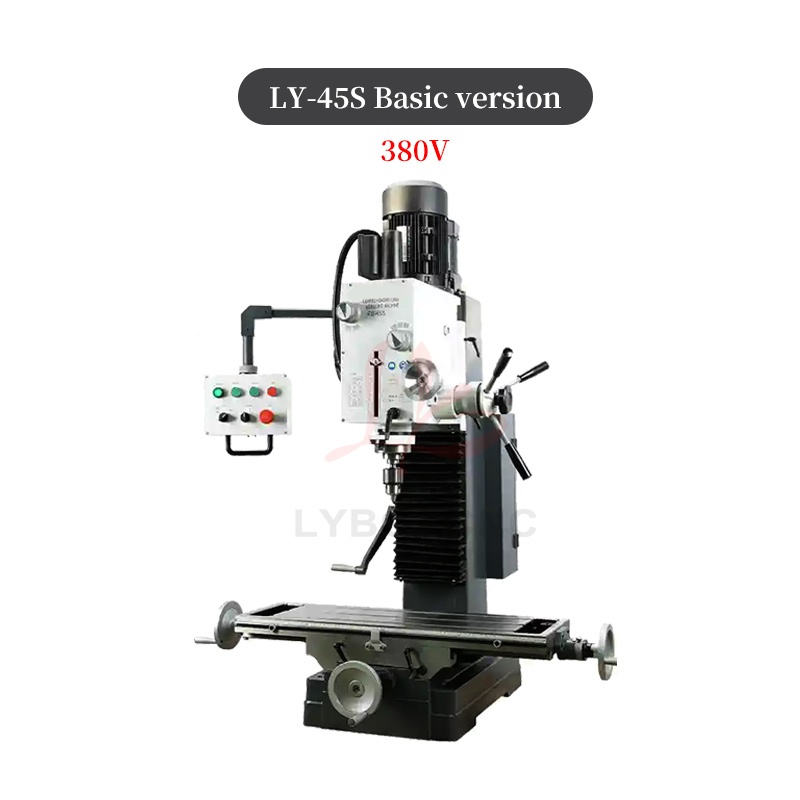

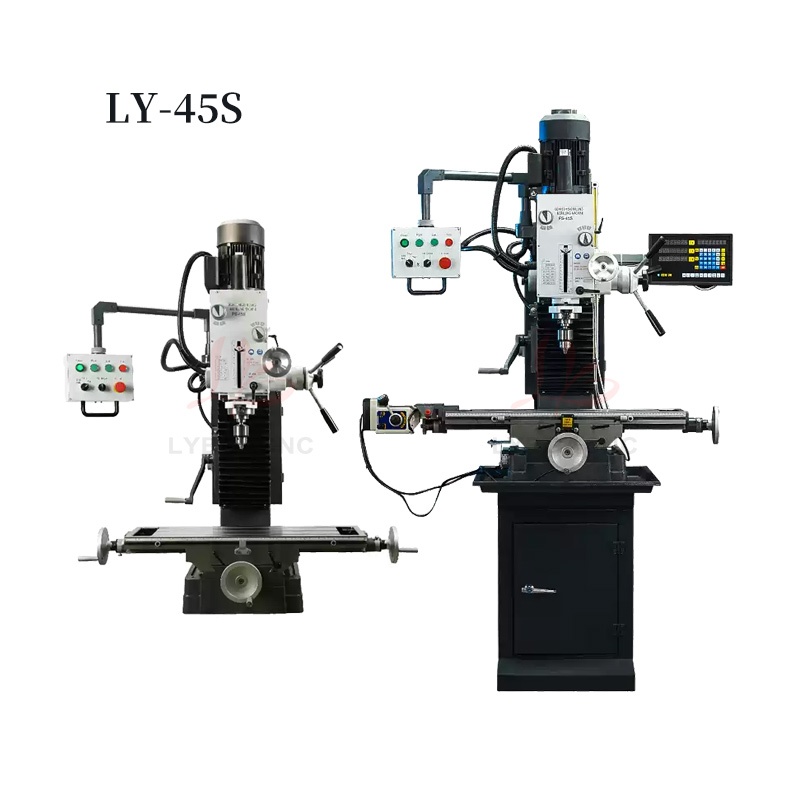

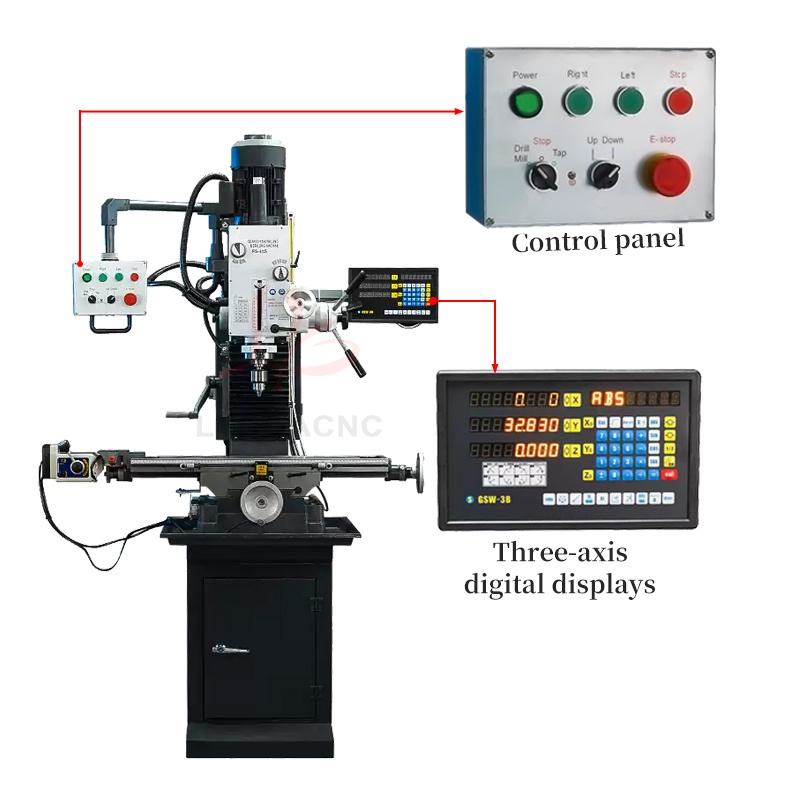

LY – 45S Drilling and Tapping Machine for Metal Machining with Three – axis Digital Display, Automatic Head Lift, 800*240mm Working Size
Reviews(0)
Product Detail
Product Tags
|

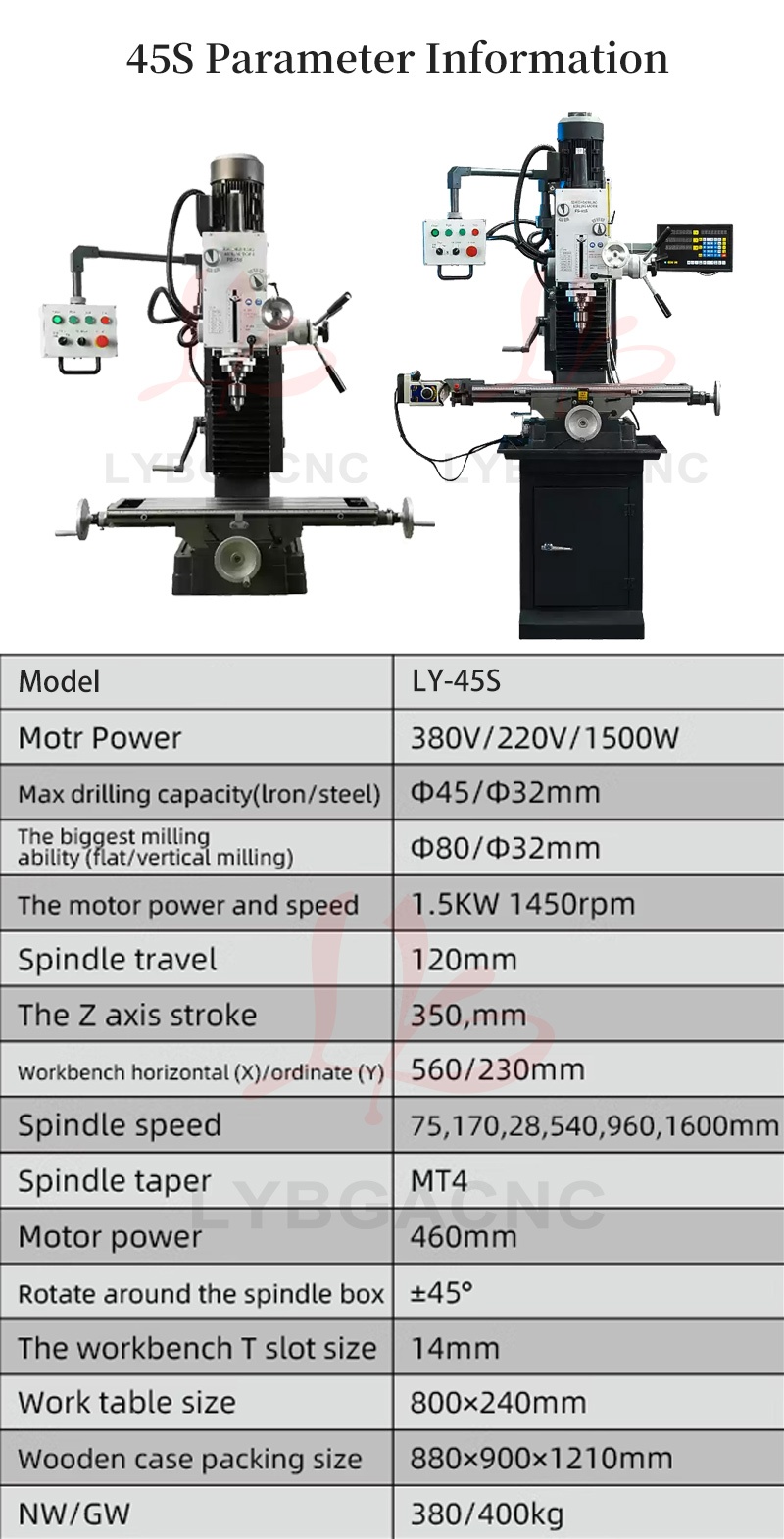

Model |
LY-45S |
|
Motor Power |
380V/220V/1500W |
|
Max drilling capacity/(ron/steel) |
φ45φ32mm |
|
The biggest milling ability (flat/vertical milling) |
φ80/φ32mm |
|
The motor power and speed |
1.5KW 1450rpm |
|
Spindle travel |
120mm |
|
The Z axis stroke |
350mm |
|
Workbench horizontal(x)/ordinate(y) |
560/230mm |
|
Spindle speed |
75,170,28,540,960, 1600mm |
|
Spindle taper |
MT4 |
|
Maximum distance from spindle to table |
460mm |
|
Rotate around the spindle box |
±45° |
|
The workbench T slot size |
14mm |
|
Work table size |
800*240mm |
|
Wooden case packing size |
880*900*1210mm |
|
NW/GW |
380/400kg |
详情页文本信息

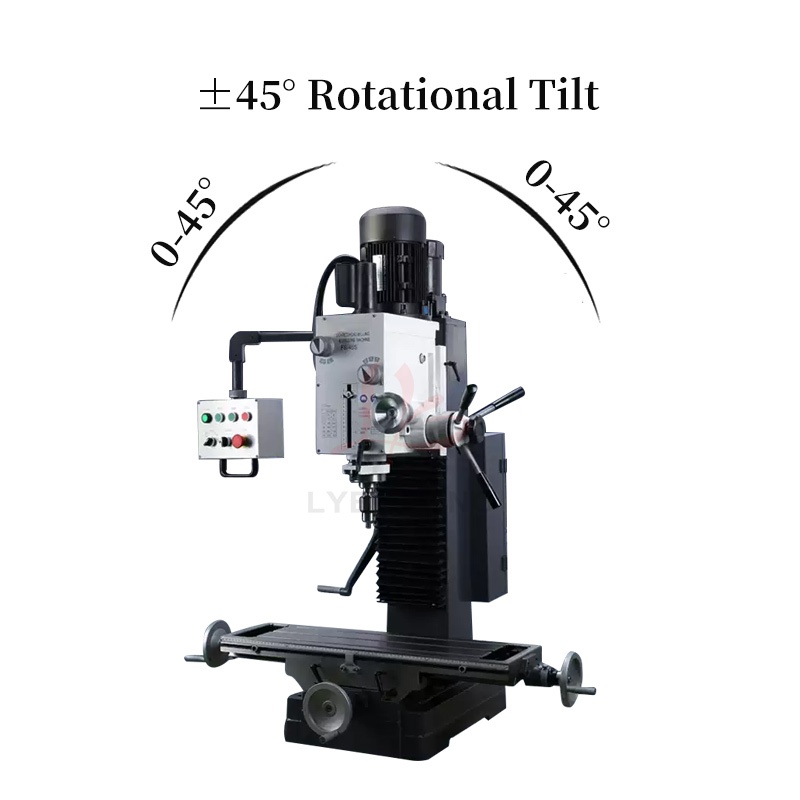

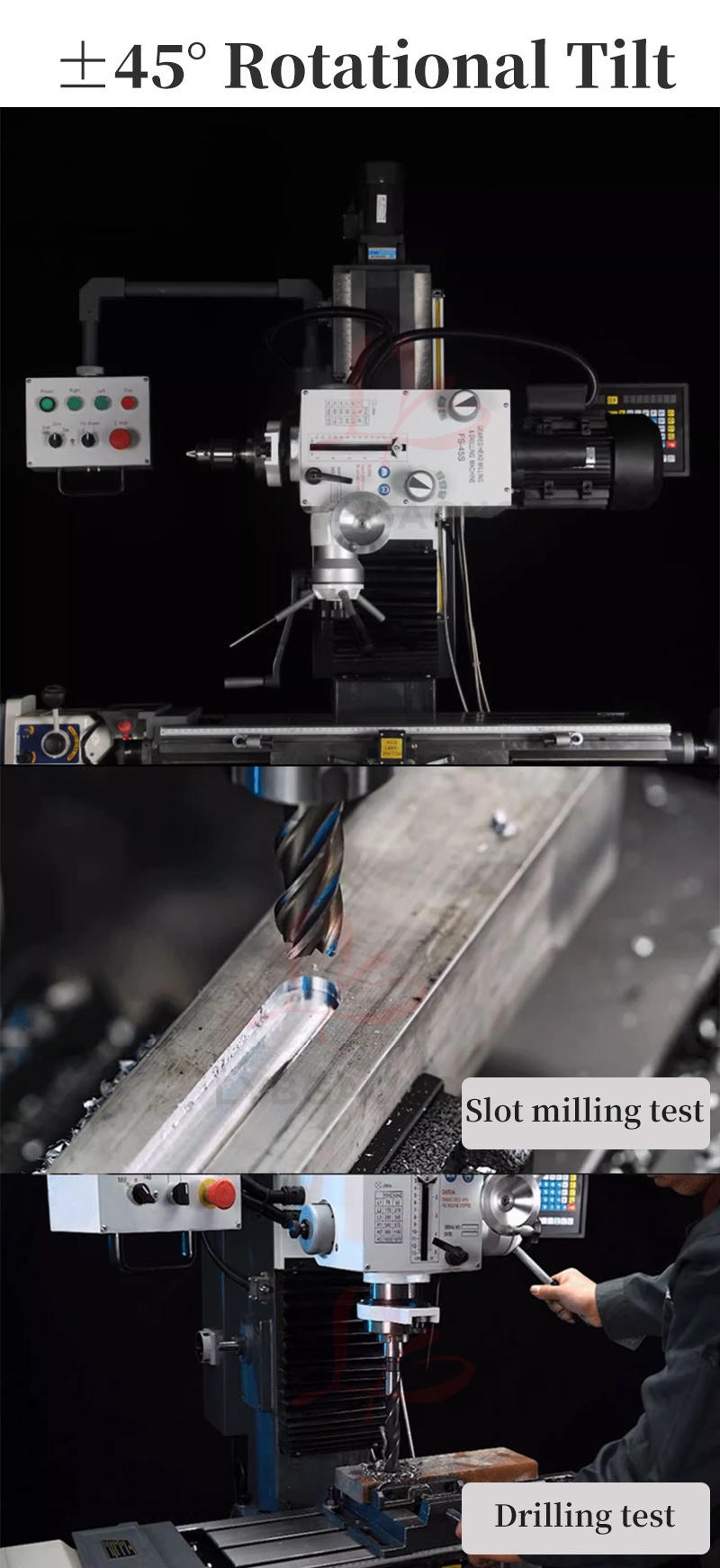

LY-45S ±45°Rotational Tilt

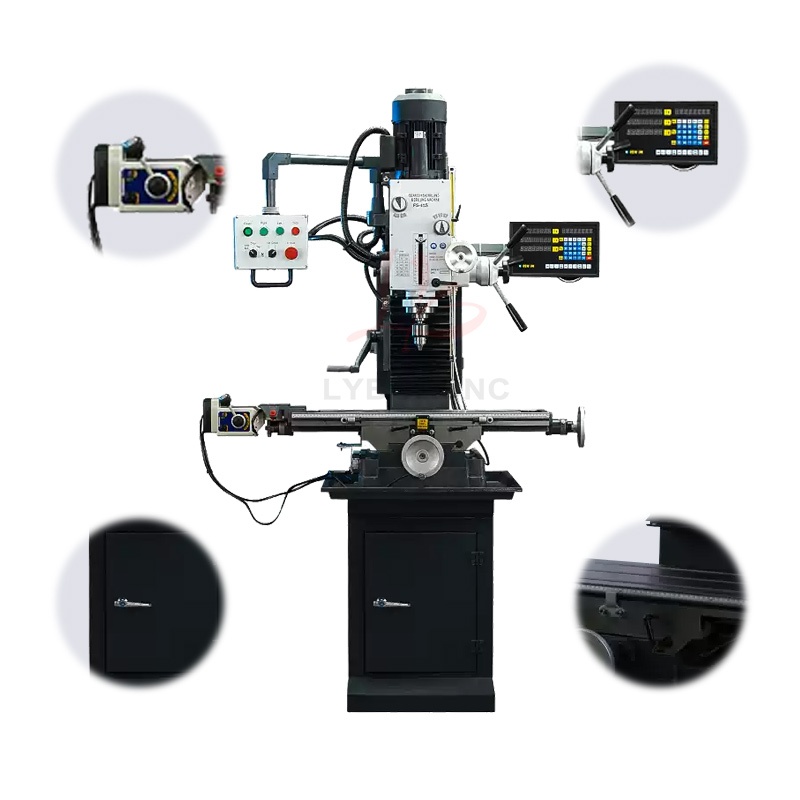

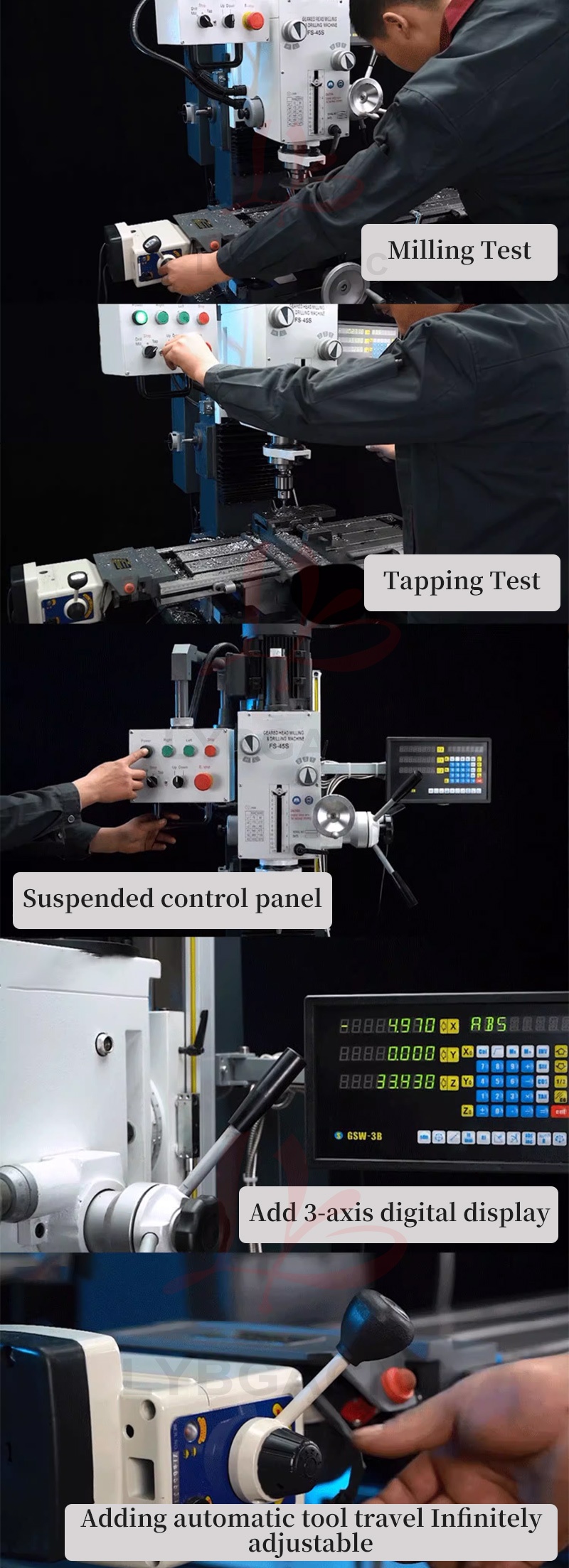

Available on request：Oil pan base cabinet, Three- axis grating scale, Automatic tool travel
Optional Accessories:
Milling Clamps (Set of 8), Clamping Plate(58pcs), Pliers, 4 flute tungsten steel, milling cutter, 6 inch rotary table with connecting disk with 125mm chuck Vertical and horizontal, 19 pieces high grade twist drill bits

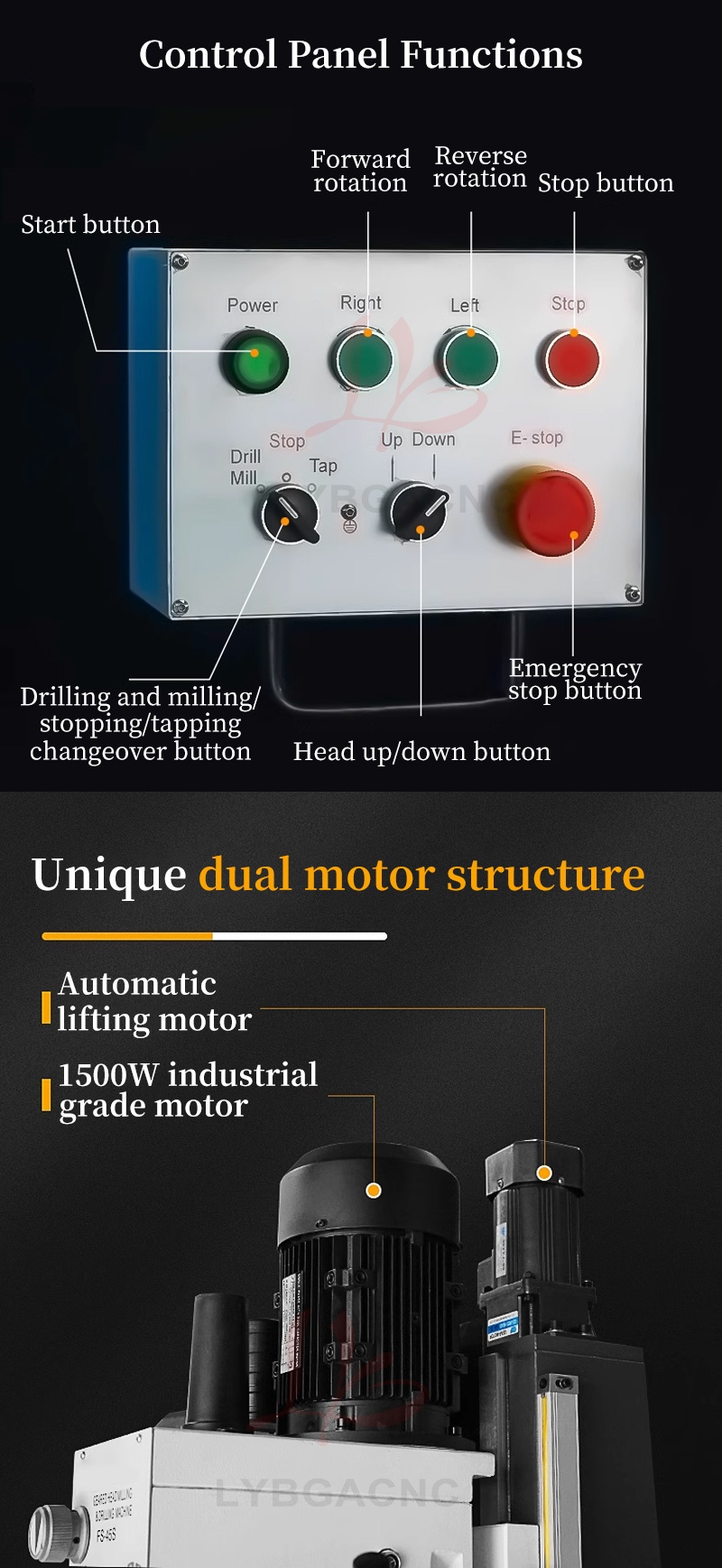

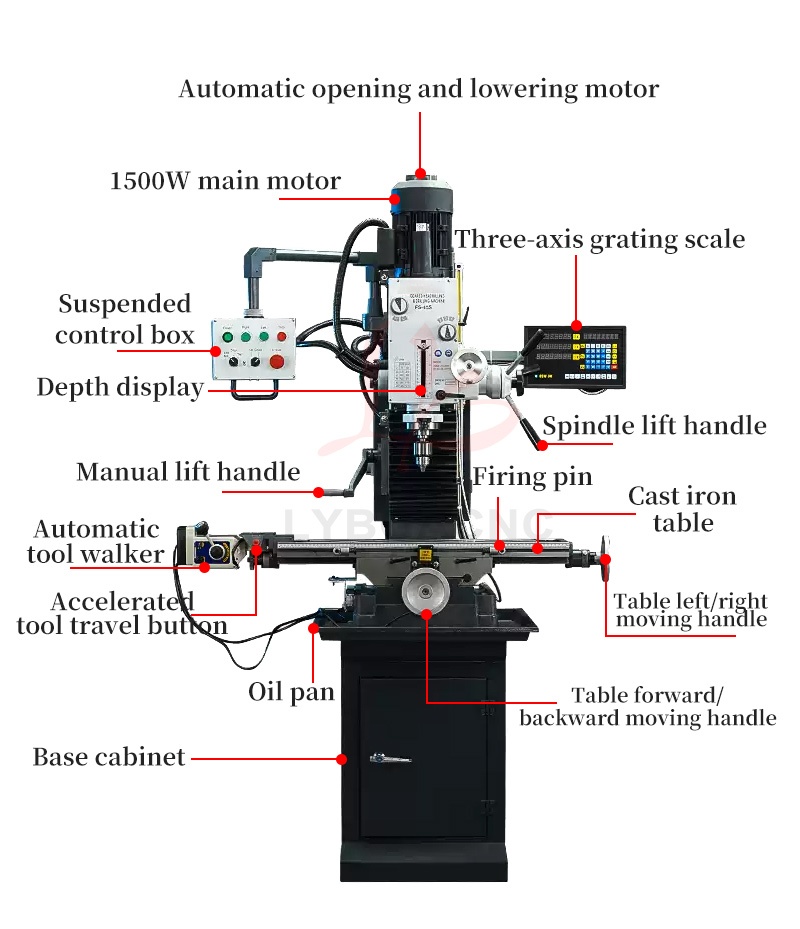

Unique dual motor structure

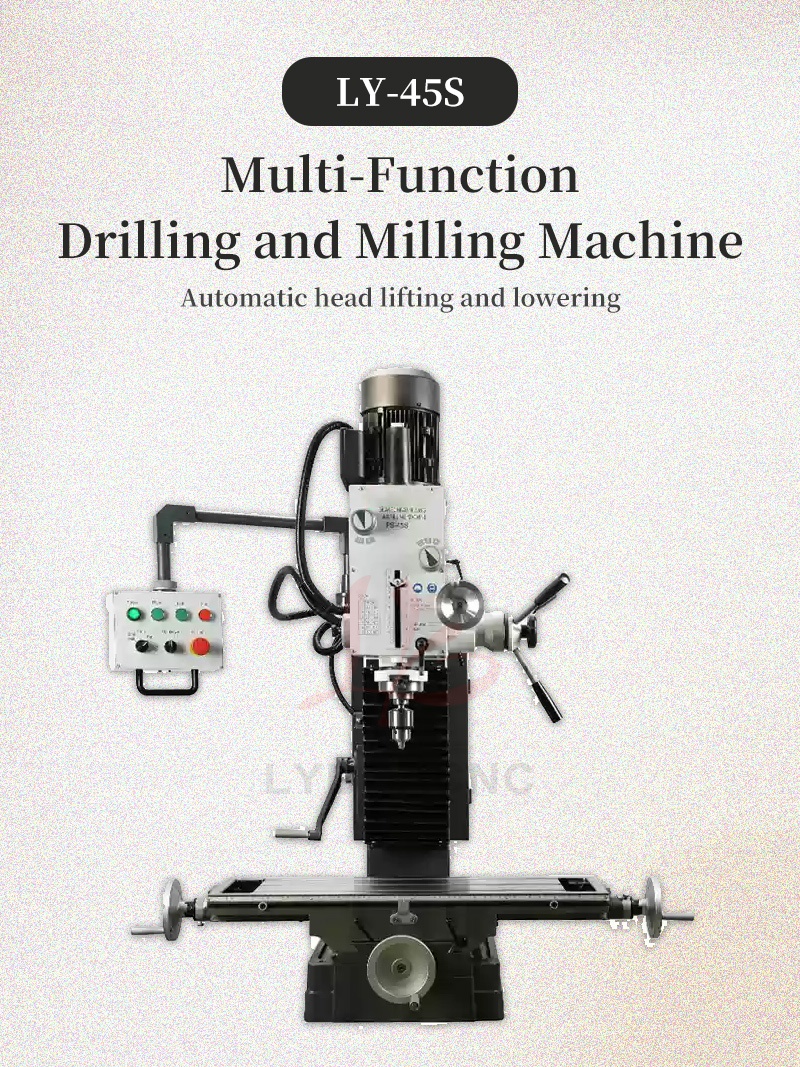

Automatic lifting motor

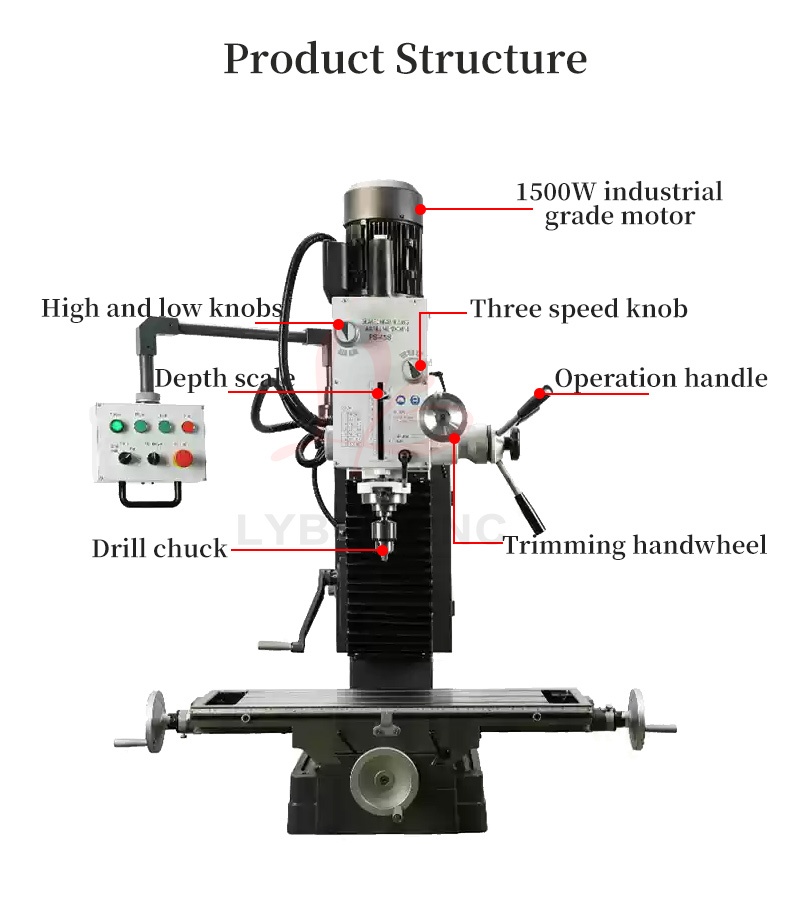

1500W industrial grade motor

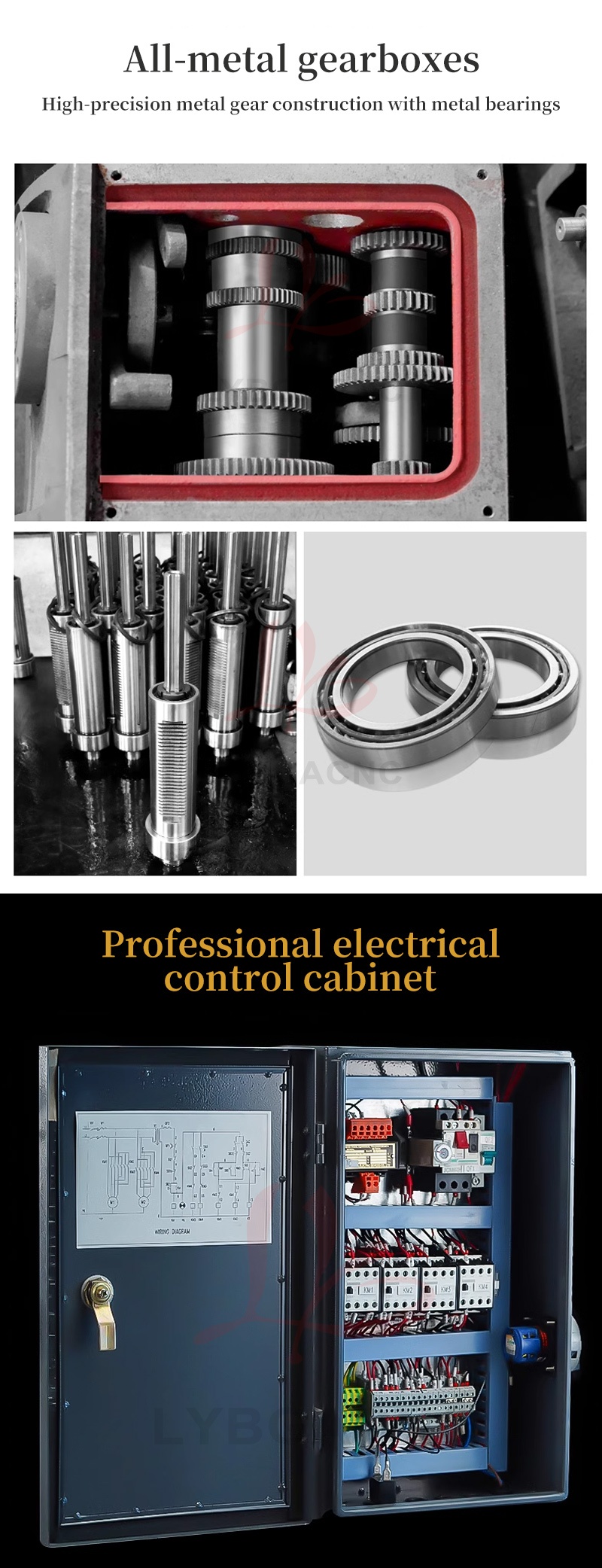

All-metal gearboxes
High-precision metal gear construction with metal bearings
Thanks for your order!

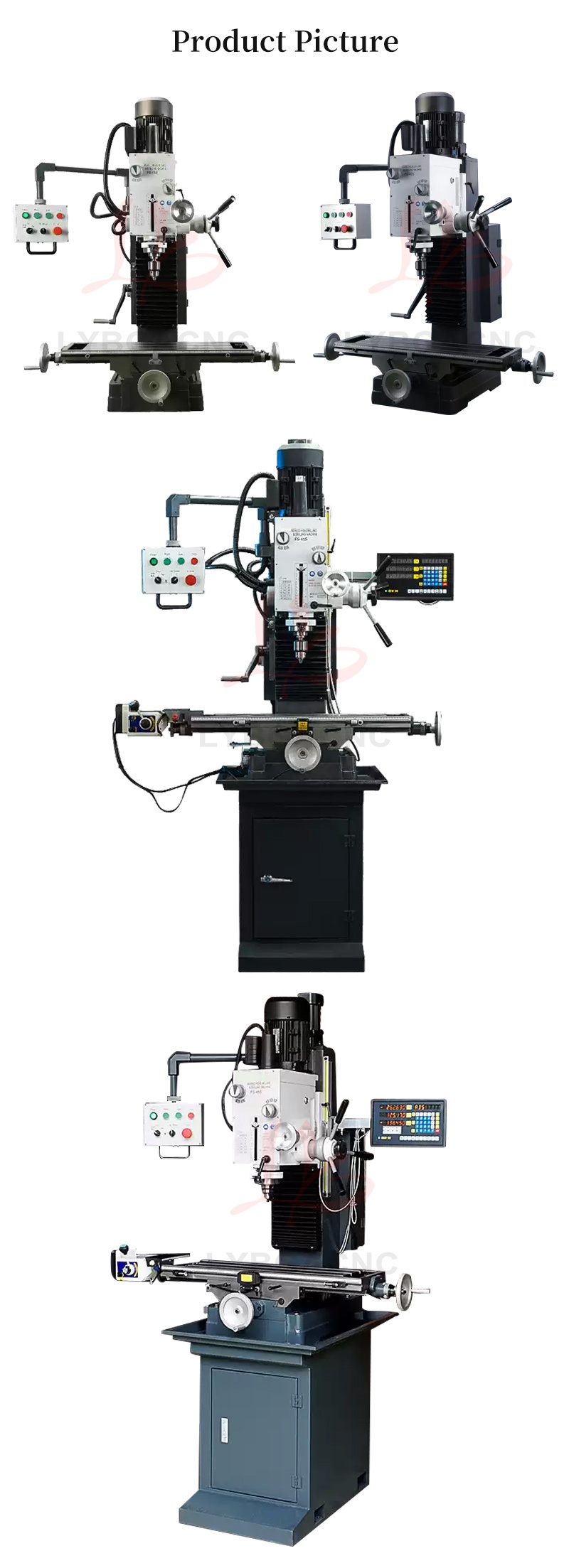

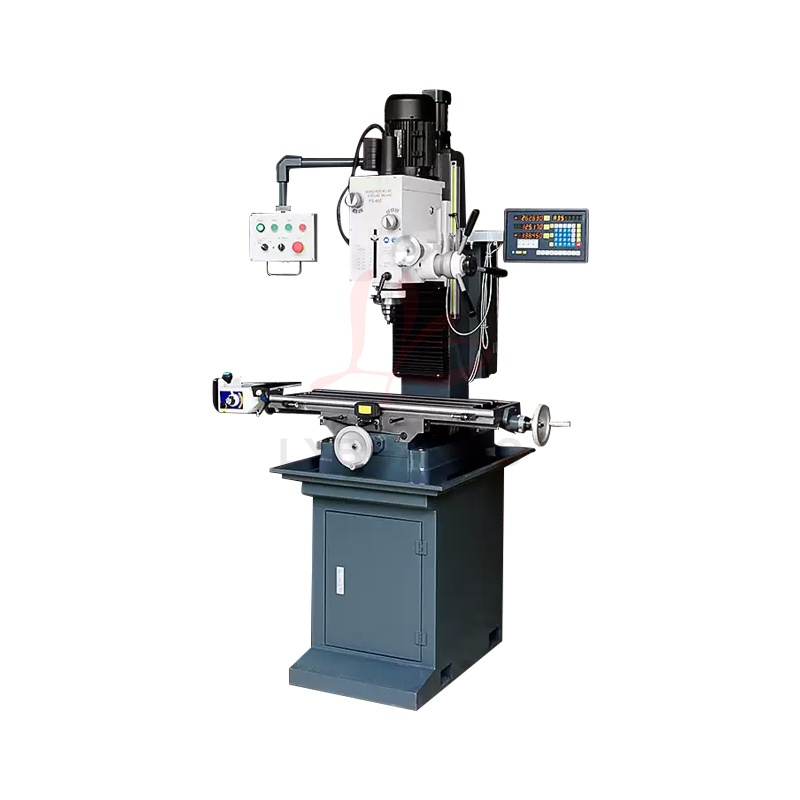

Product Pictures
