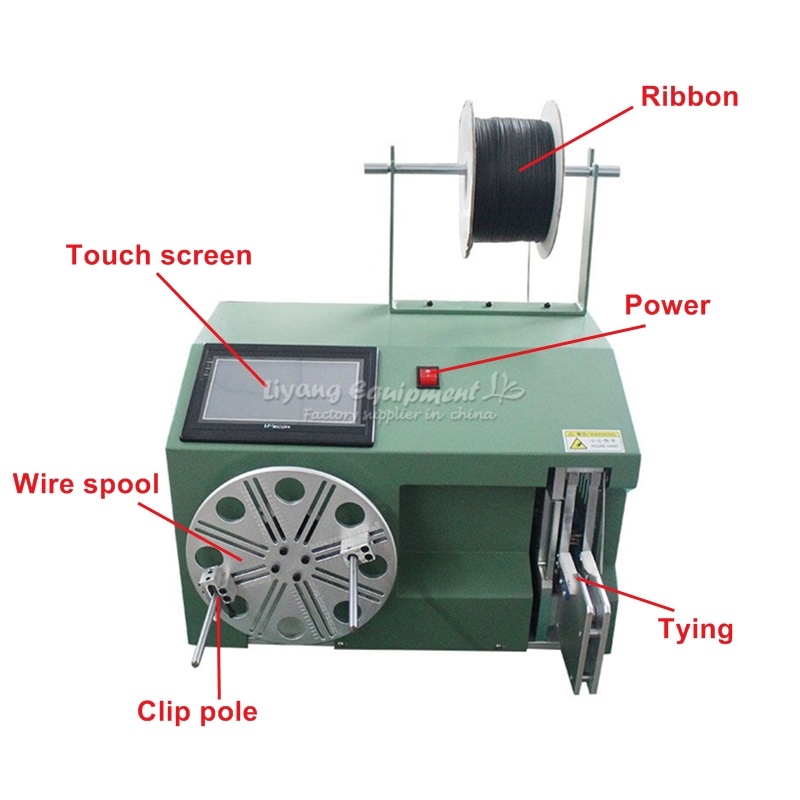

LY 5-30 small touch screen cable wire coil winding binding machine 220V 110V
| Model | LY 5-30 Small | LY 18-45 Middle | LY 40-80 Big |
| Compatible for bind wire diametre | 5-30mm | 18-45mm | 40-80mm |
| Compatible for bind wire Length | 75-140mm | 120-200mm | 220-300mm |
| Wind circle out diameter | 75-200mm | 75-200mm | 75-300mm |
| Wind gap | 100-200mm | 100-200mm | 100-200mm |
| Bind speed | 0.6 times/second | 0.6 times/second | 0.6 times/second |
| Wind speed | 1-10 circle/second | 1-10 circle/second | 1-10 circle/second |
| Bind ribbon | Encapsulates the core | Encapsulates the core | Encapsulates the core |
| Voltage | AC 220V/110V | AC 220V/110V | AC 220V/110V |
| Power | <220W | <220W | <300W |
| Weight | 40KG | 45KG | 50KG |
| Size | 49*32*31CM | 50*33*32CM | 60*42*41CM |
Thanks for your order!

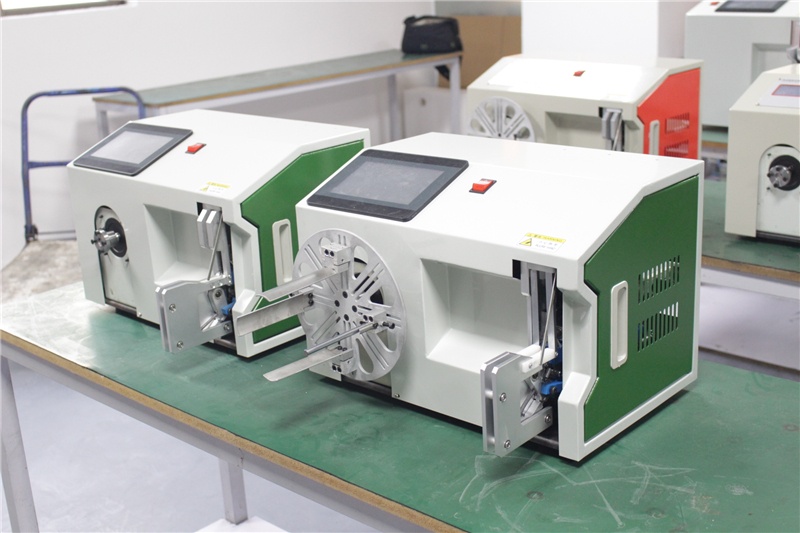

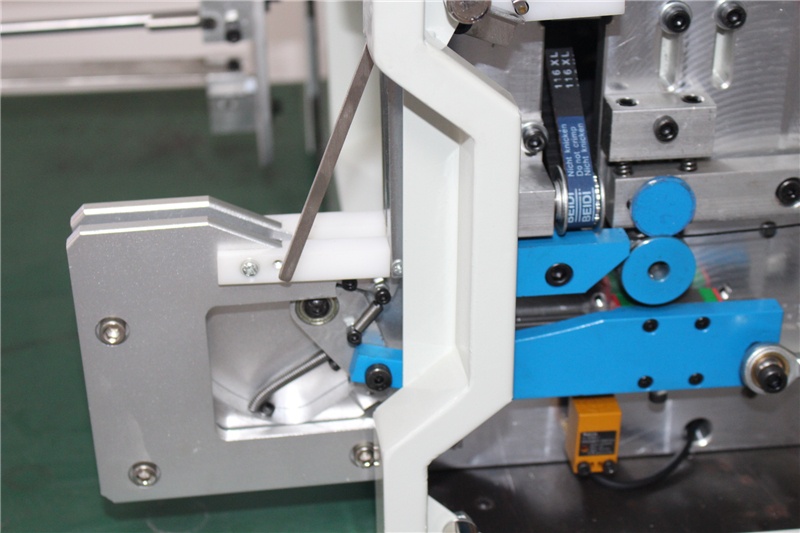

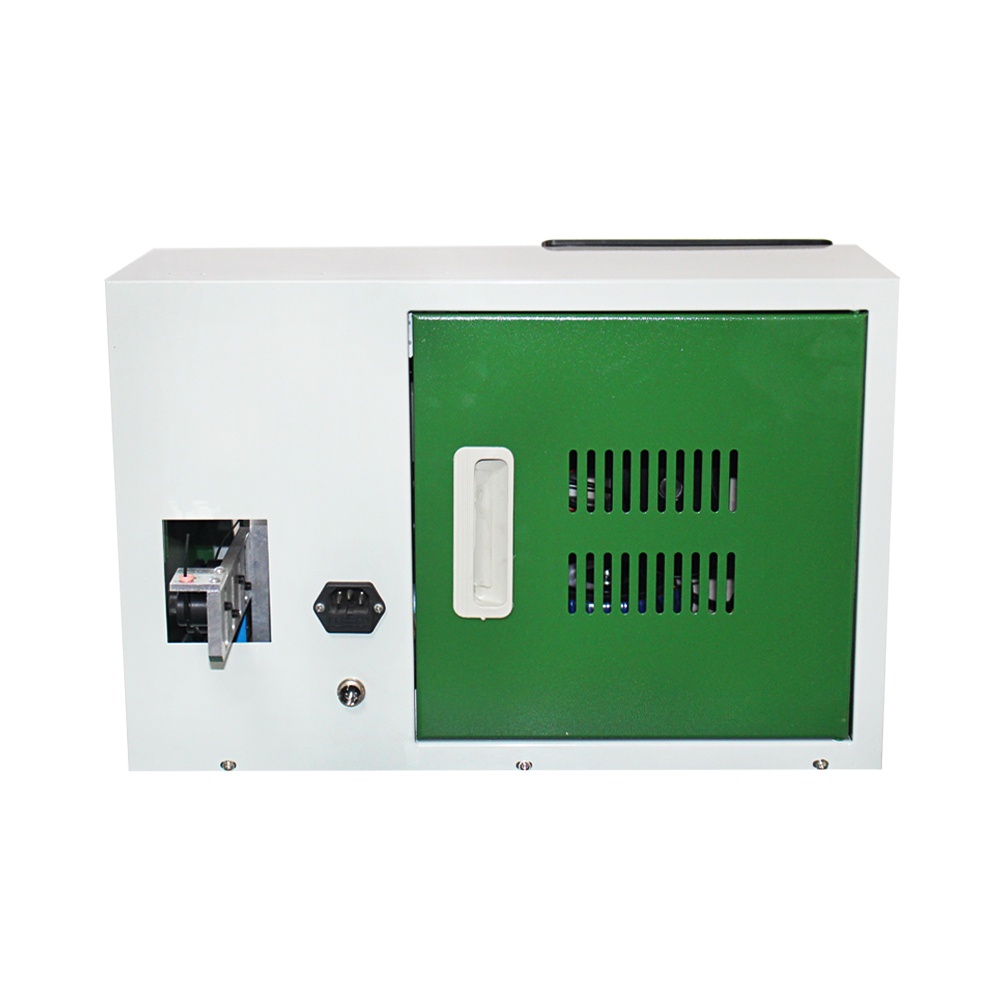

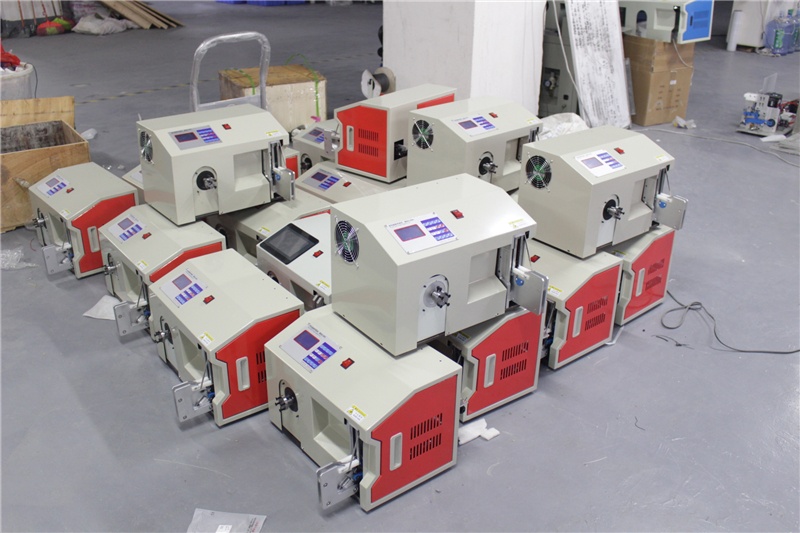

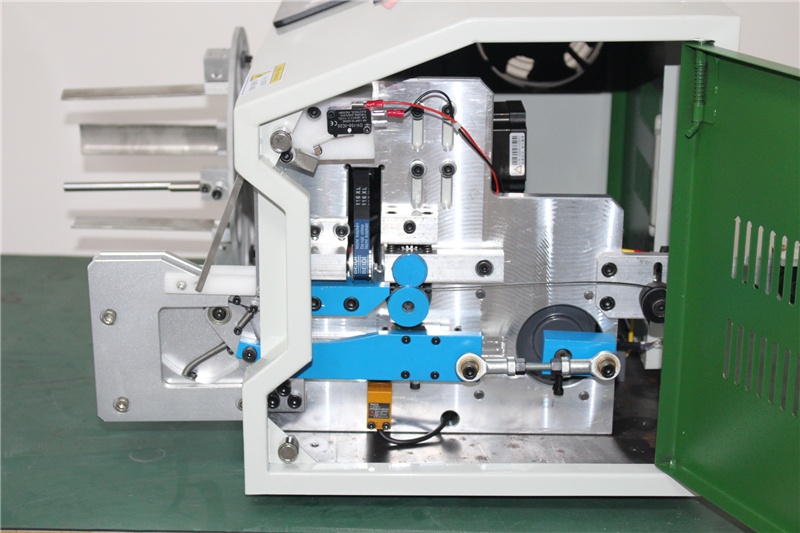

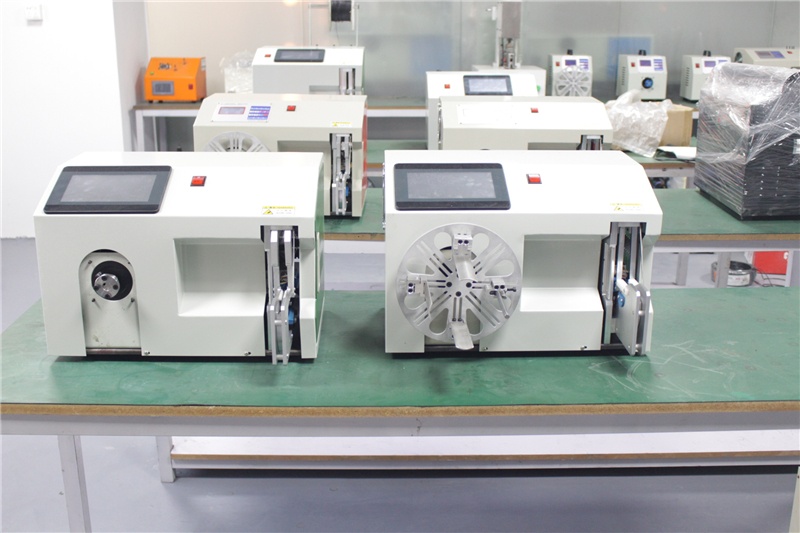

Product Pictures
