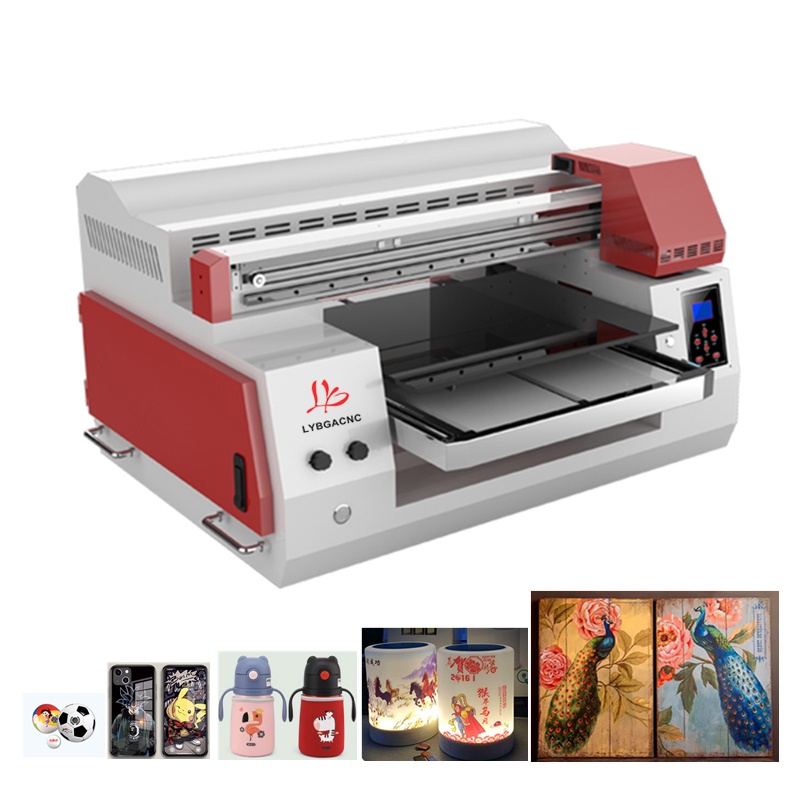

LY 5040 UV Double full automatic flatbed Photo UV DTG Inkjet printer machine USB infrared ray measure max work size 500X400mm 2880 DPI printing height 150mm 220V 110V

LY 5040 UV Double full automatic flatbed Photo UV DTG Inkjet printer machine USB infrared ray measure max work size 500X400mm 2880 DPI printing height 150mm 220V 110V

item ID: 69431
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$7000 USD$4556 (% off)
Payment

Product Detail

Product Tags

LY 5040 UV Double full automatic flatbed Photo UV DTG Inkjet printer machine USB infrared ray measure max work size 500X400mm 2880 DPI printing height 150mm 220V 110V

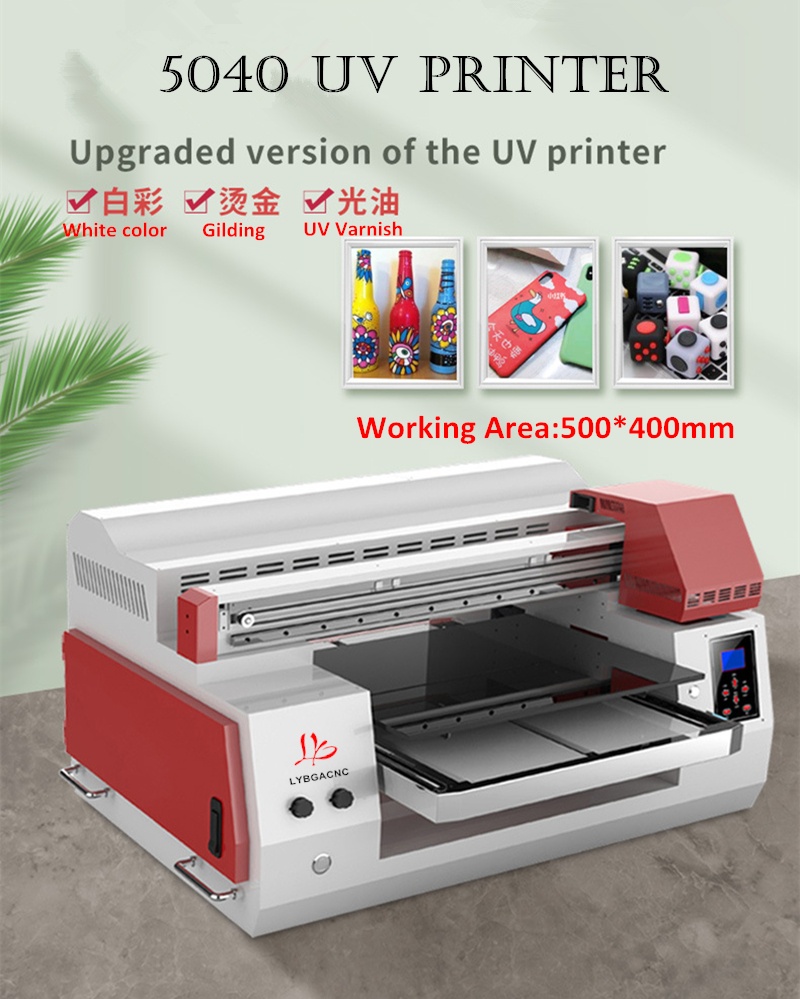

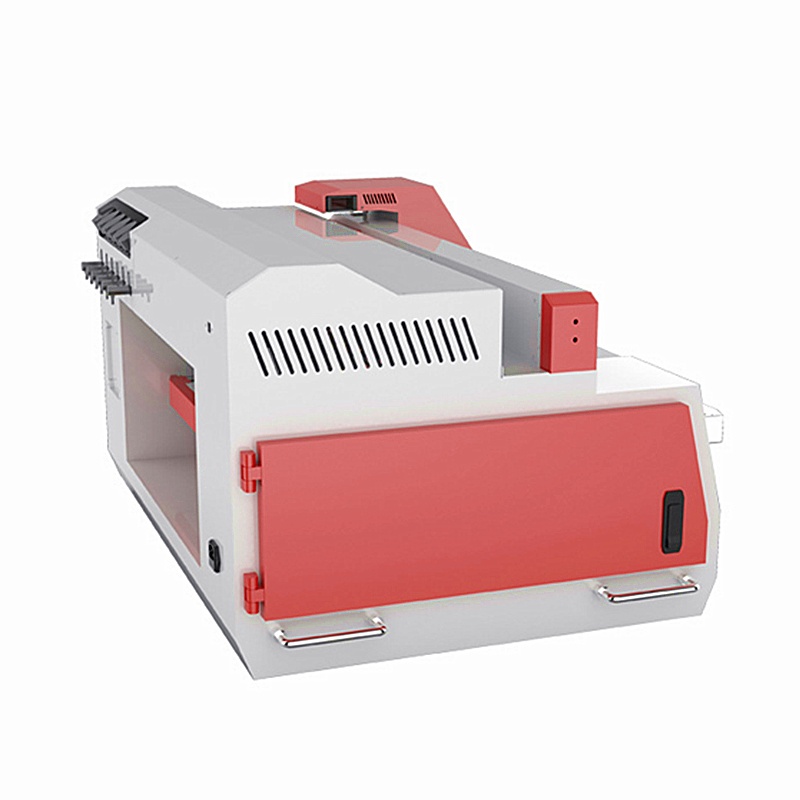

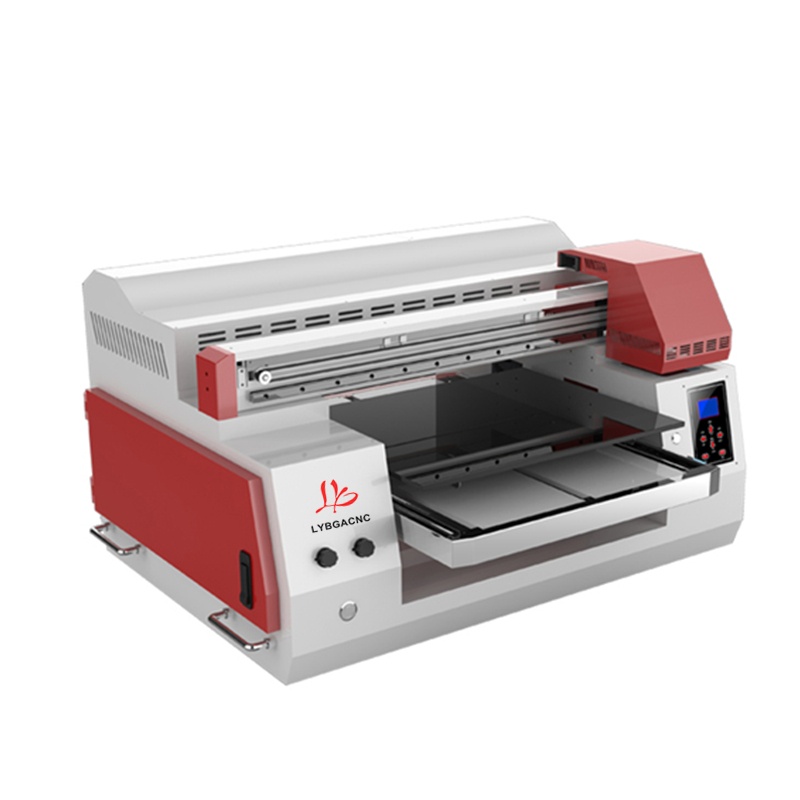

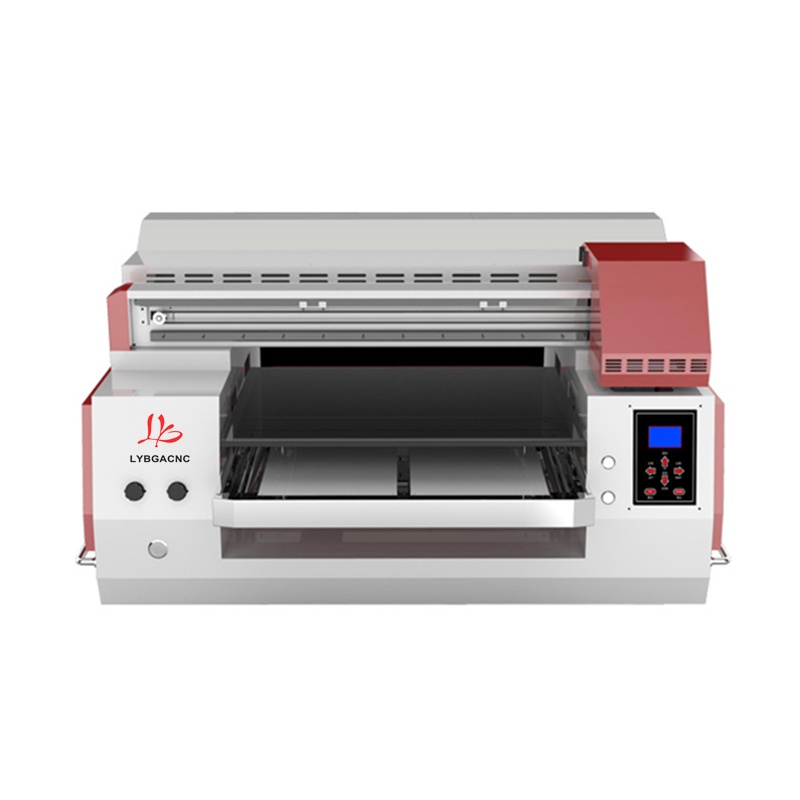

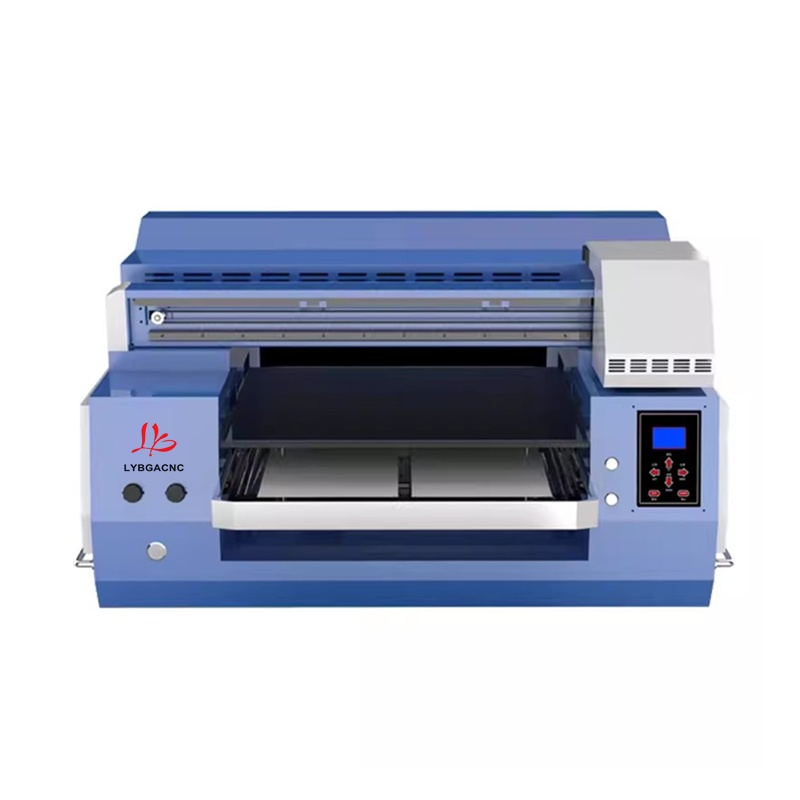

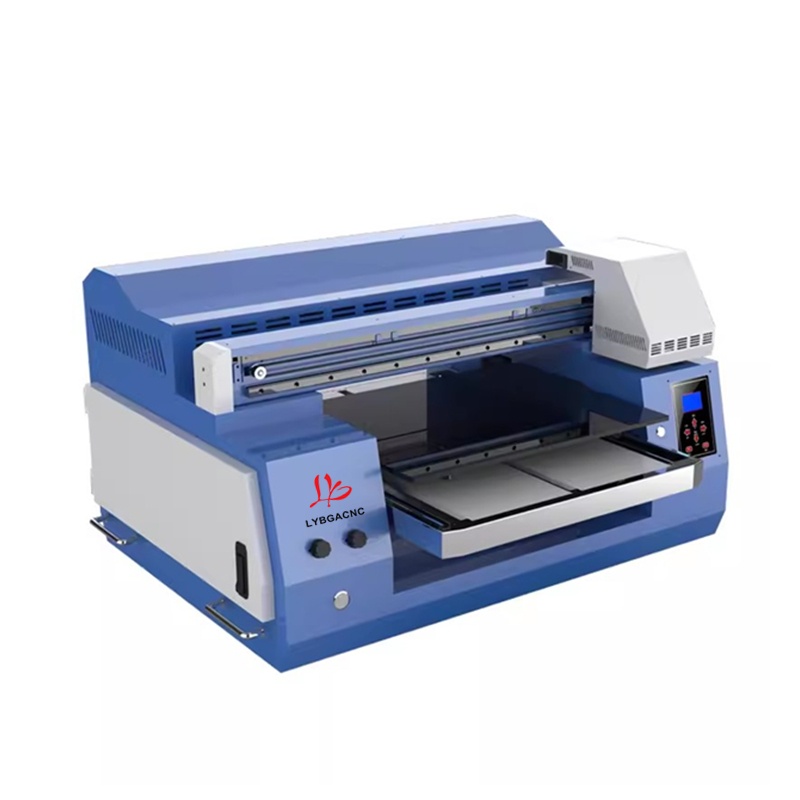

5040 UV flatbed printer is the ideal solution for DIY Customied printing on the products, which is a multi-functional LED UV flatbed printer

that created by LY and was built with industrial configuration as thicken aluminum profile, Water circulating cooling system.

Automatic detect UV curing system, 6 colors and max 2880 dpi printing resolution. Can print on all kinds of surfaces, available in 3D textured and raised printing, suitable for printing on both rigid and flexible material, like phone cases, metal ( aluminum, copper etc ), alloys, mirror, gifts packaging (wood, carbon paper, metal), tablet cover, USB sticks, DVD disc, industry signs, badge, plastic card, PVC, glass, wood, paper etc.



Main Features:

1-Easy Operation: Unique lateral loading platform design, Control on Demand system.

2-Maximize your productivity: Unidirection / Bidirection.

3-High Printing Precision: Automatic detect the X (carriage), Y (flatbed) motion pulse and send back the real motion data to the main-board for interpolating. Combine with the closed-loop structure circuit design to enhance the stability of the system and ensure the flatbed printing with one pass printing precision and repeat printing precision.

4-High Resolution Printing:

a. High color density, Wide color gamut, Instant drying.

b. Excellent adhesion to both coated and uncoated media.

c. Superior scratch and alcohol resistance. 3 years outdoor durability.

5-Maintenance simplified:

a. Accessible electronic, Components in on integrated compartment

b. Easily accessible ink system from maintenance.





Specifications:

Printer Model LY-5040UV Double Printer
Print head 2* EPSON Print Head Industrial Grade

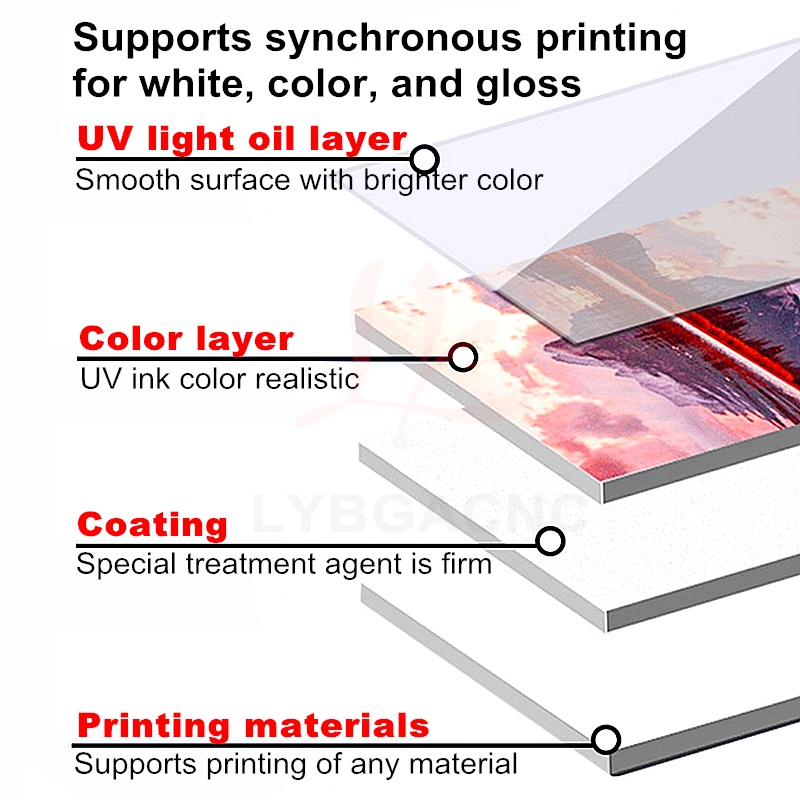

Colors channels CMYK+W W+ VARNISH
Resolution 360/ 720/ 1440*2880dpi
Speed 6-8pass  60-120 min/ Sqaure meter
Output White or Colors, White+ colors, White+ colors +Varnish
Max print height 0-150mm
Print size 500*400MM
Precision Reach 0.3mm
Software Main TOP RIP
Port USB2.0
System All windows system
Power Max 500W

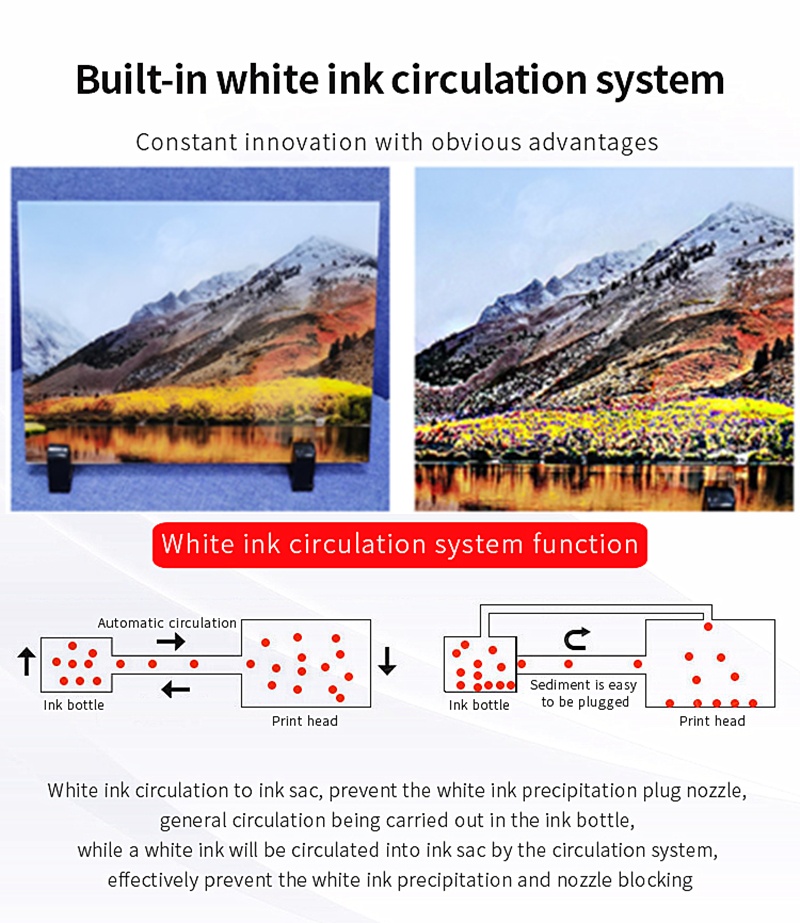

Ink supply system Continue ink supply+ circulation system
Net/Gross weight 96kg / 125kg
Ink consumation 10-15ml/ Square meter
Flash Auto flash Jetting
UV LED power 50Watt Long life UV LED curing system

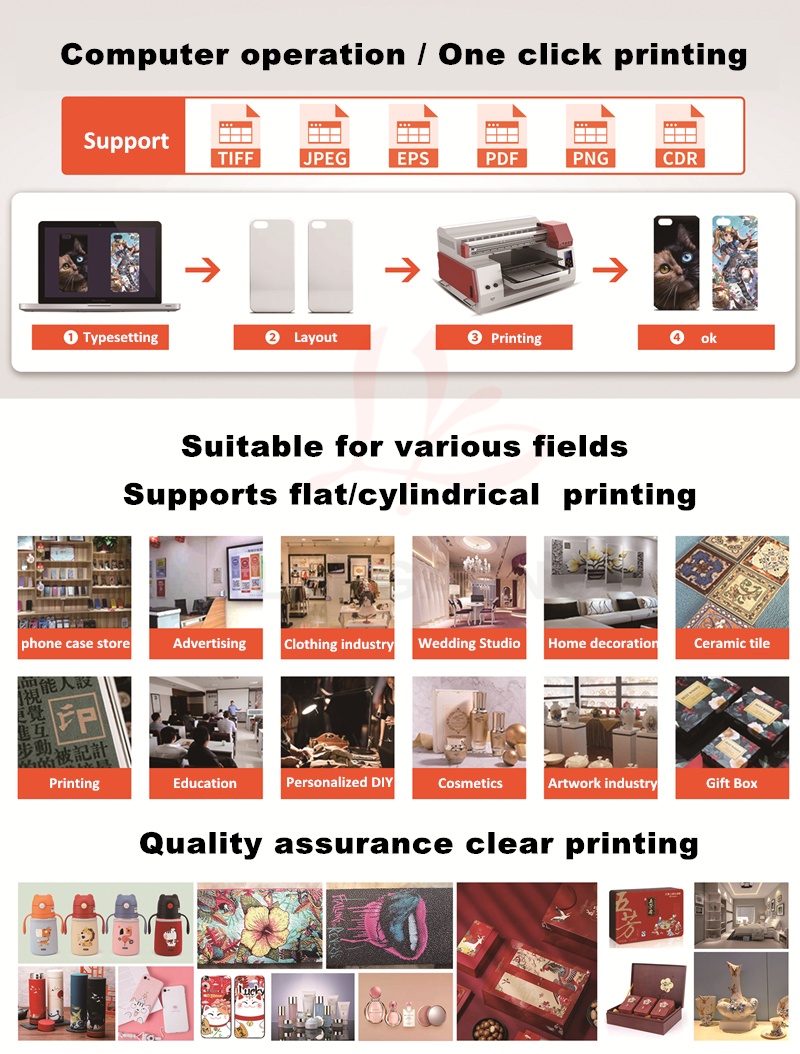

Image form TIFF/JPG/PNG/PDF
Work voltage AC110V-220V/50-60HZ

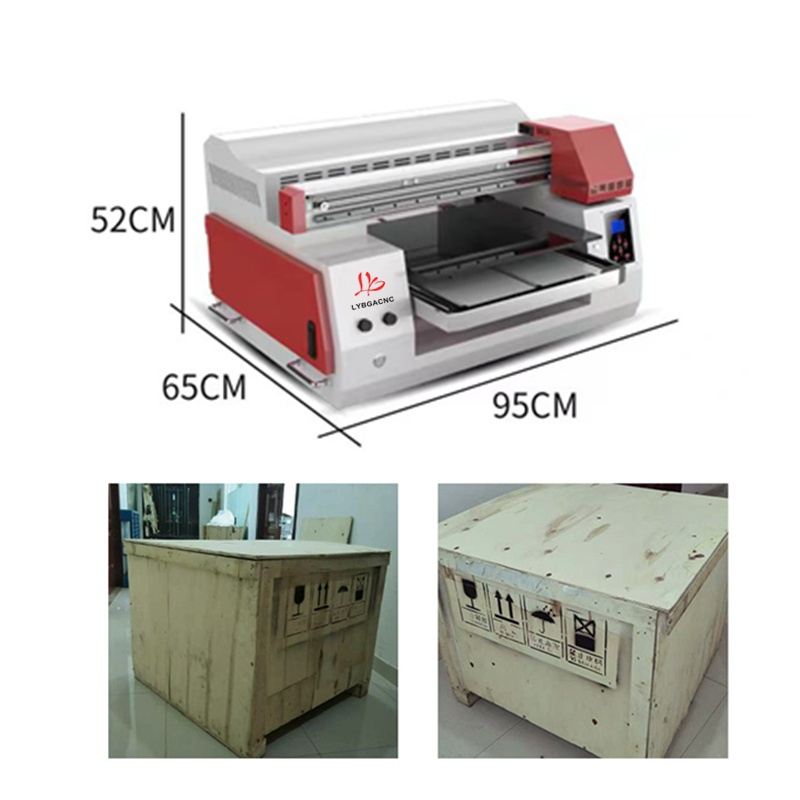

Machine size L1100mm*W1080mm*H720mm
Rotary printing Support Rotary printing for bottles





Packing List:

1* 5040 UV printer

1* rotary axis

1* Accessories tools

5* 250ML UV ink (C/M/Y/K/WT) [optional]
