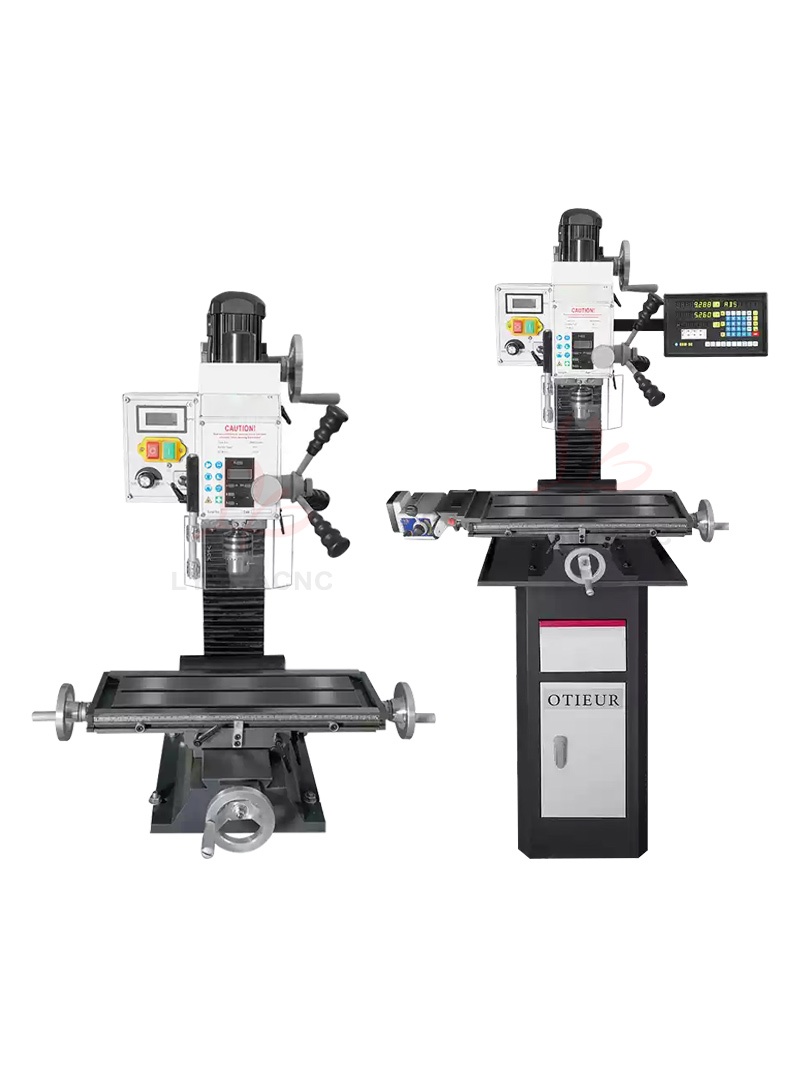

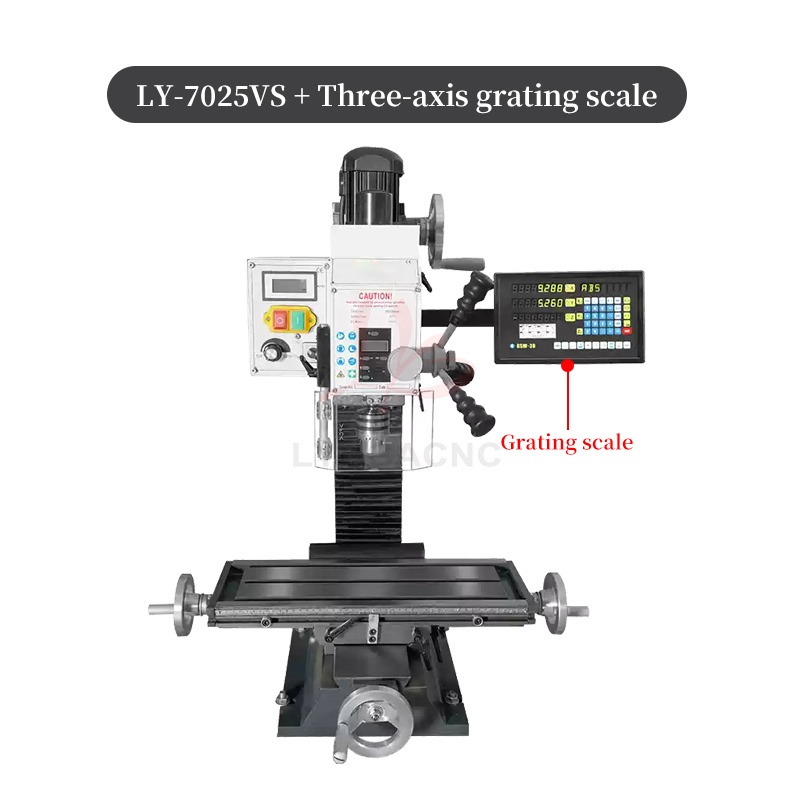

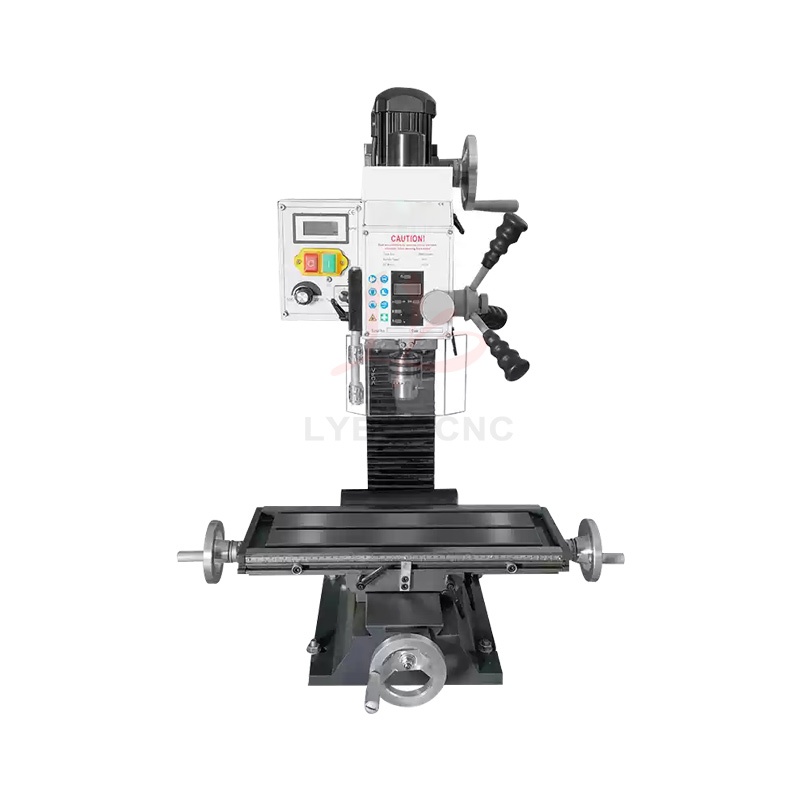

LY-7025VS and LY-7028VS Milling Machines for Drilling and Metal Processing with 3-axis Scale, Sizes 700*180mm and 500*180mm
Reviews(0)
Product Detail
Product Tags
|

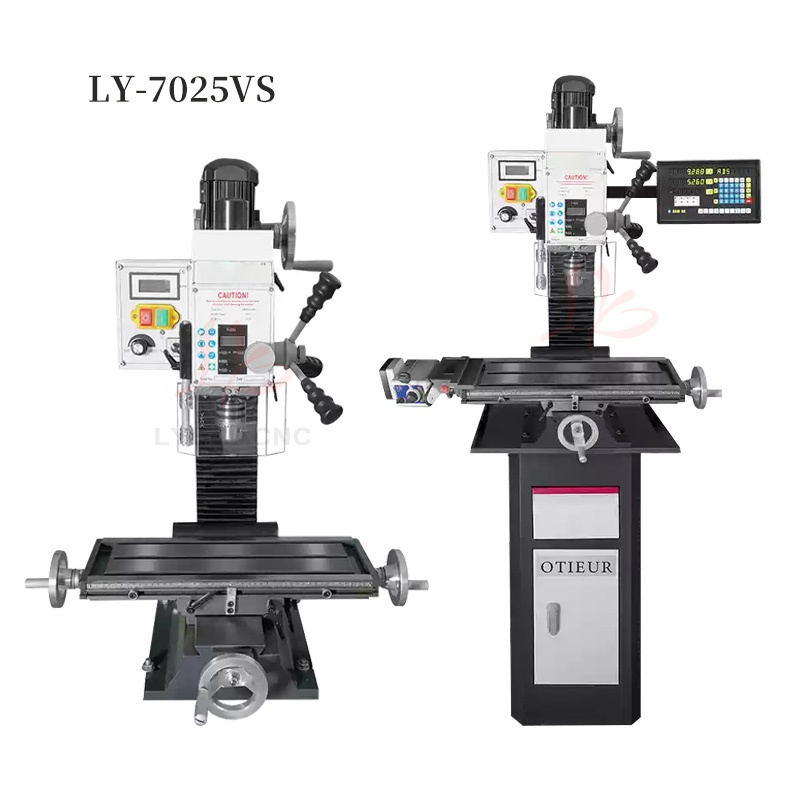

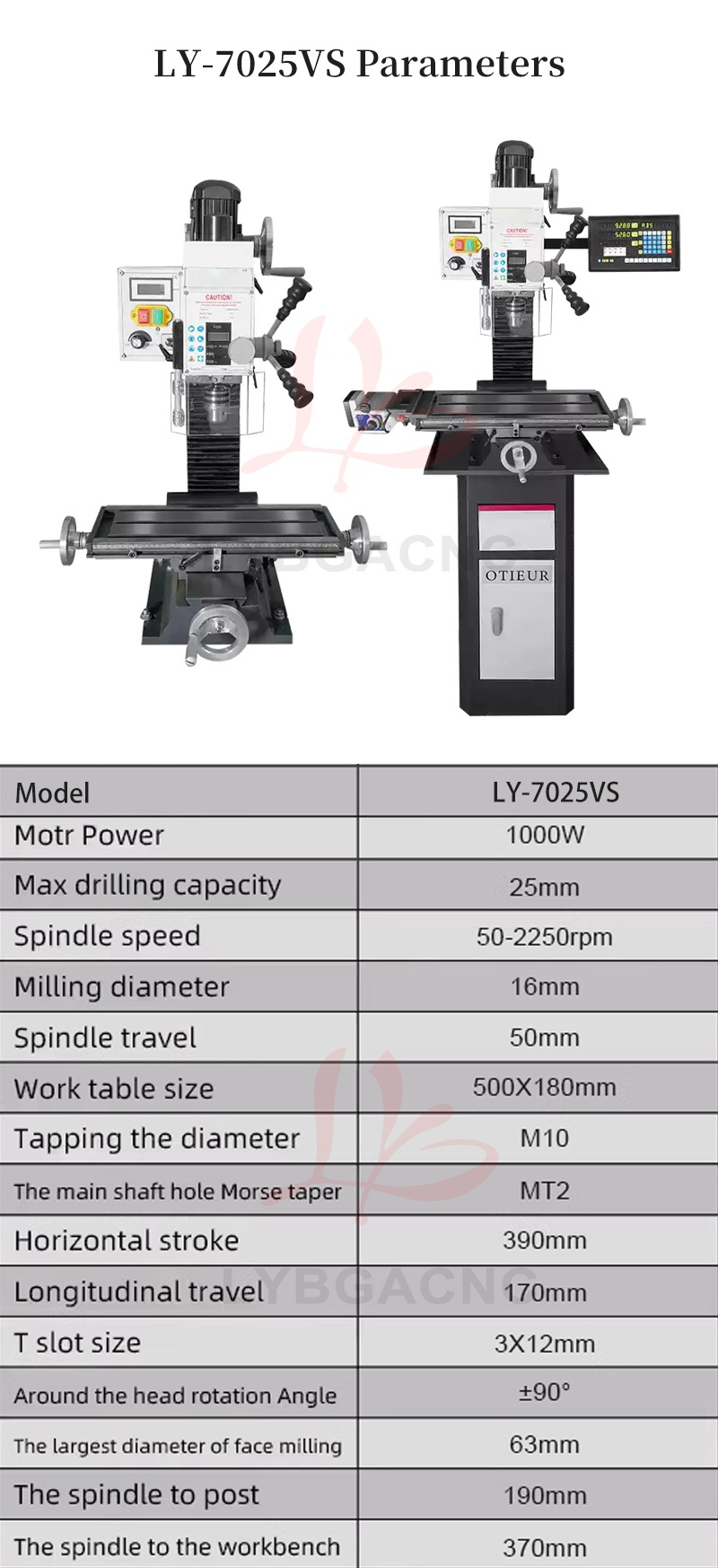

Model |

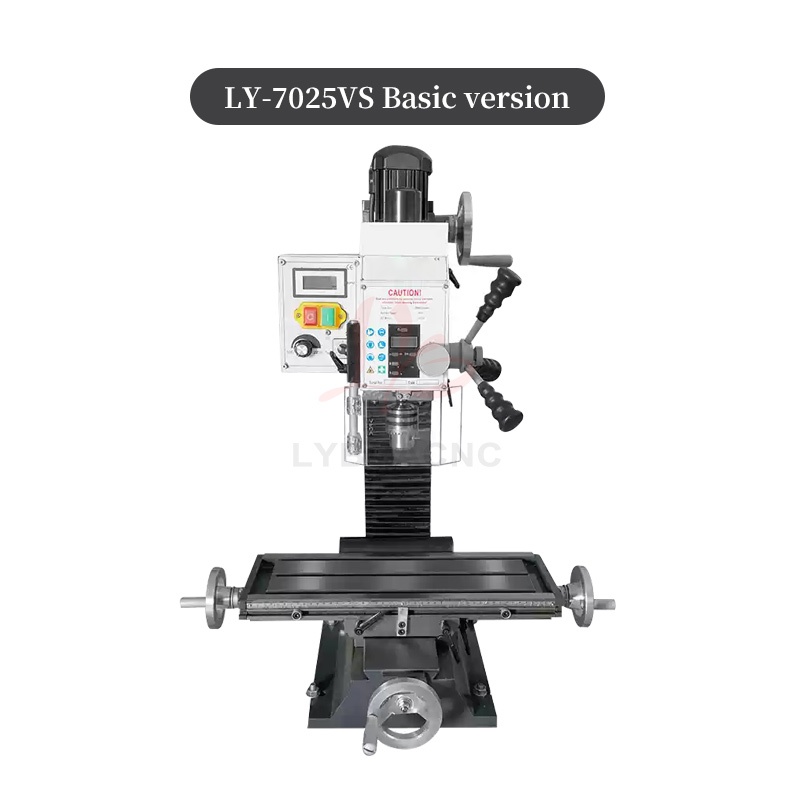

LY-7025VS |
|
Motor Power |
1000W |
|
Max drilling capacity |
25mm |
|
Spindle speed |
50-2250rpm |
|
Milling diameter |
16mm |
|
Spindle travel |
50mm |
|
Work table size |
500*180mm |
|
Tapping the diameter |
M10 |
|
The main shaft hole Morse taper |
MT2 |
|
Horizontal stroke |
390mm |
|
Longitudinal travel |
170mm |
|
T slot size |
3*12mm |
|
Around the head rotation Angle |
±90° |
|
The Largest diameter of face milling |
63mm |
|
The spindle to post |
190mm |
|
The spindle to the workbench |
370mm |
|

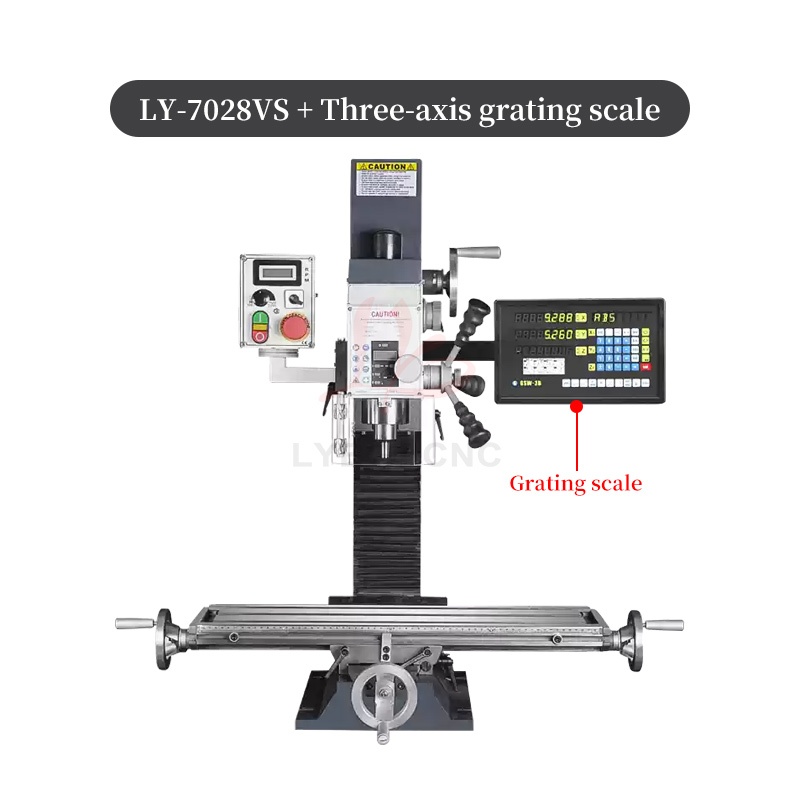

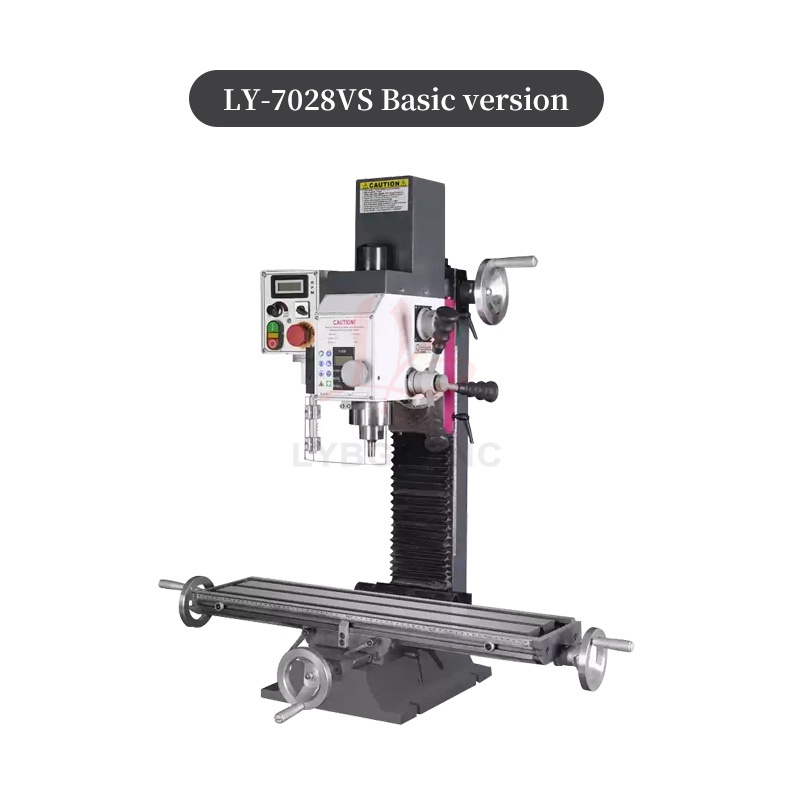

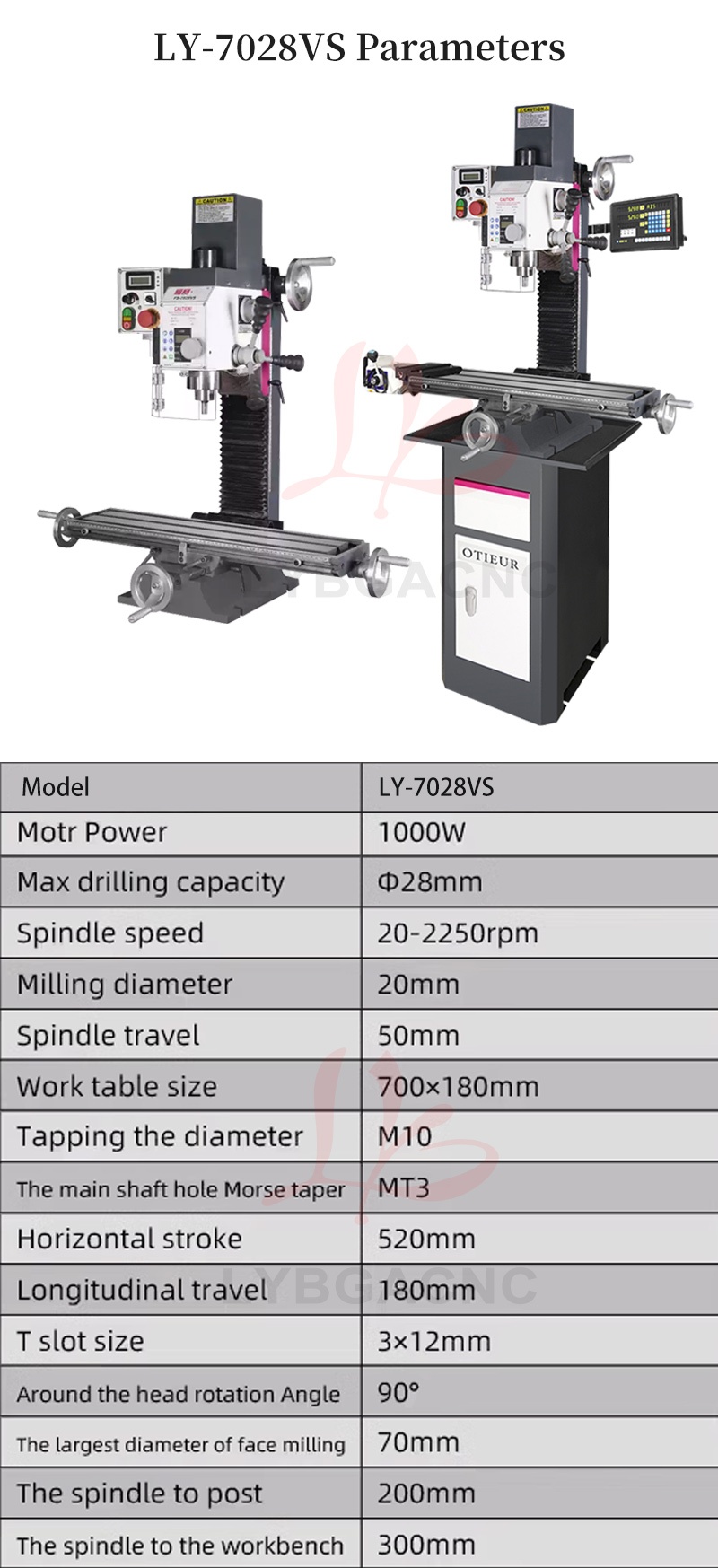

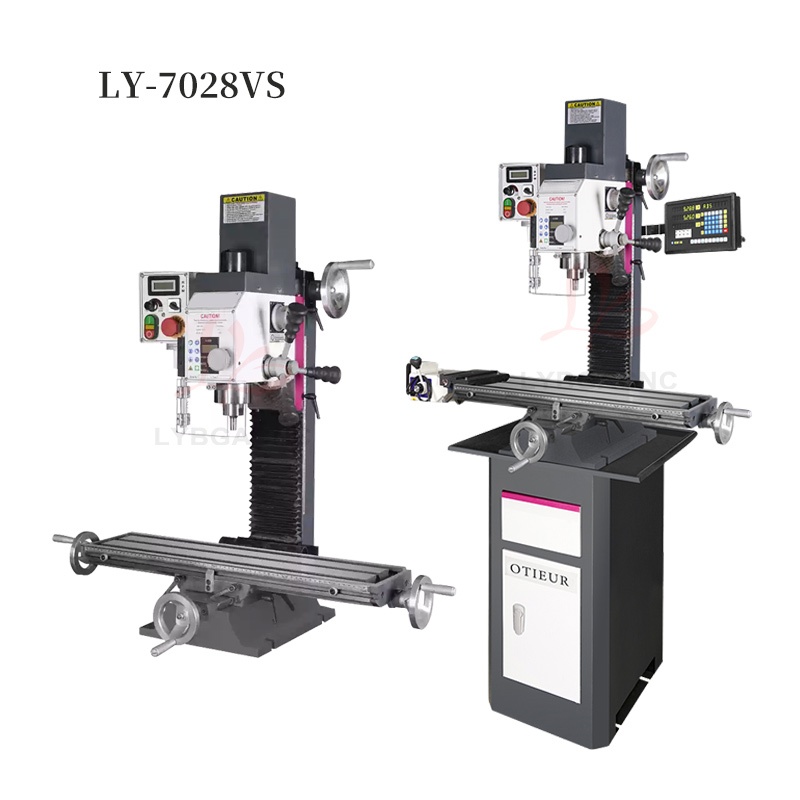

Model |

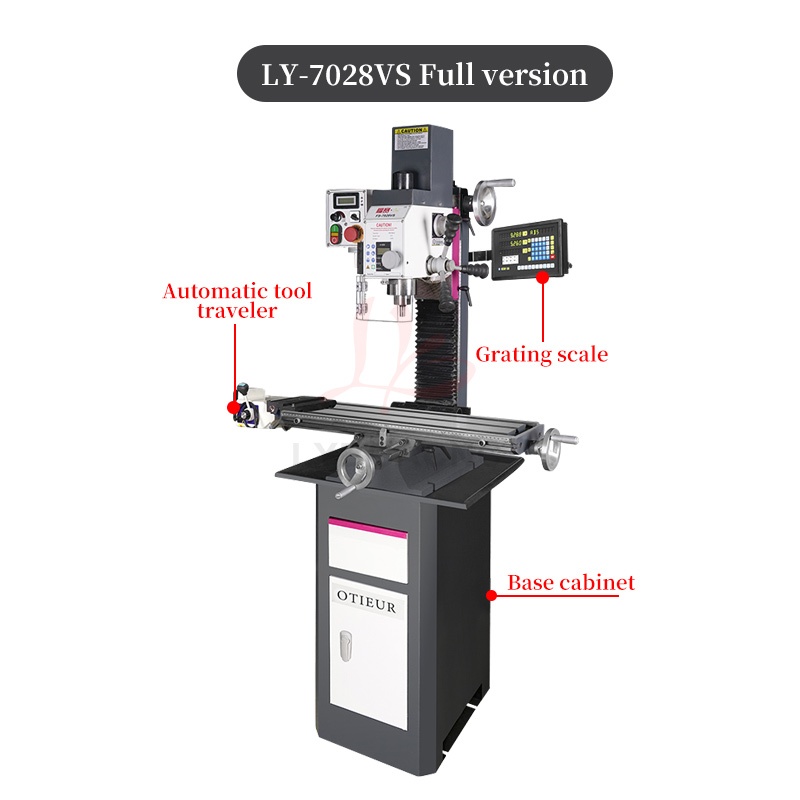

LY-7028VS |
|
Motor Power |
1000W |
|
Max drilling capacity |
φ28mm |
|
Spindle speed |
20-2250rpm |
|
Milling diameter |
20mm |
|
Spindle travel |
50mm |
|
Work table size |
700*180mm |
|
Tapping the diameter |
M10 |
|
The main shaft hole Morse taper |
MT3 |
|
Horizontal stroke |
520mm |
|
Longitudinal travel |
180mm |
|
T slot size |
3*12mm |
|
Around the head rotation Angle |
90° |
|
The largest diameter of face milling |
70mm |
|
The spindle to post |
200mm |
|
The spindle to the workbench |
300mm |
详情页文本信息

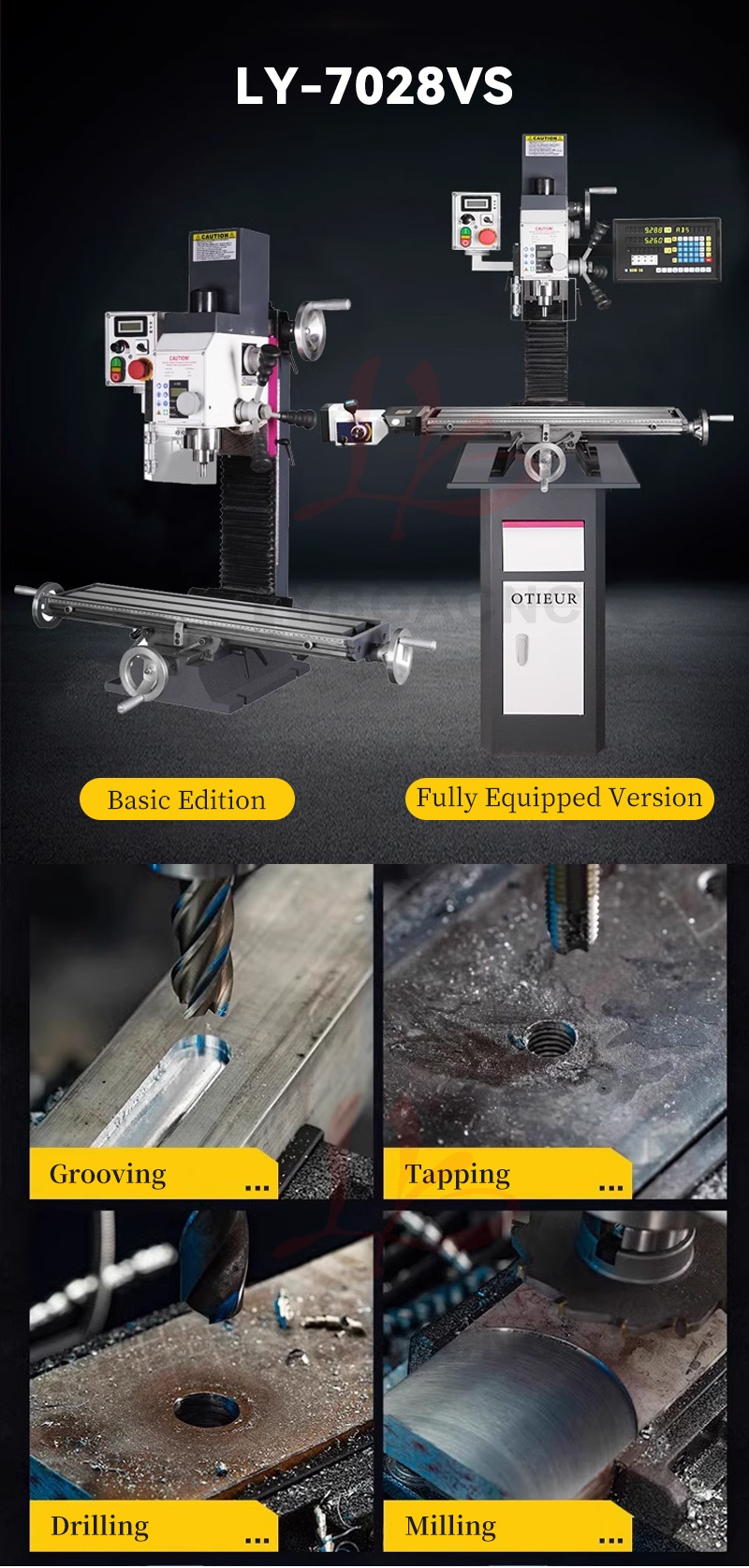

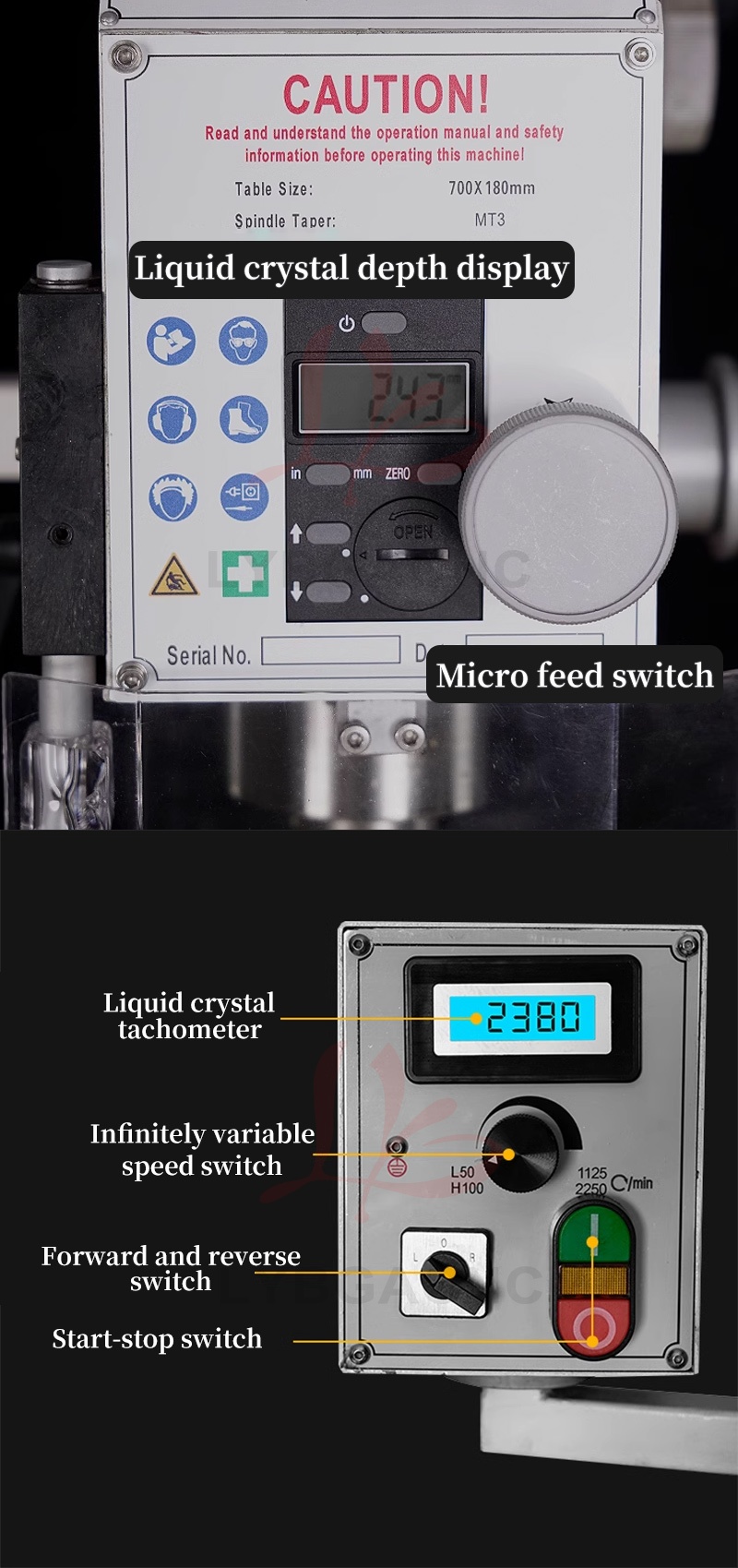

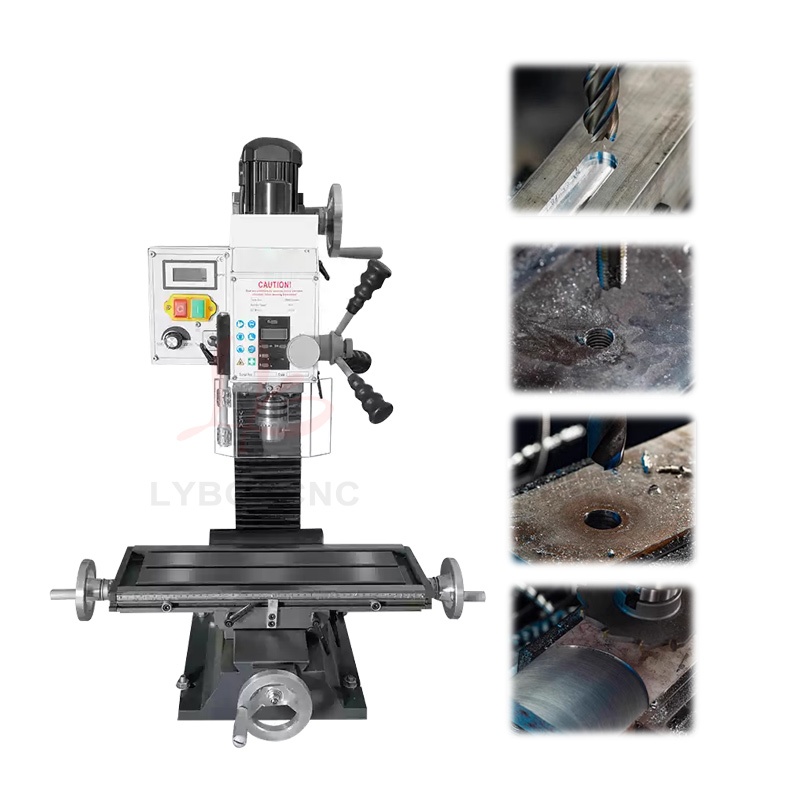

Function: Grooving, Tapping, Drilling, Milling

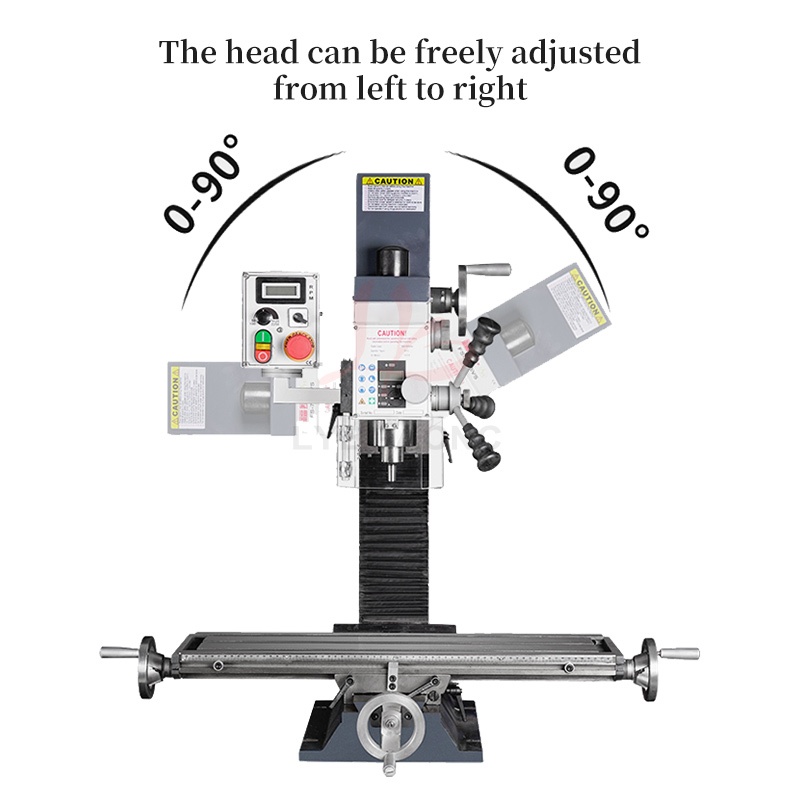

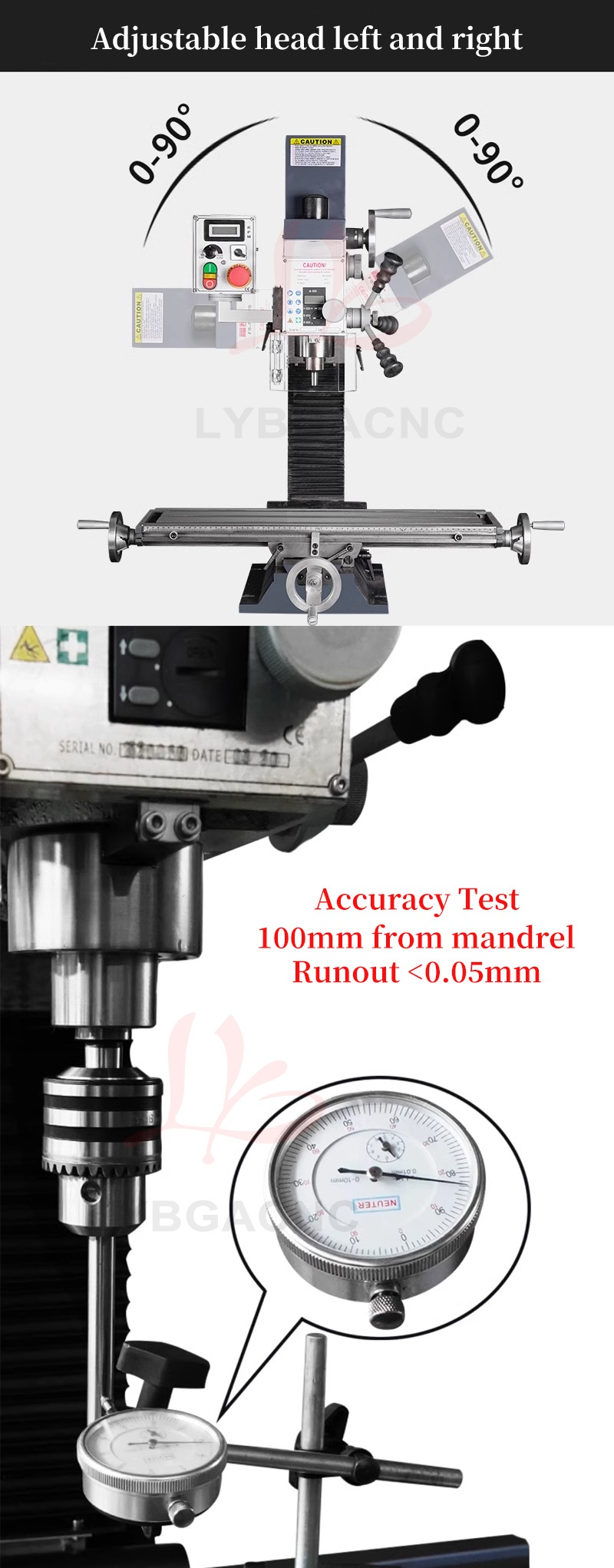

Adjustable head left and right ±0-90°

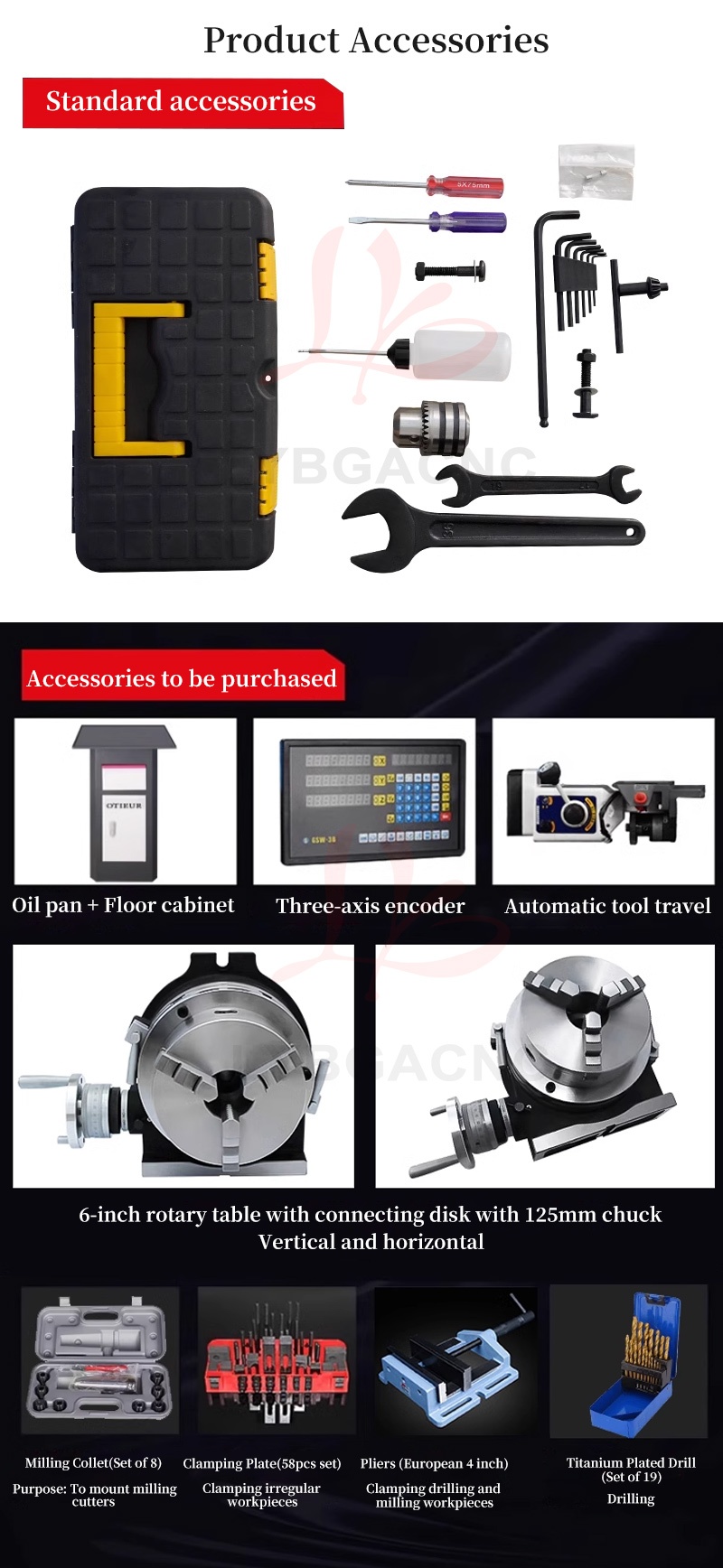

Optional Accessories：

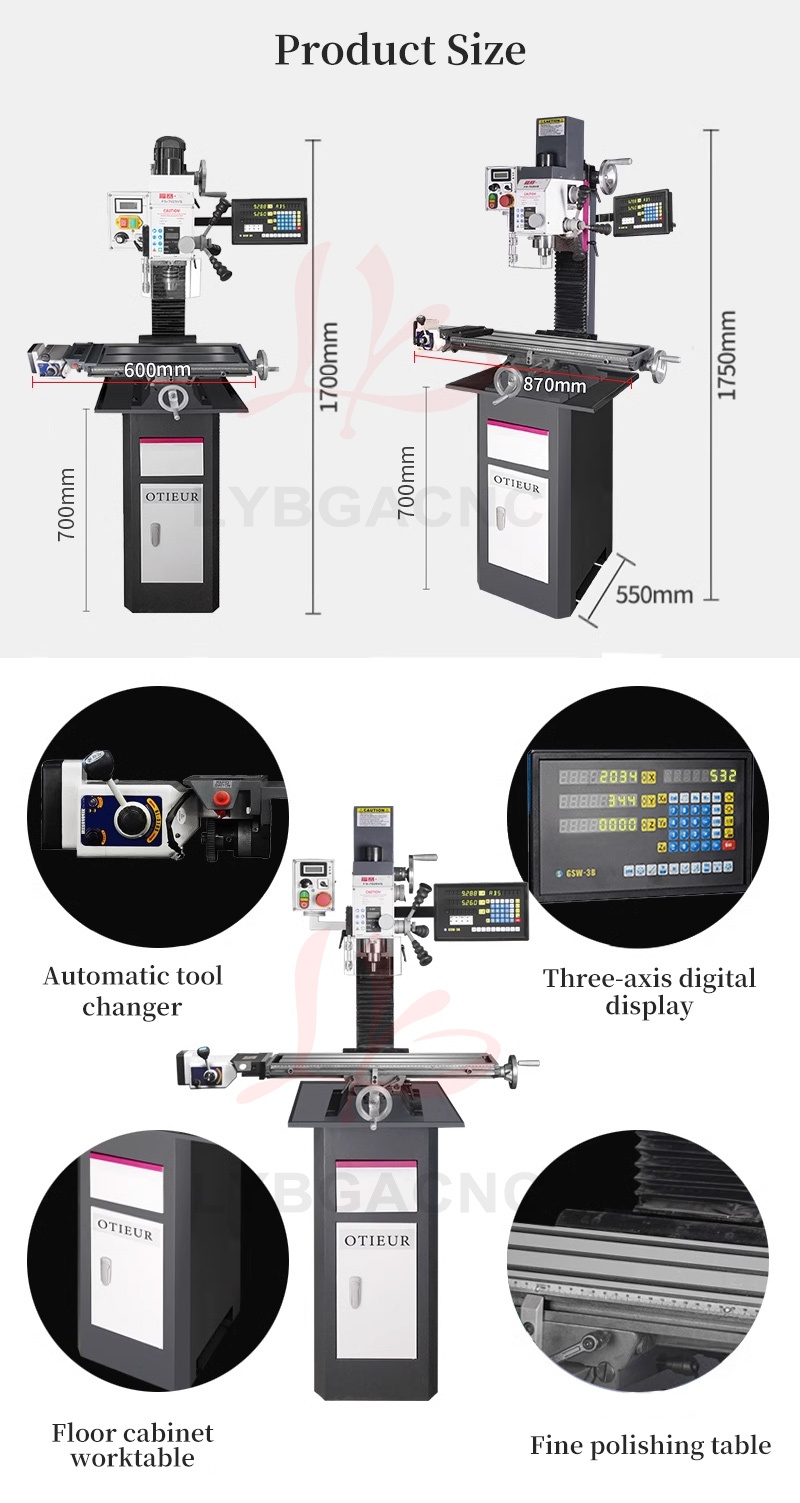

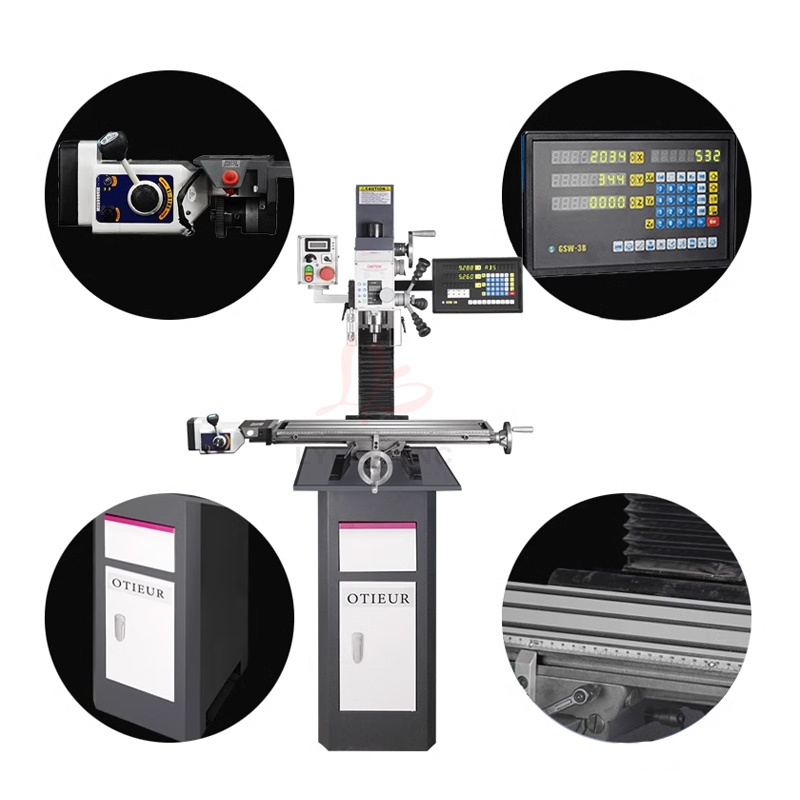

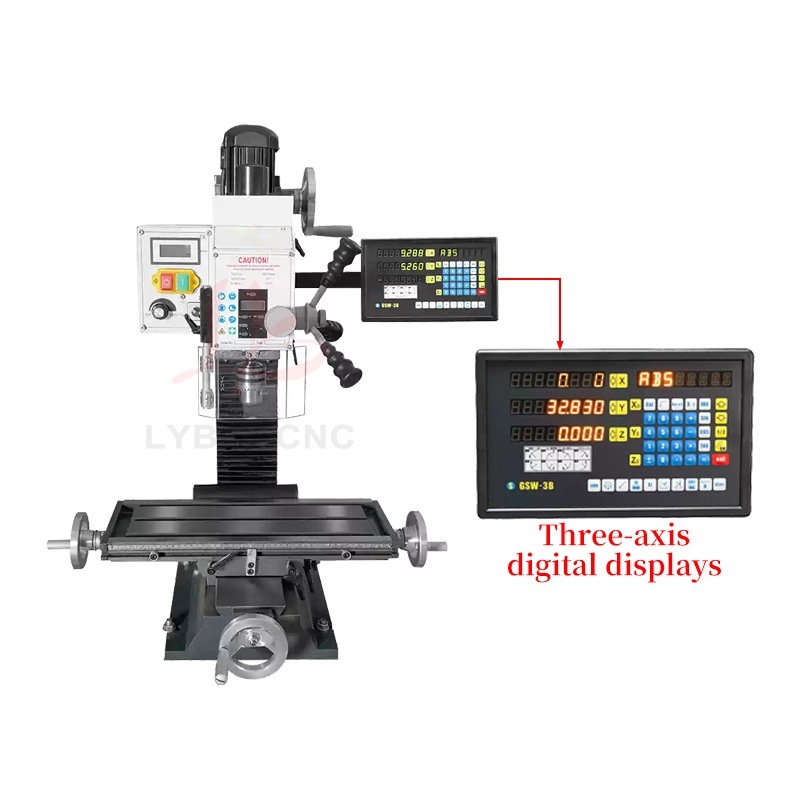

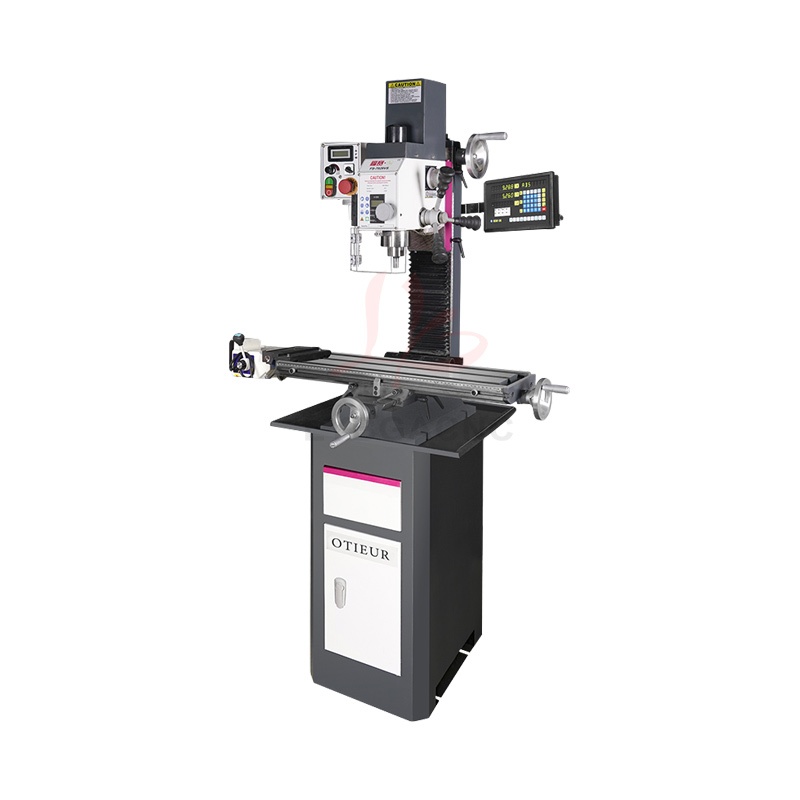

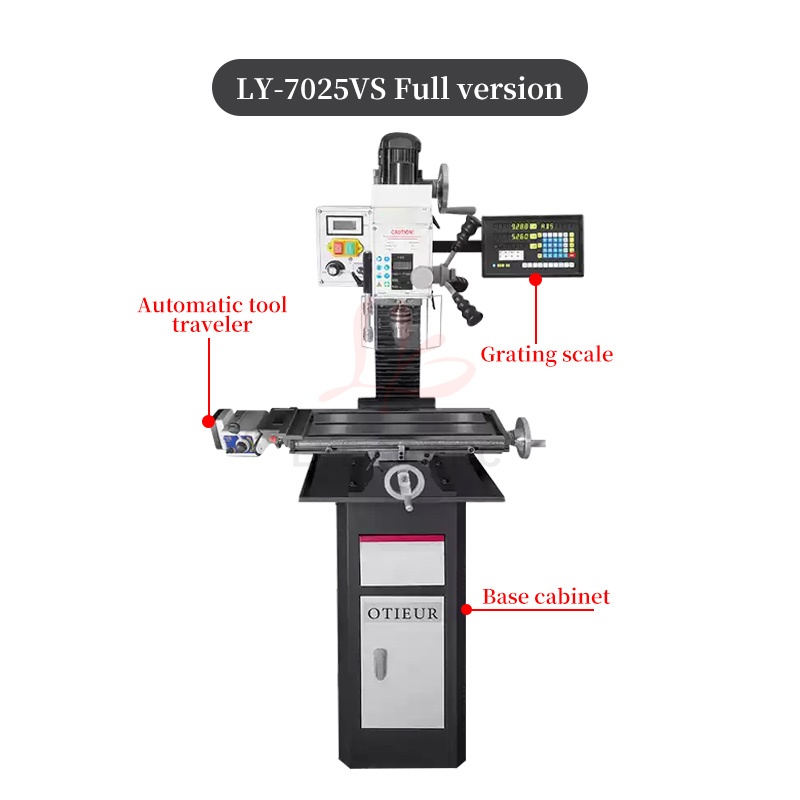

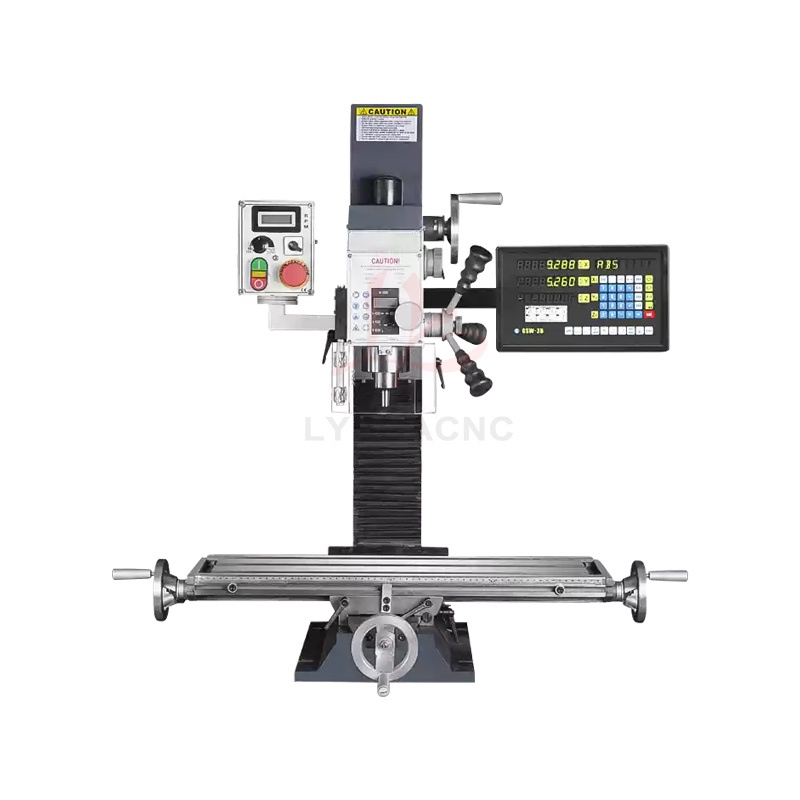

Oil pan + Floor cabinet, Three-axis encoder, Automatic tool travel, 6- inch rotary table with connecting disk with 125mm chuck Vertical and horizontal, Milling Collet(Set of 8), Clamping Plate (58pcs set), Pliers (European 4 inch), Titanium Plated Drill
Thanks for your order!

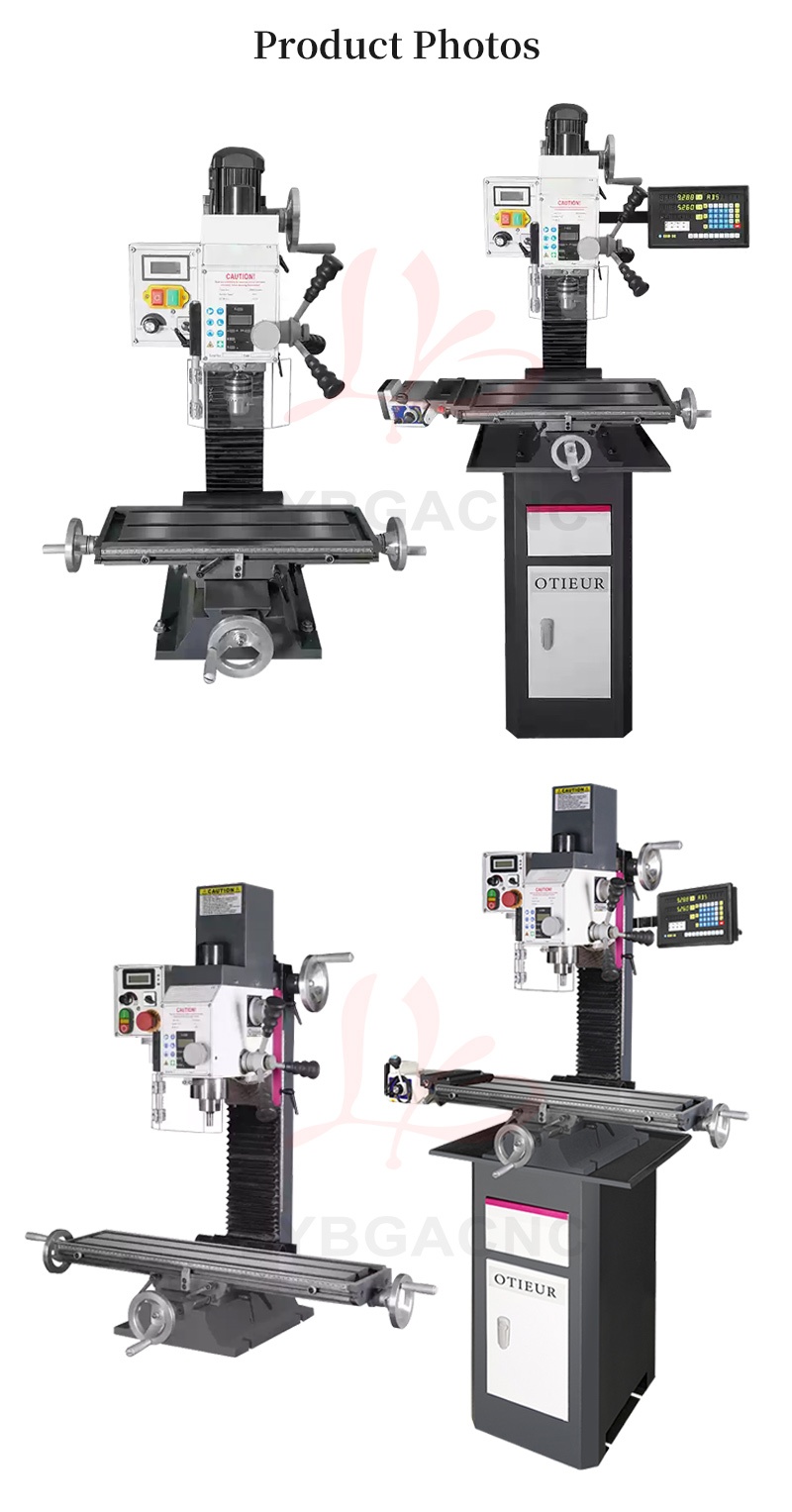

Product Pictures
