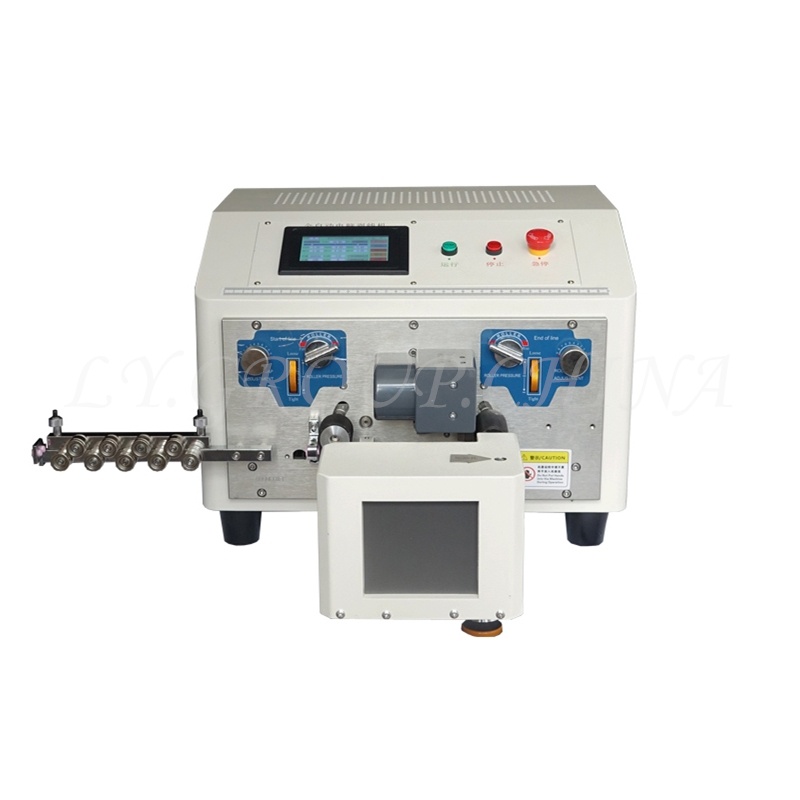

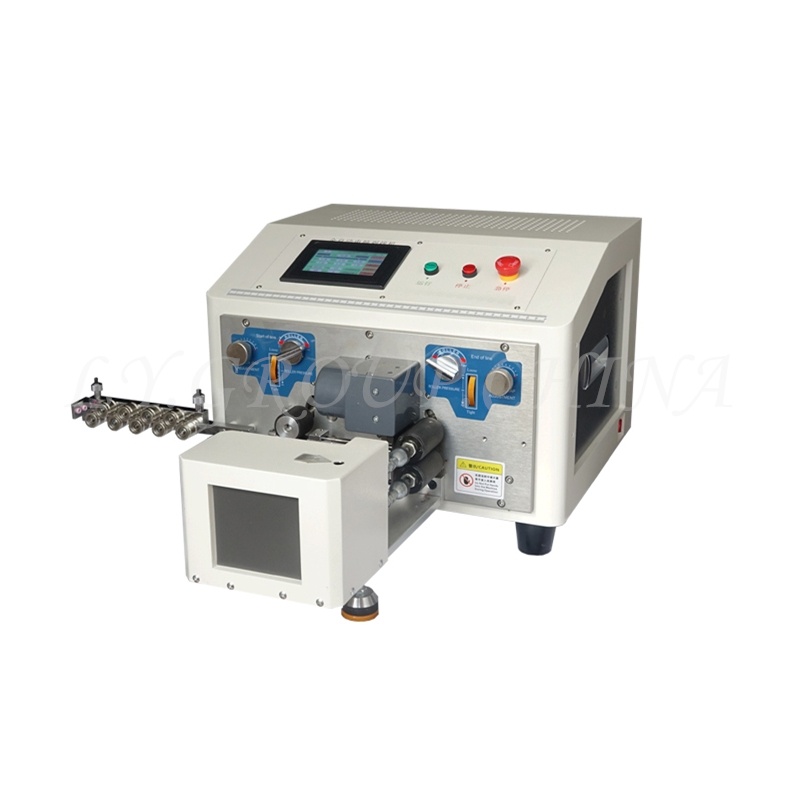

LY 806N Double Wires Automatic Touch Screen Peeling Stripping Cutting Machine With Twist Function For 0.1-6mm2 AWG30#-12#

LY 806N Double Wires Automatic Touch Screen Peeling Stripping Cutting Machine With Twist Function For 0.1-6mm2 AWG30#-12#

item ID: 67316
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$2500 USD$1718 (% off)
Payment

Product Detail

Product Tags

LY 806N Double Wires Automatic Touch Screen Peeling Stripping Cutting Machine With Twist Function For 0.1-6mm2 AWG30#-12#

(RE:. Crystal Protect case not included, if need please leave message to seller.)

This Machine is maily suitable for processing wires in such industries as electronic products, electric appliances, toys and auto and motorcycle etc. With computer controlled very clean designed mechanism, It cuts and strips wire automatically. The direct and easy to use interface allows inexperienced users to operate it easily. Various cutting style and programmable length and distance can suit any wire assemble needed. Rapid and automatic cutting allow high boots the producitivity.

* Single-chip self-developed motion control board

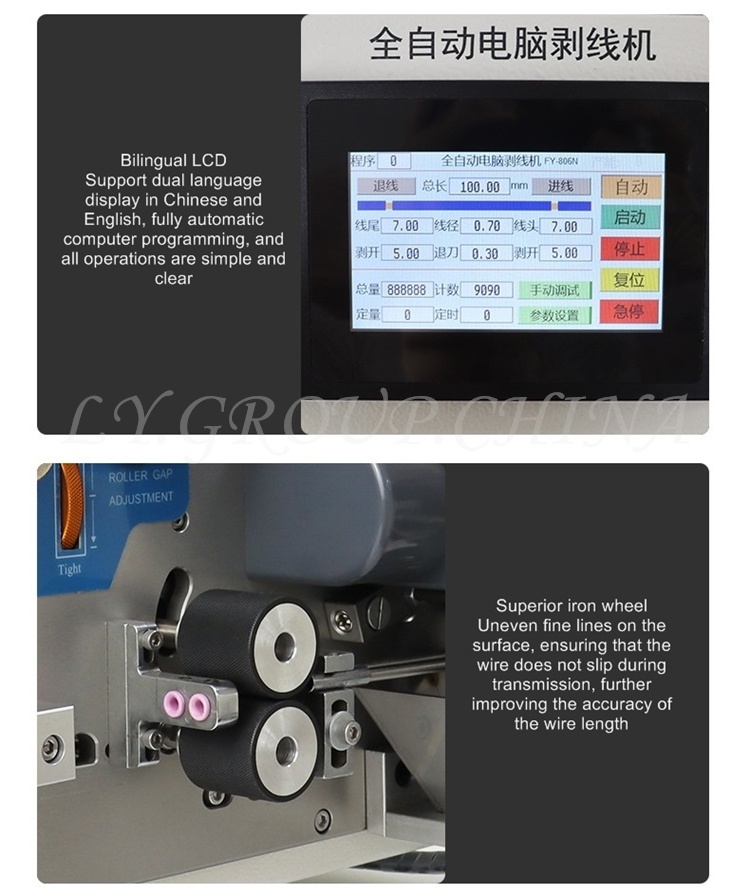

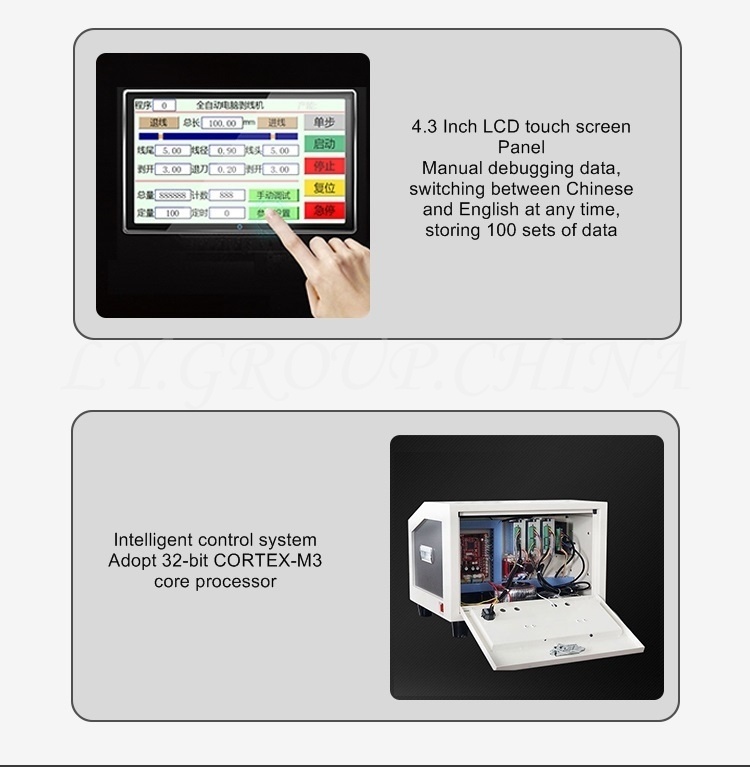

* Full touch 4.3 inch LCD screen
* Low noise hybrid subdivision driver
* One-key correction of wire length error
* Unique appearance, sleek and precise design

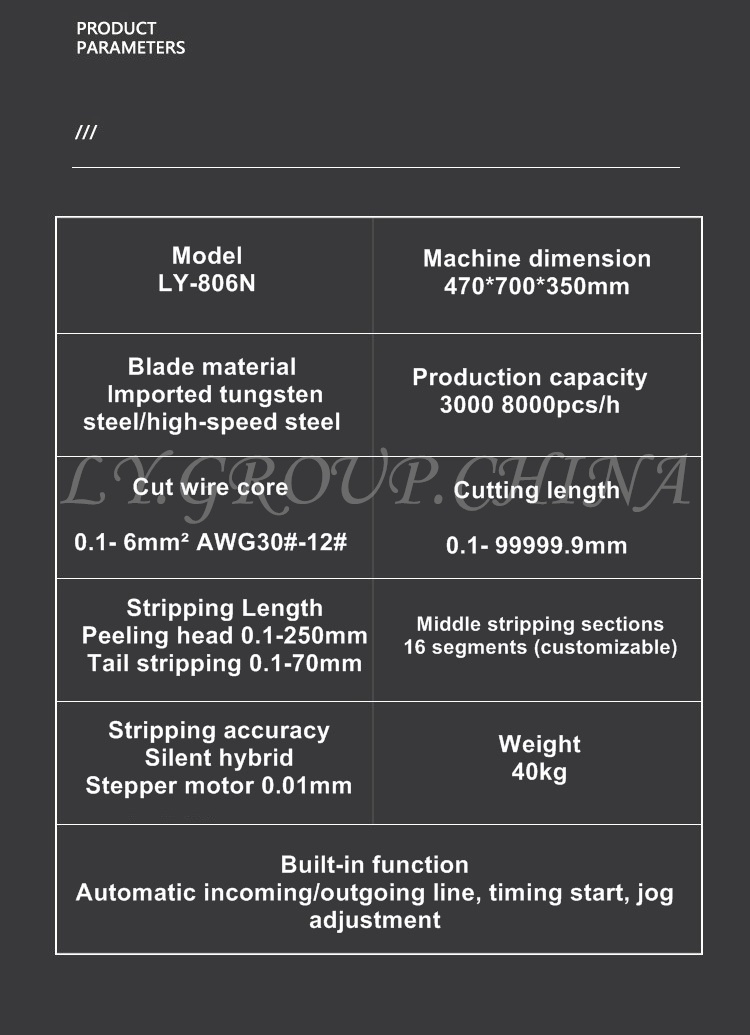

Parameter

Model :LY-806N
Power supply : AC220V50/60HZ

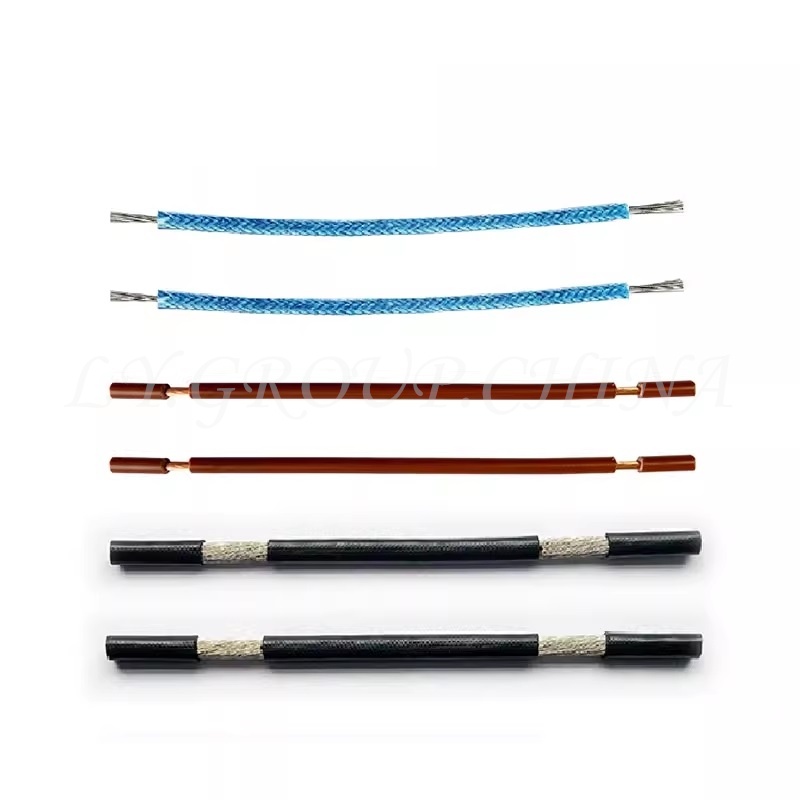

Function: Wire cutting, double-end stripping, middle stripping
wire core: 0.1-6mm2AWG30#-12#
Size: 470mm*700mm*350mm
Cutting length : 0.1mm-99999.9mm
weight :40kg
Stripping length : Stripping head 0.1-250mm, stripping tail 0.1-70mm

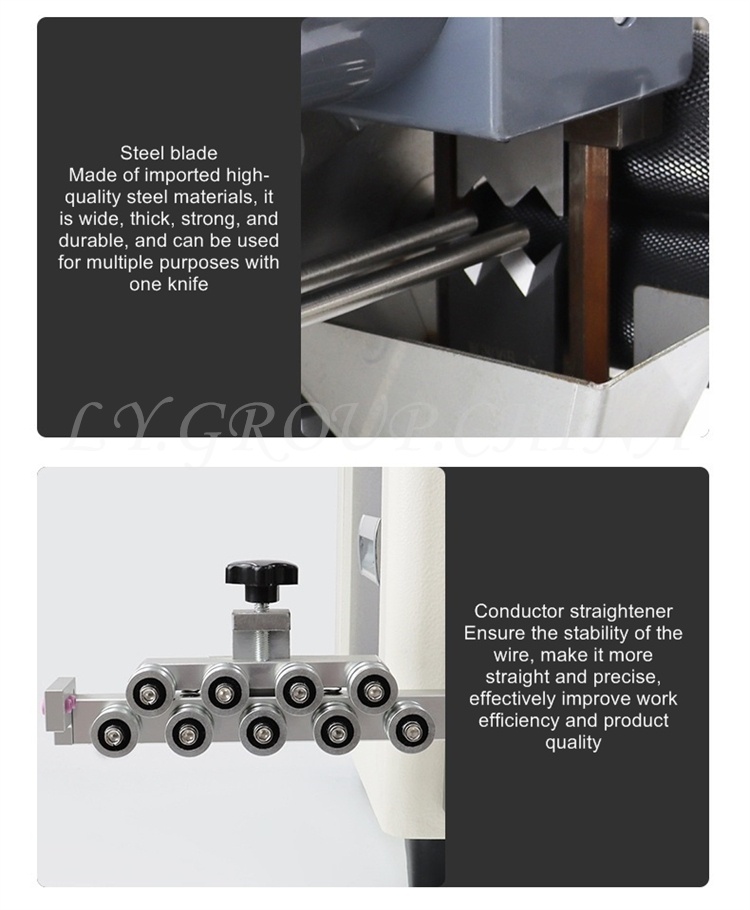

Blade material: imported tungsten steel / high speed steel
Stripping segments: 16 segments (can be customized)
Capacity: 3000-8000/h

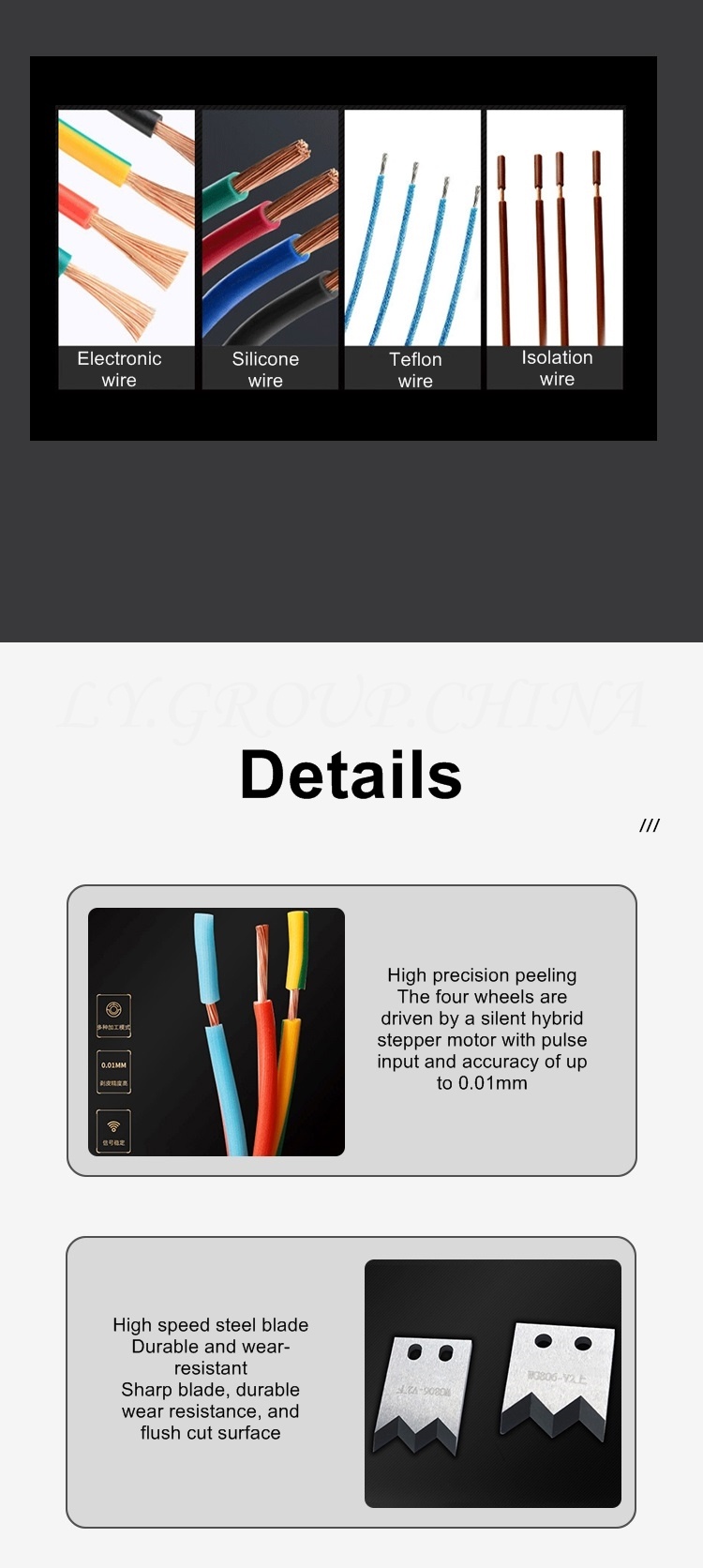

Stripping accuracy: Silent hybrid stepping motor 0.01mm
Remarks: Function Automatic in/out, timing start, jog adjustment
