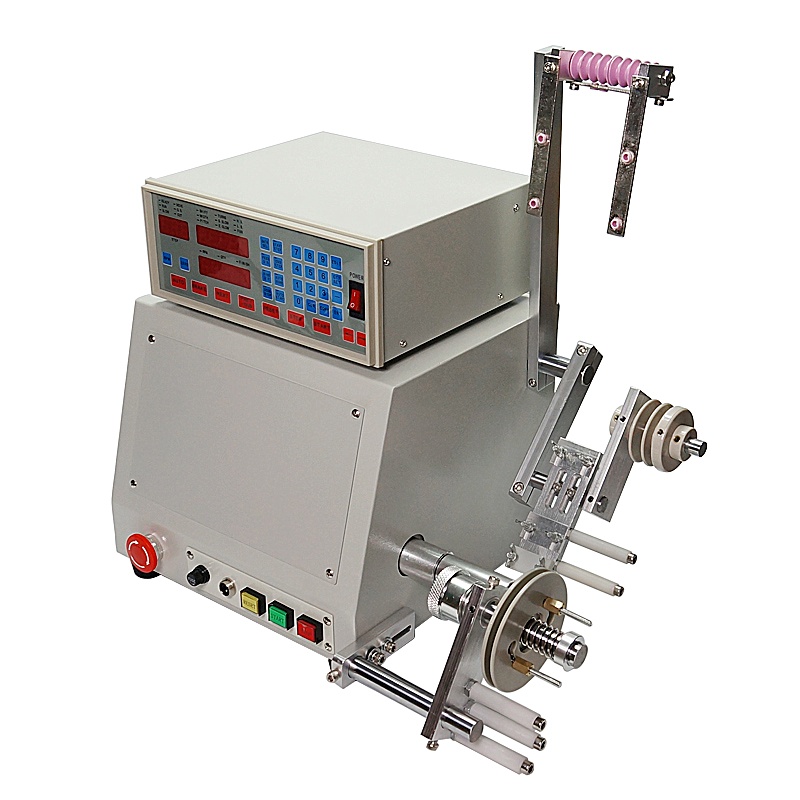

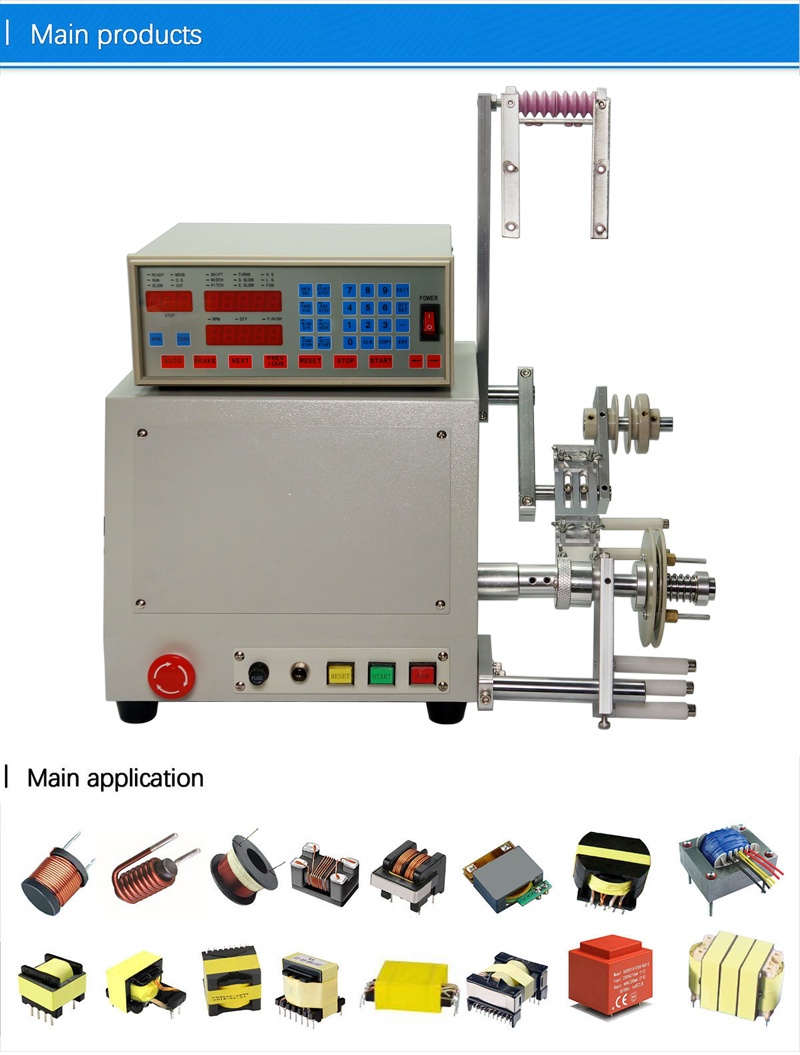

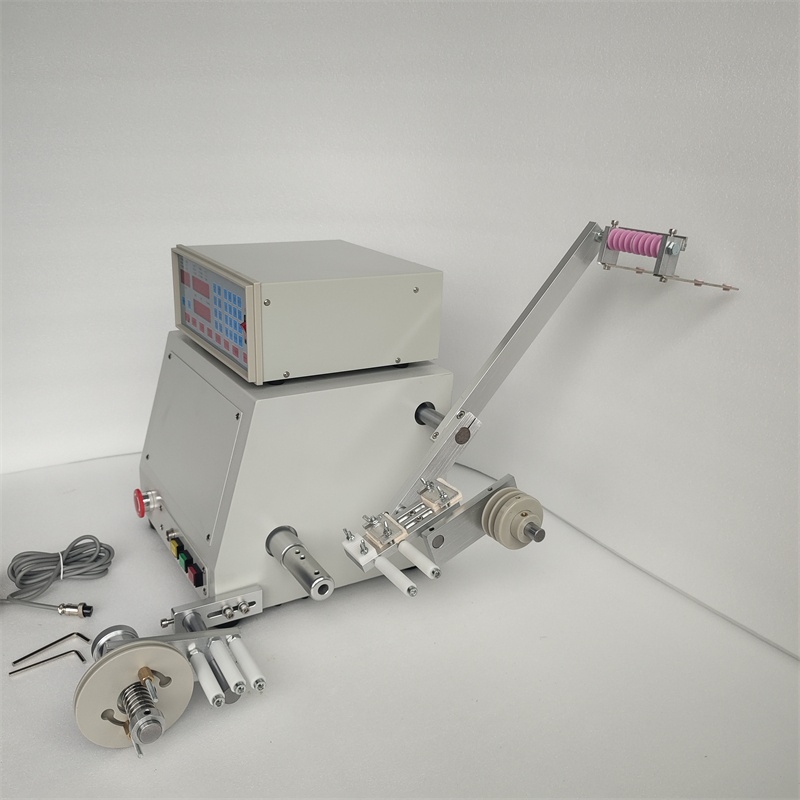

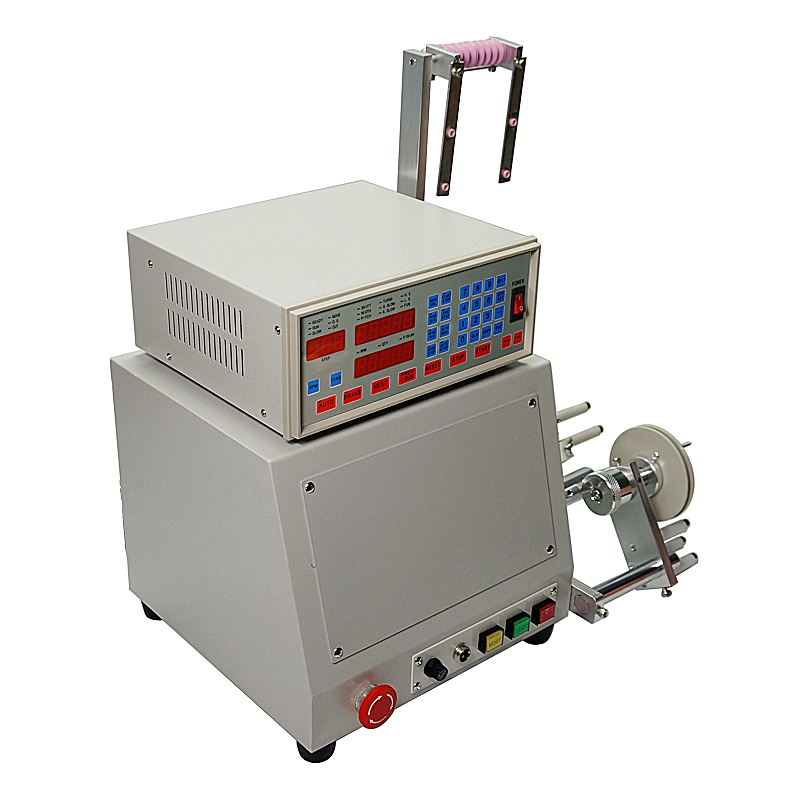

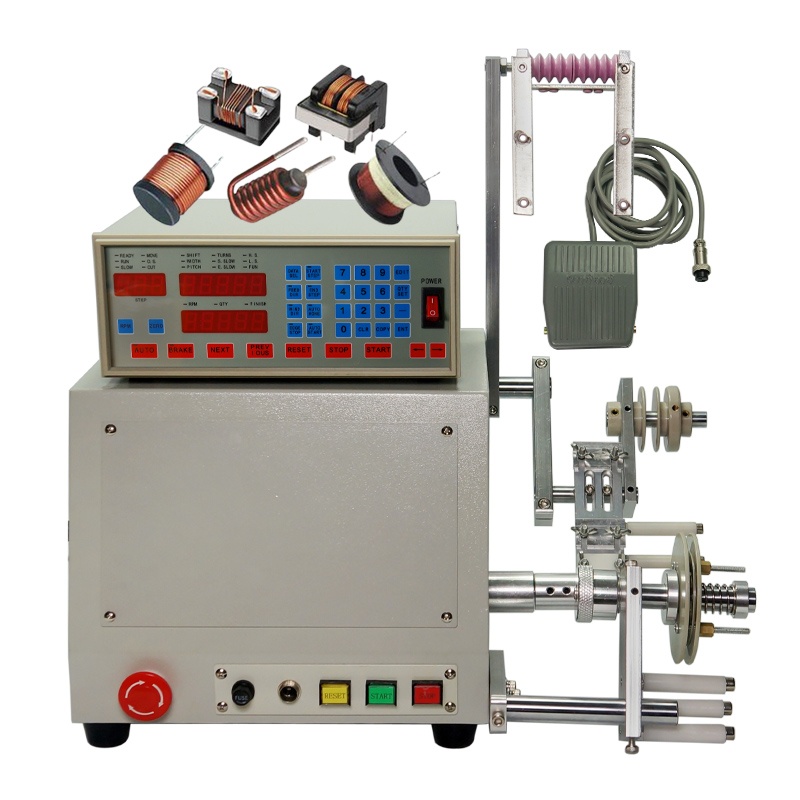

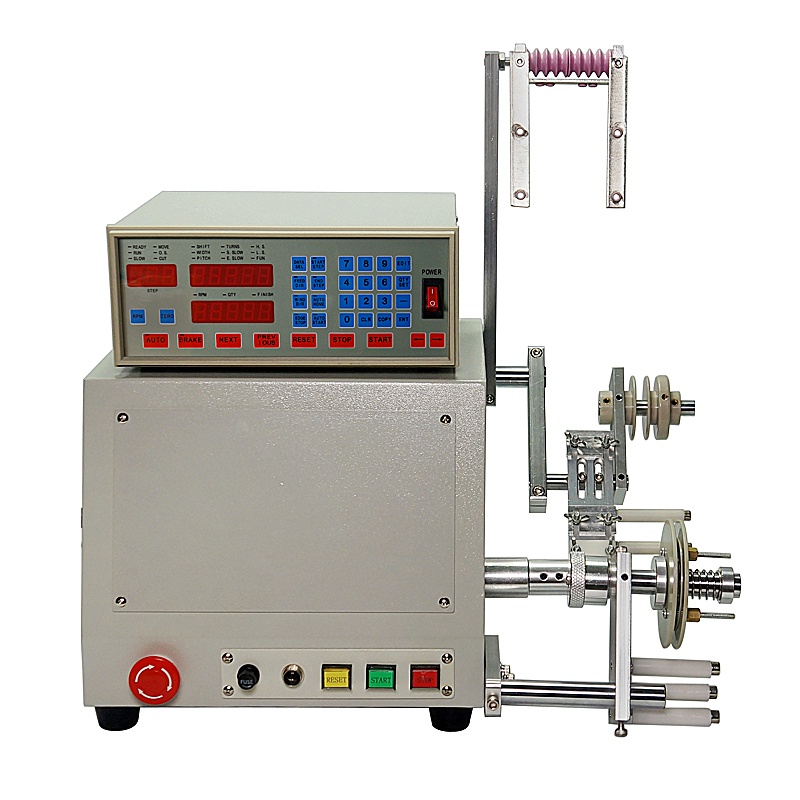

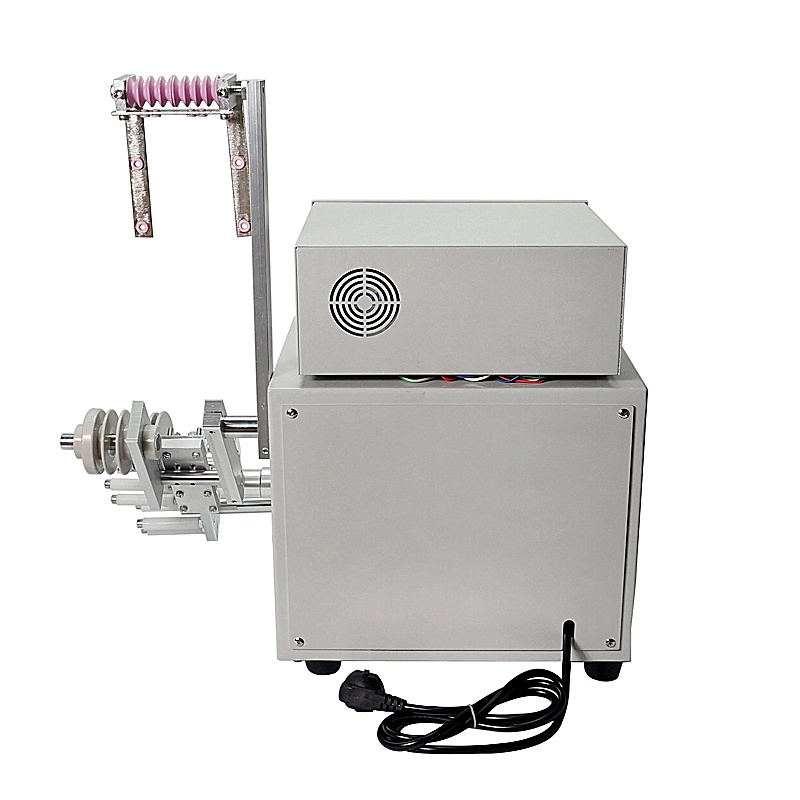

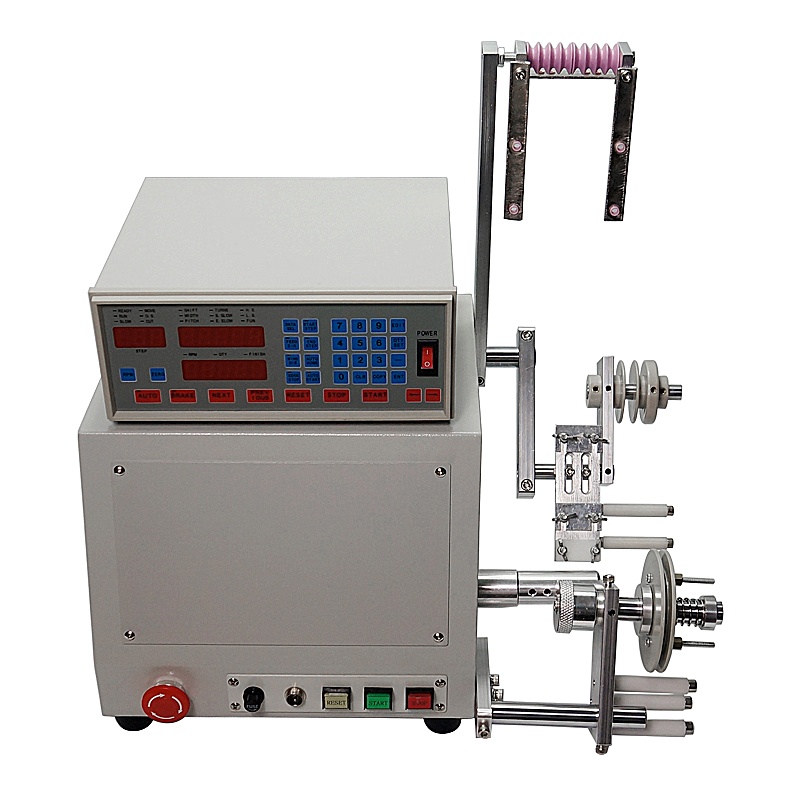

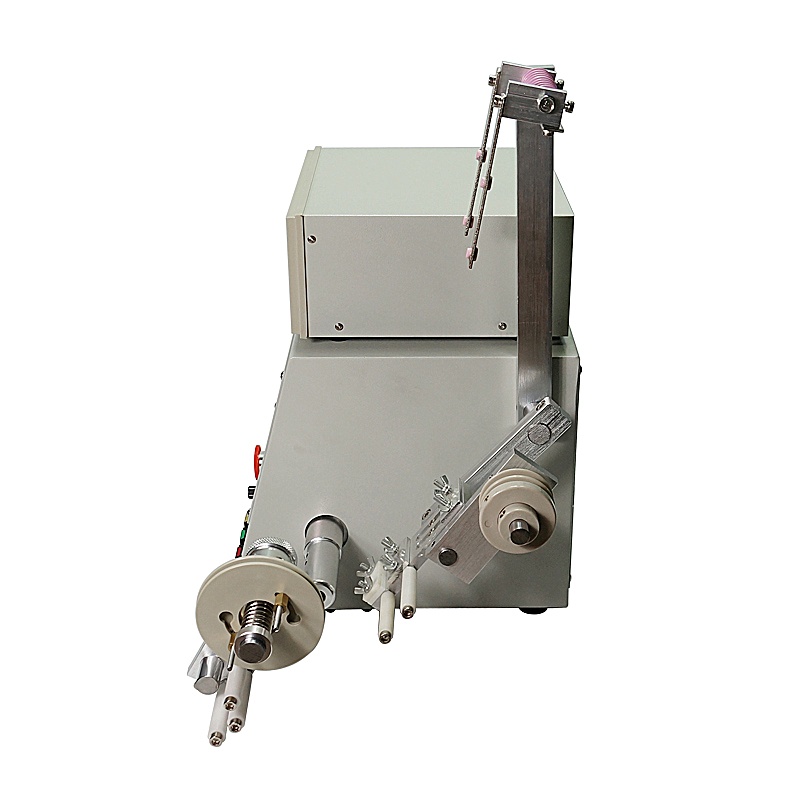

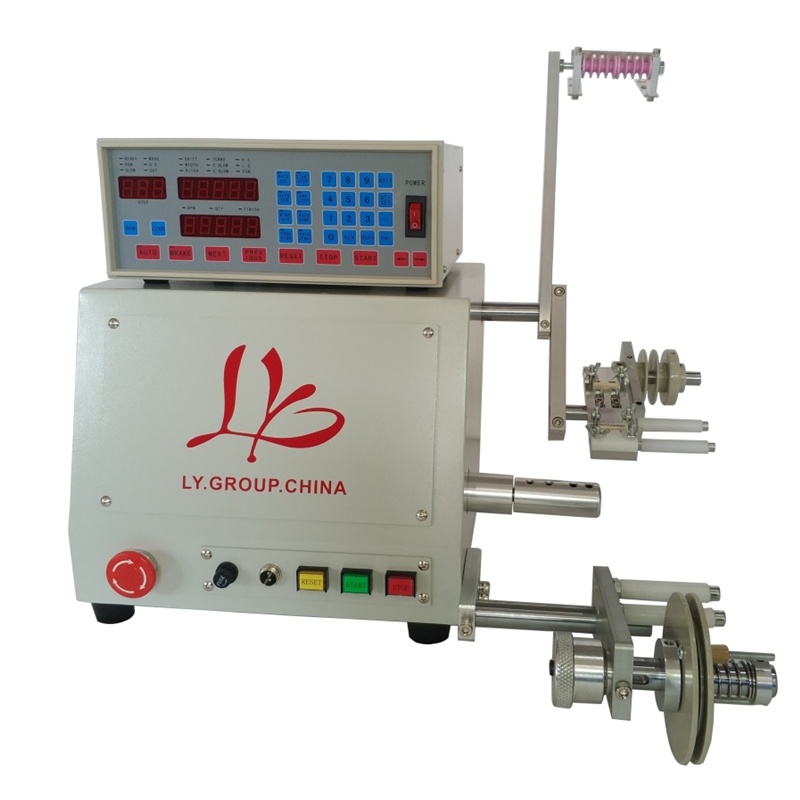

LY 810 810S High Quality New Computer Transformer C Automatic Coil Winder Winding Machine For 0.03-1.2mm Wire 220V 110V 400W

LY 810 810S High Quality New Computer Transformer C Automatic Coil Winder Winding Machine For 0.03-1.2mm Wire 220V 110V 400W

item ID: 72835
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$1000 USD$649 (% off)
Payment

Product Detail

Product Tags

LY 810 810S High Quality New Computer Transformer C Automatic Coil Winder Winding Machine For 0.03-1.2mm Wire 220V 110V 400W





Option:

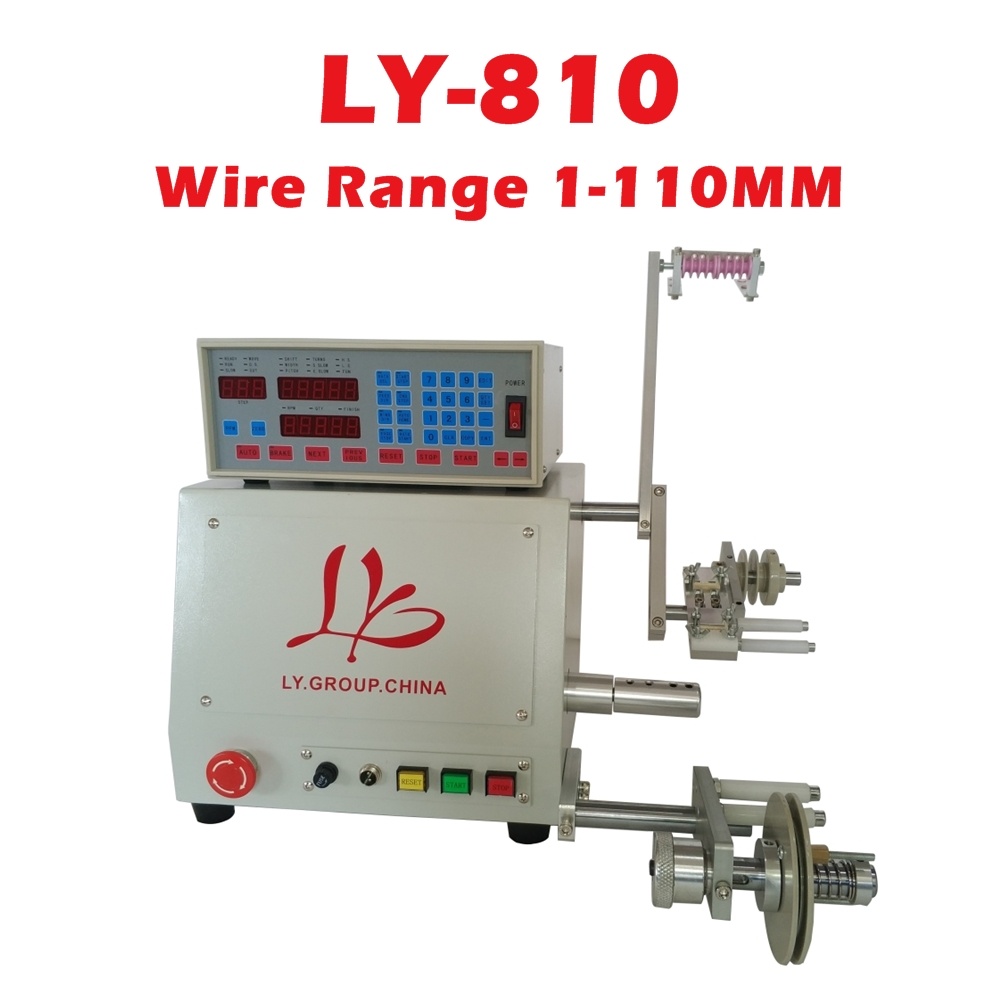

LY 810   (Max winding width 110MM) /

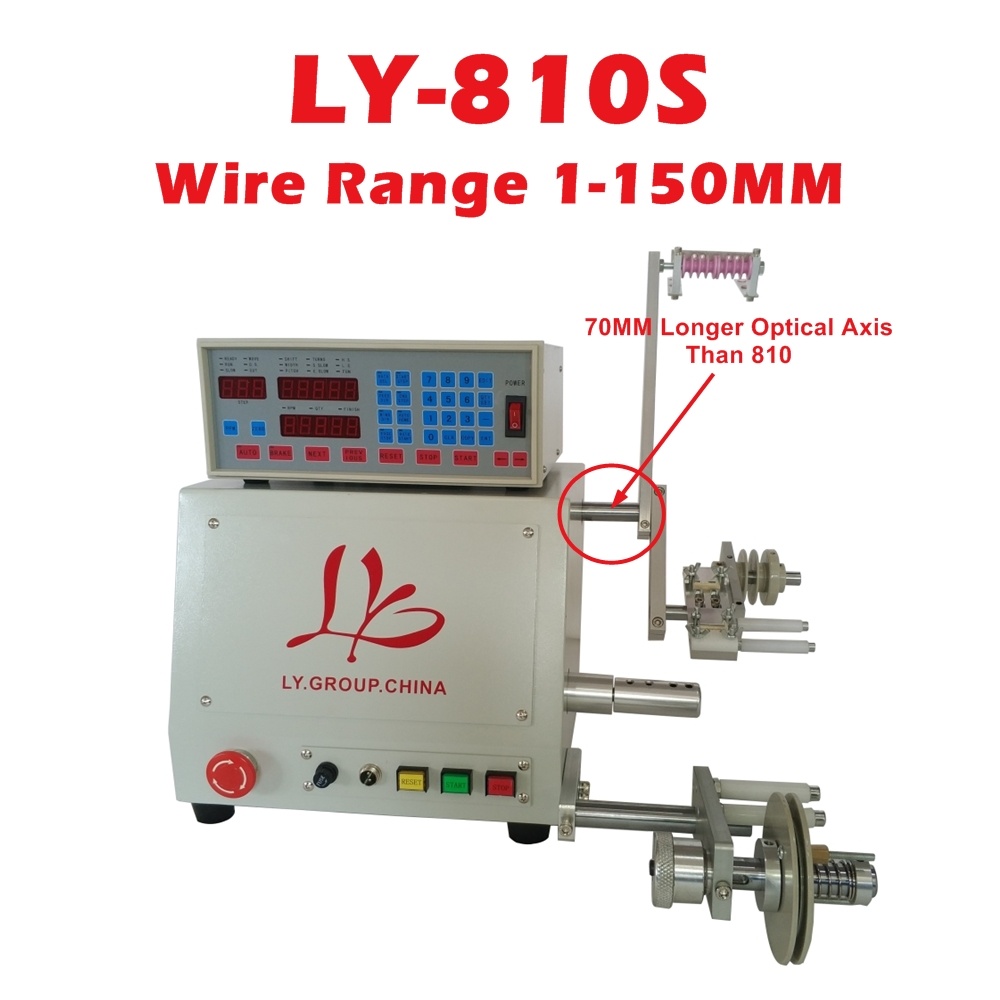

LY 810S ( Max winding width 150MM, suitable for light & long product.)



RE:



1.810S is compatible for all 810 function

.

2.The diameter, weight, and rotational speed of the customer’s product, all need to consider together. If set higher rotational speed,  the spindle is easy to deform, and if product is too long will swing large range, the spindle is also easy to deform too.



3. For long product, speed need to set slower, or  will damage spindle.



New Computer C Automatic Coil Winder Winding Machine for 0.03-1.2mm wire

Feature
1.This series of automatic filament winder computer controller adopts the latest synchronous winding , it is with high precision and there will be no obstacles appear when in excessive speed winding displacement process .
2.Super elevated wisdom model , it has self-inspecting functions, including the errors of the equipments ,excessive speed tracking and the calibration of the speed.
3.Has vernier caliper functions and can measure the winding width and starting point easily.
4.The speed of the cop motor can be changed at random when in operation , and the strand oscillator  also can synchronize with it.
5.After the startup of the cop motor , the time of speed growing can be changed at random depend on the type of the machines.
6.Obtain winding excessive speed detecting function , and it can reduce the winding speed automatically to the most steady state.
7.Can settle data: starting point, wire gage, winding displacement width, circles, speed of starting the winding , stopping slow-speed, winding speed, slow lathe speed , winding displacement direction , winding direction , two-terminal stopping , automatic reset, automatic start (job-hopping winding)

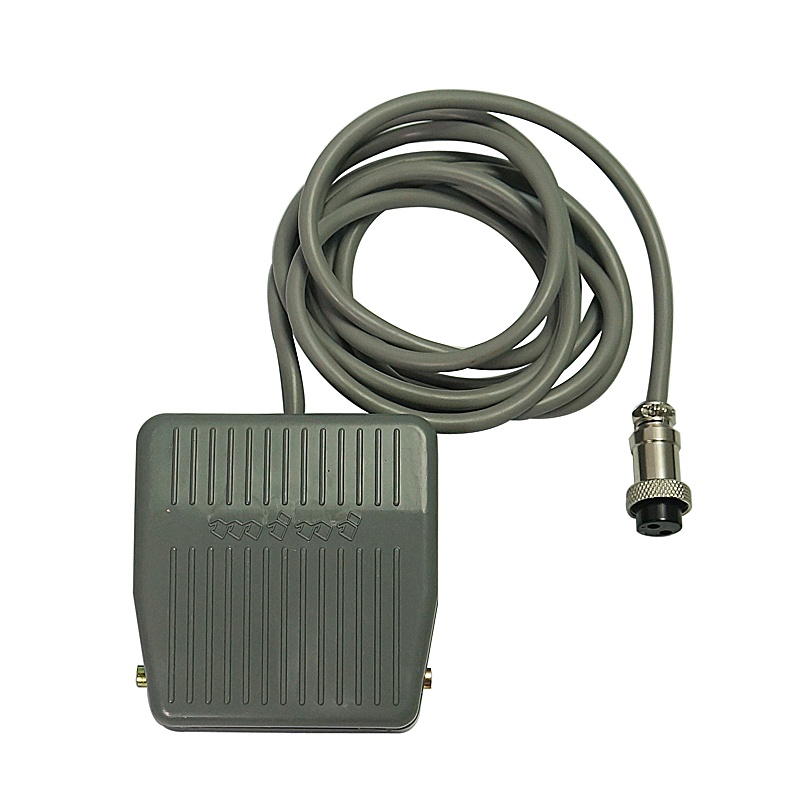

8.Foot-switch connection for better efficiency.



9.Winding parameters and options can be set independently for each step.
10.Memory capacity accommodates 999 steps of parameters with off-power memory retention.





Specification



Power voltage single phase AC 220V  50HZ
Cop motor three phase machine 400W(1/2hp)
Winding displacement machine step-servo motor
Model LY 810 / 810S
Spindle motor Brushless DC
Numbers of cop 1
Windable wire gage 0.03-1.2mm
Maximum winding width 110mm/150mm
Maximum screw diameter 120mm
Maximum turning speed of cop 6000circles/minute,speed adjust function
Storable winding groups 999 groups
Counting resolution 0.1 circle
Complete appliance weight 30kg/32kg
Size 510*490*450mm





Tags:

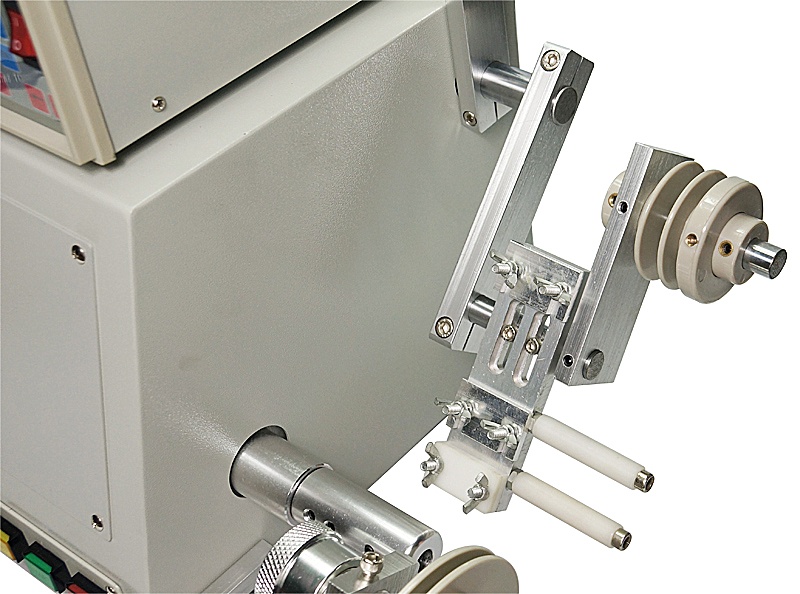

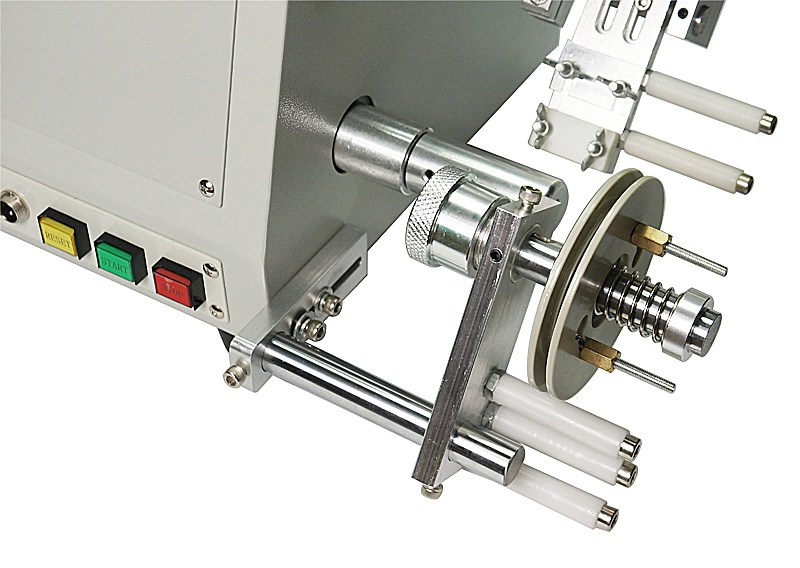

Product Pictures
