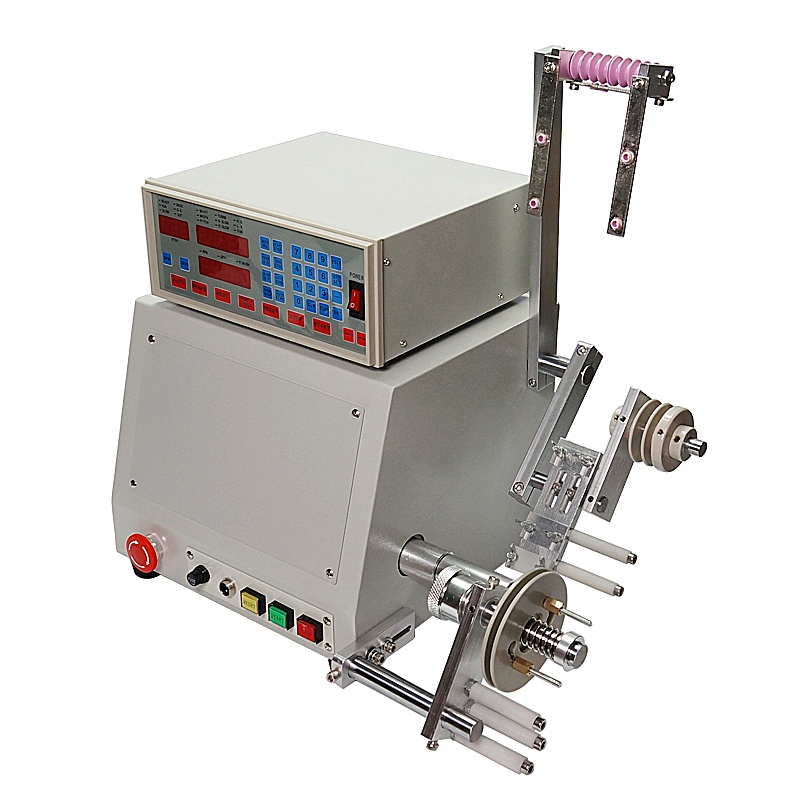

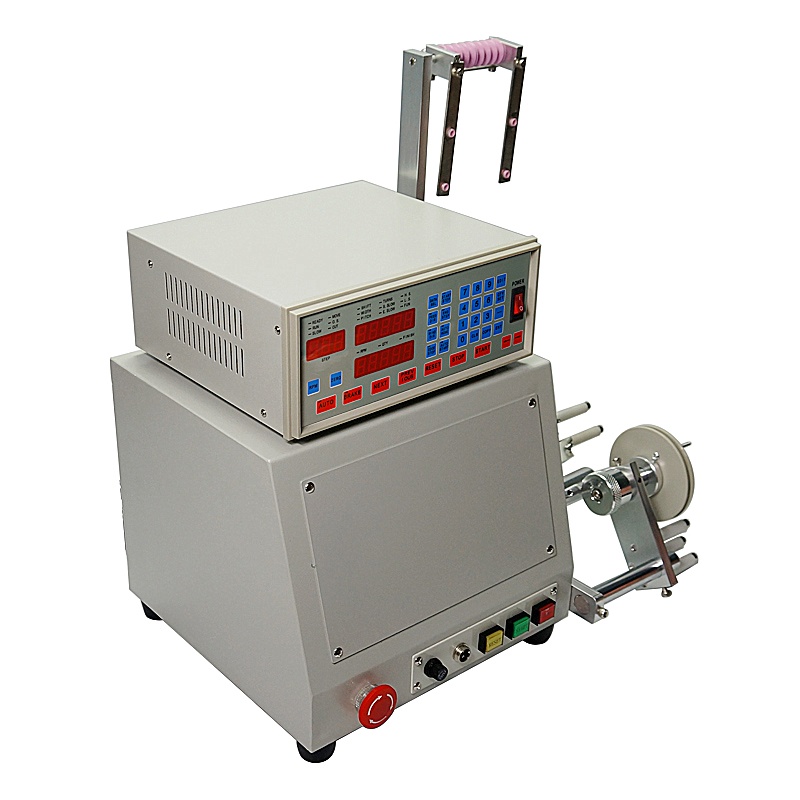

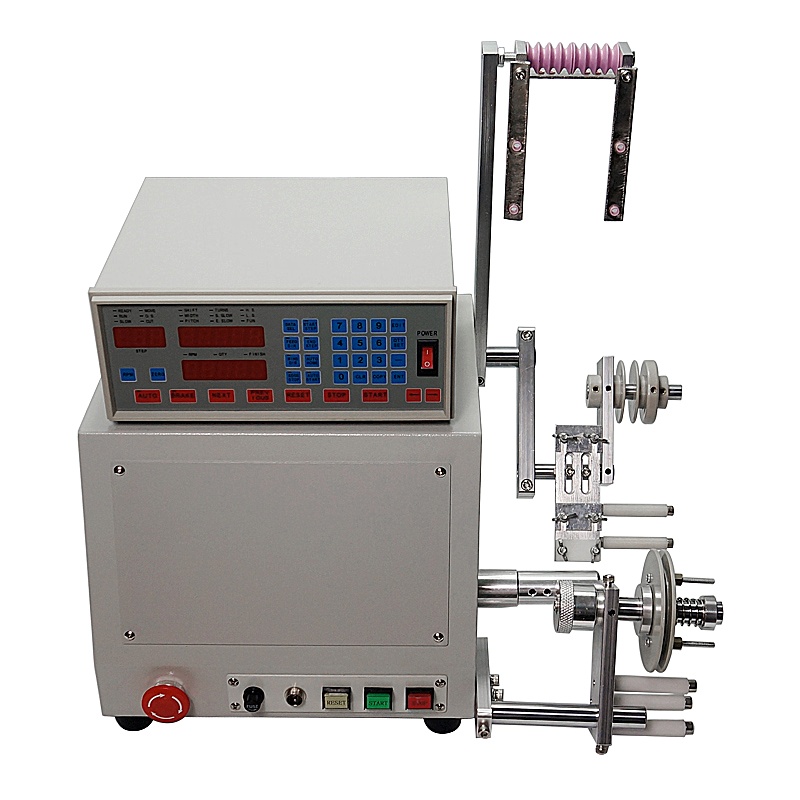

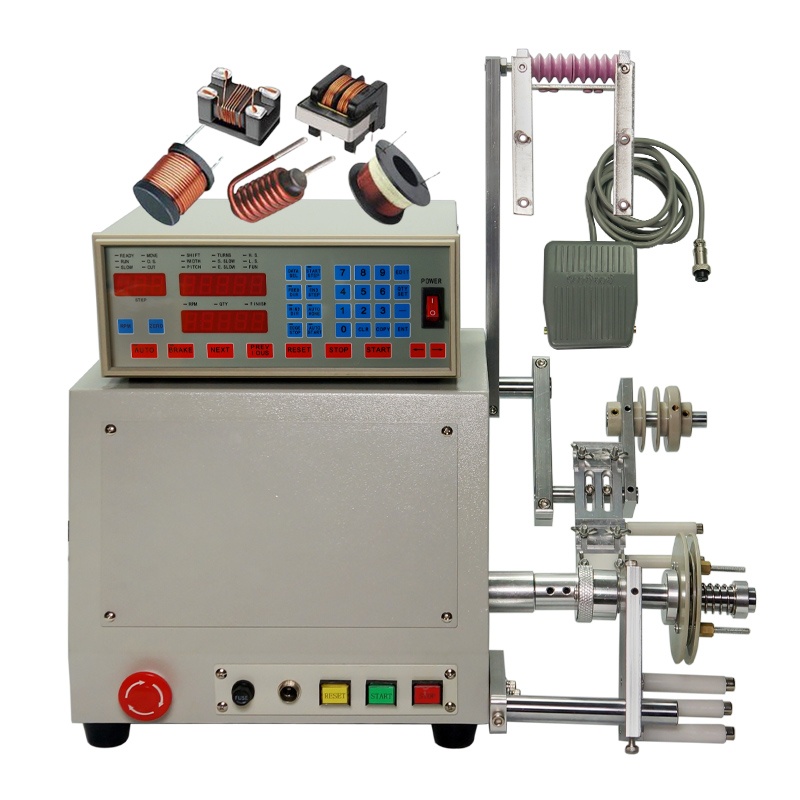

LY 810 High quality New Computer C Automatic Coil Winder Winding Machine for 0.03-1.2mm wire 220V/110V 400W

LY 810 High quality New Computer C Automatic Coil Winder Winding Machine for 0.03-1.2mm wire 220V/110V 400W

item ID: 63104
1 vote, average: 4.00 out of 51 vote, average: 4.00 out of 51 vote, average: 4.00 out of 51 vote, average: 4.00 out of 51 vote, average: 4.00 out of 5
Reviews(1)
USD$1000 USD$668 (% off)
Payment

Product Detail

Product Tags

LY 810 High quality New Computer C Automatic Coil Winder Winding Machine for 0.03-1.2mm wire 220V/110V 400W

Notice : when the parcel arrived to your customs  ,please pay the

            tax and pick up the parcel  ,we are not responsible for

            any customs duty or import tax

              if your place is remote ,then need to pay 35usd .

Feature
1.This series of automatic filament winder computer controller adopts the latest synchronous winding , it is with high precision and there will be no obstacles appear when in excessive speed winding displacement process .
2.Super elevated wisdom model , it has self-inspecting functions, including the errors of the equipments ,excessive speed tracking and the calibration of the speed.
3.Has vernier caliper functions and can measure the winding width and starting point easily.
4.The speed of the cop motor can be changed at random when in operation , and the strand oscillator  also can synchronize with it.
5.After the startup of the cop motor , the time of speed growing can be changed at random depend on the type of the machines.
6.Obtain winding excessive speed detecting function , and it can reduce the winding speed automatically to the most steady state.
7.Can settle data: starting point, wire gage, winding displacement width, circles, speed of starting the winding , stopping slow-speed, winding speed, slow lathe speed , winding displacement direction , winding direction , two-terminal stopping , automatic reset, automatic start (job-hopping winding)

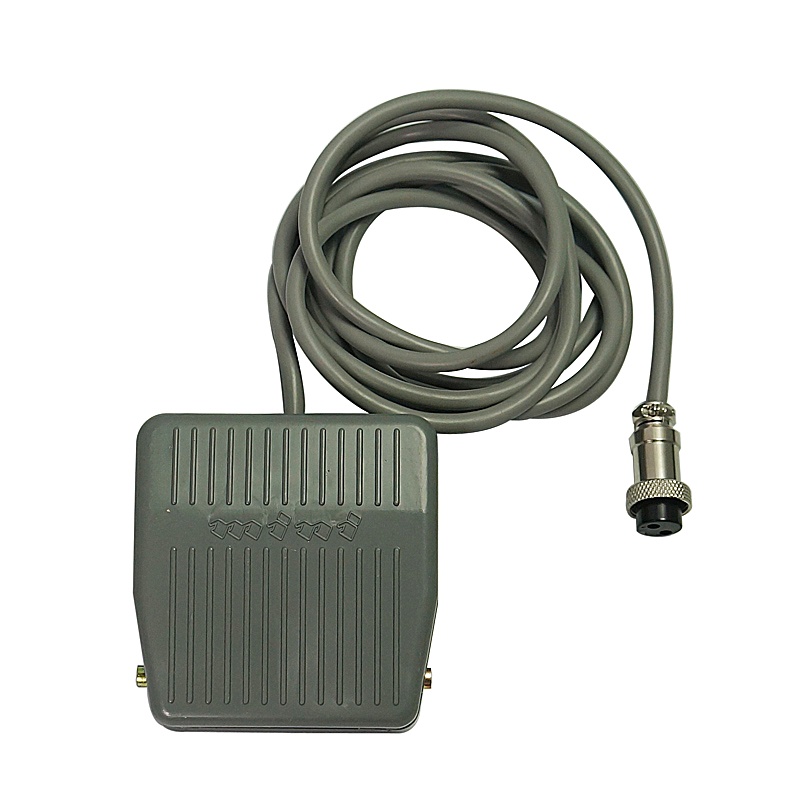

8.Foot-switch connection for better efficiency.



9.Winding parameters and options can be set independently for each step.
10.Memory capacity accommodates 999 steps of parameters with off-power memory retention.











Specification



Power voltage single phase AC 220V  50HZ
Cop motor three phase machine 400W(1/2hp)
Winding displacement machine step-servo motor
Brand LY
Spindle motor Brushless DC
Numbers of cop 1
Windable wire gage 0.03-1.2mm
Maximum winding width 110mm
Maximum screw diameter 120mm
Maximum turning speed of cop 6000circles/minute,speed adjust function
Storable winding groups 999 groups
Counting resolution 0.1 circle
Complete appliance weight 30kg
Size 510*490*450mm
