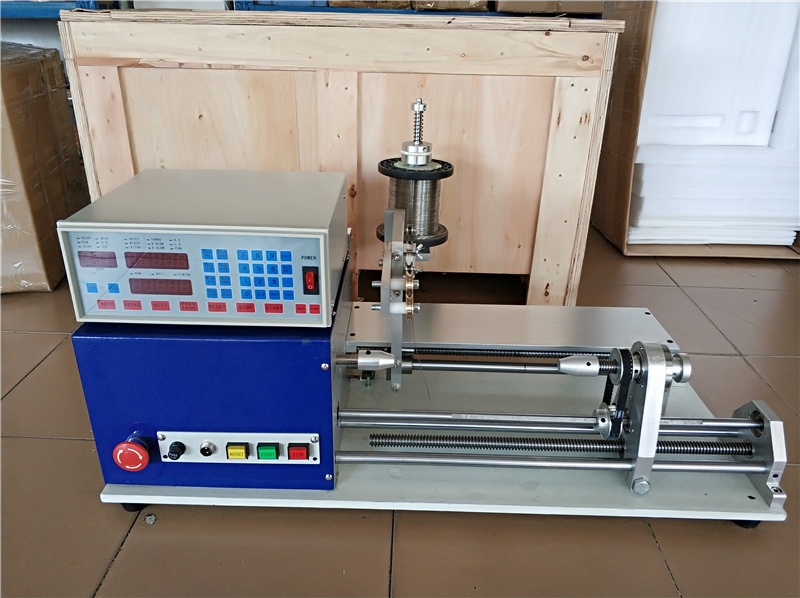

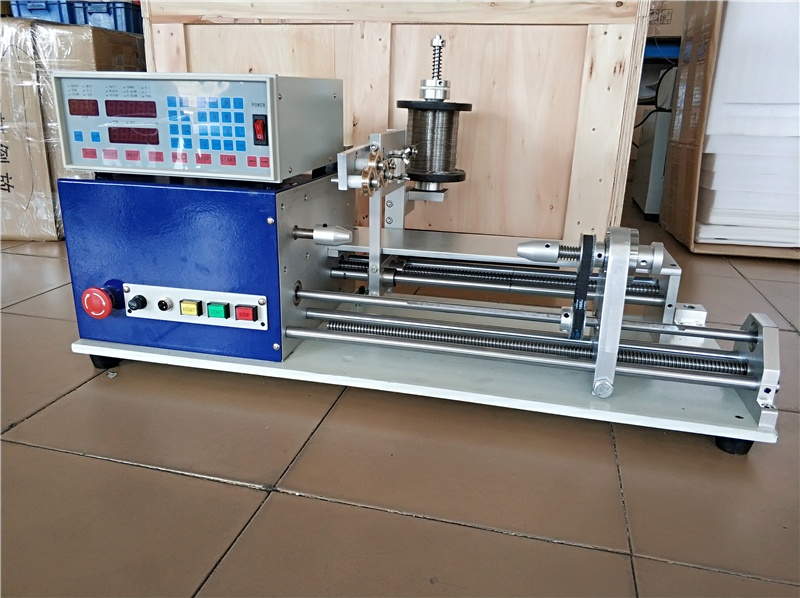

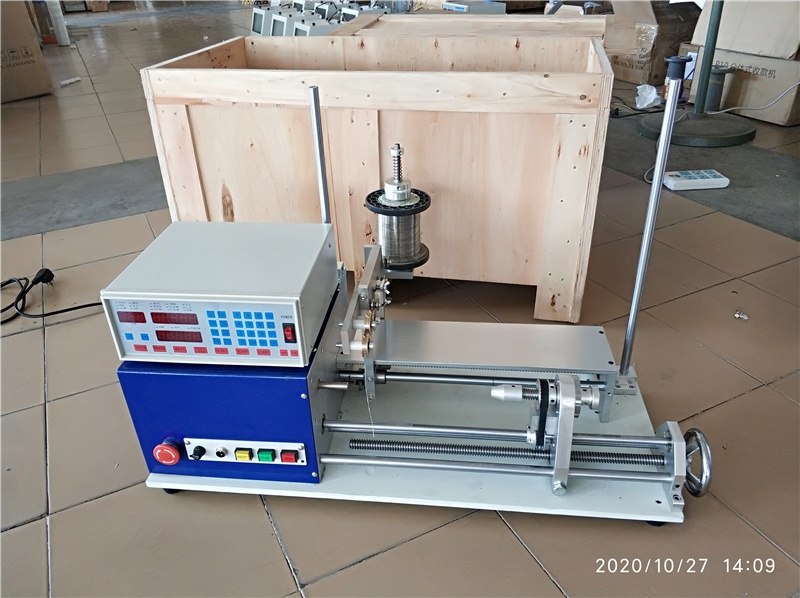

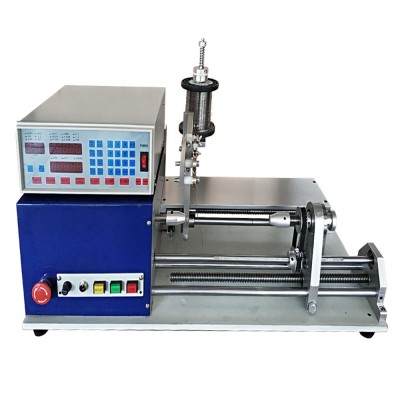

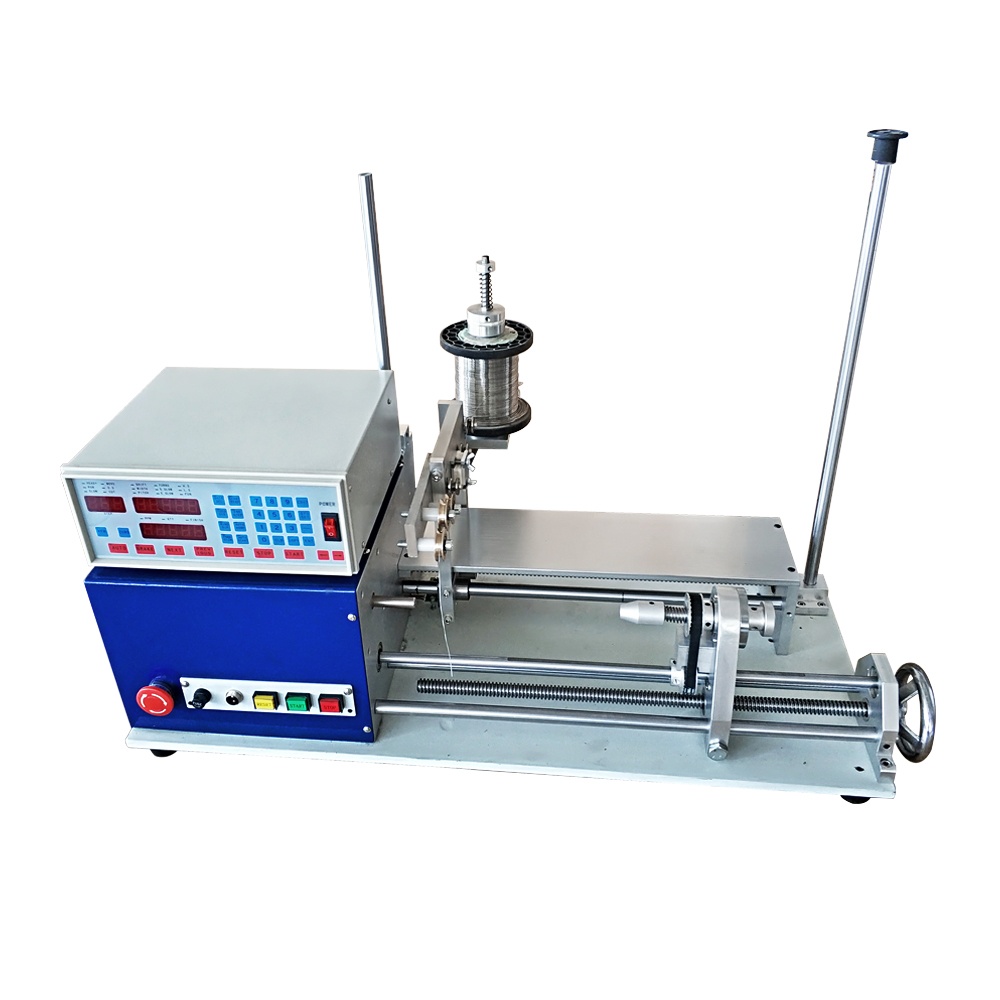

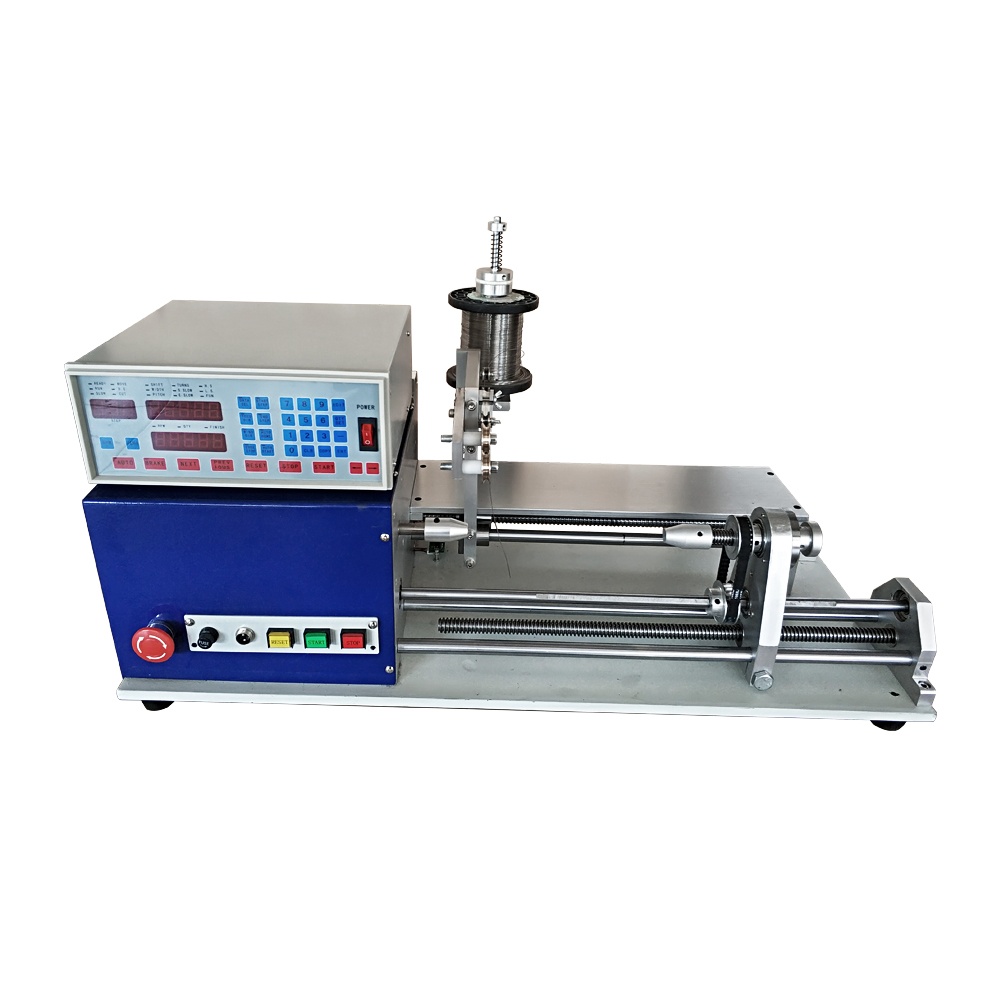

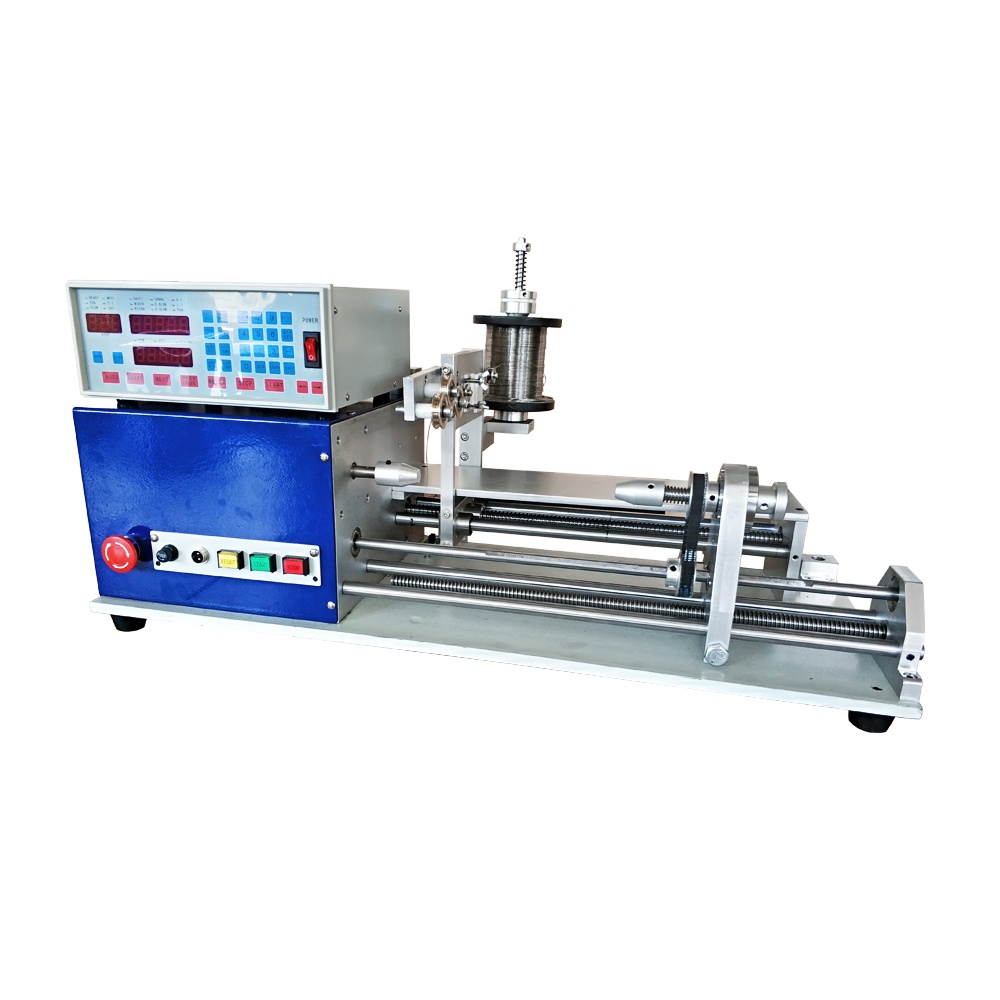

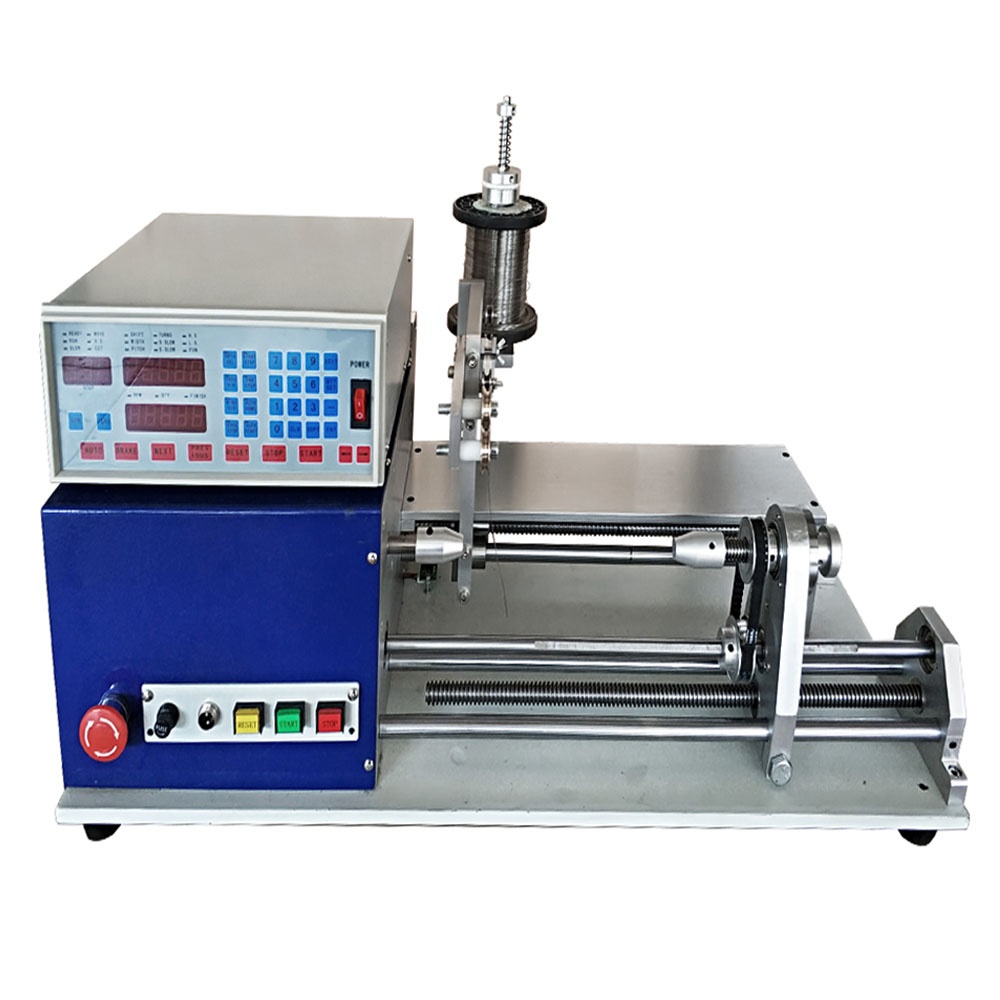

LY 830S High quality New Computer Automatic Magnesium Rod Heating Coil Mica Plate Coil Winder Winding Dispenser Dispensing Machine for 0.03-0.80mm wire 220V/110V 750W

LY 830S High quality New Computer Automatic Magnesium Rod Heating Coil Mica Plate Coil Winder Winding Dispenser Dispensing Machine for 0.03-0.80mm wire 220V/110V 750W

item ID: 63167
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$4500 USD$2972 (% off)
Payment

Product Detail

Product Tags

LY 830S High quality New Computer Automatic Magnesium Rod Heating Coil Mica Plate Coil Winder Winding Dispenser Dispensing Machine for 0.03-0.80mm wire 220V/110V 750W

(RE: Coil wire in picture not included in machine package.)



Feature

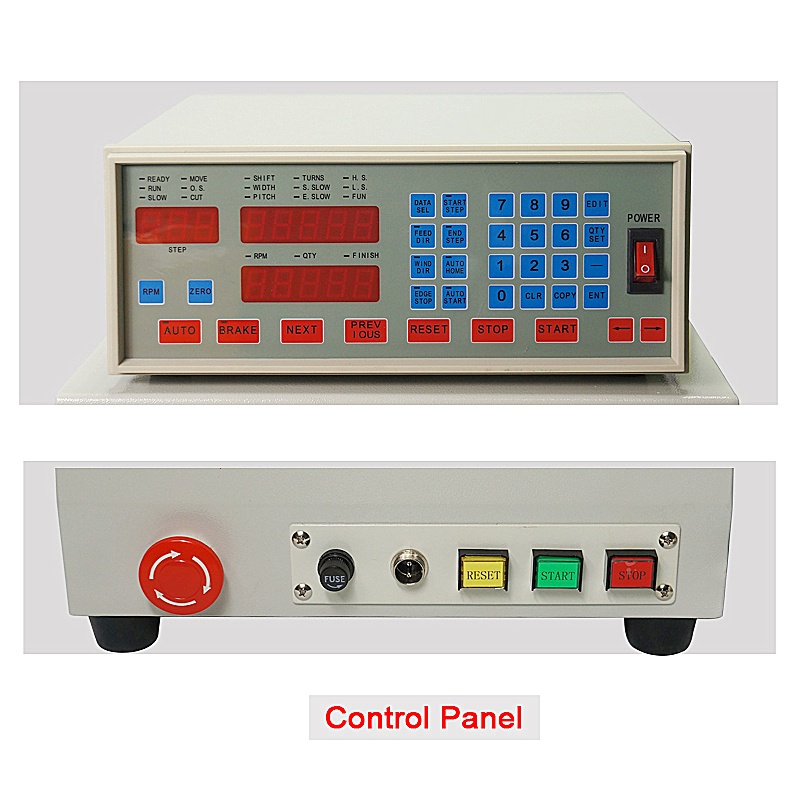

1.This series of automatic filament winder computer controller adopts the latest synchronous winding , it is with high precision and there will be no obstacles appear when in excessive speed winding displacement process .
2.Super elevated wisdom model , it has self-inspecting functions, including the errors of the equipments ,excessive speed tracking and the calibration of the speed.
3.Has vernier caliper functions and can measure the winding width and starting point easily.
4.The speed of the cop motor can be changed at random when in operation , and the strand oscillator  also can synchronize with it.
5.After the startup of the cop motor , the time of speed growing can be changed at random depend on the type of the machines.
6.Obtain winding excessive speed detecting function , and it can reduce the winding speed automatically to the most steady state.
7.Can settle data: starting point, wire gage, winding displacement width, circles, speed of starting the winding , stopping slow-speed, winding speed, slow lathe speed , winding displacement direction , winding direction , two-terminal stopping , automatic reset, automatic start (job-hopping winding)

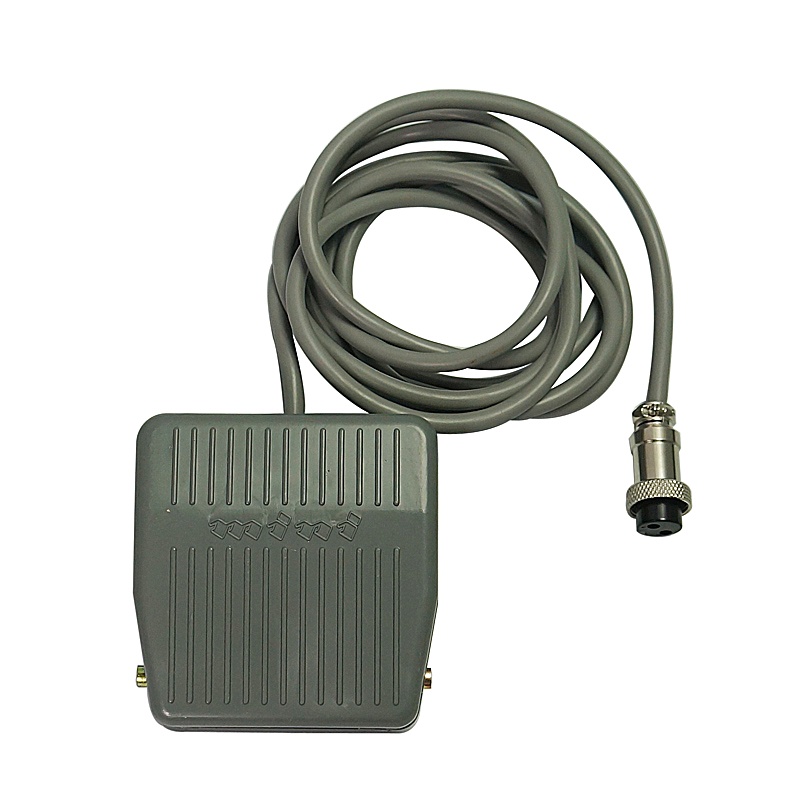

8.Foot-switch connection for better efficiency.



9.Winding parameters and options can be set independently for each step.
10.Memory capacity accommodates 999 steps of parameters with off-power memory retention.













Specification



Model LY-830S
power voltage single phase AC 220V  50/60HZ(110V optional)
Cop motor three phase machine 750W(1/2hp)
Spindle speed 3000rpm
Brand LY
Spindle motor Brushless DC
Numbers of cop 1
Windable wire gage 0.03-0.80mm
Spread range 1-320MM
Winding diameter 1-80mm
Storable winding groups 999 groups
Counting resolution 0.1 circle
Complete appliance weight 52kg
Machine Size 800*330*380mm
Wooden box size 950*500*560mm
Gross weight 80KG
