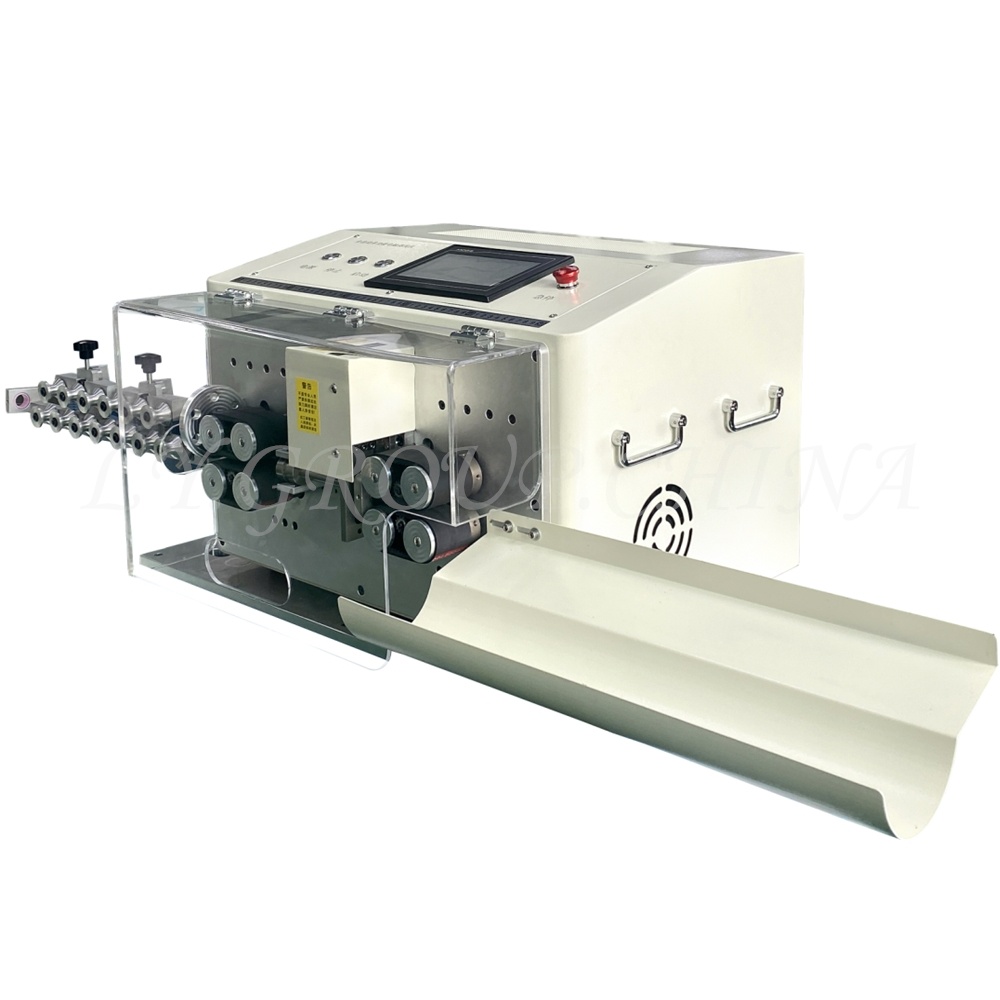

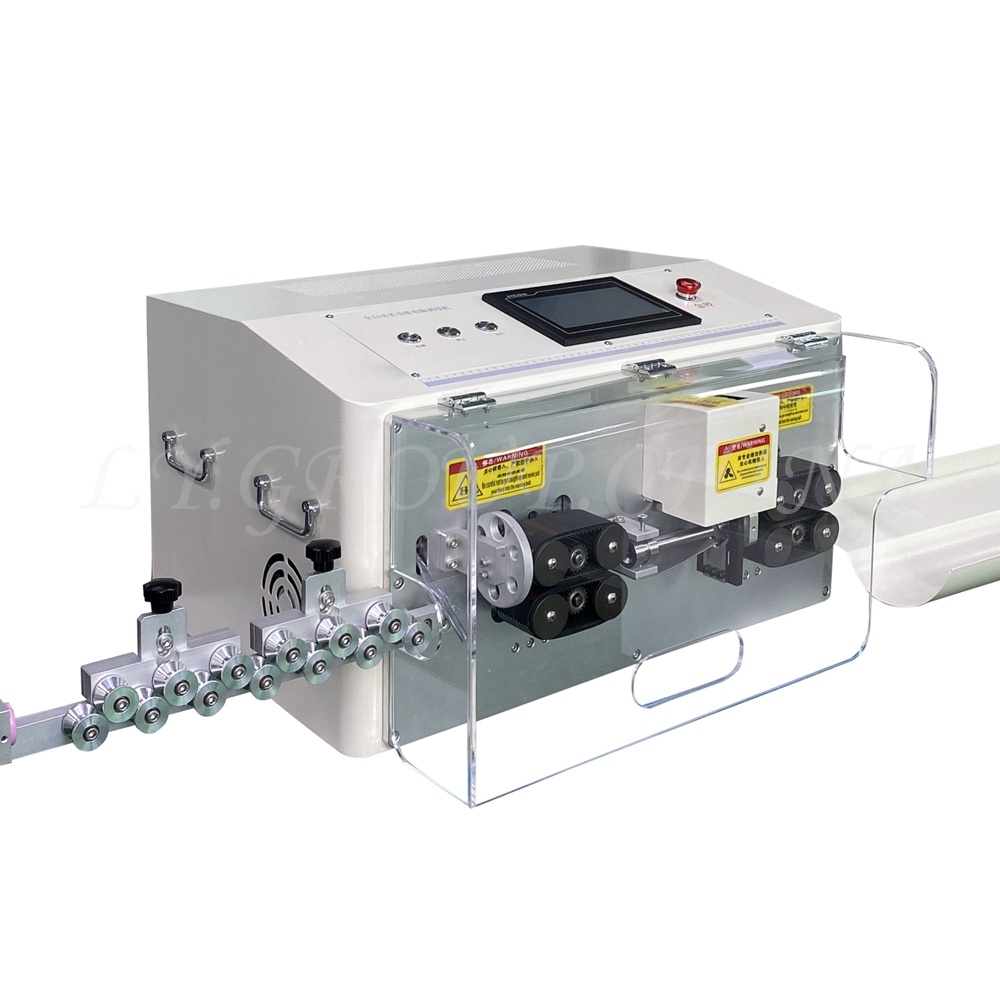

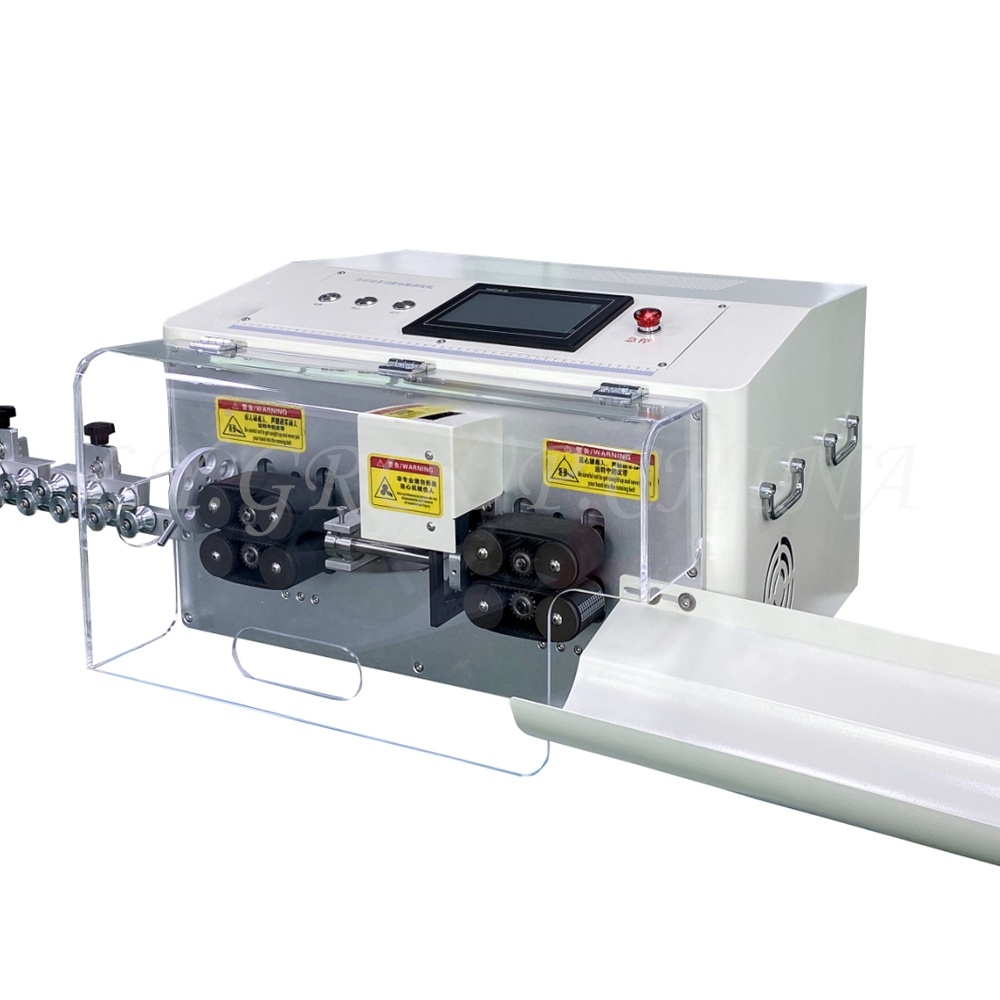

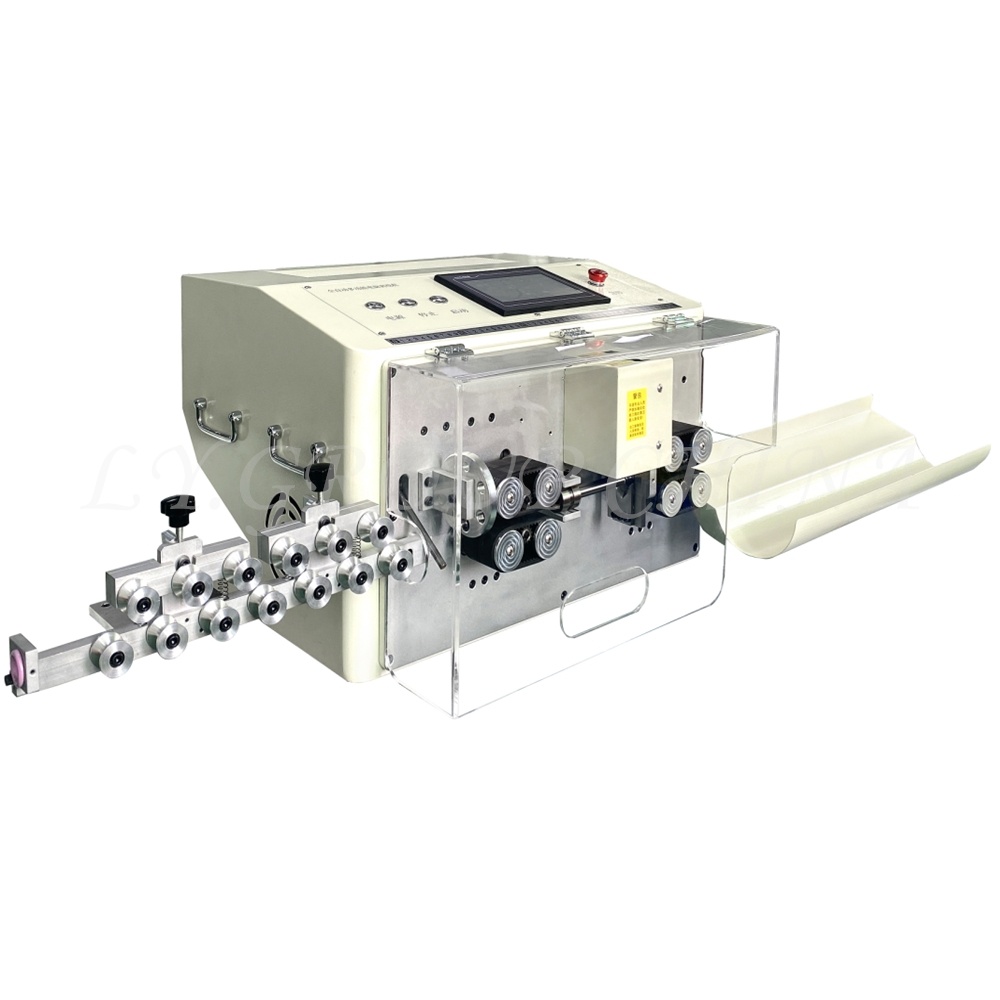

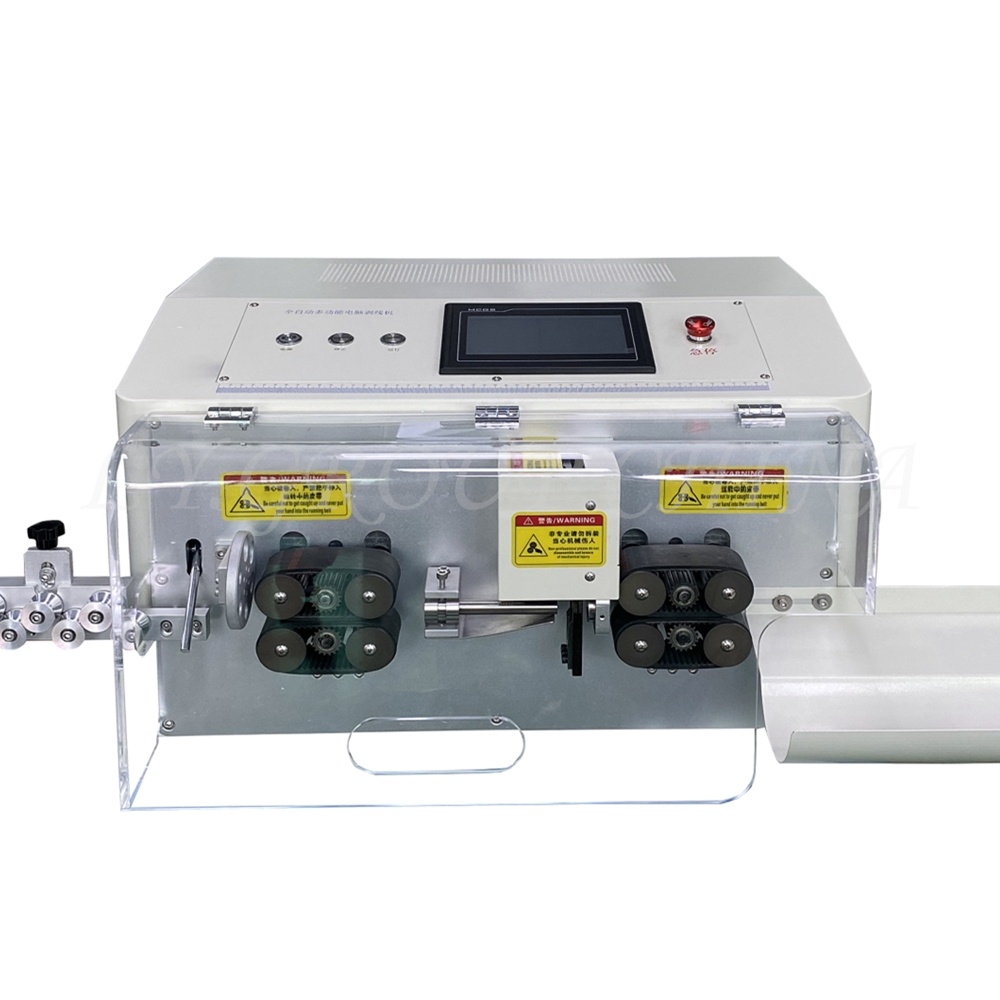

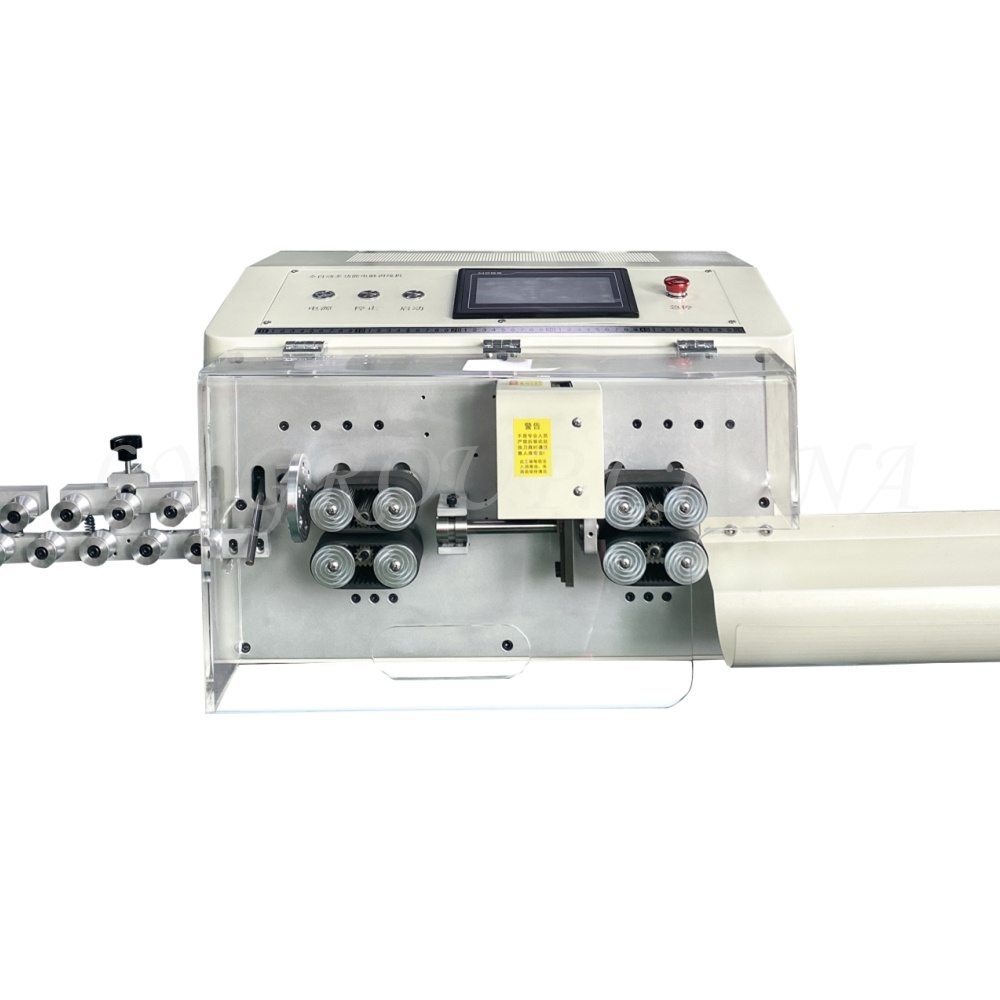

LY 835C 850C 870C 12 Wheels Drive Belt Pulley Electric Wire Peeling Stripping Cutting Machine For Computer Strip Thick Wires 1.5mm-70mm2 220V 110V

LY 835C 850C 870C 12 Wheels Drive Belt Pulley Electric Wire Peeling Stripping Cutting Machine For Computer Strip Thick Wires 1.5mm-70mm2 220V 110V

item ID: 69543
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$3500 USD$2165 (% off)
Payment

Product Detail

Product Tags

LY 835C 850C 870C 12 Wheels Drive Belt Pulley Electric Wire Peeling Stripping Cutting Machine For Computer Strip Thick Wires

1.5mm-70mm2 220V 110V



RE:

(1.Crystal Protect case not included, if need please leave message to seller,add more $80.

2.Wire collector included.)



Model parameter table

There are many types of machines, and the corresponding stripping range of each type is also poor, so when choosing a model, please check the performance parameters in detail or contact with customer service directly, customer service will recommend a suitable model for you with professional knowledge.

Characteristic description:

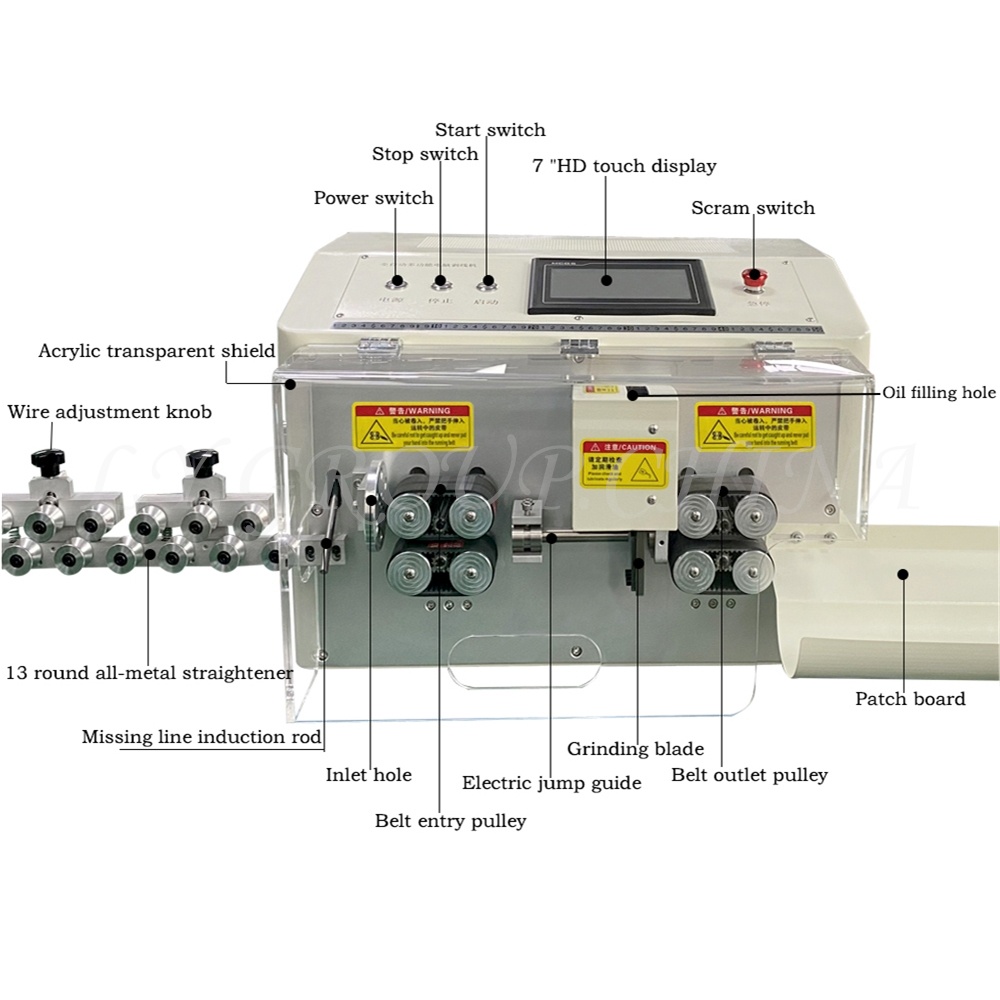

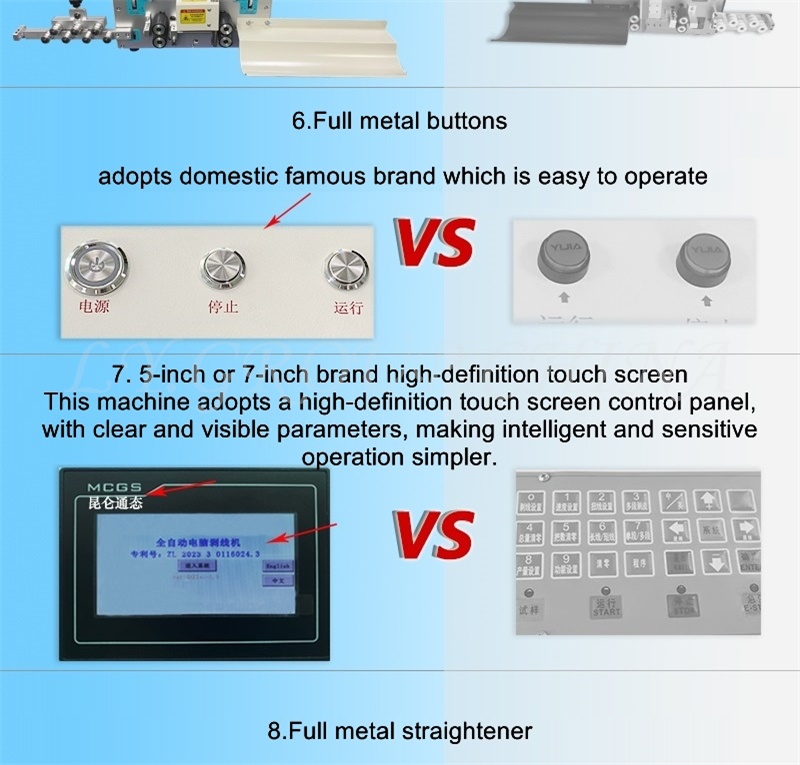

1. This machine uses the domestic first-line brand Kunlun state full HD color touch 5- inch LCD display and single- chip self -developed motion control board, faster efficiency and more stable.

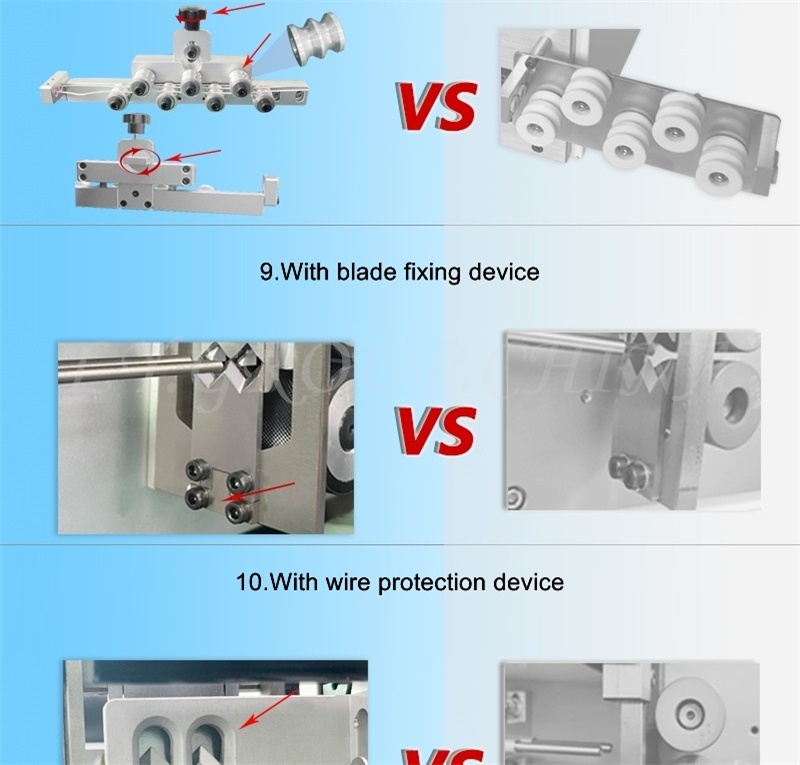

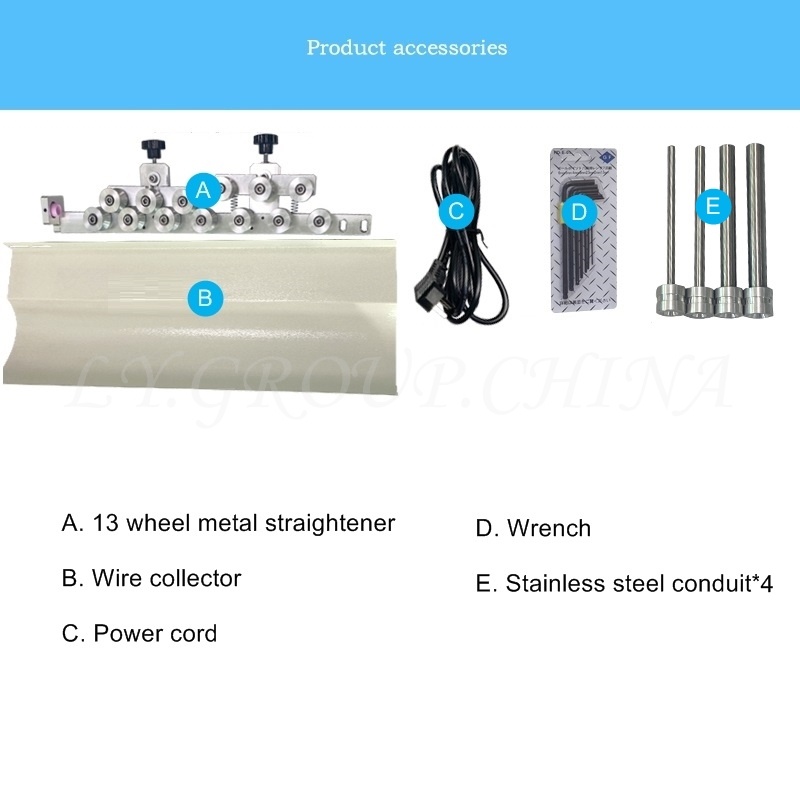

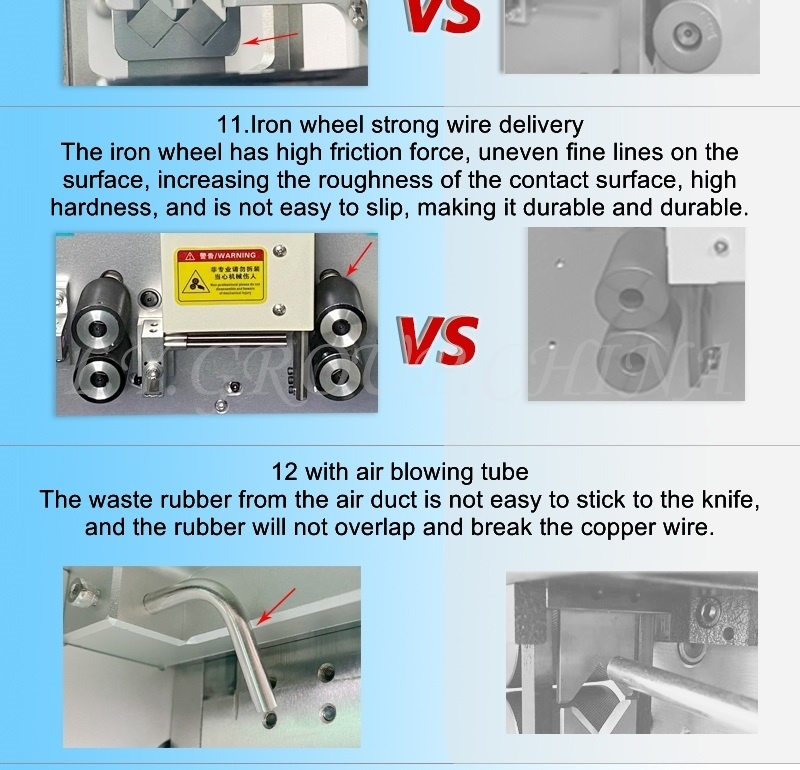

2. This machine adopts all-metal straightener one- button fast switch, wire wheel can be selected rubber wheel, iron wheel, leather wheel.

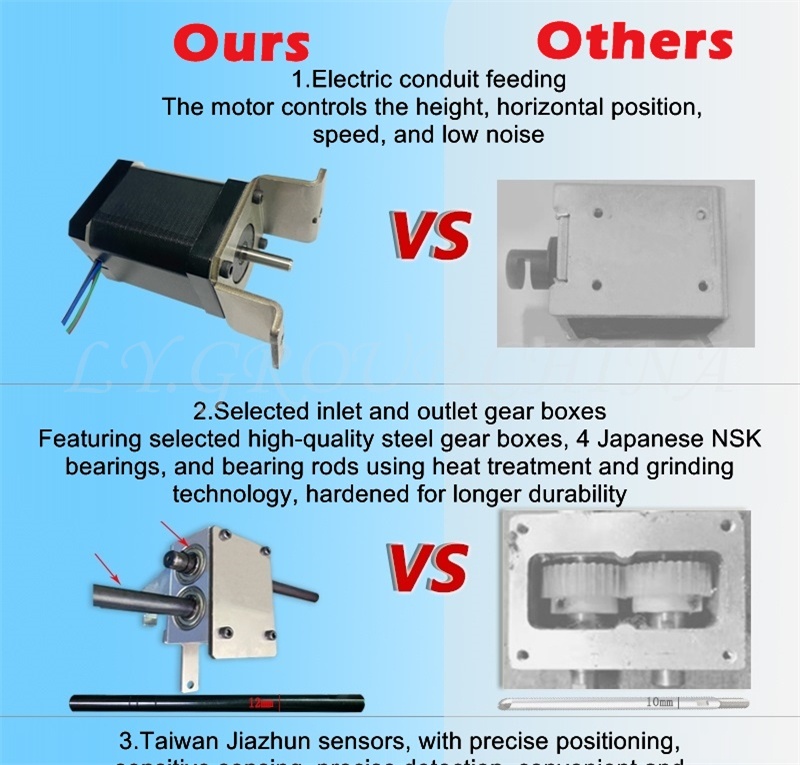

3. Electric conduit wire feeding, tool holder using imported materials heat treatment grinding process. Save labor and time, improve production efficiency.

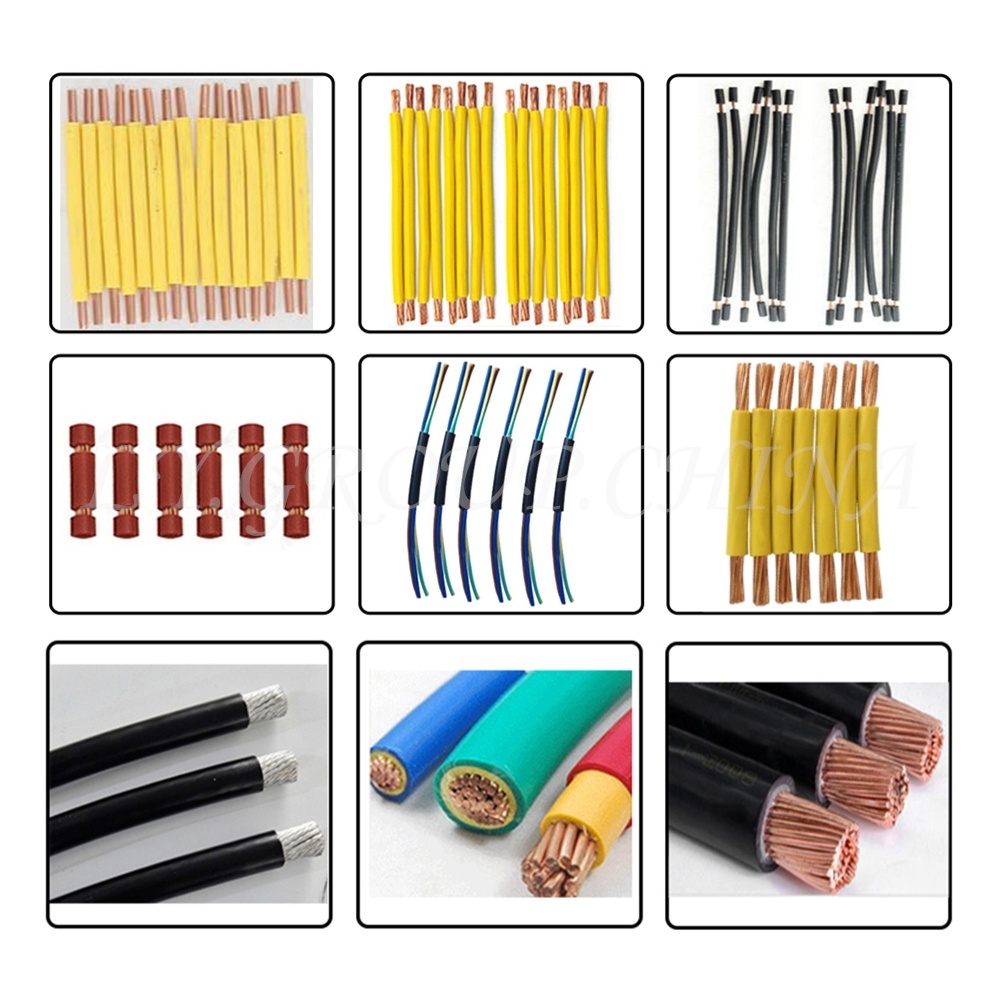

4. Mainly used for electronic wire, silicone wire, Tifron wire, glass woven cotton, isolation line, coaxial line, sheath line, etc.

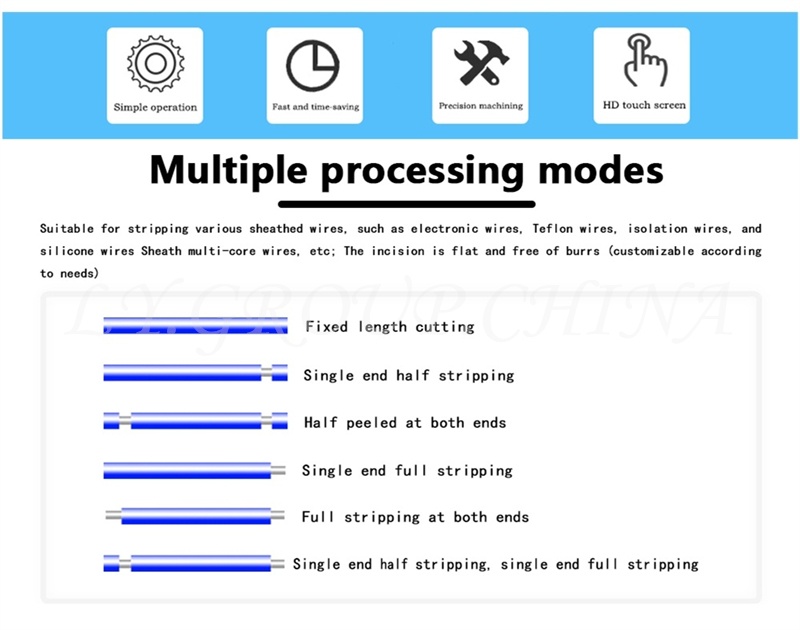

5. Automatic cutting, peeling, half- peeling, one time completion, fast change wire specifications and dimensions, high production efficiency.

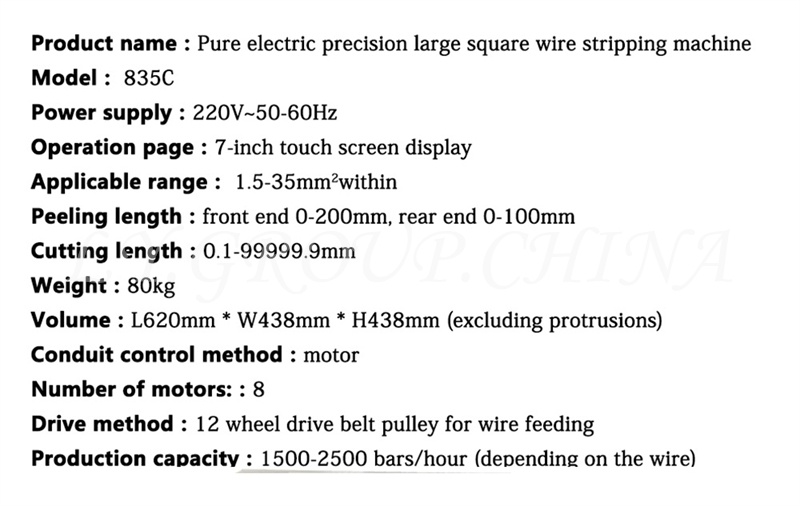

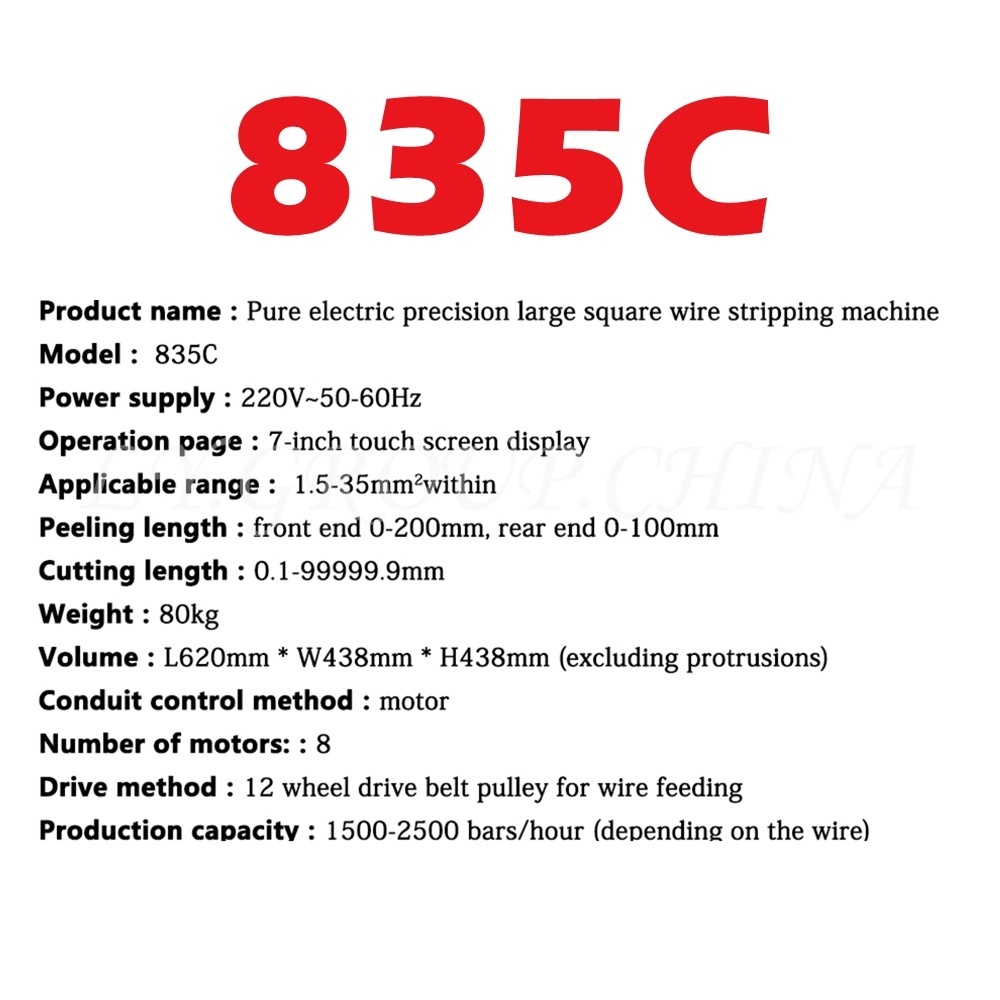

Model : 835C

Power supply : 220V~50-60Hz

Operation page : 7-inch touch screen display

Applicable range : 1 .5-35mm2within

Peeling length : front end 0- 200mm, rear end 0- 100mm

Cutting length : 0.1-99999.9mm

Weight : 80kg

Volume : L620mm * W438mm * H438mm (excluding protrusions)

Conduit control method : motor

Number of motors: : 8

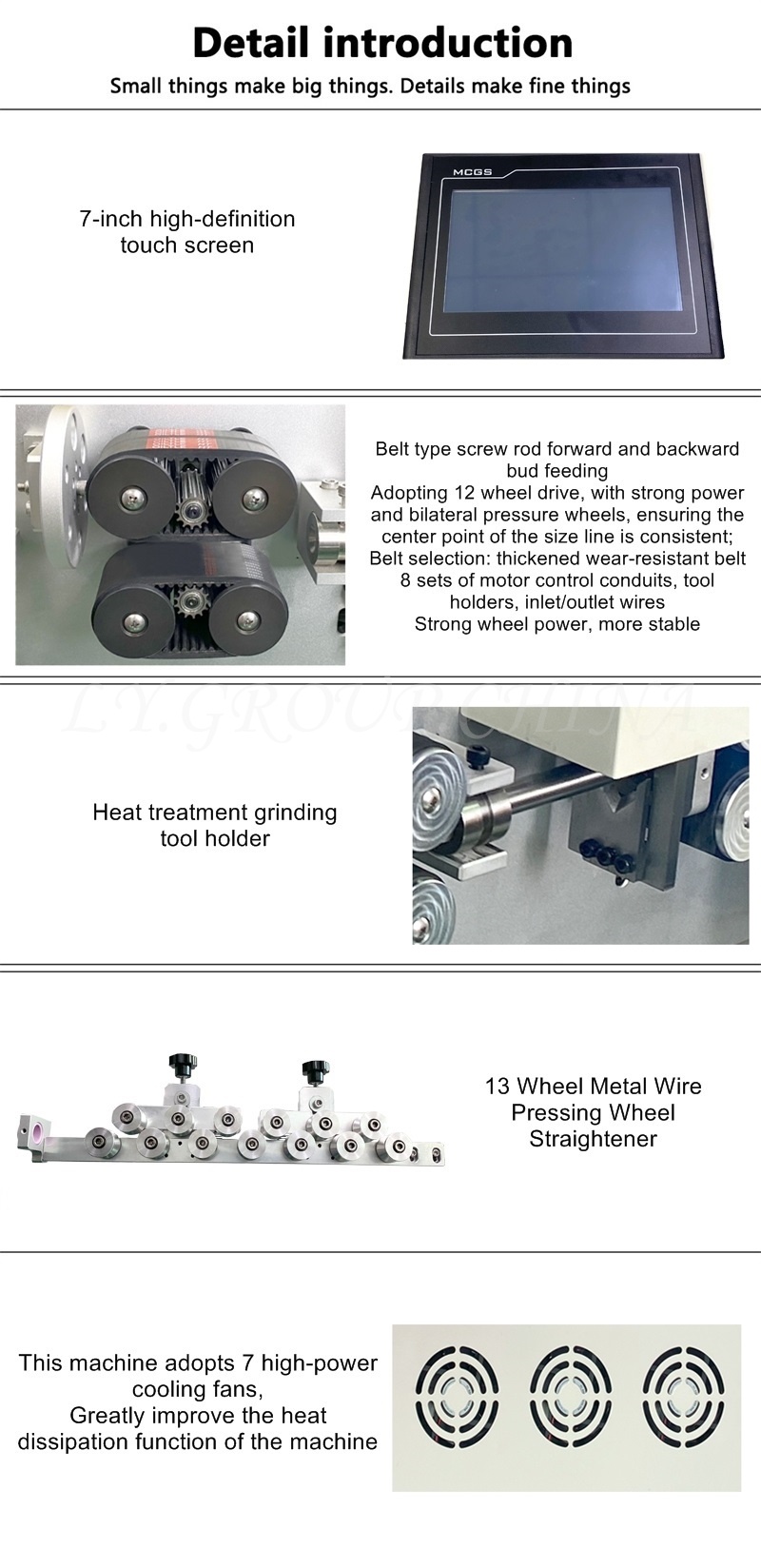

Drive method : 12 wheel drive belt pulley for wire feeding

Production capacitv : 1 500-2500 bars/hour (depending on the wire)

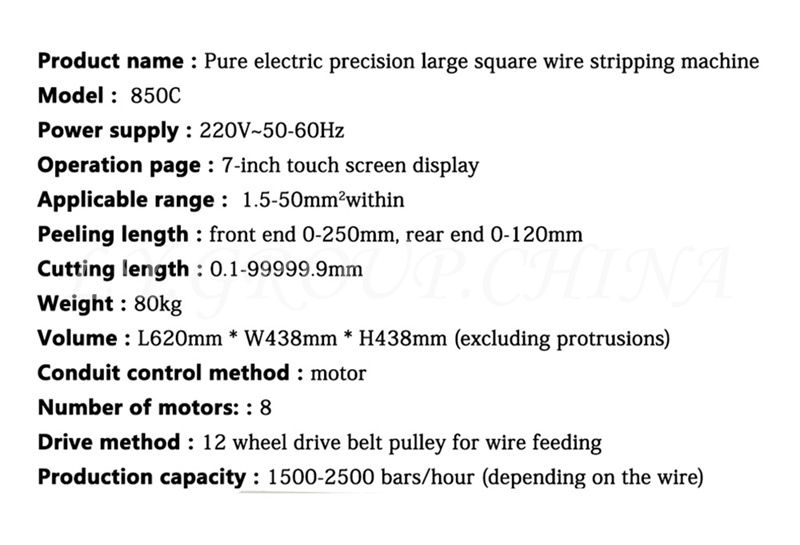

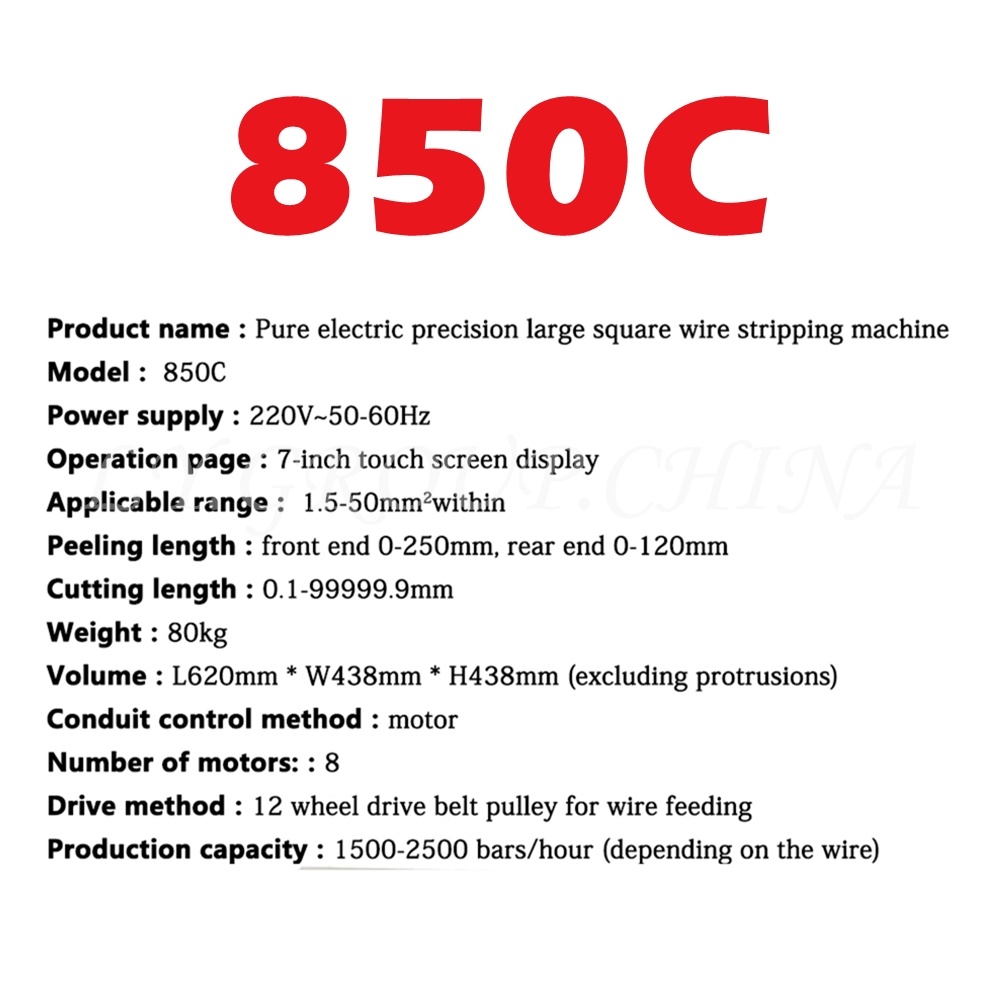

Model : 850C

Power supply : 220V~50-60Hz .

Operation page : 7-inch touch screen display

Applicable range: 1.5-50mm2 within

Peeling length : front end 0-250mm, rear end 0- 120mm

Cutting length : 0.1-99999.9mm

Weight : 80kg

Volume : L620mm * W438mm * H438mm (excluding protrusions)

Conduit control method : motor

Number of motors: : 8

Drive method : 12 wheel drive belt pulley for wire feeding

Production capacity : 1 500-2500 bars/hour (depending on the wire)

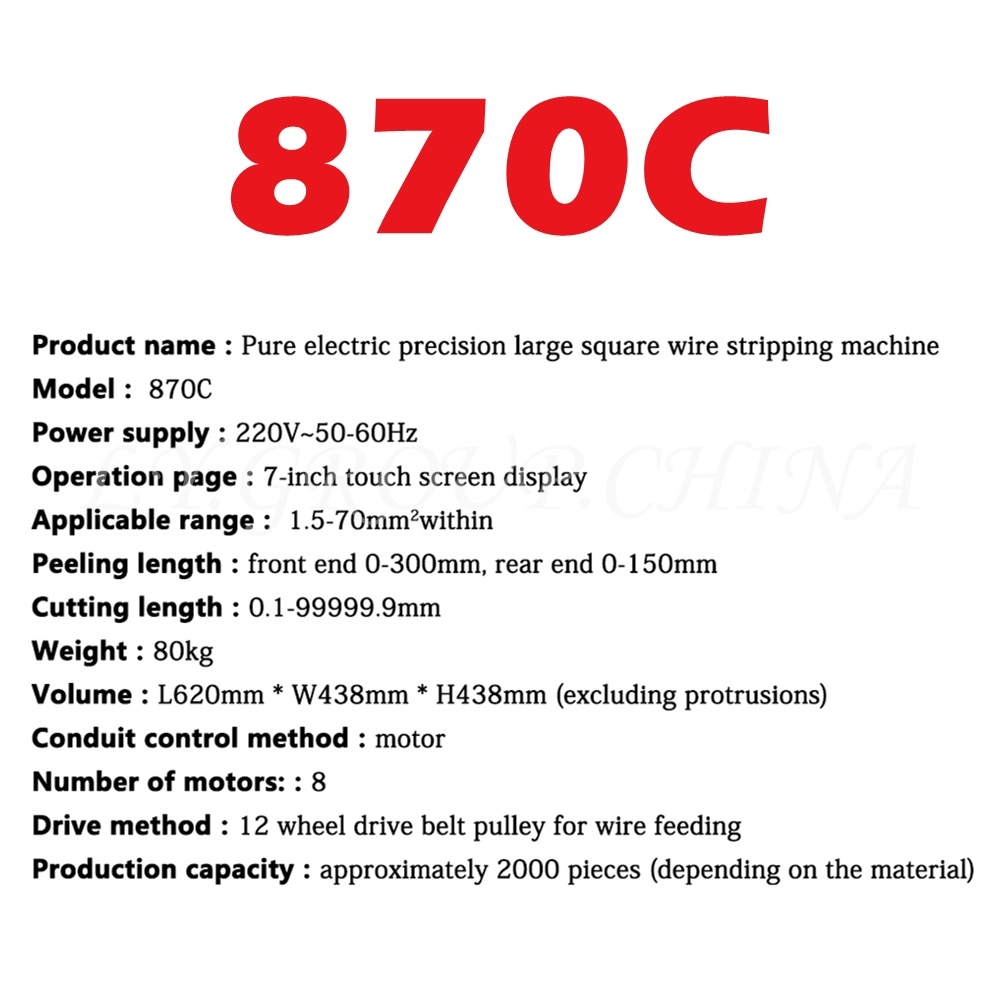

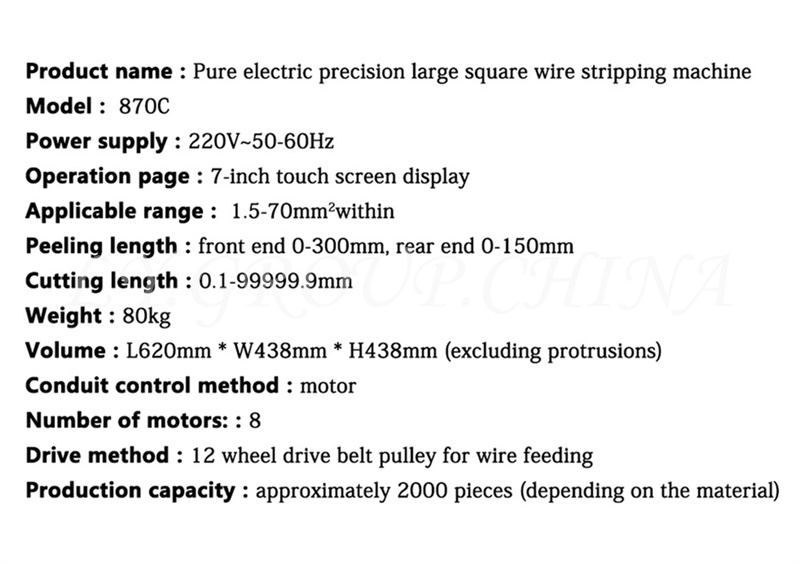

Model : 870C

Power supply : 220V~50 -60Hz

Operation page : 7-inch touch screen display

Applicable range : 1.5-70mm?within

Peeling length : front end 0-300mm, rear end 0- 150mm

Cutting length : 0.1-99999.9mm

Weight : 80kg

Volume : L620mm * W438mm * H438mm (excluding protrusions)

Conduit control method : motor

Number of motors: : 8

Drive method : 12 wheel drive belt pulley for wire feeding

Production capacity : approximately 2000 pieces (depending on the material)
