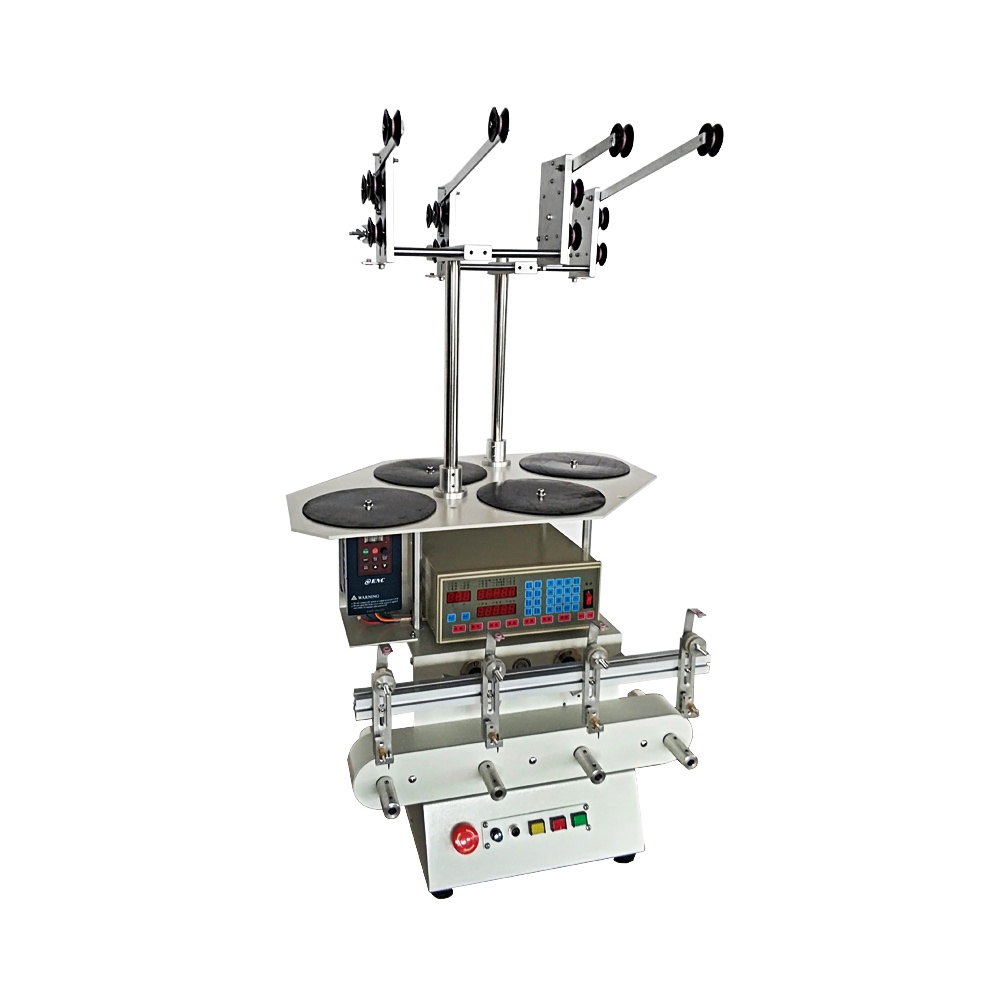

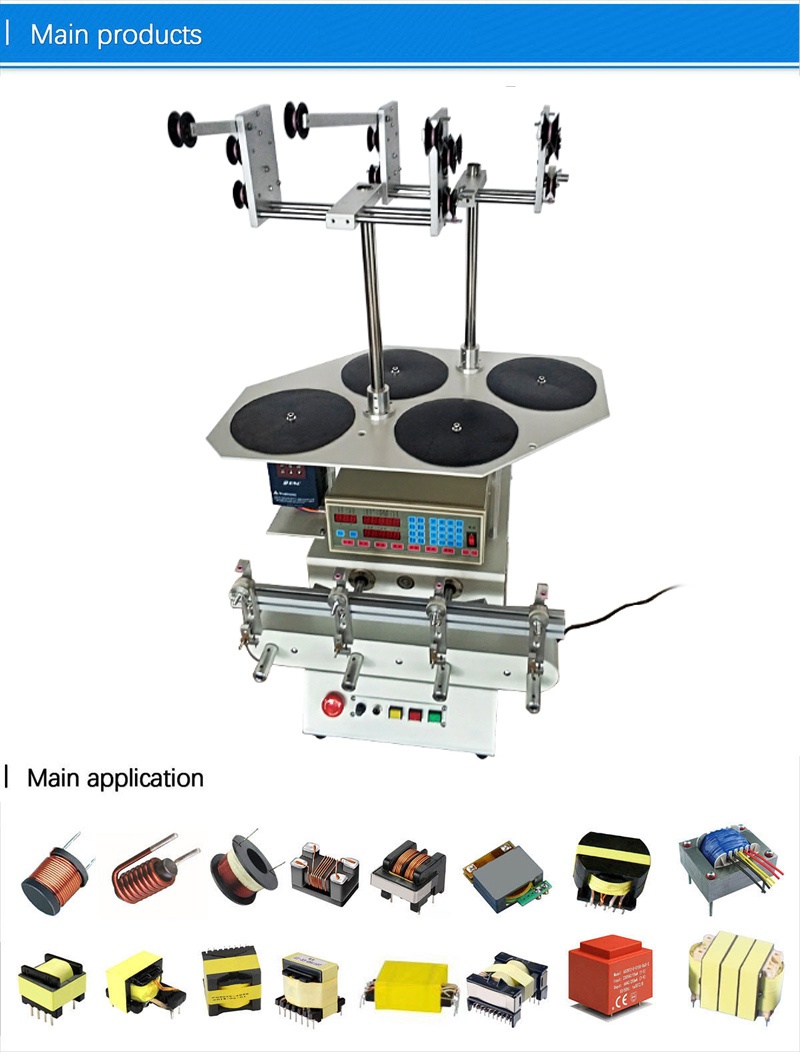

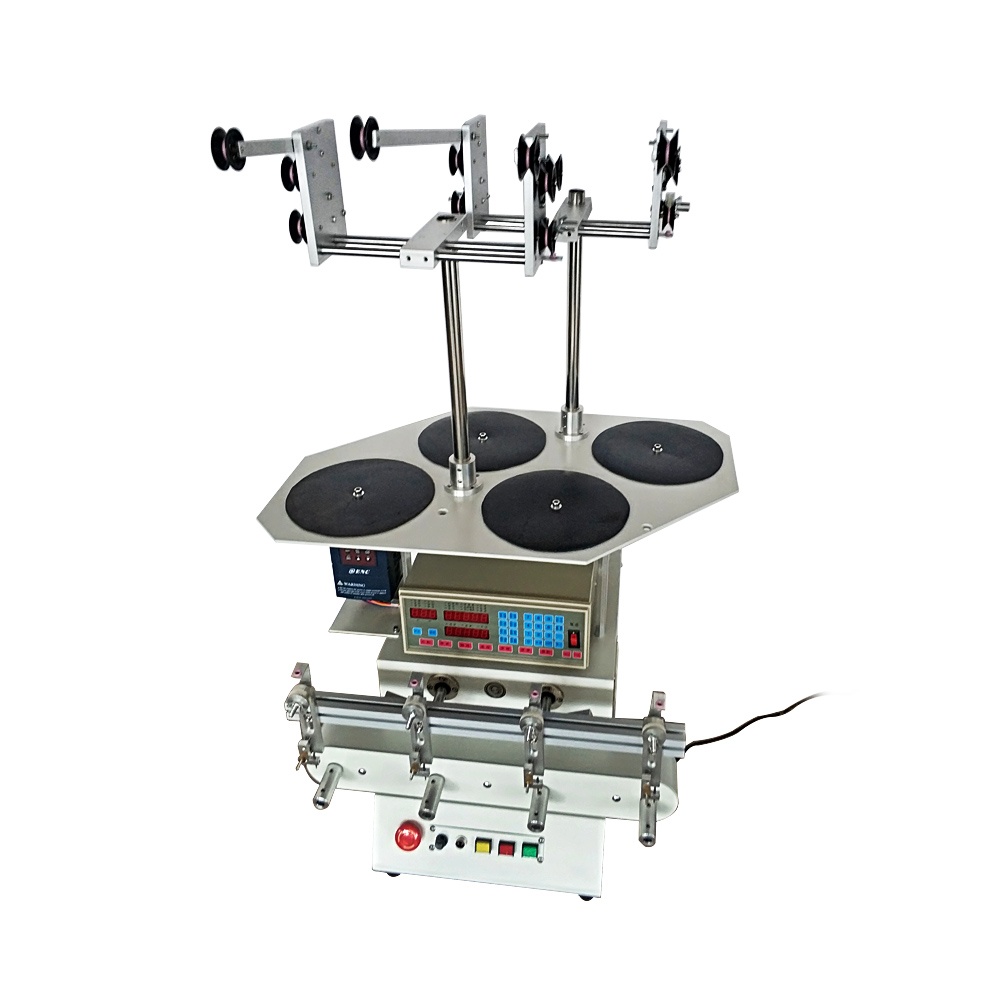

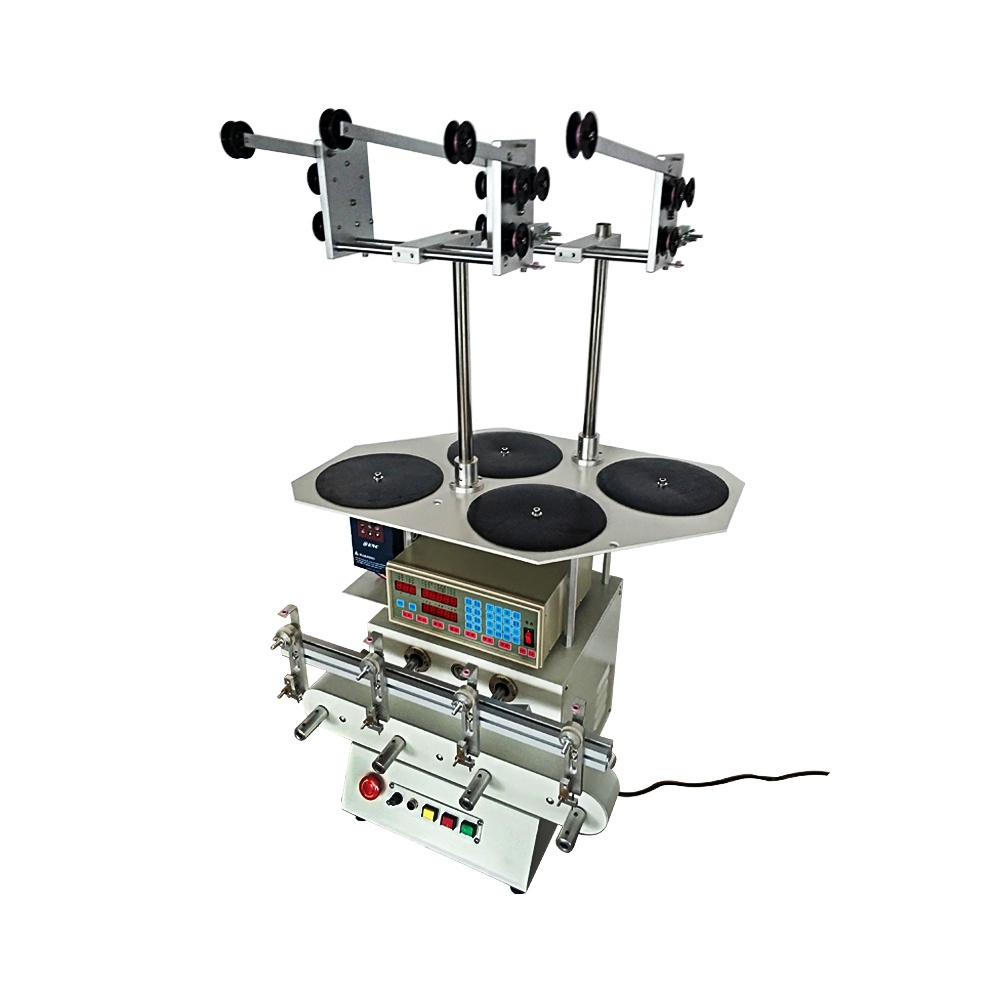

LY 840 High quality Automatic Coil Winder Winding Machine for 0.03-0.6mm wire 4 axis width 110mm screw diameter 100mm 220V/110V

LY 840 High quality Automatic Coil Winder Winding Machine for 0.03-0.6mm wire 4 axis width 110mm screw diameter 100mm 220V/110V

item ID: 63137
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$4000 USD$2647 (% off)
Payment

Product Detail

Product Tags

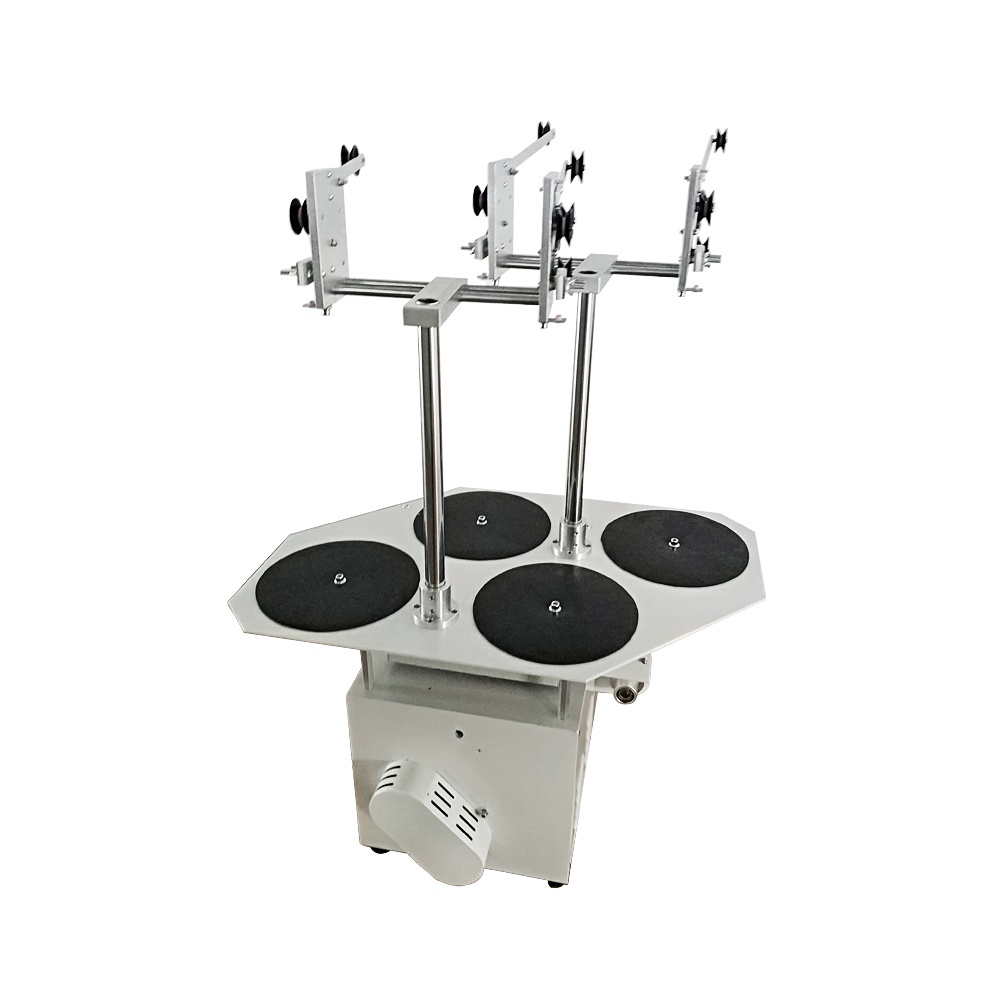

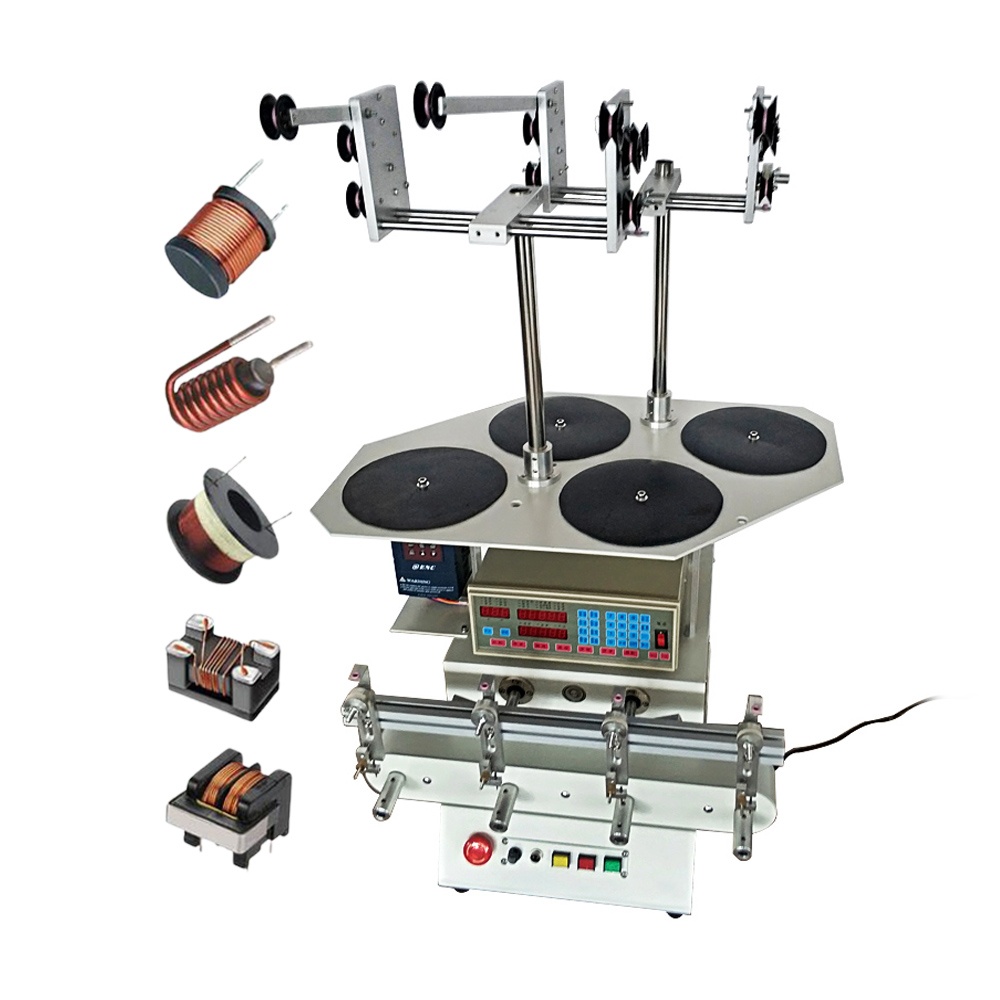

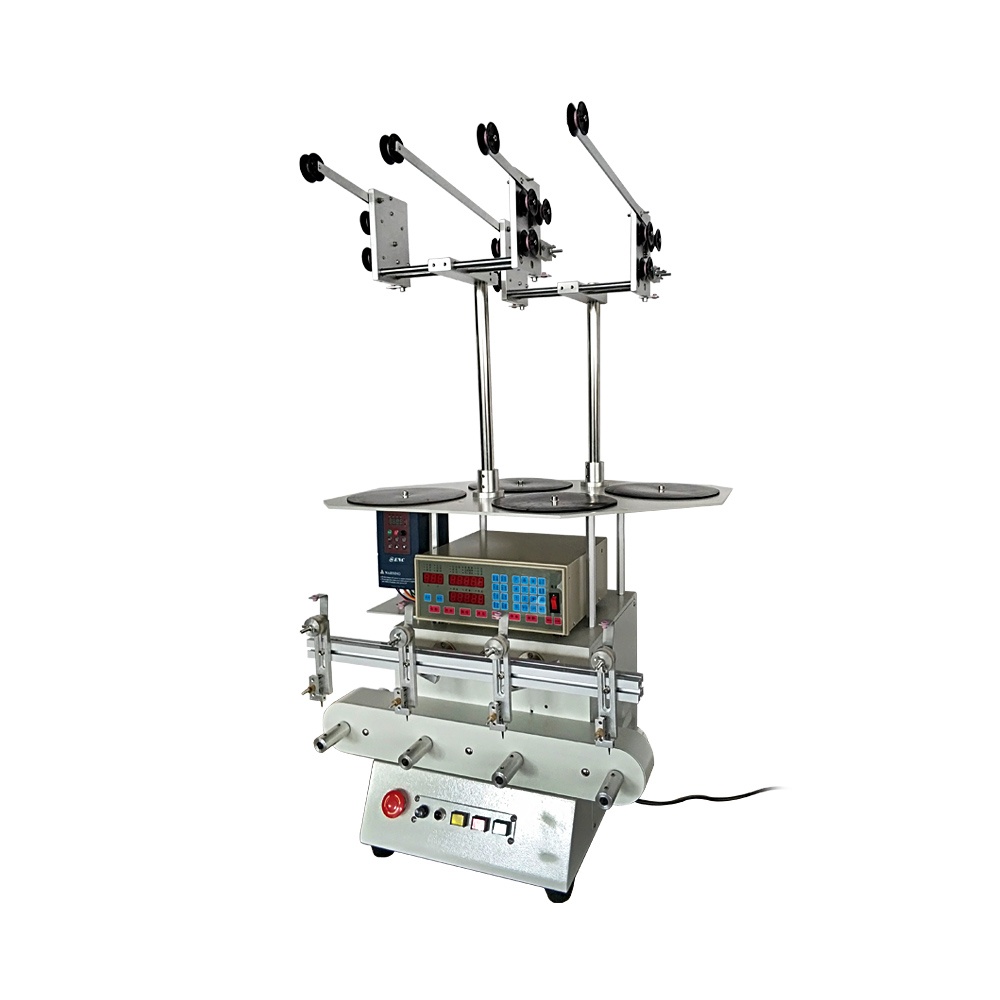

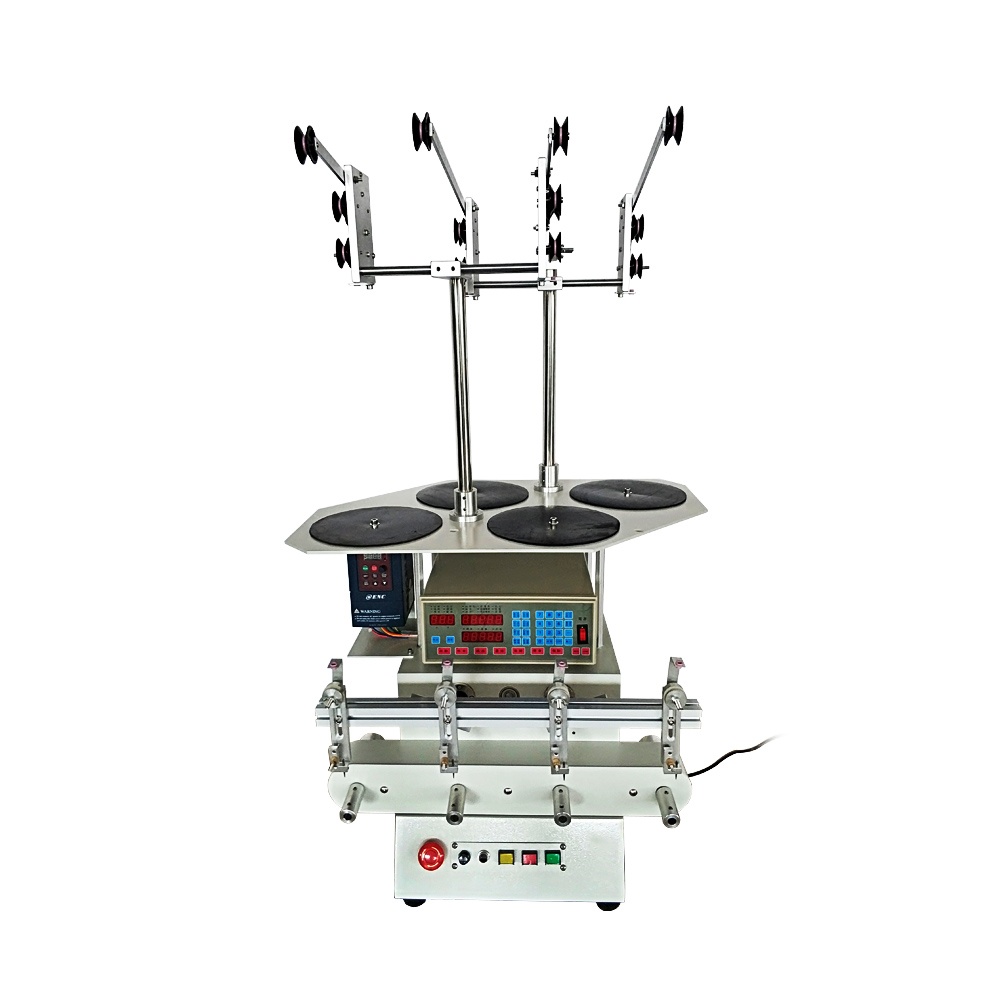

LY 840 High quality Automatic Coil Winder Winding Machine for 0.03-0.6mm wire 4 axis width 110mm screw diameter 100mm 220V/110V

Notice : when the parcel arrived to your customs  ,please pay the

            tax and pick up the parcel  ,we are not responsible for

            any customs duty or import tax

              if your place is remote ,then need to pay 35usd .

Feature

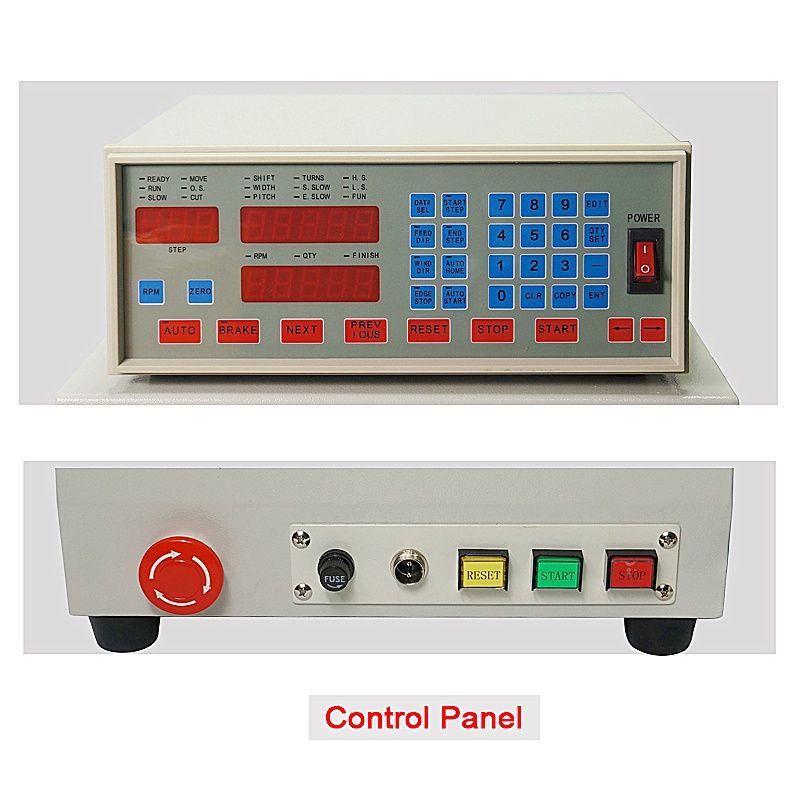

1.This series of automatic filament winder computer controller adopts the latest synchronous winding , it is with high precision and there will be no obstacles appear when in excessive speed winding displacement process .
2.Super elevated wisdom model , it has self-inspecting functions, including the errors of the equipments ,excessive speed tracking and the calibration of the speed.
3.Has vernier caliper functions and can measure the winding width and starting point easily.
4.The speed of the cop motor can be changed at random when in operation , and the strand oscillator  also can synchronize with it.
5.After the startup of the cop motor , the time of speed growing can be changed at random depend on the type of the machines.
6.Obtain winding excessive speed detecting function , and it can reduce the winding speed automatically to the most steady state.
7.Can settle data: starting point, wire gage, winding displacement width, circles, speed of starting the winding , stopping slow-speed, winding speed, slow lathe speed , winding displacement direction , winding direction , two-terminal stopping , automatic reset, automatic start (job-hopping winding)

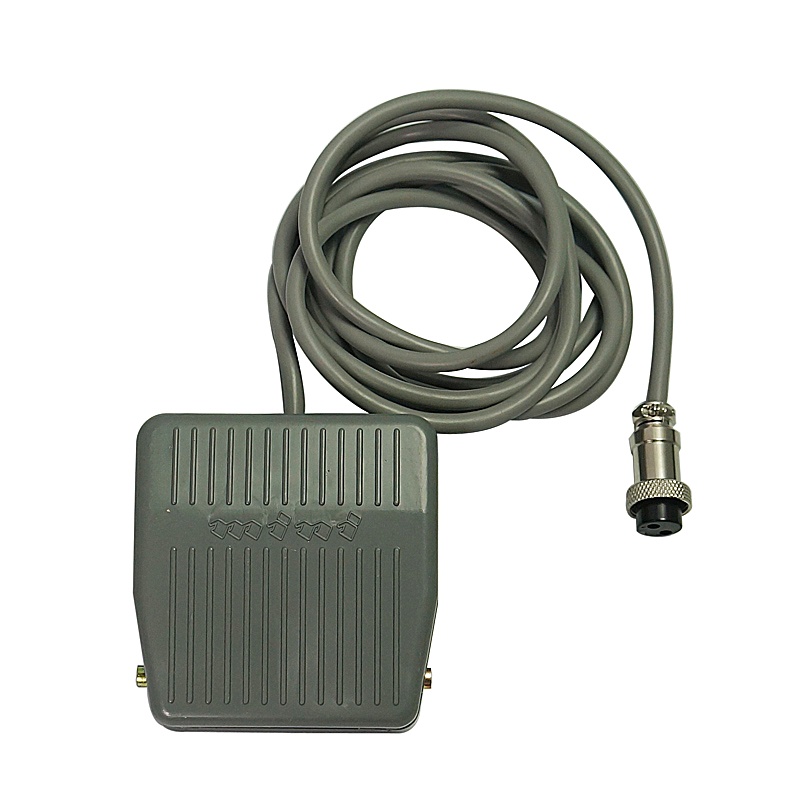

8.Foot-switch connection for better efficiency.



9.Winding parameters and options can be set independently for each step.
10.Memory capacity accommodates 999 steps of parameters with off-power memory retention.





Specification

Brand LY
Model 840
Spindle Motor Frequency conversion motor
Spreading Motor Stepper motor
Numbers of cop 4 axis
Windable wire size 0.03-0.60mm
Wire distance 0-9.999mm
Winding diametre 1-100mm
Spread range 0-110mm
Power 220V/110V(Optional)
Motor power 750W
Maximum turning speed of cop 6000circles/minute,speed adjust function
Storable winding groups 999 groups
Counting resolution 0.1 circle
Wooden box size 800*650*680mm
Gross weight 80KG
