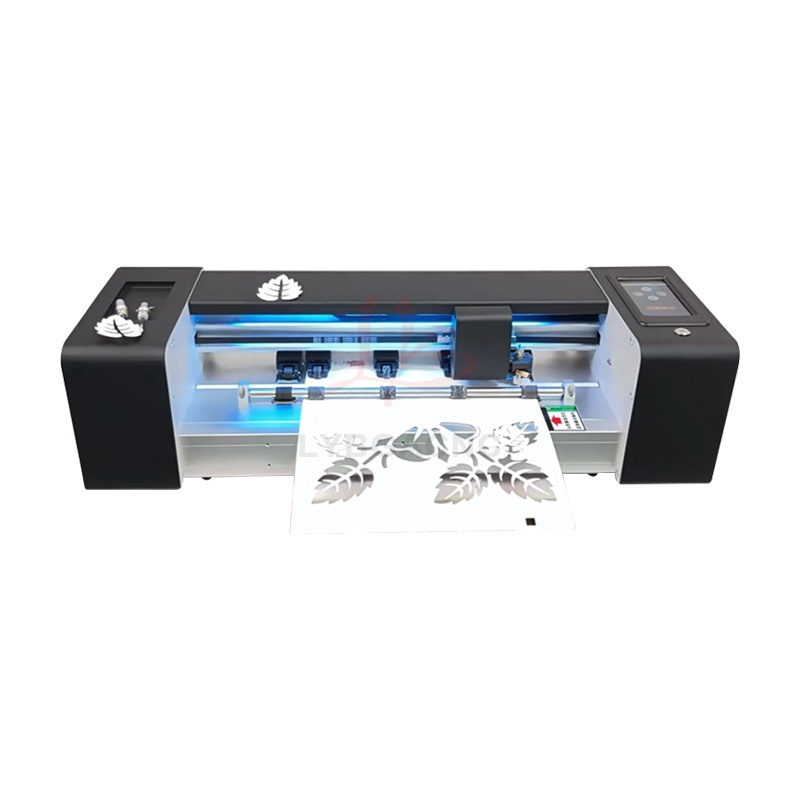

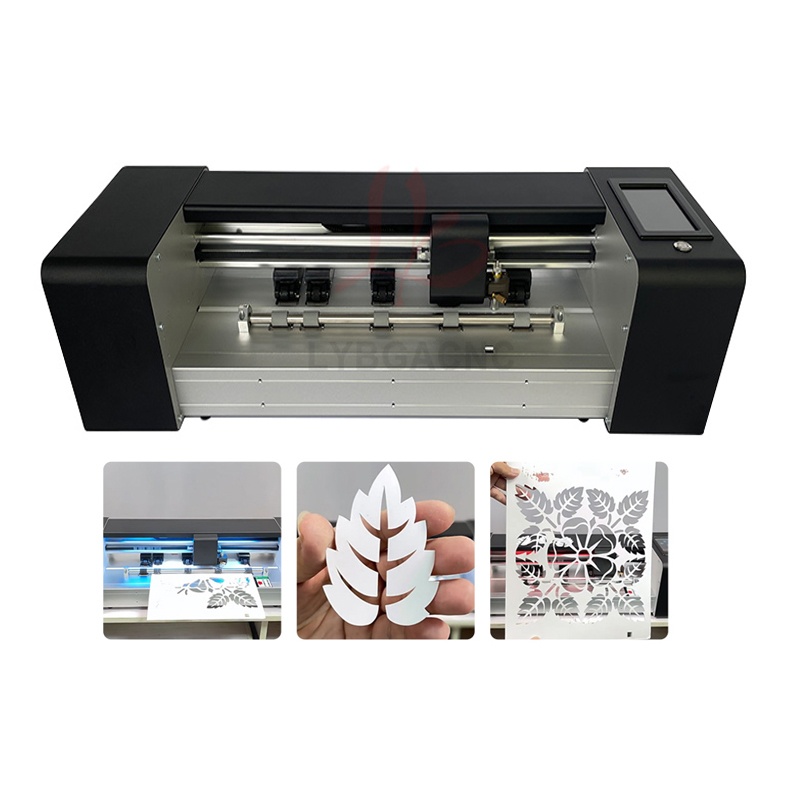

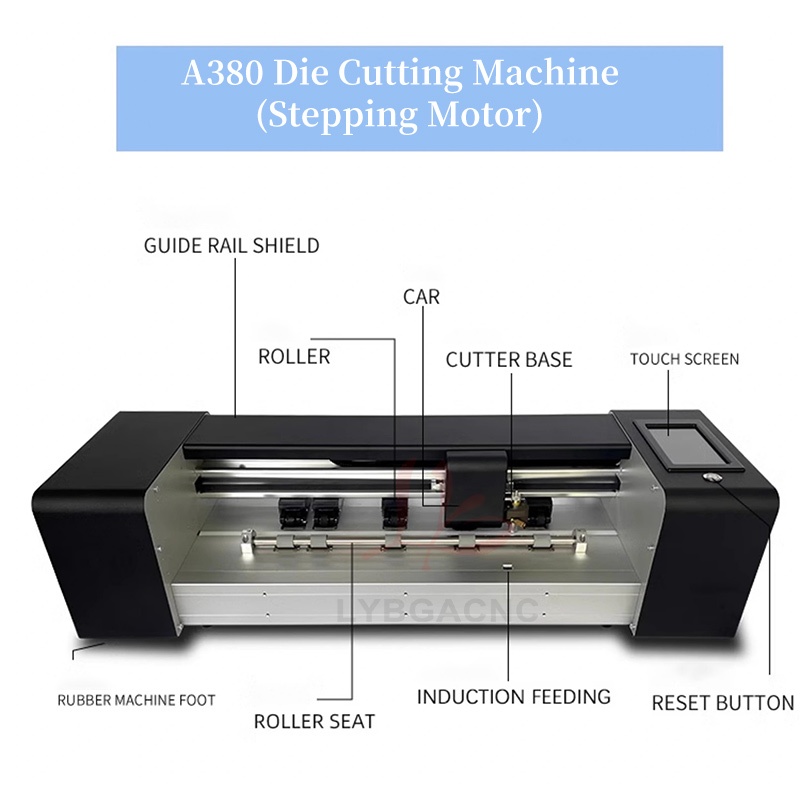

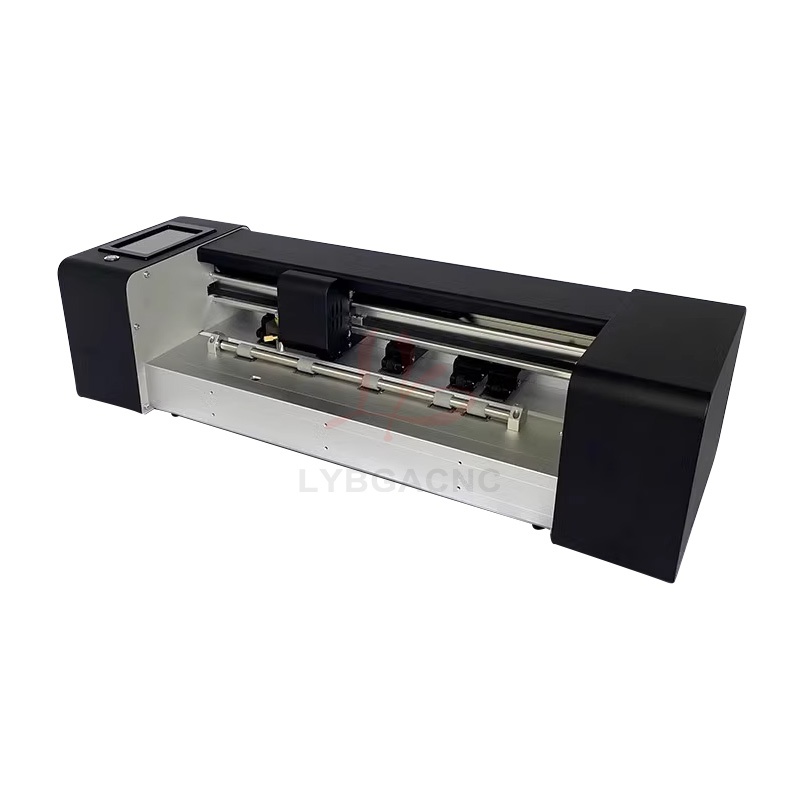

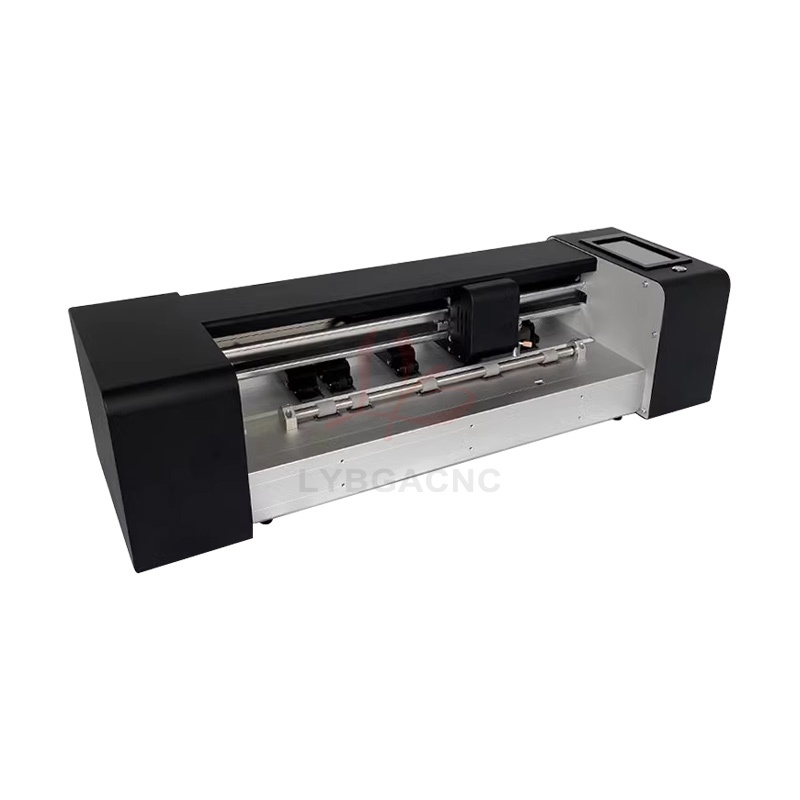

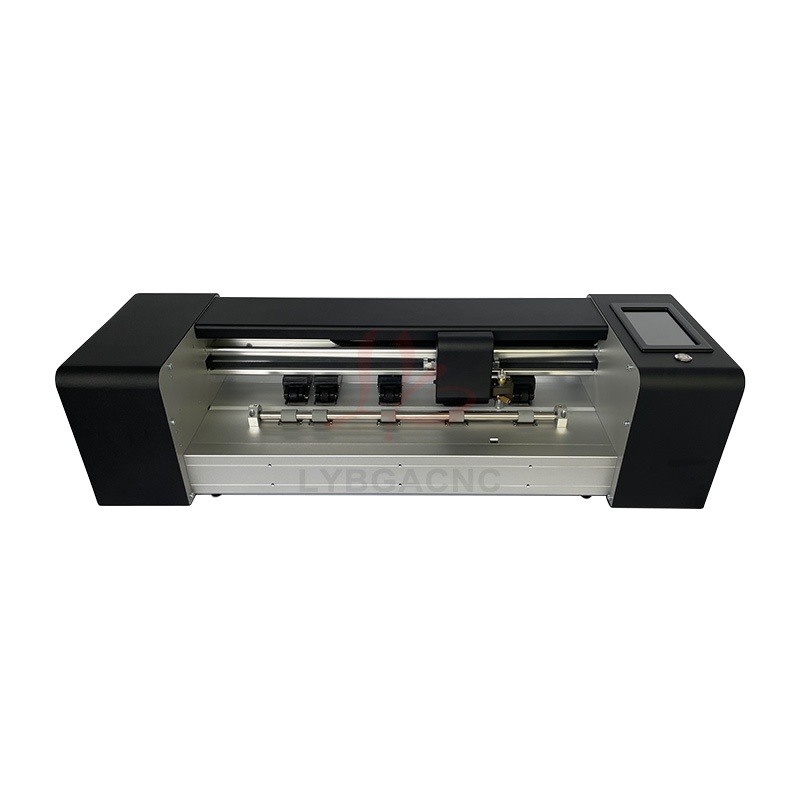

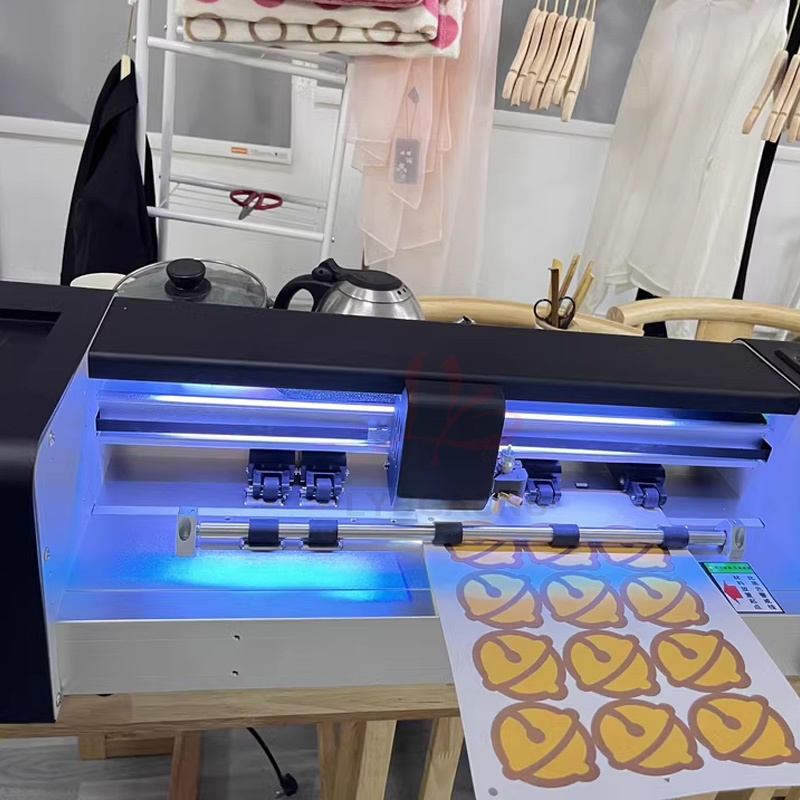

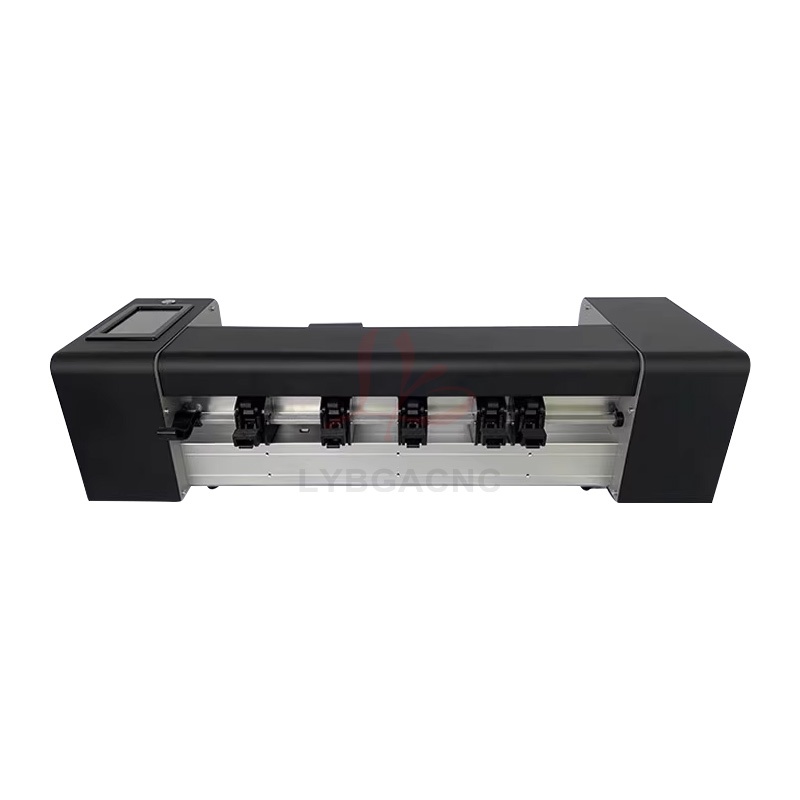

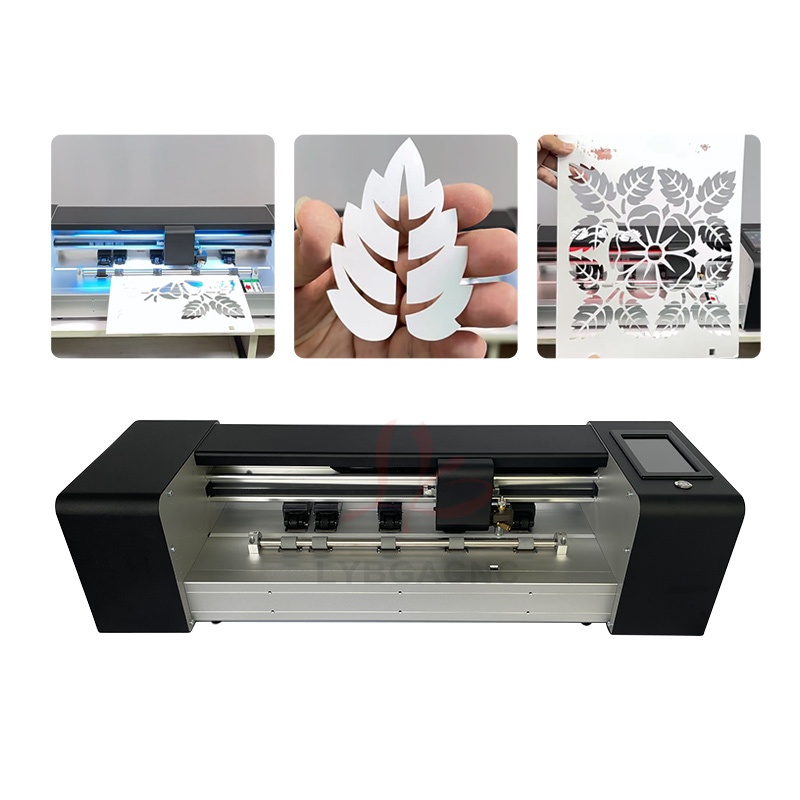

LY A380 Small Automatic Die-cutter Lettering Machine with Induction Feeding Half and Full-cut Functions Single-knife Head Cuts Cardboard Self-adhesive Labels Heat-shrinkable Sheets

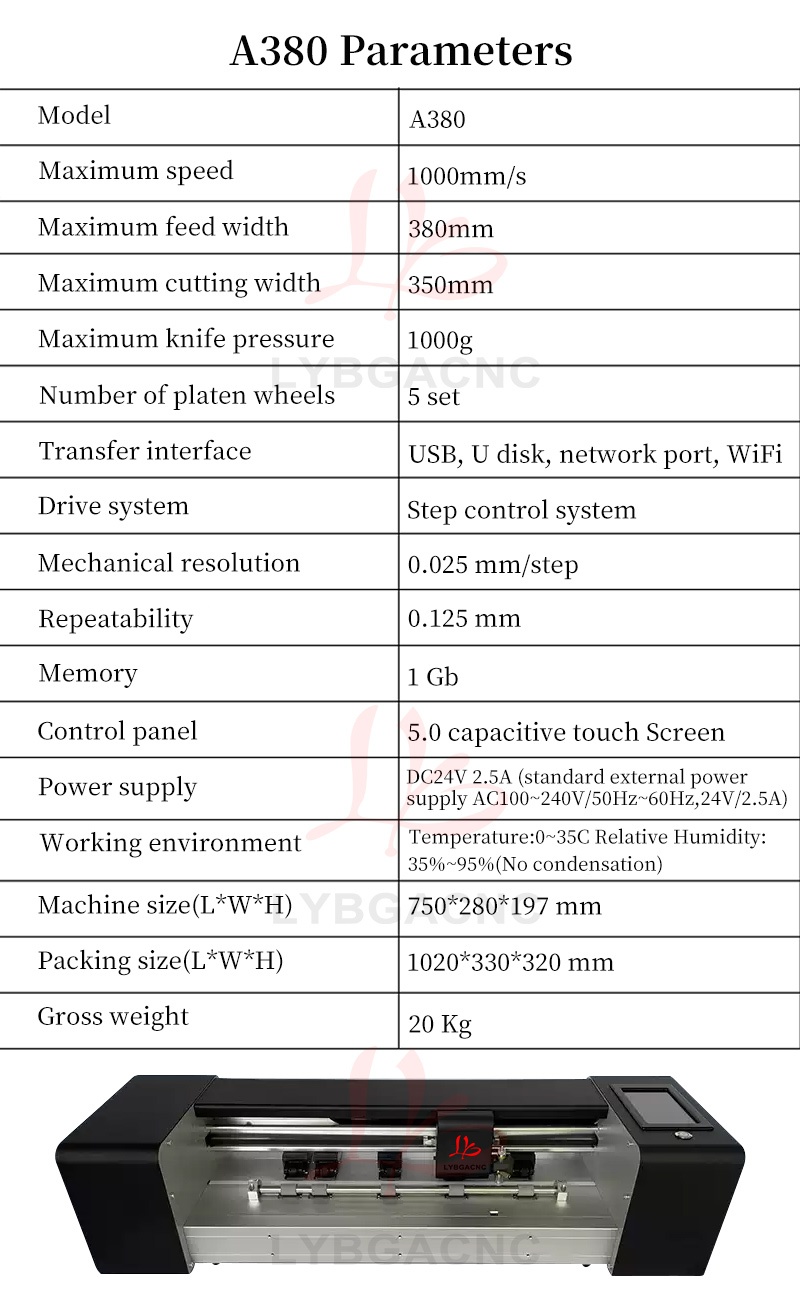

A380 Parameters

Model   A380

Maximum speed       1000mm/s

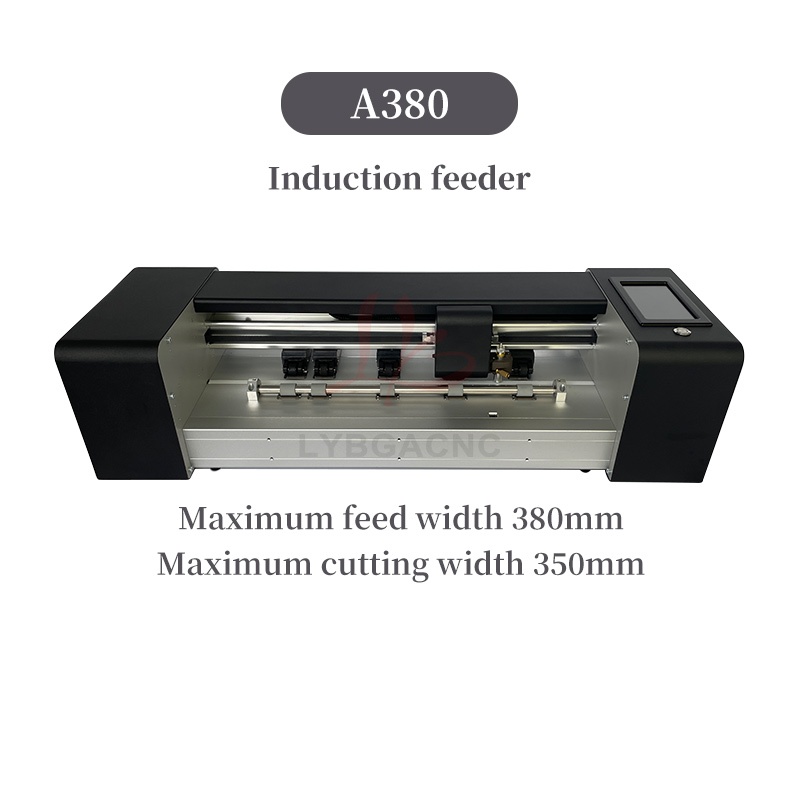

Maximum feed width        380mm

Maximum cutting width         350mm

Maximum knife pressure         1000g

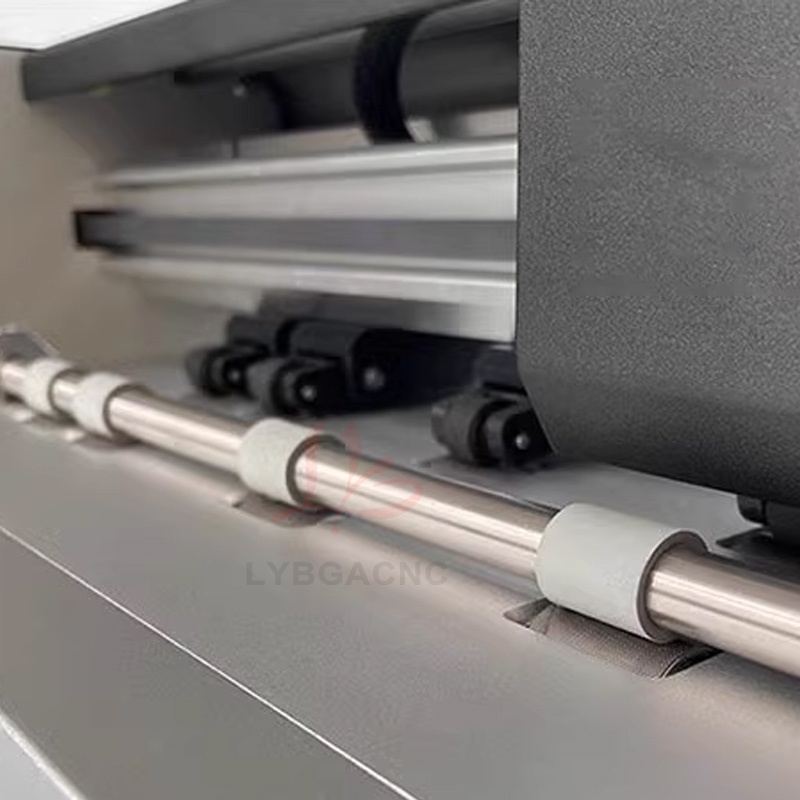

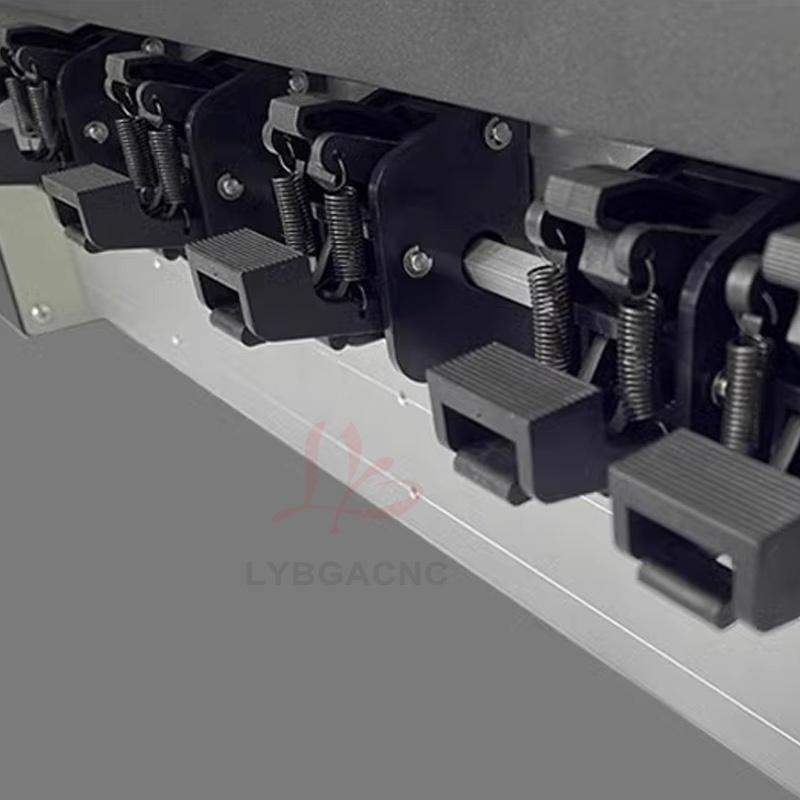

Number of platen wheels         5set

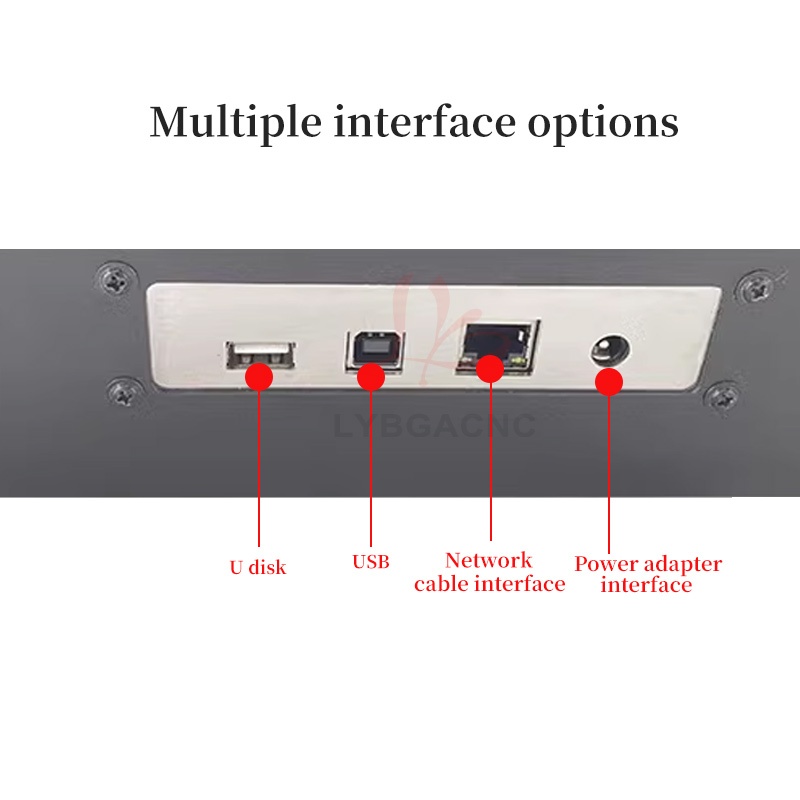

Transfer interface          USB, U disk, network port, WiFi

Drive system            Step control system

Mechanical resolution              0.025 mm/step

Repeatability                     0.125 mm

Memory            1Gb

Control panel     5.0 capacitive touch Screen

Power supply    DC24V 2.5A (standard external power

Supply AC100~240V/50Hz-60Hz,24V/2.5A)

Working environment  Temperature: 0to35°CRelative Humidity::

35%~95%(No condensation)

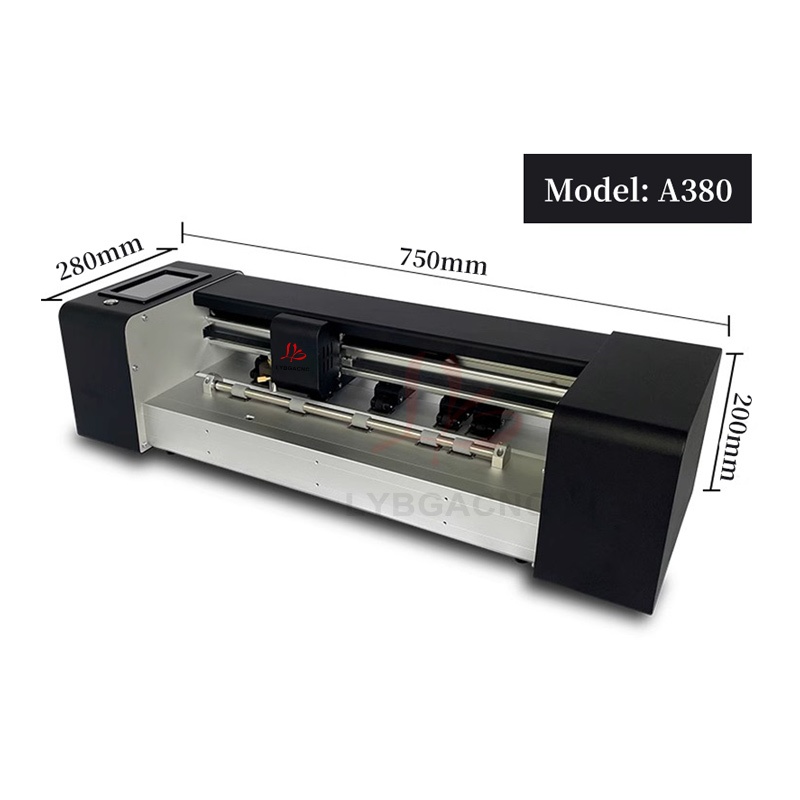

Machine size(L*W*H)         750*280*197 mm

Packing size(L*W*H)           1020*330*320 mm

Gross weight              20 Kg
